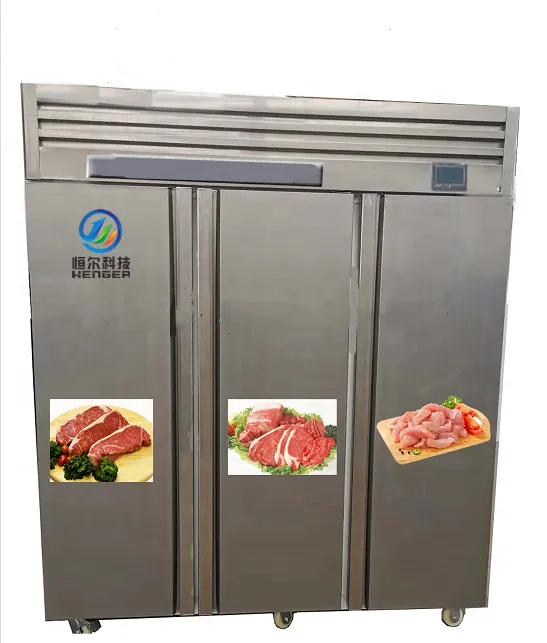

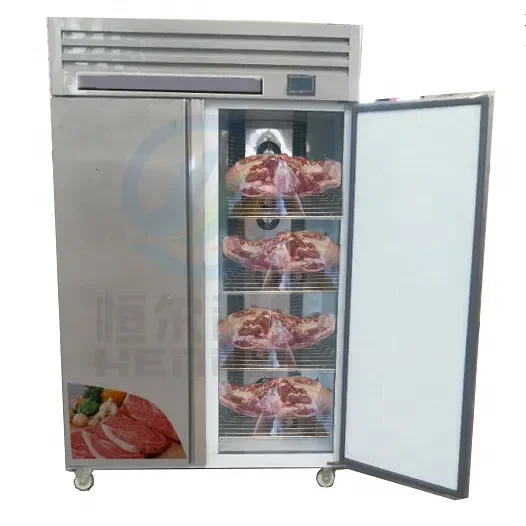

The thawing equipment listed here carries 380V, 17kw, documented exactly as the manufacturer publishes it. Made by Henger Manufacturing(Shandong)Machinery Technology Co., Ltd. (7 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Thawing Equipment
- Power(W): 17kw
- Voltage: 380V
- Production Capacity: 1000kg/batch
- Thawing Capacity: 100kg/200kg /300kg /5ton
- Material: 304 Stianless Steel
- Warranty: 1 Year
Technical Specifications
| Type | Shawarma |
|---|---|
| Automatic Grade | Automatic |
| Machinery Test Report | Provided |
| Core Components | Bearing, Pump, PLC, Pressure Vessel, Engine |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | High Rigidity |
| Place Of Origin | Shandong, China |
| Weight | 500 KG |
| Application | Meat Processing |
| Production Capacity | 1000kg/batch |
| Brand Name | henger |
| Voltage | 380V |
| Power(W) | 17kw |
| Dimension(L*W*H) | 1500*700*1690mm |
| Product Name | Industrial Frozen Meat Thawing Machine For Meat Processing Plant |
| Function | Thawing Evenly |
| Thawing Theory | low temperature high humidity |
| Material | 304 Stianless Steel |
| Keywords | meat thawing machine |
| Feature | Microcomputer operation |
| Usage | Automatic Meat Processing |
| Advantage | Easy Operation High Efficiency |
| Thawing Capacity | 100kg/200kg /300kg /5ton |
| After-Sales Service Provided | Onlilne Support |
| Selling Units | Single item |
Product Details
Product Description
Industrial Meat Product Making Machine Frozen Meat Thawing Device

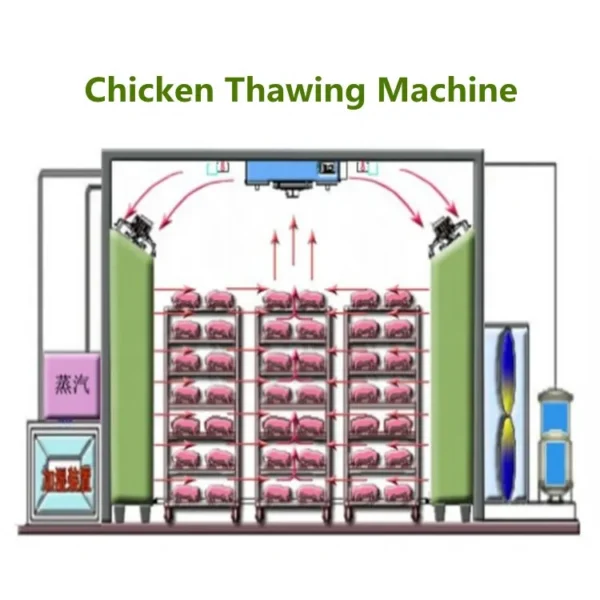

Working Theory
Generally speaking, the working principle is utilizing low-temperature high-humidity clean air blowing the surface of frozen food evenly to make them thawed. The temperature, humidity of unfreezing air and unfreezing time determine the quality of thawed
food.To minimum the unfreezing time, prevent juice loss and weight loss in a large scale, decrease the difference between foods’ surface temperature and center temperature, we adopted 3 different stages to thaw and cool preserve. The temperature of first stage is +15°C, and the temperature of second stage is +5°C, while the third stage is for cool preservation and its temperature is -3°C.
food.To minimum the unfreezing time, prevent juice loss and weight loss in a large scale, decrease the difference between foods’ surface temperature and center temperature, we adopted 3 different stages to thaw and cool preserve. The temperature of first stage is +15°C, and the temperature of second stage is +5°C, while the third stage is for cool preservation and its temperature is -3°C.
Main features
High Thawing Quality
In the thawing process, the center and the surface temperature difference of the frozen products are kept in the minimum range,and the scientific and reasonable air distribution device is adopted to ensure the thawing of the frozen products from the center to the surface, so as to keep the freshness of the food.
Low Weight Loss Rate
The frozen thaw process is always in low temperature and high humidity environment, little food thawing the cell sap of such loss, maintain the color of the original flavor of food, reduce the loss of nutrients, reduce the weight loss rate, reduce the loss for food enterprises, to win the profits.
Easy Operation, Strong Applicability
The use of touch screen operation, PLC full automatic microcomputer control, according to different frozen products, set up different thawing procedures, the user according to thaw products, select the appropriate thawing procedures can be available.
In the thawing process, the center and the surface temperature difference of the frozen products are kept in the minimum range,and the scientific and reasonable air distribution device is adopted to ensure the thawing of the frozen products from the center to the surface, so as to keep the freshness of the food.
Low Weight Loss Rate
The frozen thaw process is always in low temperature and high humidity environment, little food thawing the cell sap of such loss, maintain the color of the original flavor of food, reduce the loss of nutrients, reduce the weight loss rate, reduce the loss for food enterprises, to win the profits.
Easy Operation, Strong Applicability
The use of touch screen operation, PLC full automatic microcomputer control, according to different frozen products, set up different thawing procedures, the user according to thaw products, select the appropriate thawing procedures can be available.
Specification

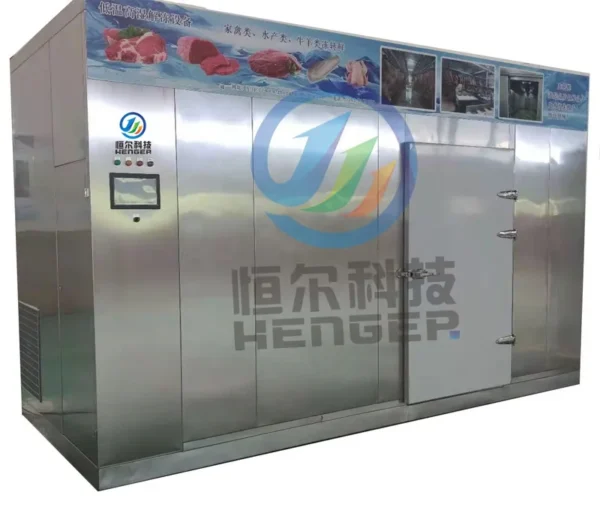

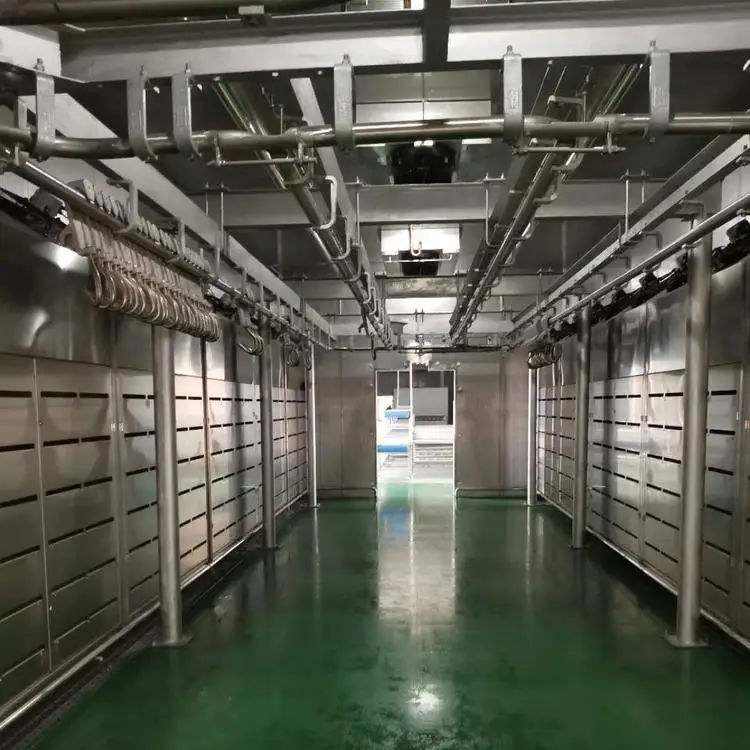

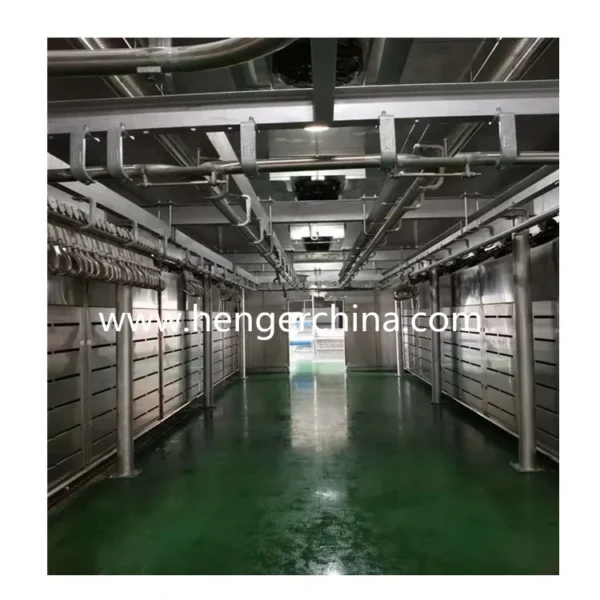

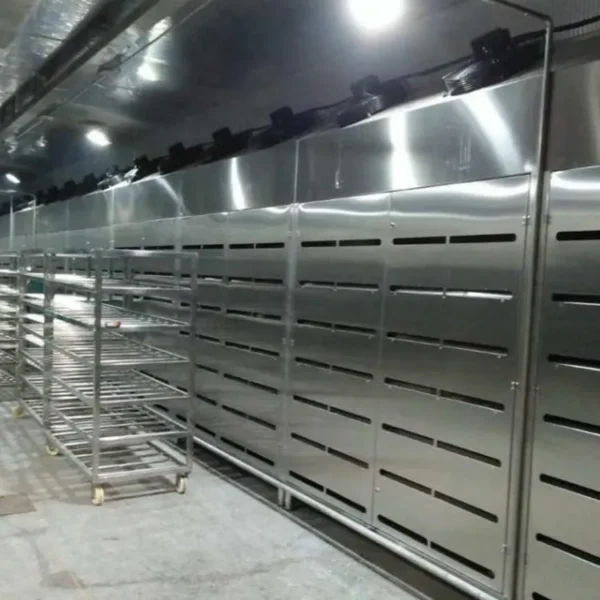

Hanging Defrosting model Trolley Defrosting model
Please Contact Jenny for Your Project
Thawing capacity | Machine Size(m) | Trolleys QTY(PCS) | Insulation Material | Refrigeration Power | ||||
Standard Meat Blocks | ||||||||
1 ton | 2.1*3*3.2 | 2 | 3.4 kw | |||||
6 ton | 6.5*3.7*3.2 | 12 | 9.5 kw | |||||
15 ton | 8.5*6.5*3.2 | 30 | 24 kw | |||||
Quarter carcass | ||||||||
1 ton | 4*3.2*3.6 | 5 kw | ||||||
6 ton | 9*4.85*3.6 | 17 kw | ||||||
15 ton | 15*6.9*3.6 | 38 kw | ||||||
Advantages :
▶Thawing Process can be phased controlled
▶Maintain the original color and elasticity of the product.
▶Low water loss rate,the minimum protein loss.
▶Product defrosting quickly and evenly,low energy consumption.
▶Controllable low temperature ,inhibit microbial growth.
▶High efficiency unit area using.
▶Can be used as fresh cold storage facilities.

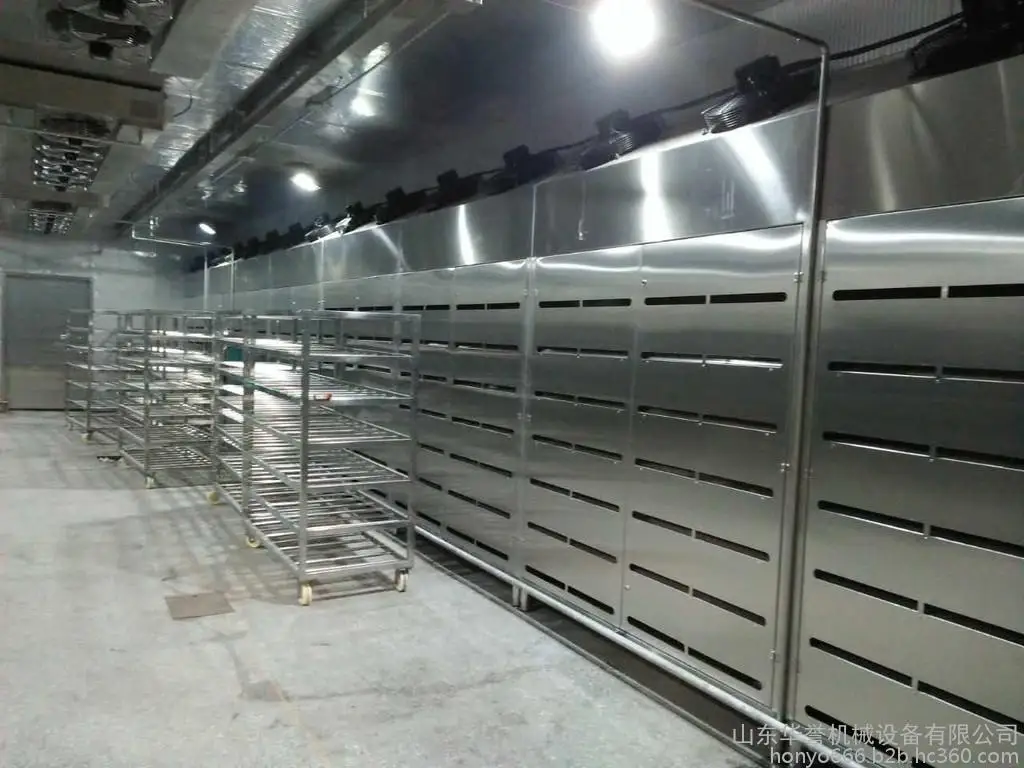

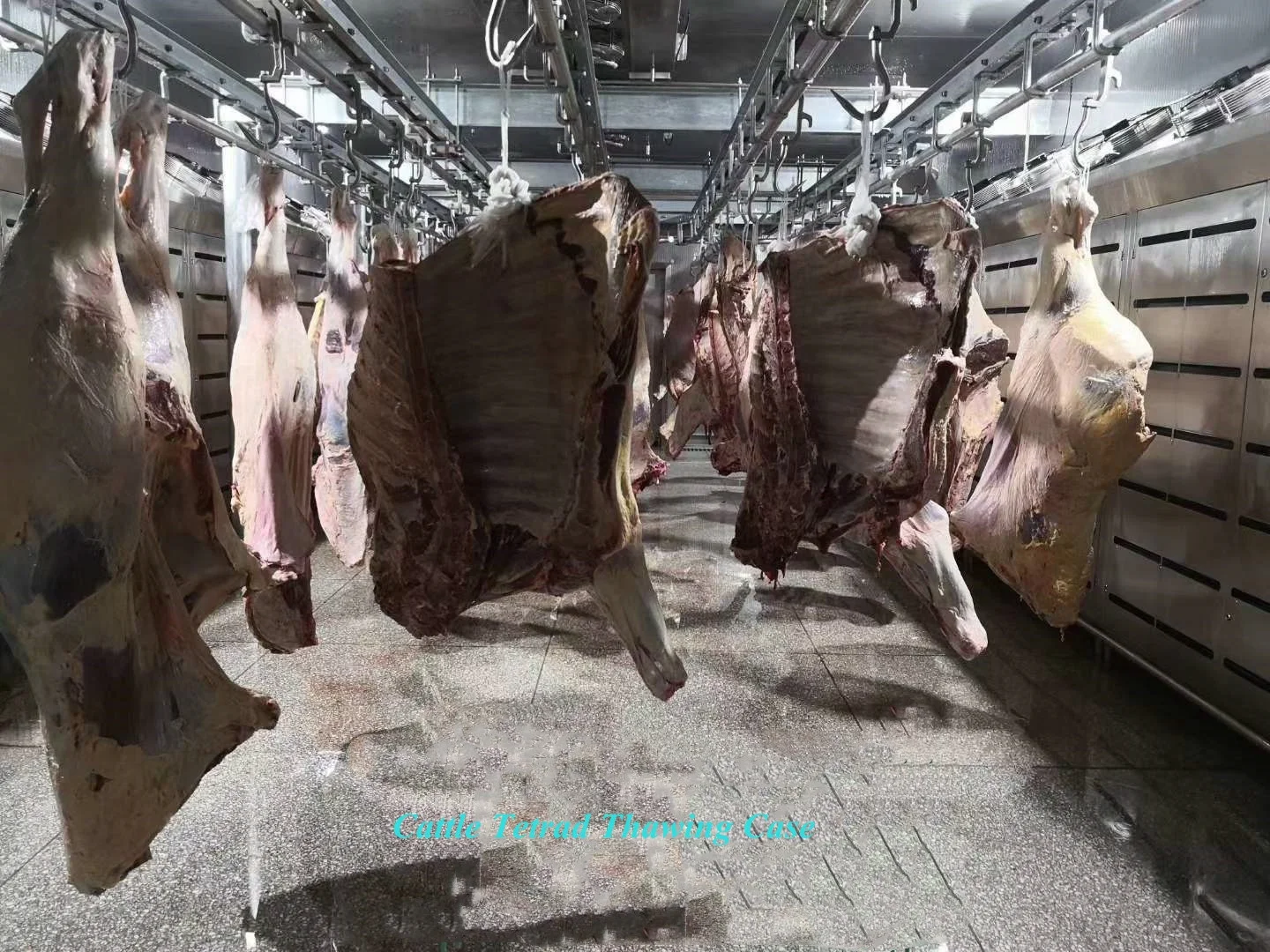

Project Case

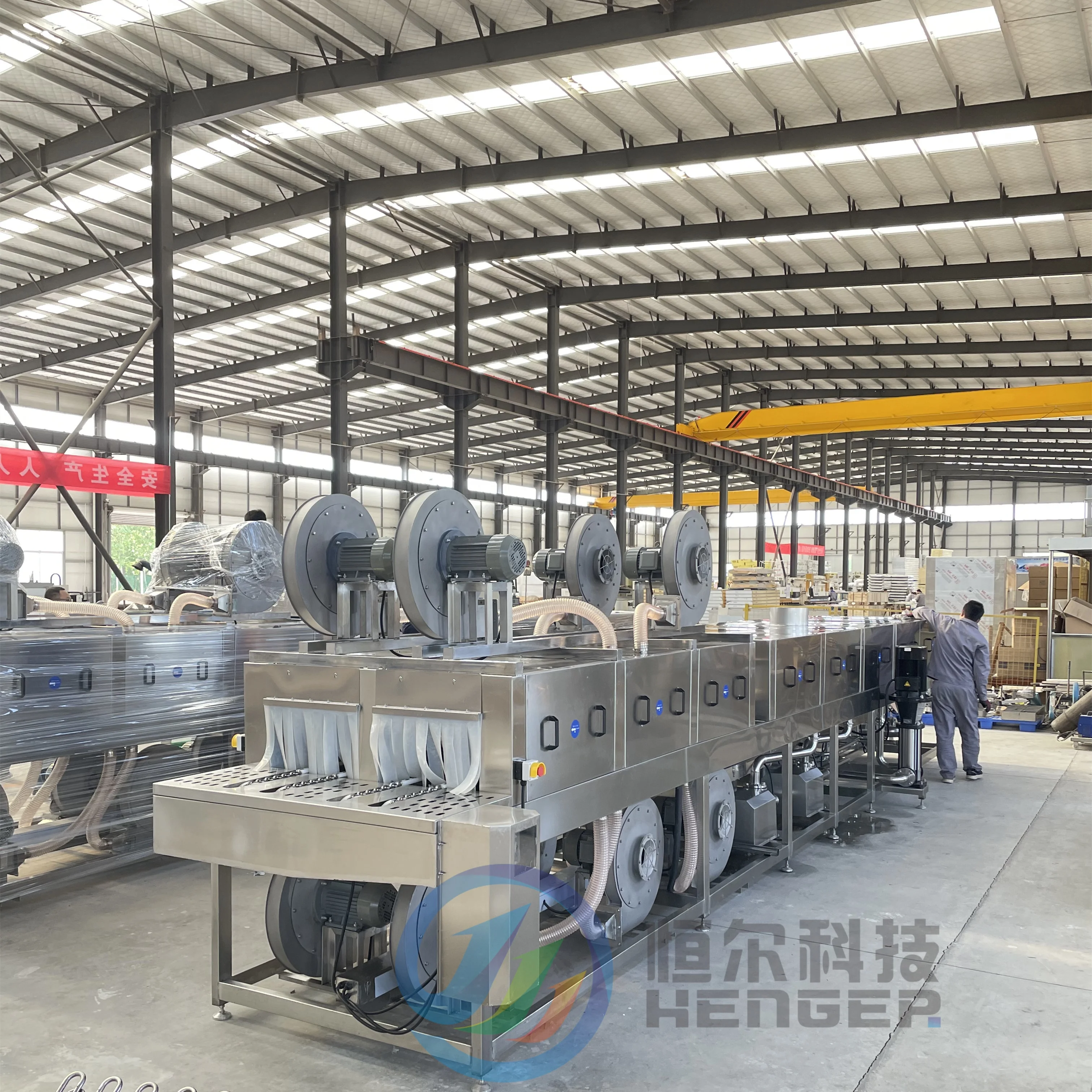

Related Equipment

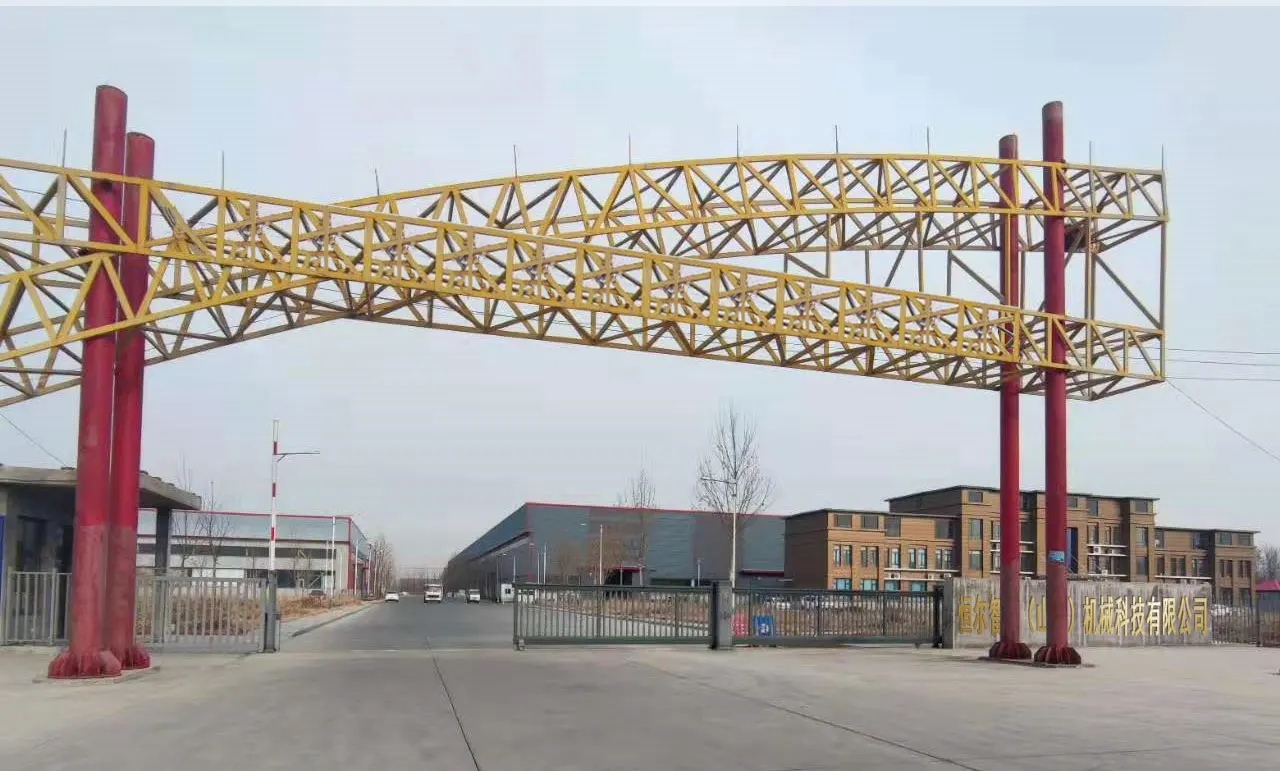

Company Introduction
Henger Manufacturing (Shandong) Machinery Technology Co., Ltd, Located In Binzhou City, Is a Modern, Professional Manufacturer And Exporter. We Mainly Major In Cold Room Facilities And Food Processing Equipment. All Of Our Products Comply With International Quality Standards.Our Well-Equipped Facilities And Excellent Quality Control Throughout All Stages Of Production Can Guarantee The Total Satisfaction Of The Customers. As Result Of High Quality Products And Oversea Customer Service With a Strong Engineers And Technician Team, We Have Gained a Global Sales Network Reaching,America,Cambodia,
Singapore, Malaysia, Indonesia, Tanzania,Singapore, Malaysia, Indonesia, Tanzania Vietnam, Russia, Uk, Sudan And 40 Other Countries. Welcome All Of You To Have a Visit Here In Our Company And Hope We Could Build a Long Time Business Relationship And Friendship.
FAQ
1, Are you manufacturer?
Yes, we are professional manufacturer of meat processing machinery/ workshop cleaning equipment with 15 years’ experience. Welcome to visit our factory
2,What about the price?
We only offer the reasonable price instead of high price. Excellent quality and price are proportional to each other.
3,Will you provide a design plan for free?
3,Will you provide a design plan for free?
Yes,we will provide free design plan, CAD drawings, detailed introduction of the entire equipment layout.The engineer will design a suitable for you according to your requirements.
4,How can you guarantee your product quality?
From raw material purchase to production,Henger company has strict restriction.And we will provide 1 year warranty time for all the products .ISO 9001 and CE certification can be provided. 5, What about the installation and commissioning?
We have a professional technical team to assist you, and we will provide full video guidance for areas that cannot be dispatched.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–4 set: US $9800 / set
- 5–9 set: US $5000 / set
- 10+ set: US $4800 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this thawing equipment?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the thawing equipment be supplied for my local voltage?
The standard configuration is 380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
