Thermal horizontal fire tube — material Q345R steel plate, type Natural Circulation. The complete factory specification follows. Made by Henan Zhongtai Boiler Co., Ltd. (2 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Thermal Horizontal Fire Tube
- Material: Q345R steel plate
- Warranty: 2 Years
- Place Of Origin: Henan, China
- Application Field: Textile, Garment, Food & Beverage, Chemical & Oil, Washing, Paper
- Type: Natural Circulation
- Marketing Type: Hot Product
Technical Specifications
| Output | Steam |
|---|---|
| Usage | Industrial |
| Fuel | Gas |
| Pressure | Low Pressure |
| Structure | Fire Tube |
| Type | Natural Circulation |
| Material | Q345R steel plate |
| Core Components | boiler body |
| Key Selling Points | Long Service Life, Low Maintenance Cost, Energy Saving, Easy To Operate |
| Style | Horizontal |
| Warranty | 2 Years |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Weight (Kg) | 1000 |
| Place Of Origin | Henan, China |
| Brand Name | ZHONGTAI |
| Dimension(L*W*H) | Customized |
| Product Name | Hot Blast Furnace |
| Color | customized |
| Control System | Automatic Control System |
| Applicable Fuels | light diesel, methanol,natural gas, liquefied gas, etc |
| Marketing Type | Hot Product |
| Heating Device | Starting and heating fast, saving energy |
| Application Field | Textile, Garment, Food & Beverage, Chemical & Oil, Washing, Paper |
| Design Advantage | 100% corrugated furnace,100% water enveloped fire overall design |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Products Description
1.The original burner is used as the heating source,and the unique air-gas mixture design makes the use efficiency of natural gas close to 99%;
2.The combustion of gas is clean and clean to ensure the safety of dry food;
3.Direct combustion of natural gas,direct heating of air by flame,direct introduction of fan,accurate temperature control;
4.Fully automatic regulation,short heating time,after reaching the set temperature,it will automatically switch to low fire to maintain the working temperature and save energy consumption.
5.The required air outlet temperature can be set according to the air volume of the fan, which is easy to operate and maintain;
Real Environment
Product Paramenters

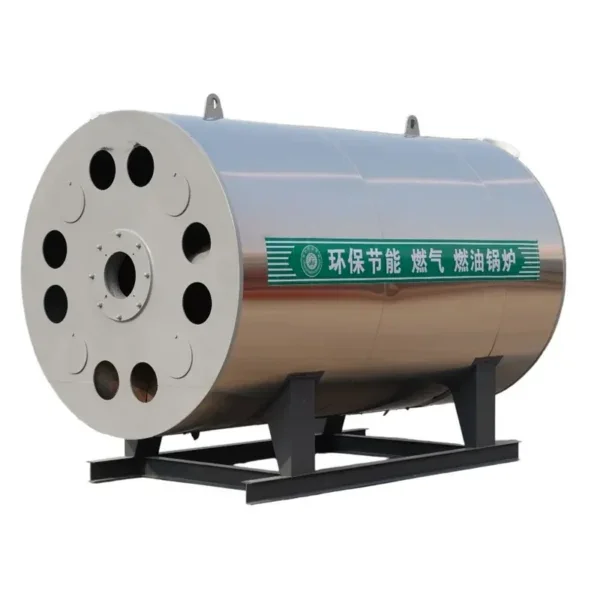

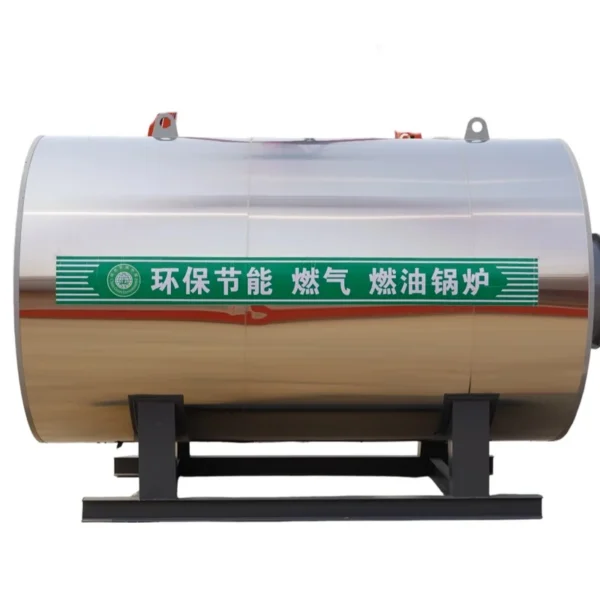

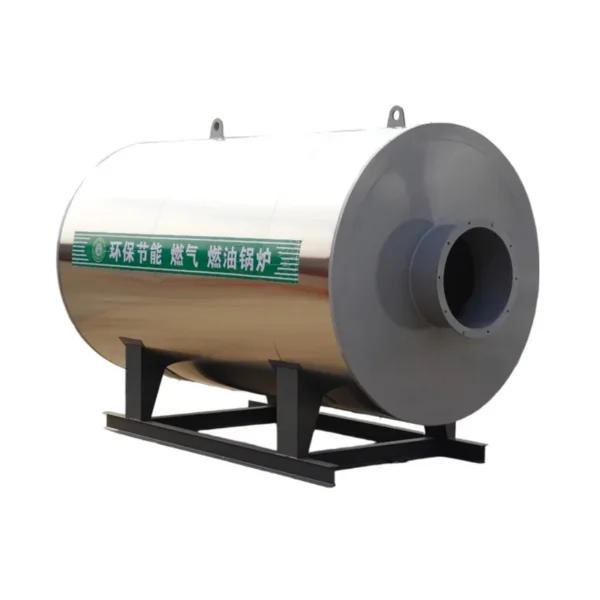

Technical parameters of ZRFQ horizontal fuel gas mixed air hot blast furnace
Item/model | ZRFQ-10-YQ | ZRFQ-30-YQ | ZRFQ-60-YQ | ZRFQ-100-YQ | ZRFQ-150-YQ | ZRFQ-20-YQ | ZRFQ-30-YQ | ZRFQ-600-YQ | |||||||||
Rated power (MW) | 0.12 | 0.35 | 0.7 | 1.2 | 1.7 | 2.4 | 3.5 | 7.2 | |||||||||
Applicable temperature (℃) | 100- 800 | 100- 800 | 100- 800 | 100- 800 | 100- 800 | 100- 800 | 100- 800 | 100- 800 | |||||||||
Thermal efficiency ( % ) | 98 | 98 | 98 | 98 | 98 | 98 | 98 | 98 | |||||||||
Fuel consumption | Natural gas (m³h) | 14 | 43 | 86 | 143 | 214 | 286 | 429 | 857 | ||||||||
Liquid gas (m³h) | 11 | 34 | 69 | 114 | 171 | 229 | 343 | 686 | |||||||||
City gas (m³h) | 30 | 90 | 180 | 300 | 450 | 600 | 900 | 1800 | |||||||||
Light diesel (Kg/h) | 12 | 35 | 71 | 118 | 176 | 235 | 353 | 706 | |||||||||
Heavy oil (Kg/h) | 12 | 36 | 72 | 120 | 180 | 240 | 360 | 720 | |||||||||
Transport reference weight (T) | 1.3 | 2 | 2.7 | 4 | 5.7 | 6.5 | 8.5 | 15 | |||||||||
Transport reference dimensio (MM) | Long | 2300 | 3100 | 3000 | 4000 | 4900 | 4900 | 5600 | 8000 | ||||||||
Wide | 900 | 1100 | 1300 | 1500 | 1800 | 2000 | 2100 | 2800 | |||||||||
High | 1200 | 1450 | 1700 | 1900 | 2200 | 2400 | 2500 | 3200 | |||||||||
Remarks: | All the above values are calculated based on the low level heating value of natural gas 8,400Kcal/Nm³,low level heating value of liquefied gas 10,500Kcal/Nm²,low level heating value of city gas 4,000kcal/Nm²,low level heating value of light oil 10,200Kcal/Kg, and low level heating value of heavy oil 10,000Kcal/Kg. The parameters are changed due to technical innovation, and the factory parameters are subject to the actual drawings! | ||||||||||||||||
Company Profile
Henan Zhongtai Boiler Co., Ltd.
Henan Zhongtai Boiler Co., Ltd. Founded in 2011 and headquartered in Taikang County Industrial Agglomeration Zone of Zhoukou City, Henan Province, Henan Zhongtai Boiler Co., Ltd. is a professional, full-cycle boiler equipment manufacturer integrating R&D, production, sales, installation and after-sales service.
Certified to the ISO9001 Quality Management System, we boast leading competitiveness in the industry. Our comprehensive product portfolio covers 8 major categories, 23 series and over 230 models, including oil & gas-fired boilers, biomass boilers, electric heating boilers, thermal oil boilers, circulating fluidized bed boilers, heat recovery boilers and steam generators. These products are widely applied in food processing, brewing, chemical, pharmaceutical, textile and building materials industries.
We provide full-process support covering product tracking, maintenance, troubleshooting as well as upgrade and transformation solutions to ensure seamless operation for our clients.
We are dedicated to delivering premium products and services to both new and existing customers, and sincerely welcome inquiries and business cooperation.
Product packaging
1. How to get a detailed and exact offer?
Please let us know your required steam capacity, working pressure or steam temperature, fuel type. Then our sales-engineer will send you the detailed and exact offer.
2. How long does it take to get the boiler ready?
Usually our company have new stocks, we can manage the shipping within 1-3days. But you please contact us salesman to confirm in advance.
3. Can you assist us to do the installation and operation training?
Yes, our company will provide the drawings and operation manual. Also our engineer can provide the technical supports online.
4.Delivery time?
We have brand new inventory products, usually shipped within 1-3 days. Please contact the sales engineer to confirm the specific time.
5.Service life?
The design lifespan of the boiler is 16-26 years.
6.Does it support factory inspection?
Welcome to visit the factory at any time!
7.Warranty policy?
2-year warranty, lifetime maintenance of the host (not include damages caused by human factors）
Recommend Products
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–1 set: US $12999 / set
- 2+ set: US $5888 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this thermal horizontal fire tube?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
