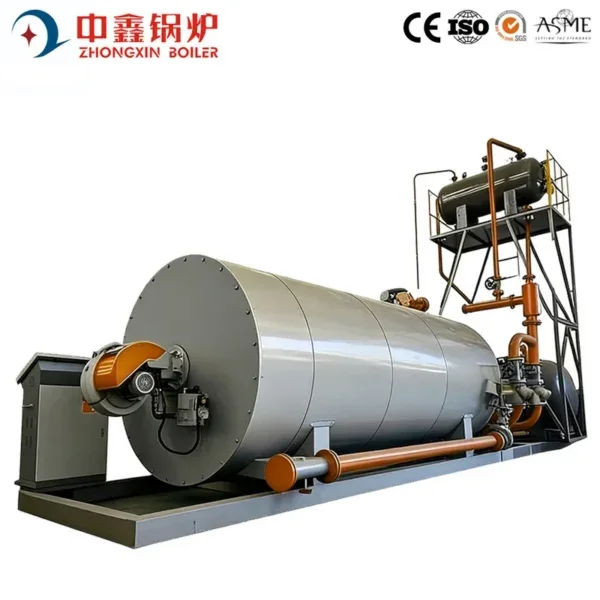

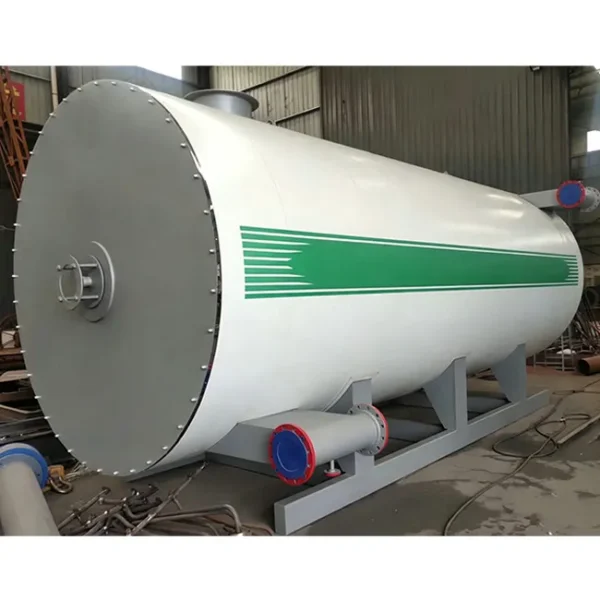

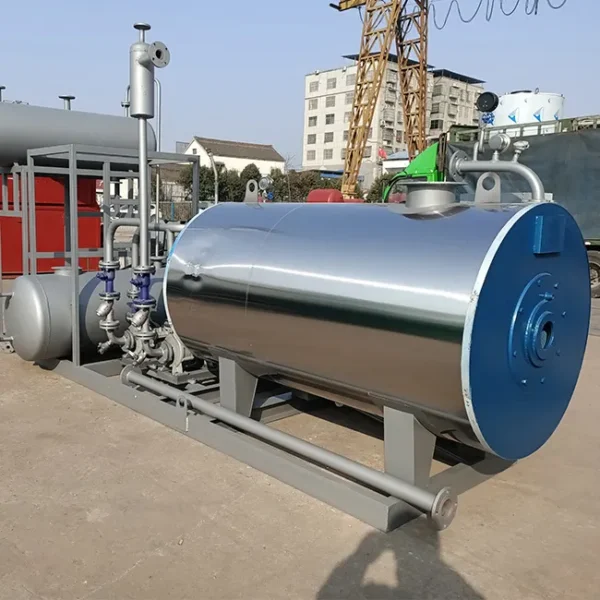

Thermal oil boiler — heating capacity 120 to 2000000Kcal per hour, material Stainless Steel. The complete factory specification follows. Made by Taikang Zhongxin Boiler Co., Ltd. (1 year on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Thermal Oil Boiler
- Heating Capacity (Kcal): 120 to 2000000Kcal per hour
- Heating Capacity (Kw): 120-7000kw
- Material: Stainless Steel
- Warranty: 1 Year
- Place Of Origin: Henan, China
- Application: High-temp low-pressure heating
Technical Specifications
| Output | Thermal Oil |
|---|---|
| Usage | Industrial |
| Fuel | Gas/Oil |
| Pressure | Low Pressure |
| Structure | Coil Tube |
| Type | Natural Circulation |
| Material | Stainless Steel |

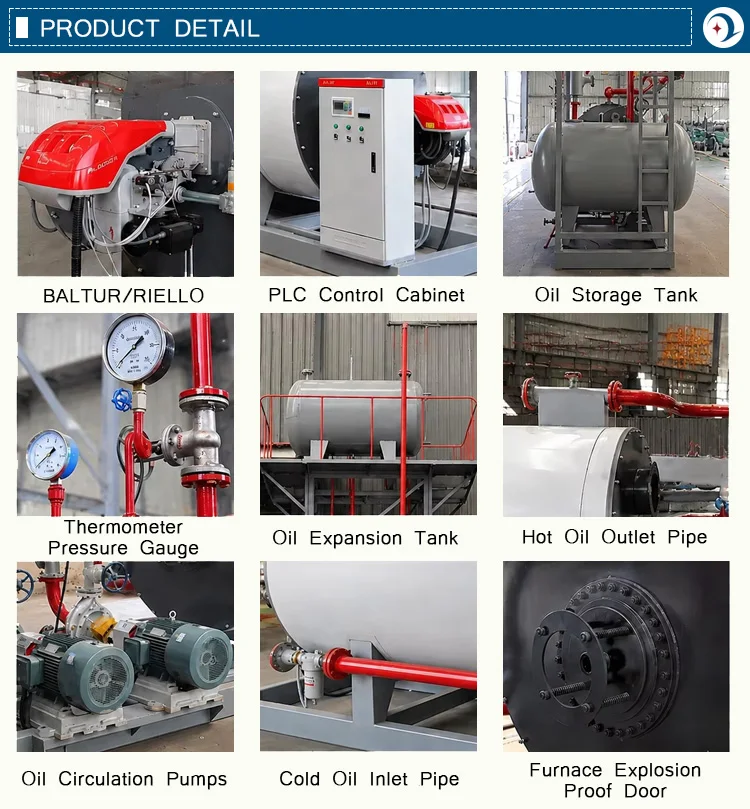

| Core Components | Pump, Pressure Vessel |
| Key Selling Points | Automatic, Easy To Operate, Remote Monitoring, Long Service Life, Famous Brand PLC, Low Maintenance Cost |
| Style | Horizontal |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Weight (Kg) | 3500 |
| Place Of Origin | Henan, China |
| Brand Name | ZXBOILER |
| Dimension(L*W*H) | REFER TO MODELS |

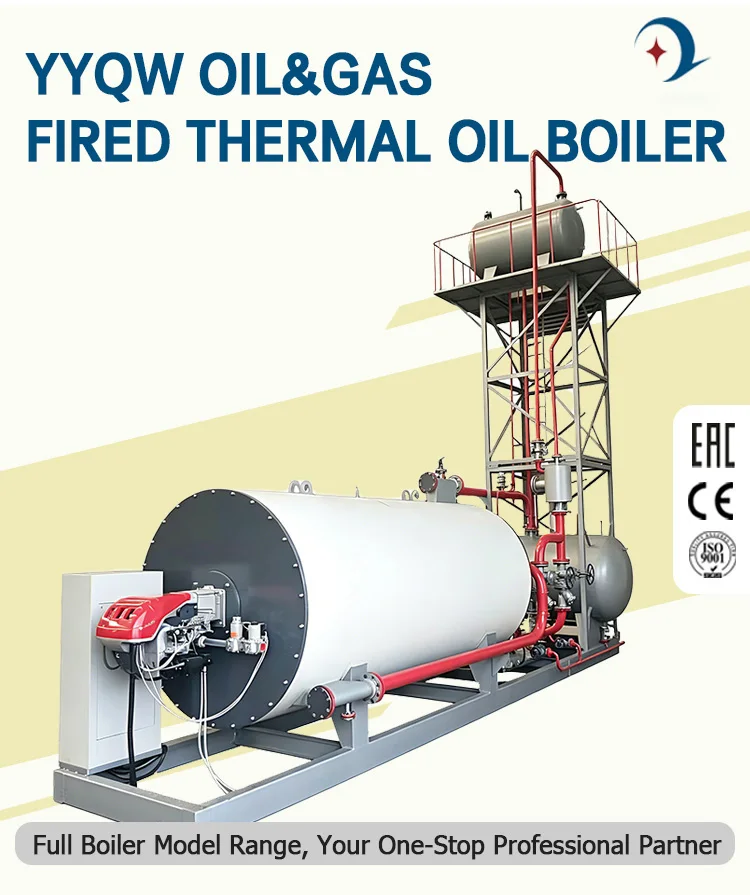

| Product Name | YYQW Horizontal Fuel Gas Heat Transfer Oil Boiler |
| Design Fuel | Natural Gas, LPG, Diesel |
| Application | High-temp low-pressure heating |
| Control System | PLC+Touch Screen |

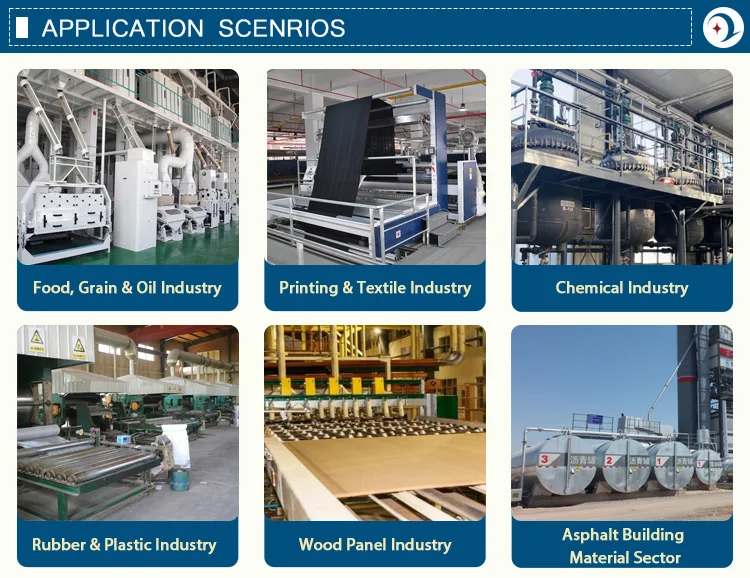

| Application Field | Chemical, Food, Textile Industry, Rubber Plastics Industry |
| Heating Capacity (Kcal) | 120 to 2000000Kcal per hour |
| Thermal Efficiency | >96% |
| Heating Capacity (Kw) | 120-7000kw |
| Working Pressure | ≤10Bar |
| Advantages | Low NOx Emission |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
model | YYQW-120-YQ | YYQW-240-YQ | YYQW-350-YQ | YYQW-500-YQ | YYQW-700-YQ | YYQW-1000-YQ | YYQW-1200-YQ | YYQW-1400-YQ |
heat power(kw） | 120 | 240 | 350 | 500 | 700 | 1000 | 1200 | 1400 |
thermal efficiency（%）oil/gas | 96.4/96.1 | 96.7/96.4 | 96.9/96.6 | 96.8/96.5 | 96.8/96.3 | 96.7/96.6 | 96.6/96.3 | 96.4/96.2 |
work pressure（mpa） | 0.8 | 0.8 | 1 | 1 | 0.8 | 1 | 0.8 | 0.8 |
maximum working tem（℃） | 300 | 320 | 300 | 320 | 320 | 320 | 320 | 320 |
maximum transportation size（length*width*high）（mm） | 1690*1059*1339 | 2470*1130*1808 | 2581*1382*1732 | 2819*1390*2055 | 3472*1710*2214 | 3310*1540*2225 | 3860*1922*2417 | 4340*2080*2515 |
maximum transport weight（t） | 1.338 | 2.178 | 3.012 | 3.494 | 4.181 | 5.007 | 6.518 | 7.95 |
model | YYQW-1900-YQ | YYQW-2100-YQ | YYQW-2400-YQ | YYQW-3000-YQ | YYQW-3500-YQ | YYQW-4200-YQ | YYQW-6000-YQ | YYQW-7000-YQ |
heat power(kw） | 1900 | 2100 | 2400 | 3000 | 3500 | 4200 | 6000 | 7000 |
thermal efficiency（%）oil/gas | 96.5/96.3 | 96.7/96.5 | 96.36/96.5 | 96.5/96.7 | 96.7/96.6 | 96.5/96.8 | 96.9/96.8 | 96.8/96.6 |
work pressure（mpa） | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
maximum working tem（℃） | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 |
maximum transportation size（length*width*high）（mm） | 4405*2100*2730 | 4472*2100*2730 | 4772*2248*2760 | 4840*2707*2416 | 5941*2753*3410 | 6558*2915*3410 | 7970*3444*3434 | 8950*3712*3650 |
maximum transport weight（t） | 10.507 | 9.984 | 11.446 | 10 | 19.182 | 22.217 | 32.212 | 38.73 |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–1 piece: US $2550 / piece
- 2–2 piece: US $2350 / piece
- 3+ piece: US $2150 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this thermal oil boiler?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Taikang Zhongxin Boiler Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Taikang Zhongxin Boiler Co., Ltd. range on HVACR Nexus.
