This three phase bldc motor is published with the manufacturer’s full specification — 220v, 1050w. Made by Shenzhen Maintex Intelligent Control Co., Ltd. (13 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Three Phase Bldc Motor
- Model Number: BL17565MB-06A
- Rated Power: 1050w
- Power: 1050w
- Rated Voltage: 220v
- Material: Aluminium Alloy Casing
- Speed Rpm: 780 RPM
Technical Specifications
| Rated Power | 1050w |
|---|---|
| Speed Rpm | 780 RPM |
| Speed(RPM) | 780 RPM |
| Efficiency | IE 4 |
| Type | Brushless Motor |
| Frame | 185MM(7.28in) |
| Motor Mounting Type | Flange Mount |
| Protect Feature | Waterproof |
| Usage | Fan, Cosmetic Instrument |
| Warranty | 1year |
| Continuous Current(A) | 8.5A |
| Model Number | BL17565MB-06A |

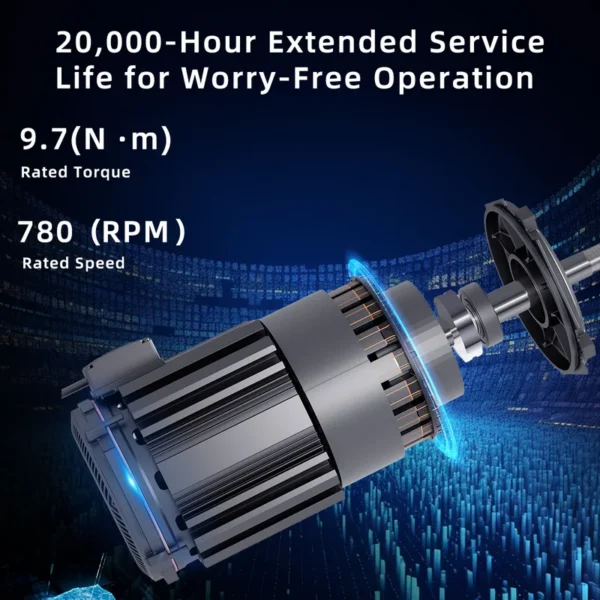

| Torque | 9.7 N.m(7.15lb.ft) |
| Place Of Origin | Guangdong, China |
| Brand Name | maintex |
| Applicable Fan Size | 1060*1060 mm |
| Motor Type | frequency converter motor |
| Rated Voltage | 220v |
| Power | 1050w |
| Rated Speed | 780rpm |
| Noise | 60db |

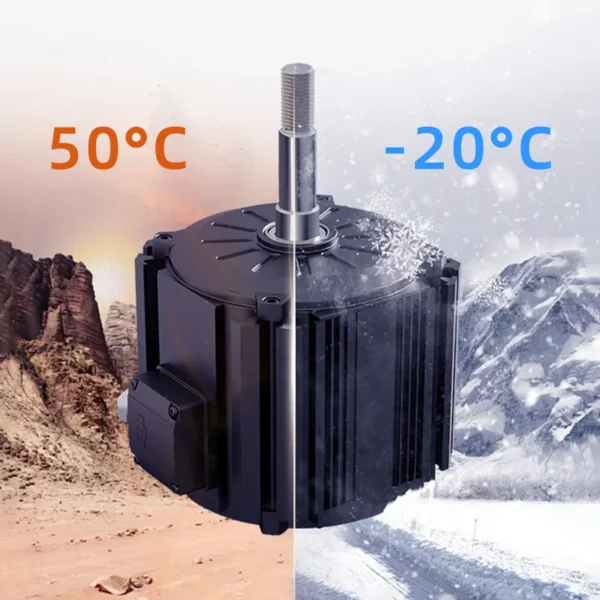

| Operation Ambient Temperature | -20℃~45℃ |
| Material | Aluminium Alloy Casing |
| Certification | CE Rohs ISO |
| Selling Units | Single item |
| Single Package Size | 50X40X30 cm |
| Single Gross Weight | 20.0 kg |
Product Details
Comparison items | Permanent magnet EC motor fan | AC asynchronous motor fan |
Compared Quantity | 1 pc | 1 pc |
Size | 1460*1460*580 mm | 1460*1460*580 mm |
Maximum air flow | 39000 m³/h | 39000 m³/h |
Speed | 560 r/min | 560 r/min |
Input power | 0.75 kW/h | 1.0 kW/h |
Starting current | 0.3A~1.9A soft start, stable start, small current impact, no impact on the power grid. | 1.5A~2.5A does not start smoothly, and the current impact is large, which is a big impact on the transformer and the power grid. |
Annual electricity consumption of one fan (24H/day, 365days/year) | 1*0.75*24*365=6570 KWH | 1*1*24*365=8760 KWH |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–499 piece: US $117 / piece
- 500–999 piece: US $111 / piece
- 1000–4999 piece: US $106 / piece
- 5000+ piece: US $103 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this three phase bldc motor?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this three phase bldc motor carry?
It is supplied with CE Rohs ISO documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the three phase bldc motor be supplied for my local voltage?
The standard configuration is 220v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Maintex Intelligent Control Co., Ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Maintex Intelligent Control Co., Ltd. range on HVACR Nexus.
