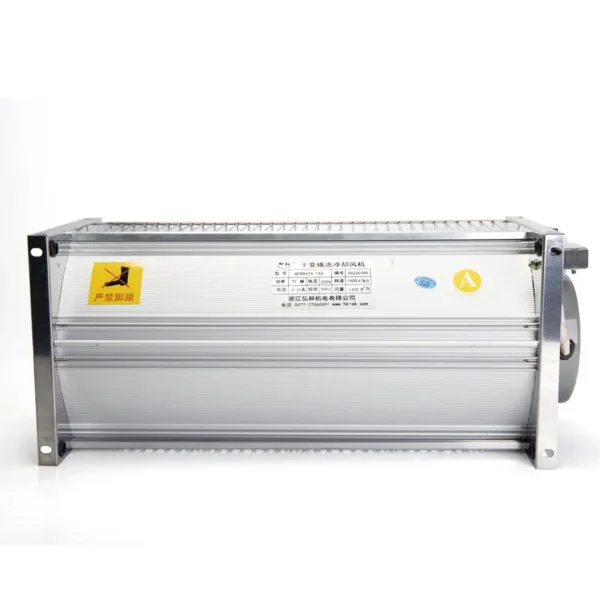

Type Transformer Cooling Fan, Aluminum, 220V, 1400RPM

The type transformer cooling fan listed here carries 220 V, air flow Crossflow, documented exactly as the manufacturer publishes it. Made by Zhejiang Hongke Electromechanical Co., Ltd. (6 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Type Transformer Cooling Fan

• Model Number: GFDD860-120
• Voltage: 220 V
• Air Flow: Crossflow
• Blade Material: Aluminum Alloy
• Material: Aluminum Alloy
• Speed: 1400RPM

Technical Specifications

Product Details

Cross Flow Cooling Fan

For Dry-type Transformer

Designed specifically for dry-type transformers, it is mainly used for cooling and capacity expansion of dry-type transformers, as well as forced air cooling of electronic equipment, distribution cabinets, high and low voltage switch cabinets, etc.

Six major advantages Eliminate the risk of shutdown due to high temperature

Why choose Hongke Fans?

Why choose us? Hush!

Let's compare these points quietly to see.It will be clear at a glance.

Things that seem similar are actually quite different.

Less than one "degree of electricity" in a day use day by day, saving every day

Uninterrupted operation for 8,000 hours, quiet operation, comfortable space

45dB – Quiet and Unobtrusive

Smooth operation with even airflow distribution

Optimized overall operational efficiency, combined with wind turbine noise

reduction technology, ensuring smooth operation and low noise levels

Lightweight design

Except for the motor, most of the materials are made of

ultra-light aluminum alloy, which is lightweight and low in noise.

Corrosion-resistant and rust-proof

High-quality aluminum alloy material, resistant to oxidation, does not rust or fade, hard and stable.

High-quality and powerful wind force

rapid heat dissipation

Effective wind distance: 5 meters

Two blowing modes

Multiple styles are available for selection. For non-standard customization inquiries,

please contact the customer service.

Aluminium alloy shell

Corrosion-resistant and with a durability that is 80% longer than that of ordinary fans.

Pure copper motor

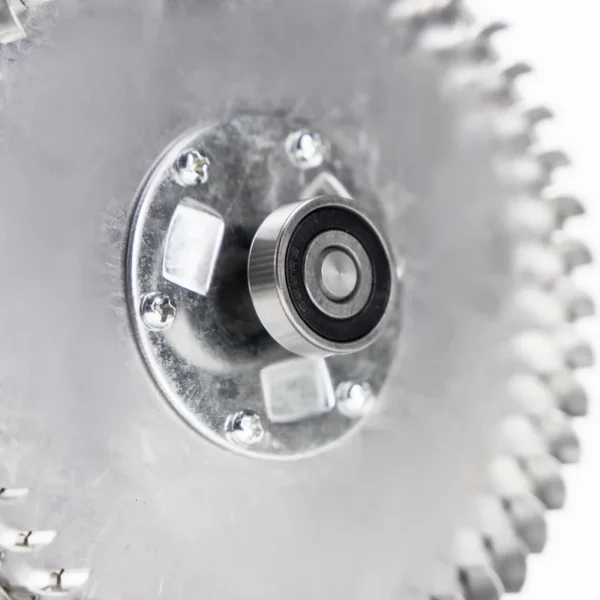

Double ball bearings – High rotational speed – Long service life

Aluminum alloy multi-blade fan blades

Low vibration, large air volume, not prone to corrosion

Product information is clearly presented

Multiple models and specifications are available

Prodcut data sheet

Various specifications are available

Choose your own products according to your needs

model	Number of phases (S)	Voltage (V)	Input current (A)	Input power (W)	rotational speed (r/min)	air volume (m³h)	noise (dBA)	Transformer capacity (dBA)	Number of units per set
GFD(S)D385-90	Single/Three	220/380	0.3	30	1400	530	50	50~100	6
GFD(S)D440-90	Single/Three	220/380	0.3	30	1400	550	50	50~100	6
GFD(S)D490-90	Single/Three	220/380	0.32	40	1400	600	51	50~100	6
GFD(S)D560-90	Single/Three	220/380	0.35	40	1400	700	52	100~315	4
GFD(S)D660-90	Single/Three	220/380	0.4	40	1400	800	54	100~630	4
GFD(S)D730-90	Single/Three	220/380	0.45	40	1400	850	56	400~800	4
GFD(S)D760-90	Single/Three	220/380	0.5	40	1400	900	56	630~1000	4
GFD(S)D860-90	Single/Three	220/380	0.55	40	1400	1000	60	50~100	2
GFD(S)D920-90	Single/Three	220/380	0.55	40	1400	1100	60	50~120	2
GFD(S)D1200-90	Single/Three	220/380	0.6	50	1400	1300	60	100~200	2
GFD(S)D365-110/120	Single/Three	220/380	0.3	40	1400	550	52	315~500	6
GFD(S)D385-110/120	Single/Three	220/380	0.35	40	1400	600	52	400~800	6
GFD(S)D440-110/120	Single/Three	220/380	0.4	40	1400	750	54	400~1000	6
GFD(S)D470-110/120	Single/Three	220/380	0.45	40	1400	800	54	800~1200	6
GFD(S)D490-110/120	Single/Three	220/380	0.5	50	1400	850	56	1000~1600	6
GFD(S)D520-110/120	Single/Three	220/380	0.55	50	1400	900	56	1250~2000	6
GFD(S)D560-110/120	Single/Three	220/380	0.55	50	1400	900	60	1250~2000	4
GFD(S)D590-110/120	Single/Three	220/380	0.55	50	1400	950	62	1500~2500	4
GFD(S)D610-110/120	Single/Three	220/380	0.6	50	1400	1000	62	1600~3000	4
GFD(S)D690-110/120	Single/Three	220/380	0.62	50	1400	1200	63	1500~3000	4
GFD(S)D860-110/120	Single/Three	220/380	0.64	50	1400	1250	64	1500~2500	4
GFD(S)D920-110/120	Single/Three	220/380	0.65	50	1400	1300	64	2000~3000	4
GFD(S)D1200-110/120	Single/Three	220/380	0.7	60	1400	1500	65	600~1000	2
GFD(S)D365-150	Single/Three	220/380	0.45	45	1400	1050	55	630~1100	6
GFD(S)D470-150	Single/Three	220/380	0.55	60	1400	1250	56	800~1500	6
GFD(S)D490-150	Single/Three	220/380	0.55	60	1400	1300	50	1600~2000	6
GFD(S)D590-150	Single/Three	220/380	0.6	60	1400	1500	65	2000~2500	6
GFD(S)D690-150	Single/Three	220/380	0.8	80	1400	1600	70	2000~3000	4

(Note: Other special specifications can be customized.

The commonly used voltage is 220V.

For 380V, an additional 80 yuan is required.)

model	A(width)	A1	B(width)	B1	L(length)	L1	L2	mounting hole
GFD(S)D385-90	150	120	130	100	385	343	325	4-φ7×10
GFD(S)D440-90	150	120	130	100	440	398	380	4-φ7×10
GFD(S)D490-90	150	120	130	100	490	448	430	4-φ7×10
GFD(S)D560-90	150	120	130	100	560	518	500	4-φ7×10
GFD(S)D660-90	150	120	130	100	660	618	600	4-φ7×10
GFD(S)D760-90	150	120	130	100	760	718	700	4-φ7×10
GFD(S)D860-90	150	120	130	100	860	818	800	4-φ7×10
GFD(S)D920-90	150	120	130	100	920	878	860	4-φ7×10
GFD(S)D1200-90	150	120	130	100	1200	1158	1140	4-φ7×10
GFD(S)D365-110/120	170	120	150	120	365	323	305	4-φ7×10
GFD(S)D385-110/120	170	120	150	120	365	343	325	4-φ7×10
GFD(S)D440-110/120	170	120	150	120	440	398	380	4-φ7×10
GFD(S)D470-110/120	170	120	150	120	470	428	410	4-φ7×10
GFD(S)D490-110/120	170	120	150	120	490	448	430	4-φ7×10
GFD(S)D520-110/120	170	120	150	120	520	478	460	4-φ7×10
GFD(S)D560-110/120	170	120	150	120	560	518	500	4-φ7×10
GFD(S)D690-110/120	170	120	150	120	690	648	630	4-φ7×10
GFD(S)D860-110/120	170	120	150	120	860	818	800	4-φ7×10
GFD(S)D920-110/120	170	120	150	120	920	878	860	4-φ7×10
GFD(S)D1200-110/120	170	120	150	120	1200	1158	1140	4-φ7×10
GFD(S)D365-150	200	172	190	162	385	343	325	4-φ7×10
GFD(S)D470-150	200	172	190	162	470	428	410	4-φ7×10
GFD(S)D490-150	200	172	190	162	490	448	430	4-φ7×10
GFD(S)D590-150	200	172	190	162	590	548	530	4-φ7×10
GFD(S)D690-150	200	172	190	162	690	648	630	4-φ7×10

(The product may have some measurement errors due to manual measurement. Please refer to the item you received.)

(The product may have some measurement errors due to manual measurement.Please refer to the item you received.)

Carefully polish every detail

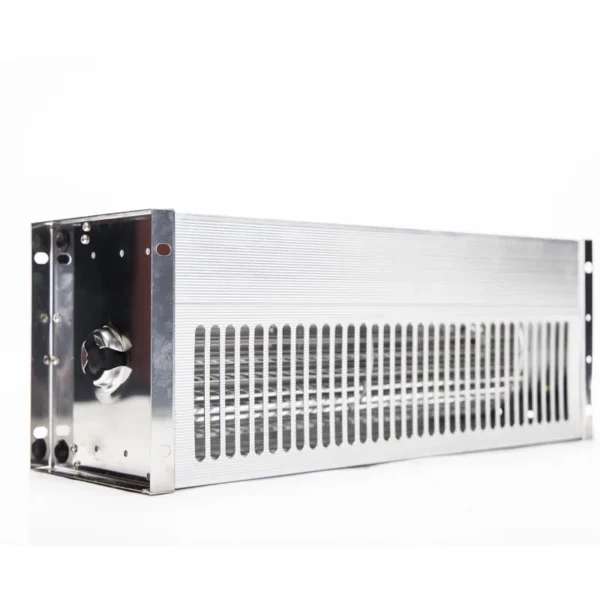

Aluminium alloy shell

Thickened aluminum alloy shell The material is thick and does not corrode easily.

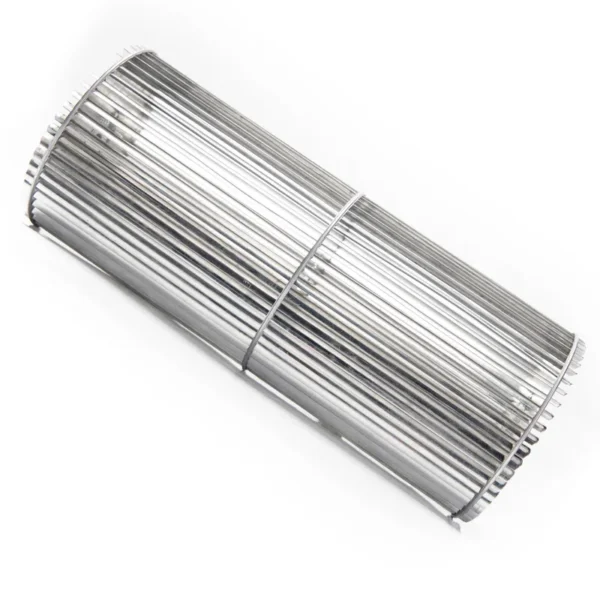

Aluminum alloy

multi-blade fan blades

Lightweight, low noise, little vibration

Large air volume, not prone to corrosion

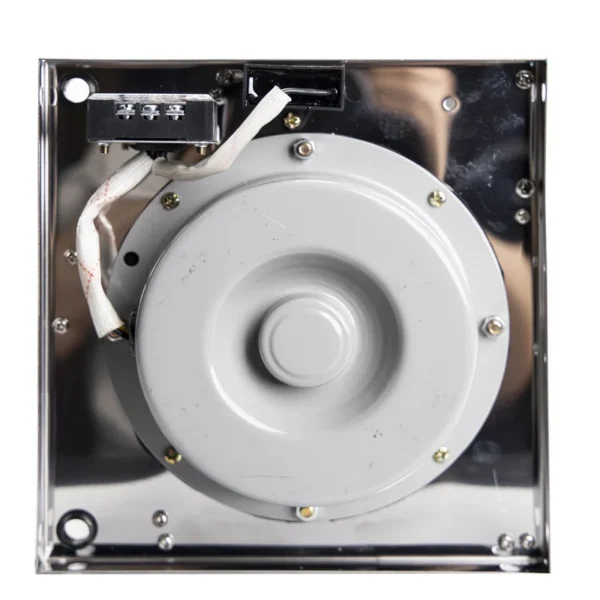

Copper-core motor

It uses copper-core coils, featuring high rotational speed,low heat generation, and long service life.

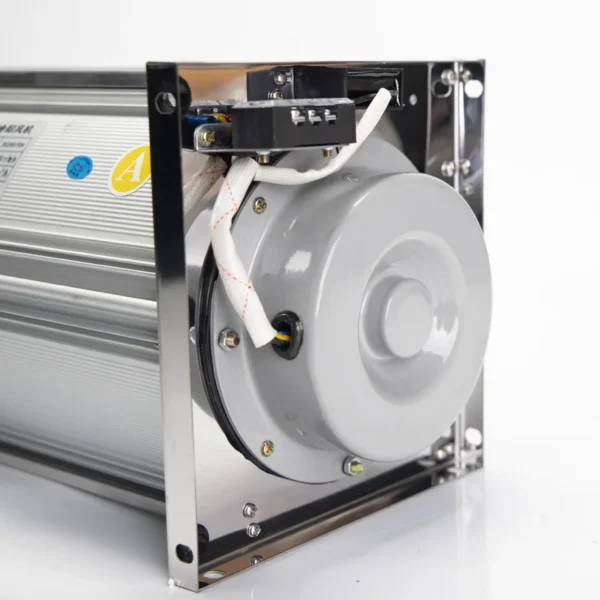

Terminal block

Good independence, simple wiring,Excellent insulation,safe and convenient.

Q&A Part

What is the service life of the fan?
It can be used normally for 5 to 10 years. In case of any quality issues, we offer a one-year replacement service and provide a
full warranty throughout the process.

Can the labels, packaging and design of your products be customized?
Yes, we offer customized services related to these.

What is your monthly production capacity?
The production capacity of our factory is 8,000 units per month.

What is your initial order quantity?
There are no restrictions. Customers are of all sizes. No matter how many items you order, we will provide high-quality products
and excellent services.

How to ensure quality?
Strict process control and a professional product quality inspection team ensure product qualification rates. Additionally, our
comprehensive after-sales support system assumes full responsibility for any quality issues during product usage.

May I obtain a sample for quality inspection?
Yes, we offer samples.

Can we issue an invoice? When will the invoice be sent out?
Our fans provide invoices. After the purchase, the fans will be dispatched first. After receiving the goods and confirming they
are correct, personal ordinary invoices can be applied for electronic invoices directly in the platform order. For VAT invoices,
please provide the relevant materials to the customer service for registration. Generally, the invoices will be issued within
10-15 days.

What can be done to prevent rainwater, insects, and birds from entering the fan?
It is recommended to install self-closing louvers. When the fan is turned off, the outlet louvers will automatically close to
prevent rainwater and insects/birds from entering.

How to choose the model of the fan?
Based on the ventilation volume, the ventilation volume = area * height * ventilation frequency / 0.8. Here, the ventilation
frequency is determined according to the actual rated value. In ordinary factories, it is around 8-12 times. The ventilation
volume is selected based on the calculation results and the parameter table. It is recommended to contact our customer service
first for a more accurate recommendation.

Are there any other explosion-proof accessories available for sale?
We offer various accessory products such as explosion-proof pipes, explosion-proof junction boxes, explosion-proof switches, and
explosion-proof distribution boxes. If you have any questions, please feel free to contact our customer service.

Can the fan be linked with the smoke sensor, temperature control switch, etc.? How to operate it?
Sure, dear! All you need to do is install a relay at the top of the fan, and then control the opening and closing of the relay
using smoke sensors, temperature controllers, etc.

Are there any specific requirements for the installation location of the fan?
The fan is a rotating machine. It is recommended to install it in a position that is not easily accessible to people. Moreover,
the hot air rises, so installing it at a higher position can help improve efficiency. Another very important point is to ensure
that the fan is installed stably and firmly.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–49 piece: US $73.3 / piece
  • 50–499 piece: US $72.3 / piece
  • 500+ piece: US $71.3 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this type transformer cooling fan?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the type transformer cooling fan be supplied for my local voltage?

The standard configuration is 220 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Zhejiang Hongke Electromechanical Co., Ltd., based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Zhejiang Hongke Electromechanical Co., Ltd. range on HVACR Nexus.
