Ultra-thin Electric Convector Heater, Wall, 1600W, Metal

Key specification for this ultra-thin electric convector heater: 1600W, material Metal. Everything below is reproduced from the factory data sheet. Made by Shandong Golden Solar Technology Development Co., Ltd. (2 years on the platform, typical reply ≤8h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Ultra-Thin Electric Convector Heater

• Model Number: HJTY-XR1600
• Power: 1600W
• Power Source: Electric
• Material: Metal
• Warranty: 1 Year
• Place Of Origin: Shandong, China

Technical Specifications

Product Details

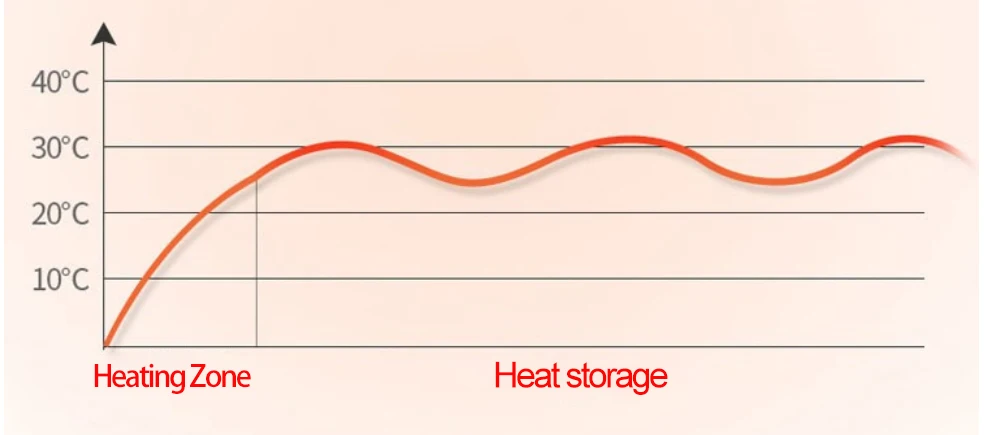

A regenerative electric heater utilizes the low-cost electricity during off-peak hours (typically from 10 PM to 7 AM the next day) in China, where electricity costs only $0.04 per kilowatt-hour in Beijing. It converts and stores electrical energy into thermal energy over a period of 6 to 8 hours. During peak demand periods, it releases this stored heat through radiation and convection, providing continuous indoor heating for 24 hours a day. The high-temperature resistant electric heating elements generate heat by warming specially designed regenerative materials—magnetic regenerative bricks with high specific heat capacity and density. These materials are then protected by high-temperature resistant, low-thermal-conductivity insulation to retain the stored heat. The release rate can be adjusted according to the user's preference, gradually releasing the stored heat. The amount of stored heat can also be manually regulated based on outdoor temperature. A steel-plated exterior not only protects the device but also enhances its appearance.

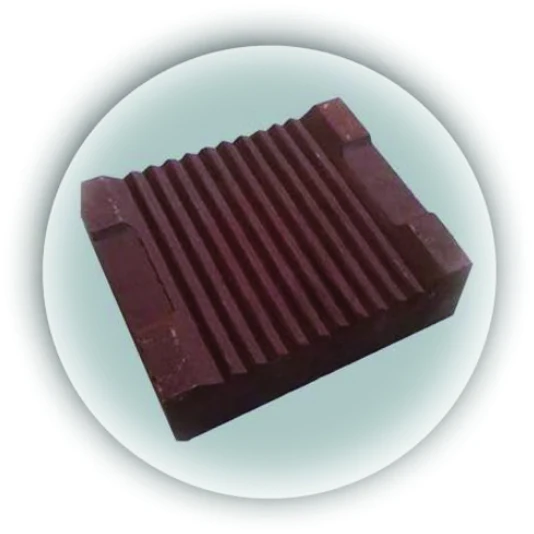

High density iron magnesium heat storage brick

Our company uses iron magnesium high quality ratio of high density heat storage bricks, while ensuring high heat storage, ensure the strength of heat storage bricks, high temperature does not powder.

Explosion-proof stainless steel heating tube

The special M-type heating tube is filled with chromium-nickel alloy wire and magnesium powder in the internal gap, with stable performance.

Thickened plate, safety protection

1. Overheat protection：Built-in overheating protection device, 24 hours monitoring system temperature, the system temperature is abnormal and overtemperature immediately power off. 2. Thermal insulation：The ground of the machine is good, and multiple insulation is used between the heating body and the shell to prevent water and dust, effectively isolating the current leakage. 3. Flame retardant materials are used：The main materials are selected for flame retardant materials, fire retardant, to avoid accidents. 4. National standard cable：The core material is pure electrolytic copper oxide, full square and coarse, high pressure resistance, safe and reliable.

5.High strength shell, safe and reliable：The shell is made of 1mm galvanized steel plate with high mechanical strength to ensure the safety of the system. The surface is treated by electrostatic spraying to be beautiful and elegant, environmentally friendly and odorless.

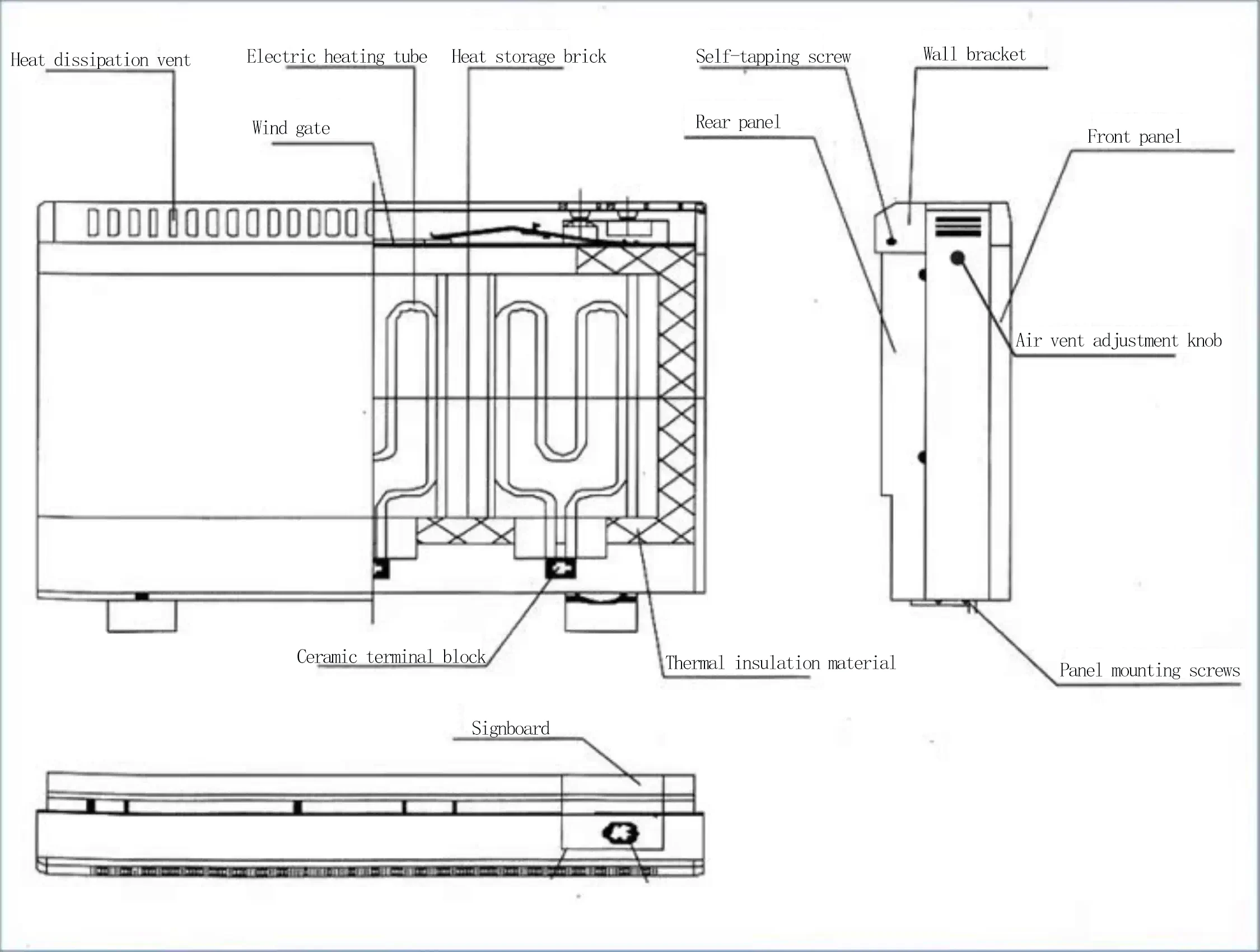

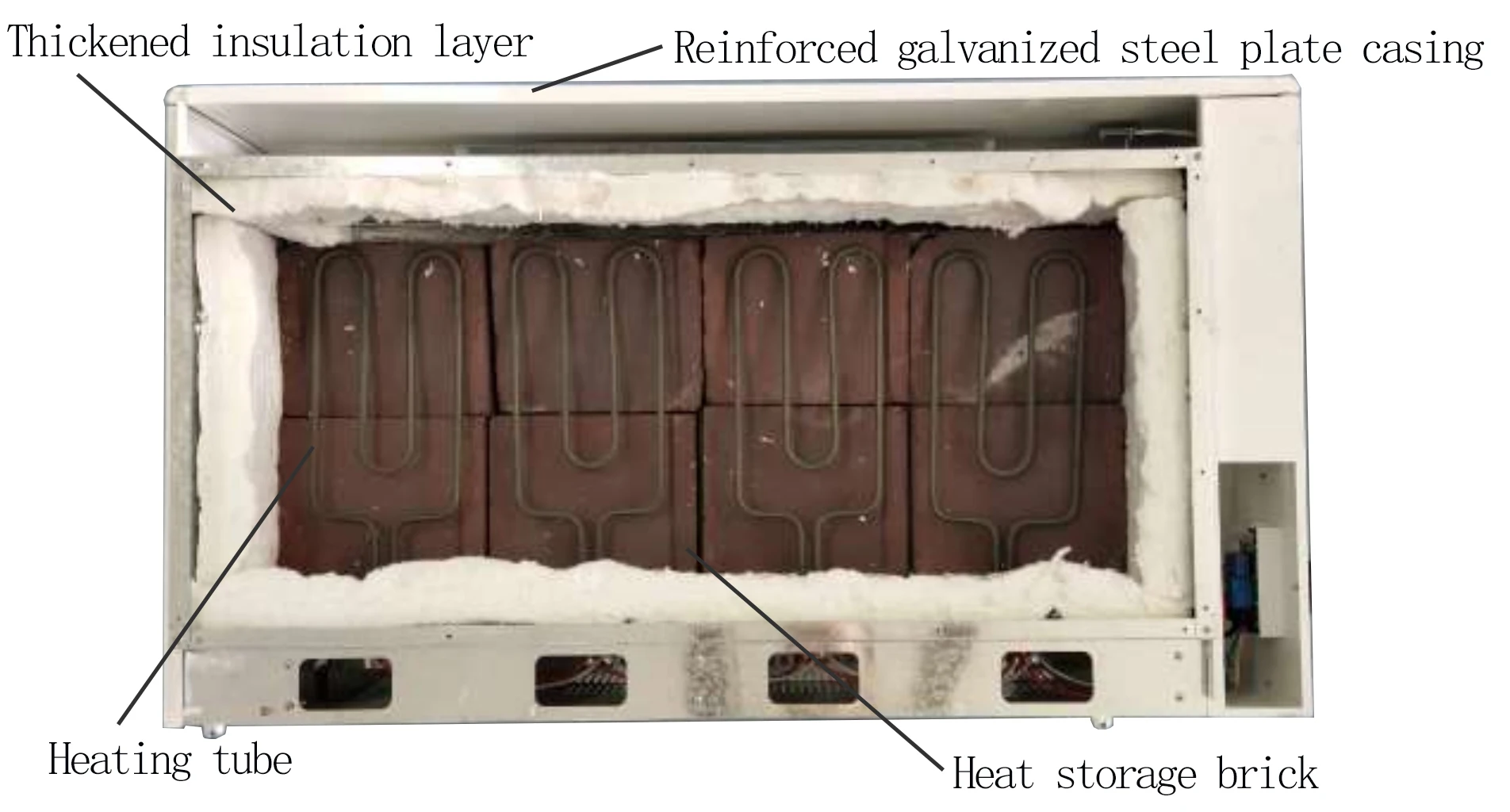

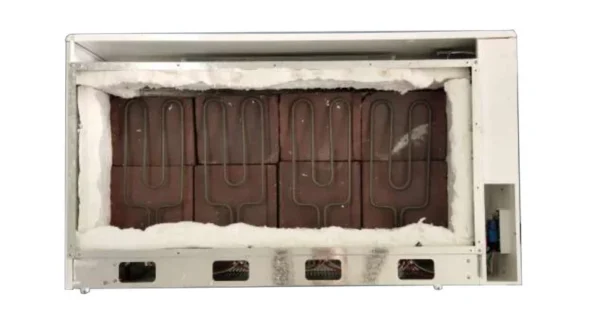

Product structure diagram

Product name:	Heat Storage Electric Heater
Control mode:	Timed temperature control
Heating body:	Stainless steel heating tube (dry burning type)
Heat storage rate:	More than 75%
Heat storage time/release heat time:	10h/14h (default)
Voltage:	220V
Installation method:	Floor (wall)
Machine body material:	Sheet metal chassis
MService life:	More than 20 years
Protection level:	IP24

Shandong Gold Sun Technology Development Co., Ltd. was established in Zaozhuang City, Shandong Province in 2003, with a registered capital of 86 million yuan. It is a high-tech enterprise, focusing on the research, development, production, and promotion of new energy application products, and possesses more than 70 independent intellectual property rights. Its business covers a variety of new energy products, such as solar water heaters, gas wall-mounted boilers, air source heat pumps, and household electric heaters. The annual production capacity includes approximately 1.2 million solar water heaters, 200,000 gas wall-mounted boilers, 500,000 air source heat pumps, and 1 million electric heaters and other products. The company has passed multiple system certifications, won numerous honorary titles, and reached cooperation agreements with many institutions. Its products and services cover multiple regions, enjoying a high reputation and great influence within the industry.

1. who are we?
We are based in Shandong, China, start from 2003,sell to Domestic Market(60.00%),Eastern Asia(7.00%),Oceania(5.00%),Mid East(5.00%),Central America(4.00%),Southern Europe(4.00%),South Asia(3.00%),Western Europe(3.00%),Northern Europe(2.00%),Southeast Asia(2.00%),South America(2.00%),Eastern Europe(1.00%),Africa(1.00%),North America(1.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Household solar water heater,Gas-fird heating and water combi-boilers,Carbon crystal indoor heater,Low ambient temperature air source heat pump fan,Fast Heating Electric Water Heater (Electric Wall Hanging Furnace)

4. why should you buy from us not from other suppliers?
We have a professional technical R&D team, hold multiple national invention patents, have participated in numerous national procurement projects, and have accumulated rich experience in energy conversion and utilization.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,Credit Card,Cash;
Language Spoken:English,Chinese

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–99 set: US $195 / set
  • 100+ set: US $192 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this ultra-thin electric convector heater?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Shandong Golden Solar Technology Development Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shandong Golden Solar Technology Development Co., Ltd. range on HVACR Nexus.
