The ultra-thin fancoil unit listed here carries power supply 220~230V/50HZ/1Phase, material Aluminum Alloy, documented exactly as the manufacturer publishes it. Made by Shandong GRAD Group Co., Ltd. (20 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Ultra-Thin Fancoil Unit
- Power Supply: 220~230V/50HZ/1Phase
- Material: Aluminum Alloy
- Warranty: 1 Year
- Feature: Easy Installtion
- Type: Fan Coil Unit
- Mounting Type: Floor Standing
Technical Specifications
| Type | Fan Coil Unit |
|---|---|
| Mounting Type | Floor Standing |
| Fan Motors Type | DC |
| Warranty | 1 Year |
| Weight (Kg) | 27 |
| Material | Aluminum Alloy |
| Color | White |
| Feature | Easy Installtion |
| Power Supply | 220~230V/50HZ/1Phase |
| Certificate | RoHS CE CCC ISO |
| Surface Finish | PAINTING |
| Package | Carton |
| Place To Install | Cleanroom |
| Usage | HAVC System |
| Brand | GRAD |
| Selling Units | Single item |
Product Details
high-performance
2. Copper tube waterway flow calculation fit, improve heat transfer performance, reduce running water resistance.
3. The overall heat exchange area of the table cooler is large, and the heat exchange is large, which is higher than the national
standard of 1520 % and the standard of 4 brands.
| Type | Fan Coil Unit | ||||||||
| Model | FP-34LM | FP-51LM | FP-68LM | FP-85LM | FP-102LM | FP-136LM | FP-170LM | FP-204LM | FP-238LM |
| Weight(KG) | 11 | 13.5 | 15 | 16.5 | 17.5 | 23.5 | 28 | 30.5 | 32.5 |
| Voltage | 220v 50hz | ||||||||
| Rated air volume m³/h | 340 | 510 | 680 | 850 | 1020 | 1360 | 1700 | 2040 | 2380 |
| NoisedB(A) | 37 | 39 | 41 | 43 | 45 | 46 | 48 | 50 | 52 |
| cooling capacity | 1800 | 2700 | 3600 | 4500 | 5400 | 7200 | 9000 | 10800 | 12600 |
| Function | cooling & heating | ||||||||
| Application | office block,hotel,sport veunes and so on | ||||||||
| Power(w) | 37 | 52 | 62 | 76 | 96 | 134 | 156 | 189 | 228 |
| Max working pressure(MPa) | 1.6Mpa | ||||||||
| Data under cooling condition | dry ball temperature:27℃,wet ball temperature:19.5℃,inlet water temperature:7℃,outlet water temperature:5℃ | ||||||||
| Date under heating condition | dry ball temperature:21℃,inlet temperature 60℃ | ||||||||

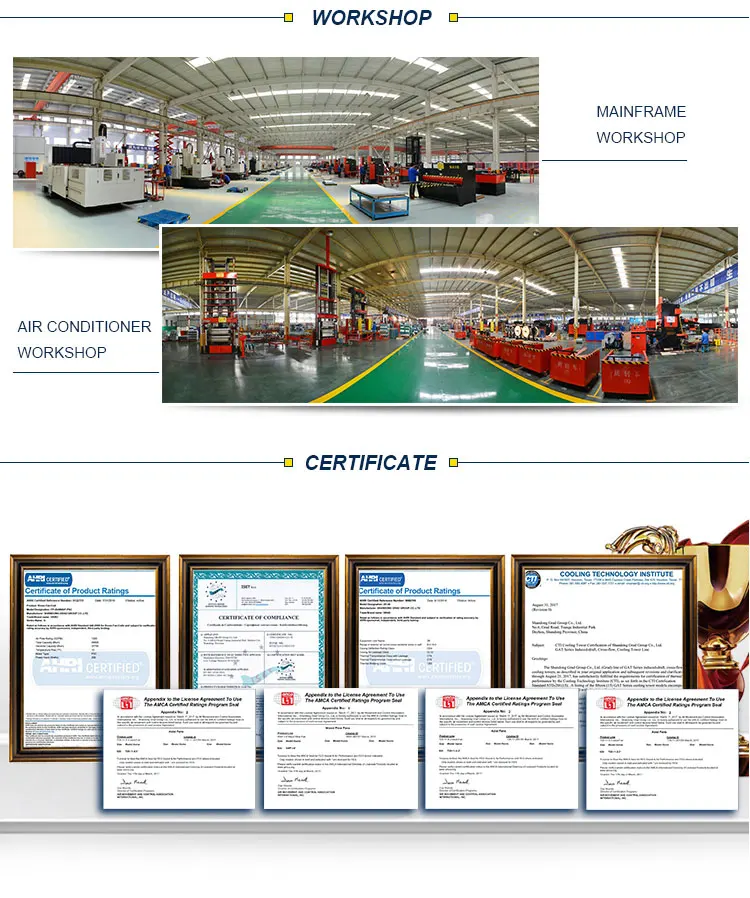

High Production Efficiency:
Certification certificate complete:

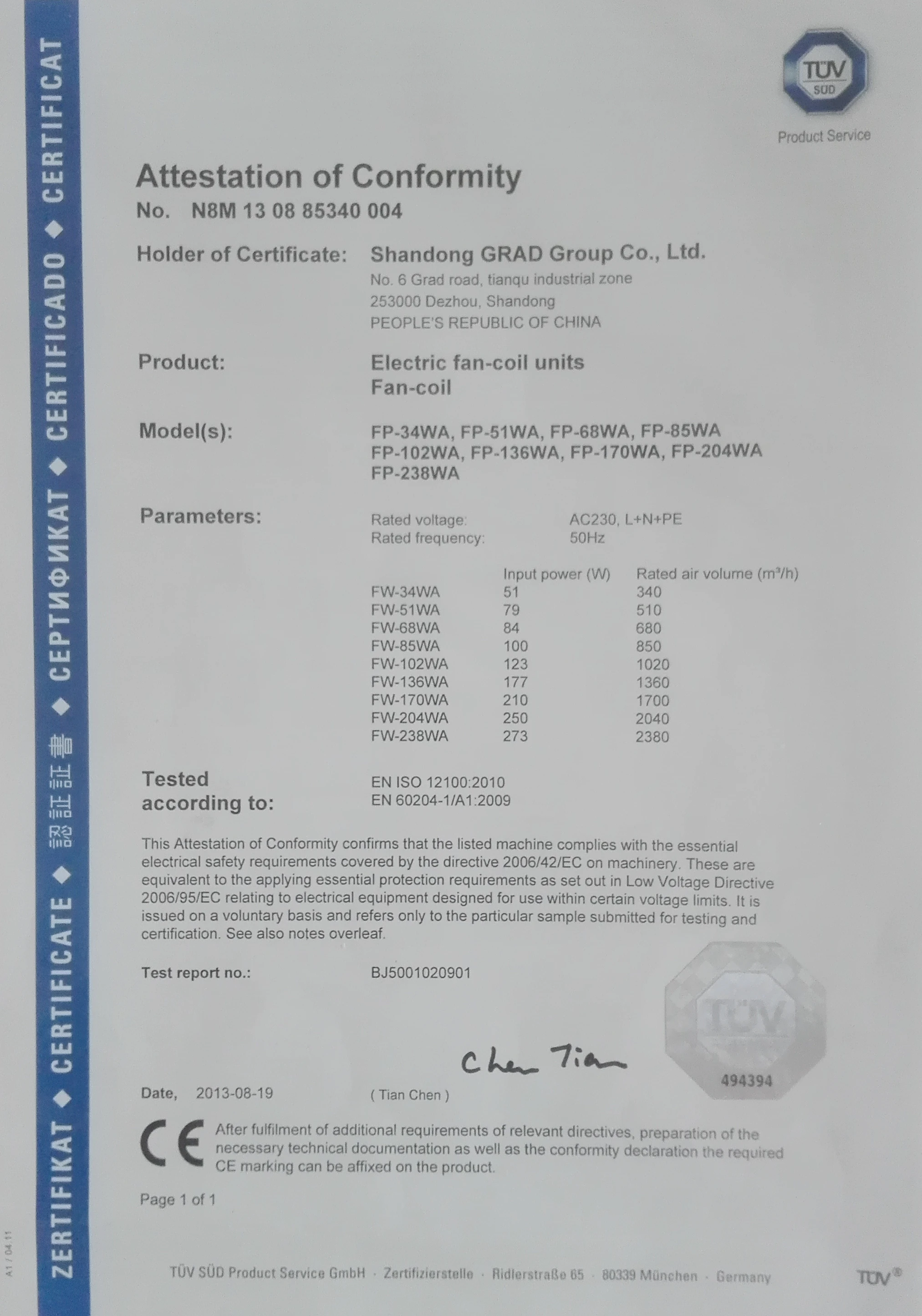

1.CE Certification

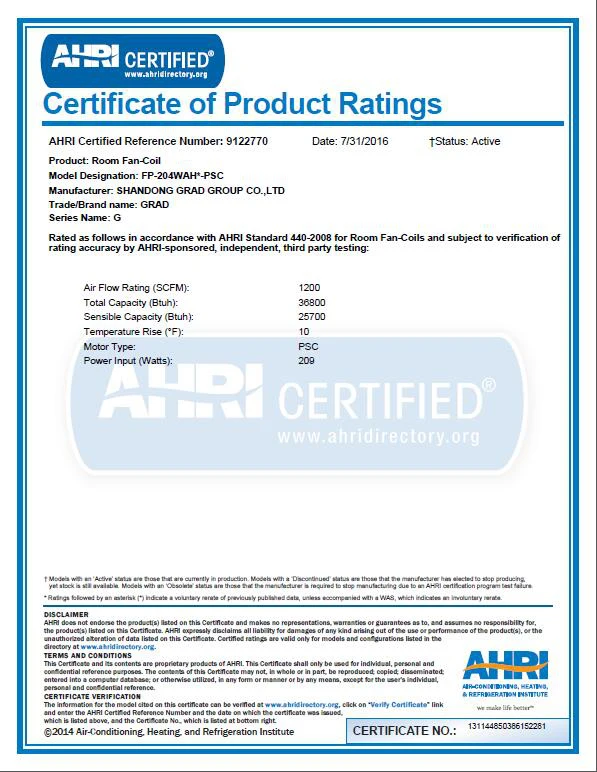

2.AHRI Product Quality Certification
3.CRA product certification
4.GCCA Integrity Alliance Certification
Express and payment Packing:

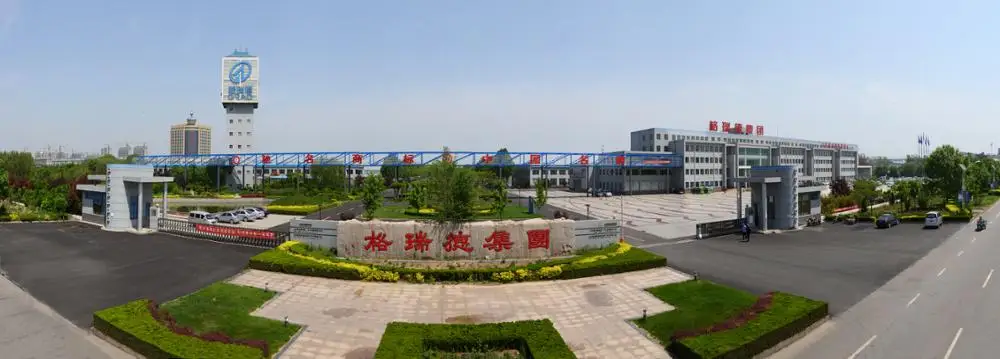

GRAD Group founded in 1993 in Dezhou, shandong province,that is an enterprise group focusing on the artificial environment,and spanning five strategic new industries of new energy, new materials, equipment manufacturing, energy conservation and environmental protection, and information technology.GRAD products and services spread around the China and world with 100 countries and regions. They are widely used in infrastructure projects, commercial real estate, industrial manufacturing, agricultural development, electronic information, automobile engineering, medicine, environmental protection treatment, ocean engineering, rail transportation and other fields. With more than 10,000 employees, GRAD Group owned the production bases in Shandong, Guizhou, Sichuan, Xinjiang ,Inner Mongolia and so on. And GRAD Group has established r&d centers in Shanghai, Beijing, Jinan, Lanzhou and Los Angeles.
Q1. Where is your loading port?
A: Qingdao/Shanghai/Tianjin, China or else port as for your request.
Q2. What's your company's main products?
A: Our company is specialized in central air-conditioning,ventilation,FRP products.
Q3. What's the MOQ for your production?
A: The MOQ is 1pcs or depends on your products requirements.
Q4. Are you a manufactuer or trading company?
A: We are a manufactuer.
Ordering and Pricing
- Minimum order quantity: 5 unit
- Volume pricing:
- 5–99 unit: US $180 / unit
- 100+ unit: US $170 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ultra-thin fancoil unit?
The standard minimum order quantity is 5 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this ultra-thin fancoil unit carry?
It is supplied with RoHS CE CCC ISO documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the ultra-thin fancoil unit be supplied for my local voltage?
The standard configuration is 220~230V/50HZ/1Phase. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shandong GRAD Group Co., Ltd., based in China. The company 20 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shandong GRAD Group Co., Ltd. range on HVACR Nexus.
