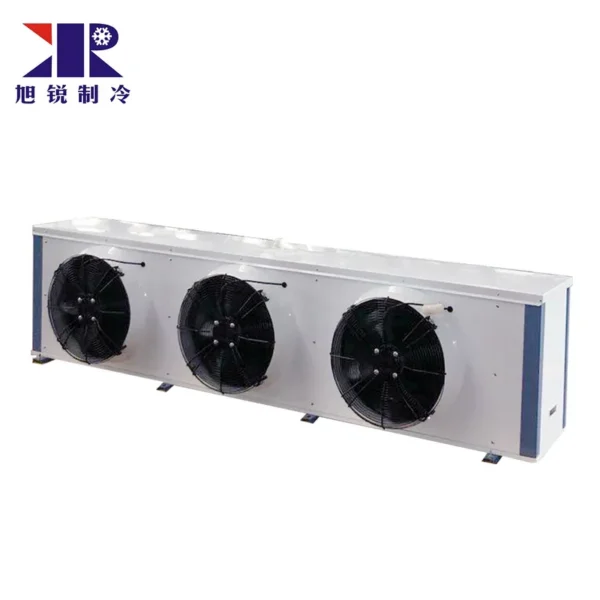

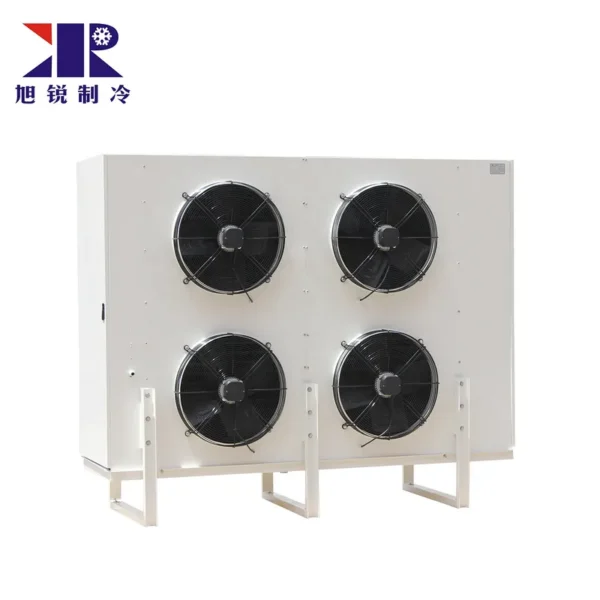

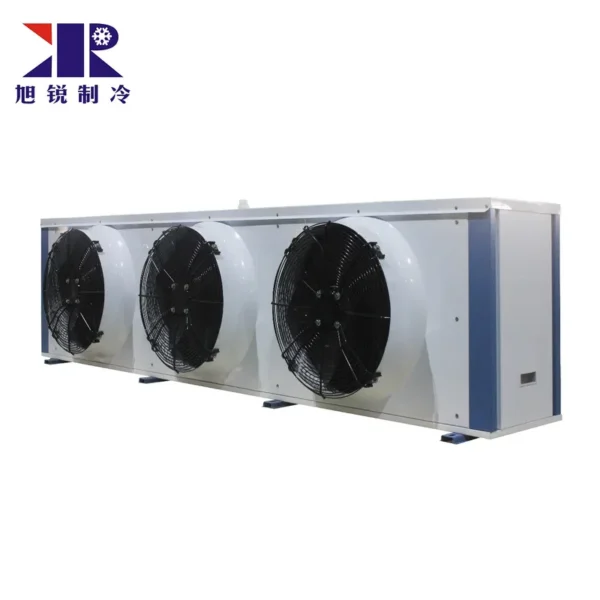

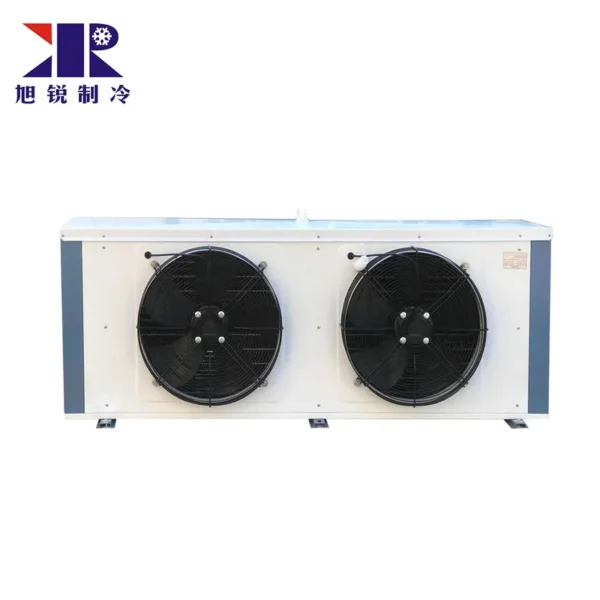

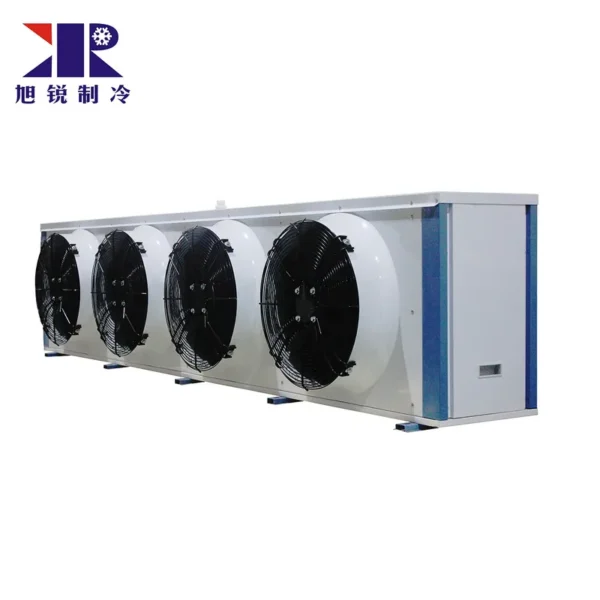

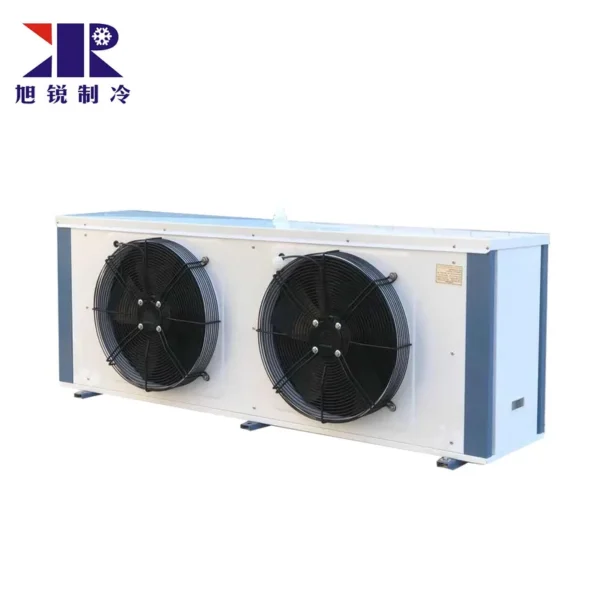

Unit Cooler, 3100 KW, R134A

The unit cooler listed here carries 3100 KW/ 2650 Kcal, refrigerant R134A/R404A/R507, documented exactly as the manufacturer publishes it. Made by Shanghai Xurui Refrigeration Equipment Co., Ltd. (12 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Unit Cooler

• Capacity: 3100 KW/ 2650 Kcal
• Tube Material: Copper tube
• Fin Material: Alunimun
• Refrigerant: R134A/R404A/R507
• Warranty: 1 Year
• Place Of Origin: Shanghai, China

Technical Specifications

Product Details

VR

DL 15 Industrial Unit Cooler Air Cooled Evaporator for Cold Storage Room

Evaporator Features

New look in 2021

·Feature:

1. The heat exchange of the evaporator is designed according to the most popular compressor in the market, which is suitable forcondensing units with different models.

2. The shell is made of special galvanized steel, which has high strength, corrosion resistance, shock resistance and gloss. It can also be made of aluminum, stainless steel and other materials according to customer needs.

3. The drain pan is designed so that the sewage faces the drain, which effectively reduces the accumulation of water in the pan.

4. The use of high-quality copper tubes and special aluminum fins. The copper tubes are multi-tooth internal threads with high efficiency. The copper content is up to 99.9%, which increases the surface area and heat transfer efficiency.

5. The pipeline design adopts a direct return oil counterflow heat exchanger to avoid accumulation of refrigerated oil, make full use of the heat transfer area, improve heat exchange efficiency, and ensure overheating.

6. Adopting the most famous brand axial flow fan, high efficiency, low noise, suitable for low temperature and different voltage requirements, reasonable matching of blade and air ring gap, hyperbolic air duct design, to achieve the best effect.

7. Factory management has passed ISO9001-2008 certification, and product quality control runs through the whole process. Before leaving the factory after 24 hours sealing test and pollution removal, all products accept custom.

8. The evaporator motor with UL certification can be customized according to customer needs.

9. Applicable medium: Suitable for R22, R134a, R404A, R407C and other refrigerants;

10. Installation and after sales service: No matter which country or region you are in, as long as you need, we will send professionals to where we can reach to solve your worries.

Parameters Table

DL Series Evaporator Parameter Sheet – 4.5mm

Model

Heat Exchange

Area

Axial Fan

Defrost power

Weight

Size

DL-2.1/10

2.1kW

10㎡

1*φ300

2kW

30kg

710*435*465mm

DL-3.1/15

3.1kW

15㎡

2*φ300

2.4kW

43kg

1030*355*457mm

DL-4.2/20

4.2kW

20㎡

2*φ300

2.7kW

50kg

1180*355*457mm

DL-5.2/30

5.2kW

30㎡

3*φ300

3.6kW

59kg

1580*355*457mm

DL-8.2/40

8.2kW

40㎡

2*φ400

3.9kW

75kg

1520*502*575mm

DL-11.5/55

11.5kW

55㎡

2*φ400

3.9kW

85kg

1520*502*575mm

DL-16.7/80

16.7kW

80㎡

2*φ500

6kW

110kg

1820*631*677mm

DL-21.9/105

21.9kW

105㎡

2*φ500

7.5kW

125kg

1820*631*677mm

DL-25.8/125

25.8kW

125㎡

3*φ500

12.6kW

165kg

2300*652*678mm

DL-33.6/160

33.6kW

160㎡

3*φ500

15kW

185kg

2720*652*678mm

DL-38.7/185

38.7kW

185㎡

4*φ500

16.8kW

220kg

3080*631*678mm

DL-44/210

44kW

210㎡

4*φ500

18kW

260kg

3520*681*678mm

DL-52.9/260

52.9kW

260㎡

4*φ500

22.5kW

380kg

3520*681*678mm

DL-52.9/260

52.9kW

260㎡

2*φ600

22.5kW

380kg

2180*742*887mm

DL-67.2/330

67.2kW

330㎡

3*φ600

27.2kW

460kg

2630*742*650mm

DL-83.4/410

83.4kW

410㎡

3*φ600

27.2kW

480kg

3200*742*887mm

DL-102/500

102kW

500㎡

4*φ600

30kW

–

3326*770*1040mm

DL-111/550

111kW

550㎡

4*φ600

33kW

–

3646*770*1040mm

DL-122/600

122kW

600㎡

4*φ600

39kW

–

3340*870*1046mm

Air-cooled condenser can also be customized according to requirements

DD Series Evaporator Parameter Sheet – 6mm

Model

Heat Exchange

Area

Axial Fan

Defrost power

Weight

Size

DD-1.5/7

1.5kW

7㎡

1*φ300

2kW

30kg

710*435*465mm

DD-2.35/12

2.35kW

12㎡

2*φ300

2.4kW

43kg

1030*355*457mm

DD-3.0/15

3.0kW

15㎡

2*φ300

2.7kW

50kg

1180*355*457mm

DD-4.0/22

4.0kW

22㎡

3*φ300

3.6kW

59kg

1580*355*457mm

DD-6.0/30

6.0kW

30㎡

2*φ400

3.9kW

75kg

1520*502*575mm

DD-8.0/40

8.0kW

40㎡

2*φ400

3.9kW

85kg

1520*502*575mm

DD-12.0/60

12.0kW

60㎡

2*φ500

6kW

110kg

1820*631*677mm

DD-15.9/80

15.9kW

80㎡

2*φ500

7.5kW

125kg

1820*631*677mm

DD-20.0/100

20.0kW

100㎡

3*φ500

12.6kW

165kg

2300*652*678mm

DD-24.0/120

24.0kW

120㎡

3*φ500

15kW

185kg

2720*652*678mm

DD-28.2/140

28.2kW

140㎡

4*φ500

16.8kW

220kg

3080*631*678mm

DD-32.1/160

32.1kW

160㎡

4*φ500

18kW

260kg

3520*681*678mm

DD-37.4/200

37.4kW

200㎡

4*φ500

22.5kW

380kg

3520*681*678mm

DD-37.4/200

37.4kW

200㎡

2*φ600

22.5kW

380kg

2180*742*887mm

DD-46.8/260

46.8kW

260㎡

3*φ600

27.2kW

460kg

2630*742*650mm

DD-56.2/310

56.2kW

310㎡

3*φ600

27.2kW

480kg

3200*742*887mm

DD-65.1/360

65.1kW

360㎡

4*φ600

30kW

–

3326*770*1040mm

DD-72.5/400

72.5kW

400㎡

4*φ600

33kW

–

3646*770*1040mm

DD-81.8/440

81.8kW

440㎡

4*φ600

39kW

–

3340*870*1046mm

Air-cooled condenser can also be customized according to requirements

DJ Series Evaporator Parameter Sheet – 9mm

Model

Heat Exchange

Area

Axial Fan

Defrost power

Weight

Size

DJ-1.3/8

1.3kW

8㎡

2*φ300

2.4kW

43kg

1030*355*457mm

DJ-2.3/10

2.3kW

10㎡

2*φ300

2.7kW

50kg

1180*355*457mm

DJ-3.0/15

3.0kW

15㎡

3*φ300

3.6kW

59kg

1580*355*457mm

DJ-4.0/20

4.0kW

20㎡

2*φ400

3.9kW

75kg

1520*502*575mm

DJ-5.1/30

5.1kW

30㎡

2*φ400

3.9kW

85kg

1520*502*575mm

DJ-8.0/40

8.0kW

40㎡

2*φ500

6kW

110kg

1820*631*677mm

DJ-9.8/55

9.8kW

55㎡

2*φ500

7.5kW

125kg

1820*631*677mm

DJ-12.8/70

12.8kW

70㎡

3*φ500

12.6kW

165kg

2300*652*678mm

DJ-15.7/85

15.7kW

85㎡

3*φ500

15kW

185kg

2720*652*678mm

DJ-18.8/105

18.8kW

105㎡

4*φ500

16.8kW

220kg

3080*631*678mm

DJ-21.6/115

21.6kW

115㎡

4*φ500

18kW

260kg

3520*681*678mm

DJ-23.9/140

23.9kW

140㎡

4*φ500

22.5kW

380kg

3520*681*678mm

DJ-23.9/140

23.9kW

140㎡

2*φ600

22.5kW

380kg

2180*742*887mm

DJ-29.0/170

29.0kW

170㎡

3*φ600

27.2kW

460kg

2630*742*650mm

DJ-35.9/210

35.9kW

210㎡

3*φ600

27.2kW

480kg

3200*742*887mm

DJ-42.7/250

42.7kW

250㎡

4*φ600

30kW

–

3326*770*1040mm

DJ-51.2/300

51.2kW

300㎡

4*φ600

33kW

–

3646*770*1040mm

DJ-59.8/350

59.8kW

350㎡

4*φ600

39kW

–

3340*870*1046mm

Air-cooled condenser can also be customized according to requirements

Evaporator Types

D Series Evaporator

Roof Mounted Evaporator

Inclined Evaporator

Long Distance Evaporator

Stainless Steel/Aluminum

Evaporator

Vertical Evaporator

Evaporator Application

Suitable for refrigeration condensing unit used in cold room.

Hotels, hospitals, blood banks, poultry slaughter and processing, aquaculture and processing, mushroom cultivation, agricultural product processing, dairy production, pharmaceutical processing and logistics, beverage production and processing, beer production and cooling, large-scale logistics storage, chemical product cooling, leather manufacturing, injection molding, machine cooling, steel cooling, ommunication equipment, ship manufacturing and more.

The site picture of the new appearance evaporator is being updated

Company Profile

About us

Shanghai Xurui is located in Shanghai with 15 years' experience in producing condensing unit, evaporator, condenser, water chiller for cold room, ice cream production line, quick-freezing tunnel…

All units adopt world famous brand compressors. It has been certified by ISO9001, CE, got import-export license and the license of National Industrial Product Manufacture of China.

Export to more than 30 countries in Europe, the Middle East, Southeast Asia, Africa, South America and areas etc.

Supply high quality & safety refrigeration equipment. Consecutive sales increase of 15 years.

Our factory

Complete Production Equipment + Professional Production Team + Superb Production Technology = Xu Rui

Not only we have our own brand “XU RUI” , but also we supply the OEM service to our customers. To satisfy with your need,we can print your company Logo or design on the units or the other parts

Our Advantages

At China Wholesale, we can handle your large drive-in refrigerated warehouse projects from start to finish. We have a vast inventory of refrigerant equipment to meet your needs and our nationwide installation teams are ready and waiting to do the job. We offer: • Top quality new equipment for any size refrigerated building. • Experienced crews to build your box from walls to ceiling. • Experience in special needs such as insulated floors, refrigeration parts. • Turnkey projects available. • Custom sizes and design services. • We will go anywhere to do the job. Whether you are a food distributor, farmer, pharmaceutical company, or cold storage company, we can handle your project from start to finish.

Transportation & Installation

We provide the best packing service to our customers! Arrival safely.

Recommend Products

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1+ set: US $209 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this unit cooler?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
