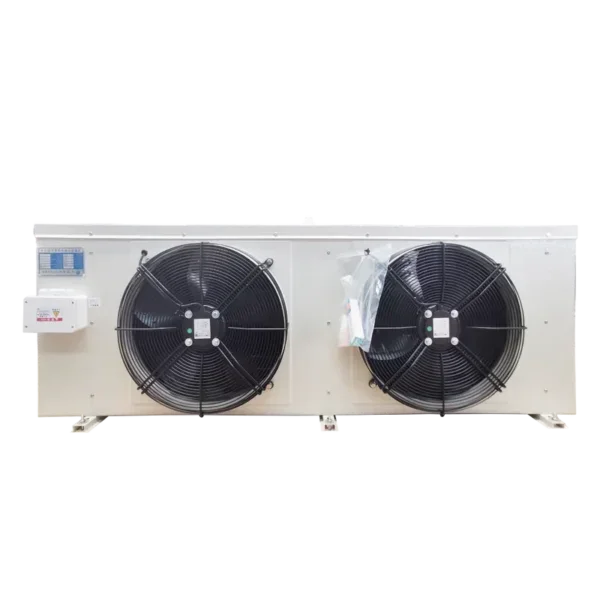

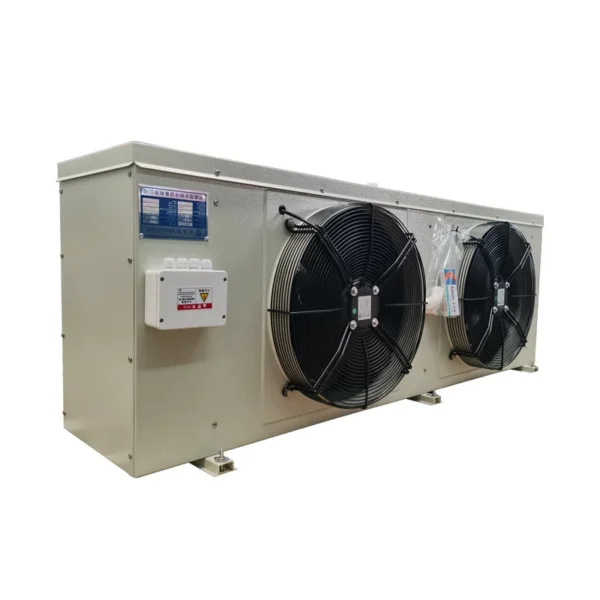

Unit Cooler, Ceiling

Manufactured by Henan Binhe Trading, this unit cooler is documented here exactly as the factory publishes it. Supplier profile: 1 year on the platform. Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Unit Cooler

• Warranty: 1 Year
• Place Of Origin: Henan, China
• Application: Cold Storage
• Product Type: Wall mounted evaporator

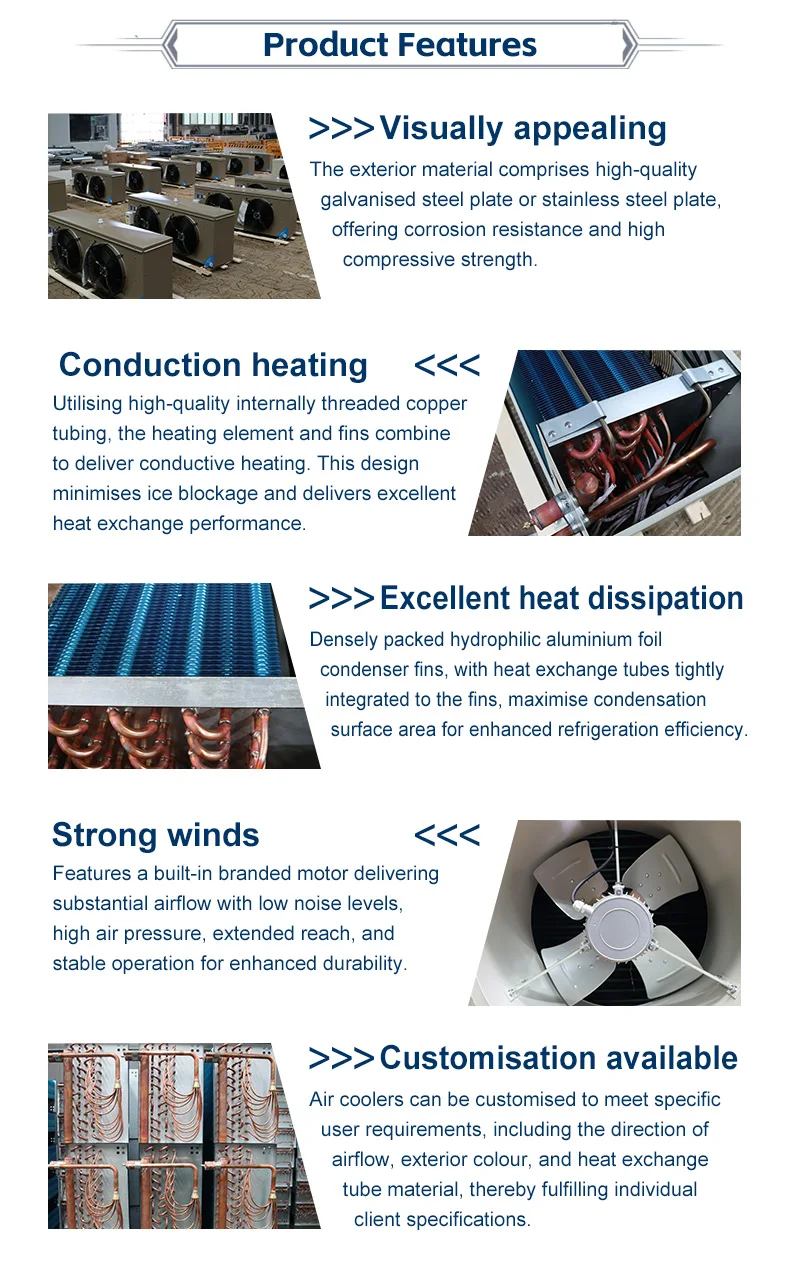

• Fin Type: Hydrophilic aluminum fin
• Weight (Kg): 100

Technical Specifications

Product Details

Air Cooler For Cold Storage

Products Description

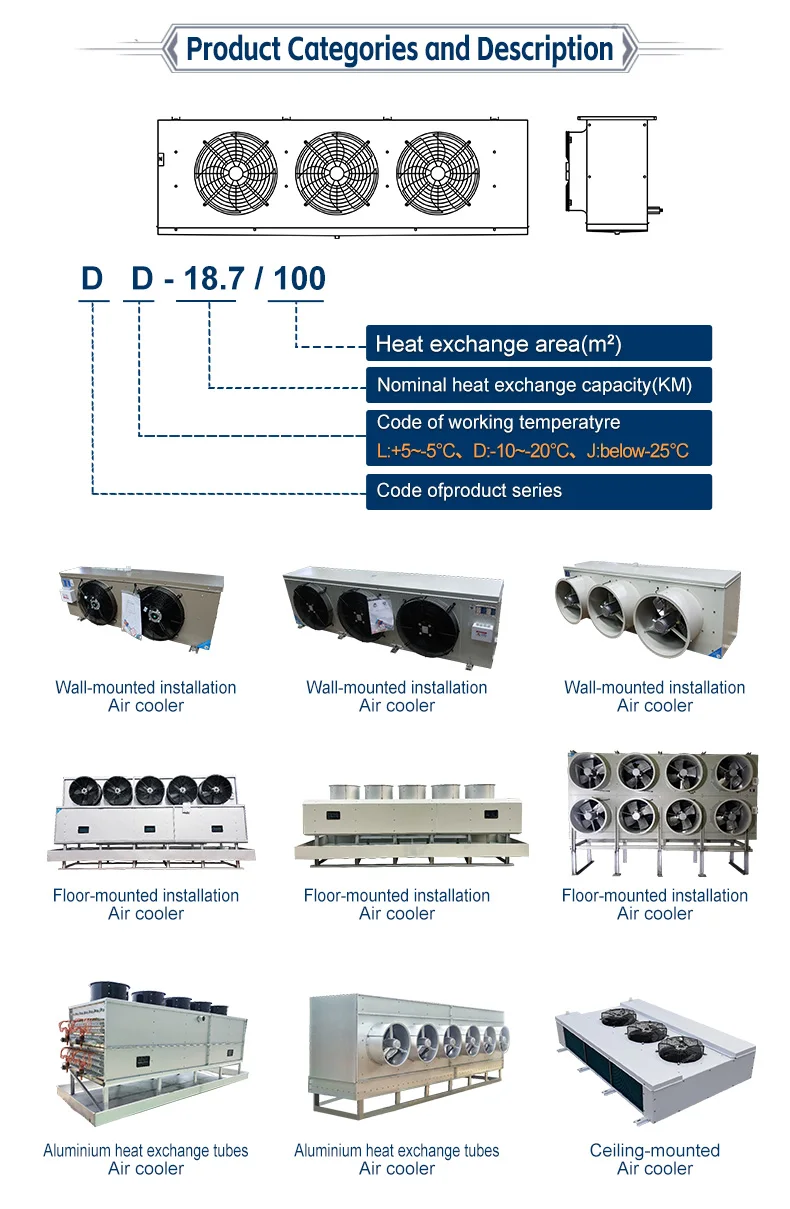

Product Paramenters

Model	capacity	Nominal area	Volume	Inlet Outlet	Parameter of fan							Eletrothemal defrosting
										Quantity	Fan Size		Air Volume	Range
		w	m²	d m³	mm	N	mm	m³/h	m	KW
DL-4.3/20	4260	20	2	φ12/φ22	2	350	2×2670	8	3
DL-6.2/25	6200	25	2.9	φ12/φ22	2	350	2×2670	8	3
DL-8.2/40	8200	40	4.1	φ16/φ25	2	400	2×3500	10	3.3
DL-12.3/55	12300	60	5.4	φ16/φ25	2	400	2×3500	10	4.5
DL-16.4/80	16400	80	8.2	φ19/φ35	2	500	2×6500	15	7
DL-21.5/105	21500	105	10.5	φ19/φ35	2	500	2×6500	15	8
DL-27.6/125	27600	125	13.5	φ19/φ38	3	500	3×6500	15	10.8
DL-27.6/125	27600	125	13.5	φ19/φ38	3	500	3×6570	15	10.8
DL-32.8/160	32800	160	16.2	φ19/φ38	3	500	3×6500	15	13
DL-32.8/160	32800	160	16.2	φ19/φ38	3	500	3×6570	15	13
DL-37.9/185	37900	185	19	φ25/φ50	4	500	4×6500	15	15.5
DL-37.9/185	37900	185	19	φ25/φ50	4	500	4×6570	15	15.5
DL-42.9/210	42900	210	21.7	φ25/φ50	4	500	4×6500	15	17.6
DL-42.9/210	42900	210	21.7	φ25/φ50	4	500	4×6570	15	17.6
DL-53.3/260	53300	260	28	φ25/φ50	2	600	2×13000	30	16
DL-69.4/330	69400	330	35	φ25/φ50	3	600	3×13000	30	20
DL-83.6/410	83600	410	43.5	φ25/φ50	3	600	3×13000	30	24

Model	Capacity	Nominal area	Volume	Inlet/ Outlet	Parameter of fan							Eletrothemal defrosting
										Quantity	fan Size		Air Volume	Range
		W	㎡	L	mm	N	mm	m³/h	m	KW
DD-2.8/15	2825	15	2.7	φ12/φ22	2	350	2×2670	8	3
DD-3.7/22	3700	22	3.5	φ12/φ22	2	350	2×2670	8	3
DD-5.3/30	5300	30	5.8	φ16/φ25	2	400	2×3500	10	3.9
DD-7.0/40	7000	40	7.6	φ16/φ25	2	400	2×3500	10	3.9
DD-11.2/60	11200	60	10.1	φ19/φ35	2	500	2×6500	15	7.5
DD-14.9/80	14900	80	13.5	φ19/φ35	2	500	2×6500	15	9
DD-18.7/100	18700	100	17.3	φ19/φ38	3	500	3×6500	15	12
DD-18.7/100	18700	100	17.3	φ19/φ38	3	500	3×6570	15	12
DD-22.3/120	22300	120	19.6	φ19/φ38	3	500	3×6500	15	14.4
DD-22.3/120	22300	120	19.6	φ19/φ38	3	500	3×6570	15	14.4
DD-26.2/140	26200	140	22.7	φ25/φ50	4	500	4×6500	15	16.8
DD-26.2/140	26200	140	22.7	φ25/φ50	4	500	4×6570	15	16.8
DD-29.8/160	29800	160	25.8	φ25/φ50	4	500	4×6500	15	19.2
DD-29.8/160	29800	160	25.8	φ25/φ50	4	500	4×6570	15	19.2
DD-37.2/200	37200	200	32.2	φ25/φ50	2	600	2×10000	15	18
DD-48.4/250	48400	250	41.9	φ25/φ50	3	600	3×10000	15	21.6
DD-57.9/310	57900	300	51.6	φ25/φ50	3	600	3×10000	15	25.2

Model	capacity	Nominal area	Volume	Inlet/Outlet	Parameter of fan							Eletrothemal defrosting
										Quantity	Fan Size		Air Volume	Range
		w	m²	d m³	mm	N	mm	m³/h	m	KW
DJ-1.7/12	1700	12	2	φ12/φ22	2	350	2×2670	8	3
DJ-2.6/15	2625	15	2.9	φ12/φ22	2	350	2×2670	8	3
DJ-3.4/20	3400	20	4.1	φ16/φ22	2	400	2×3500	10	3.3
DJ-5.1/30	5100	30	5.4	φ16/φ25	2	400	2×3500	10	4.5
DJ-6.8/40	6800	40	8.2	φ19/φ35	2	500	2×6500	15	7
DJ-8.9/55	8900	55	10.5	φ19/φ35	2	500	2×6500	15	8
DJ-11.6/70	11600	70	13.5	φ19/φ38	3	500	3×6500	15	10.8
DJ-11.6/70	11600	70	13.5	φ19/φ38	3	500	3×6570	15	10.8
DJ-14.3/85	14300	85	16.2	φ19/φ38	3	500	3×6500	15	13
DJ-14.3/85	14300	85	16.2	φ19/φ38	3	500	3×6570	15	13
DJ-17.9/100	17900	100	19	φ25/φ50	4	500	4×6500	15	15.5
DJ-17.9/100	17900	100	19	φ25/φ50	4	500	4×6570	15	15.5
DJ-19.6/115	19600	115	21.7	φ25/φ50	4	500	4×6500	15	17.6
DJ-19.6/115	19600	115	21.7	φ25/φ50	4	500	4×6570	15	17.6
DJ-23.9/140	23900	140	28	φ25/φ50	2	600	2×13000	30	16
DJ-28.9/170	28900	170	35	φ25/φ50	3	600	3×13000	30	20
DJ-35.8/210	35800	210	43.5	φ25/φ50	3	600	3×13000	30	24

Company Profile

FAQ

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–4 piece: US $270 / piece
  • 5–9 piece: US $250 / piece
  • 10+ piece: US $240 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this unit cooler?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Henan Binhe Trading Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, Trading Company. Browse the full Henan Binhe Trading Co., Ltd. range on HVACR Nexus.
