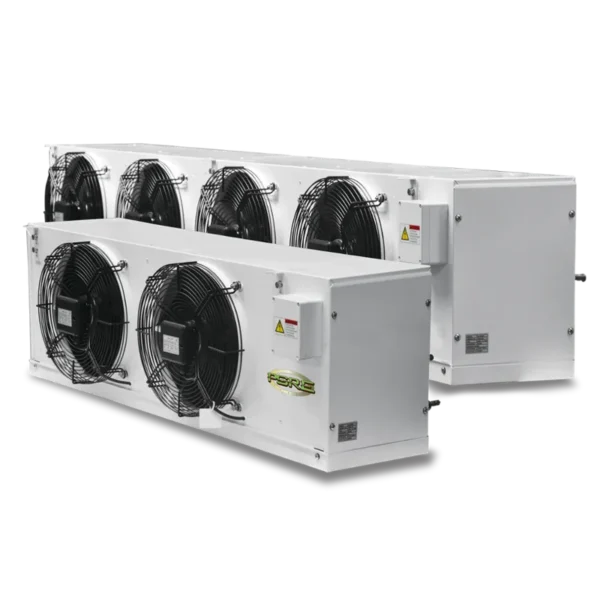

Unit cooler — material Stainless Steel, refrigerant R404a. The complete factory specification follows. Made by Taizhou Nanfeng Cold-Chain Co., Ltd. (18 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Unit Cooler
- Material: Stainless Steel
- Case Material: Aluminium alloy
- Refrigerant: R404a
- Warranty: 3 Years
- Place Of Origin: Jiangsu, China
- Application: Refrigeration Parts
Technical Specifications
| Application | Refrigeration Parts |
|---|---|
| Type | Evaporator |
| Material | Stainless Steel |
| Warranty | 3 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Weight (Kg) | 100 |
| Place Of Origin | Jiangsu, China |
| Brand Name | PSRE |
| Fin Space Of Air Cooler | 3mm,350mm,400mm,450mm,500mm,550mm, |
| Coil Tube Of Air Cooler | copper |
| Functions | Fresh keeping ,freezing |
| Case Material | Aluminium alloy |
| Anti-Corrosion | Power coated |
| Refrigerant | R404a |
| Expansion Valve | Danfoss |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
LFJ series air cooler absorbed the advantages of several international brands after several rounds of optimized design, higher heat exchange efficiency, lower noise, beautiful and sturdy appearance, easier to installation.
The cover of the air cooler adopts high quality and strength aluminum plate which makes the weight lighter and the strength higher.High quality cooper pipe and optimized design of aluminum films which make the heat exchange efficiency higher.
Commercial and ceiling type air cooler equipped with sub-cooler pipe which can improve the cooling capacity of condensing unit by 3-5 percentage. lt also equipped with the international brand Danfoss thermostatic expansion valve, convenient to use.
lndustrial air cooler equipped with Danfoss electronic expansion valve. lt can be used in variety of refrigerants and control different superheat degree with a simple setting.
LFJ series air cooler can be used single or multiple combinations. lt can control different temperature and superheat degree.
Ceiling type air cooler capacity range:0.5Kw~3Kw
Commercial air cooler capacity range:1Kw~23Kw
lndustrial air cooler capacity range:5.5Kw~93Kw

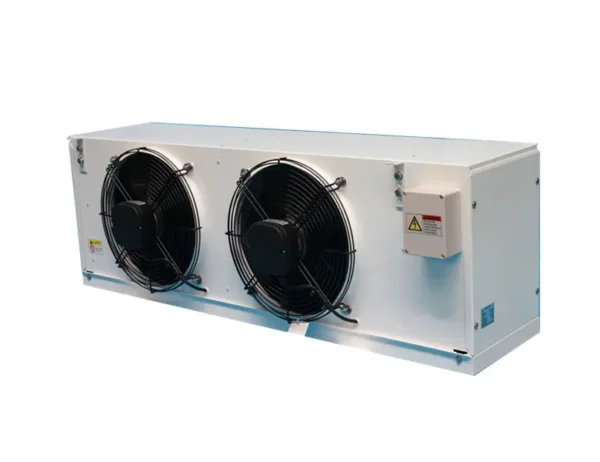

LFJ Series Air Cooler
Commercial series overall dimension and fixing centre drawing
Main Features
1.light in weight,convenient intallation,compact structure,Rapid temperature falling,long preservation time.
2.efficient fins, more evaporation area.
3.mechanical tube expanding,tight connection between fins and copper pipe to increase heat exchange efficiency.
4.bright type copper tube thickness:0.35mm,silverbrazing for elbow.
5.motor:efficient,low power-consuming,strong windy,Wide-range, low noise,long service time.
6.over 2.6MPa pneumatic test permition,reasonable design, Power conservation by 25%.
7.cold-rolled steel plate for shell,phosphating static spraying technique,pleasing shape,rustproof.
8.Defrost heat performance: 8 hours defrost cycle.
Type | Evaporative Air Cooler |
Functions | Fresh keeping ,freezing |
Case material | Aluminium alloy |
Anti-corrosion | Power Coated |

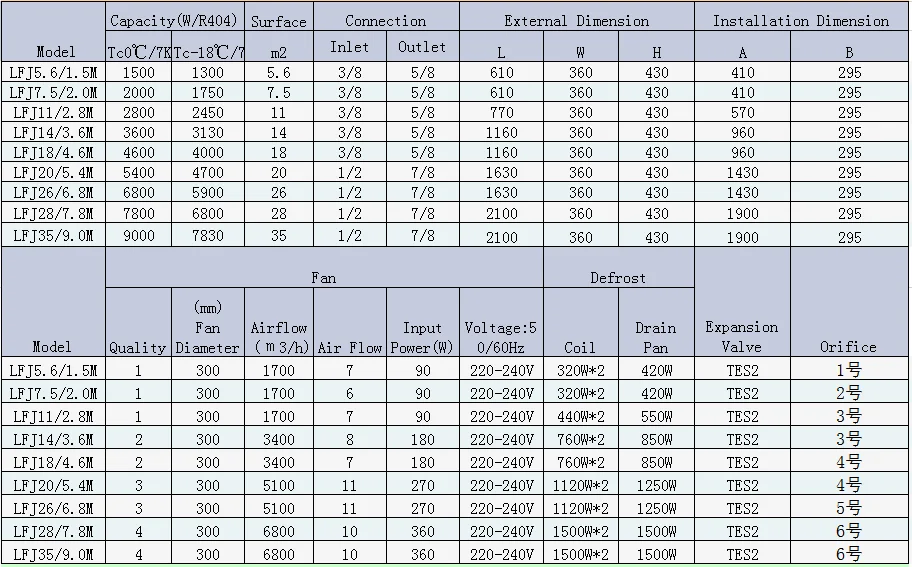

LFJ Series Air Cooler(300mm Fan)
Rt≥-2℃, Fin spacing3.5mm
With Danfoss expansion valve(default Tc -0℃/7KTD)
Mark:0ptionalmodelwith heater
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $800 / set
- 10+ set: US $100 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this unit cooler?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Taizhou Nanfeng Cold-Chain Co., Ltd., based in China. The company 18 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Taizhou Nanfeng Cold-Chain Co., Ltd. range on HVACR Nexus.
