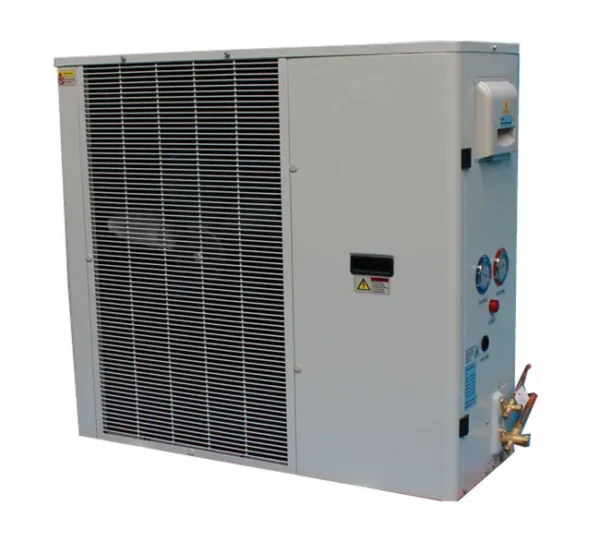

Condensing unit — refrigerant R-404A, certification freezer. The complete factory specification follows. Made by Taizhou Nanfeng Cold-Chain Co., Ltd. (18 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Condensing Unit
- Refrigerant: R-404A
- Warranty: 1 Year
- AfterWarranty Service: Onlinesupport
- Certification: freezer
- Place Of Origin: Jiangsu, China
- Compressor Type: Rotary
Technical Specifications
| Temperature | / |
|---|---|
| Compressor Type | Rotary |
| Refrigerant | R-404A |
| Compressor Brand | Hitachi |
| Core Components | Motor |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 100 |
| NomHP | condense |
| Name | r404a |
| AfterWarranty Service | Onlinesupport |
| LocalService Location | UnitedKingdom |
| Certification | freezer |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
For example :NF420DC-ML series
(other technical parameterss of the condenaing unit you can contact costomer service)
NF420DC-ML/R404a | ||||||||||||||||||
Frequency | 15Hz | 50Hz | 90Hz | |||||||||||||||
Displacement | 2.27m³/h | 7.56m³/h | 13.61m³/h | |||||||||||||||
Evap.Temp.Te(℃) | Qo kW | Pe kW | COP | Qo kW | Pe kW | COP | Qo kW | Pe kW | COP | |||||||||
Ambient Temperature Ta=5℃ | ||||||||||||||||||
-35 | 0.70 | 0.55 | 1.27 | 2.43 | 1.22 | 1.99 | 4.37 | 2.26 | 1.93 | |||||||||
-30 | 0.87 | 0.58 | 1.50 | 3.03 | 1.29 | 2.35 | 5.43 | 2.48 | 2.19 | |||||||||
-25 | 1.07 | 0.61 | 1.75 | 3.70 | 1.35 | 2.74 | 6.57 | 2.71 | 2.42 | |||||||||
-20 | 1.31 | 0.63 | 2.08 | 4.50 | 1.41 | 3.19 | 7.86 | 2.95 | 2.66 | |||||||||
-15 | 1.63 | 0.64 | 2.55 | 5.47 | 1.46 | 3.75 | 9.36 | 3.21 | 2.92 | |||||||||
-10 | 2.00 | 0.65 | 3.08 | 6.54 | 1.50 | 4.36 | 10.99 | 3.48 | 3.16 | |||||||||
Ambient Temperature Ta=15℃ | ||||||||||||||||||
-35 | 0.66 | 0.59 | 1.12 | 2.17 | 1.30 | 1.67 | 3.95 | 2.43 | 1.63 | |||||||||
-30 | 0.77 | 0.61 | 1.26 | 2.80 | 1.40 | 2.00 | 4.96 | 2.69 | 1.84 | |||||||||
-25 | 0.91 | 0.64 | 1.42 | 3.45 | 1.50 | 2.30 | 6.02 | 2.95 | 2.04 | |||||||||
-20 | 1.11 | 0.66 | 1.68 | 4.18 | 1.59 | 2.63 | 7.20 | 3.22 | 2.24 | |||||||||
-15 | 1.41 | 0.68 | 2.07 | 5.02 | 1.66 | 3.02 | 8.53 | 3.51 | 2.43 | |||||||||
-10 | 1.79 | 0.70 | 2.56 | 5.95 | 1.73 | 3.44 | 9.95 | 3.80 | 2.62 | |||||||||
Ambient Temperature Ta=25℃ | ||||||||||||||||||
-35 | 0.60 | 0.62 | 0.97 | 1.93 | 1.45 | 1.33 | 3.58 | 2.70 | 1.33 | |||||||||
-30 | 0.67 | 0.65 | 1.03 | 2.52 | 1.56 | 1.62 | 4.52 | 2.99 | 1.51 | |||||||||
-25 | 0.77 | 0.68 | 1.13 | 3.14 | 1.67 | 1.88 | 5.50 | 3.28 | 1.68 | |||||||||
-20 | 0.94 | 0.71 | 1.32 | 3.83 | 1.78 | 2.15 | 6.56 | 3.58 | 1.83 | |||||||||
-15 | 1.22 | 0.74 | 1.65 | 4.60 | 1.88 | 2.45 | 7.72 | 3.89 | 1.98 | |||||||||
-10 | 1.57 | 0.76 | 2.07 | 5.42 | 1.98 | 2.74 | 8.95 | 4.20 | 2.13 | |||||||||
Ambient Temperature Ta=32℃ | ||||||||||||||||||
-35 | 0.54 | 0.64 | 0.84 | 1.79 | 1.64 | 1.09 | 3.36 | 3.00 | 1.12 | |||||||||
-30 | 0.61 | 0.68 | 0.90 | 2.32 | 1.73 | 1.34 | 4.25 | 3.30 | 1.29 | |||||||||
-25 | 0.70 | 0.71 | 0.99 | 2.89 | 1.83 | 1.58 | 5.16 | 3.61 | 1.43 | |||||||||
-20 | 0.86 | 0.75 | 1.15 | 3.54 | 1.94 | 1.82 | 6.14 | 3.92 | 1.57 | |||||||||
-15 | 1.11 | 0.79 | 1.41 | 4.29 | 2.06 | 2.08 | 7.20 | 4.24 | 1.70 | |||||||||
-10 | 1.42 | 0.82 | 1.73 | 5.09 | 2.19 | 2.32 | 8.30 | 4.56 | 1.82 | |||||||||
Ambient Temperature Ta=43℃ | ||||||||||||||||||
-35 | 0.41 | 0.67 | 0.61 | 1.59 | 2.04 | 0.78 | 3.05 | 3.61 | 0.84 | |||||||||
-30 | 0.51 | 0.72 | 0.71 | 1.99 | 2.06 | 0.97 | 3.84 | 3.93 | 0.98 | |||||||||
-25 | 0.62 | 0.78 | 0.79 | 2.45 | 2.11 | 1.16 | 4.64 | 4.25 | 1.09 | |||||||||
-20 | 0.77 | 0.83 | 0.93 | 3.04 | 2.20 | 1.38 | 5.49 | 4.57 | 1.20 | |||||||||
-15 | 0.96 | 0.88 | 1.09 | 3.79 | 2.35 | 1.61 | 6.39 | 4.89 | 1.31 | |||||||||
-10 | 1.18 | 0.93 | 1.27 | 4.63 | 2.54 | 1.82 | 7.33 | 5.22 | 1.40 | |||||||||
* Duty at +20℃ suction temperature. | ||||||||||||||||||

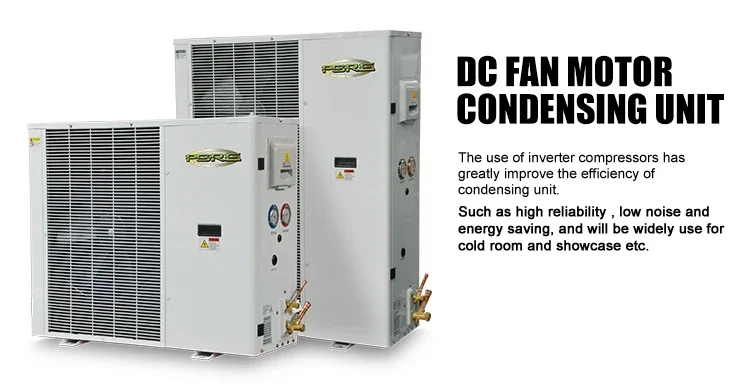

Products Description
The use of inverter compressors combined together with refrigeration systems is nowadays subject of several studies conducted both
from research institutes and refrigeration systems manufacturers worldwide leader in this field. When inverter compressor
starts,the compressor is running at high frequency and cooling quickly;when room temperature reachs the setting temperature,the
compressor runs at low frequency low speed and low energy,only needed power to maintain the setting temperature,low temperature
fluctuation to avoid compressor frequently start to effect compressor life.
from research institutes and refrigeration systems manufacturers worldwide leader in this field. When inverter compressor
starts,the compressor is running at high frequency and cooling quickly;when room temperature reachs the setting temperature,the
compressor runs at low frequency low speed and low energy,only needed power to maintain the setting temperature,low temperature
fluctuation to avoid compressor frequently start to effect compressor life.
Main Feature
Reduce cooling speed faster,small temperature fluctuation range;Efficient energy saving, reduce the system energy;
Increase in compressors reliability thanks to the significant decrease of compressors startups;
Low noise thanks to the extremely high system flexibility;
Extremely low vibration phenomena.
Increase in compressors reliability thanks to the significant decrease of compressors startups;
Low noise thanks to the extremely high system flexibility;
Extremely low vibration phenomena.
Certifications
The company has ISO9001:2000, ISO1400, CE, CB, RoHS and other quality, environmental protection system certification and nationalindustrial product production license.
Company Introduction
Taizhou Nanfeng Cold-Chain limited company was set up in 1999, which specializes in the development, manufacture and sales ofrefrigeration equipment. The company’s core products are DC inverter condensing unit, Danfoss fully equipped condensing unit, Highquality condensing unit and so on.
The DC inverter condensing unit is very SuperEnergySaving(40%-60%), Super Silent( as low as45dB) and so on. Danfoss fully equipped condensing unit is high reliable, high efficiency, strong durability and other advantages.

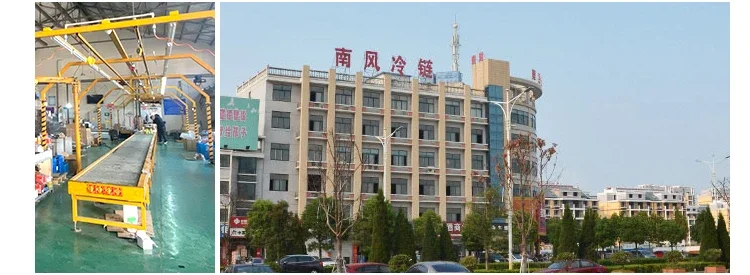

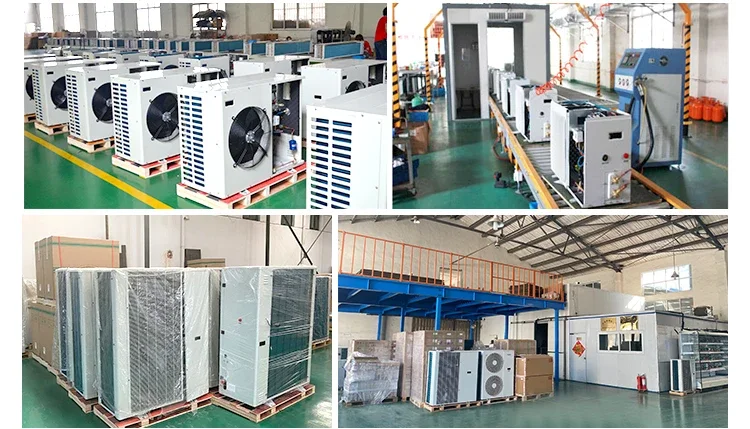

The company has a professional R&D team and a group of dedicated employees. It has automated assembly lines, imported leakdetection equipment, type labs, and production process management software systems to ensure the quality of all products of thecompany and also ensure the company’s new product development and production supply ability.
Exhibition
The company’s major markets are Europe, Australia and other developed countries and regions. It is positioned in the high-endrefrigeration market and provides OEM and ODM services to customers in developed countries such as the United Kingdom andAustralia. Since 2009, the company has settled in the Alibaba International Station platform. It has always upheld the business principles of honesty and trust worthiness in international trade and enjoyed a good reputation among its customers. In 2018, webegan to enter the domestic market. We are committed to creating value for customers with truly high-quality refrigeration equipment.
FAQ
Title goes here.
A1: We are a factory.
Q2: Is a sample available?
A2: Yes, but the sample will be at your charge.
Q3: What is the main market for your products?
A3: Our main market is in North America, Europe and Australian.
Q4: What is your warranty?
A4: We can assure you one year against manufacturing defect.
Q5:Can you provide OEM/ODM service and make OEM logo for us?
A5:Yes,we can provide OEM service and make OEM logo for you.
Ordering and Pricing
- Minimum order quantity: 5 unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this condensing unit?
The standard minimum order quantity is 5 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this condensing unit carry?
It is supplied with freezer documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Taizhou Nanfeng Cold-Chain Co., Ltd., based in China. The company 18 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Taizhou Nanfeng Cold-Chain Co., Ltd. range on HVACR Nexus.
