Key specification for this universal air conditioner: material Plastic And Silicone, model number KT-N898. Everything below is reproduced from the factory data sheet. Made by Hefei Remote Link Electronic Co., Ltd. (1 year on the platform, typical reply ≤4h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Universal Air Conditioner
- Model Number: KT-N898
- Material: Plastic And Silicone
- Place Of Origin: Anhui, China
- Battery Type: AAA*2 Battery
- Single Package Size: 10X3X2 cm
- Single Gross Weight: 0.100 kg
Technical Specifications
| Use | Smart TV |
|---|---|
| Code | Fixed Code |
| Control Distance | 10 m |
| Function | Single Service |
| Battery | AAA |
| Material | Plastic And Silicone |
| Private Mold | No |
| Place Of Origin | Anhui, China |
| Model Number | KT-N898 |
| Brand Name | Remote Link |
| Product Name | Air Condition Remote Control |
| Model | KT-N898 |
| Packing | OPP Ploybag |
| Battery Type | AAA*2 Battery |
| Logo | Accept Custom Logo |
| Payment | TTWestern UnionTrade Assurance |
| MOQ | 100pcs |
| Selling Units | Single item |
| Single Package Size | 10X3X2 cm |
| Single Gross Weight | 0.100 kg |
Product Details
Specification：
Product Name: | Remote Control |
Model Number: | KT-N828 |
Application: | TV, AC, DVD, AVD, STB, Projector & Most home appliances. |
Certification: | TCB, ISO, RoHS, FCC, CE, C-TICK etc. |
Universal Air Conditioner Remote Control KT-N898 Replaced for Haier LG Gree Daikin Midea Panasonic Samsung Toshiba Carrier Fujitsu Hitachi Mitsubishi Sanyo Hyundai Sharp and More Than 2000 Brands

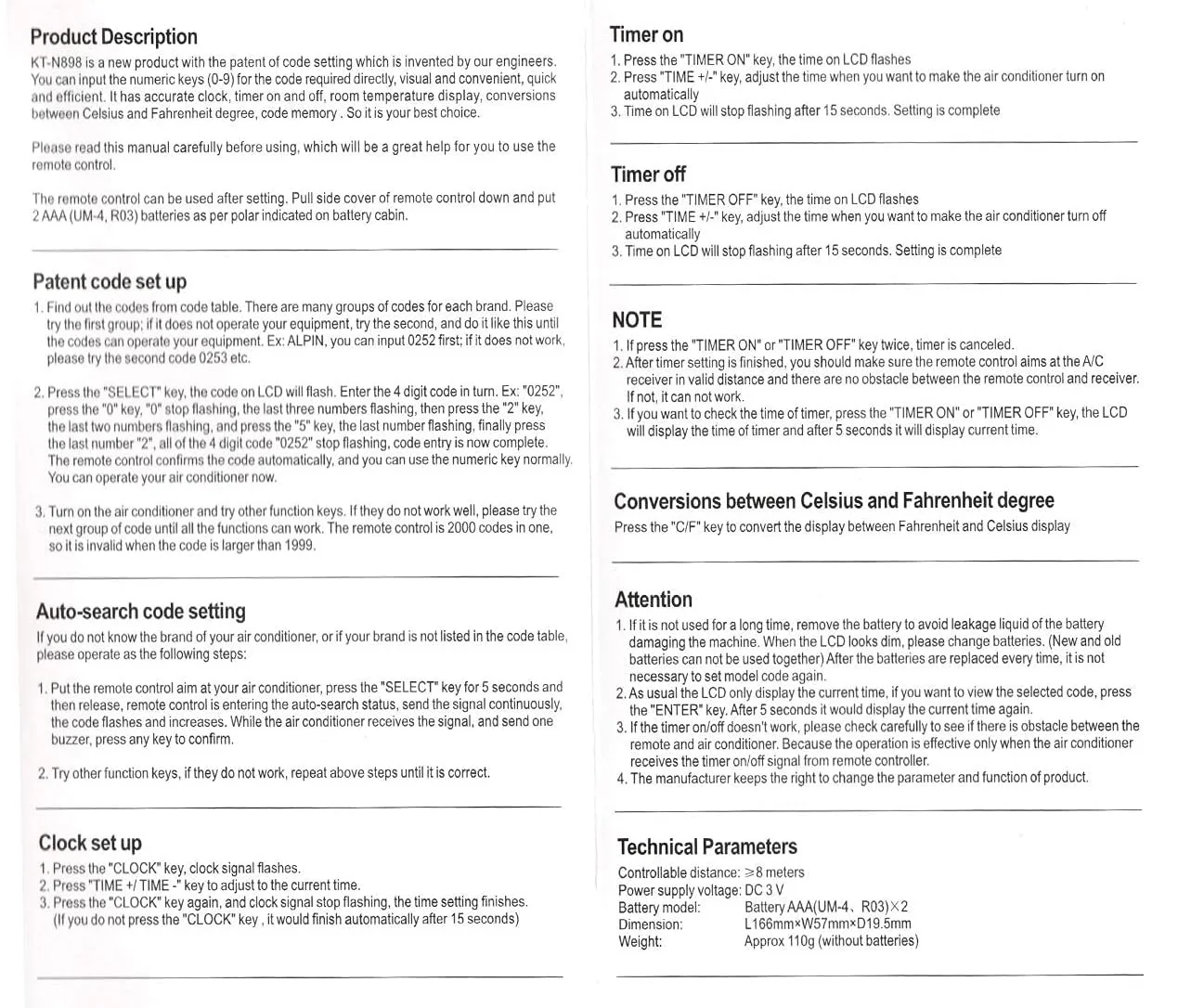

Patent Code Set Up

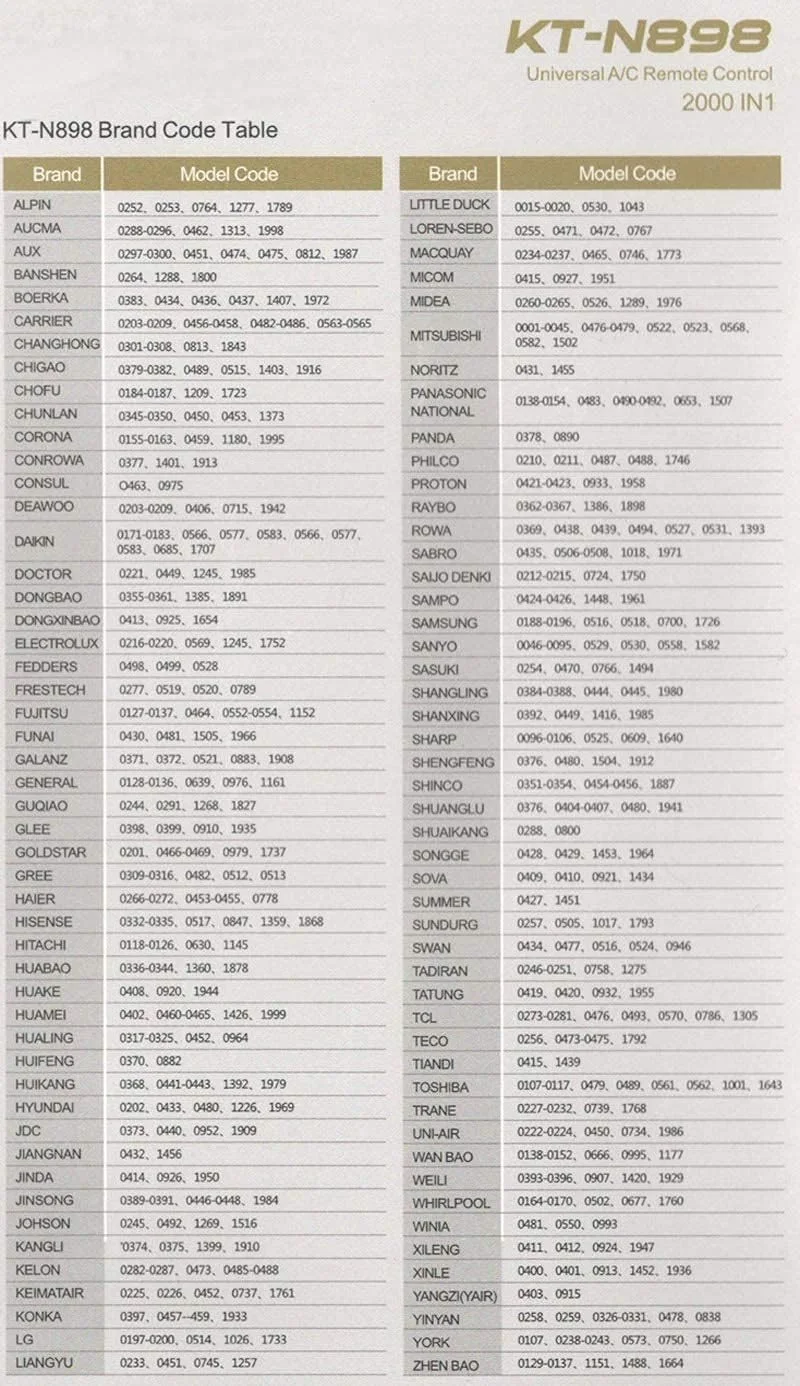

1. Find out the codes from code table. There are many groups of codes for each brand. Please try the first group; if it does not operate your equipment, try the second, and do it like this until the codes can operate your equipment. Ex: ALPIN, you can input 0252 first; if it does not work, please try the second code 0253 etc.
2. Press the "SELECT" key, the code on LCD will flash. Enter the 4 digit code in turn. Ex: "0252", press the "0" key, "0" stop flashing, the last three numbers flashing, then press the "2" key, the last two numbers flashing, and press the "5" key, the last number flashing, finally press the last number "2", all of the 4 digit code "0252" stop flashing, code entry is now complete. The remote control confirms the code automatically, and you can use the numeric key normally. You can operate your air conditioner now.
3. Turn on the air conditioner and try other function keys. If they do not work well, please try the next group of code until all the functions can work. The remote control is 2000 codes in one, so it is invalid when the code is large than 1999.
Auto-Search Code Setting
If you do not know the brand of your air conditioner, or if your brand is not liated in the code table, please operate as the
following setps:
1. Put the remote control aim at your air conditioner, press the "SELECT" key for 5 seconds and then release, remote control is entering the auto-search status, send the signal continously, the code flashes and increases. While the air conditioner receives the signal, and send one buzzer, press any key to confirm.
2. Try other function keys, if they do not work, repeat above steps until it is correct.
Clock Set Up
1. Press the "CLOCK" key, clock signal flashes.
2. Press "TIME+/TIME-" key to adjust to the current time.
3. Press the "CLOCK" key again, and clock signal stop flashing, the time setting finishes. (If you do not press the "CLOCK" key, it would finish automatically after 15 seconds)
Timer On
1. Press the "TIMER ON" key, the time on LCD flashes.
2. Press "TIME+/-" key, adjust the time when you want to make the air conditioner turn on automatically.
3. Time on LCD will stop flashing after 15 seconds. Setting is complete.
Timer Off
1. Press the "TIMER OFF" key, the time on LCD flashes.
2. Press "TIME+/-" key, adjust the time when you want to make the air conditioner turn off automatically.
3. Time on LCD will stop flashing after 15 seconds. Setting is complete.
Note
1. If press the "TIMER ON" or "TIMER OFF" key twice, timer is canceled.
2. After timer setting is finished, you should make sure the remote control aims at the A/C receiver in valid distance and there are no obstacle between the remote control and receiver. If not, it can't work.
3. If you want to check the time of timer, press the "TIMER ON" or "TIMER OFF" key, the LCD will display the time of timer and after 5 seconds it will display current time.
Conversions Between Celsius and Fahrenheit Degree
* Press the "C/F“ key to convert the display between fahrenheit and celsius display.
Patent Code Set Up
1. Find out the codes from code table. There are many groups of codes for each brand. Please try the first group; if it does not operate your equipment, try the second, and do it like this until the codes can operate your equipment. Ex: ALPIN, you can input 0252 first; if it does not work, please try the second code 0253 etc.
2. Press the "SELECT" key, the code on LCD will flash. Enter the 4 digit code in turn. Ex: "0252", press the "0" key, "0" stop flashing, the last three numbers flashing, then press the "2" key, the last two numbers flashing, and press the "5" key, the last number flashing, finally press the last number "2", all of the 4 digit code "0252" stop flashing, code entry is now complete. The remote control confirms the code automatically, and you can use the numeric key normally. You can operate your air conditioner now.
3. Turn on the air conditioner and try other function keys. If they do not work well, please try the next group of code until all the functions can work. The remote control is 2000 codes in one, so it is invalid when the code is large than 1999.
Auto-Search Code Setting
If you do not know the brand of your air conditioner, or if your brand is not liated in the code table, please operate as the
following setps:
1. Put the remote control aim at your air conditioner, press the "SELECT" key for 5 seconds and then release, remote control is entering the auto-search status, send the signal continously, the code flashes and increases. While the air conditioner receives the signal, and send one buzzer, press any key to confirm.
2. Try other function keys, if they do not work, repeat above steps until it is correct.
Clock Set Up
1. Press the "CLOCK" key, clock signal flashes.
2. Press "TIME+/TIME-" key to adjust to the current time.
3. Press the "CLOCK" key again, and clock signal stop flashing, the time setting finishes. (If you do not press the "CLOCK" key, it would finish automatically after 15 seconds)
Timer On
1. Press the "TIMER ON" key, the time on LCD flashes.
2. Press "TIME+/-" key, adjust the time when you want to make the air conditioner turn on automatically.
3. Time on LCD will stop flashing after 15 seconds. Setting is complete.
Timer Off
1. Press the "TIMER OFF" key, the time on LCD flashes.
2. Press "TIME+/-" key, adjust the time when you want to make the air conditioner turn off automatically.
3. Time on LCD will stop flashing after 15 seconds. Setting is complete.
Note
1. If press the "TIMER ON" or "TIMER OFF" key twice, timer is canceled.
2. After timer setting is finished, you should make sure the remote control aims at the A/C receiver in valid distance and there are no obstacle between the remote control and receiver. If not, it can't work.
3. If you want to check the time of timer, press the "TIMER ON" or "TIMER OFF" key, the LCD will display the time of timer and after 5 seconds it will display current time.
Conversions Between Celsius and Fahrenheit Degree
* Press the "C/F“ key to convert the display between fahrenheit and celsius display.
Product Images:
Recommend Products:
Shipping Option:
Company Profile:
Committed to quality and innovation, our products are designed to meet international standards, ensuring durability and seamless
performance. We pride ourselves on being a reliable OEM/ODM partner, providing customized solutions to meet your specific branding
and functional requirements.
and functional requirements.
Let’s connect to explore how we can support your supply chain needs.
Ordering and Pricing
- Minimum order quantity: 100 piece
- Volume pricing:
- 100–499 piece: US $2.25 / piece
- 500–999 piece: US $2.05 / piece
- 1000–4999 piece: US $1.85 / piece
- 5000+ piece: US $1.65 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this universal air conditioner?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Hefei Remote Link Electronic Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, Trading Company. Browse the full Hefei Remote Link Electronic Co., Ltd. range on HVACR Nexus.
