This split air conditioner is listed with the manufacturer’s full published specification — rated voltage 12 V, power 12 W, material ABS. It is produced by Shenzhen Bester Tech Ltd, a verified supplier of 16 years. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Split Air Conditioner
- Model Number: RZ050-DS-1
- Power: 12 W
- Rated Voltage: 12 V
- Input Voltage: 2.5V-3.5VDC (2 AAA batteries)
- Output Voltage: 2.5V-3.5VDC (2 AAA batteries)
- Material: ABS
Technical Specifications
| Type | Motion Sensor |
|---|---|
| Rated Voltage | 12 V |
| Sensing Range | 0-3m(0-9.84ft) |
| Material | ABS |
| Whether The Smart | No |
| Power | 12 W |
| Application | Hotel |
| Model Number | RZ050-DS-1 |
| Place Of Origin | Guangdong, China |
| Brand Name | Rayzeek |
| Product Type | PIR Motion Sensor and IR Transmitht Control |
| Input Voltage | 2.5V-3.5VDC (2 AAA batteries) |
| Output Voltage | 2.5V-3.5VDC (2 AAA batteries) |
| Motion Detecting Range | 6-9M Max |
| IR Transmitting Range | <10M |
| IR Transmitting Direction | 30 degree |
| Time Delay Options | 15min, 30min, 1h(default), 2h. |
| Mounting | Screwing or sticking on the wall. |
| Size | 45 x 70 x 64 mm |
| Usage | Motion Sensor Switches For air conditioners |
| Selling Units | Single item |
| Single Package Size | 20X20X20 cm |
| Single Gross Weight | 2.0 kg |
Product Details
Products Description
Hotel Projects RZ050 Time Delay Split Air Conditioners Saver Rayzeek Hotel Project Window Air Conditioning Sensor

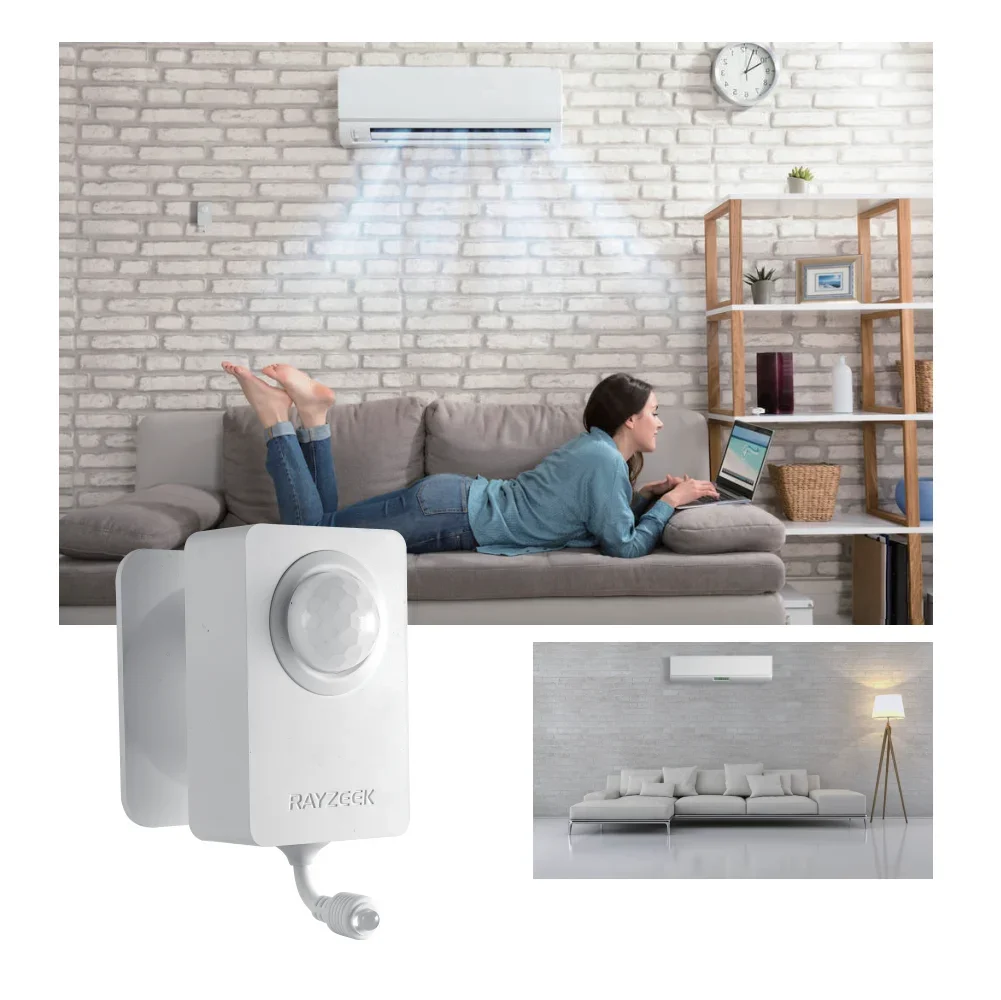

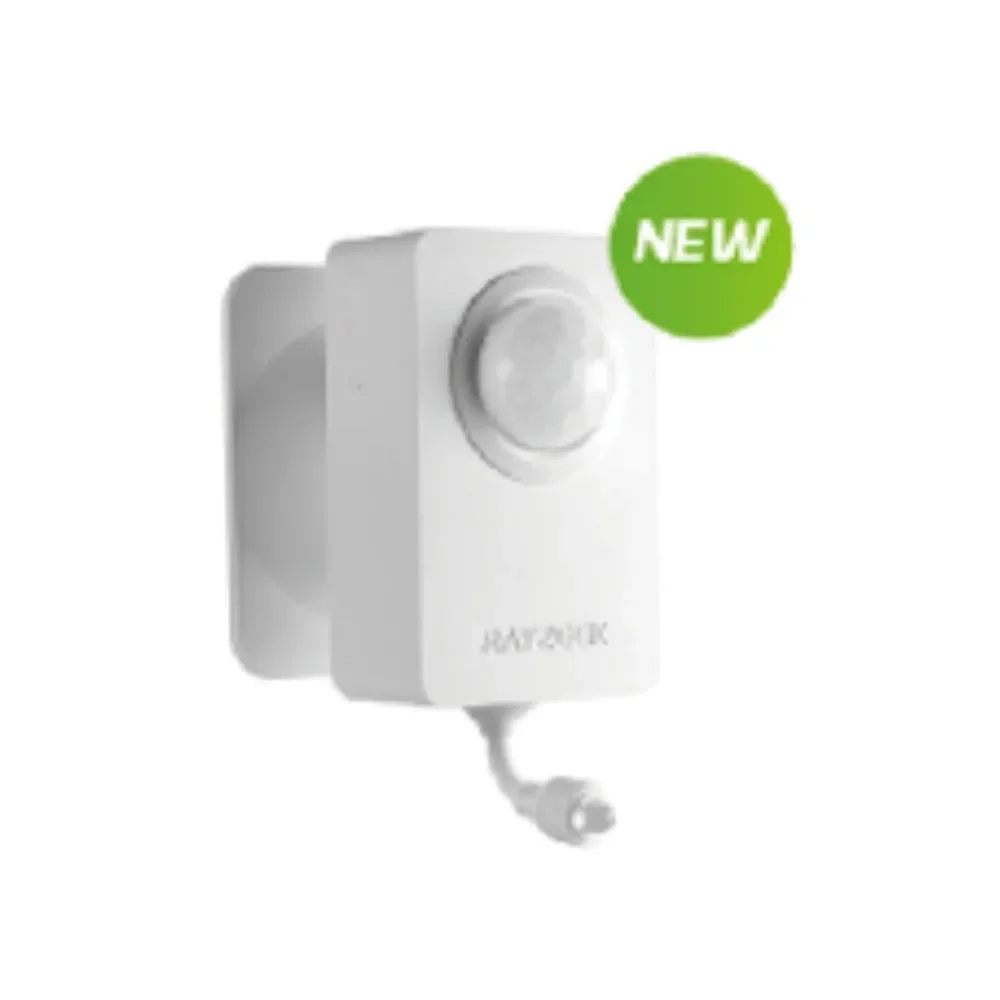

Air Conditioner Motion Sensor Controller
Description:
The RZ050 is an air conditioner motion sensor controller that can automatically turn off the AC left running in an unoccupied space. The device learns the “Power OFF” command from the remote control and sends the same signal to turn off the AC when the motion sensor monitors no occupancy in the room.
Description:
The RZ050 is an air conditioner motion sensor controller that can automatically turn off the AC left running in an unoccupied space. The device learns the “Power OFF” command from the remote control and sends the same signal to turn off the AC when the motion sensor monitors no occupancy in the room.
The wireless & battery-powered design makes it easy for fast DIY installation, and the night mode feature ensures a long and comfortable sleep. With this device, we will never have to worry about forgetting to turn off the AC. It also helps save energy and enjoy air conditioning without worrying about the cost.
Air Conditioner Motion Sensor Controller
The RZ050 is an air conditioner motion sensor controller that can automatically turn off the AC left running in an unoccupied space. The device learns the “Power OFF” command from the remote control and sends the same signal to turn off the AC when the motion sensor monitors no occupancy in the room.
The wireless & battery-powered design makes it easy for fast DIY installation, and the night mode feature ensures a long and comfortable sleep. With this device, we will never have to worry about forgetting to turn off the AC. It also helps save energy and enjoy air conditioning without worrying about the cost.
Features & Benefits
* Automatically turns off the air conditioner when the room is left empty, saving energy bills up to 20% ~ 50%.
* Compatible with most split AC units operated by remote controls.
* Night mode prevents the AC from accidentally turning off when occupants are sleeping at night.
* It’s safe to use and does not have a negative impact on your AC or interfere with any warrant or guarantee you have.
* Battery-powered with long-lasting battery life (at least 1 year).
* Wireless design for fast, easy, and flexible DIY installation by simply sticking or fixing on the wall.
* Compatible with most split AC units operated by remote controls.
* Night mode prevents the AC from accidentally turning off when occupants are sleeping at night.
* It’s safe to use and does not have a negative impact on your AC or interfere with any warrant or guarantee you have.
* Battery-powered with long-lasting battery life (at least 1 year).
* Wireless design for fast, easy, and flexible DIY installation by simply sticking or fixing on the wall.
Specification
Item No. | RZ050 |
Voltage | 2.5V-3.5VDC (2 AAA batteries) |
Motion Detecting range | 6-9M Max |
IR transmitting range | <10M |
IR Transmitting direction | 30 degree |
Mounting | Screwing or sticking on the wall |
Size | 45 x 70 x 64 mm |
Indoor use only | Indoor use only, 0~40°C relative humidity： up to 90% |
Details Images

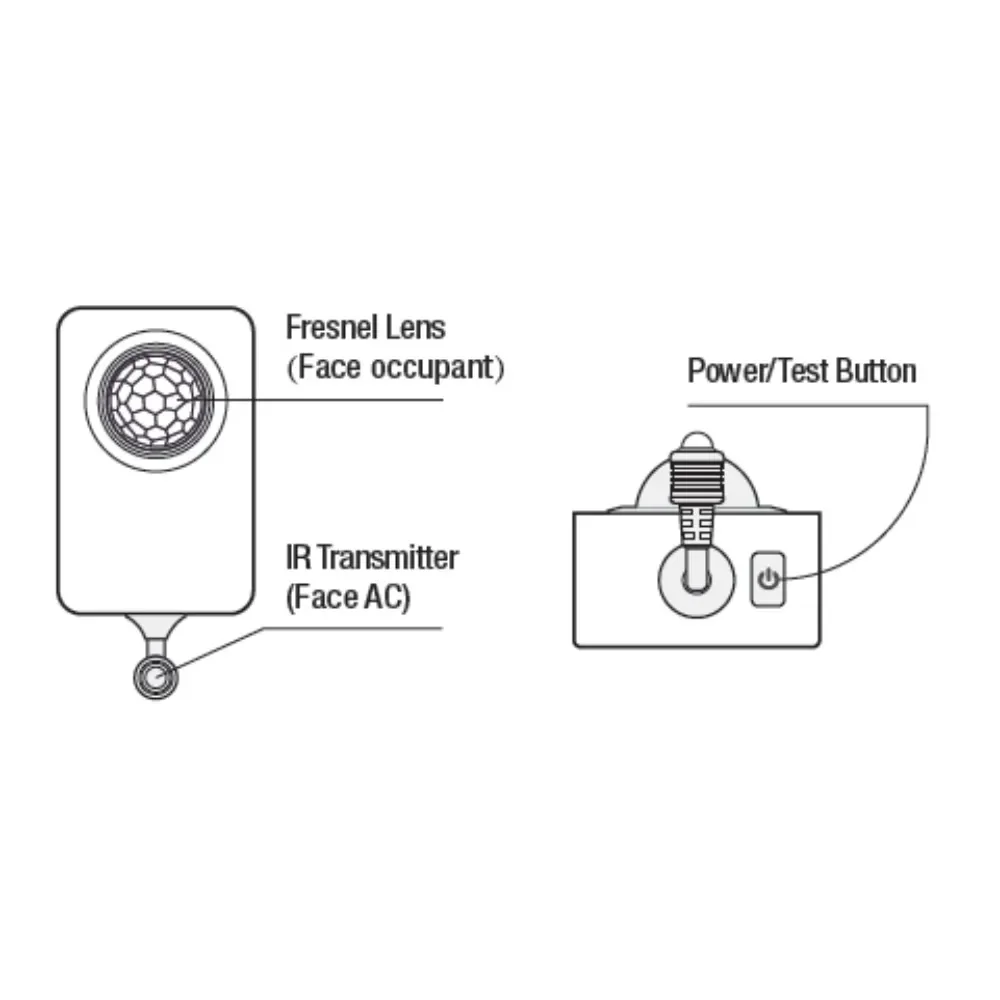

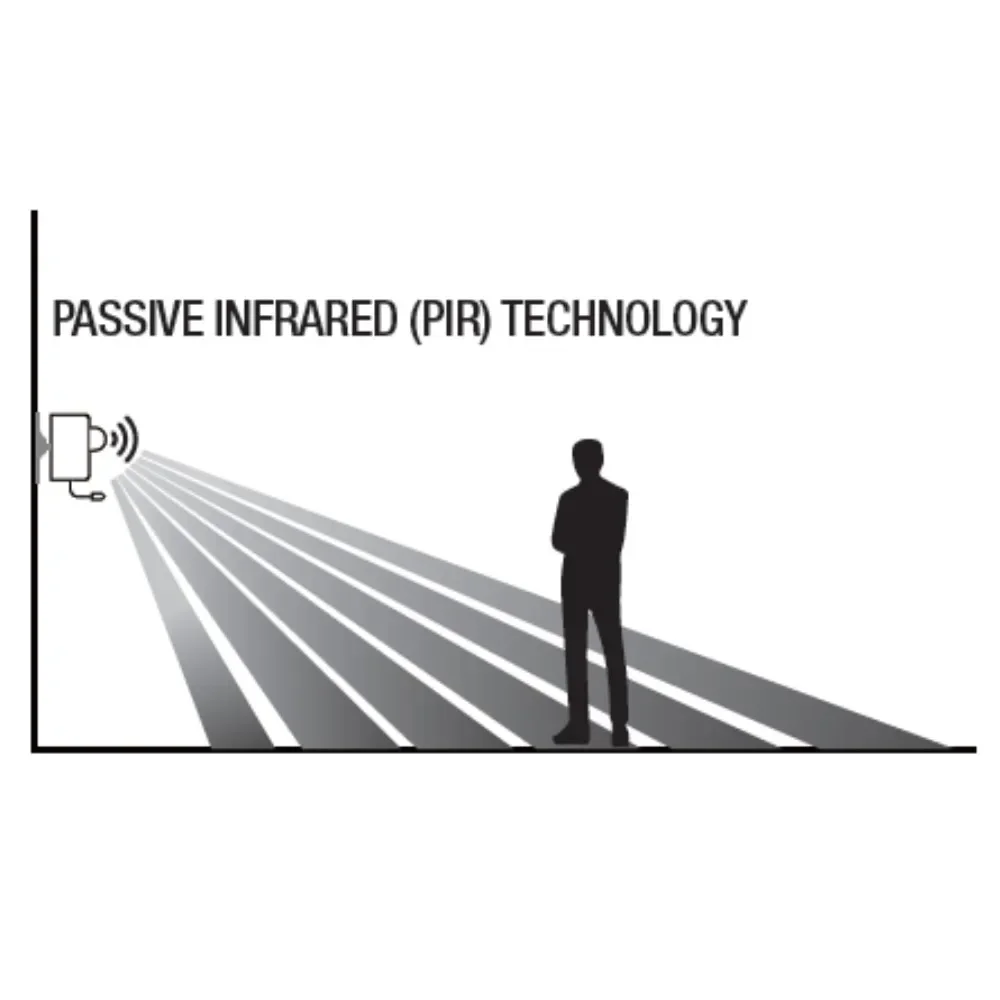

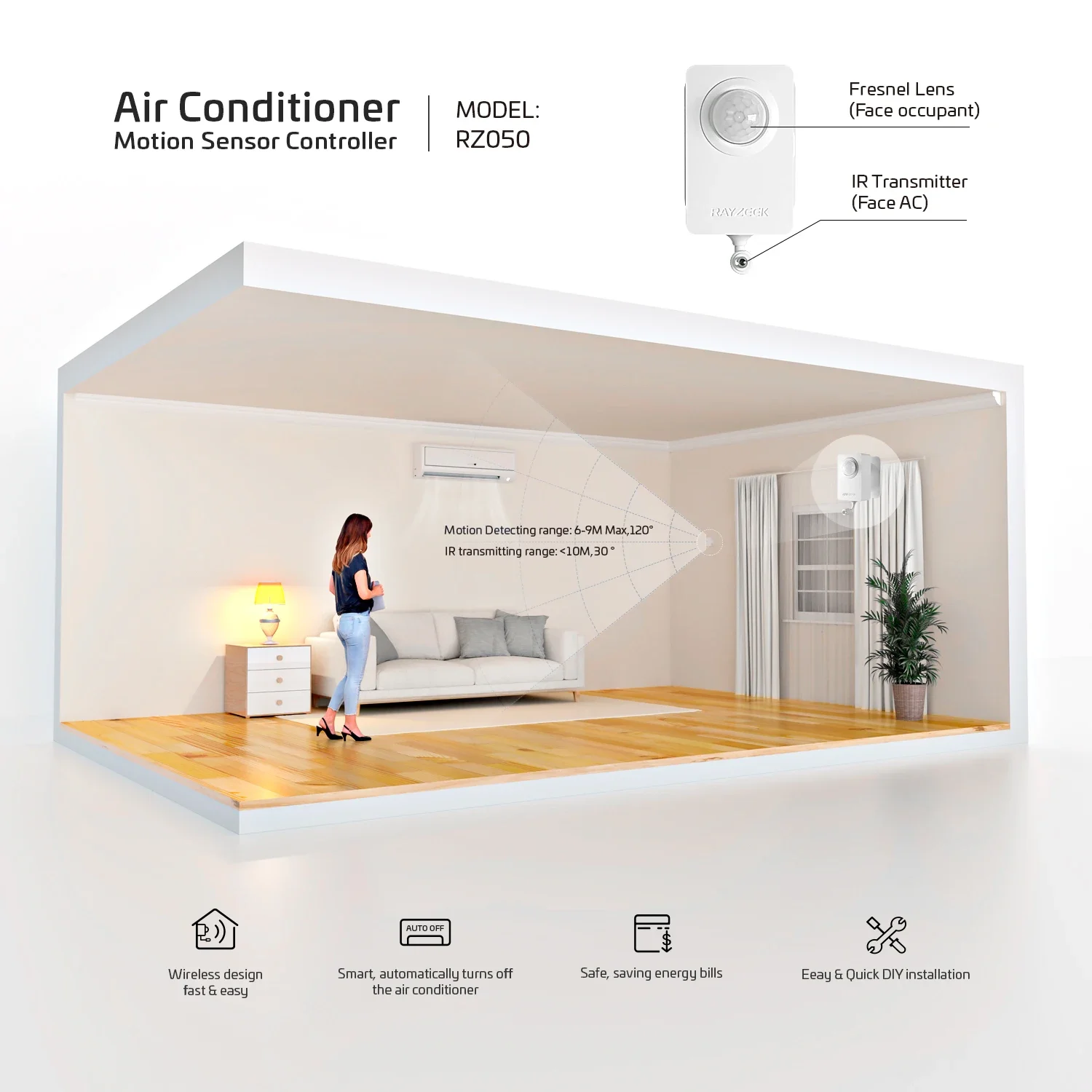

1. The RZ050 utilizes passive infrared (PIR) technology to monitor the room for occupancy. The lens will flash a red light to
indicate it has detected a motion signal.

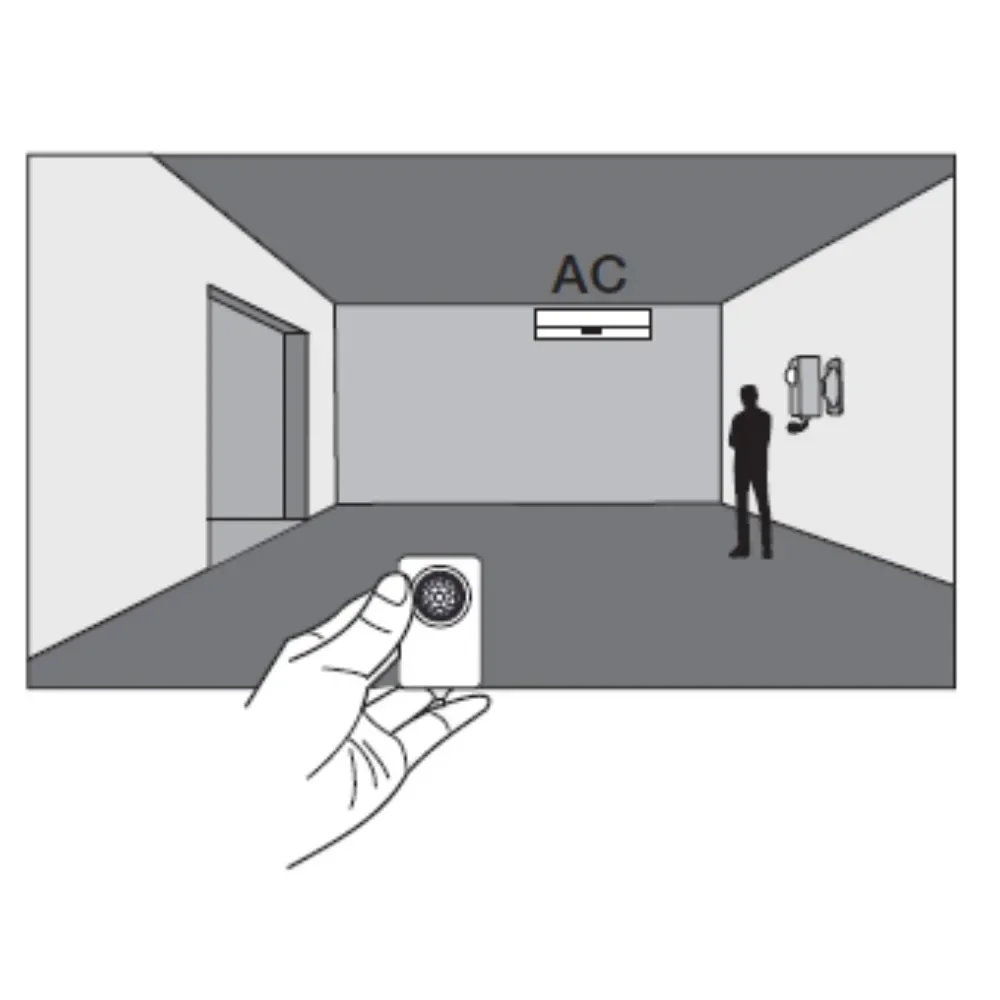

2. When the occupant has left the room and no presence is detected, RZ050 will continue to monitor the room for a preset time delay before sending the OFF signal to shut down the AC. The RZ050 will transmit two OFF commands in 2 seconds to ensure the AC is
successfully powered off.
indicate it has detected a motion signal.
2. When the occupant has left the room and no presence is detected, RZ050 will continue to monitor the room for a preset time delay before sending the OFF signal to shut down the AC. The RZ050 will transmit two OFF commands in 2 seconds to ensure the AC is
successfully powered off.

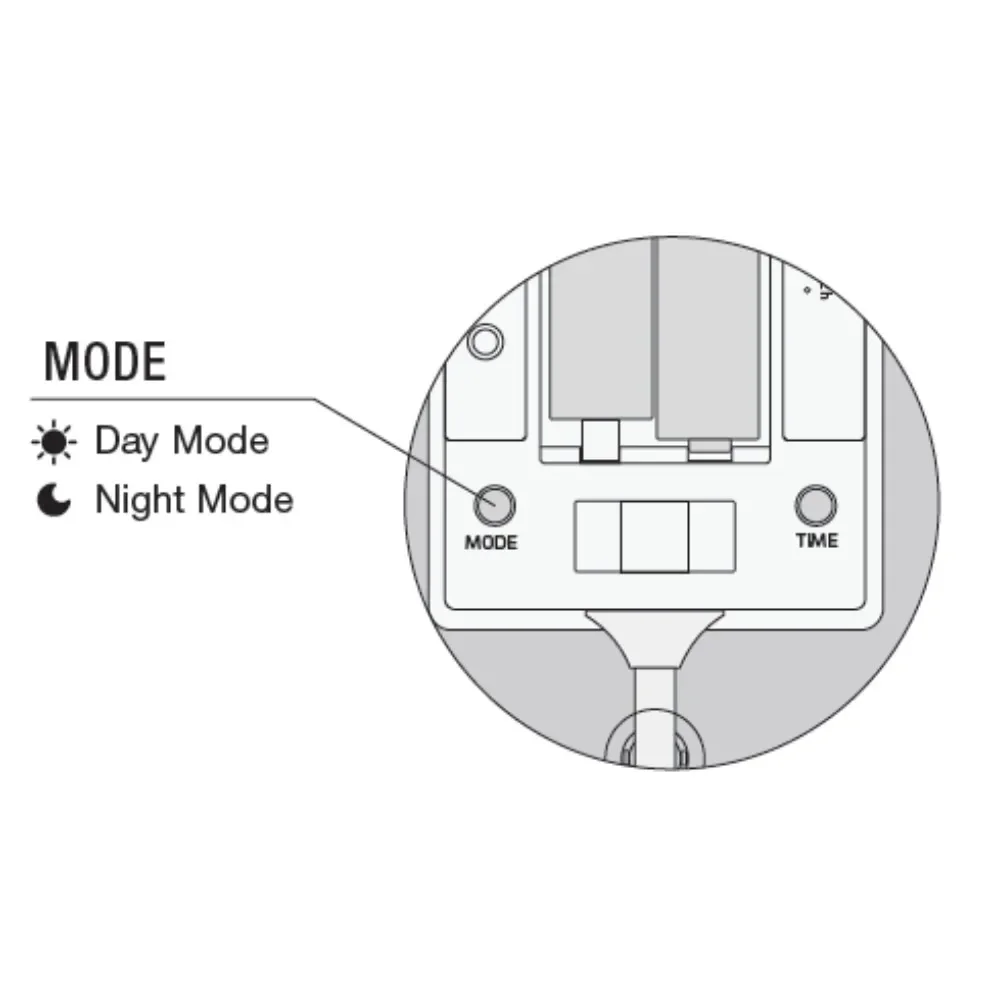

Press the Mode button to select between Day Mode and Night Mode. The corresponding indicator will light up.
*Day mode:
The RZ050 motion sensor controller will work the whole day and turn the AC off automatically if no occupancy is detected after a preset time delay.
*Night mode:
The light sensor activates and detects ambient brightness to distinguish “day” and “night”.
*Night mode:
The light sensor activates and detects ambient brightness to distinguish “day” and “night”.
SPECIAL NIGHT MODE DESIGN FOR YOUR NIGHT SLEEPING
In "Night Mode", the RZ050 motion sensor controller will turn the AC off only during the daytime if no occupancy is detected after
a preset time delay.
It does not detect motion and will not turn off the AC at night time.
Recommend Products
Company Profile
Bester, more than Best. Smart sensor, light up your life!
Our brand is Bester and Rayzeek.
Shenzhen BESTER Energy Saving Technology LTD (Shenzhen Bester Tech Ltd) was established in February 2009. It is one of the top 10 professional manufacturers of LED components and Motion Sensor Switch in China.

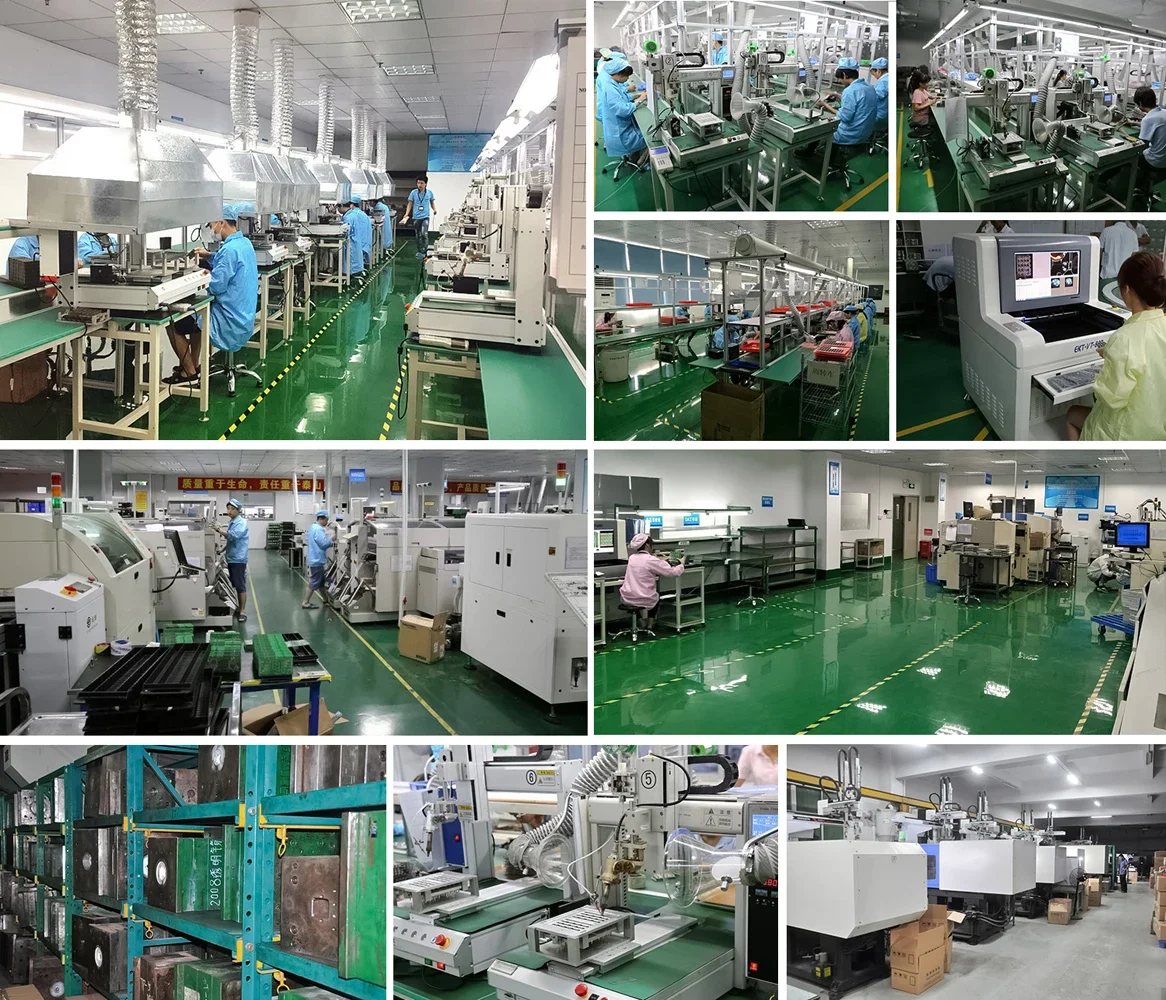

Bester has a factory and has requirements for the production steps and test steps, and we call it well-regulated. So we can be fast & flexible for customer requirement.
We have modern production lines with more than 200 professional workers, their rich experience of making products ensures efficiency and stability. With two warehouses both are more than 500 square meters to store the finished products, the space is sufficient and safe.
*Our company passed the ISO9001: 2000 quality management system certification.
*New products are launched every year, and old products are being updated.
Our main products are: PIR Motion Sensor, IR motion Sensor, Occupancy&Vacancy Sensor, Microwave Radar Sensor, Light Sensor, Cabinet Sensor Switch, Hand Waving Sensor, etc.
Our customers are spread over 200 countries. We owe steady growth to working closely with our customers, offering good quality products, the best price, and technical service. Additionally, we focus on building long-term relationships with our vendors.
We have modern production lines with more than 200 professional workers, their rich experience of making products ensures efficiency and stability. With two warehouses both are more than 500 square meters to store the finished products, the space is sufficient and safe.
*Our company passed the ISO9001: 2000 quality management system certification.
*New products are launched every year, and old products are being updated.
Our main products are: PIR Motion Sensor, IR motion Sensor, Occupancy&Vacancy Sensor, Microwave Radar Sensor, Light Sensor, Cabinet Sensor Switch, Hand Waving Sensor, etc.
Our customers are spread over 200 countries. We owe steady growth to working closely with our customers, offering good quality products, the best price, and technical service. Additionally, we focus on building long-term relationships with our vendors.
"Reliability, precision, uncompromising quality and a commitment to true partnership" are the values we pass on to our partners around the world.
Product packaging
♦PACKING: Neutral packing with new carton or according to customer requirements.
♦PAYMENT: T/T, Paypal, West Union, 30% deposit, 70% balance before delivery.
♦LEAD TIME: Sample in 1-5 working days and larger order in 12-15 working days.
♦TRANSPORT: By DHL/UPS/FEDEX, Air cargo or Sea shipment.
♦PORT OF SHIPMENT: Futian, Shenzhen, China.
♦MOQ: 1 piece. Providing DISCOUNT and OEM service for large order.
♦PAYMENT: T/T, Paypal, West Union, 30% deposit, 70% balance before delivery.
♦LEAD TIME: Sample in 1-5 working days and larger order in 12-15 working days.
♦TRANSPORT: By DHL/UPS/FEDEX, Air cargo or Sea shipment.
♦PORT OF SHIPMENT: Futian, Shenzhen, China.
♦MOQ: 1 piece. Providing DISCOUNT and OEM service for large order.
Certifications
FAQ
Q1. Can I have a sample order?
A: Yes, welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:It depends on your purchasing QTY.
A: Yes, welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:It depends on your purchasing QTY.
For 1-1000 pcs, usually we have stock and can make the shipment within 2-3 days.
Over 1000 pcs, it will need 3-5 weeks to be ready.
Q3. Do you have any MOQ limit for order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for sensors?
A: Firstly let us know your requirements or application.
Secondly we will quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly we arrange the production.
Q6. Is it OK to print my logo on motion sensor product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.
Q3. Do you have any MOQ limit for order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for sensors?
A: Firstly let us know your requirements or application.
Secondly we will quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly we arrange the production.
Q6. Is it OK to print my logo on motion sensor product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $39 / piece
- 100–499 piece: US $38.5 / piece
- 500–999 piece: US $38 / piece
- 1000+ piece: US $37.5 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this split air conditioner?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Can the split air conditioner be supplied for my local voltage?
The standard configuration is 12 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Bester Tech Ltd, based in China. The company 16 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Bester Tech Ltd range on HVACR Nexus.
