The upgraded version motor listed here carries power phase number Single Phase, type AC Motor Speed Controller, documented exactly as the manufacturer publishes it. Made by Shanghai Fmz Industry Co., Ltd. (10 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Upgraded Version Motor
- Model Number: T22-750W-12-H
- Power Phase Number: Single Phase
- Rated Power: 0.75KW 0.4KW 0.1KW
- Nominal Voltage: 220V
- Warranty: 18 Months
- Certification: AC Motor Speed Controller
Technical Specifications
| Nominal Voltage | 220V |
|---|---|
| Power Phase Number | Single Phase |
| Rated Power | 0.75KW 0.4KW 0.1KW |
| Control Mode | VF Control |
| Type | AC Motor Speed Controller |
| Place Of Origin | Shanghai, China |
| Model Number | T22-750W-12-H |
| Brand Name | FMZ |
| Size | 175*125*90mm |
| Product Name | Frequency inverter VFD AC Drive |
| Carrier Frequency | 8KHz |
| Warranty | 18 Months |
| Display | LED |
| Output Frequency | 0~130Hz |
| Ambient Temperature | -10~+55C |
| IP Level | IP21 |
| Package Dimensions | 175*125*90mm |
| Certification | AC Motor Speed Controller |
| Selling Units | Single item |
| Single Package Size | 8X15X12 cm |
| Single Gross Weight | 1.0 kg |
Product Details
Product Description
T22-750W-12-H VFD /AC Drive
(Upgrade Version of T13-750W-12-H)
Main Application: Packing Machinery, Ice Cream Machinery, Medical Machinery (like Mask production line), Conveyor Production Line and many other general purpose equipments. Pls check with us for more application information.
Use of the environment
Power supply: Single Phase AC 220v ± 20%
Temperature: -10 ℃ ~+55 ℃
Humidity: 0 % ~65 %
Power supply: Single Phase AC 220v ± 20%
Temperature: -10 ℃ ~+55 ℃
Humidity: 0 % ~65 %
RS485 communication is standard.
T22 Series is single-phase AC220V input, drives three-phase AC220V motor, and the frequency output is 0HZ—130.0HZ. In order to increase the output voltage, this product uses SVPWM modulation method, and the carrier frequency is 8.0KHZ. Suitable for 750W motors, the maximum output power is 1100W. The inverter can change the V/F curve arbitrarily by setting the V/F compensation frequency and the voltage ratio at this frequency. By setting the highest value of the V/F curve, according to the load conditions, the efficiency of the use of electric energy can be maximized, the heating of the motor can be reduced, and the service life of the motor and the inverter can be extended.
Details Images

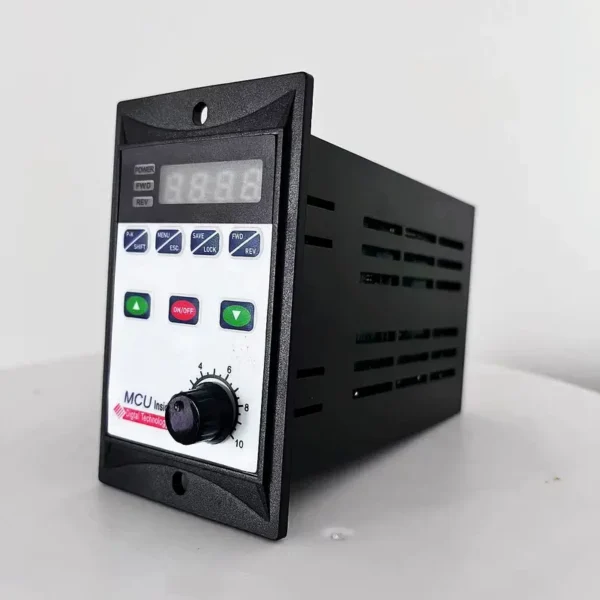

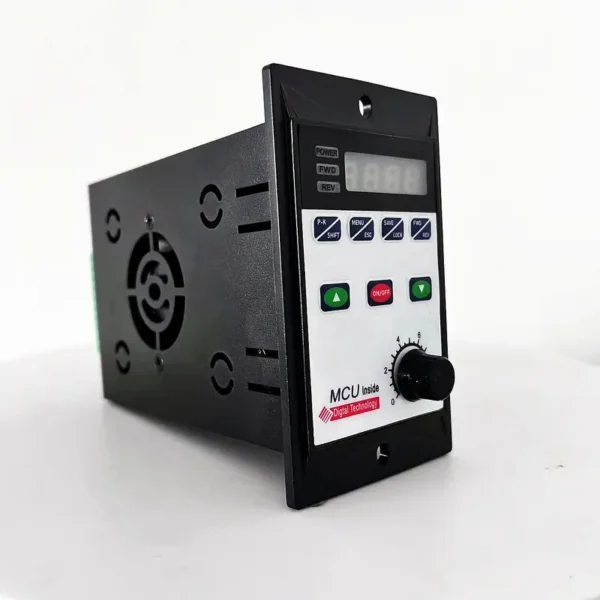

Product details display for T22 series 2-1
Product details display for T22 series 2-2

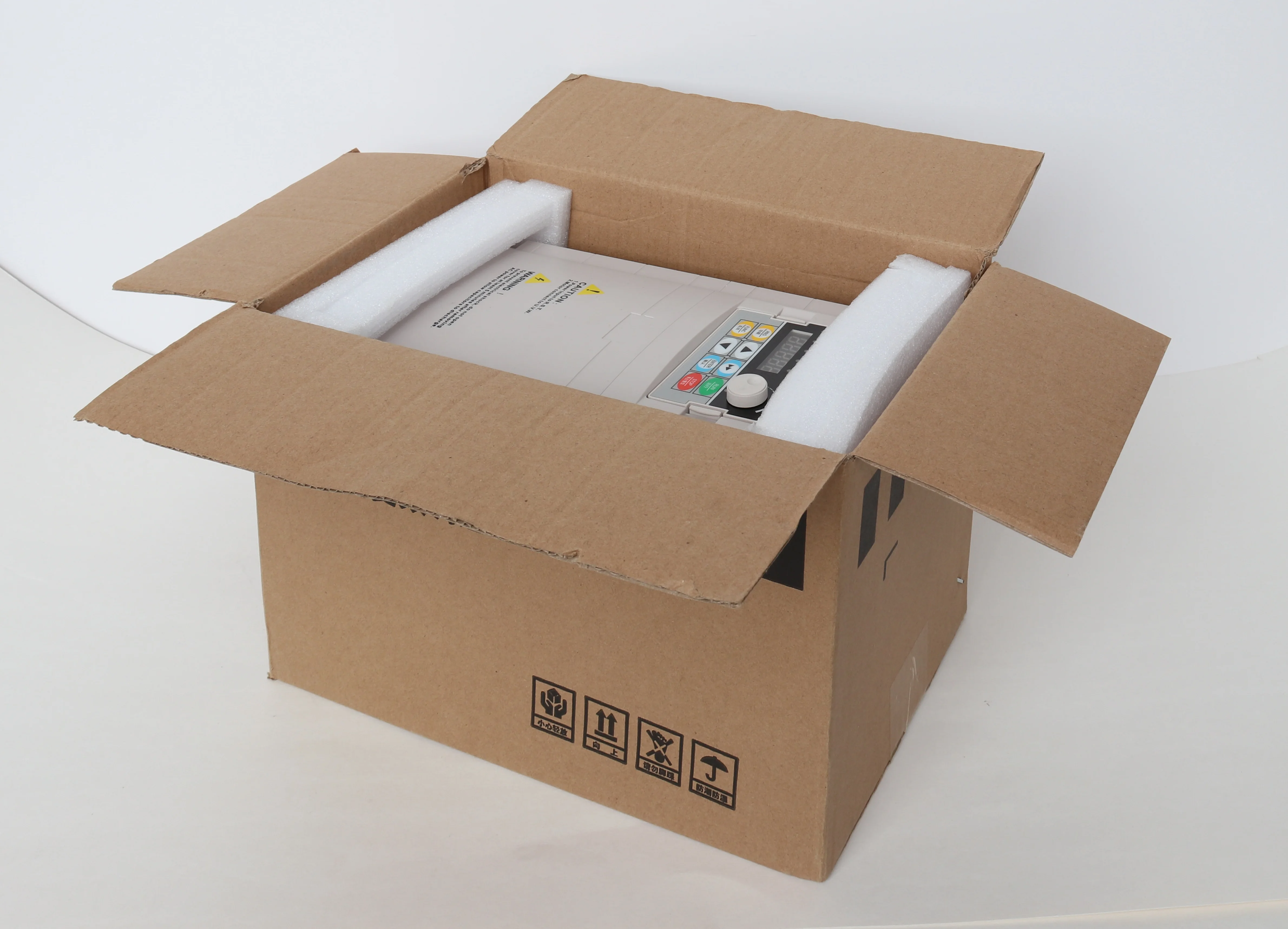

Product packaging
Carton packing 1
Carton packing 2
Carton packing 3
Products Description

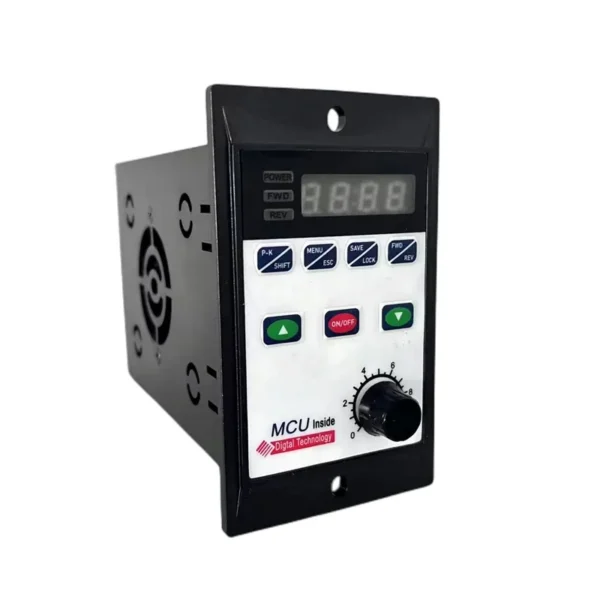

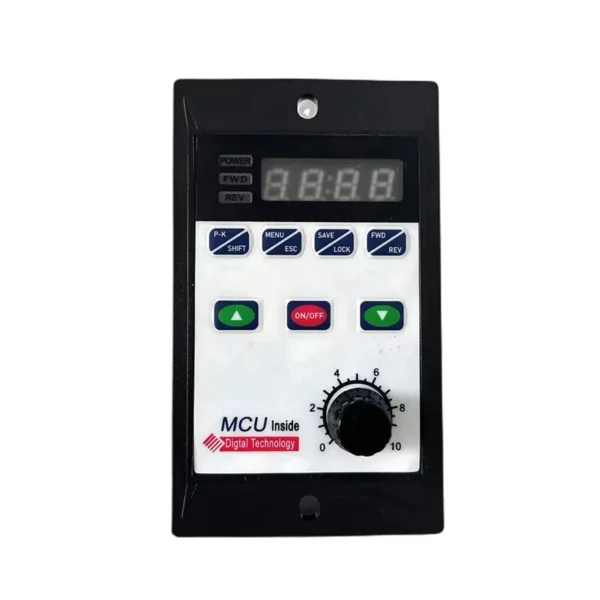

K1: shift/query function parameter display key (P-K/SHIFT). K2: Enter the parameter setting key (MENU/ESC). K3: Lock/unlock button (SAVE/LOCK). Short press to lock/long press 3S to unlock. K4: Forward and reverse switching button (FWD/REV). K5: Speed adjustment minus key/data setting minus (↓). K6: start/stop/fault recovery/data setting save key (RUN/STOP/OK) K7: speed control plus button/data setting plus (↑). V R: potentiometer: panel speed potentiometer button (invalid when external port, RS485 given frequency).
Product specifications

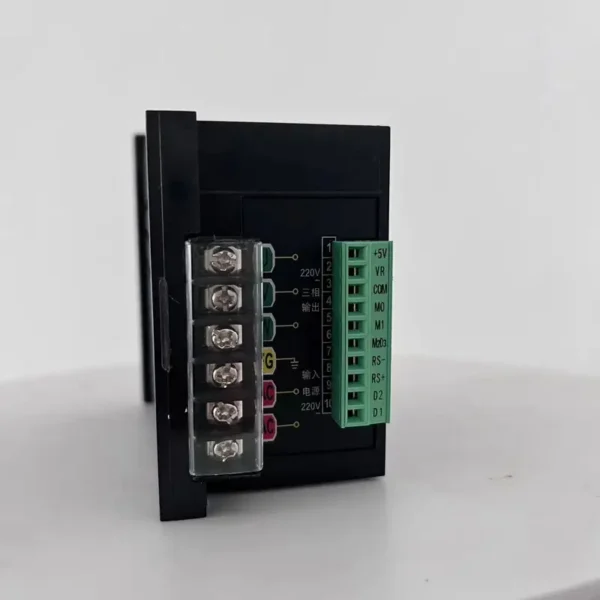

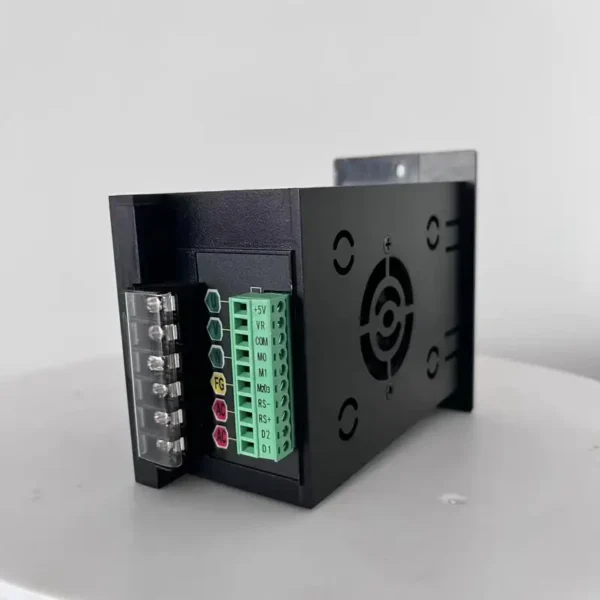

External Terminal Control chart | |||||||
Serial number | Representative | Function | |||||
1 | +5v | +5v External adjustable power output | |||||
2 | VR | External potentiometer input End | |||||
3 | GND | COM Public Port | |||||
4 | MO | LED set port | |||||
5 | M1 | MI FWD Function | |||||
6 | M2 | MI REV Function | |||||
7 | rs485- | Communication RS485 interface- | |||||
8 | rs485+ | Communication RS485 interface+ | |||||
9 | D2 | Segment-speed Terminal 2 | |||||
10 | D1 | Segment-speed Terminal 1 | |||||
other products

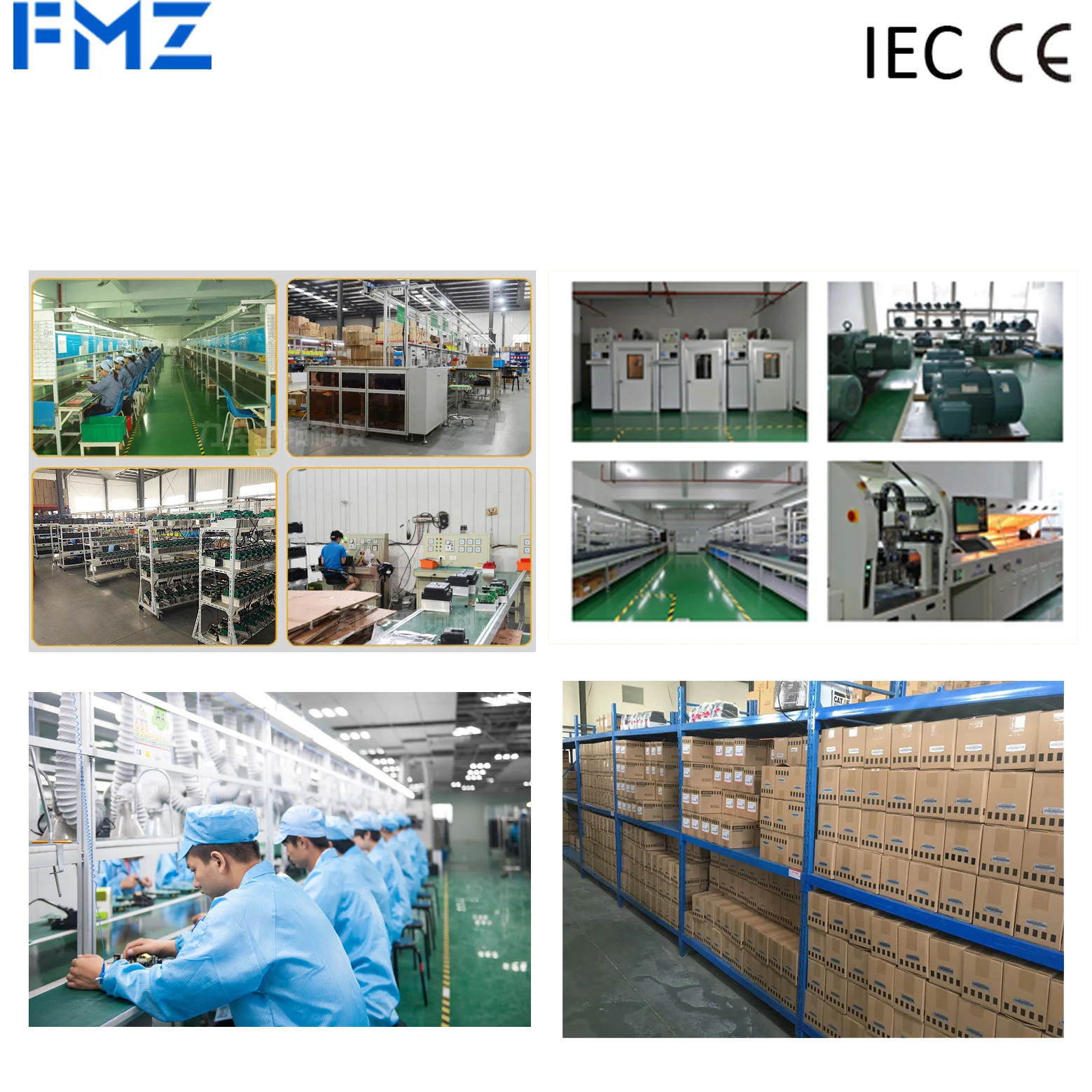

Company Profile
