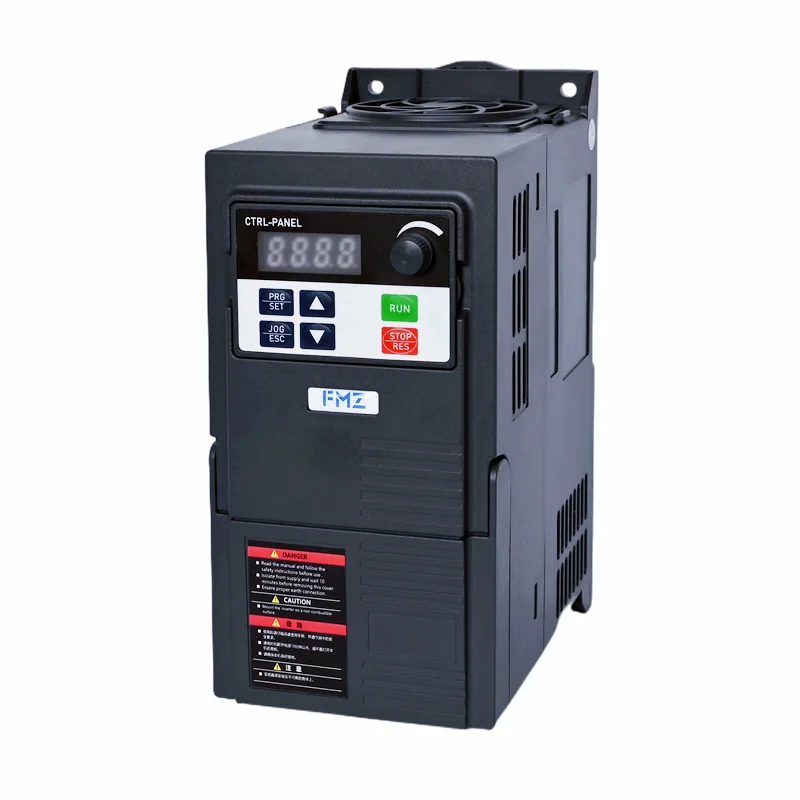

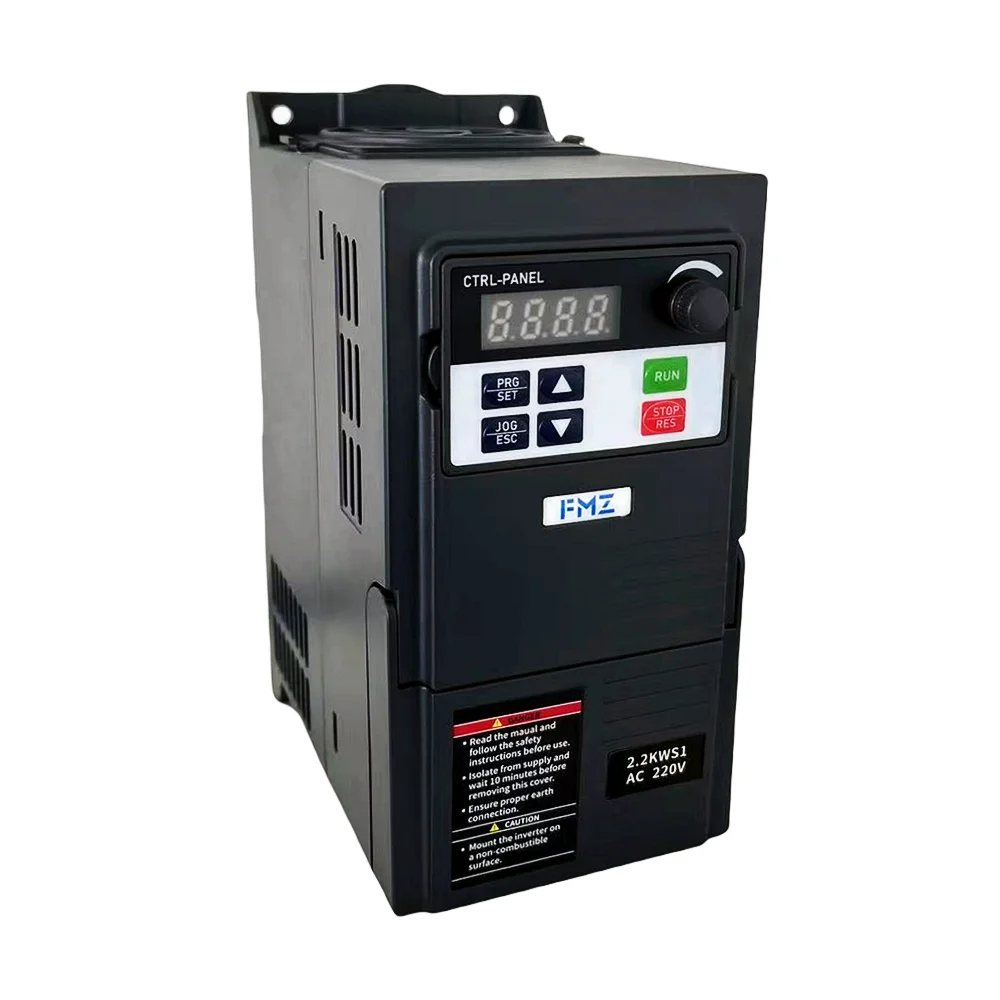

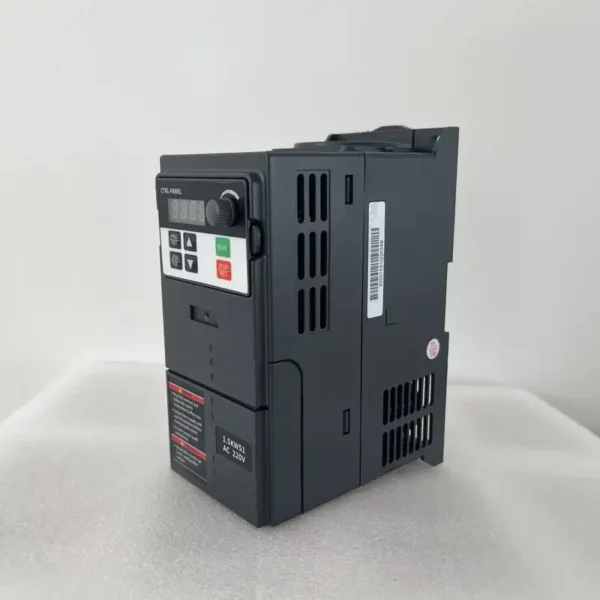

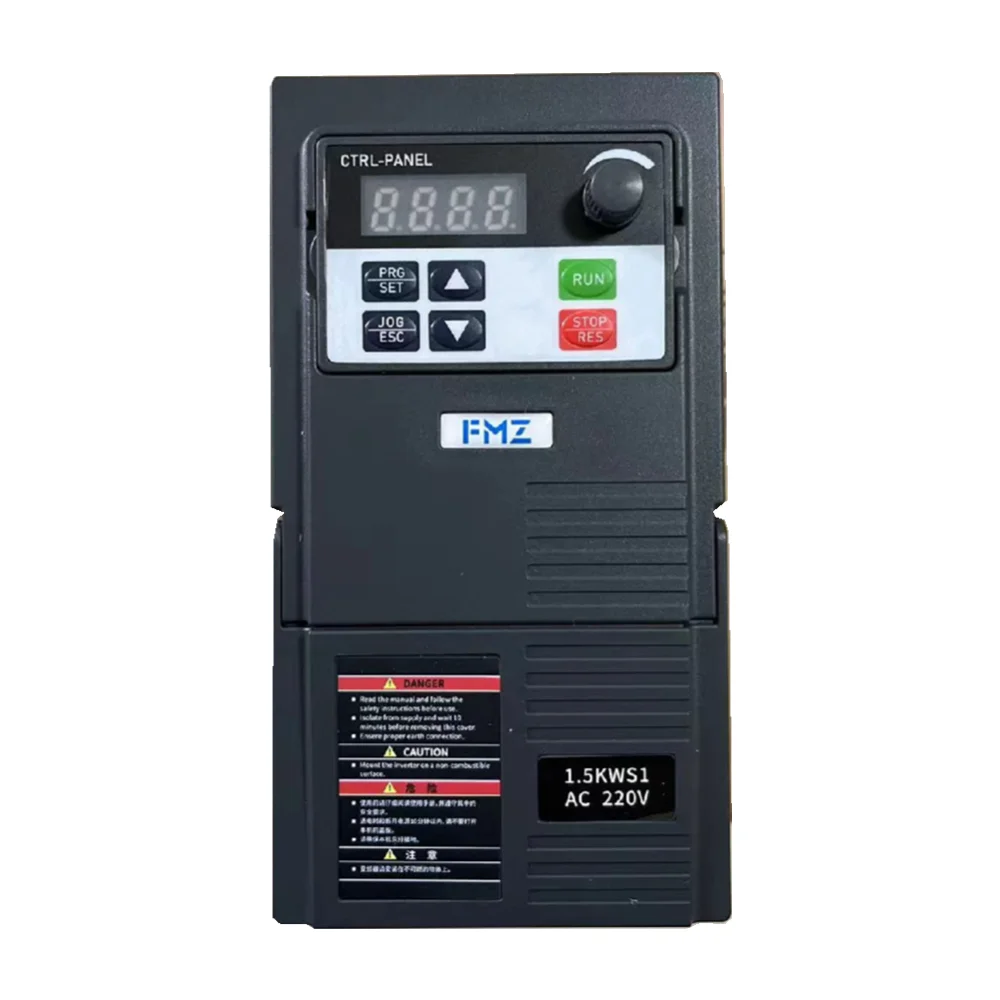

The speed controllers regulators listed here carries power phase number Single phase to Three phase, model number H300-1R5G-S2, documented exactly as the manufacturer publishes it. Made by Shanghai Fmz Industry Co., Ltd. (10 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of These Speed Controllers Regulators
- Model Number: H300-1R5G-S2
- Power Phase Number: Single phase to Three phase
- Rated Power: 1.5kW
- Nominal Voltage: 220V
- Warranty: 18 Months
- Place Of Origin: Shanghai, China
Technical Specifications
| Application | AC Motor, Blowers, Compressor, Industrial Automation, Industrial Equipment, Motor, Motor Speed Control, Pumps |
|---|---|
| Nominal Voltage | 220V |
| Power Phase Number | Single phase to Three phase |
| Rated Power | 1.5kW |
| IP Level | IP20 |
| Control Mode | VF/Vector Control |
| Type | AC Drive, Frequency Converter, Universal Ac Drive, VFD, DC/AC Inverters |
| Place Of Origin | Shanghai, China |
| Model Number | H300-1R5G-S2 |
| Brand Name | FMZ |
| Size | 170*79*127mm |
| Product Name | Economic VFD Frequency Inverter |
| Feature | Easy Operation |
| Phase | 1-phase input & 3-phase output |
| Inverter Type | Low Freqnency Transformer Inverter |
| Advantage | High Adaptability |
| Warranty | 18 Months |
| OEM | Accepted |
| Selling Units | Single item |
| Single Package Size | 23X13X19 cm |
| Single Gross Weight | 1.5 kg |

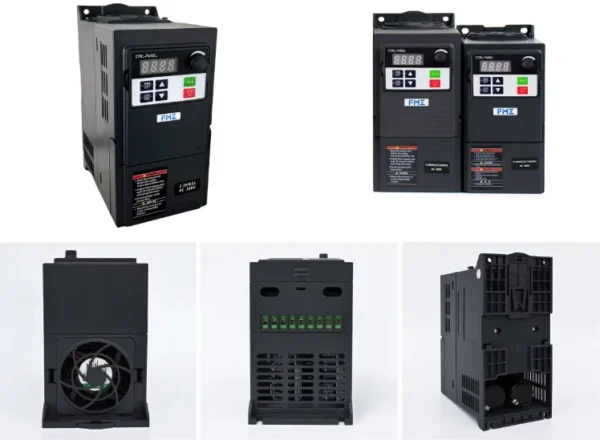

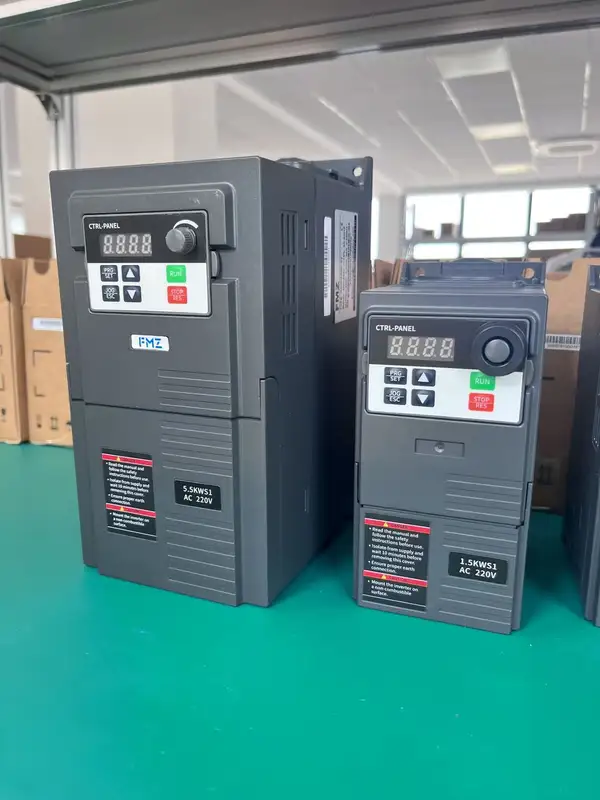

Product Details
Product Description

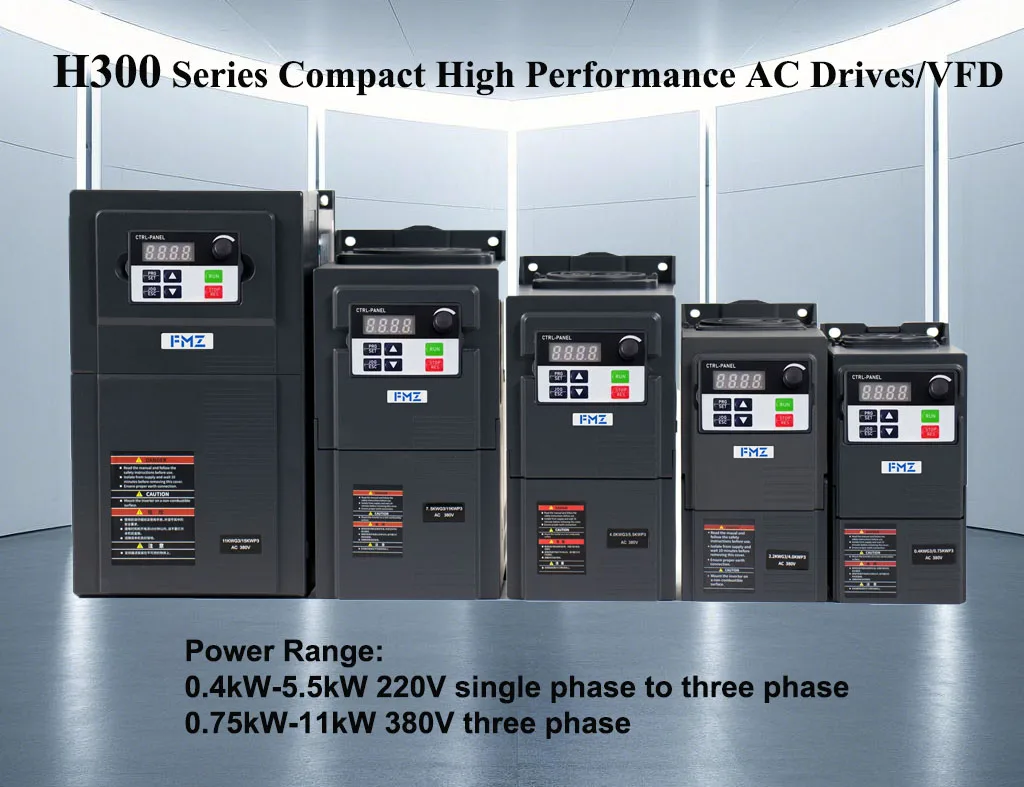

Power Range:
0.4~5.5kW Input 120-400VDC/220-240VAC
0.75~11kW Input 250-850VDC/370-440VAC
Techinical Specifications:
● V/F, Vector Control
● Driving for AC induction Motor
●Wide Power Range
● RS485 Optional
Product specifications
Product name | Frequency Inverter |
Place of Origin | China |
Brand Name | FMZ |
Model Number | H300-1R5G-S2 |
Type | DC/AC Inverters |
Rated power | 1.5kw |
Voltage | 220V +/-15% |
Output Type | Three Phase |
Output Current | 7A |
Output Frequency | 50Hz/60Hz |
Size | 170*79*127mm |
Weight | 1.5KG |
Control mode | VF/Vector Control |
Warranty | 18 Months |
Customized | OEM&ODM |
Model | Power(kW) | Output current (A) | Outline Dimensions | Gross Weight | ||||
H300 Series AC Drives Single phase AC 220V （Voltage R ange: -10% 220V~220+10%） | ||||||||
H300-0R4G-S2 | 0.4 | 2.1 | 170*79*127MM | 1KG | ||||
H300-0R7G-S2 | 0.75 | 3.8 | 1KG | |||||
H300-1R5G-S2 | 1.5 | 7.0 | 1KG | |||||
H300-2R2G-S2 | 2.2 | 9.0 | 187*86*144MM | 1.2KG | ||||
H300-3R0G-S2 | 3.0 | 13.0 | 216*101*151MM | 1.7KG | ||||
H300-4R0G-S2 | 4.0 | 15 | 237*111*168MM | 2.4KG | ||||
H300-5R5G-S2 | 5.5 | 20.0 | 2.4KG | |||||
H300 Series AC Drives Three phase AC 380V （Voltage Range: -15% 380V~380+15%） | ||||||||
H300-0R4G-T4 | 0.4 | 1.5 | 170*79*127MM | 1KG | ||||
H300-0R7G-T4 | 0.75 | 2.1 | 1KG | |||||
H300-1R5G-T4 | 1.5 | 3.8 | 1KG | |||||
H300-2R2G-T4 | 2.2 | 5.1 | 187*86*144MM | 1.2KG | ||||
H300-3R0G-T4 | 3.0 | 7.1 | 1.2KG | |||||
H300-4R0G-T4 | 4.0 | 9.0 | 216*101*151MM | 1.7KG | ||||
H300-5R5G-T4 | 5.5 | 12.6 | 1.7KG | |||||
H300-7R5G-T4 | 7.5 | 16.1 | 237*111*168MM | 2.4KG | ||||
H300-11RG-T4 | 11.0 | 25.0 | 237*111*168MM | 3.5KG | ||||

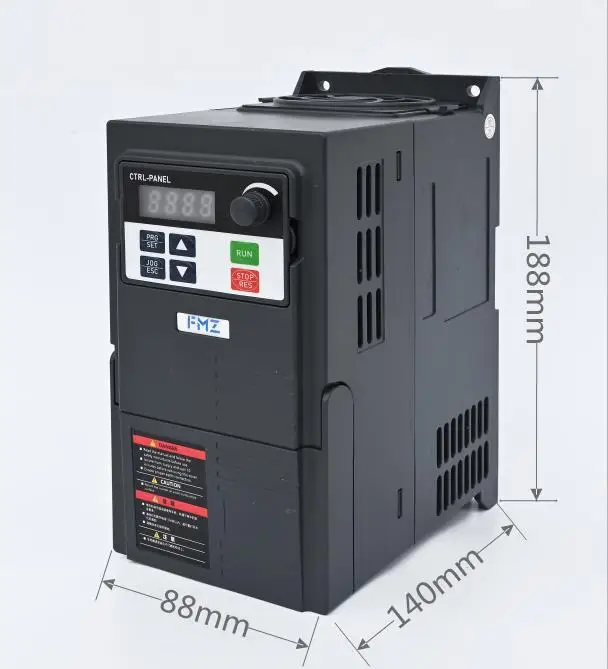

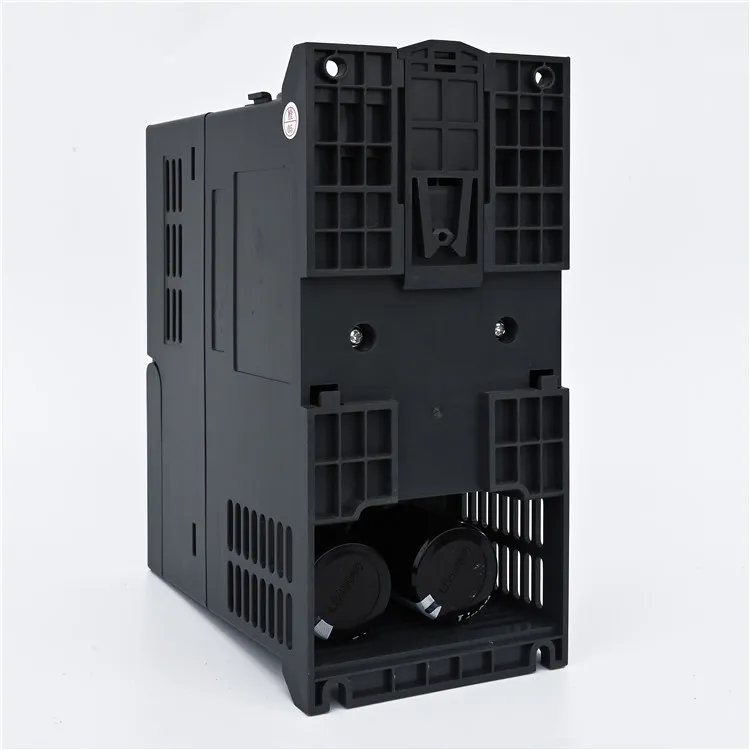

Installation Instructions
0.75kW, 1.5kW, 2.2kW, 3kW
4kW, 5.5kW

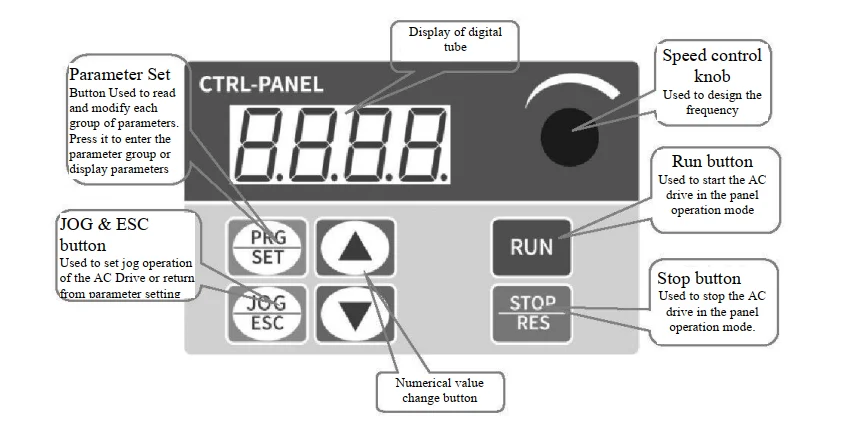

Opeation Digital Keypad Description
Note: After the frequency converter is powered on, the running panel will display.

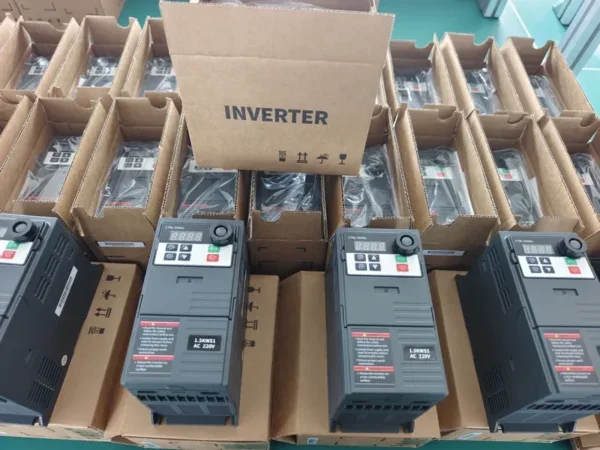

Packing & Delivery
Lead time:
Can be negotiated.
Sample order: | 1~2 working days for delivery. | ||||||
Large order: | 10-20 working days for delivery. | ||||||
1) Trade Term: FOB Shanghai/Yiwu/Guangzhou/Shenzhen
(Trade term will be Ex-works if the order amount is below 20,000 but we also will afford the delivery to your appointed forwarder or warehouse located in the above four cities)

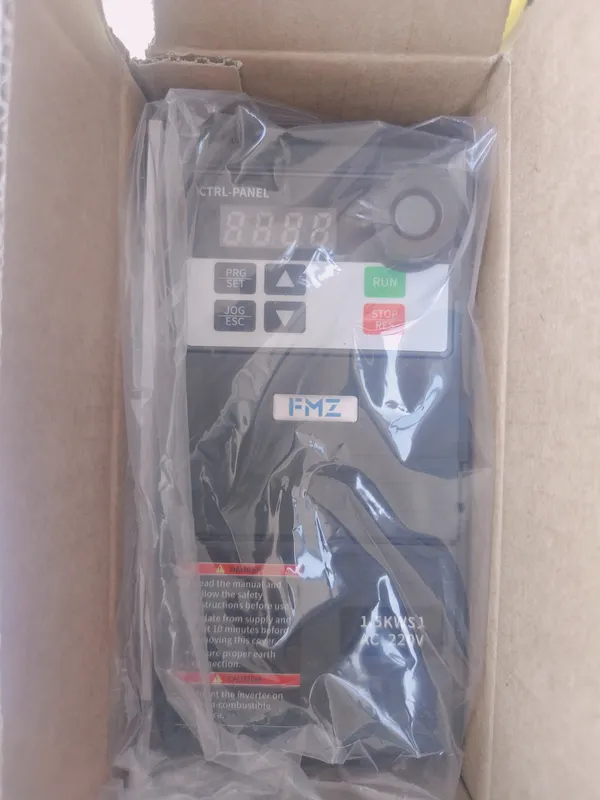

2) Package
The package is FMZ Standard. OEM packing (≥20,000 US Dollar per order)
(If there is any special request, the packing cost should be re-negotiated)
3)Delivery
We support a variety of transportation methods such as ocean shipping, land transportation, air transport, express, etc., and can also be consigned by the customer's designated freight forwarder.You can be negotiated with us.

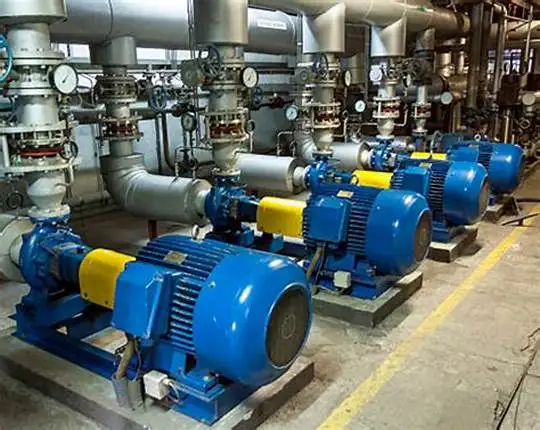

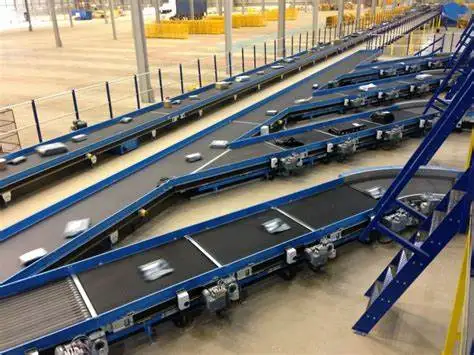

Application

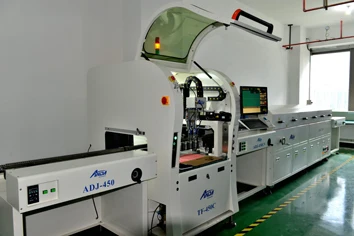

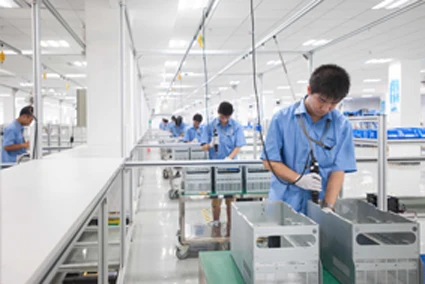

Company Profile
Shanghai FMZ Industry Co., Ltd specializes in R&D, manufacture, sales and professional technical services upon industrial automation control products such as frequency inverter (variable frequency drive, VFD, VSD, frequency converter, AC Drive), soft starter, HMI, motor servo, PLC and other general parts. Our products could widely meet demands of all kinds of machinery equipment, system integration and industrial applications, which are reliable, intelligent and excellent. They are widely applied to CNC(machine tool), mine, textiles, metallurgy, lifting, oil, plastics, chemicals, municipal project and other industries. We always keep working hard to support our customers with our all-around services and do our best to provide them with prompt customized solutions. Thanks for the persistent efforts from our hard working colleagues, we are getting more and more comprehensive recognition from our valuable customers all around the world. About after-sales service, we have organized an experienced team to support our customers with various effective solutions, help analyze all kinds of automation applications, and they are available to go to the site to carry out the equipment commissioning, operation or problem shot and offer free training. Our business philosophy is to 'Always be with you and enjoy success together'.
FAQ
1. Who are we?
We are based in Shanghai, China, start from 2014,sell to South Asia(30.00%),Southeast Asia(20.00%),Mid East(15.00%),Eastern Europe(15.00%),Western Europe(5.00%),Africa(5.00%),South America(5.00%),Oceania(3.00%),Northern Europe(2.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
frequency inverter,ac variable frequency drive,mppt solar pump inverter,ac servo drive,soft starter
4.Why should you buy from us not from other suppliers?
Over 15 years in variable frequency drive/frequency inverter/ac drive and over 3 years in international market. Own software to offer customized service. We accept OEM service with technical support. CE &TUV, ISO9001, CCC certificate.
5.What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Russian
We are based in Shanghai, China, start from 2014,sell to South Asia(30.00%),Southeast Asia(20.00%),Mid East(15.00%),Eastern Europe(15.00%),Western Europe(5.00%),Africa(5.00%),South America(5.00%),Oceania(3.00%),Northern Europe(2.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
frequency inverter,ac variable frequency drive,mppt solar pump inverter,ac servo drive,soft starter
4.Why should you buy from us not from other suppliers?
Over 15 years in variable frequency drive/frequency inverter/ac drive and over 3 years in international market. Own software to offer customized service. We accept OEM service with technical support. CE &TUV, ISO9001, CCC certificate.
5.What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Russian
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–499 piece: US $30 / piece
- 500–999 piece: US $28 / piece
- 1000+ piece: US $26 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this speed controllers regulators?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 18 Months warranty. Spare parts and technical support remain available after the warranty period.
Can the speed controllers regulators be supplied for my local voltage?
The standard configuration is 220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
