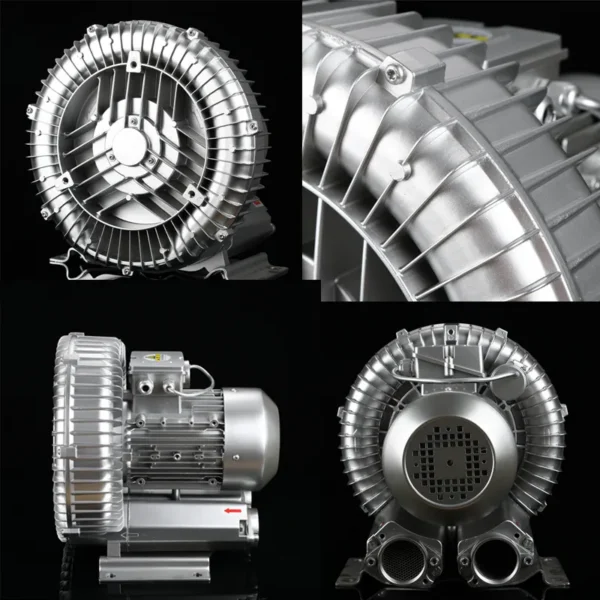

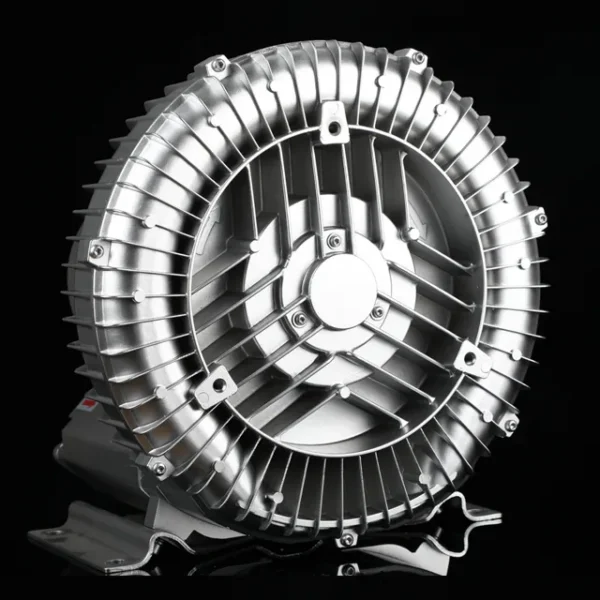

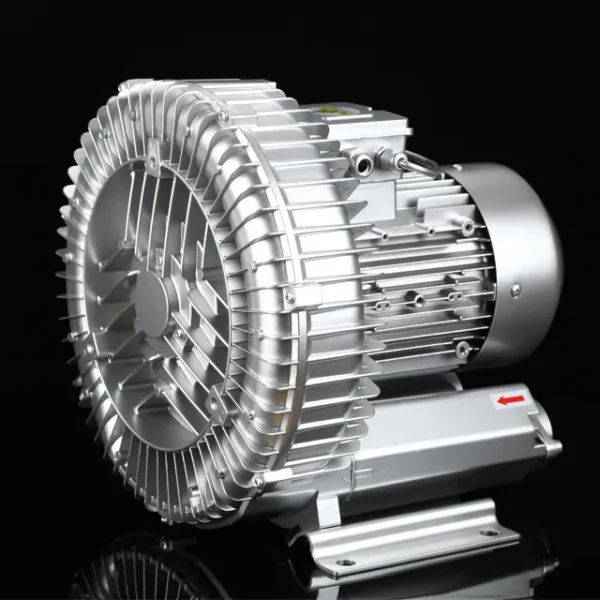

Vacuum pump — 220 V, airflow 250/280m3/h. The complete factory specification follows. Made by Jinan Golden Bridge Precision Machinery Co., Ltd. (16 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Vacuum Pump
- Power Source: Electric Blower
- Rated Voltage: 220 V
- Airflow: 250/280m3/h
- Warranty: 1 year
- Certification: ce
- Place Of Origin: Shandong, China
Technical Specifications
| Application | Air Blower |
|---|---|
| Rated Voltage | 220 V |
| Pressure | High Pressure |
| Warranty | 1 year |
| Customized Support | OEM, ODM |
| Place Of Origin | Shandong, China |
| Brand Name | Golden Bridge |
| Certification | ce |
| Product Name | 2200W Vacuum Pump 2.2Kw Inflatable Air Blower |
| Dimensions | 400*385*415mm |
| MOQ | 1 Set |
| Color | Silver white |
| Weight | 30kg |
| Airflow | 250/280m3/h |
| Vacuum | -22/-26kpa |

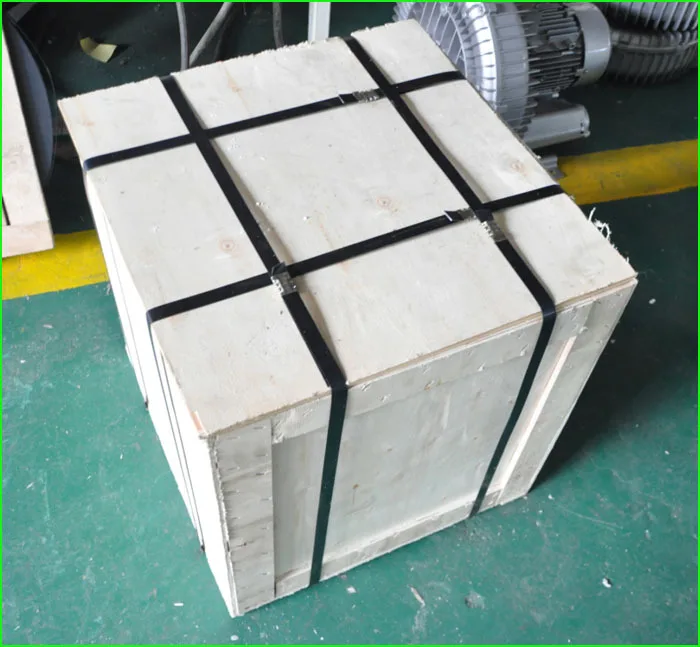

| Package | Wooden box |
| OEM | Applicable |
| Power Source | Electric Blower |

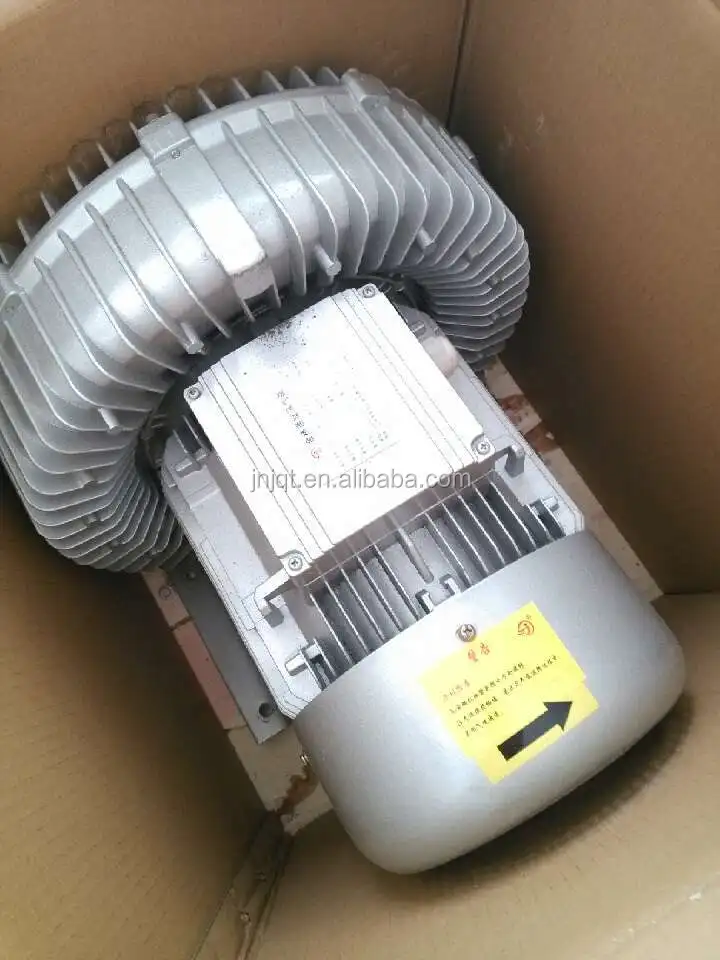

| Packaging Details | Wooden box |
| Selling Units | Single item |
| Single Package Size | 47X42X52 cm |
| Single Gross Weight | 45.000 kg |
Product Details

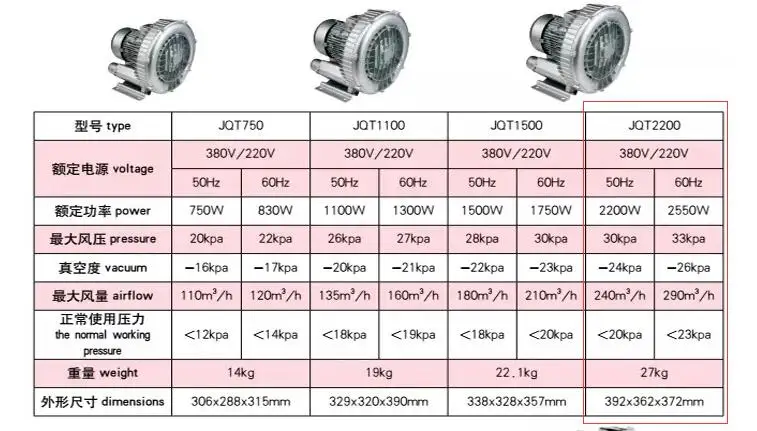

1. Specifications
| Model | JQT2200C |
| Structure | Single-stage |
| Rated Voltage | 220V/380V |
| Frequency | 50HZ/60HZ |
| Rate Power | 2200w/3hp |
| Max Pressure | 27Kpa |
| Max Vacuum | -22Kpa |
| Max Airflow | 250m3/h |
| Net Weight | 30KG |
| Item Size | 400*385*415mm |
| Certificate | CE/ISO |
| Place of origin | Jinan, China |
| Warranty | 1 year |
| Brand | JQT(Golden Bridge) |
2. Product detail

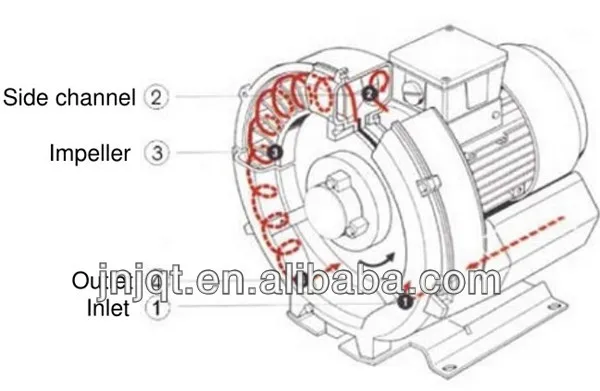

When the impeller of the high-pressure blower rotates, due to the centrifugal force, the wind vane urges the gas to move forward and outward, thereby forming a series of spiral movements. The air between the blades and the impeller is accelerated in a spiral shape and squeezes the air outside the pump body into the side channel (inhaled by the suction port 1).
When it enters the side channel 2, the air is compressed, and then returns to the impeller 3, and the blades accelerate whirl again.
When air passes through the impeller and side channel along with a spiral track, all impeller blades are compressed and accelerated.
With the rotation, the kinetic energy of the air increase, which further increases the pressure of the air passing along the side channel.
When the air reaches the connection point of the side channel and the emission flange (side-channel narrows at the outlet), the air is pushed out of the blade and exits the pump body through the outlet 4.
3.Feature

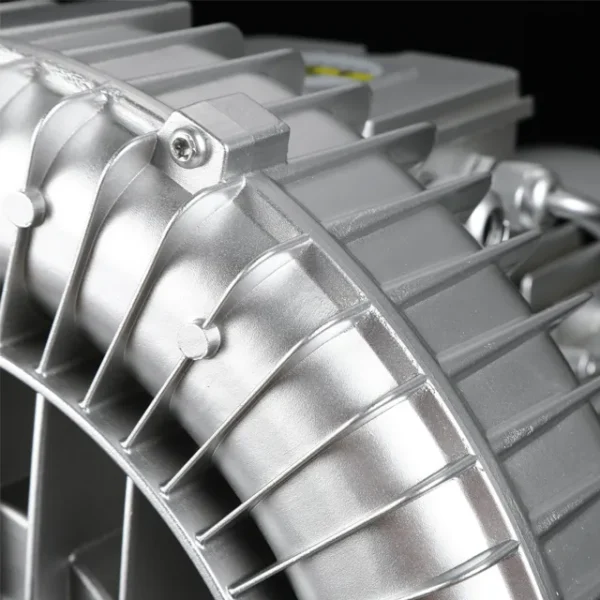

1) Beautiful surface and Small dimensions in the die-cast aluminum alloy housing
2) Both 50Hz and 60Hz are available.
3) Dual-usage: Compressor and Vacuum (suction and blow).
4) Electronic motor with IP54 protection and Insulation class F.
5) 100% oil-free and no oily odors.
6) Low noise and libration.
7) Maintenance-free and easy installation.
8) Strong dynamic stability without vibration
9) Pulsation-free discharge
10) Cooler running bearings
11) Longer grease life
12) Suitable for environmental protection
13) Continuous duty

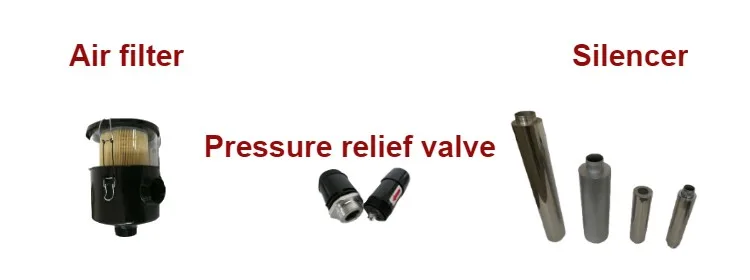

4.Machine Fitting

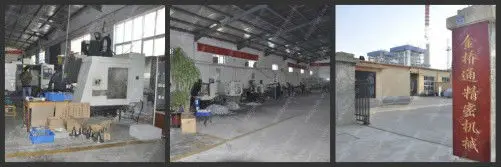

The factory&warehouse
Exhibition
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–2 set: US $220 / set
- 3–4 set: US $205 / set
- 5+ set: US $185 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this vacuum pump?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this vacuum pump carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the vacuum pump be supplied for my local voltage?
The standard configuration is 220 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
