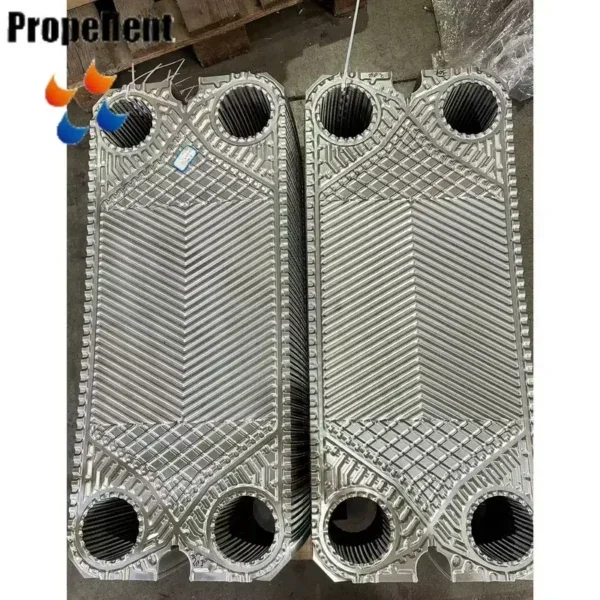

Variety Plate, M3, M6, M10, M15

This variety plate is listed with the manufacturer’s full published specification — type Heat Exchanger. It is produced by Shandong Propellent Energy Technology Co., Ltd., a verified supplier of 9 years. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.

Key Features of This Variety Plate

• Plate Material: SS304/SS316/SS316L/Titanium/ALLOY C276
• Gasket Material: NBR / EPDM / VITON
• Warranty: Unavailable
• Place Of Origin: Shandong, China
• Application: Heater Parts
• Type: Heat Exchanger

Technical Specifications

Product Details

Product Overview

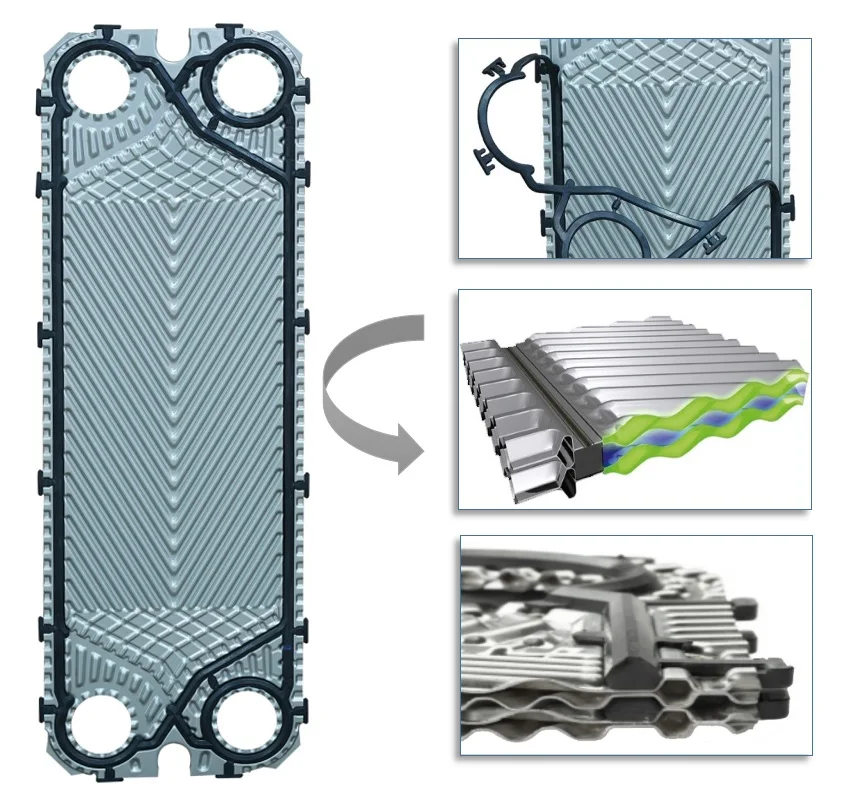

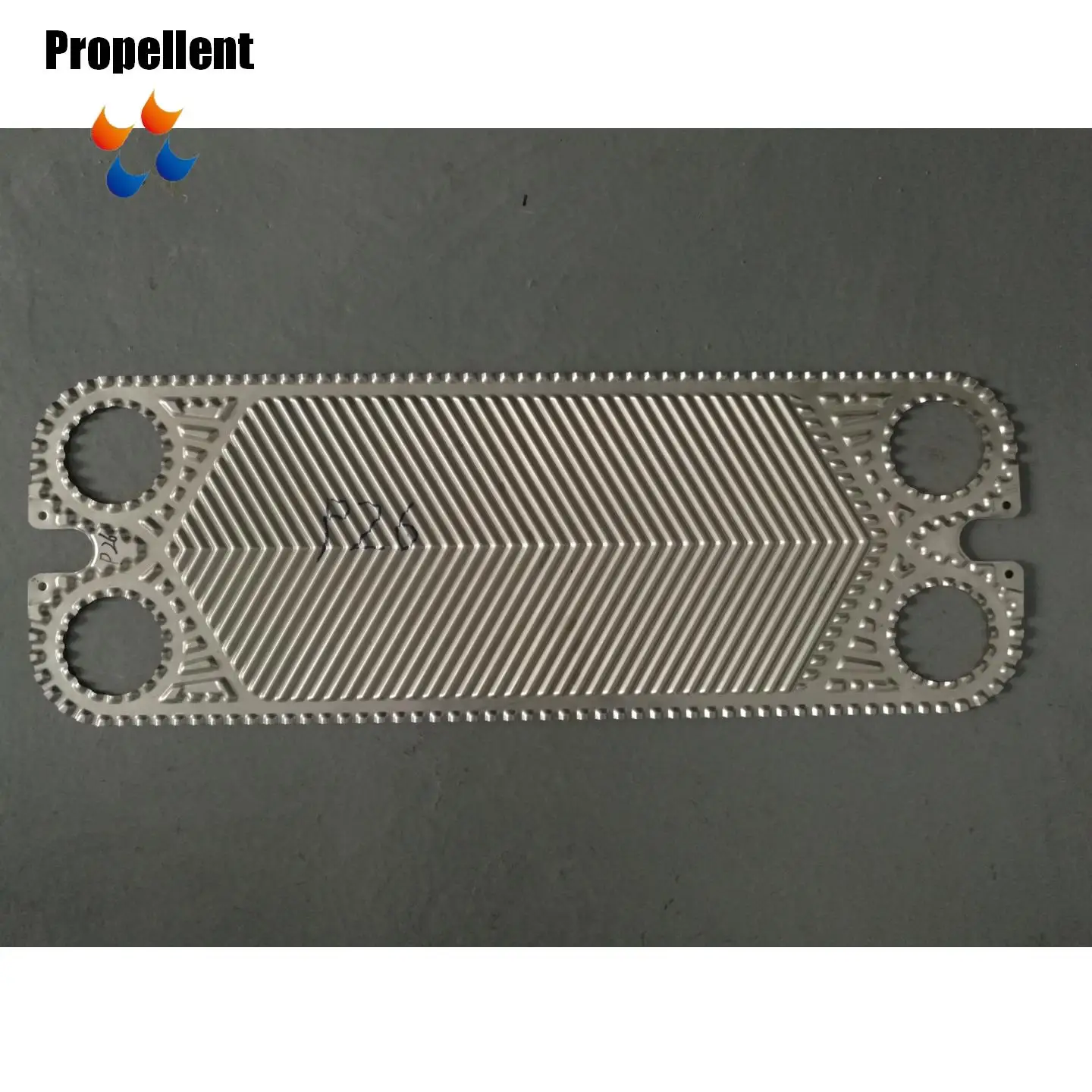

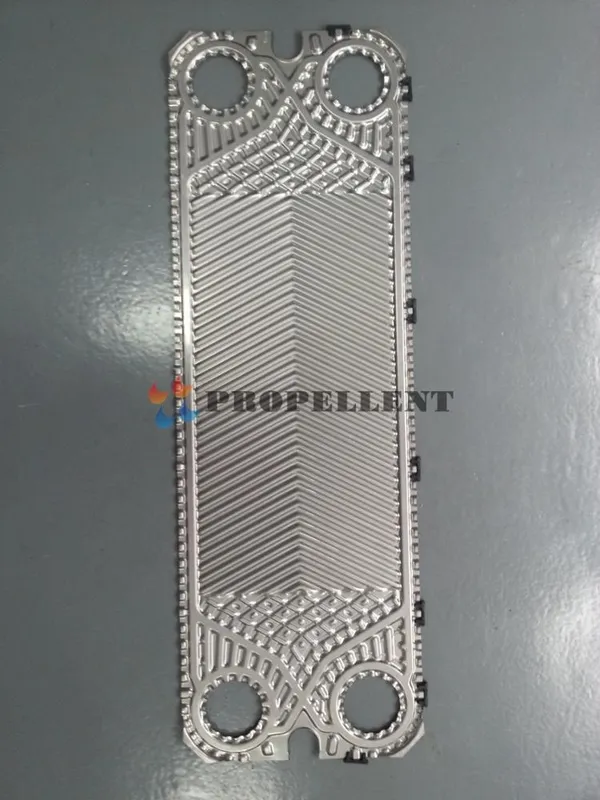

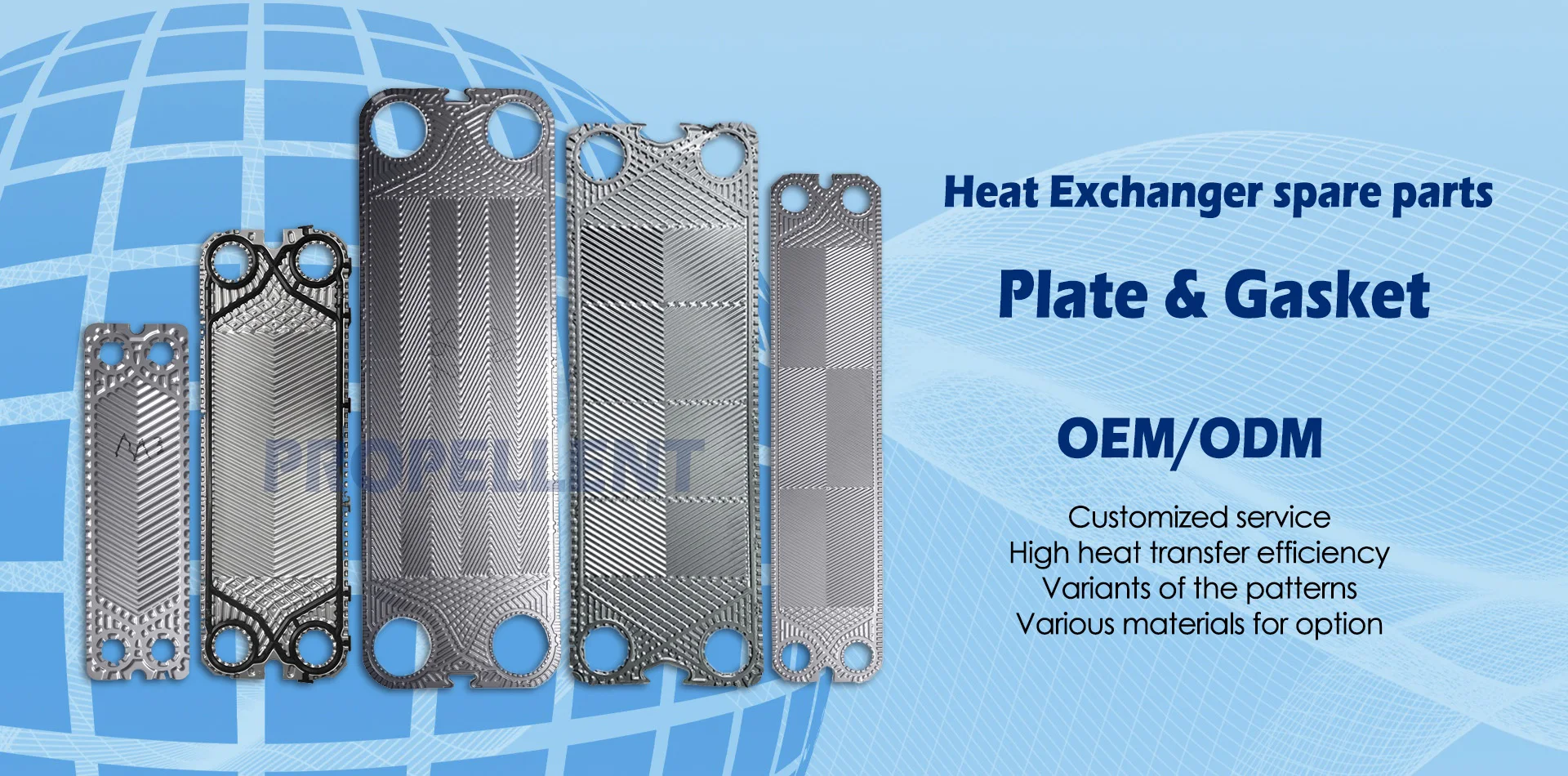

Propellet provide a variety of type of plates and gaskets that meet all requirements of the heat transfer. High heat transfer coefficient based on Propellent's special design plate. A variety of variant patterns are designed to create different levels of turbulence and pressure drop, to meet with different heat transfer requirements.

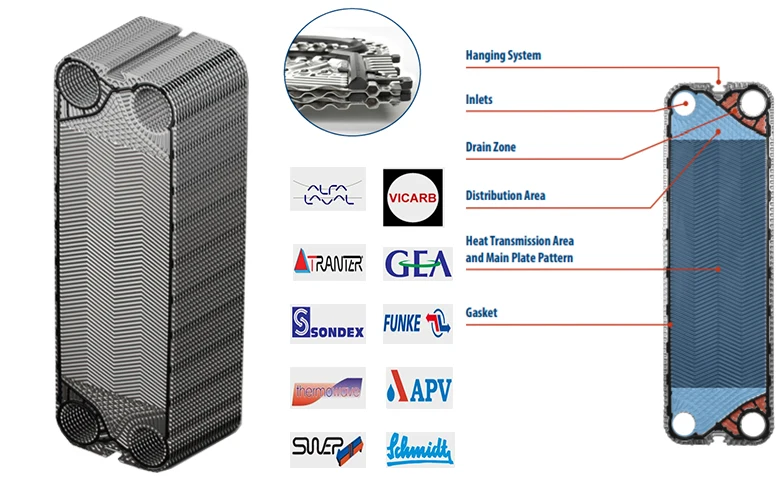

We offer abundant types of replacement parts for plate heat exchangers, these spare parts apply to international brands in all direction, such as GEA, APV, Sondex, Tranter, Vicarb, Hisaka etc, to meet our clients' demand all over the world.

Customized models for plate and gasket

Benefited from our advanced development of high performance rubber materials for gaskets in NBR, EPDM, FKM etc., our heat exchanger gasket also has great advantage on life length.

Brands	Plate heat exchanger models
	M3, M6M, M10M, M10B, M15M, M15B, M20M(T20M) , T20B, T20P, M30, AK20, CLIP3, CLIP6, CLIP8, CLIP10, MX25B, MX25M, TS6M, TS20M, P16, 22/P26, TL6B, TL10B, TL10P, TL15B, A15B, M6MW, M10BW, MK15BW, T20MW, AM10, AM20, A20B, AX30B, AC400, AC600
APV	T4, SR1, SR2, SR3, H12, H17, N25, N35, Q030D, Q030E, Q055D, Q055E, Q080E, SR6GL, K34, K55, A055, A085, J060, J092, J107, M60, M92, M107, B063, B110, B134, R5, SR9, Q series, J series, A series, H17, 35 series
GEA	VT04, VT10, VT20, VT20P, VT40, VT40M, VT80, VT80M, N40, VT405P, NT50T, NT50M,NT50X, NT100T, NT100M, NT100X, NT150S, NT150L, NT250S, NT250M, NT250L, NT350S, FA184
Tranter	GC8 GX26 GC51 GX64 GX145 GL13 GX42 GX51 GX85 GL16 GCD 044 GC60 GX91 GC26 GCD 054 GX 60 GX100
Sondex	S4A, S7A, S8A, S9A, S14A, S17, S18, S19A, S20A, S21, S21A, S22, S31A, S37, S38, S41A, S41, S42, S43, S47, S47A, S58, S62, S63, S64, S65, S81, S86, S100, S121, SW40, SF123
Vicarb	V8, V13, V20, V28, V45, V60, V85, V110
	C8, GX12, GL13, GC16, GX26, GC26, GX42, GC51, GX51, GC60, GX60, GX64, GX85, GX91, GX100, GX145, GX180, GX series
FUNKE	FP04, FP08, FP09, FP10, FP14, FP16, FP19, FP20, FP22, FP205, FP31, FP40, FP41, FP50, FP60, FP80, FP81, FP100, FP120, FP405
Thermowave	TL90SS, TL90PP, TL150SS, TL150PP, TL250SS, TL250PP, TL400SS, TL400PP, TL500SS, TL500PP, TL650SS, TL650PP
	SIGMA25, SIGMA26, SIGMA35, SIGMA35X, SIGMA37, SIGMA56, SIGMA66, SIGMA96, SIGMA106, SIGMA156

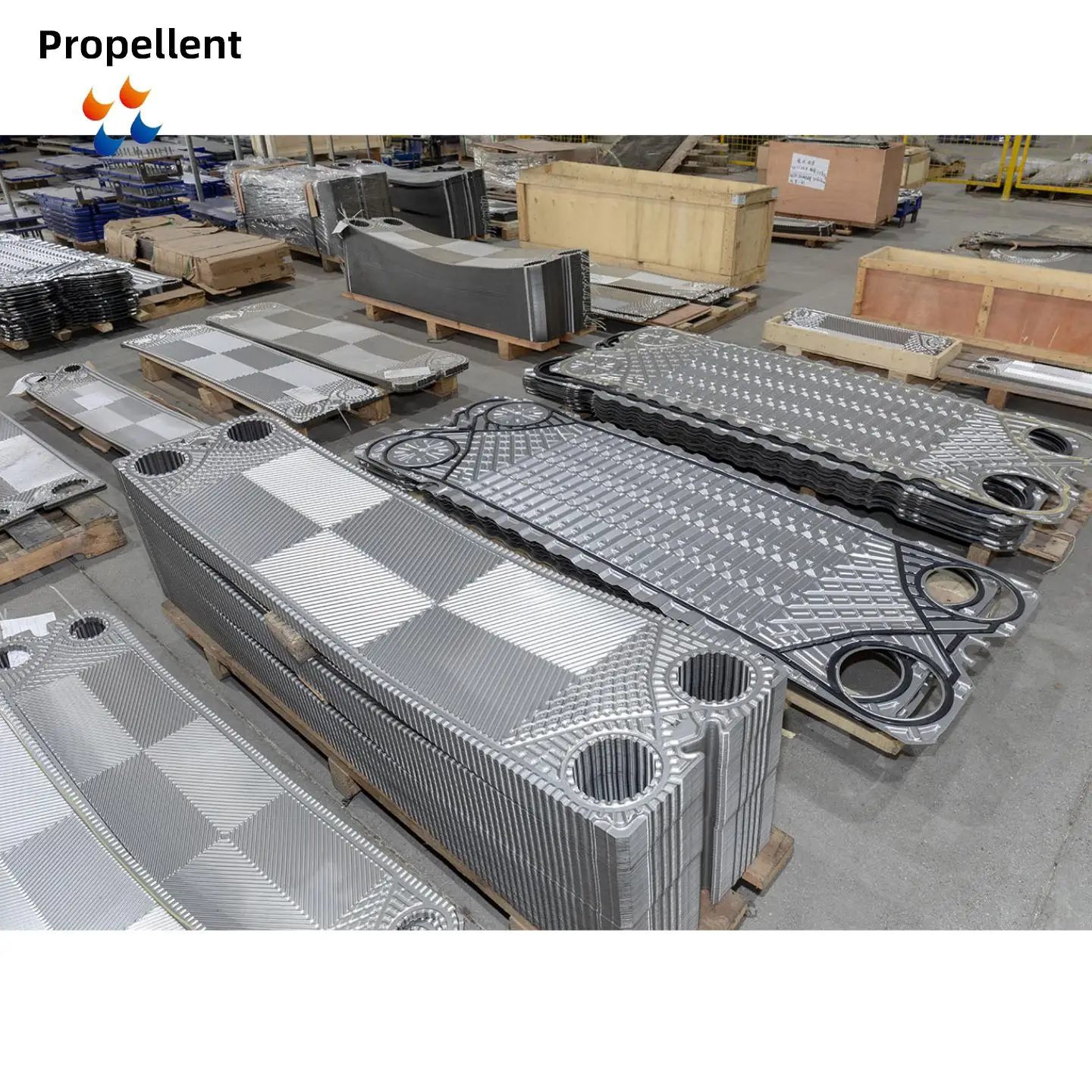

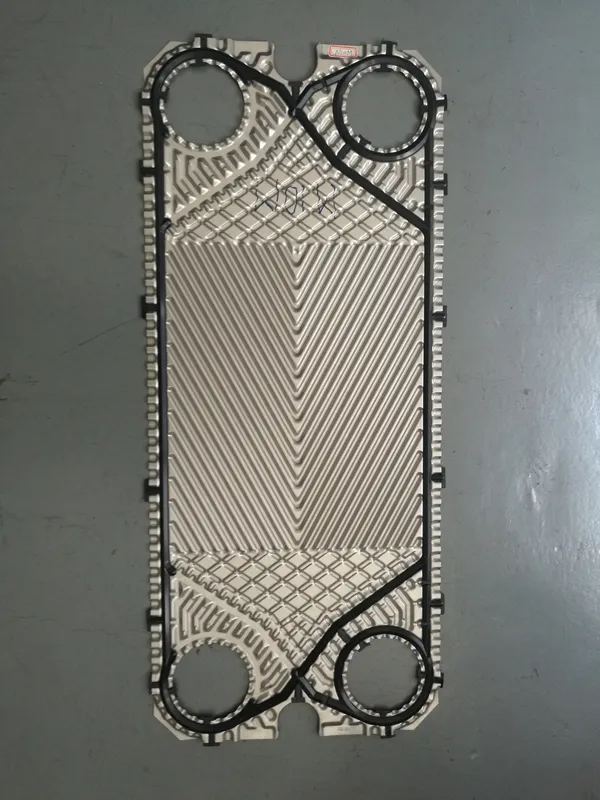

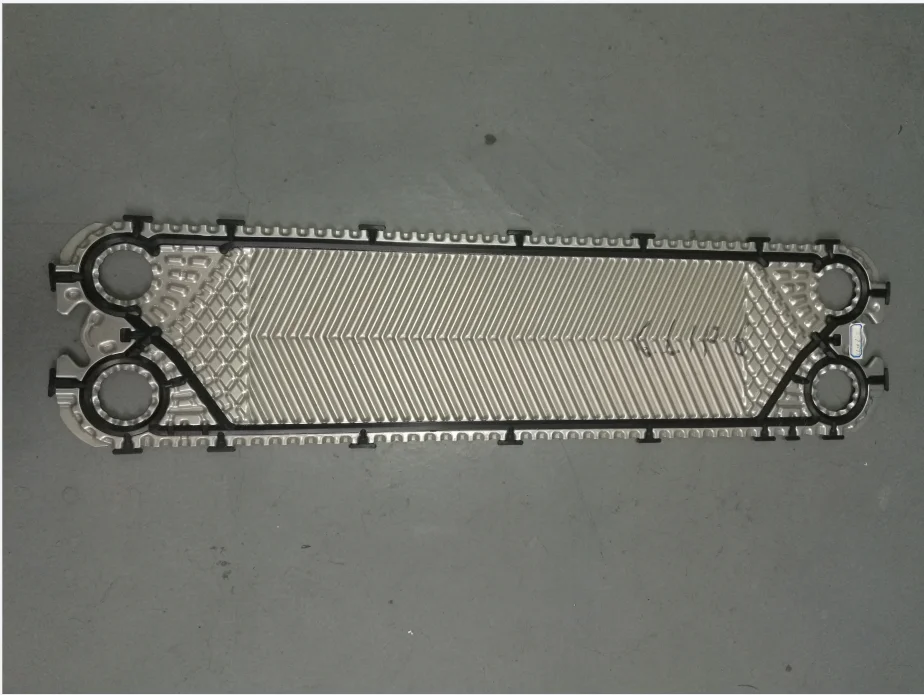

Heat exchanger plate

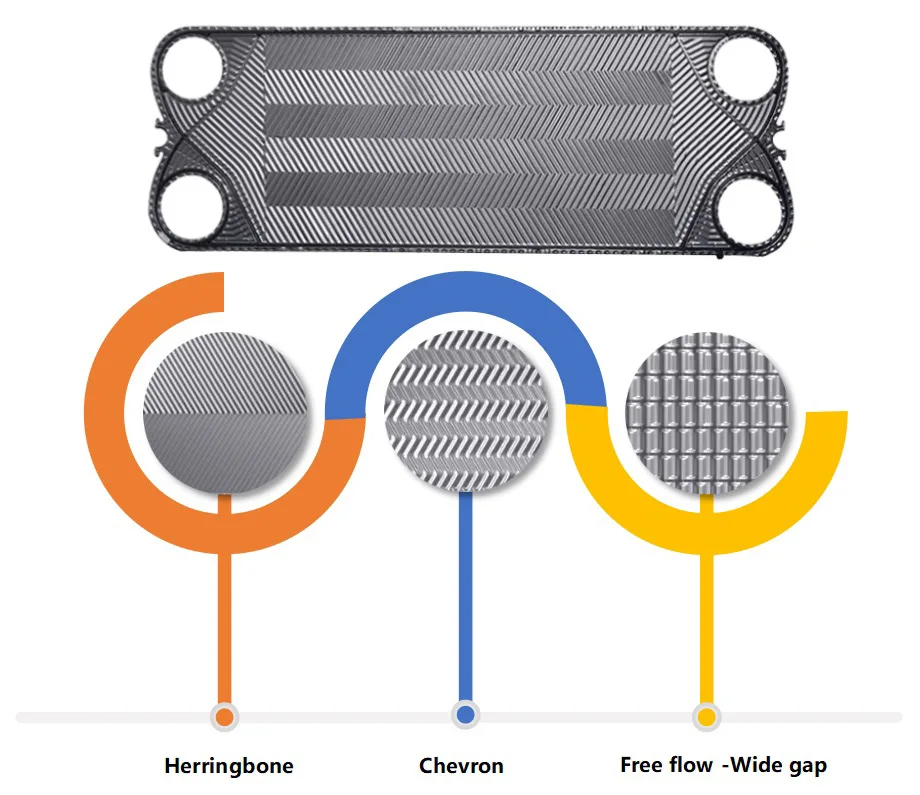

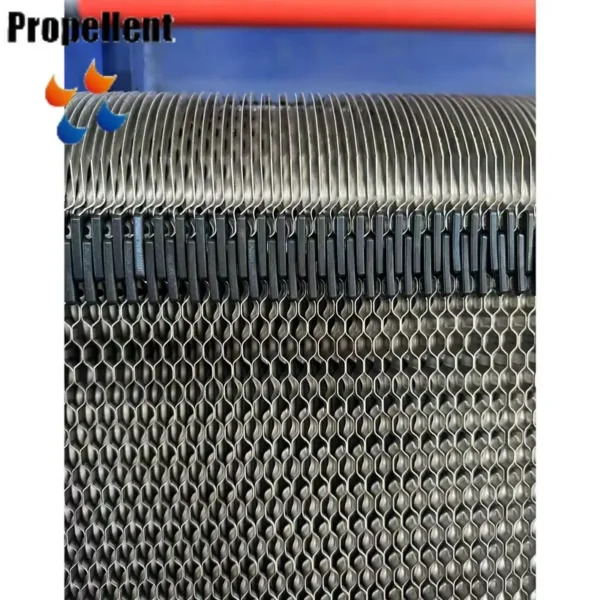

The media flow through the channels of the pattern that is pressed into the heat transmission area of each plate. As such, the patterns have great impact on the heat transfer efficiency of the heat exchanger and must be carefully chosen to accommodate the specific requirements of each thermal duty. The sized of the needed heat transmission area can be reduced if a higher amount of the pressure drop is used. This makes it important to use the allowed pressure drop to the fullest. Some patterns only use a low pressure drop, but offer a lower level of turbulence, while others offer high turbulence in exchange for a high pressure drop. Other patterns have very deep channels, making them suitable for high-viscosity media and media that cause fouling.

Gasket Material	Temperature Range ( ºC )	Hardness	Available Medium
NBR	-20 to 110	-75+/-3	Water, Oil, Acid etc.
EPDM	-30 to 150	80+/-5	Steam, Ammonia, Acid, Glycoletc.
NBR-HT	-30 to 160	85+/-5	Mineral Oil, Thermal Oil
EPDM-HT	-30 to 180	85+/-5	High Tempearture Water
FPM	-55 to 220	80+/-5	High Temperature Oil

Plate Material	Available Medium
AISI304, AISI316L	Pure Water, Fresh Water, Mineral Water
Titanium	Sea Water, Mineral Oil, Vegetable Water
254SMO	Dulute Sulphuric Acid etc.
Ni	Caustic Soda with high temperature and concentraction
Hastelloy	Concentration Sulphuric Acid etc.

Propellent Plate Heat Exchanger
Plate Type	Single plate
Flow Channel Between Plates	3.5mm ~12.0mm (Optional depends on working condition)
Plate Thickness	0.4mm ~ 1.0mm
Heat Transfer Plate Material	Stainless steel – 304/304L, 316/316L, 254 SMO, Titanium, Hastelloy C-276, others
Gasket Material	NBR, EPDM, HNBR, HEPDM, NBR-HT, FKM, Viton A, Viton G
Pressure Plate Material	Carbon steel, stainless steel and others on request
Temperature Range	-50℃ ~ +180℃ Varies with the media and gasket selection.
Maximum Pressure	Maximum standard pressure 10 bar / 16 bar
Port Connection	DN32, DN50, DN80, DN125, DN150, DN200, DN250, DN350

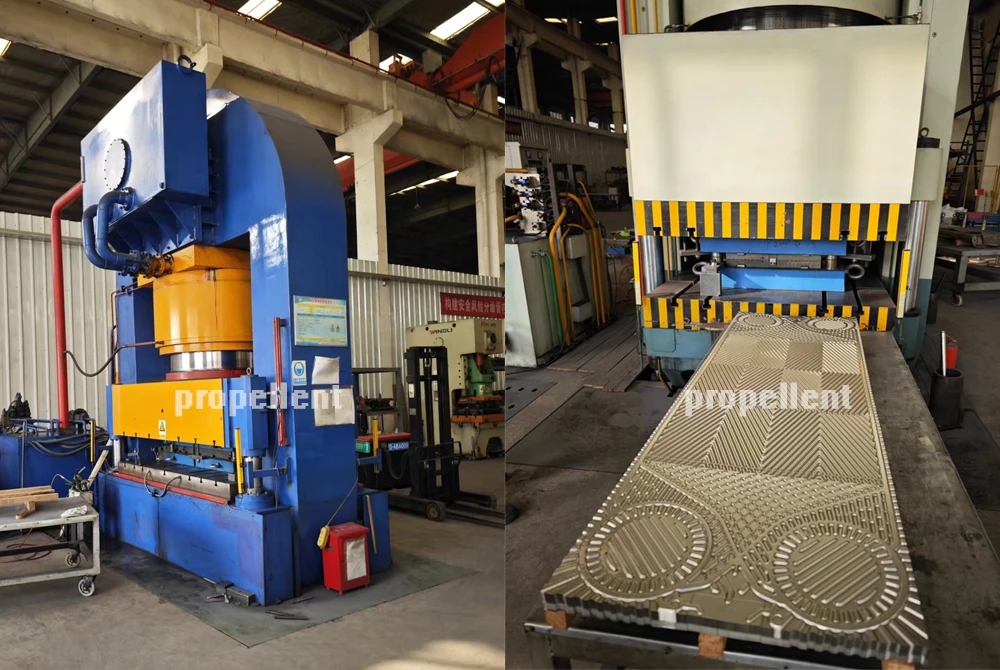

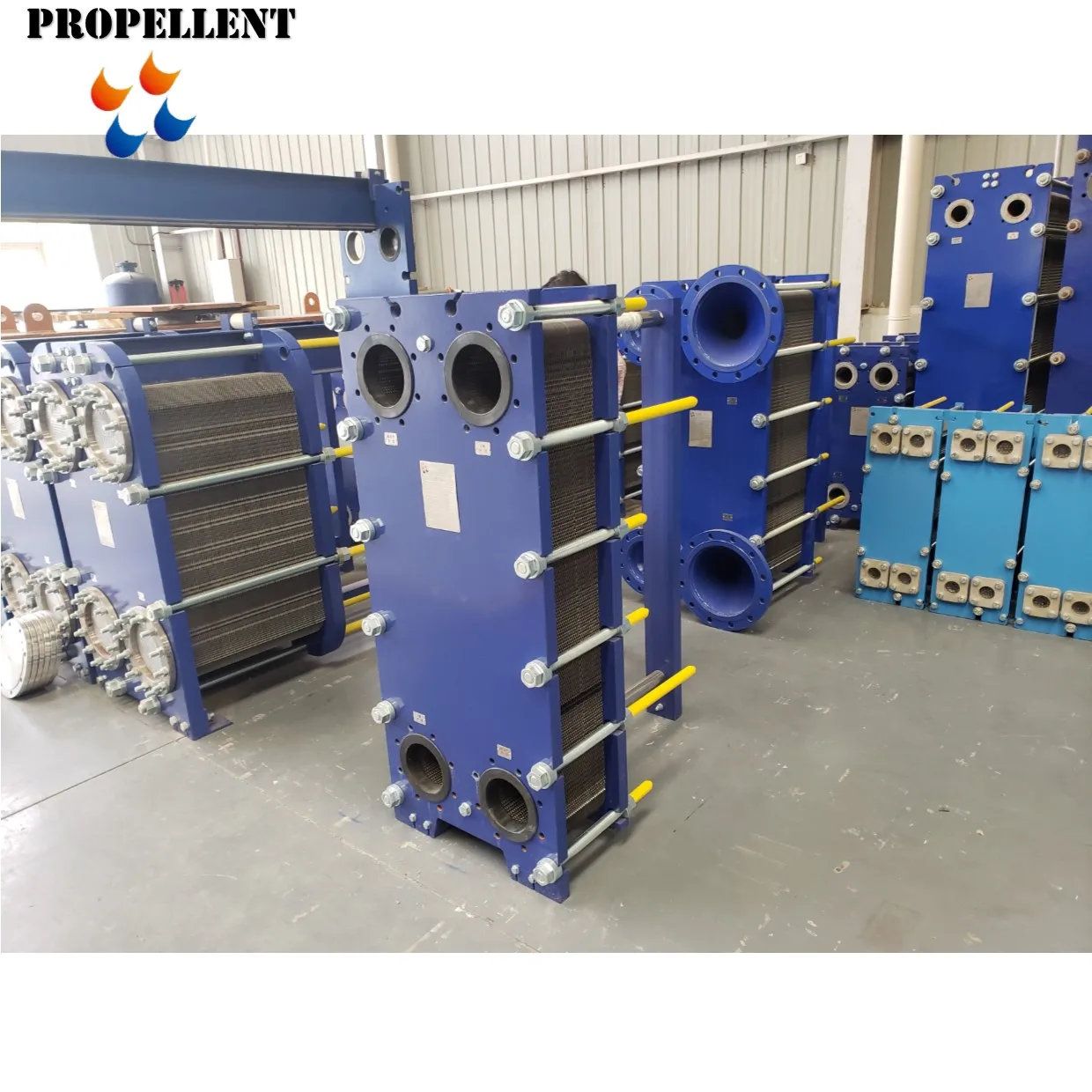

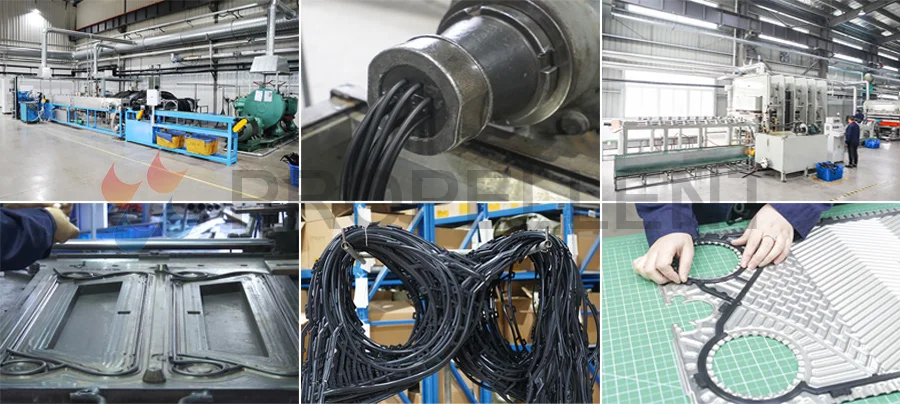

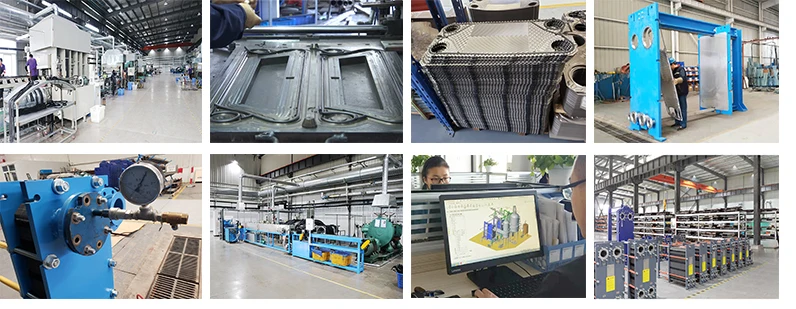

Plate Heat Exchanger Producation

Applications:

Alumina Beer BeverageChemicalDairyData center MarineMilk Oil and Gas Paper-pulpPetrochemical Pharmaceutical Power-plant Refrigeration Waste water

Company Profile

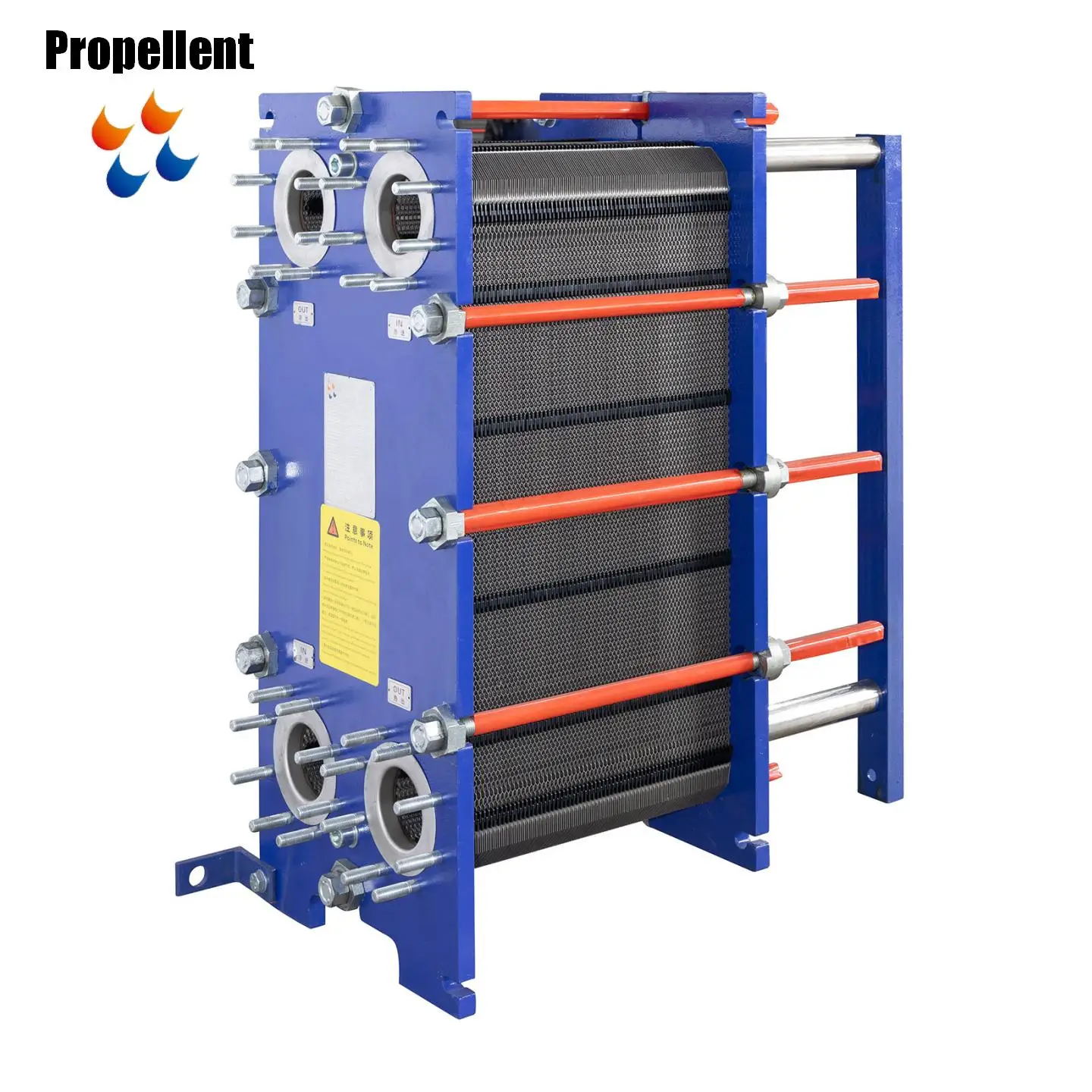

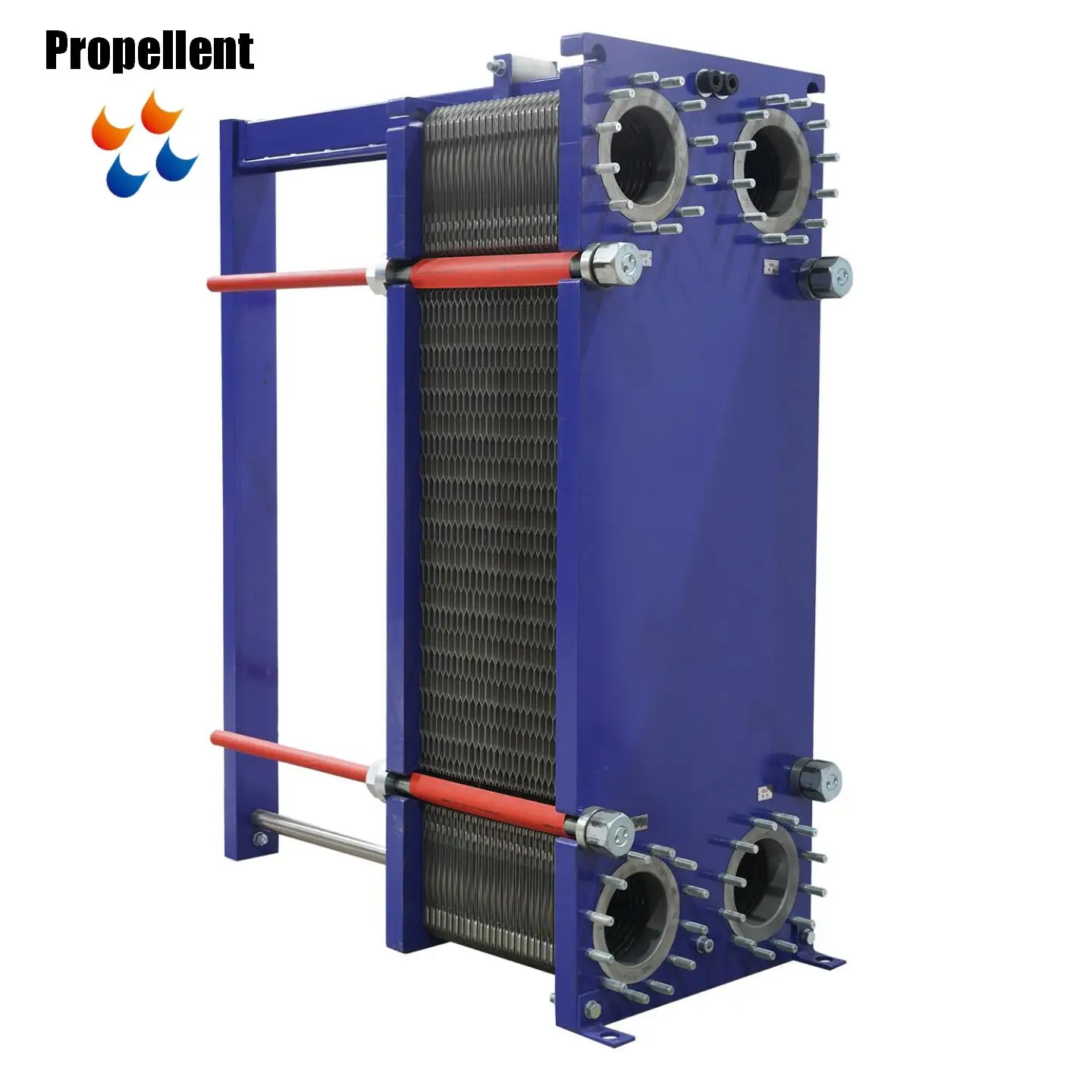

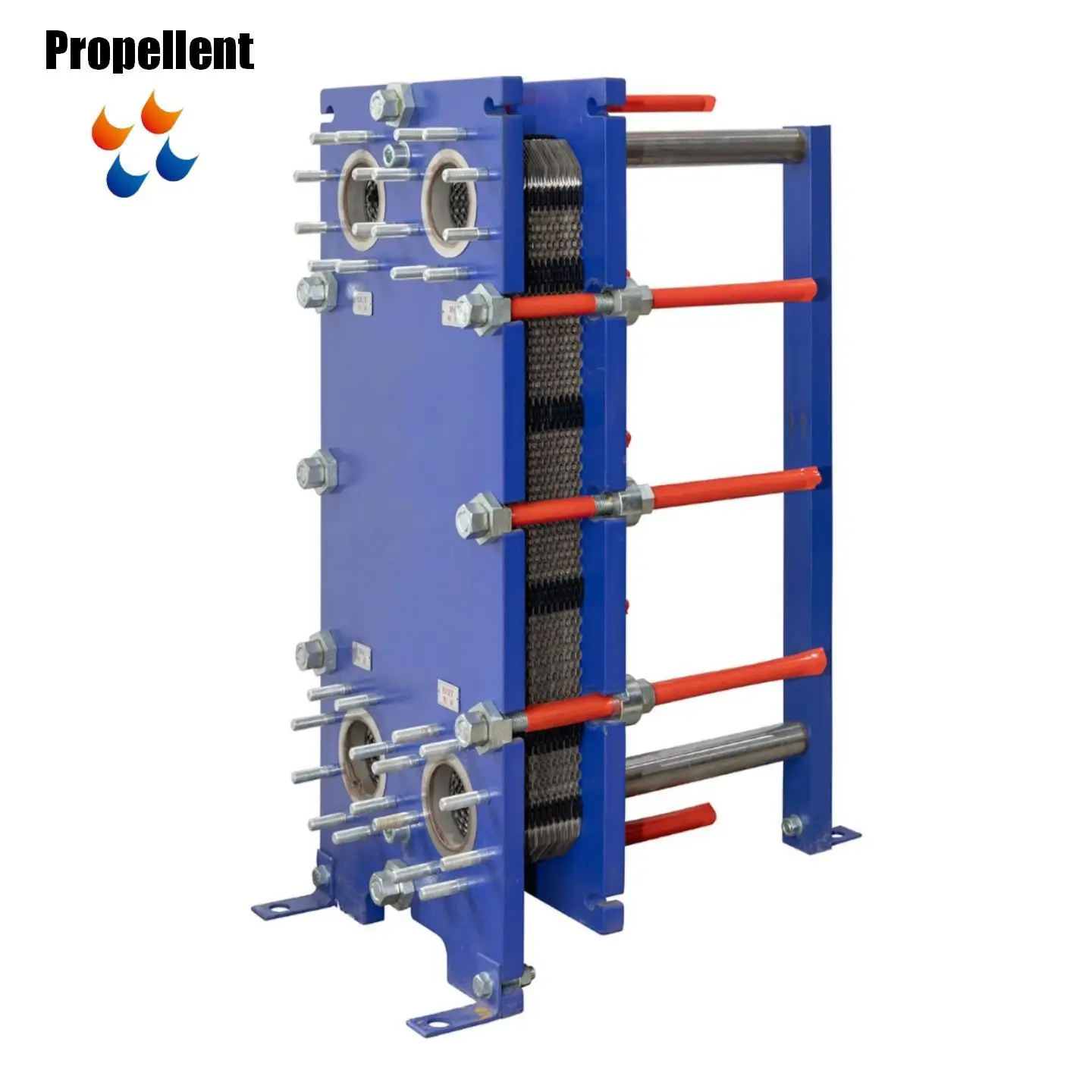

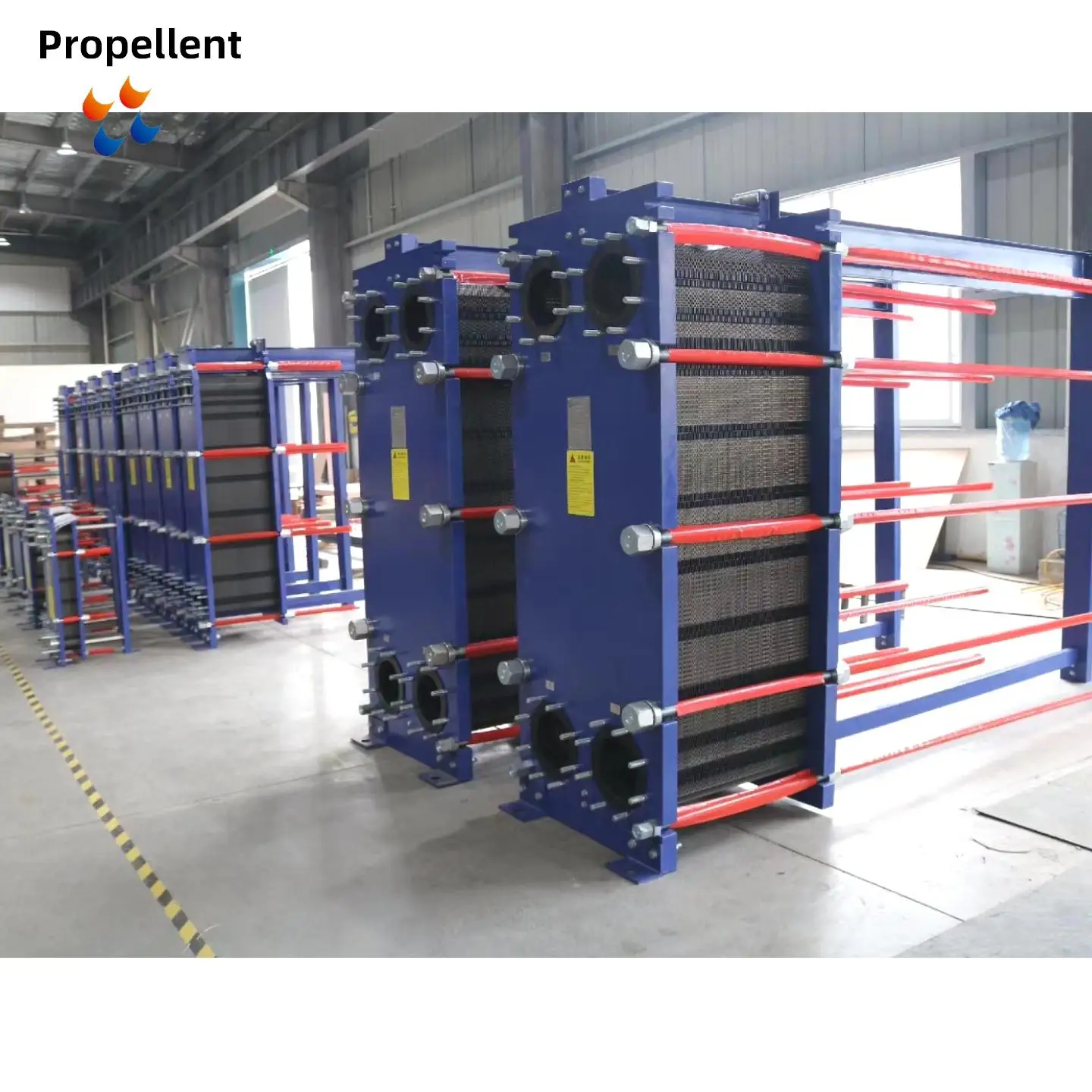

Propellent Plate heat exchanger consists of a pack of corrugated metal plates, gaskets and a fix frame. The plate pack is

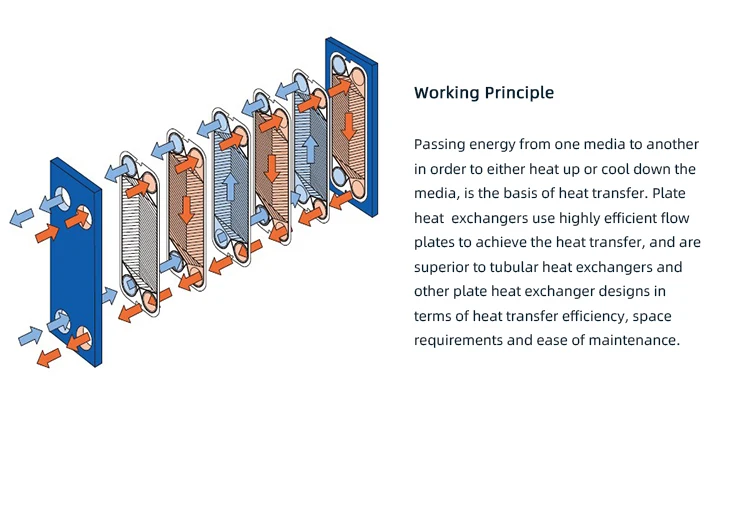

assembled and fixed on the frame by tightening bolts. The heat is transferred through the plate between the channels which are sealed by gaskets. Our large selection of plates, plate patterns, and pressing depths enables us to cover all thermal duties with solutions that match the requirements perfectly. Propellent can be able to offer a full range of heat exchange design calculation in full working condition. We have accumulated rich experience in heating, cooling and waste heat recovery for complex process mediums. Propellent never views separately in the selection of heat exchange equipment applications, but put it in the whole process production line, Therefore, we find the best balance to consider the whole initial investment in equipment and long-term operating costs. We optimize manufacturing processes of our clients and reduce the use of fresh energy to provide our customers maximum value when we find reasonable main points in
high heat transfer efficiency and pressure loss.

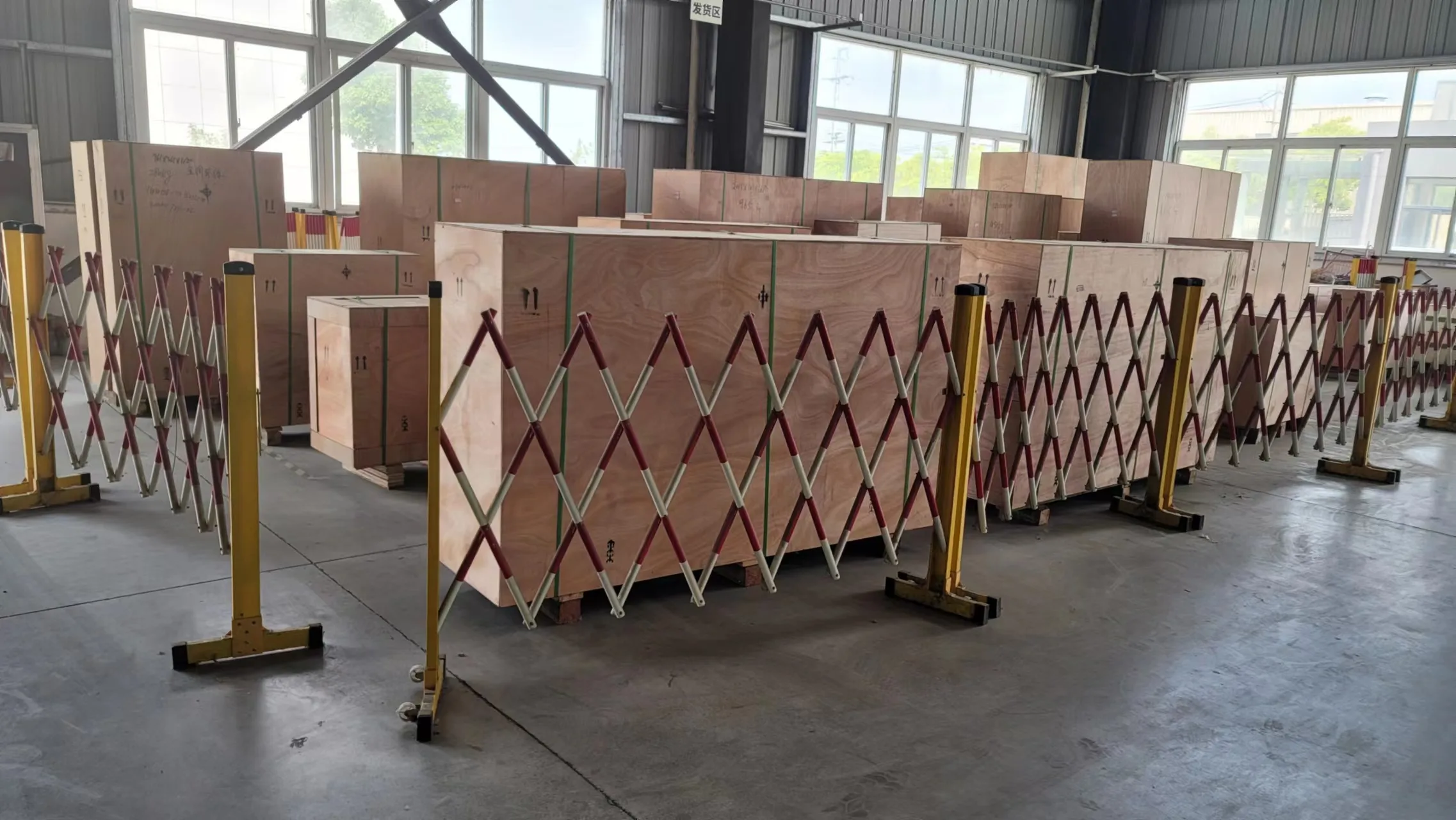

Shipping&Packing
