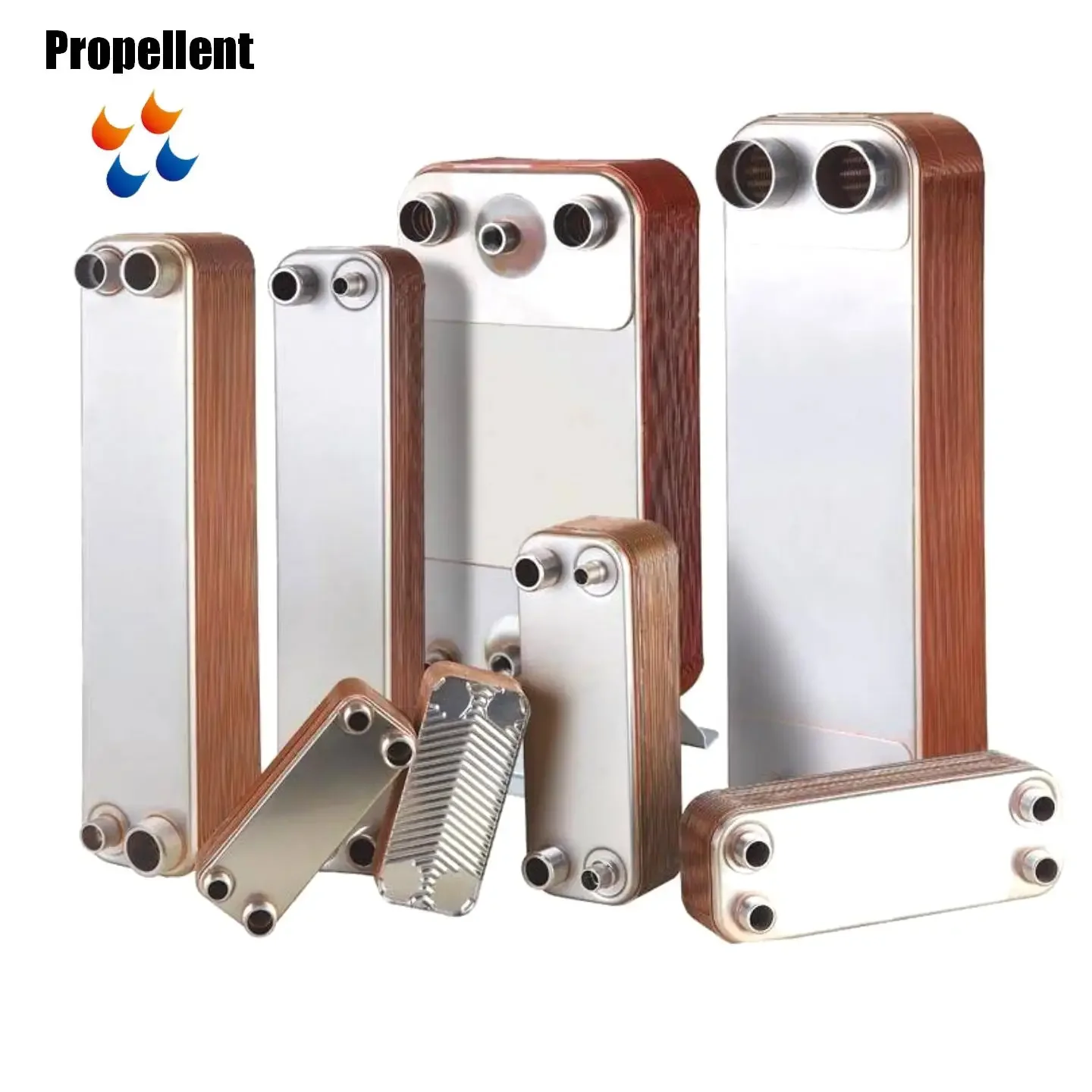

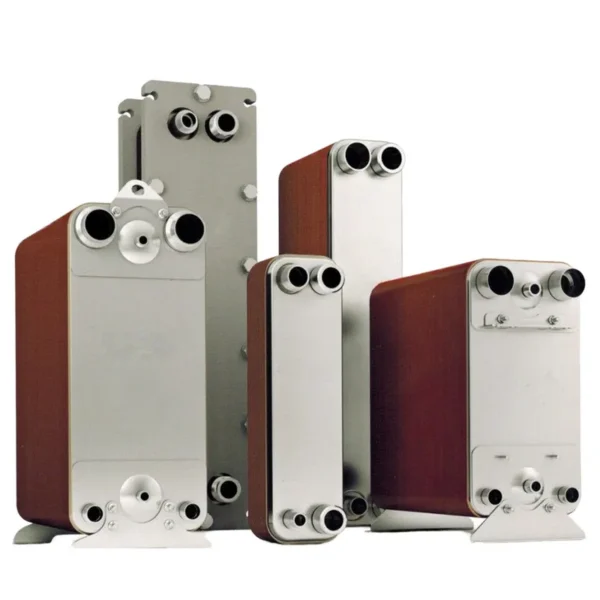

Plate Heat Exchanger, 5KW, 8KW, 10KW, Copper

The plate heat exchanger listed here carries 220v/380v/customized, material Copper, documented exactly as the manufacturer publishes it. Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Plate Heat Exchanger

• Voltage: 220v/380v/customized
• Material: Copper
• Plate Material: Stainless Steel 304/316
• Brazing Material: copper, stainless steel
• Warranty: 1 Year
• After Warranty Service: Video technical support

Technical Specifications

Product Details

Product Overview

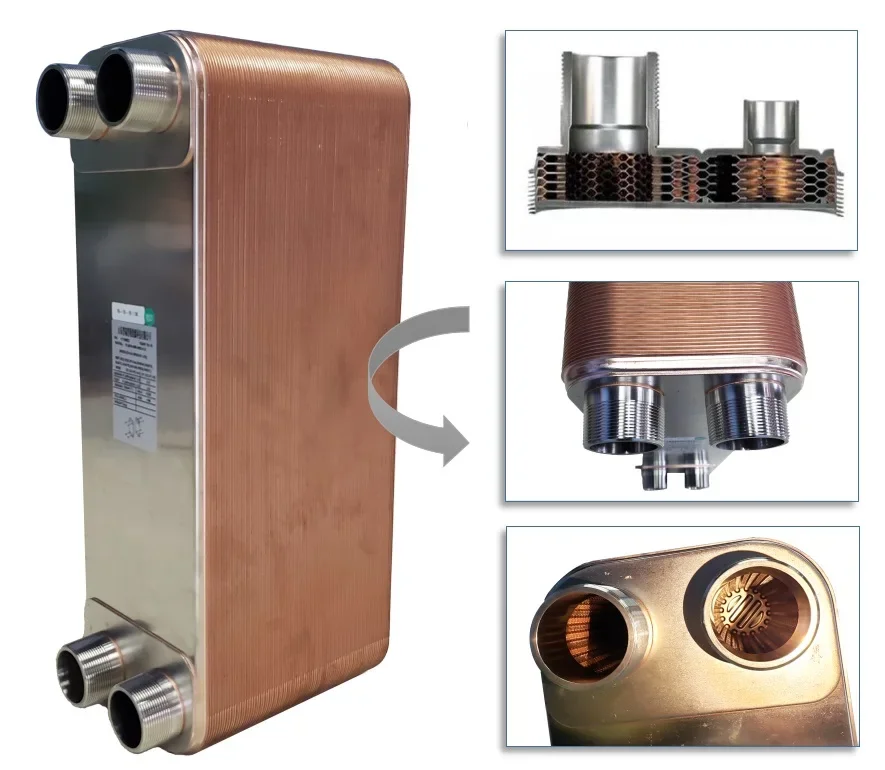

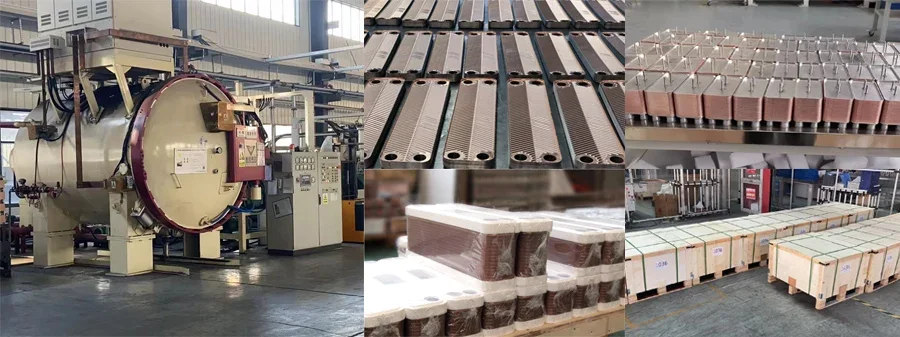

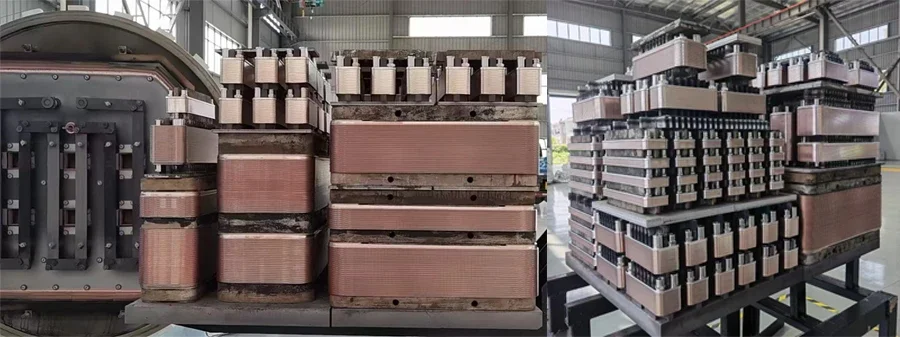

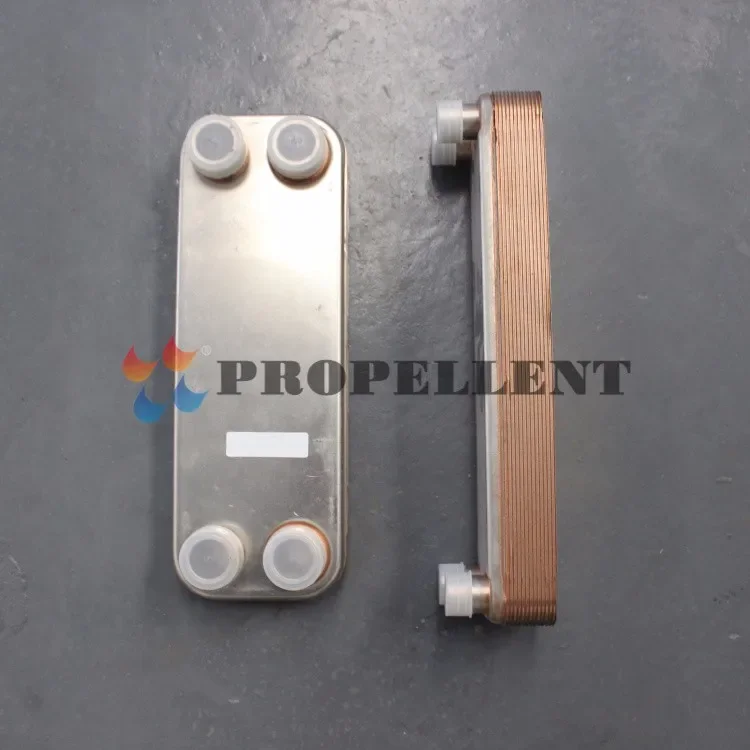

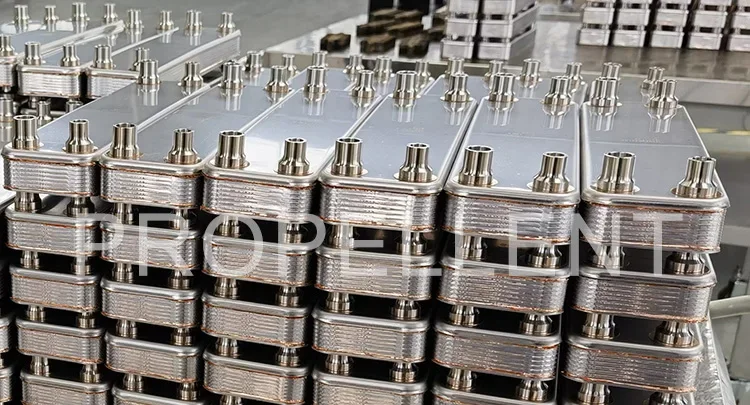

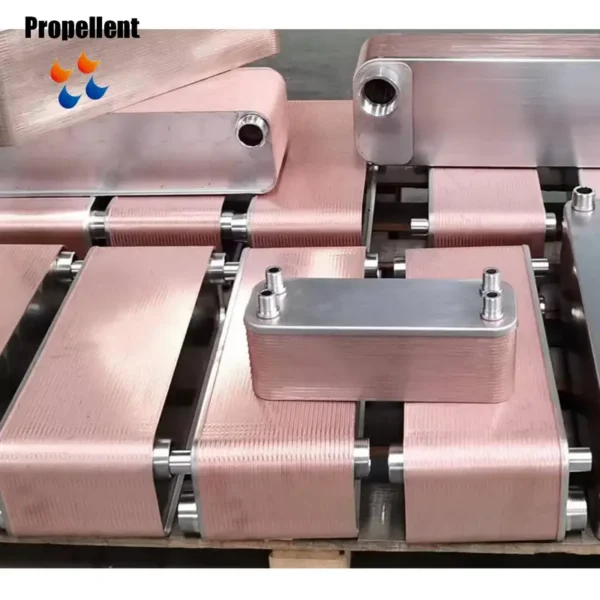

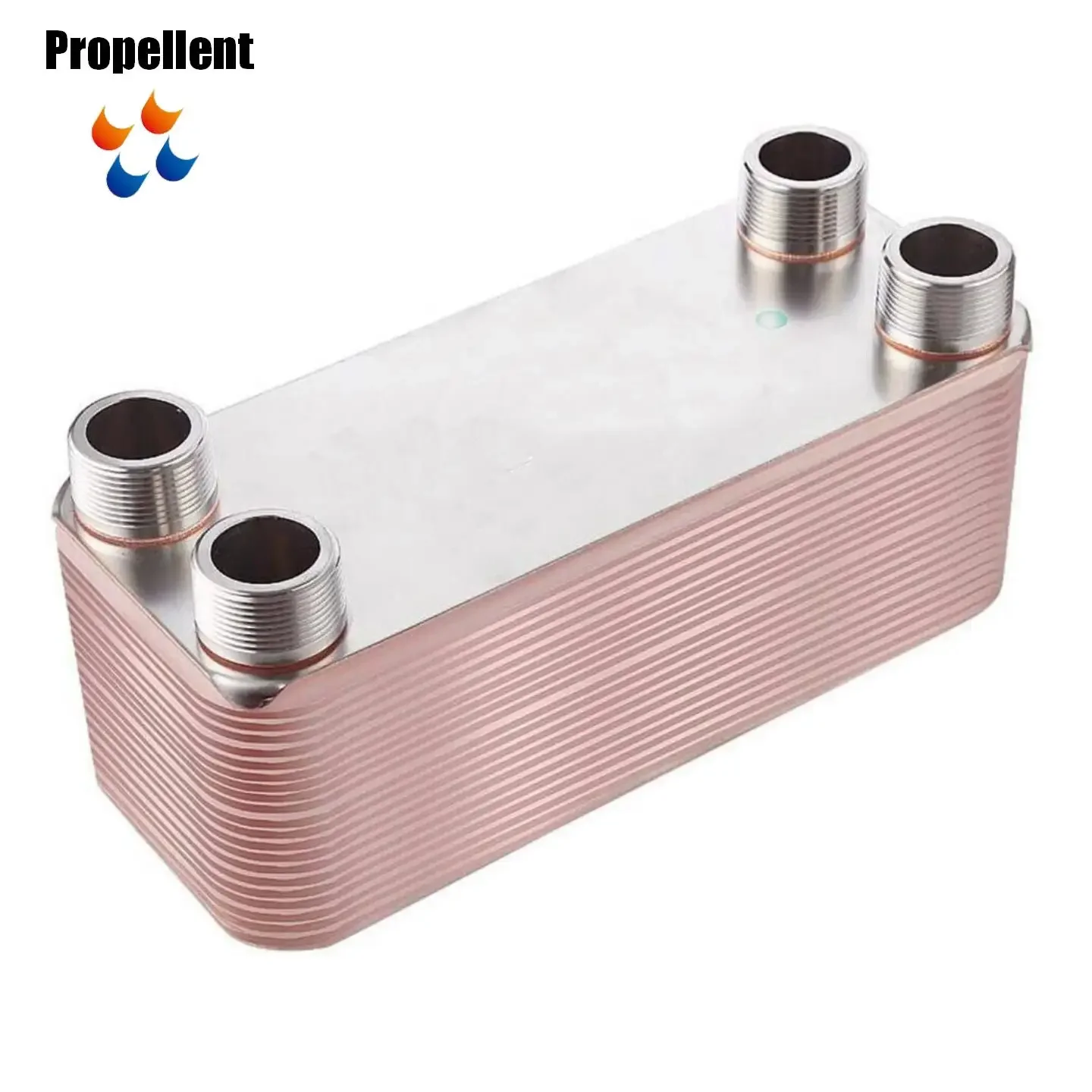

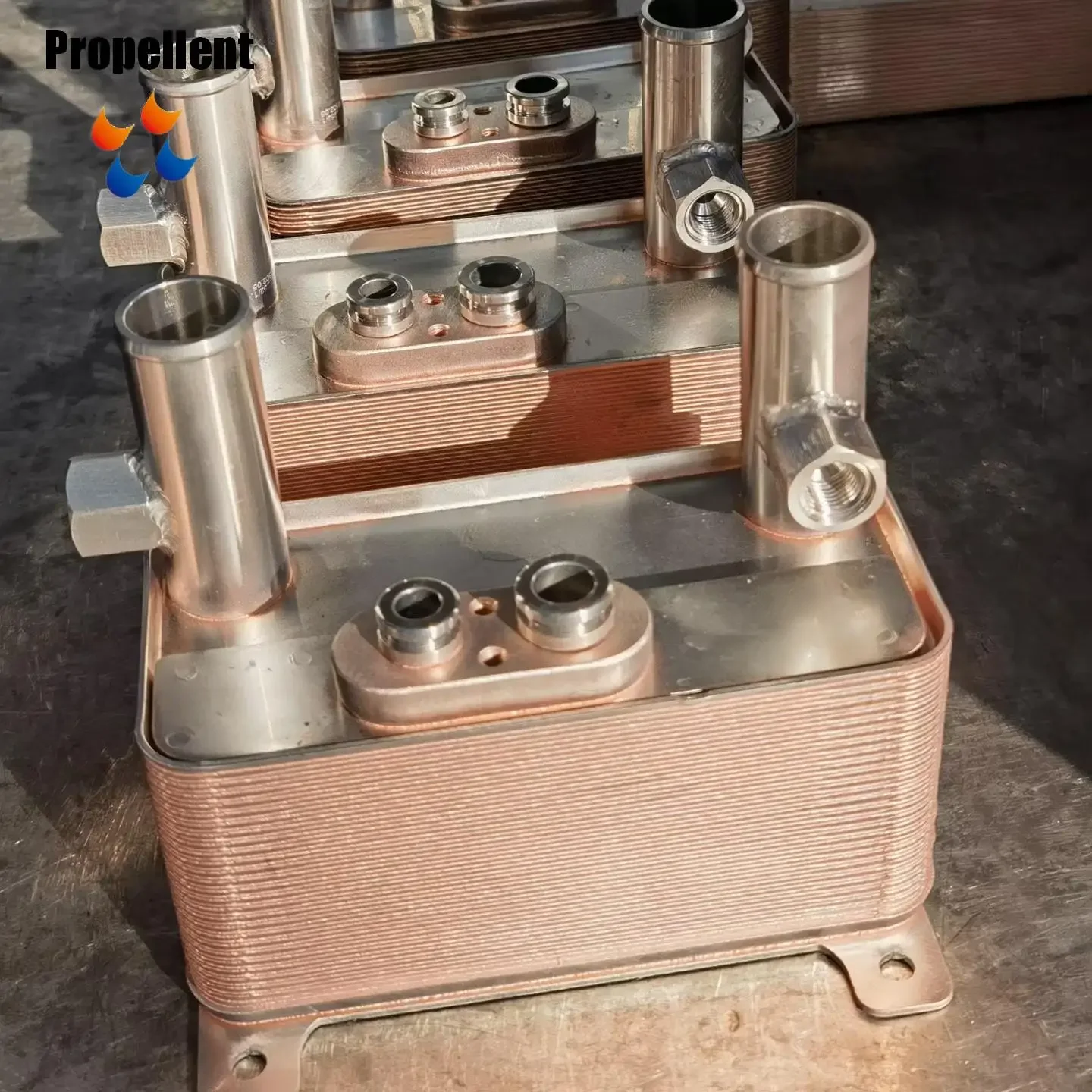

Propellent brazed plate heat exchangers consist of corrugations of metal plate and shells, without gaskets and frame. Purity copper flakes are placed in between each plate to separate them and the whole parts are brazed in high temperature furnace. The brazing structure seals and holds the plates together to ensure the exchanger work well in continuous high temperature and pressure conditions. Propellent brazed plate heat exchangers are special designed for promoting heat transfer efficient and reducing potential pollution.

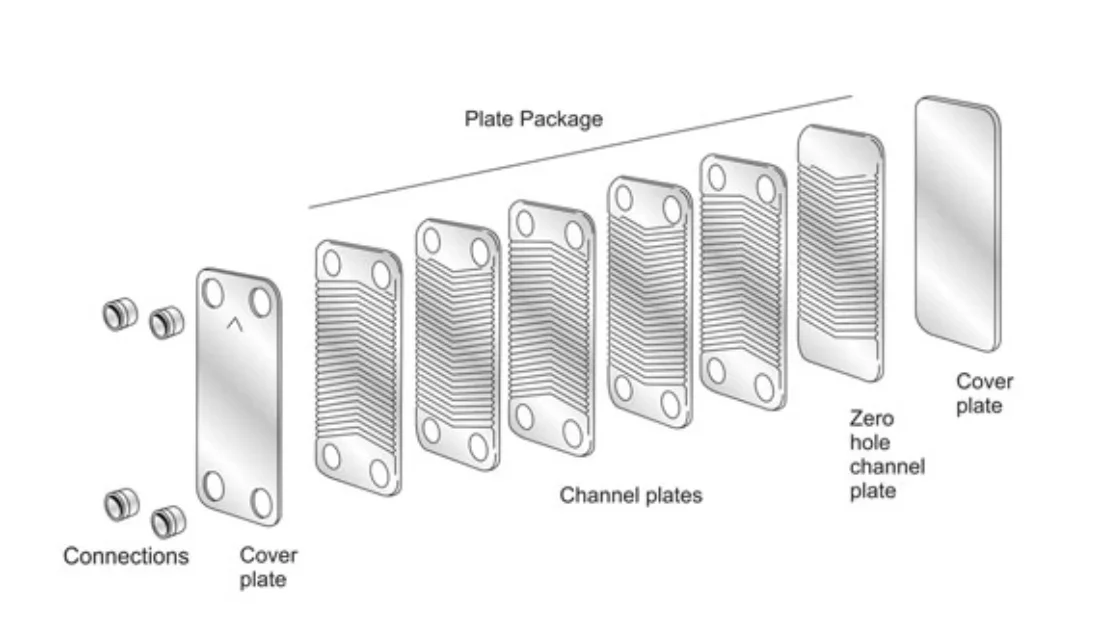

Brazed Plate Heat Exchangers are one of the most efficient means to transfer heat from one medium to another. A Brazed Plate Heat Exchanger consists of corrugated plates that combine to create channels through which a hot medium and a cold medium (typically water) can be distributed. Brazed Plate Heat Exchangers can be used for a range of functions in a heating or cooling system – they can act as condensers, evaporators, oil or gas coolers and be used for other functions that involve the transfer of heating or cooling. Brazed Plate Heat Exchangers are widely used in many different industries and often in large-scale residential heat networks.

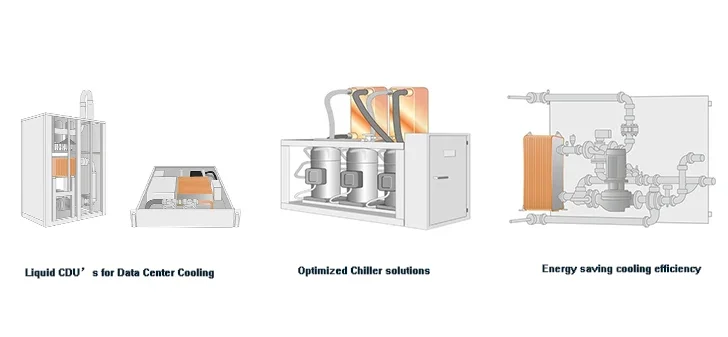

They play an important role in delivering air conditioning process and production, refrigeration, data center cooling and residential heating.Choosing Brazed Plate Heat Exchanger technology for your next heating or cooling project will provide many benefits, including savings in energy and maintenance costs and maximising space.

Products Description

Model	Height (mm)	Width (mm)	Volume per channel	Max. Flowrate	Pressure Level	Max. Number of Plates
	(mm)	(mm)	(L)	(m3/h)	(bar)	pcs
PLQ014	208	78	0.02	4	30/45	60
PLQ020	317	78	0.04	4	30/45	100
PLQ026	310	111	0.05	18	30/45	120
PLQ030	325	95	0.03	10	30/45	100
PLQ050A	525	111	0.09	15	30/45	120
PLQ050B	525	111	0.09	18	30/45	120
PLQ060	526	119	0.11	18	30/45	100
PLQ095A	616	191	0.21	35	30/45	160
PLQ095B	616	191	0.25	35	30/45	180
PLQ100A	490	250	0.19	45	30/45	240
PLQ100B	490	250	0.25	60	30/45	240
PLQ110	528	246	0.21	45	30/45	250
PLQ190	696	307	0.43	150	30/45	300
PLQ210	739	321	0.41	100	30/45	250
PLQ300	1008	365	0.65	150	20/30	280

Applications:

Alumina Beer BeverageChemicalDairyData center MarineMilk Oil and Gas Paper-pulpPetrochemical Pharmaceutical Power-plant Refrigeration Waste water

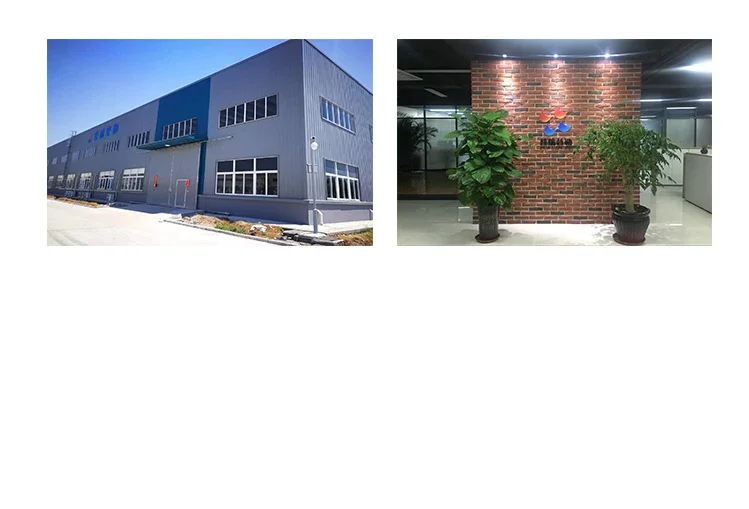

Company Profile

Propellent Plate heat exchanger consists of a pack of corrugated metal plates, gaskets and a fix frame.

The plate pack is assembled and fixed on the frame by tightening bolts. The heat is transferred through the plate between the channels which are sealed by gaskets. Our large selection of plates, plate patterns, and pressing depths enables us to cover all thermal duties with solutions that match the requirements perfectly.

Propellent can be able to offer a full range of heat exchange design calculation in full working condition. We have accumulated rich experience in heating, cooling and waste heat recovery for complex process mediums. Propellent never views separately in the selection of heat exchange equipment applications, but put it in the whole process production line, Therefore, we find the best balance to consider the whole initial investment in equipment and long-term operating costs. We optimize manufacturing processes of our clients and reduce the use of fresh energy to provide our customers maximum value when we find reasonable main points in high heat transfer efficiency and pressure loss.

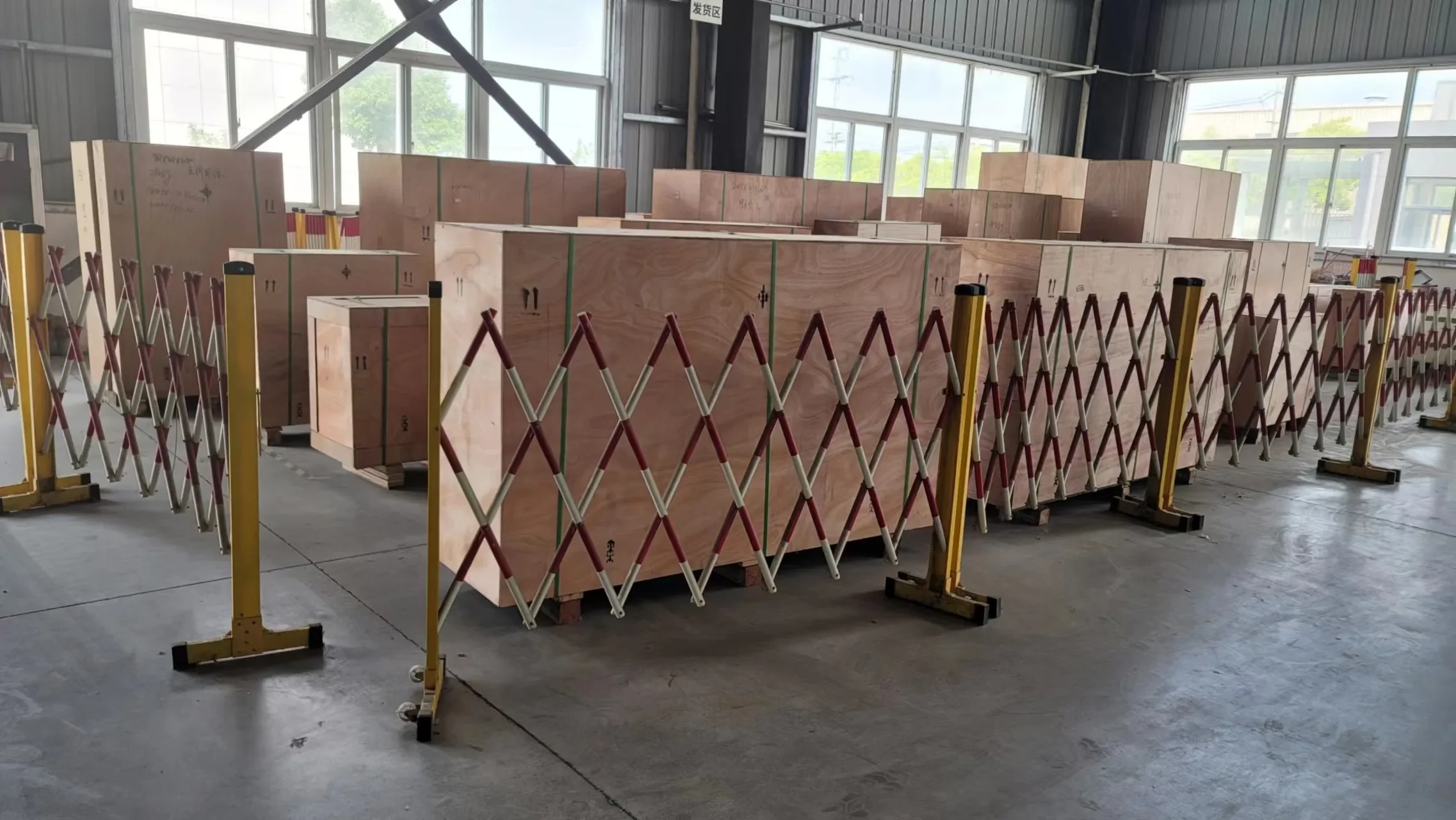

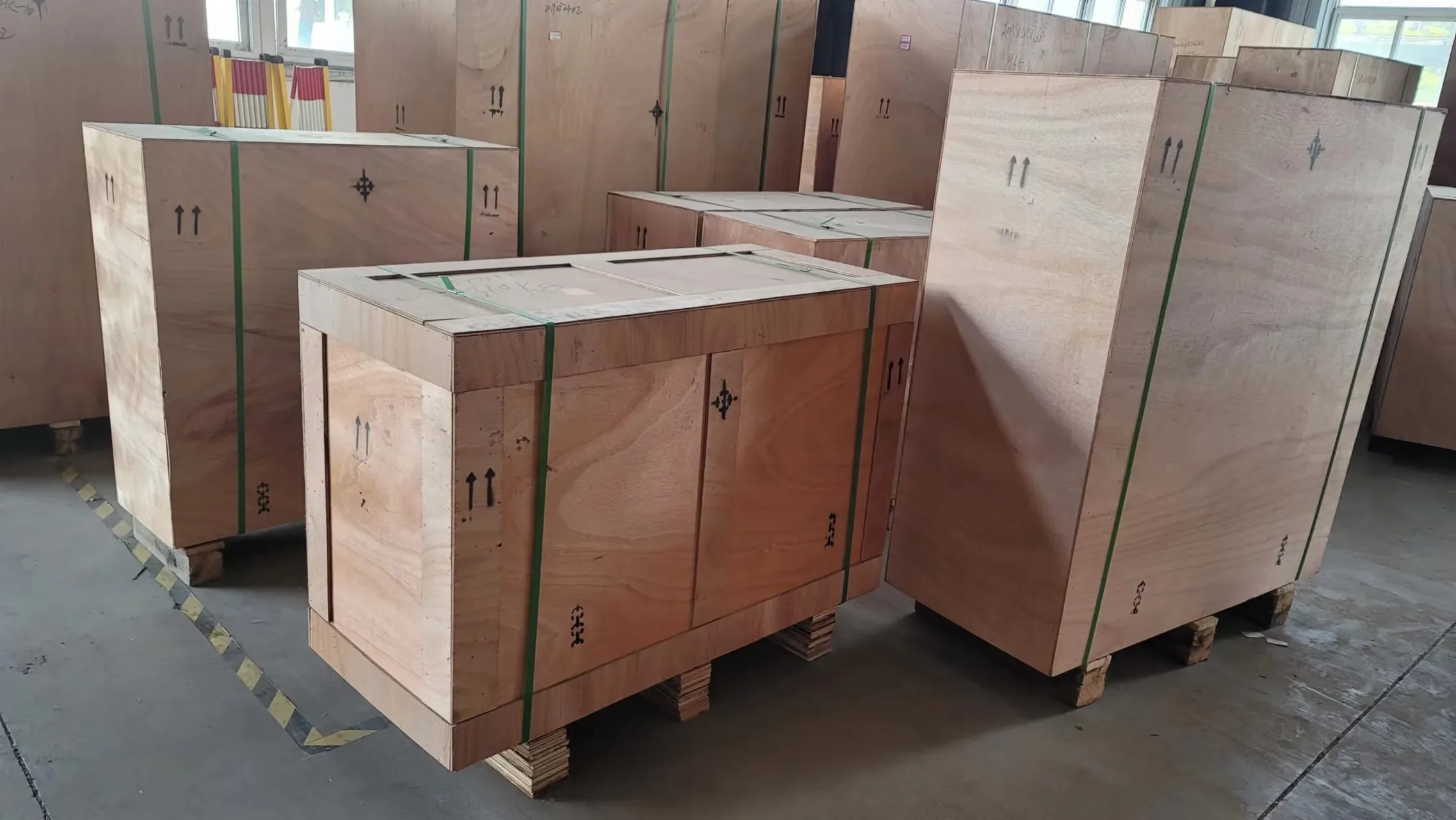

Shipping&Packing

If you have any problems and requirments about our products, please don't hesitiate to contact us.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–19 set: US $70 / set
  • 20–99 set: US $67 / set
  • 100+ set: US $64 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this plate heat exchanger?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the plate heat exchanger be supplied for my local voltage?

The standard configuration is 220v/380v/customized. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Shandong Propellent Energy Technology Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Shandong Propellent Energy Technology Co., Ltd. range on HVACR Nexus.
