Viextro Industrial Water Chiller, CW-3000, CNC, 1kW, 3kW

This viextro industrial water chiller is published with the manufacturer’s full specification — voltage 220~240V, 1kW to 3kW. Made by Jiangsu Viextro Supply Chain Co., Ltd. (2 years on the platform, typical reply ≤5h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Viextro Industrial Water Chiller

• Model Number: CW-3000
• Power: 1kW to 3kW
• Max. Power Consumption: 1kW to 3kW
• Voltage: 220~240V
• Tank Capacity: 9L
• Warranty: 1 Year

Technical Specifications

Product Details

Hi, friends! welcome to our store, if you need other models of this product, please contact me, I will send the product link for you to buy! (Be careful:For detailed specifications, models and inquiries, contact customer service for negotiation). We specialize in industrial automation items selling, Our Products cover over 100 automation major industrial automation brands. PLC, Motor, Servo Driver, Inverter, Touch Panel, Industrial robot parts, etc are our advantage items.The system shipping cost may not be accurate, please contact us.

Product Description

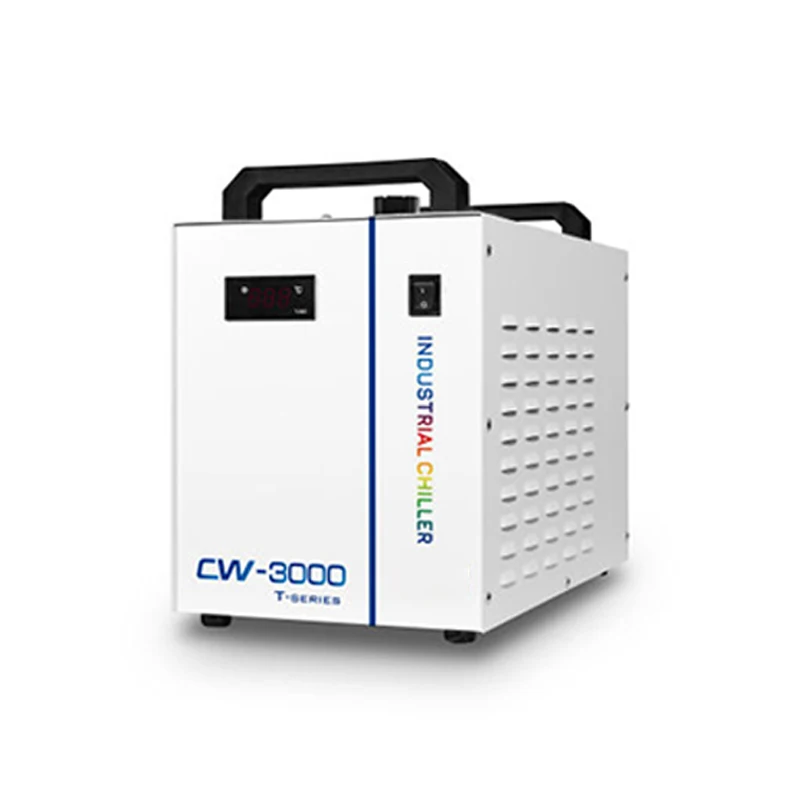

Industrial Chiller CW-3000 for Cooling CNC Cutter Engraver Spindle from 1kW to 3kW

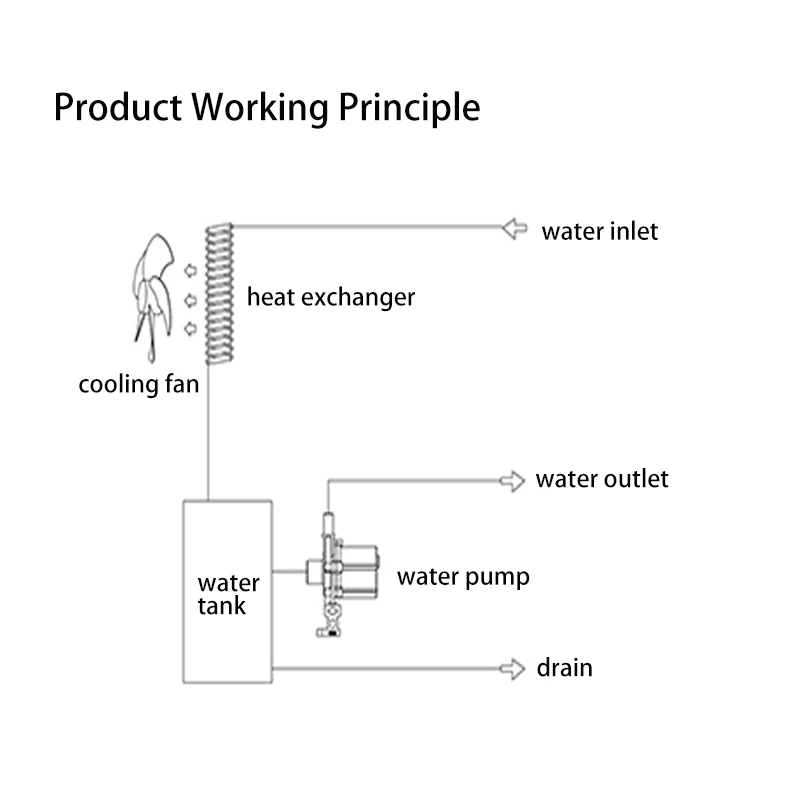

spindle chiller CW-3000 is a perfect solution to enhance the performance of 1~3kW CNC cutting machine spindle. Being affordable and easy to operate, this passive cooling chiller can dissipate the heat from the spindle effectively while at the same time consuming less energy than its counterparts. It features a heat dissipation capacity of 50W/℃, which means it can absorb 50W of heat by rising 1°C of water temperature. Although CW-3000 industrial chiller is not equipped with compressor, effective heat exchange can be guaranteed thanks to a high speed fan inside. Industrial chiller CW-3000 integrates top mount handle for easy portability. The digital temperature display can indicate temperature and alarm codes. With excellent heat dissipation capability, cost-effective price, small size and lightweight, portable chiller CW3000 has become the favorite cooler of small cnc machining.

Product Features
* Heat dissipation capacity: 50W/℃, meaning it can absorb 50W of heat by rising 1°C of water temperature;
* Passive cooling, no refrigerant
* High speed fan
* 9L reservoir
* Digital temperature display
* Built-in alarm functions
* Easy operation and space-saving
* Low energy and environmental

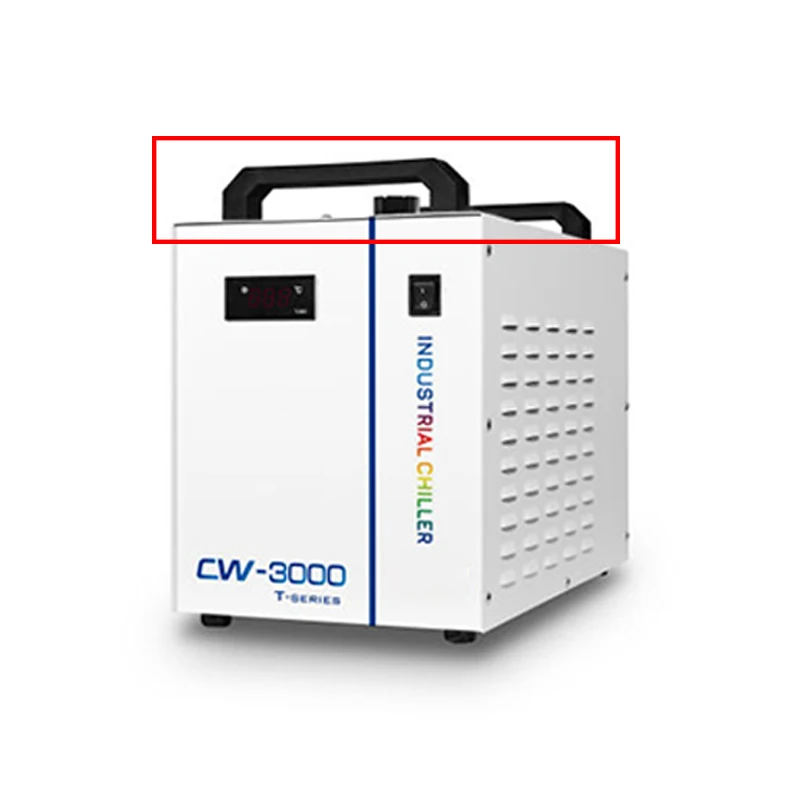

Integrated top mounted handle

The firm handles are mounted on top for easy mobility.

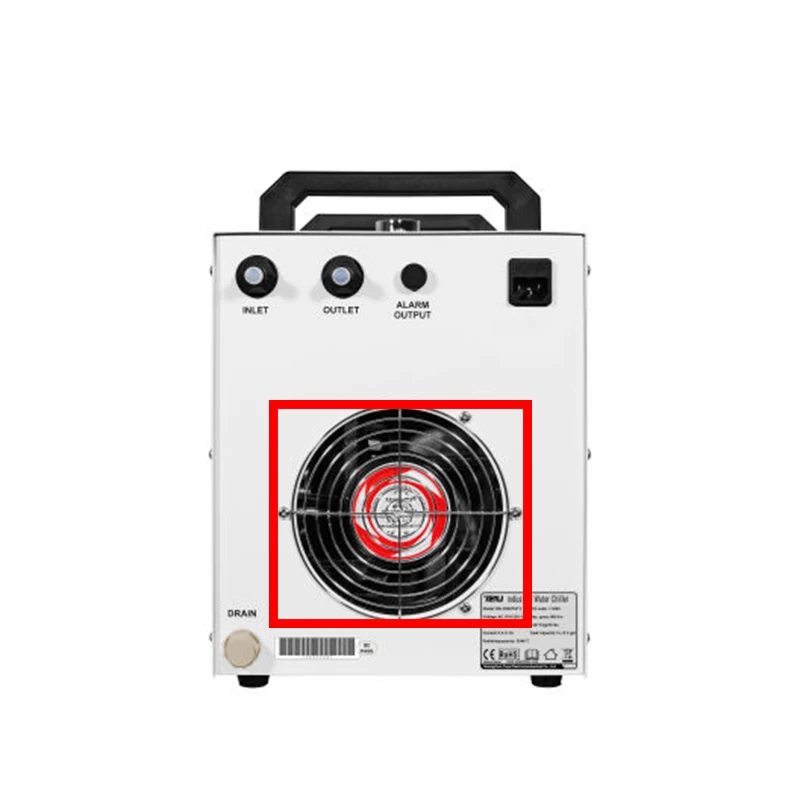

High speed fan

The high speed fan is installed to ensure high cooling performance.

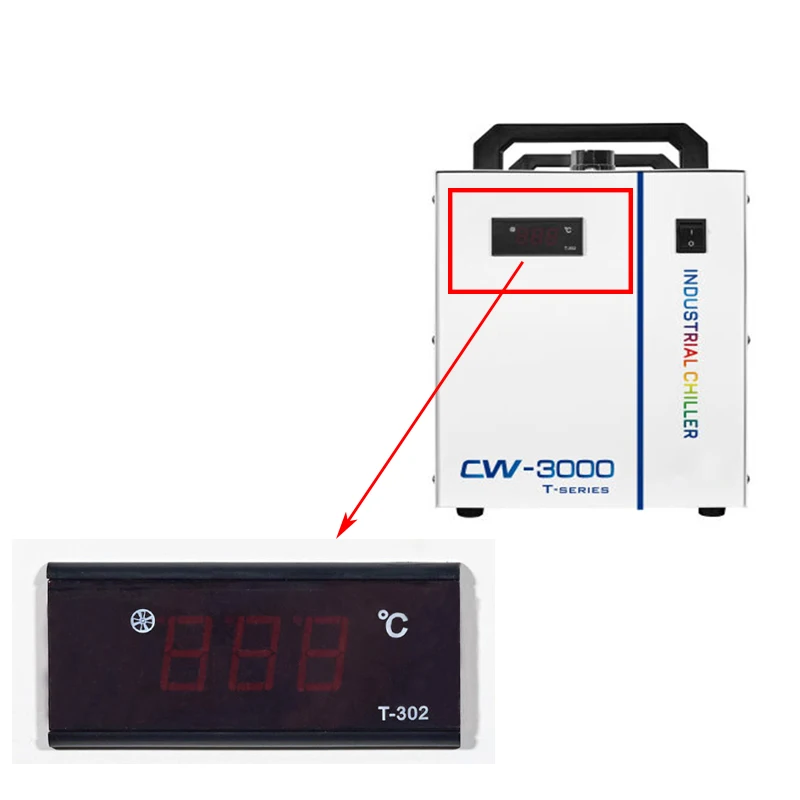

Digital temperature display

The digital temperature display is able to indicate water temperature and alarm codes.

Product Parameters

Model	CW-3000TGTY	CW-3000DGTY	CW-3000TKTY	CW-3000DKTY
Voltage	AC 1P 220~240V	AC 1P 110V	AC 1P 220~240V	AC 1P 110V
Frequency	50/60Hz	60Hz	50/60Hz	60Hz
Current	0.4~0.7A	0.4~0.9A	0.3~0.6A	0.3~0.8A
Max. power consumption	0.07kW	0.07kW	0.11kW	0.11kW
Radiating capacity	50W/℃	50W/℃	50W/℃	50W/℃
Max. pump pressure	1bar	1bar	7bar	7bar
Max. pump flow	10L/min	10L/min	2L/min	2L/min
Protection	Flow alarm	Flow alarm	Flow alarm	Flow alarm
Tank capacity	9L	9L	9L	9L
Inlet and outlet	OD 10mm Barbed connector	OD 10mm Barbed connector	8mm Fast connector	8mm Fast connector
N.W.	9Kg			11Kg
G.W.	11Kg			13Kg
Dimension	49X27X38cm (L X W X H)
Package dimension	55X34X43cm (L X W X H)

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Company Profile

FAQ

What is the recommended water used in the industrial water chiller?

The ideal water should be deionised water, distilled water or purified water.

How often should I change out the water?

Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.

What is the ideal room temperature for the industrial chiller?

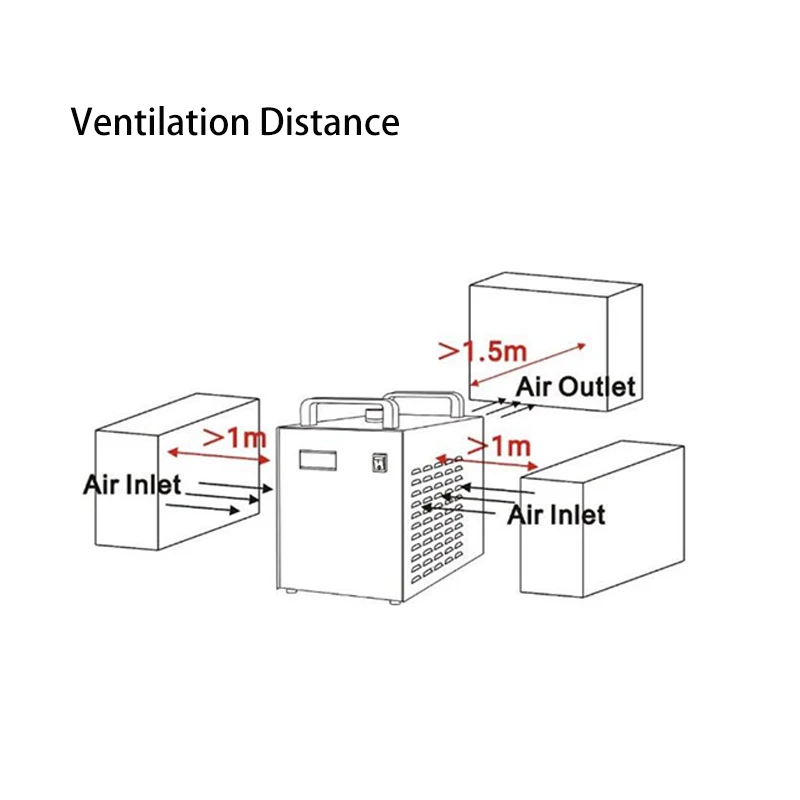

The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.

How to prevent my chiller from freezing?

For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller
from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is
suggested to contact our customer support team first.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1+ piece: US $97 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this viextro industrial water chiller?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the viextro industrial water chiller be supplied for my local voltage?

The standard configuration is 220~240V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Jiangsu Viextro Supply Chain Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Jiangsu Viextro Supply Chain Co., Ltd. range on HVACR Nexus.
