This vrcooler commercial rooftop unit is published with the manufacturer’s full specification — power supply 220-480V, 50/60Hz (Customizable), airflow capacity 1,000 – 100,000 CFM (Customizable). Made by Changzhou Vrcoolertech Refrigeration Co., Ltd. (11 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Vrcooler Commercial Rooftop Unit
- Power Supply: 220-480V, 50/60Hz (Customizable)
- Airflow Capacity: 1,000 – 100,000 CFM (Customizable)
- Cooling Capacity: 5 kW – 150 kW (Customizable)
- Heating Capacity: 5 kW – 100 kW (Customizable)
- Material: Galvanized Steel, Stainless Steel (Optional)
- Refrigerant: R-410A / R-32 (Eco-friendly options available)
Technical Specifications
| Type | Air Handling Unit |
|---|---|
| Mounting Type | Ceiling Mount, Floor Standing, Rooftop |
| Compressor Brand | / |
| Fan Motors Type | AC |
| Key Selling Points | Eco-Friendly, Easy To Operate, Long Service Life, Low Noise Level |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 500 |
| Brand Name | VRCOOLER |
| Dimension(L*W*H) | Customized |
| Product Name | Packaged Rooftop Air Conditioner RTU |
| Application | Commercial Building, Manufacturing Plant, Institutional Building |
| Airflow Capacity | 1,000 – 100,000 CFM (Customizable) |
| Cooling Capacity | 5 kW – 150 kW (Customizable) |
| Heating Capacity | 5 kW – 100 kW (Customizable) |
| Power Supply | 220-480V, 50/60Hz (Customizable) |
| Heating Options | Electric Heat Pump / Gas Furnace / Hot Water Coil |
| Refrigerant | R-410A / R-32 (Eco-friendly options available) |
| Dimensions | Customizable Based on Project Requirements |
| Material | Galvanized Steel, Stainless Steel (Optional) |
| Selling Units | Single item |
| Single Package Size | 165X320X150 cm |
| Single Gross Weight | 500.0 kg |
Product Details
Product Description

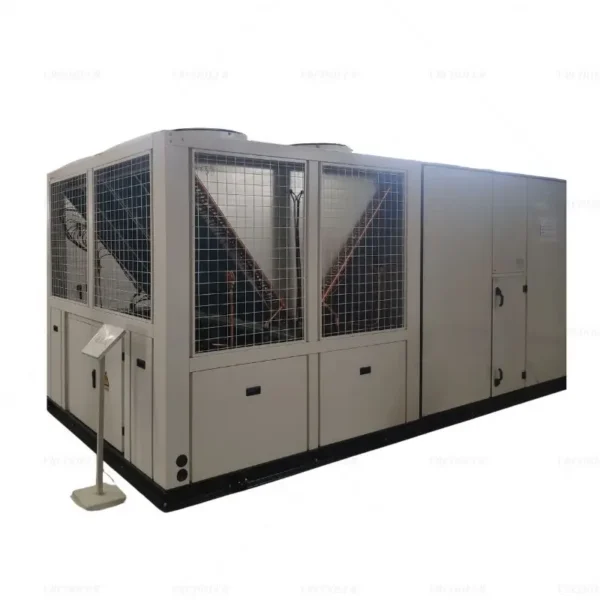

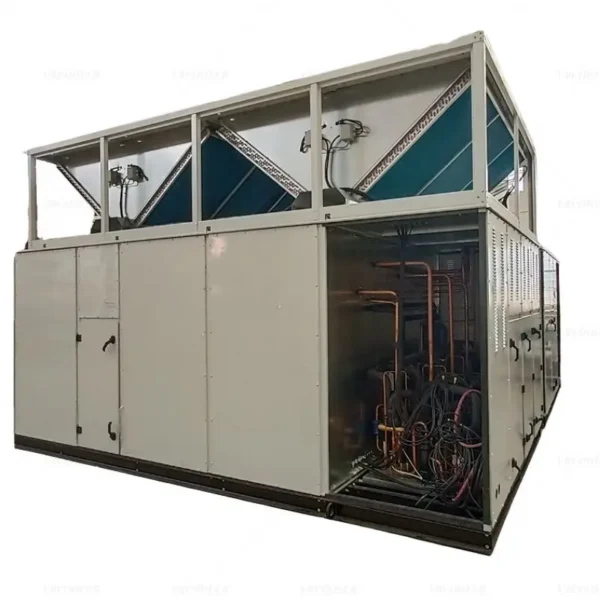

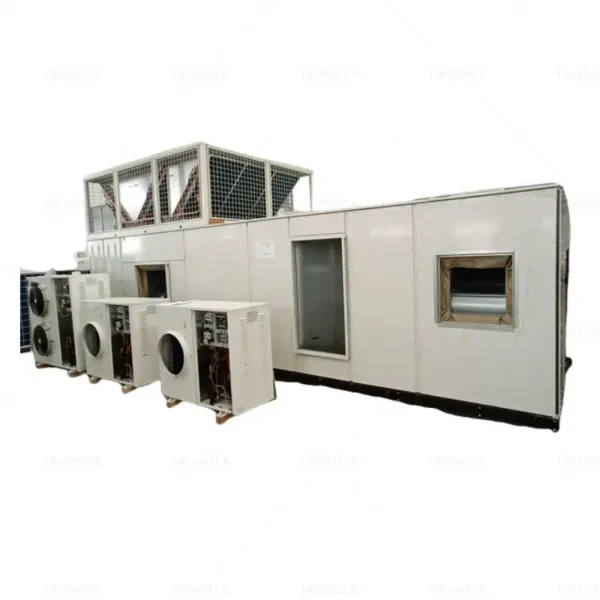

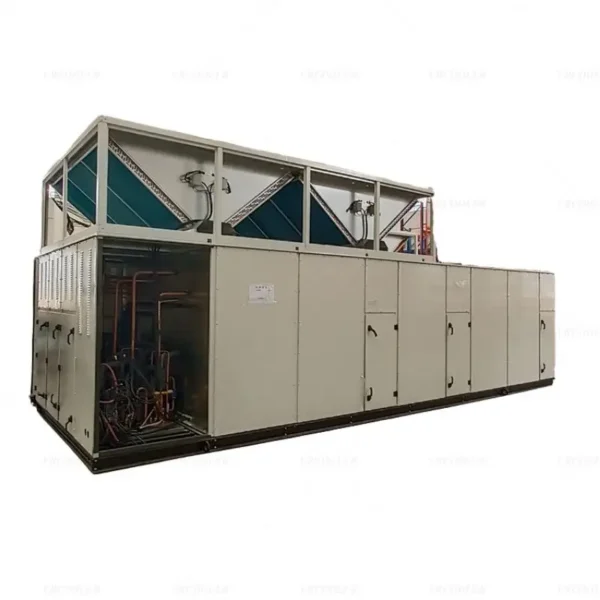

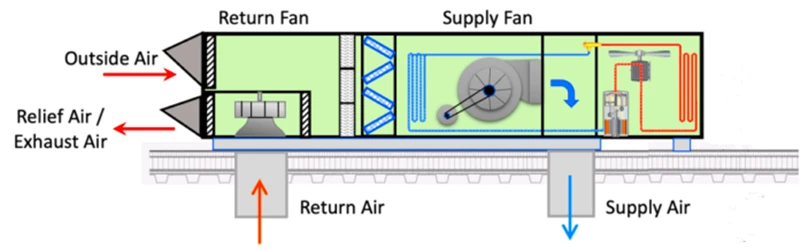

Our Packaged Rooftop Air Conditioner (RTU) is a complete, self-contained HVAC system designed for commercial and industrial buildings. Installed on rooftops to save space, these units provide cooling, heating, and ventilation in a single compact system. Ideal for offices, schools, clean rooms, retail stores, and factories.
Applications: Our Packaged RTUs are suitable for a wide range of applications, including: Commercial Buildings: Office complexes, shopping malls, hotels, and restaurants. Industrial Facilities: Manufacturing plants, warehouses, and cleanrooms. Institutional Buildings: Schools, universities, and government buildings. Data Centers: Precision climate control for sensitive equipment.
Specification
Parameter | Details |
Unit Type | Packaged Rooftop Air Conditioner (RTU) |
Cooling Capacity | 10 kW – 150 kW (customizable) |
Heating Capacity | 5 kW – 70 kW (customizable) |
Heating Options | Electric Heat Pump / Gas Furnace / Hot Water Coil |
Refrigerant | R-410A / R-32 (Eco-friendly options available) |
Operating Voltage | 110V/220-230V/460V, 3Ph, 50/60Hz (Customizable) |
Sound Pressure Level | 55~75 dB(A) (Varies by model) |
Dimensions | Customizable based on project requirements |
Material | Galvanized steel, Stainless steel (optional) |
Packaged RTU
Models | Air volume CMH | Cooling cap. KW | Motor KW | Heater KW | Humidity kg/h | Noise dB(A) |
VRPTU-03HP | 1500 | 7.8 | 0.75 | 6 | 3 | 65 |
VRPTU-05HP | 2500 | 13 | 1.5 | 6 | 5 | 65 |
VRPTU-07HP | 3500 | 18 | 1.5 | 9 | 8 | 65 |
VRPTU-08HP | 4000 | 20.8 | 2.2 | 12 | 8 | 65 |
VRPTU-10HP | 5000 | 26 | 2.2 | 15 | 10 | 70 |
VRPTU-12HP | 6000 | 31.2 | 3 | 18 | 10 | 70 |
VRPTU-15HP | 7500 | 39 | 4 | 18 | 15 | 70 |
VRPTU-20HP | 10000 | 52 | 5.5 | 24 | 15 | 72 |
VRPTU-25HP | 12500 | 65 | 7.5 | 30 | 20 | 74 |
VRPTU-30HP | 15000 | 78 | 7.5 | 36 | 25 | 74 |
VRPTU-36HP | 18000 | 93.6 | 11 | 48 | 32 | 76 |
VRPTU-40HP | 20000 | 104 | 11 | 54 | 32 | 78 |
VRPTU-50HP | 25000 | 130 | 15 | 66 | 45 | 80 |
VRPTU-60HP | 30000 | 156 | 15 | 72 | 45 | 80 |
Main Parts
High performance imported scroll
compressor.

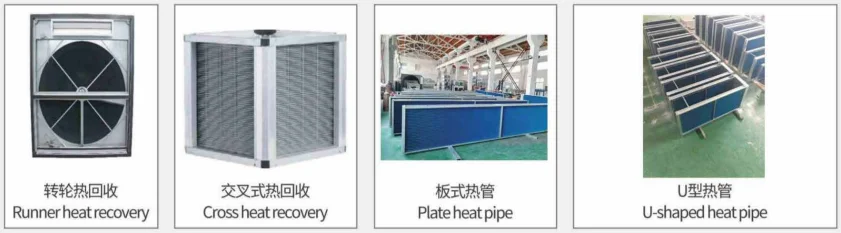

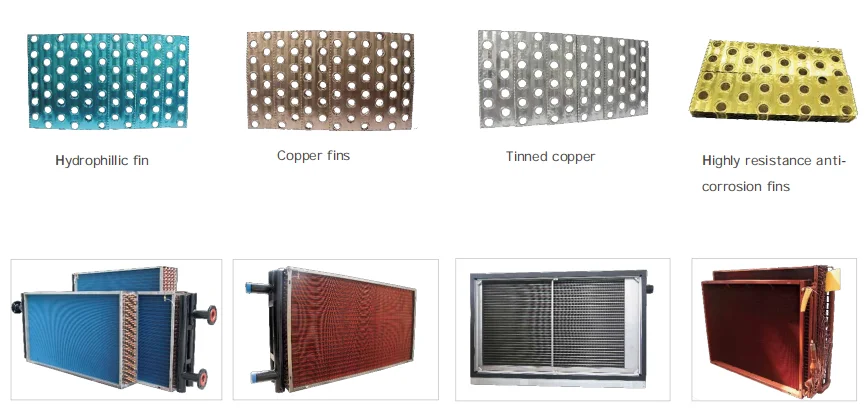

Heat Exchangers
TUBE | Copper | Titanium | Aluminum | Carbon steel |
Stainless steel 304 | Stainless steel 316 | Cu-Ni(90/10) | Cu-Ni(70/30) | |
FIN | Stainless steel | Copper | Aluminum | |
Carbon steel | Titanium | |||
FRAME | Galvanized | Aluminum | Stainless steel |

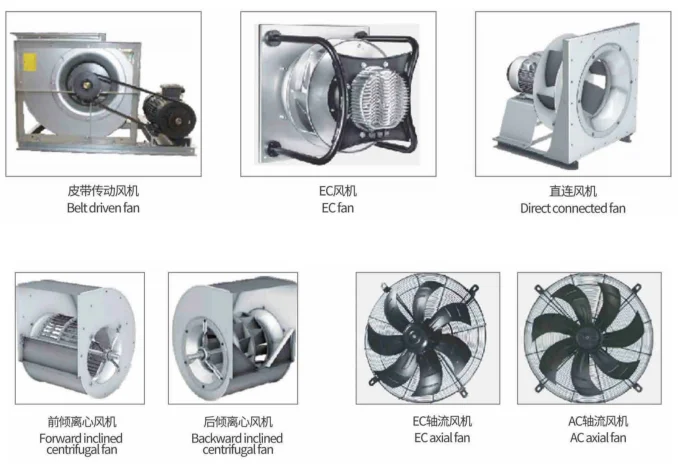

Fan
High performance and low noise centrifugal fans

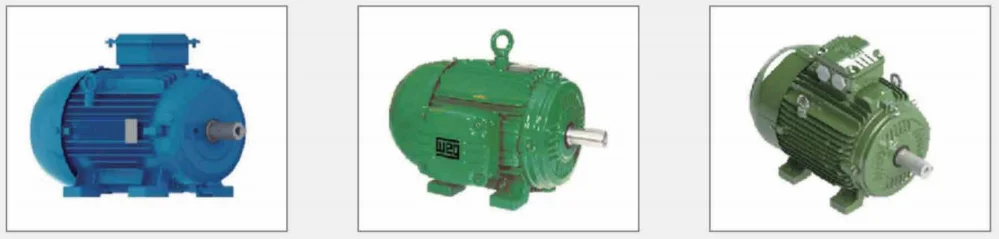

Motor
Single-speed 2-level, 4-level, 6-level, two-speed, three-speed and variable frequency motors, etc. can be selected according to customer requirements.

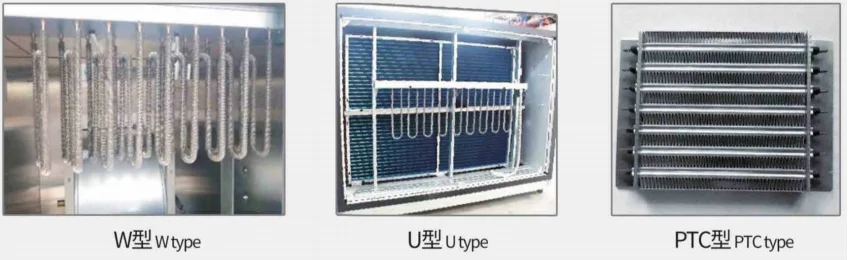

Electric Heatings

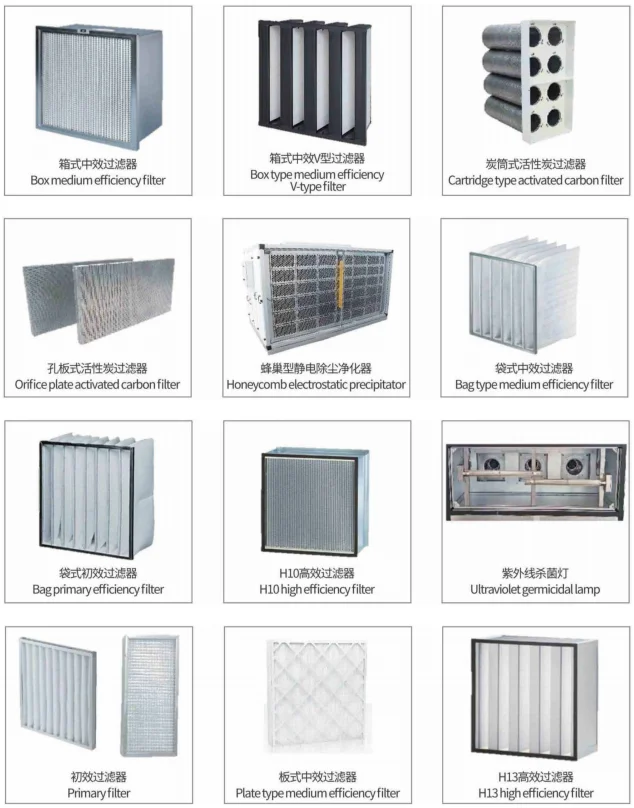

Filters

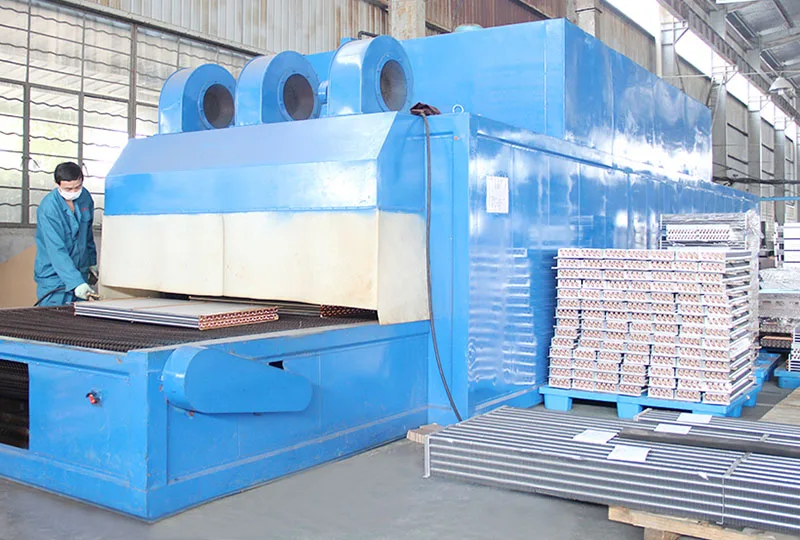

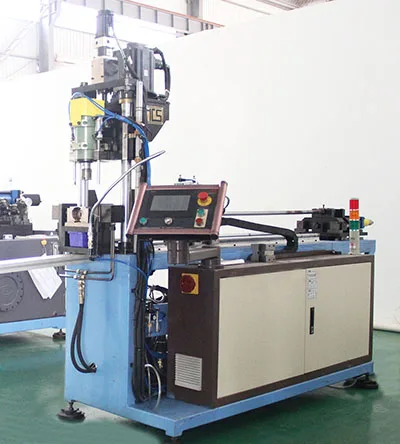

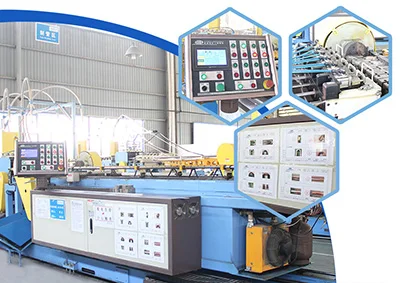

Our Company
Changzhou Vrcoolertech Refrigeration Co., Ltd provides customers with high-quality and high-effect products based on advanced production technologies ,mature manufacturing processes and strict quality controls and keep communicating with understanding customers demands,which repays us with self improvements and the trust and recognition of customers.
MORE THAN 15 YEARS OF SUCCESS
Specializes in researching, manufacturing and exporting Heat Exchangers, Evaporators, Condensers, air cooler and other heat transfer equipments for the varied industries since 2004.
Why Choose Us? Expertise: Over 10 years of experience in HVAC solutions. Quality Assurance: Rigorous testing and quality control processes. Customer Support: Dedicated technical support and after-sales service. Global Reach: Extensive network for timely delivery and installation worldwide. Contact Us: For more information or to request a quote, please contact our sales team. We are here to help you find the perfect air handling solution for your needs.
Certifications
FAQ
Q: What is the lifespan of a packaged rooftop unit? A: With proper maintenance, our units last 15-20 years. Q: Can it work in extreme cold/hot climates? A: Yes! We offer low-ambient cooling (-15°C) and high-temperature heat pumps (up to 50°C). Q: Is installation complicated? A: No – our units are pre-assembled for easy rooftop mounting. Q: Do you offer after-sales support? A: Yes, we provide comprehensive after-sales support, including: Technical assistance. Spare parts supply. Remote troubleshooting via phone or email. Q: What is the warranty period for your RTUs? A: We offer a standard 12 month warranty on our RTUs, covering manufacturing defects and component failures. Extended warranty options are also available.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–19 set: US $17000 / set
- 20+ set: US $15800 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this vrcooler commercial rooftop unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the vrcooler commercial rooftop unit be supplied for my local voltage?
The standard configuration is 220-480V, 50/60Hz (Customizable). Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
