This vrf system air conditioner is published with the manufacturer’s full specification — airflow 60000m³/h, refrigerant R-410A/R32. Made by Henan Abot Trading Co., Ltd. (8 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Vrf System Air Conditioner
- Operating Voltage: 220 VAC
- Cooling Capacity: 12.1kW
- Heating Capacity: 12.5kW
- Airflow: 60000m³/h
- Refrigerant: R-410A/R32
- Warranty: 3 Years
Technical Specifications
| Type | Cabinet Air Conditioner |
|---|---|
| Airflow | 60000m³/h |
| Operating Voltage | 220 VAC |
| Mounting Type | Split |
| Key Selling Points | Competitive Price |
| Warranty | 3 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Other, Pump |
| Place Of Origin | China |
| Weight (Kg) | 200 KG |
| Brand Name | LG |
| Dimension(L*W*H) | 930*834*330mm |
| Cooling Capacity | 12.1kW |
| Heating Capacity | 12.5kW |
| Product Name | Vrf System |
| Application | Supper Marekt |
| Function | Heating Cooling |
| Refrigerant | R-410A/R32 |
| Keyword | Air Conditioner |
| Brand | LG |
| Noise | Low Noise |
| Name | Air Conditioner |
| Applicable Industries | Hotels |
| Condition | New |
| Selling Units | Single item |
| Single Package Size | 120X80X160 cm |
| Single Gross Weight | 225.000 kg |
Product Details
Product Description

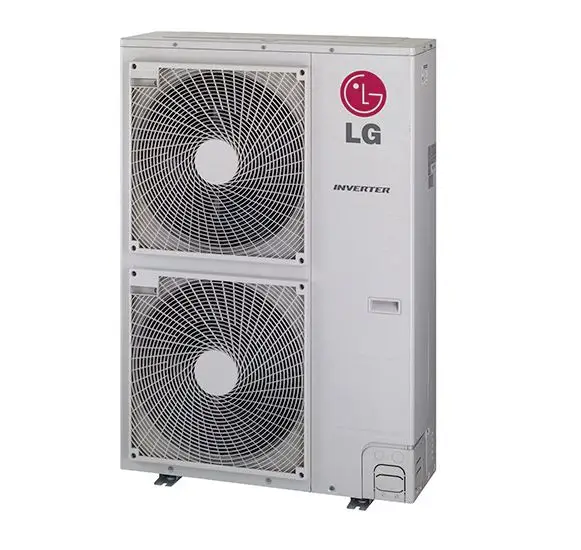

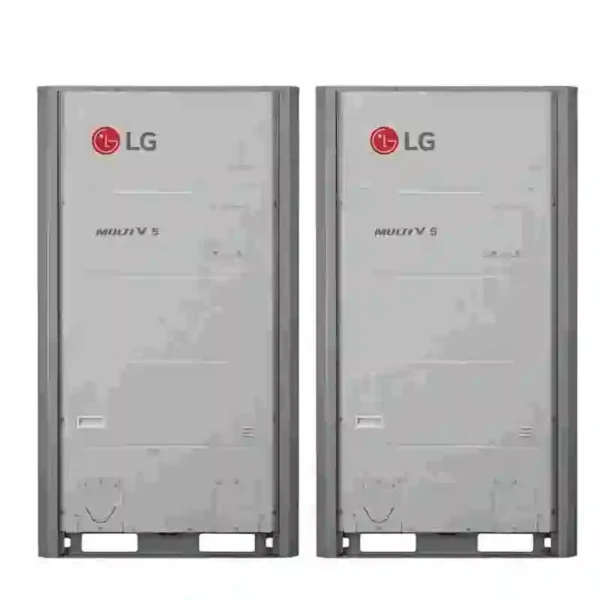

LG Multi V S VRF Air Conditioner
– Air cooled VRF Heat pump & Heat Recovery -12.1-33.6kW(Cooling capacity based) · Both 10,220-240V,50-60Hz and 30,380-415V,50-60Hz – Side discharge outdoor unit · Includes the industry's first single phase Heat Recovery system
Details Images
Maximized Efficiency
MULTI V S provides maximized energy efficiency while minimizing operation costs.
Quick Operating Response
Operation response gets faster and more accurate with pressure sensor. Pressure control takes up to 14% less time in cooling mode, improving user comfort.
Operation response gets faster and more accurate with pressure sensor. Pressure control takes up to 14% less time in cooling mode, improving user comfort.
Optimal Heat Exchanger Circuit
As world’s first technology, variable heat exchanger circuit intelligently selects the optimal paths for both heating and cooling operation and this increases efficiency up to 5%.
As world’s first technology, variable heat exchanger circuit intelligently selects the optimal paths for both heating and cooling operation and this increases efficiency up to 5%.
Heat Exchanger with Wide Louver Plus Fin
Heat exchanger efficiency is improved up to 7% with wide louver plus fin by slowing down the frosting of heat exchanger and postponing the start of defrosting operation.
Heat exchanger efficiency is improved up to 7% with wide louver plus fin by slowing down the frosting of heat exchanger and postponing the start of defrosting operation.
LG’s 4th Generation Inverter Compressor
MULTI V S has high efficiency inverter scroll compressor with frequency range from 15Hz to 150Hz. It improves performance with low vibration and reduced noise.
World's Best Class Compressor Speed With wider frequency range from 15Hz to 150Hz, MULTI V S improves part load efficiency, enhancing the rapid response capability. Moreover, the concentrated motor provides compact core design for the compressor.
High Pressure Compressor
Due to high temperature and pressure, viscosity of oil is secured, thus there is no need for oil pump. This eventually increases compressor efficiency.
Due to high temperature and pressure, viscosity of oil is secured, thus there is no need for oil pump. This eventually increases compressor efficiency.
High Reliability and Efficiency at All Capacity
MULTI V S inverter compressors are highly efficient and reliable for all commercial & residential applications. For models with capacity below 7HP, rotary compressor is installed while scroll compressor is applied for models with more than 7HP capacity.
MULTI V S inverter compressors are highly efficient and reliable for all commercial & residential applications. For models with capacity below 7HP, rotary compressor is installed while scroll compressor is applied for models with more than 7HP capacity.
Smart Load Control
MULTI V S controls refrigerant temperature according to indoor, outdoor and setting temperatures. This optimizes energy efficiency by saving up to 13% and maximizes indoor comfort level in cooling/heating modes.
MULTI V S is an Applicable Solution
for
MULTI V S Line Up
Product Parameter
Packing&Shipping
The normal package is wooden box(Size: L*W*H). If export to European countries, the wooden box will be fumigated. If container is too tight, we will use PE film for packing or pack it according to customers special request.
Company Introduction
LG Air Solution
Total HVAC & Energy Solution ProviderLG System Air Conditioner offers a broad portfolio of air solutions that are compatible with any building anywhere
Global Production Sites for World-leading Performance
By enhancing and providing further solutions for HVAC sector, LG System Air Conditioner has risen to become a total HVAC solutions specialist. Excellent performance the company has steadily achieved by introducing energy efficient and reliable solutions is built on a solid foundation of global R&D and advanced manufacturing capabilities.
By enhancing and providing further solutions for HVAC sector, LG System Air Conditioner has risen to become a total HVAC solutions specialist. Excellent performance the company has steadily achieved by introducing energy efficient and reliable solutions is built on a solid foundation of global R&D and advanced manufacturing capabilities.
Providing Optimized Air Solutions in Over 100 Countries
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* 24hrs on line
* Free HVAC system design
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* 24hrs on line
* Free HVAC system design
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Free spare parts
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Free spare parts
FAQ
Q1: How to choose a suitable machine? And how to get a prompt quotation? A1: Please let us know the machine usage, we have professional design team who will make a reasonable scheme. When you send the inquiry to us, please kindly provide the below technical information: a) Chiller type: Air cooled or water cooled b) Cooling capacity: Kcal/hr or KW c) Refrigerant: R410A or others d) Voltages and Frequency : V/PH/HZ e) Application: Q2: Can your company produce non-standard machine? A2: Sure, our factory has more than 30 years’ experience in design and manufacturing chiller, we also supply the machine based on the specification provided by the customers. You just need to give us your detailed requests, we will design and manufacture after communication and confirmation. Q3: What kind of payment terms can you accept? A3: We accept T/T, D/P, L/C. 30% Deposit, 70% balance will be paid before shipment. Q4: What are your business range? A4: We could provide non-standard unit design, machine manufacture, oversea project and after-sale service. Q5: How about your after-sale service? A5: a) Provide customers with installation and commissioning online instructions. And we also provide local whole project installation. b) Well-trained engineers available to overseas service. c) Worldwide agents and after-sale service available. Q6: Do you test all your goods before delivery? A6: Yes, we have 100% test before delivery. Q7: How to deal with the faulty? A7: Our products are produced in strict quality control system, but if any faulty, we'll send new spare parts for free in one warranty year. Q8: How can we get the shipping cost? A8: You give us your destination port or delivery address, we can check the shipping cost.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $600 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this vrf system air conditioner?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the vrf system air conditioner be supplied for my local voltage?
The standard configuration is 220 VAC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Henan Abot Trading Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Henan Abot Trading Co., Ltd. range on HVACR Nexus.
