This wall fan is published with the manufacturer’s full specification — 220V/380V/460V, power source Electric. Made by Shandong Jindun Energy Conservation & Environmental Protection Equipment Co., Ltd. (12 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Wall Fan
- Model Number: JDFH
- Power Source: Electric
- Voltage: 220V/380V/460V
- Material: Stainless Steel
- Blade Material: Stainless Steel
- Warranty: 1 Year
Technical Specifications
| Blade Diameter | 36 in |
|---|---|
| Voltage | 220V/380V/460V |
| Type | Roof Axial Fan |
| Material | Stainless Steel |
| Blade Material | Stainless Steel |
| Mounting Type | Wall Fan |
| Bearing Type | DUAL BALL BEARING |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Shandong, China |
| Brand Name | JINDUN |
| Model Number | JDFH |
| Name | large propeller fan |

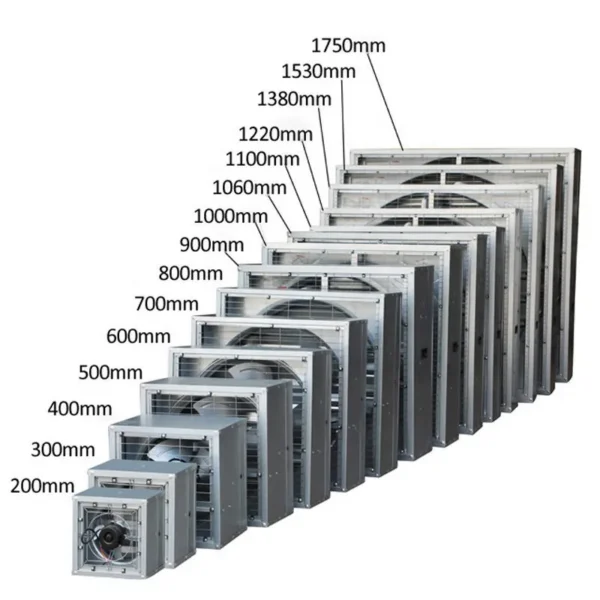

| Size | 20" 24" 35" 40" 43" 50" 55" |
| Drive Method | direct/belt |
| Dia. Of Blades | 500/710/900/1000/1100/1270/1400mm |
| Usage | home/factory/green house/farm |
| Keyword | large propeller fan |
| Application | Industrial Equipment |
| Function | Cooling Ventilation |
| Motor | 100% Copper Motor |
| Product Type | Exhaust Fan |
| Selling Units | Single item |
| Single Package Size | 110X110X40 cm |
| Single Gross Weight | 41.0 kg |
Product Details
Model | Blades Diameter (mm) | Speed of Blades (r/min) | Input Power (w) | Air Flow (m³/h) | Overall Dimensions (mm) |
JDFH-620 | 500 | 1400 | 250 | 5700 | 620×620×400 |
JDFH-780 | 710 | 650 | 370 | 18000 | 780×780×400 |
JDFH-1000 | 900 | 610 | 750 | 25000 | 1000×1000×400 |
JDFH-1100 | 1000 | 600 | 750 | 32500 | 1100×1100×400 |
JDFH-1220 | 1100 | 460 | 750 | 38000 | 1220×1220×400 |
JDFH-1380 | 1270 | 439 | 1100 | 44000 | 1380×1380×400 |
JDFH-1530 | 1400 | 325 | 1500 | 55800 | 1530×1530×400 |
will be provided.
sales over $ 30 million .
Shandong Province , with an area of 20000㎡ , is a professional manufacturer of temperature controlling equipments for large-scale
greenhouse , animal husbandry and public rooms .Since 2005 , under the lead of president Mr.Cao , Jindun company have devoted to
the research and development of new generation of
energy-conservation equipments and beconme the pioneer of air-conditioning generators . Now , series of air condition controlling
equipments are included in Jindun's product catalogue , such as Ventilation Cooling Fans , Evaporative Cooling Pads , Air
condition generators , Hot air Stovens , Hot water Oil-burning boilers , Hot water Gas-burning boilers and Hot water Electrical
boilers .
JINDUN will be your best business partner .
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $100 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this wall fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the wall fan be supplied for my local voltage?
The standard configuration is 220V/380V/460V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shandong Jindun Energy Conservation & Environmental Protection Equipment Co., Ltd., based in China. The company 12 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shandong Jindun Energy Conservation & Environmental Protection Equipment Co., Ltd. range on HVACR Nexus.
