The wall fan listed here carries 380v, power source Electric, documented exactly as the manufacturer publishes it. Made by Qingzhou Ventimax Equipment Co., Ltd. (12 years on the platform, typical reply ≤3h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Wall Fan
- Power Source: Electric
- Voltage: 380v
- Blade Material: Stainless Steel
- Material: Stainlesss Steel
- Warranty: 1 Year
- Place Of Origin: Shandong, China
Technical Specifications
| Voltage | 380v |
|---|---|
| Type | exhaust fan |
| Blade Material | Stainless Steel |
| Mounting Type | Wall Fan |
| Bearing Type | other |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Place Of Origin | Shandong, China |
| Product Name | AC Cooling Fan |
| Keyword | poultry farm shed ventilation fan |
| Application | Industrial Equipment |
| Size | 800*800*400mm |
| Usage | Air Cooling System |
| Motor | Siemens/Domestic Motor |
| Material | Stainlesss Steel |
| Function | Exhaust Air |
| Feature | Saving Energy .strong Wind Power.convenient |
| Selling Units | Single item |
| Single Package Size | 100X100X100 cm |
| Single Gross Weight | 50.0 kg |
Product Details
WHY CHOOSE US
Our Production Lines
Supporting 120 employees, our 20,000 square meter factory is top-notch, Minxin Industrial equipped itself with all the production
equipment processes in house for better control of the quality and delivery time:
1. Steel coil sliding and cutting line, steel pipe cutting line
2. Aluminum Die Cast Tooling & Casting
3. Plastic Molding & Injection workshop
4. Metal Stamping & Laser Cutting
5. Motor Copper Coil Winding Line
6. Motor Assembly Workshop
7. Exhaust Fan Assembly Workshop
8. Water Air Cooler Assembly Workshop

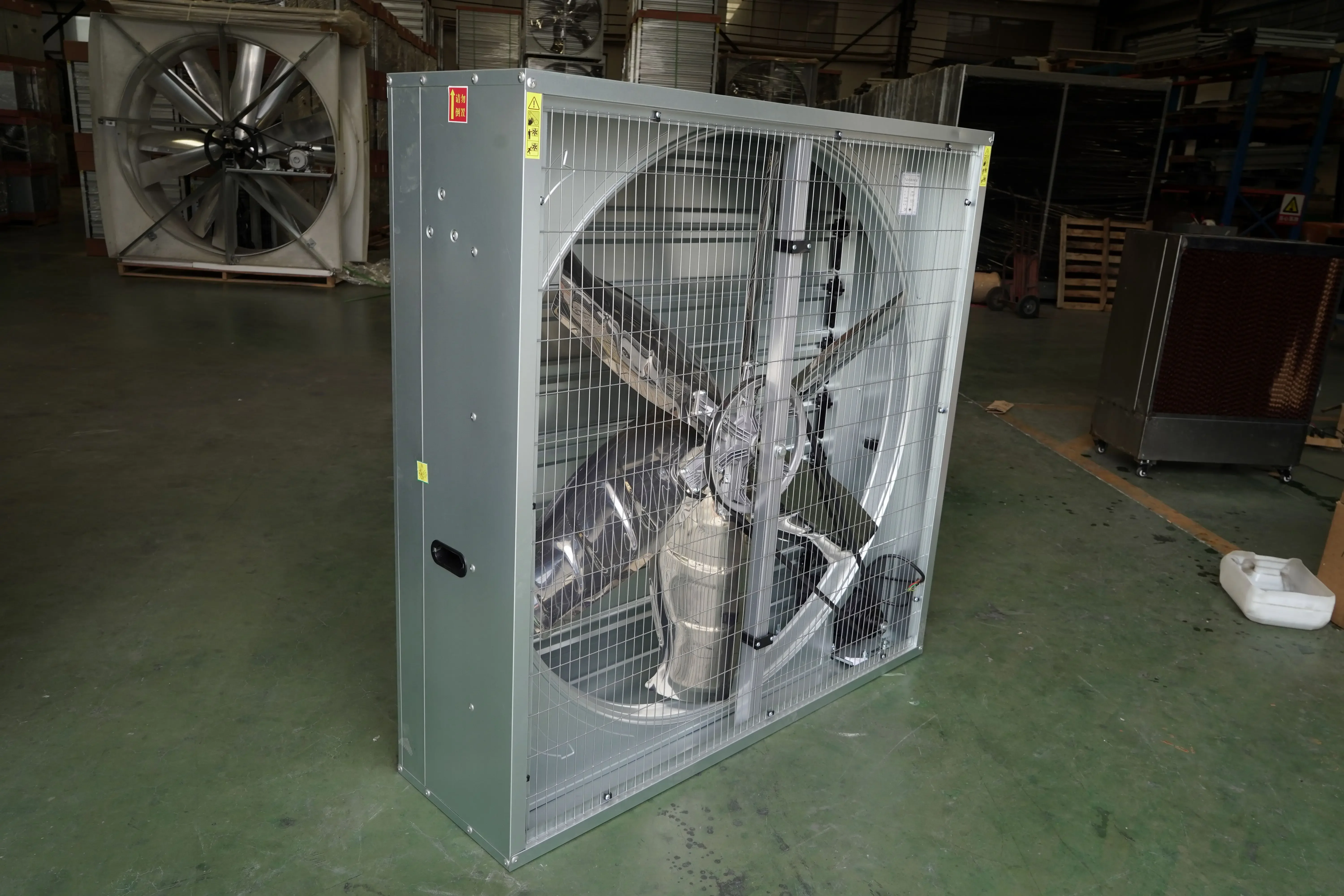

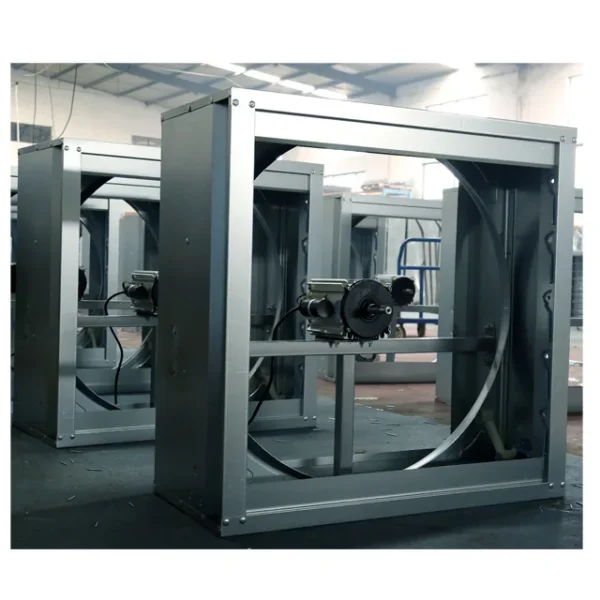

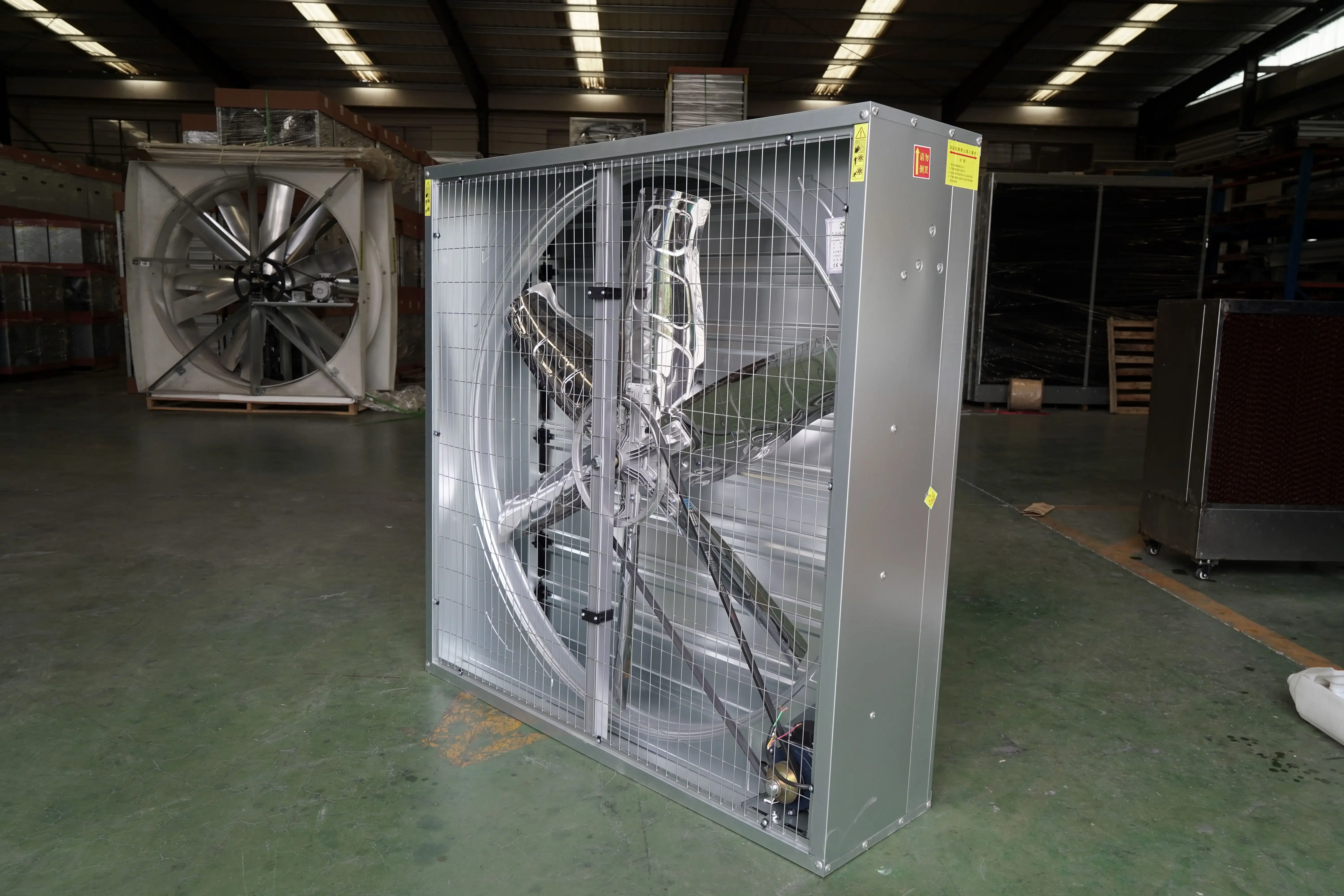

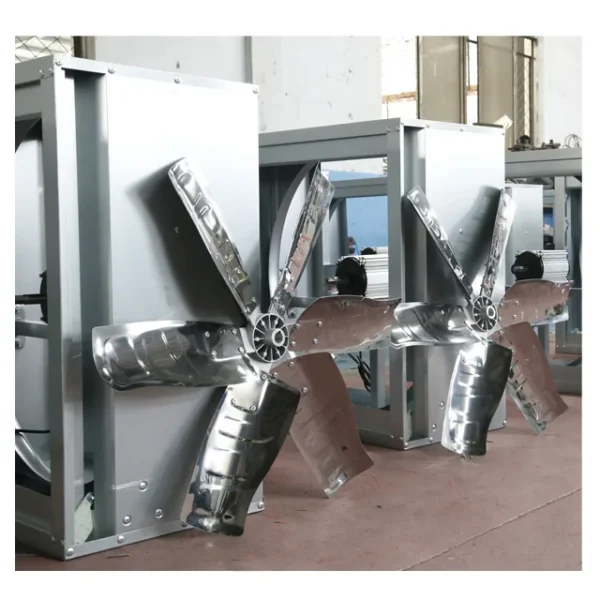

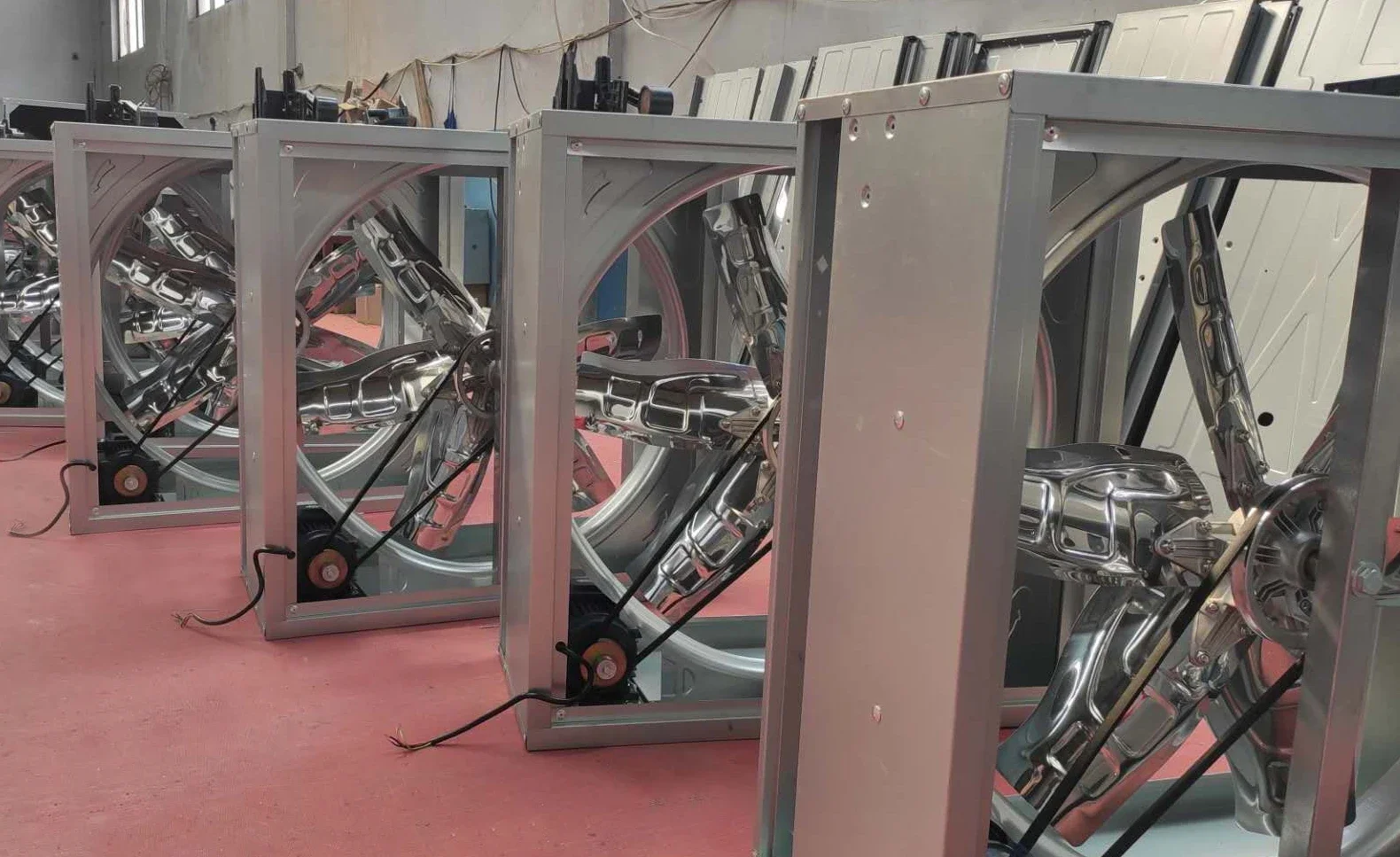

Assembled Exhaust Fans
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.
After-Sales Service
* Online training on use and installation
* Engineers are available to service machinery online.
Products Description

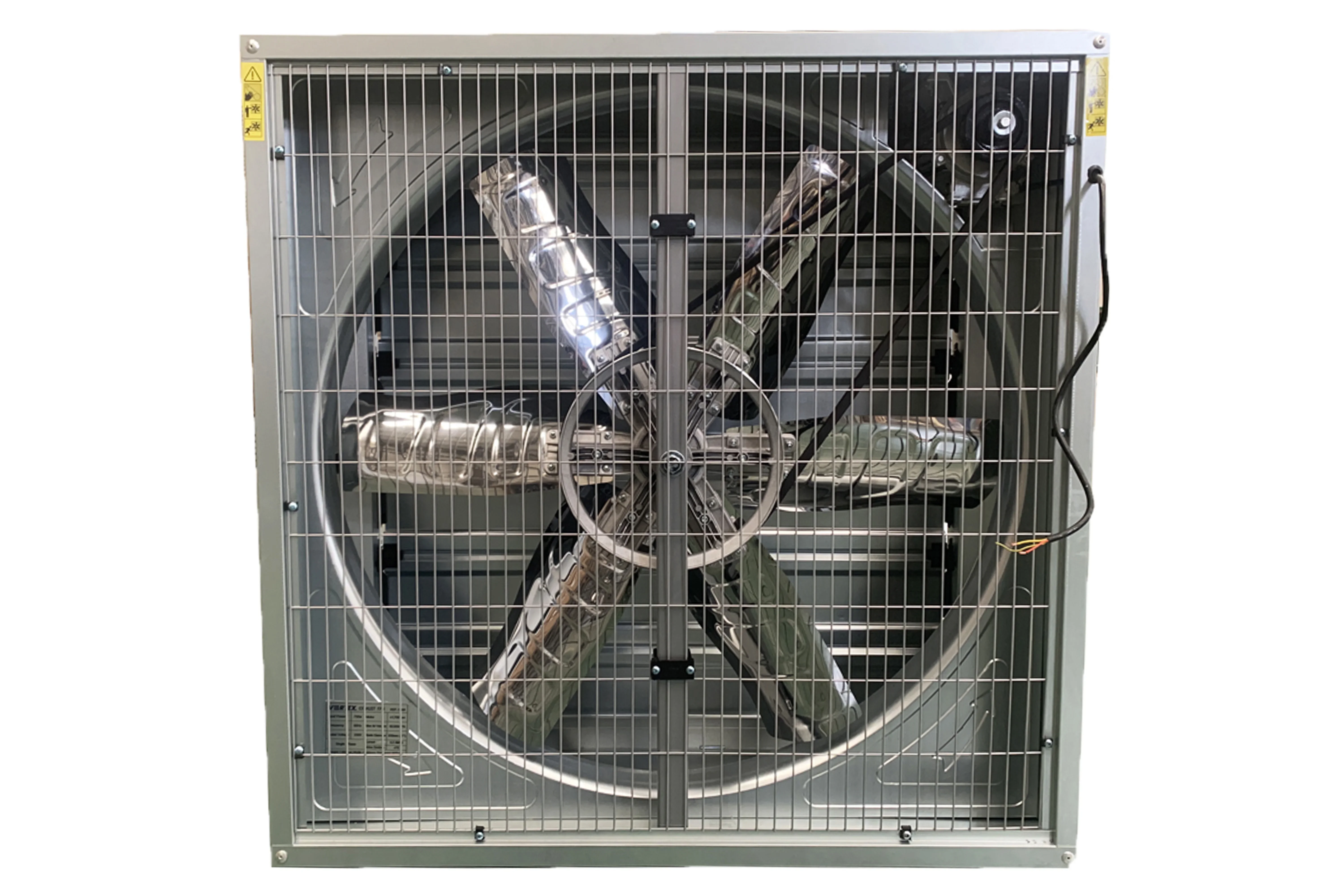

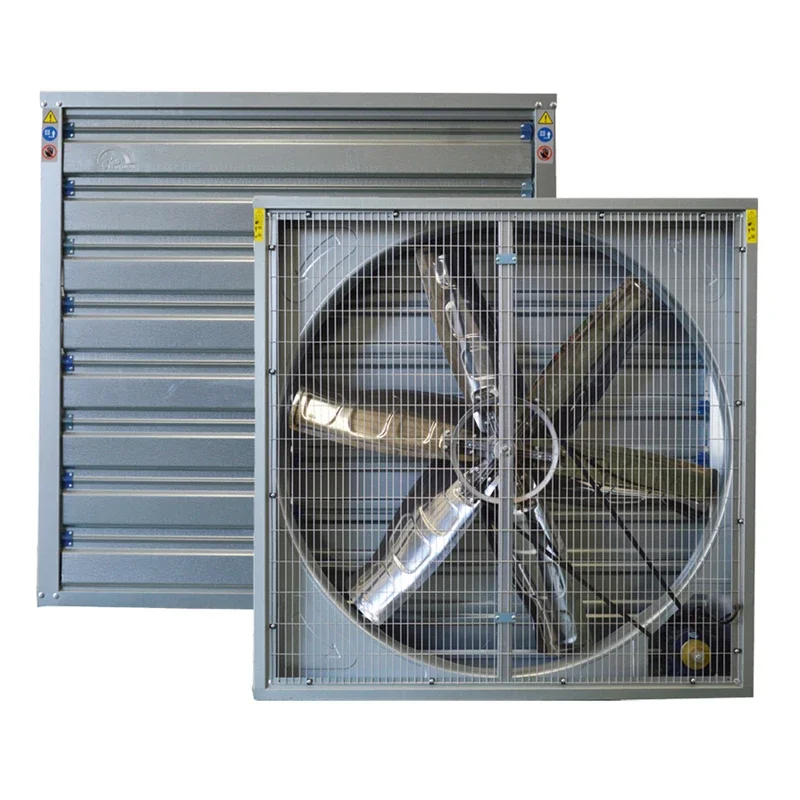

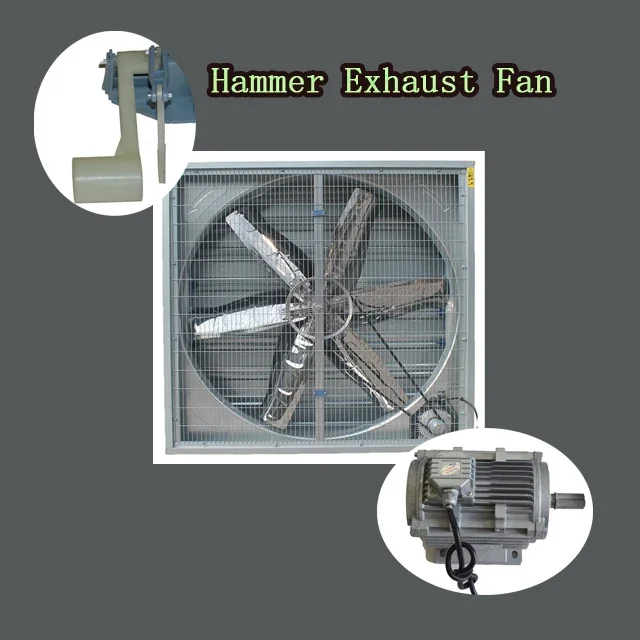

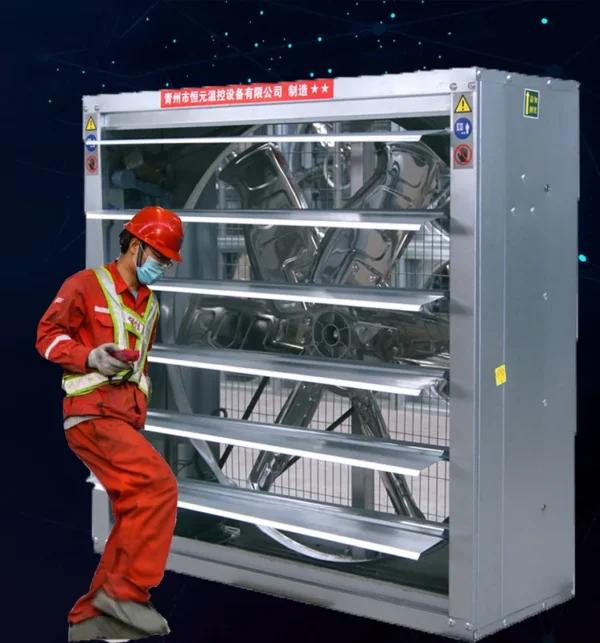

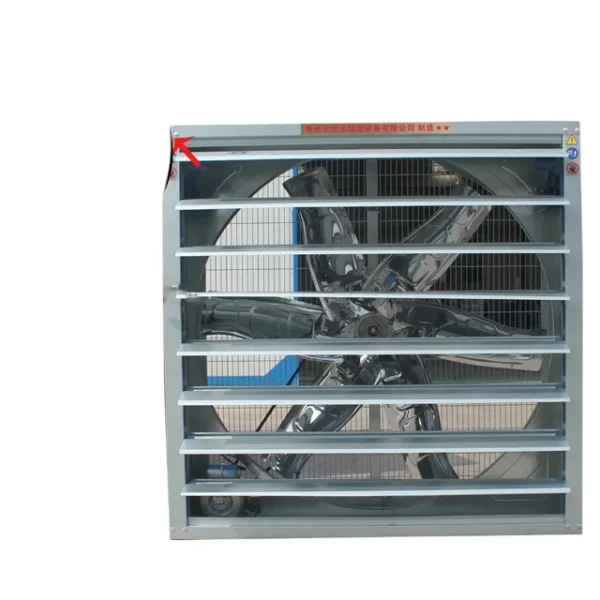

HEAVY HAMMER TYPE EXHAUST FAN

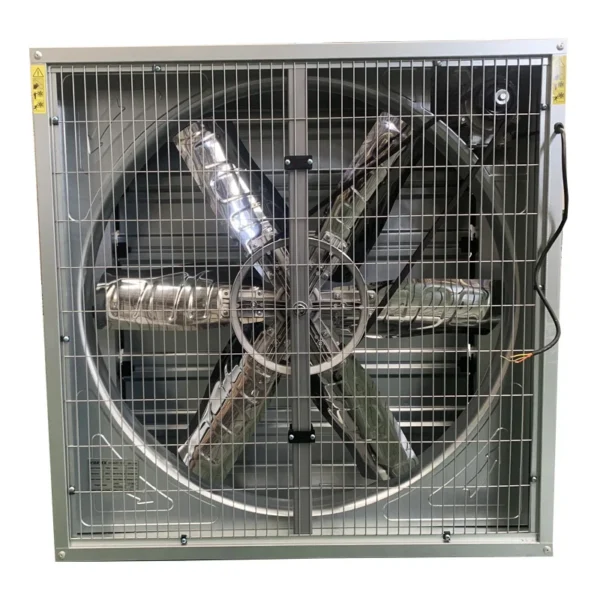

Fans mainly consists of blade, motor, frame, protect net, bracing cage, shutters.
The motor drives blade to cause air flow and louver window can open and close automatically to keep the dust from entering.
Model | Blade diameter | Motor speed | Air flow M3/h | Air flow M3/h | Noise | Size |
HYA-620 | 500 mm | 1400 | 6500 | 6500 | 60 | 620*620*400 mm |
HYA-800 | 710mm | 1400 | 22000 | 22000 | 60 | 800*800*400 mm |
HYA-900 | 750 mm | 1400 | 28000 | 28000 | 65 | 900*900*400 mm |
HYA-1000 | 900 mm | 1400 | 30000 | 30000 | 70 | 1000*1000*400 mm |
HYA-1100 | 1000 mm | 1400 | 32500 | 32500 | 70 | 1100*1100*400 mm |
HYA-1220 | 1100 mm | 1400 | 38000 | 38000 | 70 | 1220*1220*400 mm |
HYA-1380 | 1250 mm | 1400 | 44000 | 44000 | 70 | 1380*1380*400 mm |
HYA-1530 | 1400 mm | 1400 | 55800 | 55800 | 70 | 1530*1530*400 mm |
Features
Fan bearing adopts improted double-row bearing with special waterproof design, water can’t enter. High strenght, lower noise,
maintenance free and long service life.
maintenance free and long service life.

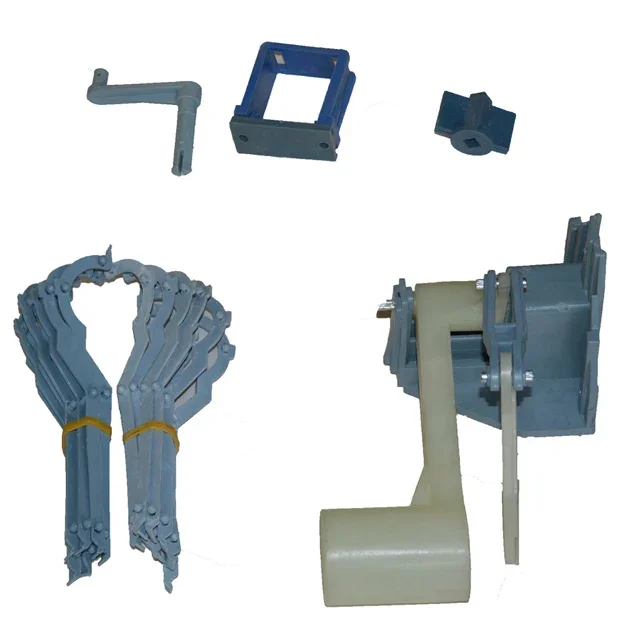

Using high strenght nylon swung drop hammer opening device to ensure the shutters opening
and closing flexible.
and closing flexible.
Using imported belts, making sure long service life, free to maintain.

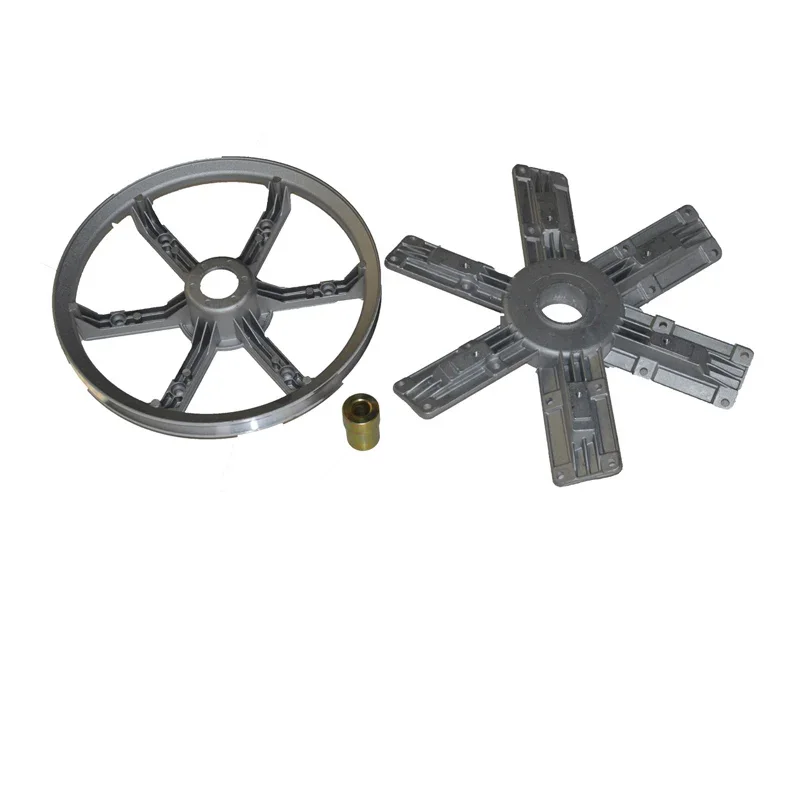

Fan belt pulley is made of high strenght aluminum-magnesium alloy by die-casting which reduces the weight of blade impeller complete,
high corrosion resistance. Special reinforced ribs pulley design. Blast-sanding treatment for attractive appearance, eliminate
internal stress to improve its own rigidity and stability, never broken.
high corrosion resistance. Special reinforced ribs pulley design. Blast-sanding treatment for attractive appearance, eliminate
internal stress to improve its own rigidity and stability, never broken.
Motor have domestic brand motor and siemens motor can be chosen. Motor voltage and frequency can be customized
Special blades shape design ensure large air volume, no deformation, no broken, keep air volume same all the way.

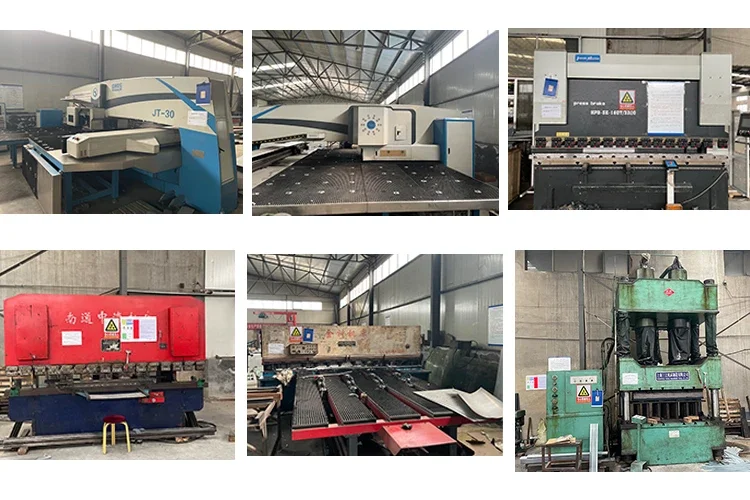

Manufacturing Equipment
Ventimax company produces push-pull type and swung hammer type exhaust fans, butterfly and fans, cow house hanging fans, non power roof fans, cooling pads, air cooler and other ventilating and humidifying equipment; it also manufactures automatic heating machines, manure scraper machines, automatic feeding and drinking systems, battery cages etc. The product series is more than 200.
Ventimax is always pursuing the best. With the development of enterprise, Hengyuan passed ISO 9001 international quality Certification, CE certification and realized the unity of international and domestic standards. Good quality, prompt delivery and timely after sales service gain the trust of customers. The domestic customers covers more then 30 provinces and oversea customers are from Europe, America, Canada, Australia, Asia, Middle East, Africa and other countries.
Ventimax is always pursuing the best. With the development of enterprise, Hengyuan passed ISO 9001 international quality Certification, CE certification and realized the unity of international and domestic standards. Good quality, prompt delivery and timely after sales service gain the trust of customers. The domestic customers covers more then 30 provinces and oversea customers are from Europe, America, Canada, Australia, Asia, Middle East, Africa and other countries.

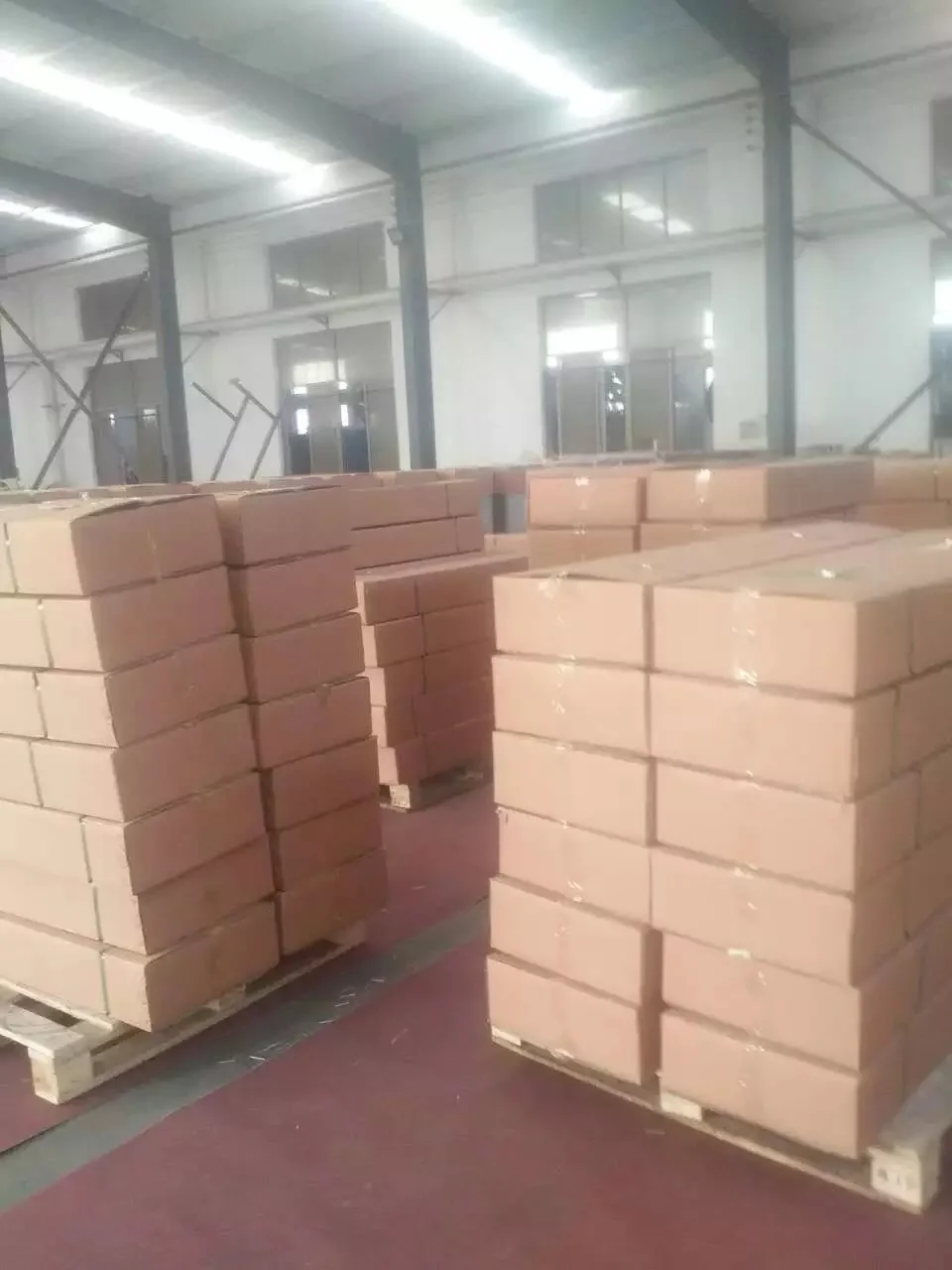

Packing and Shipping

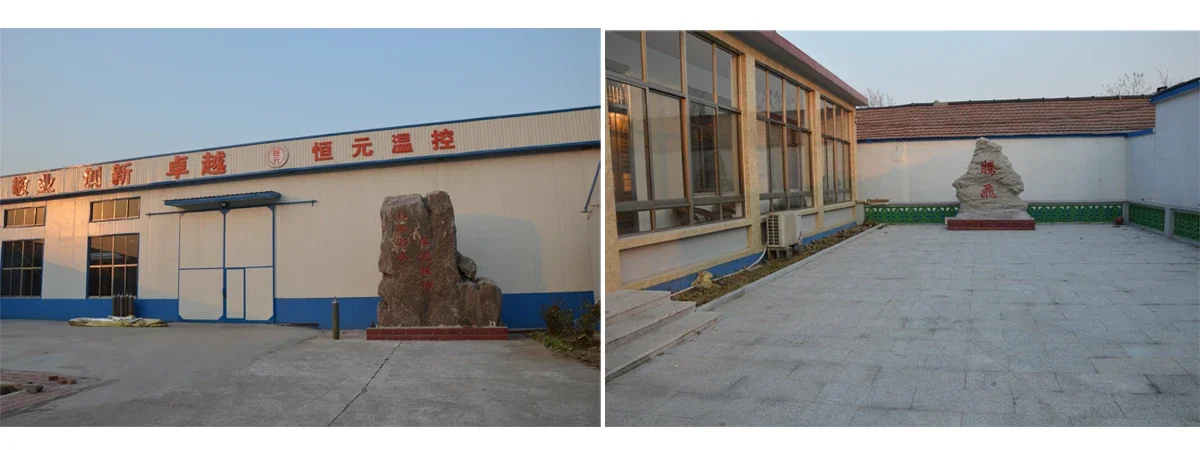

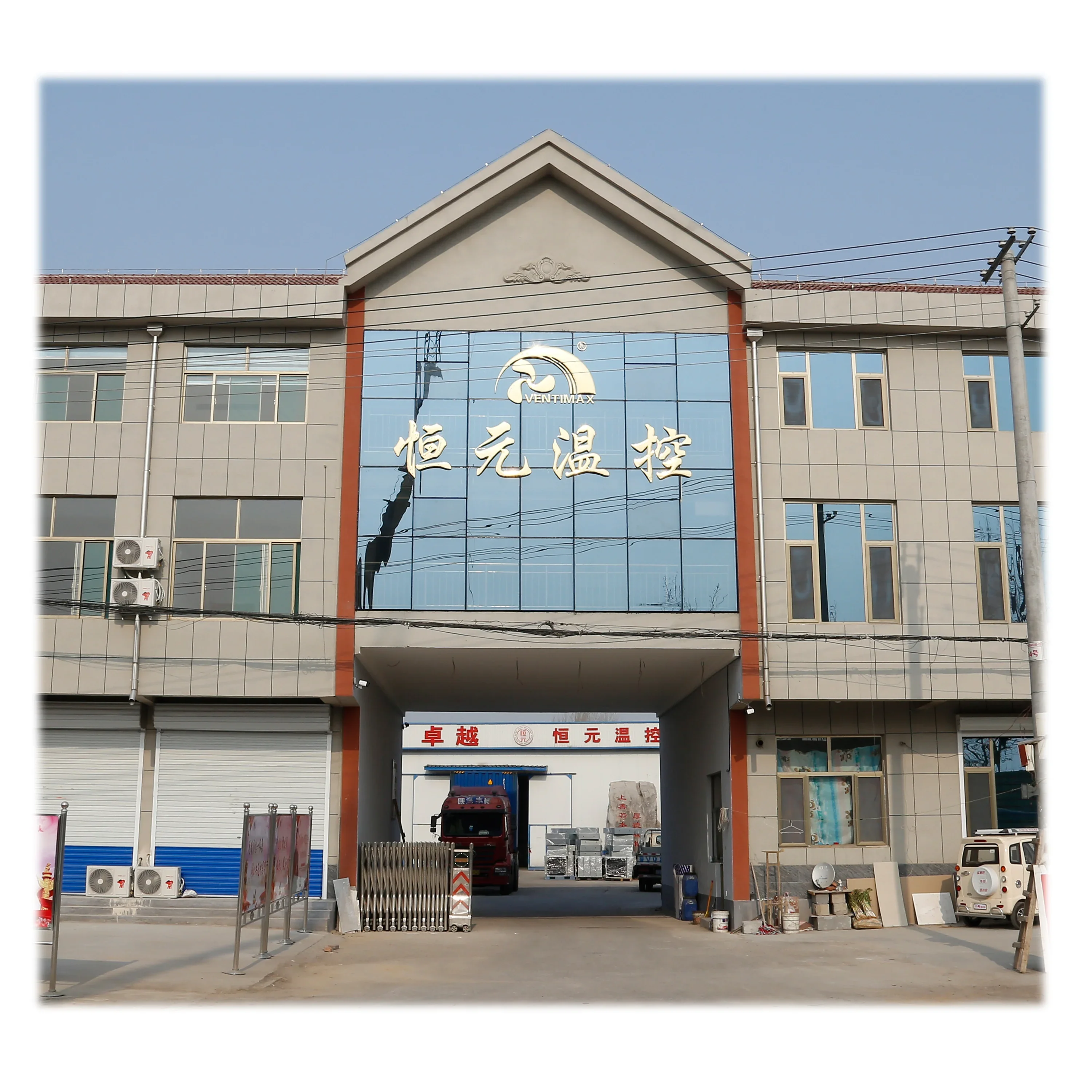

Company Profile
Qingzhou Ventimax Equipment Co.,Ltd. is a high-tech enterprise engages in researching, designing and manufacturing products for livestock and poultry husbandry, industry and advanced agriculture. Besides producing and offering ventilating and cooling system, feed system, nipple drinking system, environment control system and battery cages system, it also engages in the project design of modernized farms as well as green houses and workshops.
In order to realize your project in shortest time, we offer one-stop material procurement and personalized solutions.
Certifications
FAQ
Q: What is the MOQ ?
A: Normally 20GP for big unit , 40HQ for small unit .
Q: What voltages you can do , if we can make special voltages?
A: Almost all kinds of voltages we all can make .
Q: I want to use our own brand , is it ok?
A: Of course it's OK , we can make OEM products and also can provide our own brand products,it's all by your request .
Q: What payment term ?
A: Normally T/T or L/C we can accept .
Q: When you ship my order?
A: Normally 7-30days after receiving your payment, but it can be negotiated based on order qty and production schedule.
Q: How about the warranty ?
A: All the unit we have one year warranty
A: Normally 20GP for big unit , 40HQ for small unit .
Q: What voltages you can do , if we can make special voltages?
A: Almost all kinds of voltages we all can make .
Q: I want to use our own brand , is it ok?
A: Of course it's OK , we can make OEM products and also can provide our own brand products,it's all by your request .
Q: What payment term ?
A: Normally T/T or L/C we can accept .
Q: When you ship my order?
A: Normally 7-30days after receiving your payment, but it can be negotiated based on order qty and production schedule.
Q: How about the warranty ?
A: All the unit we have one year warranty
Ordering and Pricing
- Minimum order quantity: 2 set
- Volume pricing:
- 2–2 set: US $195 / set
- 3–29 set: US $155 / set
- 30–49 set: US $129 / set
- 50+ set: US $79 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this wall fan?
The standard minimum order quantity is 2 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the wall fan be supplied for my local voltage?
The standard configuration is 380v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Qingzhou Ventimax Equipment Co., Ltd., based in China. The company 12 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Qingzhou Ventimax Equipment Co., Ltd. range on HVACR Nexus.
