Key specification for this wall mounted air extractor: material Metal, type Axial Flow Fan. Everything below is reproduced from the factory data sheet. Made by Zhongshan Yongning Ventilation System Manufacturing Co., Ltd. (17 years on the platform, typical reply ≤8h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Wall Mounted Air Extractor
- Material: Metal
- Place Of Origin: China
- Application: Commercial
- Features: Available in front and back mesh
- Type: Axial Flow Fan
- Single Gross Weight: 0.0 kg
Technical Specifications
| Application | Commercial |
|---|---|
| Blade Diameter | 200mm(7.87in) |
| Material | Metal |
| App-Controlled | No |
| Number Of Blades | 3 |
| Place Of Origin | China |
| Product Name | Drum Ventilating Fan |
| Color | Green / Blue etc. |
| Temperate Climates Or Tropical Climates | T45 |
| Working Temperature(℃) | -20~45℃ |
| Rated Frequency | 50Hz |
| Features | Available in front and back mesh |
| Type | Axial Flow Fan |
| Applicable Industries | Hotels |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

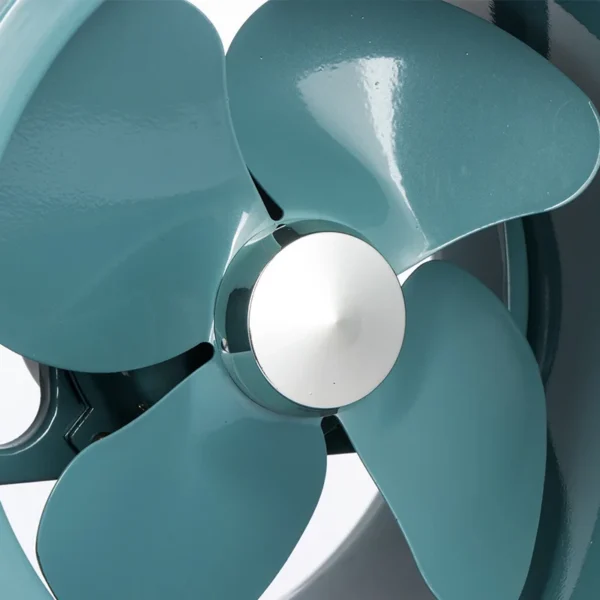

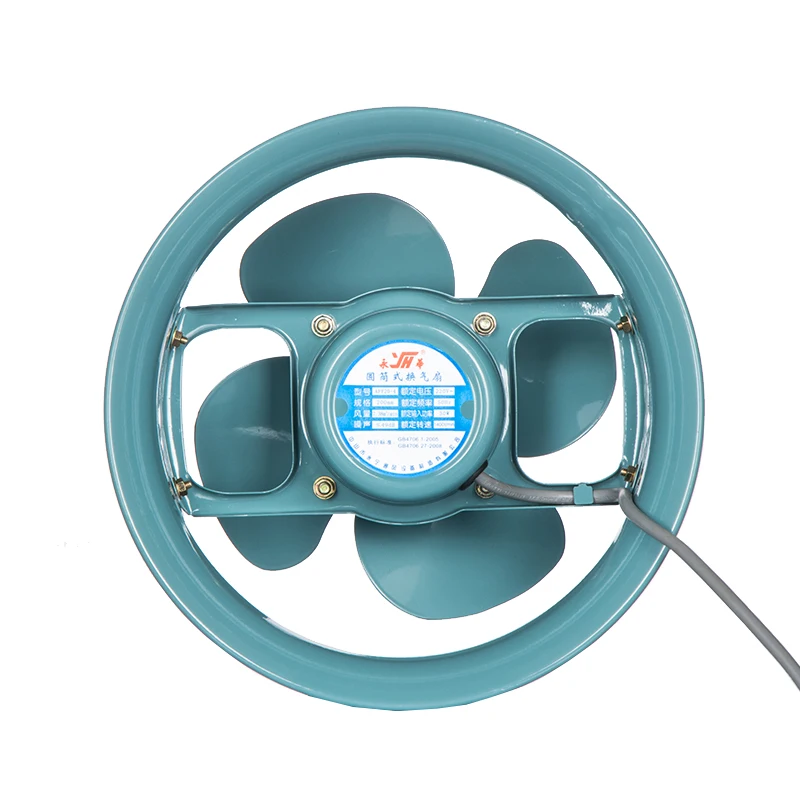

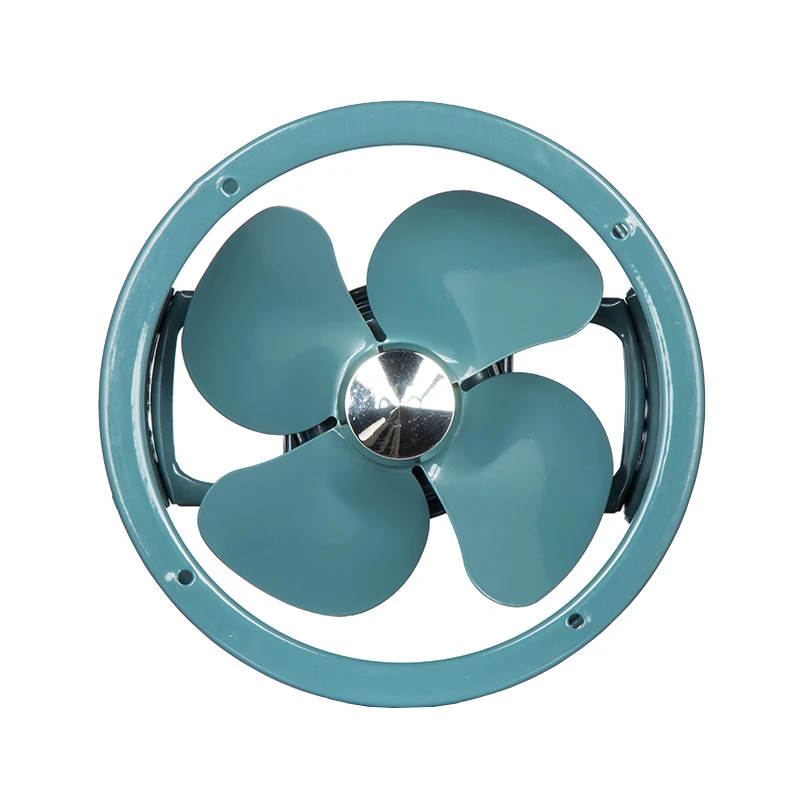

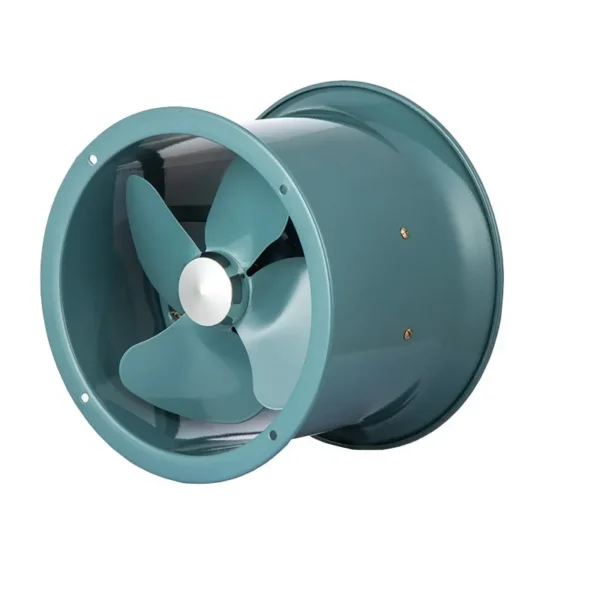

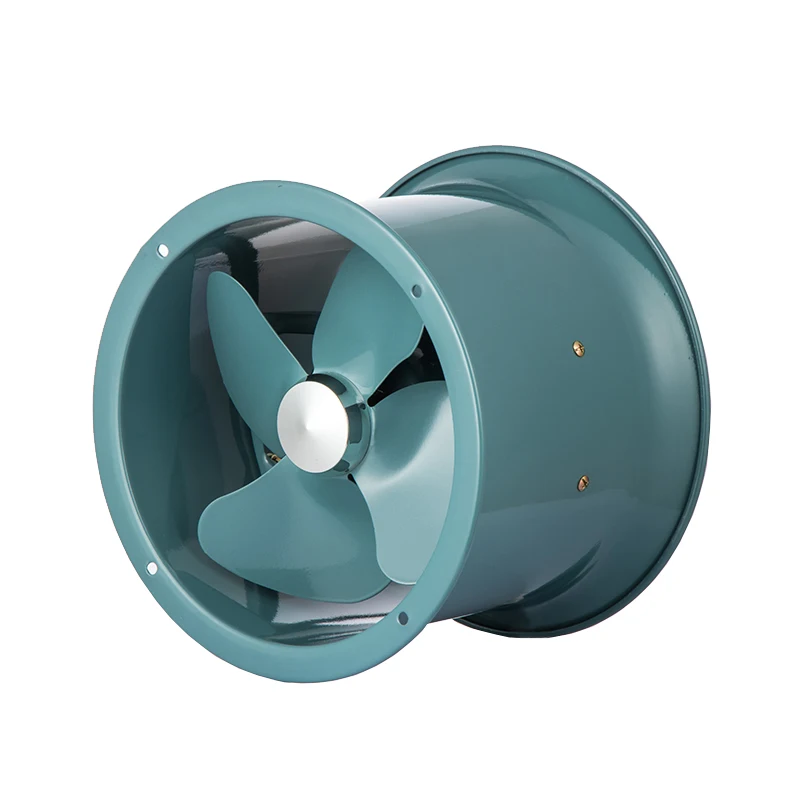

10inch Wall Mounted Expolosion Air Extractor Dust Blower Drum Exhaust Fan

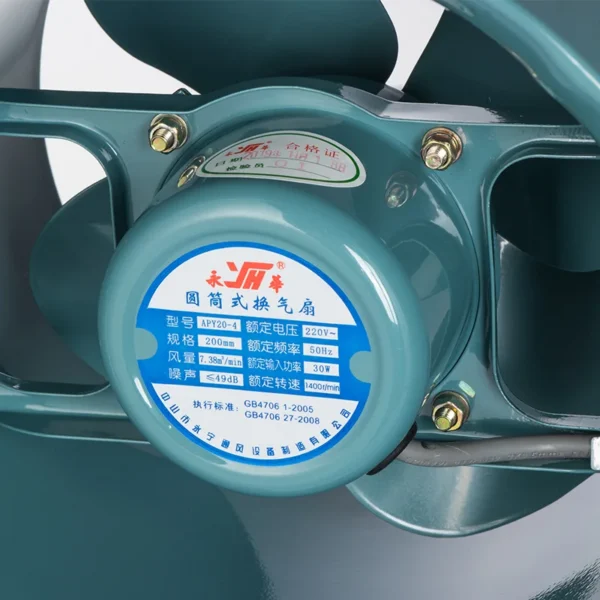

| Product Name | Model | APY20-4 | APY25-5 | APY30-6 | APY35-7 |
| Drum Ventilating Fan | Spec(mm) | 200(8") | 250(10") | 300(12") | 350(14") |
| power(W) | 30 | 40 | 45 | 70 | |
| speed(r/min) | 1400 | 1400 | 1300 | 1400 | |
| capacity(m3/min) | 7.38 | 11.4 | 16.4 | 22.5 | |
| protection against electric shock | ClassⅠ | ClassⅠ | ClassⅠ | ClassⅠ | |
| rated frequency | 50Hz | 50Hz | 50Hz | 50Hz | |
| Rated voltage or voltage range(V) | AC 220-240V | AC 220-240V | AC 220-240V | AC 220-240V | |
| Temperate climates or tropical climates | T45 | T45 | T45 | T45 | |
| Working Temperature(℃) | -20~45℃ | -20~45℃ | -20~45℃ | -20~45℃ | |
| IP Ratin | IPX0 | IPX0 | IPX0 | IPX0 | |
| Size(cm) | 25×25×18.5 | 30×30×18.5 | 35×35×20.5 | 42×42×23 | |
| Warranty(Years) | 1 year | 1 year | 1 year | 1 year | |
| 1.Cold-rolled silicon steel sheet and pure copper winding motor for long service life and low-temperature rising 2.Available in front and back mesh 3.Different colors to be chosen 4.Ideal for school, hotel, warehouse, industrial kitchen, workshop for ventilation | |||||
1. Can you produce according to the samples or drawings?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures
2. What is your terms of payment?
Usually,we accept T/T,irrevocable L/C at sight.For regular orders, Terms of payment 30% deposit,full payment before delivery the goods.
3. What is the lead time?
It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
4. What is your terms of packing?
Generally, we pack our goods in neutral cartons.If is fragile we will make wooden frame.and we also can according to your requirements.
5. What is your terms of delivery?
We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you.
6. How to solve the quality problems after sales?
Take photos of the problems and send to us. We will make a satisfied solution for you within 24 hours after we confirm the problems.
7. Do you have any MOQ limit for led light order?
Low MOQ, 1pc for sample checking is available.
8. Is it OK to print my logo on led light product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
9. You are manufacturer or trading company?
We are factory. Welcome to visit our factory at anytime.
Ordering and Pricing
- Minimum order quantity: 50 piece
- Volume pricing:
- 50–499 piece: US $9.6 / piece
- 500+ piece: US $9.5 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this wall mounted air extractor?
The standard minimum order quantity is 50 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Zhongshan Yongning Ventilation System Manufacturing Co., Ltd., based in China. The company 17 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Zhongshan Yongning Ventilation System Manufacturing Co., Ltd. range on HVACR Nexus.
