Warm Air Heaterfan, 12KW, 380V

The warm air heaterfan listed here carries 380 V, heating capacity ., documented exactly as the manufacturer publishes it. Made by Guangzhou Xiangfeng Electromechanical Equipment Co., Ltd. (4 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Warm Air Heaterfan

• Power Source: Electric
• Heating Power: 12 KW
• Blower Power: 0.37KW
• Voltage: 380 V
• Heating Capacity: .
• Material: Stainless Steel

Technical Specifications

Product Details

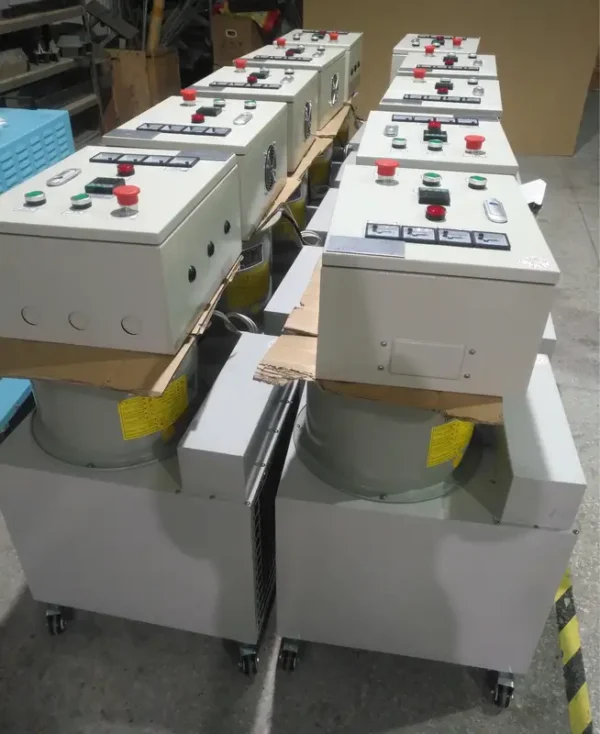

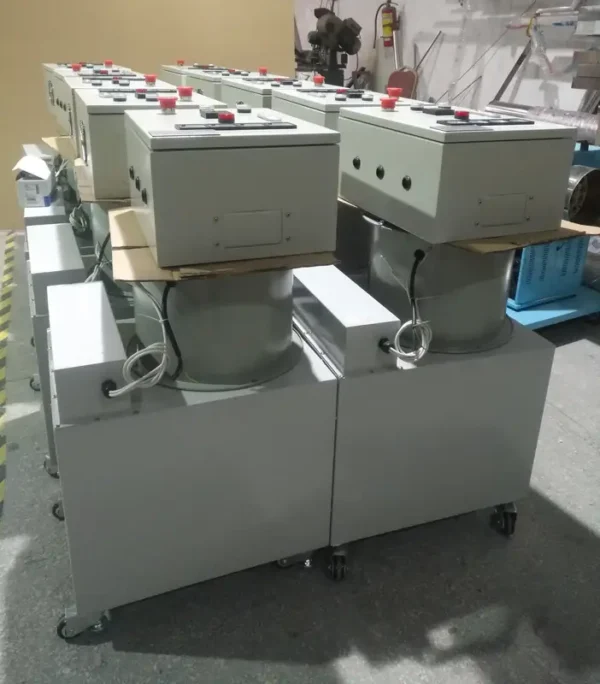

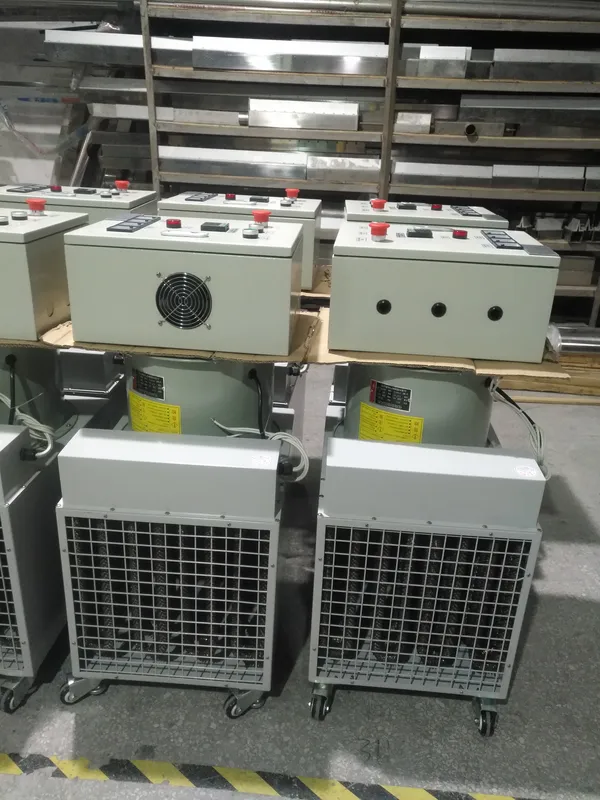

Products Display

Products Description

Factory Supply &

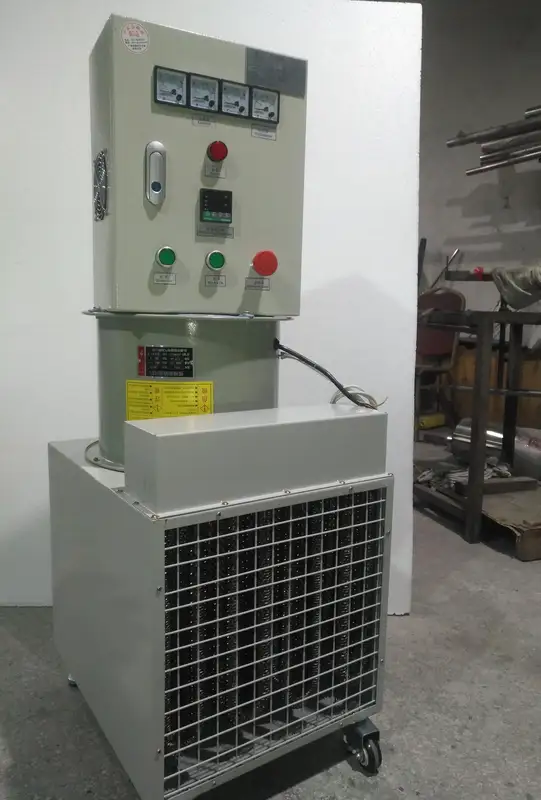

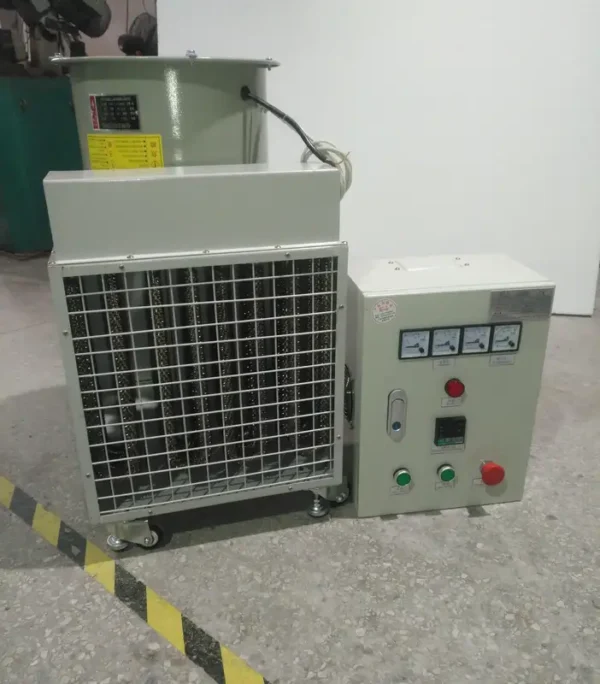

Industrial warm air heater
1. Power(Capacity)：6KW、9KW、12KW

2. Shell material: Carbon steel； Heating element: SUS304 seamless finned tube.

3. The Maximum Temperature can reach 80 degrees Celsius (customized).

Quality Assured

The size of Heater fan: 400×500×400mm

The size of Temperature control box：300×200×400mm

4. Support Heating Scheme or Sketch customization. (We can also sketch for you according to your requirements)

Application scenarios:
Industrial practical general-purpose hot air blowers can be widely used in electronics, food, pharmaceuticals, printing, packaging, cleaning, construction, steel, heat treatment for greenhouse seedling cultivation on farm, which is a standard hot air source configuration of hot air conveying furnaces, drying furnaces, ovens, sealing machine and other automatic machinery.

Product Characteristics：
1. The product uses non-magnetic 2080 nickel-chromium wire to heat air as a hot air source, hygienic and environmentally friendly. Equipped with anti-dry-burning function.

2. PID/SSR control, high precision, fast feedback, durable.

3. Ingenious wind tunnel design, the air passes evenly from the inside/outside of the spiral heating wire, the heat exchange is nearly 100%, the pressure loss is small, and the flow rate is small.

4. The continuous use temperature can reach 80℃.

5. The air outlet is equipped with a K-type thermocouple, which is directly detected and controlled, and the air outlet temperature is constant.

model number：HWF-60-12-3037-RQ		HWF-60-12-3037-RQ
Heating Power	12 KW
Blower air volume	24 m3/min
Blower max pressure	412, 450, 860 Pa
Air outlet temperature	80°C
Frequency	50/60HZ
Phase	Three phase
Blower power	0.37KW

Company Profile

Guangzhou Xiangfeng Electromechanical Equipment Co., Ltd.

We were originally established in January 2009, the trademark is "Baofeng", after restructuring registered in January 2014.

The company is dedicated to the R&D, production, sales, and service of industrial hot air/cold air drying equipment, providing
one-stop hot air system and design drawings for 95% industries.

We have 16 years of professional team and mature technology, determined to become a professional drying equipment company in the
world.

We have a Alibaba's Domestic Online Stores: 10 years.

Certifications

Feedback From Customers

Recommend Products

Packing & Delivery

About Packaging:

Portable Small Hot Air Blower/Heater are usually packaged in Cartons and transported by express delivery.

FAQ

1. Who are we?

Our company's main focus is on hot and cold air drying and water blowing, starting from 2014, and sell to Asia(17.00%), Africa(40.00%), South America(15.00%); Germany, Canada, Switzerland, New Zealand, Russia(20.00%); Others(8.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
We will provide Factory Testing Videos.

3.What can you buy from us?
Industrial Hot air Heater; Portable small hot air blower; Industrial heat gun; Stainless steel air knife; Aluminum air knife; Air knife drying system (drying bottles and cans); Tunnel Drying Oven; Air Ring blower; Centrifugal fan; Cable preheating machine and so on.

4. why should you buy from us not from other suppliers?
The company has 16 years of professional team and mature technology, our products are not only high precision, easy to operate, durable, many products can be 24 hours of continuous using.

We have another 10-year-old online domestic store.

5. Do we have our own factory?

Yes, We are manufacturers, with factories of our own, and we can produce and sell our products independently.

6. logistics transportation?

Through communication and negotiation between both parties, select the appropriate logistics transportation method.

Ordering and Pricing

• Minimum order quantity: 10 unit
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this warm air heaterfan?

The standard minimum order quantity is 10 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the warm air heaterfan be supplied for my local voltage?

The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Guangzhou Xiangfeng Electromechanical Equipment Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Guangzhou Xiangfeng Electromechanical Equipment Co., Ltd. range on HVACR Nexus.
