Key specification for this water chiller: 380 V, 220 V, 3.5 kW. Everything below is reproduced from the factory data sheet. Made by JINHUA XINMAI AUTOMATION EQUIPMENT CO., LTD. (3 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Water Chiller
- Power: 3.5 kW
- Voltage: 380 V, 220 V
- Refrigerant: R-410a
- Warranty: 2 Years
- Warranty Of Core Components: 2 years
- Place Of Origin: Hubei, China
Technical Specifications
| Voltage | 380 V, 220 V |
|---|---|
| Power | 3.5 kW |
| Warranty | 2 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Pressure Vessel, PLC |
| Place Of Origin | Hubei, China |
| Weight (Kg) | 65 |
| Brand Name | HANLI |
| Application | Fiber Laser machine |
| Function | Water Cooling |
| Keyword | Water chiller |
| Application Meterial | Metal Steel Carbon Copper |
| Equipment Type | 1000L/ 1500L/ 2000L / 3000L |
| Refrigerant | R-410a |
| Working Temperature Range | working temperature≥45℃ |
| Warranty Of Core Components | 2 years |
| Weight | 65 |
| Selling Units | Single item |
| Single Package Size | 600X500X910 cm |
| Single Gross Weight | 65.0 kg |
Product Details

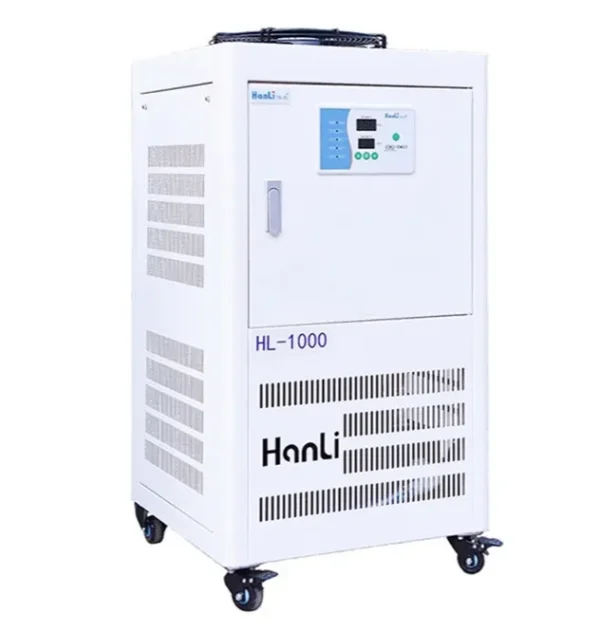

Model | HL-1000-QG2/2 | ||
Voltage&Frequency | 1p 220V @ 50hz | ||
Current | 8.2A | ||
Machine power | 1.8kw | ||
Application environment | Working temperature ≯ 45℃ | ||
Tempe. control accuracy | ± 1℃ | ||
Electric heating power | 800W+400W | ||
Refrigerant | R410a | ||
Rated flow of water pump | 33L/min | ||
Max.pump lift | 36M | ||
Pump power | 0.55KW | ||
Tank volume | 15L | ||
Laser nozzle interface | φ12mm Quick connector | ||
Cutting head nozzle interface | φ10mm Quick connector | ||
Machine weight | 60KG | ||
Machine size | 600*450*840mm (L*W*H) | ||
Recommended matching | 1.5KW Continuous fiber laser | ||

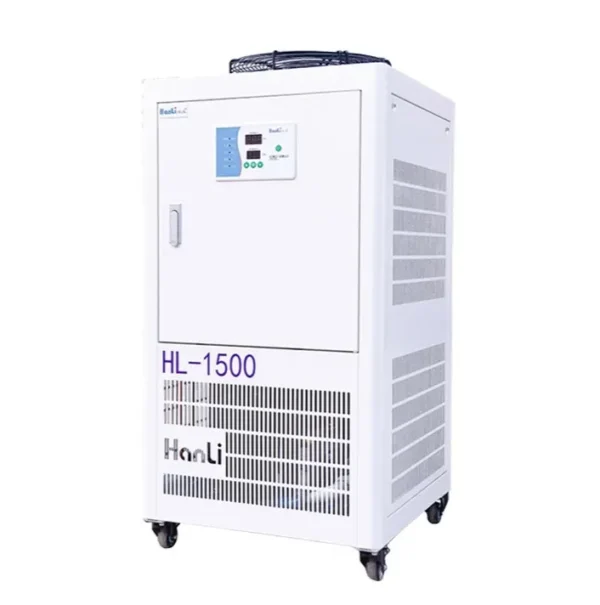

Model | HL-1500-QG2/2 | |||
Voltage&Frequency | 1p 220V @ 50hz | |||
Current | 10.9A | |||
Machine power | 2.4kw | |||
Application environment | Working temperature ≯ 45℃ | |||
Tempe. control accuracy | ± 1℃ | |||
Electric heating power | 800W+400W | |||
Refrigerant | R410a | |||
Rated flow of water pump | 33L/min | |||
Max.pump lift | 45M | |||
Pump power | 0.55KW | |||
Tank volume | 20L | |||
Laser nozzle interface | G1/2* φ20mm Pagoda hose connector | |||
Cutting head nozzle interface | φ10mm Quick connector | |||
Machine weight | 65kg | |||
Machine size | 600*500*910mm (L*W*H) | |||
Recommended matching | 1.5KW Continuous fiber laser | |||

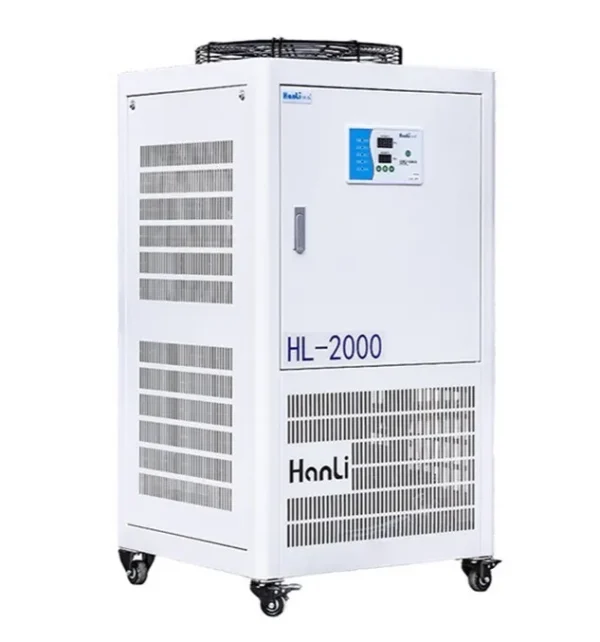

2000W Laser Chiller
Model | HL-2000-QG2/2 | ||
Voltage&Frequency | 1p 220V @ 50hz | ||
Current | 15A | ||
Machine power | 3.3kw | ||
Application environment | Working temperature ≯ 45℃ | ||
Tempe. control accuracy | ± 1℃ | ||
Electric heating power | 800W+800W | ||
Refrigerant | R410a | ||
Rated flow of water pump | 33L/min | ||
Max.pump lift | 45M | ||
Pump power | 0.55KW | ||
Tank volume | 30L | ||
Laser nozzle interface | G1/2* φ20mm Pagoda hose connector | ||
Cutting head nozzle interface | φ10mm Quick connector | ||
Machine weight | 80kg | ||
Machine size | 640*550*1000mm(L*W*H) | ||
Recommended matching | 2KW Continuous fiber laser | ||

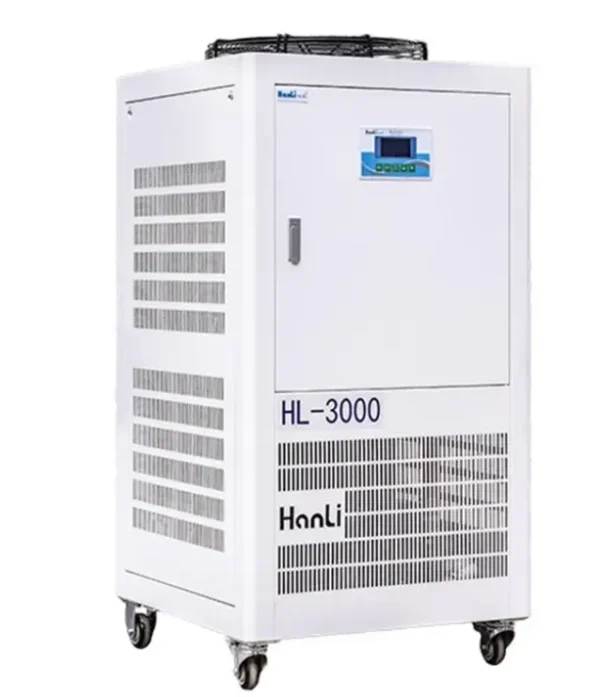

Model | HL-3000-QG2/2 | ||
Voltage&Frequency | 1p 220V @ 50hz | ||
Current | 17.3A | ||
Machine power | 3.8kw | ||
Application environment | Working temperature ≯ 45℃ | ||
Tempe. control accuracy | ± 1℃ | ||
Electric heating power | 800W+800W | ||
Refrigerant | R410a | ||
Rated flow of water pump | 64L/min | ||
Max.pump lift | 47M | ||
Pump power | 1KW | ||
Tank volume | 40L | ||
Laser nozzle interface | G3/4* φ25mm Pagoda hose connector | ||
Cutting head nozzle interface | G1/2* φ12mm Pagoda hose connector | ||
Machine weight | 92kg | ||
Machine size | 750*600*1130 (L*W*H) | ||
Recommended matching | 3KW Continuous fiber laser | ||
2. Anti-collision packaging edge
3. Wooden wooden cases and pallets with iron binding straps
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–1 set: US $510 / set
- 2+ set: US $460 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this water chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the water chiller be supplied for my local voltage?
The standard configuration is 380 V, 220 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by JINHUA XINMAI AUTOMATION EQUIPMENT CO., LTD., based in China. The company 3 years as a verified Alibaba.com supplier, Trading Company. Browse the full JINHUA XINMAI AUTOMATION EQUIPMENT CO., LTD. range on HVACR Nexus.
