Water Cooled Screw Chiller — nominal cooling capacity 58, type Chiller. Verified manufacturer, factory pricing, full data sheet on request. Model Number: HLW-30SR-L0.
The water cooled screw chiller listed here carries nominal cooling capacity 58, type Chiller, documented exactly as the manufacturer publishes it. Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Water Cooled Screw Chiller
Model Number: HLW-30SR-L0
Nominal Cooling Capacity (KW): 58
Warranty: 1 Year
Place Of Origin: Guangdong, China
Type: Chiller
Mounting Type: Floor Standing
Technical Specifications
Type
Chiller
Mounting Type
Floor Standing
Key Selling Points
Easy To Operate
Warranty
1 Year
Machinery Test Report
Not Available
Video Outgoing-Inspection
Not Available
Core Components
Pressure Vessel
Place Of Origin
Guangdong, China
Weight (Kg)
5000 KG(11023.11lb)
Brand Name
SANHER
Model Number
HLW-30SR-L0
Dimension(L*W*H)
Customized
Product Name
glycol chiller
Nominal Cooling Capacity (KW)
58
Temperature Range
-25℃-0℃
Selling Units
Single item
Single Volume
0 cm³
Single Gross Weight
0.0 kg
Product Details

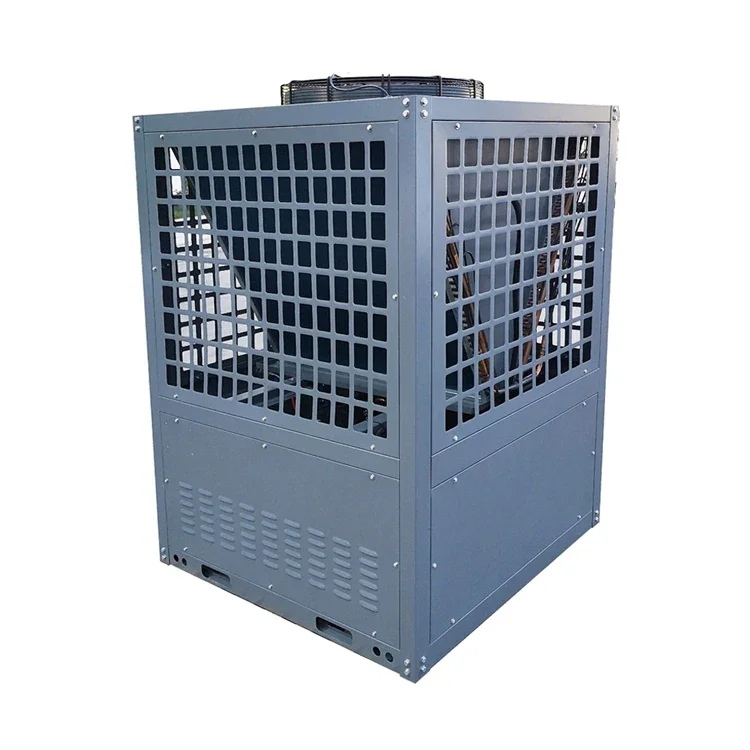

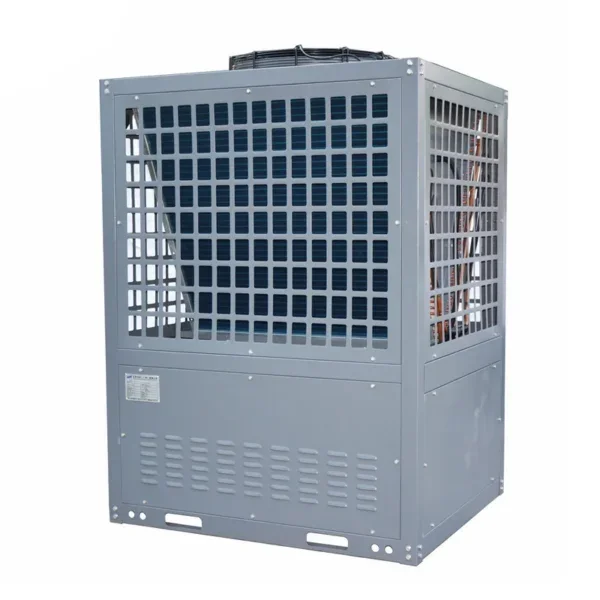

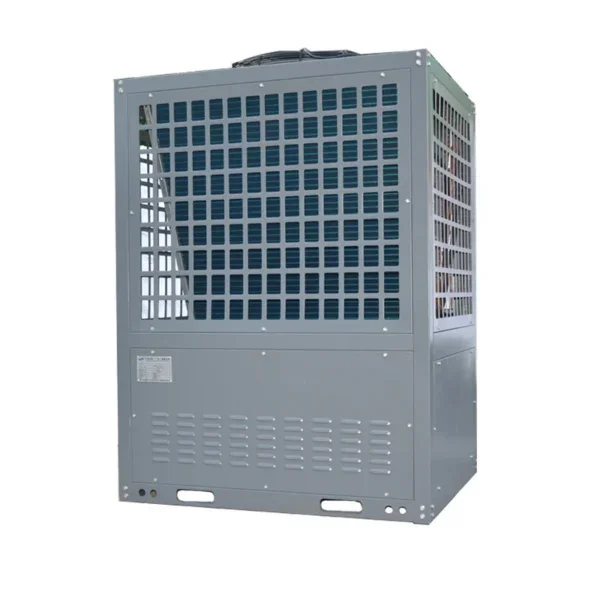

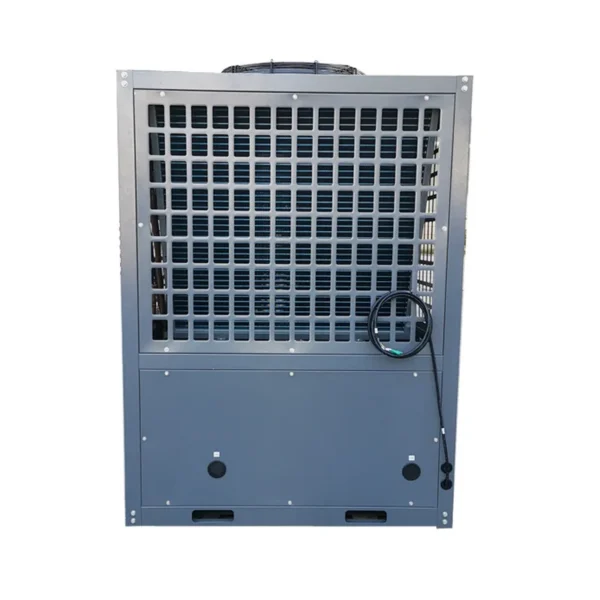

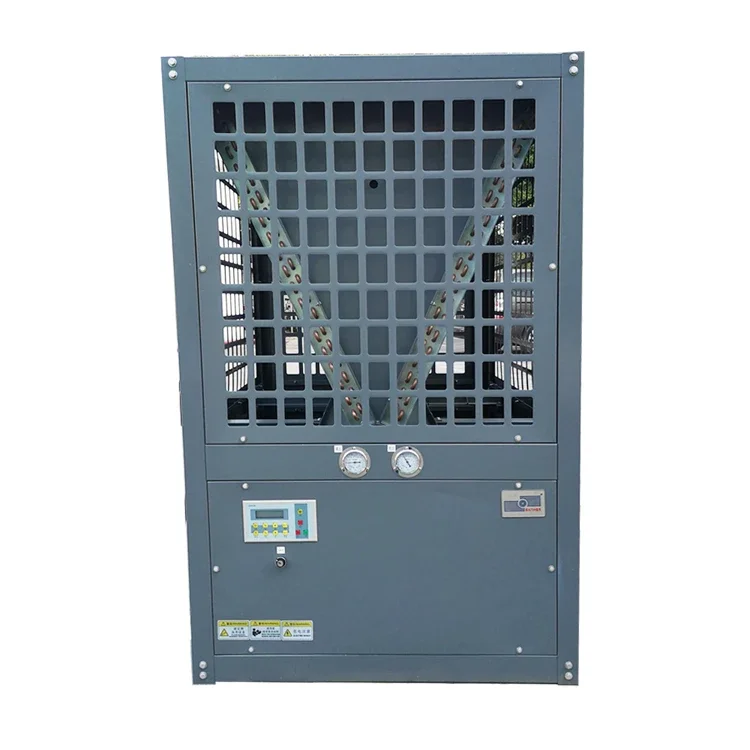

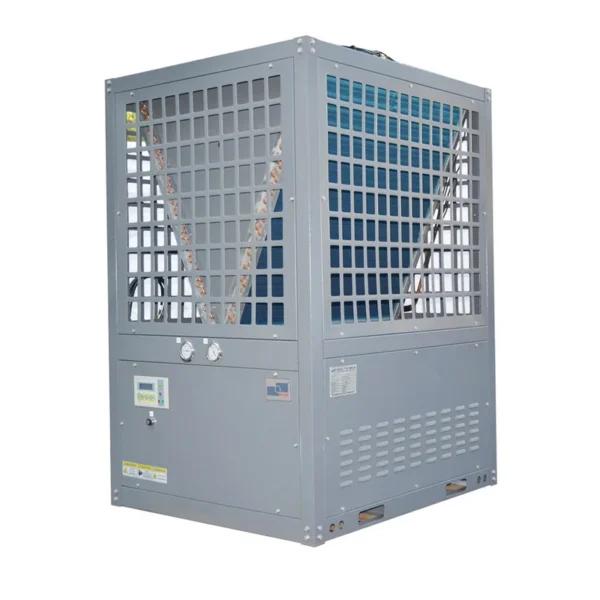

40-60HP air cooled industrial refrigeration glycol water cooled screw chiller
Product Description

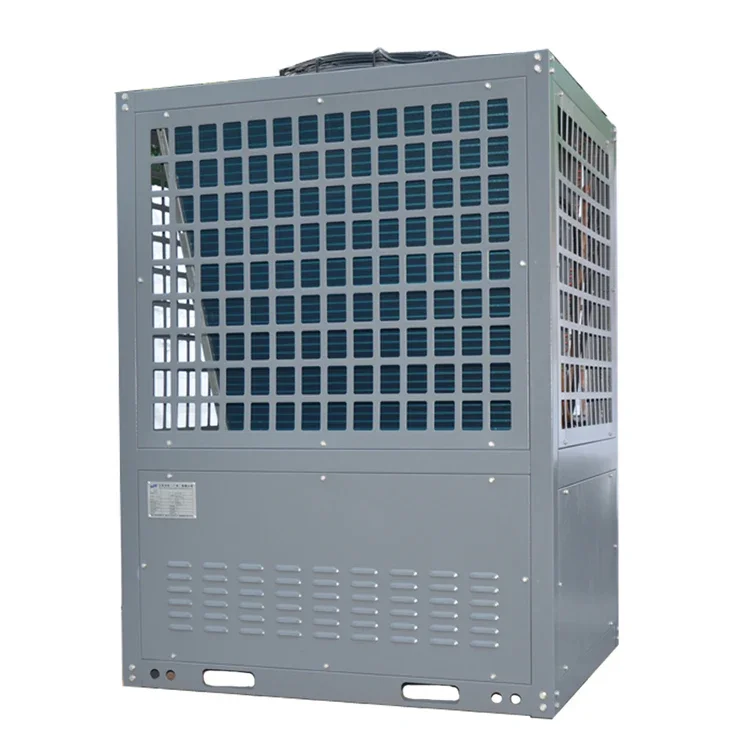

Air cooled screw type low temperature chiller
Specifications(Chilled water outlet temp.:0℃)
HLA-Model
30SR-L0
40SR-L0
50SR-L0
60SR-L0
Refrigerant
R22
R404A
R22
R404A
R22
R404A
R22
R404A
Rated Cooling Capacity
×1000kcal/h
52.4
49.6
72.4
69
95.2
90.3
102.3
97.3
KW
60.9
57.7
84.2
80.2
110.7
105
118.9
113.1
USRT
17.3
16.4
23.9
22.8
31.5
29.9
33.8
32.2
Power Supply
380V-3N-50Hz
Input power (KW)
30.6
36
40.6
47.8
50.9
60
57.7
67.8
Complete current (A)
54.8
63.4
72.3
83.5
91.3
104.9
102.9
118.5
Protection Device
Phase sequence protection,overcurrent protection,Anti frozen protection,high and low voltage protection,Gas outlet temperature protection,water flow protection
Compressor
Input power (KW)
25.2
30.6
33.2
40.4
41.7
50.8
45.9
56
current (A)
43.1
51.7
57
68.2
72.5
86.1
78.7
94.3
chilled water pump
Input power (KW)
2.2
2.2
4
4
current (A)
4.5
4.5
8
8
Number of Refrigeration Circuit
1
Capacity Control %
Stepless capacity or 33-66-100
Stepless capacity/25-50-75-100
Condenser
Finned Type
Cooling fan
×1000m³/h Air Flow
42
56
70
84
Power×Qty
0.8×4
1.3×4
1.3×4
1.3×6
Current×Qty
1.8×4
2.7×4
2.7×4
2.7×6
Evaporator
Shell-and-Tube Type
Dia.of pipe to Evaporator(inch)
2-1/2″
2-1/2″
3″
3″
10%Glycol Flow Capacity
10.5
9.9
14.5
13.8
19.1
18.1
20.5
19.5
Running noise dBA
76
76
77
77
Tank Volume (L)
500
500
500
800
Total Weight (KG)
1350
1420
1570
1790
(L*W*H)mm Outline dimension
2250*2100*2250
2250*2100*2250
2250*2100*2250
3400*2100*2250
Note: 1.Rated cooling capacity based on: Evaporator water inlet and outlet temperature 5℃/0℃,Air dry/wet bulb temperature is 35℃/24℃, Fouling coefficient is 0.088m2.℃/KW; 2. Chillled water temperature range: 0℃~10℃; 3. Ambient temperature range: 5℃~40℃; 4. Specifications and dimensions are subject to change due to product improvement without notice.
Profile:
Product Name:Air Cooled Low Temperature Chiller
Cooling Capacity:70.7-1186 KW
Product category:HL Series Screw Type Water Chiller]
Chilled Water Outlet Temperature:0℃ to -25℃
Application: Widely used in low temperature places such as biochemical, pharmaceutical, chemical, vacuum coating, electronics, electrical appliances,alloy materials, etc.
Features:
Ø Compact design , convenient to maintain
Ø The controller status display, parameter modification and fault query are all prompted by the menu. The operation is simple and convenient.
Ø Quiet operation. Low noise with the latest low noise hermetically sealed compressor and double soundproof structure.
Ø Stable quality and reliable performance. It adopts the famous brands of refrigeration systems self-control parts, LG, OMRON controller components to ensure stable quality.
Ø Intelligent control, high efficiency. The microcomputer controller adopts the fuzzy control algorithm, which has strong adaptability and high control precision. The relative humidity precision can be controlled at ±1%. The evaporator adopts internal thread and hydrophilic corrugated aluminum fins, the heat transfer coefficient is 67% higher than ordinary evaporator.
Company Information
Packaging & Shipping
FAQ
Q1: Are you a manufacturer? A1: Yes, we have more than 10 years experience in water chiller manufacture. New plant was bulit in 2017 in Guangzhou Economic&Technological Development Zone. Welcome to visit us anytime!
Q2: Could you help us to recommend the suitable model for our project? A2: Yes, we have engineers to check the details and make the scheme for you. Based on the following: 1) Cooling capacity; 2) Refrigerant; 3) Chilled water inlet/outlet temperature 4) Voltage; 5) For what industry 6)The building drawing(if you have) 7)Any other special requirements.
Q3: How to ensure your product with good quality? A3: We use the well-known brand accessories, such as Hanbell , Copeland, Danfoss compressor, Emerson expansion Valve, Siemens controller. All SANHER chillers are factory tested under loading conditions to ensure good quality and easy installation for users. Q4: What's the warranty? A4: 1 year warranty from customer receive the goods , or 15 months warranty from delivery for free if confirmed by both side damage in the quality reason. Q5: What’s your payment term? A5: We accept TT, LC, Western Union, etc. Normally ,50% deposit for production, balance before shipment. Q6: Can you do the design for us?
A6: Yes we can customize produce the chiller according to user's detail request. Also we can design the cooling circulation system(cooling tower, water pump, water tank, FCUs ,AHUs) for user if they need.
Q7: What about the lead time for production?
A7: For screw chiller, scroll chiller, production period is 25 working days after receiving deposit.
For Magnetic bearing centrifugal Chiller, normally our production period is 50 working days after receiving deposit. If urgent order, please tell us, we will try best to do fast production.
Ordering and Pricing
Minimum order quantity: 1 piece
Volume pricing:
1+ piece: US $3000 / piece
Ships from: China
Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this water cooled screw chiller?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
