Water Cooling Mist Fan, 12m, Wall

The water cooling mist fan listed here carries 220V/50Hz, 750W, documented exactly as the manufacturer publishes it. Made by Wuxi York Intelligent Technology Co., Ltd. (11 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Water Cooling Mist Fan

• Power(W): 750W
• Power: 600W
• Voltage/Frequency: 220V/50Hz
• Tank Capacity: 60L
• Material: Plastic
• Warranty: 1 Year

Technical Specifications

Product Details

Product Description

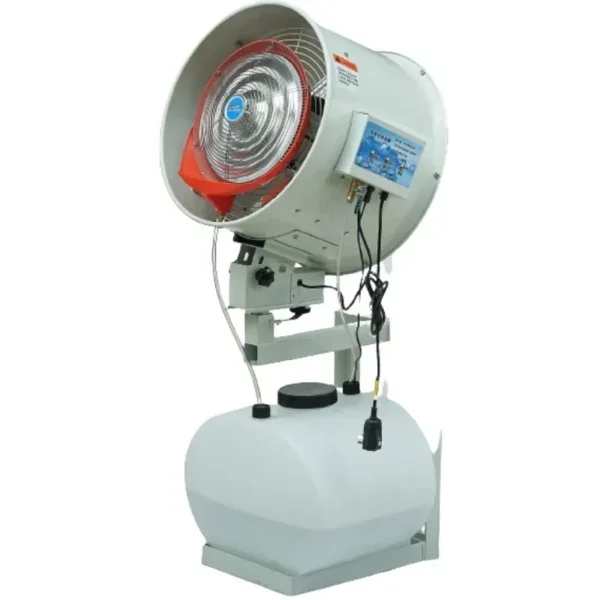

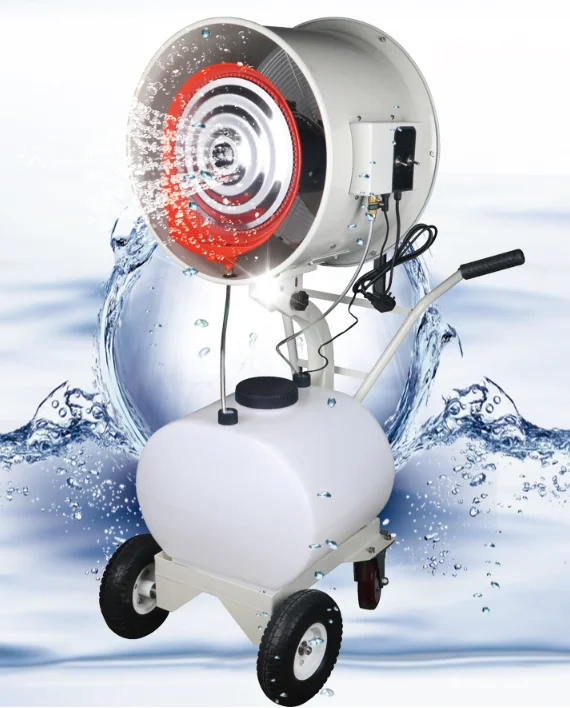

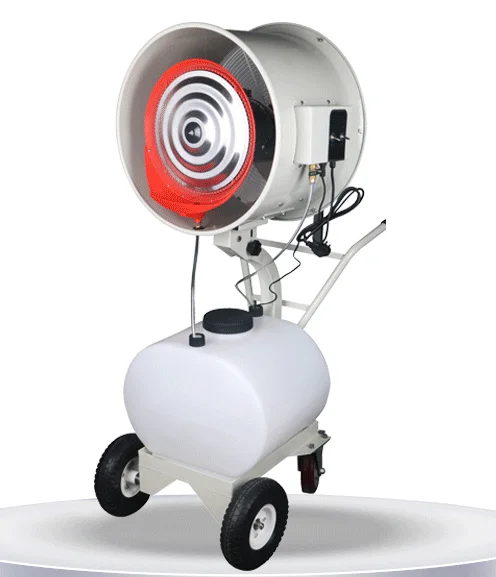

Effective range 12m Wall Mounted High Pressure Water Cooling Mist Fan mist fan with water

Water mist cannon spraying machine is a kind of machine which can spray water and pesticides and other chemicals to disinfecting schools, and streets to protect the environment from the polluting of dust. The intelligent controller mainly include: high pressure dust fan, water pump, nozzle, electric control box, remote control receiver, speed reducer, electric hydraulic push rod, rotating mechanism and the base

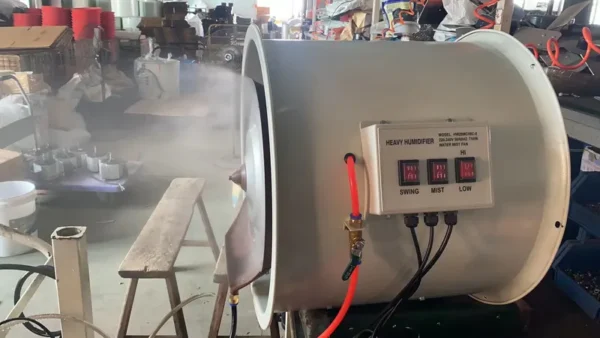

Working principle of spray fan

First, use the high-pressure water pump to pressurize the water to the micro atomizing nozzle for atomization and then spray it out. Then use the large air pressure and air volume of the professional spray host to send the atomized water to a gradual distance. With the rotation of the rotary mechanism, the atomization area can be covered by a maximum of 90 ° on the fan. The water mist can be sprayed to a certain physical height, The atomized micro fog combines with the dust of the air to form particles falling, so as to achieve the effect of dust reduction and air purification.

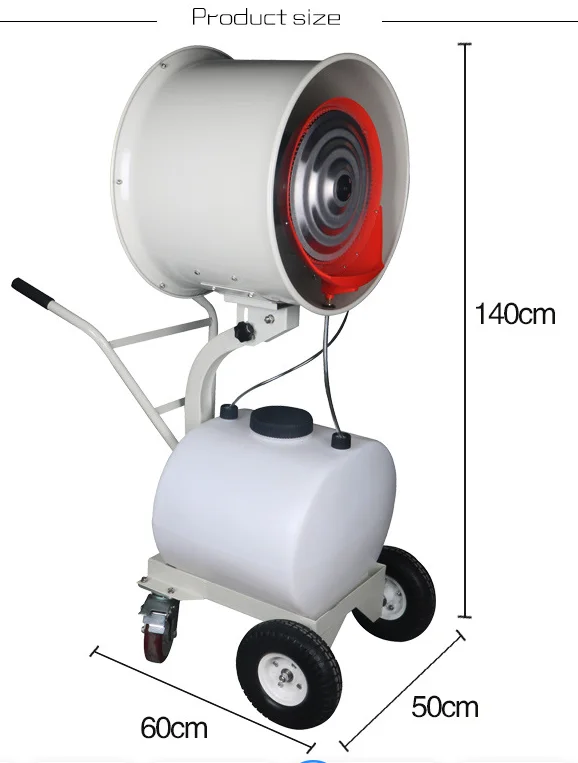

Product Specifications

Product	Fog cannon machine	Model	wall-mounted model/rooftop model/hand-push model
Power	600W	Atomization volume	60L/H
Tank capacity	60L	Swing angle	90 degree
Effective range	12-15m	Fan blade diameter	500mm
Air volume	6600m³/h	Voltage/frequency	220V/50Hz
Gross weight	50kg	Package size	800x630x900mm

Features:

1). Professional manufacturers with years of experience. 2). Good dust control effect, fine and even fog particles. 3). Significant humidification and cooling effect. 4). Strong power, long range, wide coverage, high efficiency, strong penetration. 5). Flexible installation, fixed to concrete platform or diesel generator driven vehicle. 6). Flexible,safe and reliable use.Remote control and manual control operations. 7). Effective water saving, 70-80% water saving compared with tank cars,with larger coverage

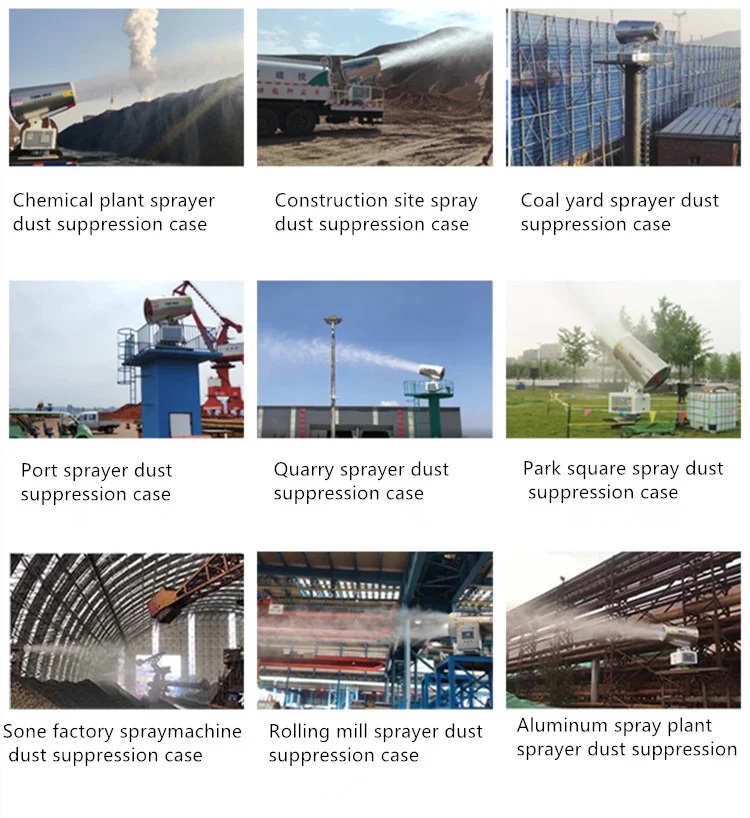

Application range

Wide Application of the Water Mist Cannon Spraying Machine

The scope of application of smart dust controller products widely applicable to a variety of industry applications, usually smart dust machine controller, the uniform spray pattern and small droplet size has been shown to be effective in reducing the dust in the air, odor and chemical particles. Its main applications include: 1).Disinfection sprayer fog cannon machine to sterilize streets; 2).Control of excessive urban air, pollution, dust and haze, and urban environment; 3).Dust and temperature reduction in demolition sites, water conservancy dams, highways and bridges. 4).Dust pollution control in coal yard, mining area, port coal yard, power plant, steel plant, coke etc. 5).Disinfection and epidemic prevention after airports, highways, stations, wharfs, garbage dumps and natural disasters; 6).Dust-lowering, moisturizing and temperature-lowering disinfection in sports venues, hot venues, etc.

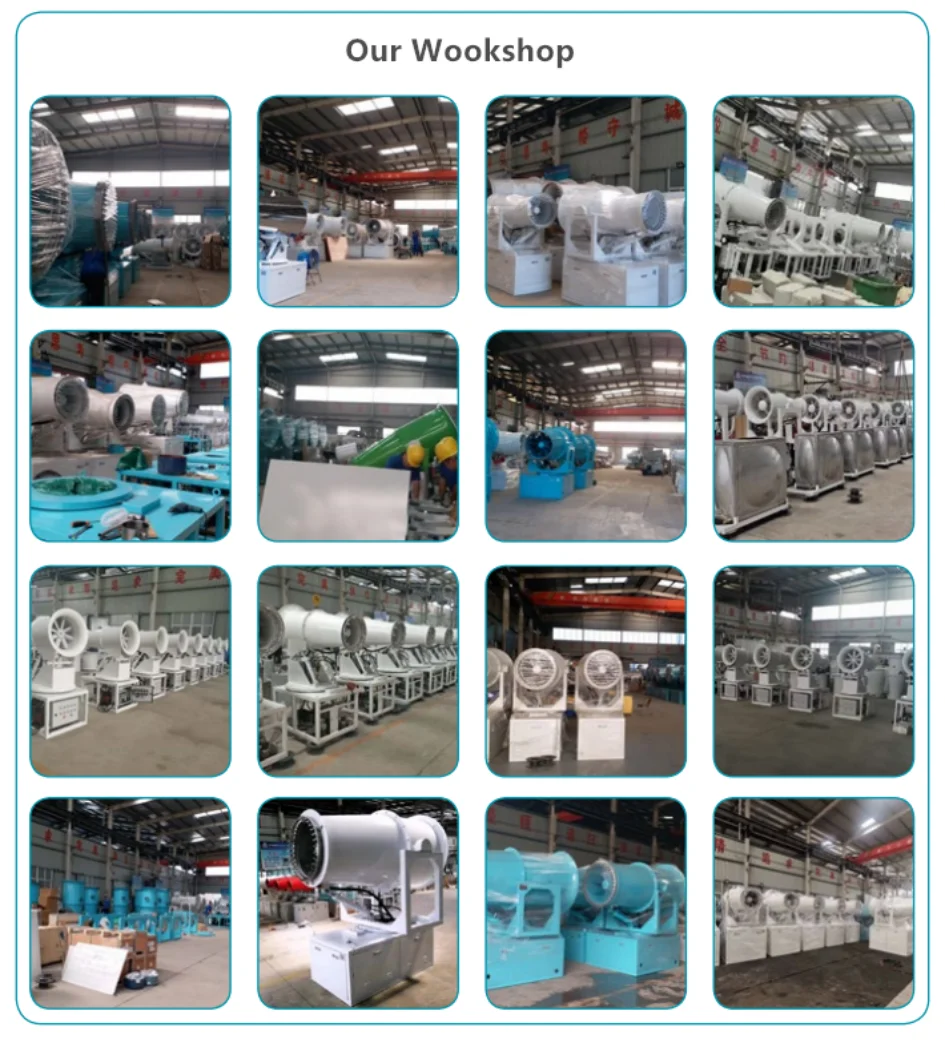

Our Workshop

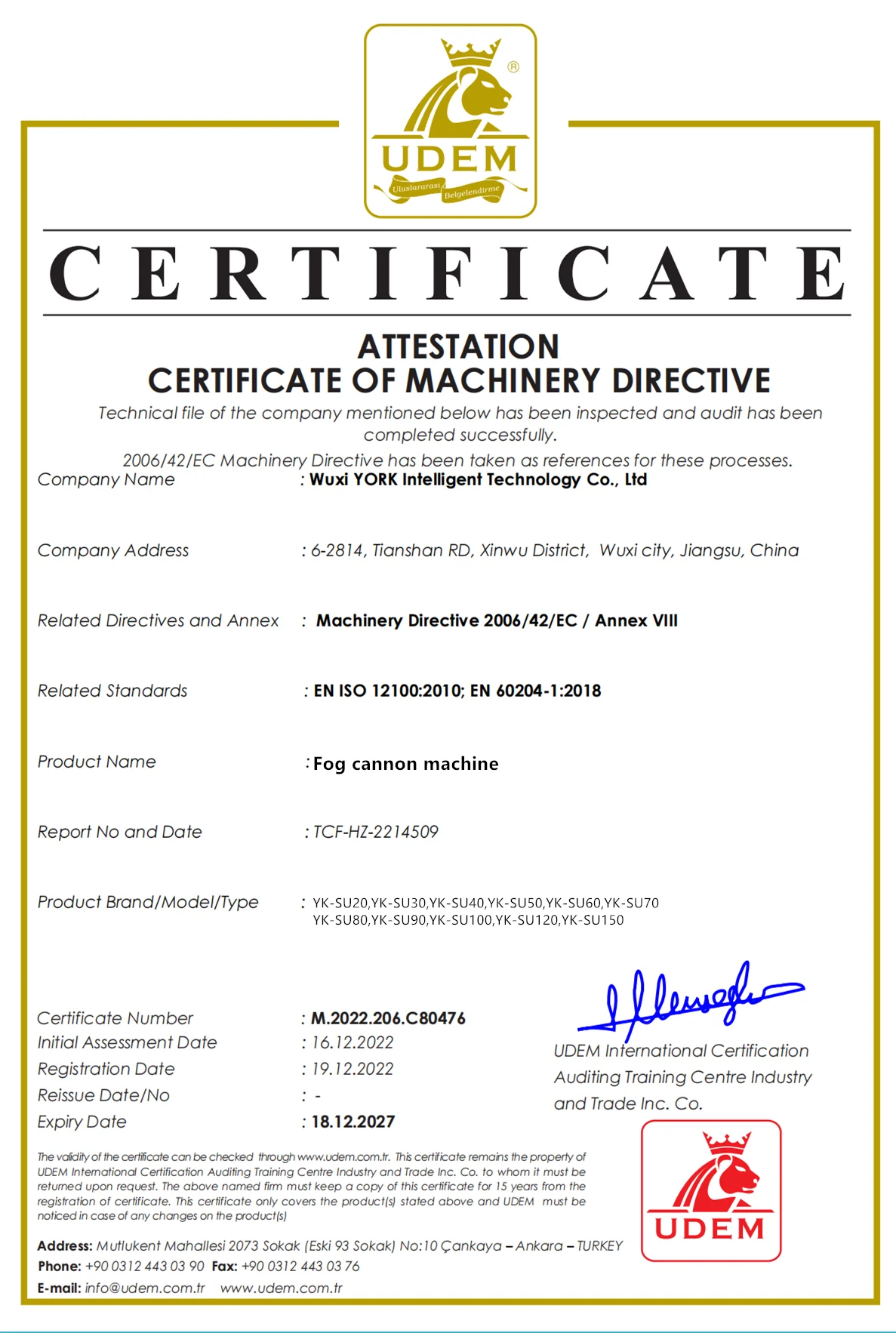

Certifications

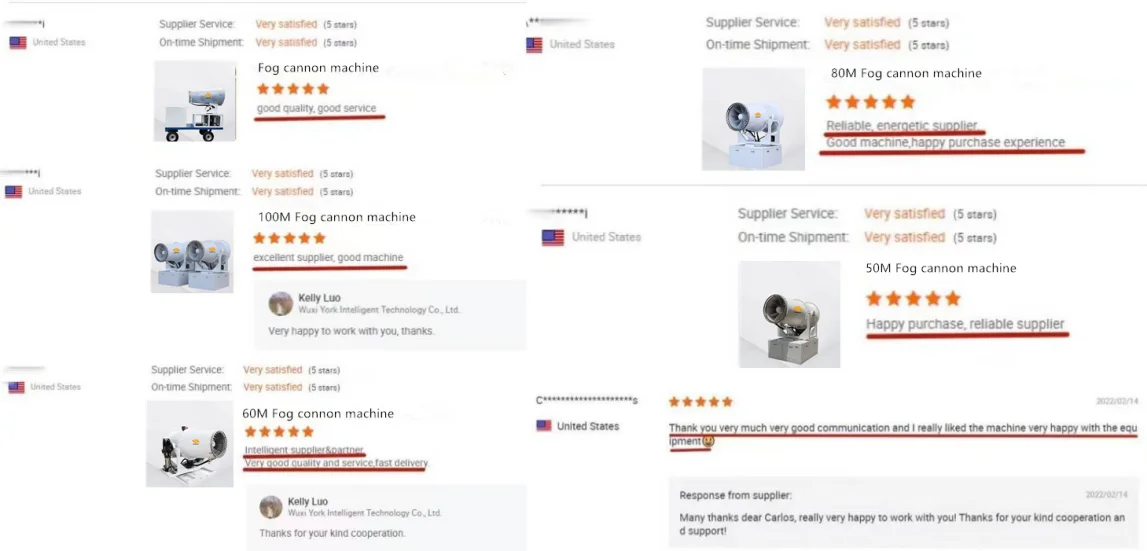

Customers' Feedback

Company Profile

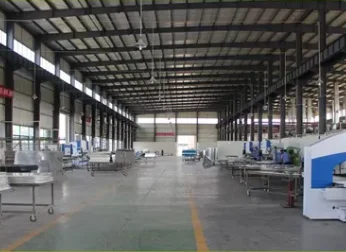

Our Factory

Our Team

Established in 2008, located in Wuxi New- district Industrial Park, in Wuxi City, Jiangsu province.
Wuxi YORK is a comprehensive enterprises which integrates researching, manufacturing,
market developing and service.

YORK group own 3 subsidiary companies
1.YORK Environmental Protection Machinery, specialize in design, R&D and manufacture
all kinds of dust collector, fume extractor and duct cleaning machine etc.

2.YORK Automatic Machinery, specialize in different customized automatic equipment,

which covers food equipment and automatic assembly lines.

3.YORK Mining Machinery, specialize in different cross belt sampler, belt sampling system,

belt scale and conveyor feeders etc.

YORK own 4 factories and 2 business centers and nearly 100 employees.
We have 3 overseas offices, which are located in Saudi Arabia, Pakistan and Bangladesh.
Our products are popular all over the world.

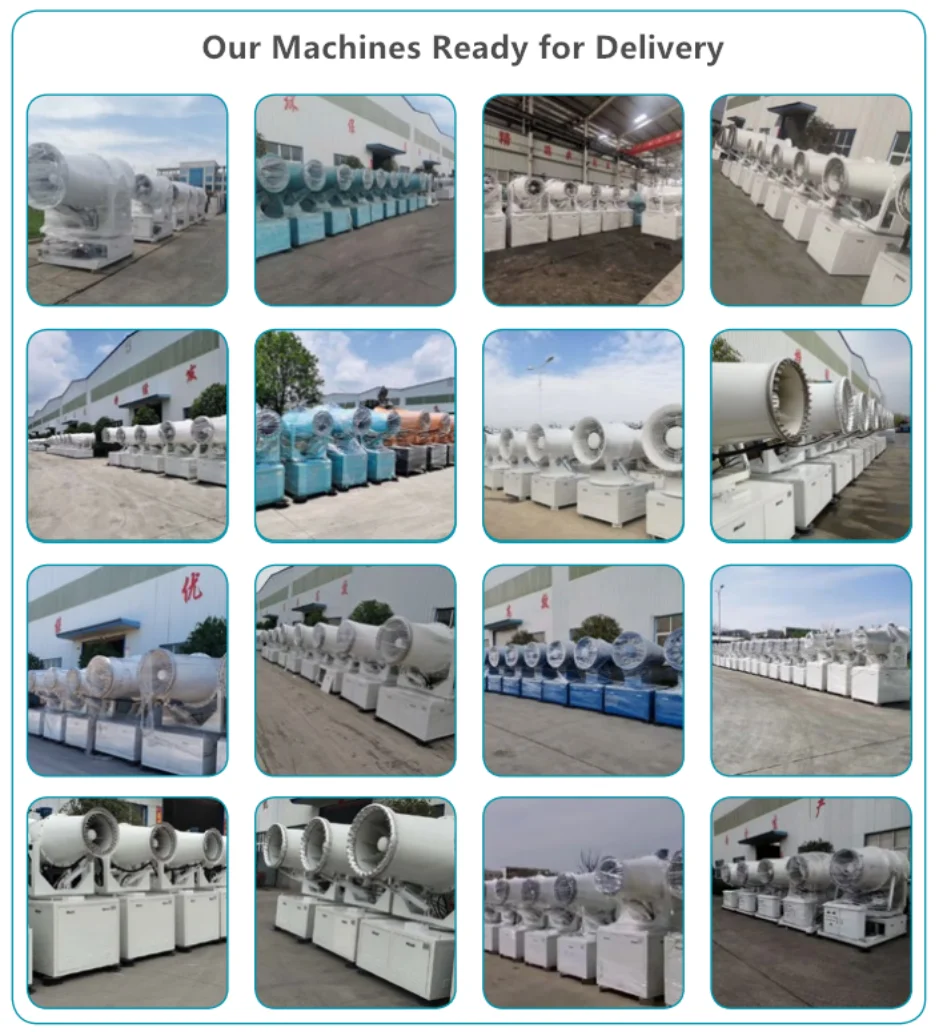

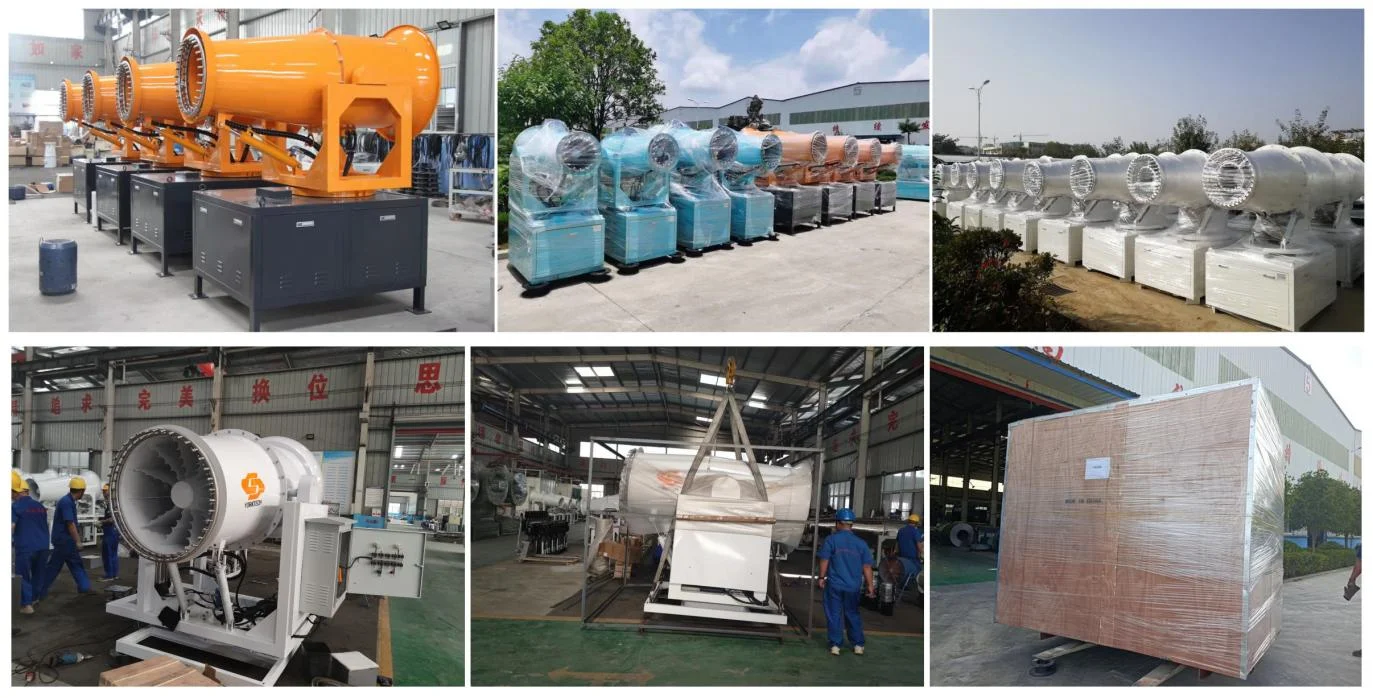

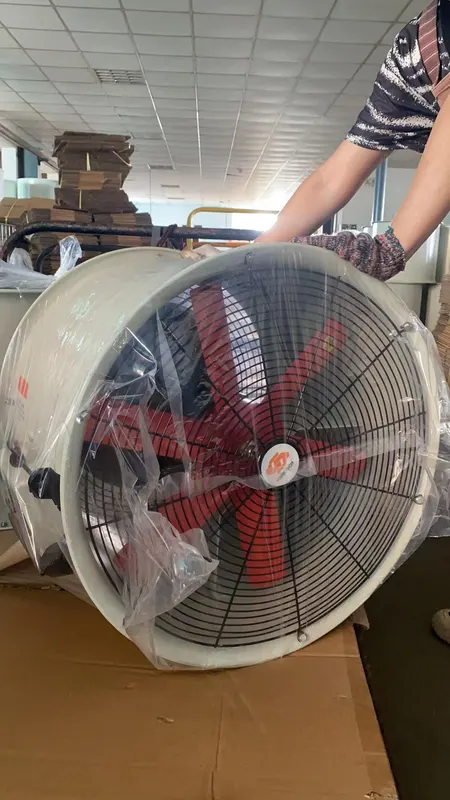

Package&Delivery

Ordering and Pricing

• Minimum order quantity: 2 set
• Volume pricing:
  • 2–2 set: US $650 / set
  • 3+ set: US $465 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this water cooling mist fan?

The standard minimum order quantity is 2 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the water cooling mist fan be supplied for my local voltage?

The standard configuration is 220V/50Hz. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Wuxi York Intelligent Technology Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Wuxi York Intelligent Technology Co., Ltd. range on HVACR Nexus.
