This high quality air humidifier is published with the manufacturer’s full specification — 220V/50Hz, 750W. Made by Wuxi York Intelligent Technology Co., Ltd. (11 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This High Quality Air Humidifier
- Power(W): 750W
- Power: 750W
- Voltage/Frequency: 220V/50Hz
- Tank Capacity: 60L
- Material: Plastic
- Warranty: 1 Year
Technical Specifications
| Machine Type | Other |
|---|---|
| Cleaning Type | Manual |
| Use | Burnishing |
| Cleaning Process | Cold Water Cleaning |
| Fuel | Electric |
| Material | Plastic |
| Warranty | 1 Year |
| Condition | New |
| Place Of Origin | Jiangsu, China |
| Brand Name | YORKTECH |
| Dimension(L*W*H) | 600*500*1400 mm |
| Power(W) | 750W |
| Weight (Kg) | 43 |
| Model | YK-SU600SW |
| Power | 750W |
| Atomization Volume | 60L/H |
| Tank Capacity | 60L |
| Swing Angle | 90 degree |
| Effective Range | 12-15m |
| Fan Blade Diameter | 500mm |
| Air Volume | 6600m³/h |
| Voltage/Frequency | 220V/50Hz |
| Package Size L*W*H | 700*620*860MM |
| Selling Units | Single item |
| Single Package Size | 70X62X86 cm |
| Single Gross Weight | 43.000 kg |
Product Details
Product Description

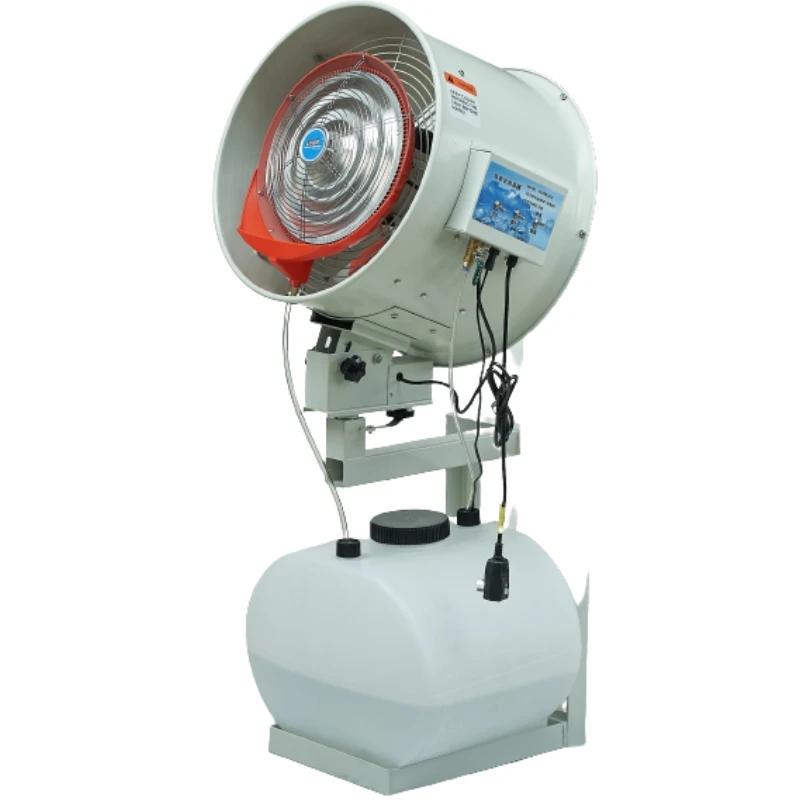

High Quality Air Humidifier Mist Fan Industrial Cooling Fan Spray Mist Humidifier
Water mist cannon spraying machine is a kind of machine which can spray water and pesticides and other chemicals to disinfecting schools, and streets to protect the environment from the polluting of dust. The intelligent controller mainly include: high pressure dust fan, water pump, nozzle, electric control box, remote control receiver, speed reducer, electric hydraulic push rod, rotating mechanism and the base
Working principle of spray fan
First, use the high-pressure water pump to pressurize the water to the micro atomizing nozzle for atomization and then spray it out. Then use the large air pressure and air volume of the professional spray host to send the atomized water to a gradual distance. With the rotation of the rotary mechanism, the atomization area can be covered by a maximum of 90 ° on the fan. The water mist can be sprayed to a certain physical height, The atomized micro fog combines with the dust of the air to form particles falling, so as to achieve the effect of dust reduction and air purification.
Product Specifications
Product | Water mist fog cannon machine | Atomization volume | 60L/H |
Power | 600W | Swing angle | 90 degree |
Tank capacity | 60L | Fan blade diameter | 500mm 90 degree |
Effective range | 12-15m/39-49inch | Voltage/frequency | 220V/50Hz |
Air volume | 6600m³/h | Gross weight | 65kg |

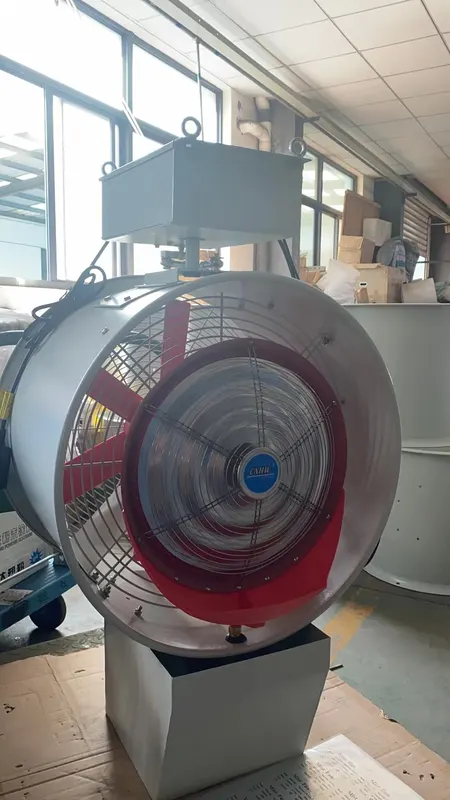

Type | Standard type Wall mounted Hangable from the ceiling | Package size for three tyoes | 900*480*530MM&680*620*590MM 700*620*860MM 1000*640*470MM |
Features:
1). Professional manufacturers with years of experience. 2). Good dust control effect, fine and even fog particles. 3). Significant humidification and cooling effect. 4). Strong power, long range, wide coverage, high efficiency, strong penetration. 5). Flexible installation, fixed to concrete platform or diesel generator driven vehicle. 6). Flexible,safe and reliable use.Remote control and manual control operations. 7). Effective water saving, 70-80% water saving compared with tank cars,with larger coverage
Application range
Wide Application of the Water Mist Cannon Spraying Machine
The scope of application of smart dust controller products widely applicable to a variety of industry applications, usually smart dust machine controller, the uniform spray pattern and small droplet size has been shown to be effective in reducing the dust in the air, odor and chemical particles. Its main applications include: 1).Disinfection sprayer fog cannon machine to sterilize streets; 2).Control of excessive urban air, pollution, dust and haze, and urban environment; 3).Dust and temperature reduction in demolition sites, water conservancy dams, highways and bridges. 4).Dust pollution control in coal yard, mining area, port coal yard, power plant, steel plant, coke etc. 5).Disinfection and epidemic prevention after airports, highways, stations, wharfs, garbage dumps and natural disasters; 6).Dust-lowering, moisturizing and temperature-lowering disinfection in sports venues, hot venues, etc.
Our Workshop
Certifications
Customers' Feedback
Company Profile
Our Factory
Our Team
Established in 2008, located in Wuxi New- district Industrial Park, in Wuxi City,Jiangsu province. Wuxi YORK is a comprehensive enterprises which integrates researching, manufacturing,market developing and service. YORK Environmental Protection Machinery,specialize in design, R&D and manufacture all kinds of duct cleaning machine, dust collector and fume extractor etc. At present, our company products have been all over the country's major provinces and cities, we have exported to more than 60 countries and regions.Our products have been widely recognized and highly praised by customers.
Strength: YORK accepts OEM and ODM, satisfy customer’s personalized requirements. One-stop: YORK provides a wide range of products to satisfy customers with one-stop purchase. Service: YORK offers lifelong after-sales service for every product. Quality: Every product gets passed strict quality inspection, the final passed yield is over 99.9%.
Package&Delivery
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–2 set: US $650 / set
- 3+ set: US $465 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this high quality air humidifier?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the high quality air humidifier be supplied for my local voltage?
The standard configuration is 220V/50Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Wuxi York Intelligent Technology Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Wuxi York Intelligent Technology Co., Ltd. range on HVACR Nexus.
