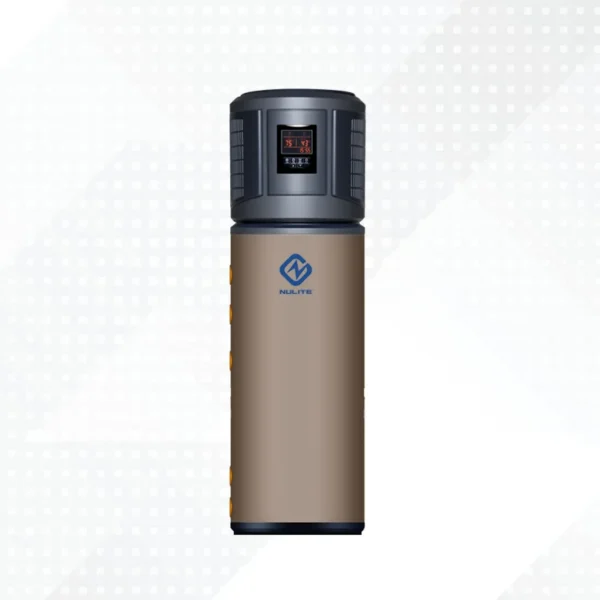

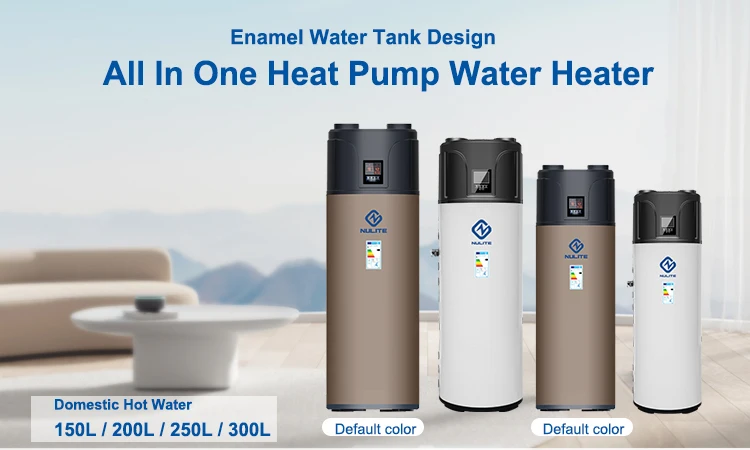

Water Heater, 200l, 300l

This water heater is published with the manufacturer’s full specification — 220V/50Hz single phase, 3 kW. Made by Nulite New Energy (guangzhou) Co., Ltd. (7 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Water Heater

• Power Source: Electric
• Voltage: 220V/50Hz single phase
• Heating Capacity: 3 kW
• Housing Material: Galvanized Sheet
• Refrigerant: R134a
• Warranty: 2 Years

Technical Specifications

Product Details

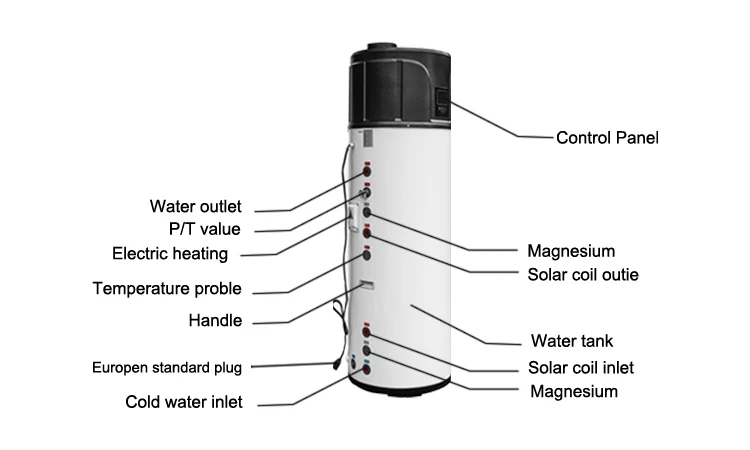

Details Images

The advantages of Nulite New Energy heat pump

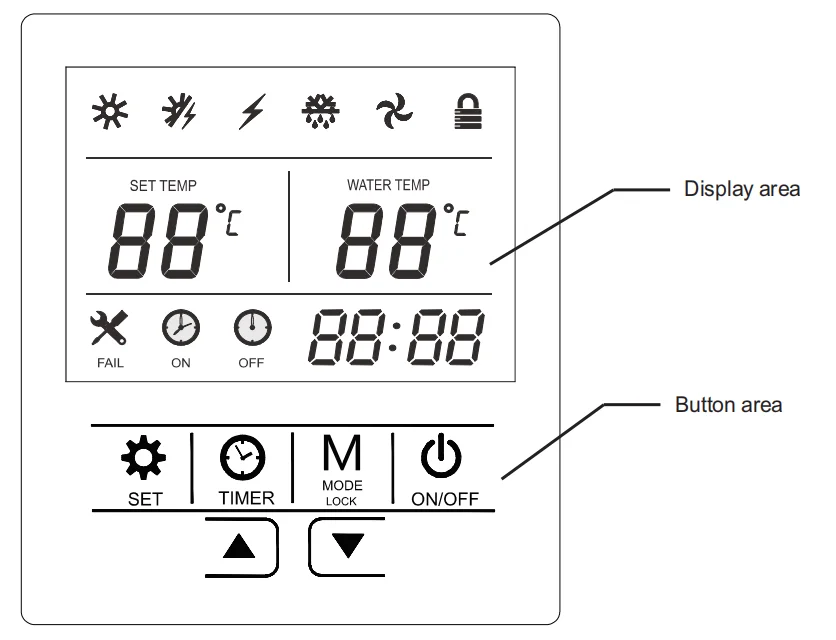

LED touch screen control system

*Biology System and easy operation
Smart control system
*Luxury LCD screen touch control, flexible water temp. adjustment, multiple running modes are available, enjoy comfortable hot
water.

Mitsubishl compressor

*Strong heating and powerful heart
*International famous brand,high quality compressor.
*Reduce compression leakage and improve compression efficiency

Super polyurethane insulation

*More instant hot water output and comfortable when using
* Super dense fluorofree polyurethane insulation can keep the hot water in the same temperature for longer time.

Product Paramenters

Model	Unit	NL-FR1.0/EN150	NL-FR1.0/EN200	NL-FR1.0/EN300
Heating capacity	kw	1.8	1.8	3.0
Water tank Volume	L	150	200	300
Hot water production	L/h	39	39	64
Power supply	V/Hz/Ph	220～240V/50/1	220～240V/50/1	220～240V/50/1
Rated outlet water temp	℃	55	55	55
Max outlet water temperature	℃	75	75	75
Rated input power	W	470	470	805
Current	A	1.85	1.85	2.3
Auxiliary electric heating	W	2000	2000	2000
E-heating current	A	9.1	9.1	9.1
Refrigerant	/	R134a	R134a	R134a
Compressor	/	Rotary	Rotary	Rotary
Four-way valve	/	SHF-4	SHF-4	SHF-4
Motor	/	YDK25/32	YDK25/32	YDK25/32
Centrifugal fan	/	φ190	φ190	φ190
High pressure switch	Mpa	3.0~2.4	3.0~2.4	3.0~2.4
low pressure switch	MPa	0.05-0.15	0.05-0.15	0.05-0.15
Ambient temperature	℃	﹣7～45	﹣7～45	﹣7～45
Waterproof protection level	/	IPX4	IPX4	IPX4
Product cabinet	/	Galvanized powder coated steel

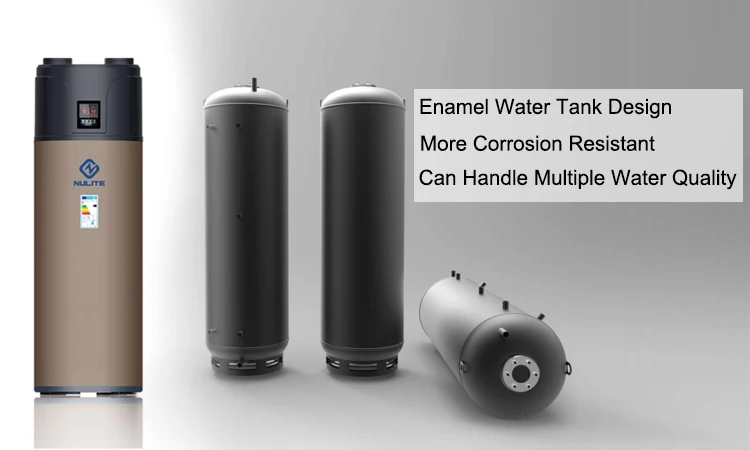

Material of water tank	/	Enamel tank
Heat exchanger type	/	Extemal coil
Evaporator	/	Hydrophilic aluminum foil
Throttling device	/	Electrical expansion valve
Wire controller	/	Digital screen, touch buttons
Pipe diameter	inch	G1/2"	G1/2"	G3/4"
Built-in pressure protection	MPa	0.8MPa	0.8MPa	0.8MPa
Product Dimensions	mm	φ570*1470	φ570*1750	φ640*2000
Packing Dimensions	mm	710*680*1560	710*680*1842	720*720*2135
Net Weight	Kg	85	112	142
Noise	dB(A)	≤48	≤48	≤51
Erp Energy class level	/	/	55℃ A++	55℃ A++

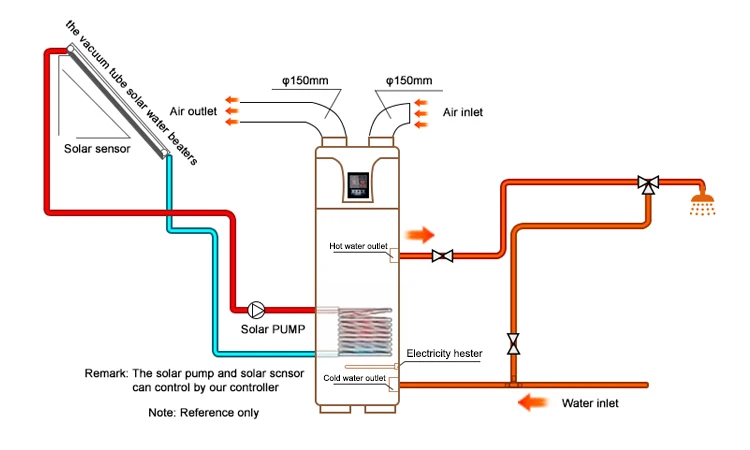

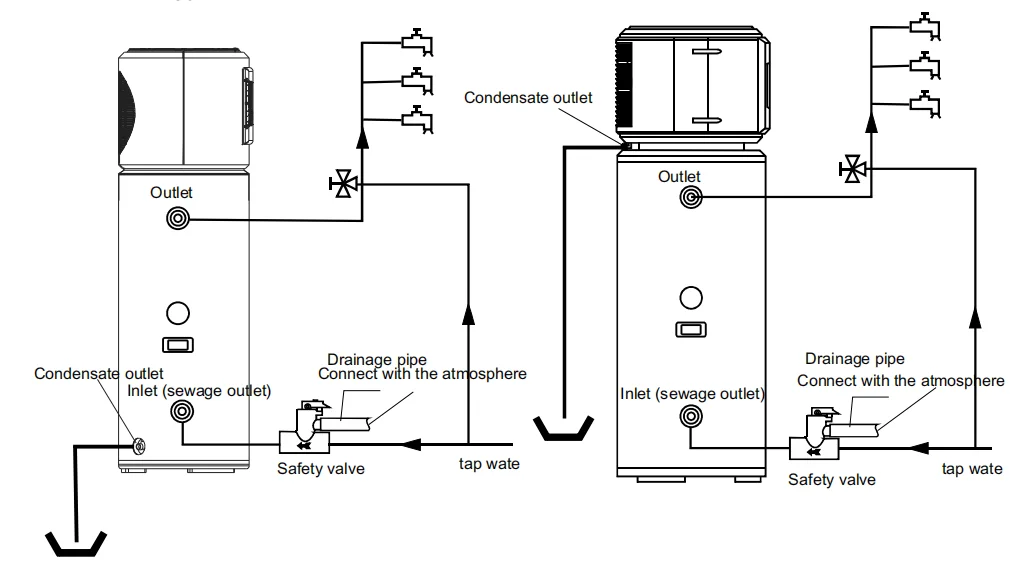

Installation Instructions

*Take a bath and enjoy every day.Let you in the bath, enjoy endless warmth

*Hot water in the kitchen, do not let cold water frostbite the hands of the family
*Let the hot water take your day off.
*Max hot water output temperature reach 75C

Company Profile

NuLite New Energy (Guangzhou) Co.,Ltd.

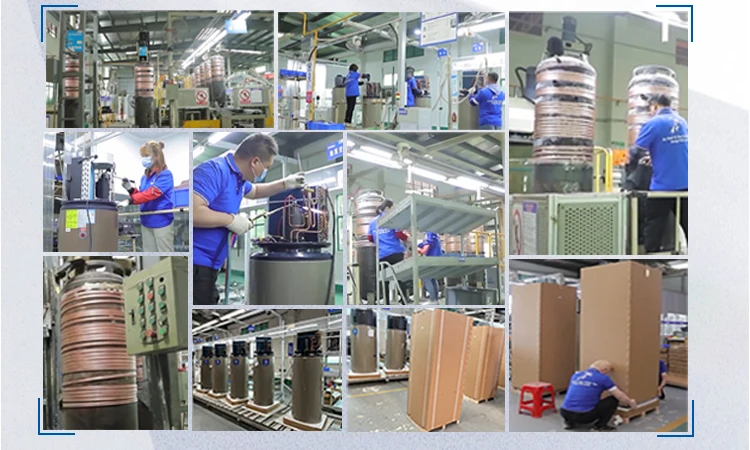

Nulite New Energy Heat Pump Group, based in Guangzhou and Foshan, is specialized in the R&D, manufacturing, sales and services for household & commercial high efficiency and energy-saving heat pump applications.

Our current product classification includes R290/R32/R410A/R134A refrigerant -30C EVI DC Inverter Heat Pump, Spa Pool Heat Pump,Commercial Heating/Cooling/Hot Water Heat Pump, Geothermal Heat Pump, Fan Coil Unit and Water Tank. With five main modern manufacturing factories covering 200,000 square meters, which owns 12 automatic production lines and 15 high-standard certificated inspection laboratories. The annual production capacity is over 500,000 units and more than 100,000 units has been exported last year in 2022.

NuLite, owns more than 20 years experience of heat pumps manufacturing & exporting, with EU-erP, CE, CB, EMC, ISO9001 certificated. As a double five-star supplier verified by Alibaba, we offer full range of OEM & ODM heat pumps and related products, now we sincerely recruit distributors worldwide.
Nulite, Be Your Right!

Certificates

Nulite New Energy Certificates

Our quality management system was certified in conformity with ISO9001, ISO14001 Standards, heat pumps with CE, EMC, erP, CB certificated. And also with customized OEM/ODM services for distributors all over the world.Now NuLite brand heat pump has been exported to more than 100 countries, even well installed.

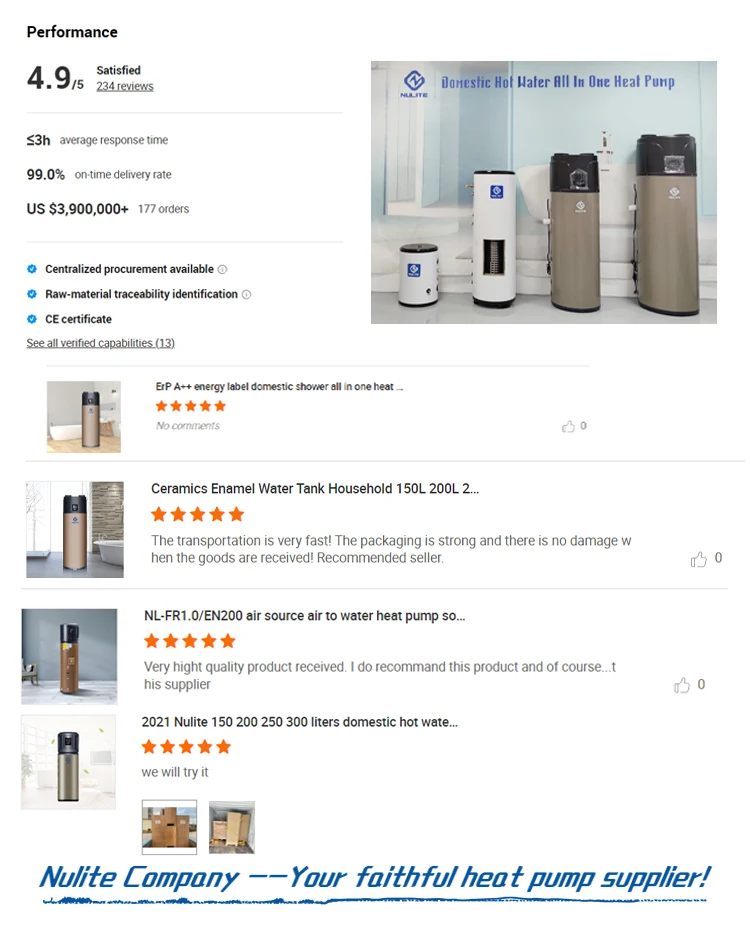

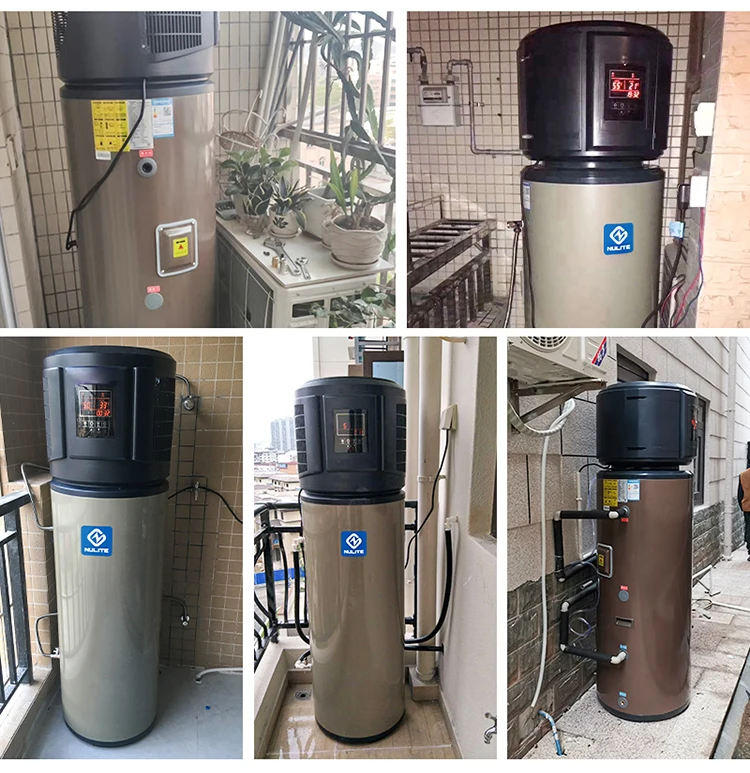

Customer Photos

Packing & Shipping

FAQ

Q: Are you heat pump supplier of trading company or manufacturer ?
A: We are R&D and manufacturing factory. With 200,000 sq meters modern factory in Guangzhou City & Foshan City. with OEM/ODM service.

Q: How long is your Heat Pump delivery time?
A: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is
according to quantity.

Q: Do you also provide other kind of heat pump?

Inverter/EVI/High/Low Temp Tech | Air/water/Geothermal source | CE ERP etc.
*House heating/cooling/DHW heat pump
* Household/Commercial heat pump
* Pool heater heat pump
*FCU | Stainless Steel Water tank (Buffer&DHW)

Q: What is your terms of payment for heat pump ?
A: Payment<= 5000USD, 100% in advance. Payment>= 5000USD, 30% T/T in advance ,balance before shipment.
AIibaba trade assurance payment available. L/C Payment available only with 1 millon+ USD dealing amount.

For the most suitable Heating Cooling, Hot Water Solution!

More details to confirm, please feel free to contact us as below!

We are professional,international and innovational heat pump manufacturer!

1.Response in 2 hours,Solution in 24 hours.send us message,and we will answer you quickly!

2.Free design for your house/project case,providing professional suggestion!

3.Long warranty terms and provide after-sale service quickly and free spare parts!

4.Marketing experience in HVAC industry,welcome to become our distributors!Do the heat pump business!

Please feel free to contact us right now!

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–19 set: US $699 / set
  • 20–499 set: US $689 / set
  • 500+ set: US $599 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this water heater?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the water heater be supplied for my local voltage?

The standard configuration is 220V/50Hz single phase. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Nulite New Energy (guangzhou) Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Nulite New Energy (guangzhou) Co., Ltd. range on HVACR Nexus.
