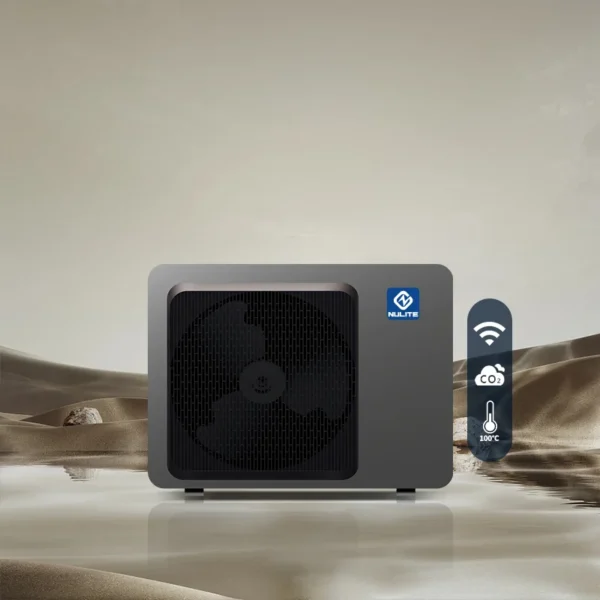

High Temperature Heat Pump, R744, CO2, 7KW, Monoblock

High temperature heat pump — power supply 220-240/1/50 (V/Ph/Hz), 7 kW. The complete factory specification follows. Made by Nulite New Energy (guangzhou) Co., Ltd. (9 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This High Temperature Heat Pump

• Power Source: Electric
• Power Supply: 220-240/1/50 (V/Ph/Hz)
• Heating Capacity: 7 kW
• Housing Material: Galvanized sheet
• Refrigerant: R744 (CO2)
• Warranty: 2 Years

Technical Specifications

Product Details

NULITE CO2 CE A+++ DC Inverter Heat Pump For Heating Cooling Hot Water

1. ASHP Heating Capacity: DC Inverter 7KW Inverter Heat Pump
2. Best Selling Market: Germany, Poland, Sweden, UK, France, Spain, Portugal, Czech Republic, Slovak, Austria, Switzerland,Ukraine, Russia, Macedonia, Kosovo, Serbia, BIH, Croatia, Slovenia, Italy, US, Canada, South Korea, Israel, Australia, New Zealand, Chile,Jordan, Romania, Bulgaria, Turkey, Lithuania, Estonia, Finland, Norway, Iceland, Ireland, Netherlands, Denmark.
3. Ambient Temp of Using: Minus 35C, max 100C Hot Water Output
4. Certificate: ISO9001, CE, CB, EMC, MSDS, Scop, erP Energy Label, ROHS
5. *Panasoni* dual-rotor Compressor for BKDX DC Inverter Heat Pump Series
6. All in One Heat Pump Design, 3HP, 4HP, 5HP with built in water pump, expansion tank and dc inverter brushless fan motor. Low Noise less than 55dB.

Specification

Model	NL-J2BKK/CO2
Rated heating capacity (A20W55)	7KW
Rated heating capacity (A20W90)	6.94KW
Power consumption	1~3KW
Voltage	220V~50HZ/60HZ
Rated outlte water temperature	Hot water: 55~60C / heating:40～45C / cooling:10～12C
Max water temperature	100°C
Rated water flow	0.143m³/h
Refrigerant	R744(CO2)
Control mode	Microcomputer central processor (linear control)&WIFI APP
Compressor	Mitsubishj Inverter Compressor
Ambient temperature	(-35℃ — 43℃)
Inlet and outlet pipe size	DN20
Packing size	1090*510*1099mm

Features&Advantages

One NULITE CO2 DC Inverter Heat Pump Meet All demands

Five Function Mode:

Floor heating/radiator heating/fan coil heating+DHW

Floor heating/radiator heating

Fan coil cooling+DHW
Fan coil cooling

DHW

Highly Integrated Design (Built in expansin tank, circulating pump, auxiliary heater)

Expansion tank: 5L expansion tank for 10KW 15.5KW, 5L expansion tank for 20KW 22KW 30KW 40KW.

Circulating Pump: SHIMGE

Auxiliary Electric Heater: To shorten heating time when its necessary.

Fashion Touching Control Panel, can support wifi APP control

Fashion Touching Screen control panel, can support wifi control,timer.

RS485 communication function.

With Erp Certificate.

Under testing condition: A7W35, the energy efficiency grade is A+++/A++, SCOP is around 4.6.

Under testing condition: A7W55, the energy efficiency grade is A++/A+, SCOP is around 3.5.

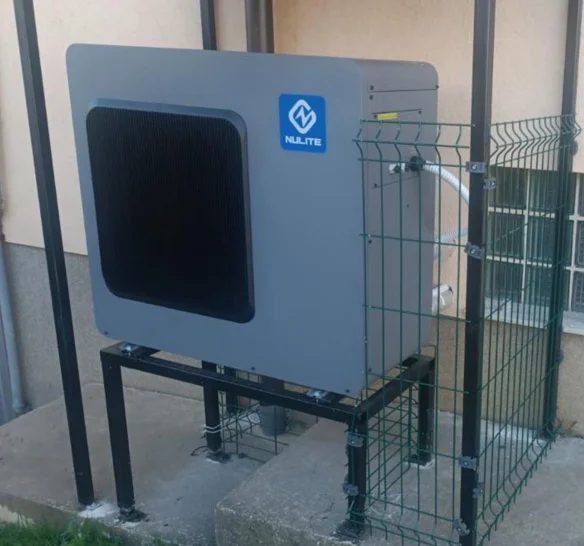

Installation & Application

Customers Feedback

Related Products

Company Profile

NuLite New Energy (Guangzhou) Co.,Ltd.

Guangzhou NuLite New Energy Group, located in Guangzhou City, is the China-Singapore Joint Venture established in 2003, with three main modern manufacturing factories covering 580,000 square meters, 1,200,000 units of production ability, and over 1,500 employees.NuLite New Energy, as one of the largest air source heat pump manufacturers in China, owns three famous brands, while NuLite brand is fully committed to exporting services to overseas markets.

With strong R&D engineers and heat pump experts from Singapore Nanyang Technological University, is dedicated to supplying high-efficiency energy-saving solutions for household & commercial applications. NuLite New Energy has developed advanced & unique technology and takes the leads in Floor Heating EVI & Inverter Heat Pump, Swim Pool Heat Pump, Central Hot Water Heat Pump, Fan Coil Unit, and Geothermal Heat Pump applying our technologies to contribute to society and daily life, and acting one of the important roles of blue sky protector.

Our quality management system was certified in conformity with ISO9001, and ISO14001 Standards, heat pumps with CE, EMC, ERP, and CB are certificated. And also with customized OEM/ODM services for distributors all over the world. Now NuLite New Energy-Brand Heat Pump has been exported to more than 100 countries, even well installed and stable used at China North & South Pole Expedition Site Kunlun Station. And we are also the 18th Indonesia Jakarta Asian Games Official Partner, providing central heating cooling & hot water solutions for the grand Asian sports competition fields.

NuLite New Energy Heat Pump, One Step Ahead of Comfort Life!

Packing& Delivery

Certifications

Our team& Clients

Customers Feedback

FAQ

1. About Nulite New Energy Heat Pump company.
We are based in Guangdong, China, start from 2017,sell to Eastern Europe(21.00%),Western Europe(19.00%),Northern Europe(15.00%),Southern Europe(10.00%),Southeast Asia(10.00%),South America(6.00%),Mid East(5.00%),South Asia(3.00%),Central America(3.00%),Eastern Asia(2.00%),North America(2.00%),Oceania(2.00%),Africa(2.00%),Domestic Market(0.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Inverter/EVI/High/Low Temp Tech | Air/water/Geothermal source | CE ERP etc.
~House heating/cooling/DHW heat pump
~ Household/Commercial heat pump
~ Pool heater heat pump
~FCU | SST Water tank (Buffer&DHW)

4. why should you buy from us not from other suppliers?
1. Top Scale Air Source Heat Pump R&D Manufacturer in China 2. 2010/2018 Asian Games Official Supplier for Central Hot Water&Swim Pool Solutions 3. EVI Heat Pump Stable Working at South Pole Since 2012 4. CE,erP,CB,CCC,TUV,RoHS,ISO9001,ISO14001 Approved

Welcome to OEM&ODM. Please feel free to contact us.Nulite, Be your right.

Ordering and Pricing

• Minimum order quantity: 2 unit
• Volume pricing:
  • 2–47 unit: US $3500 / unit
  • 48–95 unit: US $3300 / unit
  • 96+ unit: US $3100 / unit
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this high temperature heat pump?

The standard minimum order quantity is 2 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the high temperature heat pump be supplied for my local voltage?

The standard configuration is 220-240/1/50 (V/Ph/Hz). Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Nulite New Energy (guangzhou) Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Nulite New Energy (guangzhou) Co., Ltd. range on HVACR Nexus.
