Key specification for this window air conditioners: 2.5V-3.5VDC(2 AAA batteries), type Motion & Position Sensor. Everything below is reproduced from the factory data sheet. Made by Shenzhen Bester Tech Ltd (16 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of These Window Air Conditioners
- Voltage: 2.5V-3.5VDC(2 AAA batteries)
- Place Of Origin: GuangDong
- Features: Air Conditioner Motion Sensor
- Type: Motion & Position Sensor
- Mounting Type: Screwing or sticking on the wall
- Product Type: Air Conditioner Motion Sensor Controller
Technical Specifications
| Type | Motion & Position Sensor |
|---|---|
| Output | 2.5V-3.5VDC (2 AAA batteries) |
| Theory | PIR motion sensor and IR transmit |
| Usage | motion sensor for air conditioner |
| Mounting Type | Screwing or sticking on the wall |
| Manufacturer Part Number | RZ050 |
| Brand Name | Rayzeek |
| Description | Air Conditioner Motion Sensor Controller |
| Place Of Origin | GuangDong |
| Series | Air Conditioner Motion Sensor Controller |
| Features | Air Conditioner Motion Sensor |
| Product Type | Air Conditioner Motion Sensor Controller |
| Voltage | 2.5V-3.5VDC(2 AAA batteries) |
| Time Delay | options 15min, 30min, 1h(default), 2h. |
| Motion Detecting Range | 6-9M Max |
| IR Transmitting Range | <10M |
| IR Transmitting Direction | 30 degree |
| Detection Range | ≤150° |
| Mounting | Screwing or sticking on the wall |
| Size | 45 x 70 x 64 mm |
| Battery Life Time | 1 year |
| Selling Units | Single item |
| Single Package Size | 20X20X20 cm |
| Single Gross Weight | 2.000 kg |
Product Details
Products Description

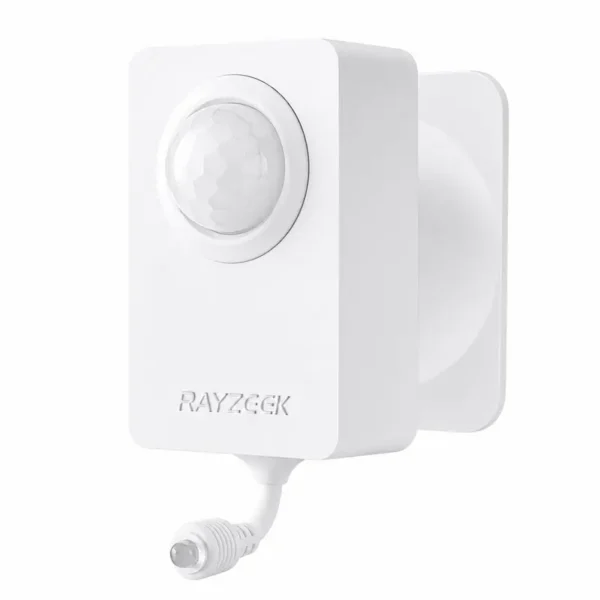

Rayzeek RZ050 wireless remote control compatible split and window AC units Air Conditioner Motion Sensor Controller
The RZ050 is an air conditioner motion sensor controller that can automatically turn off the AC left running in an unoccupied space.
The device learns the "Power OFF" command from the remote control and sends the same signal to turn off the AC when the motion sensor monitors no occupancy in the room.
The wireless & battery-powered design makes it easy for fast DIY installation, and the night mode feature ensures a long and comfortable sleep. With this device, we will never have to worry about forgetting to turn off the AC.
It also helps save energy and enjoy air conditioning without worrying about the cost.
Model | RZ050 |
Voltage | 2.5V-3.5VDC (2 AAA batteries) |
Motion Detecting range | 6-9M Max |
IR transmitting range | Same as input voltage |
IR Transmitting direction | <10M |
Time delay options | 30 degree |
Mounting | Screwing or sticking on the wall. |
Indoor use only | Indoor use only, 0~40°C, up to 90% relative humidity. |
Product size | 45 x 70 x 64 mm |
Model: RZ050
Voltage: 2.5V-3.5VDC (2 AAA batteries)
Motion Detecting range: 6-9M Max
Time delay options: 15min, 30min, 1h, 2h.
Mounting: Screwing or sticking on the wall.
KEY FEATURES
* Automatically turns off the air conditioner when the room is left empty, saving energy bills up to 20% ~ 50%.
* Compatible with most split AC units operated by remote controls.
* Night mode prevents the AC from accidentally turning off when occupants are sleeping at night.
* It’s safe to use and does not have a negative impact on your AC or interfere with any warrant or guarantee you have.
* Battery-powered with long-lasting battery life (at least 1 year).
* Wireless design for fast, easy, and flexible DIY installation by simply sticking or fixing on the wall.
* Compatible with most split AC units operated by remote controls.
* Night mode prevents the AC from accidentally turning off when occupants are sleeping at night.
* It’s safe to use and does not have a negative impact on your AC or interfere with any warrant or guarantee you have.
* Battery-powered with long-lasting battery life (at least 1 year).
* Wireless design for fast, easy, and flexible DIY installation by simply sticking or fixing on the wall.
HOW IT WORKS

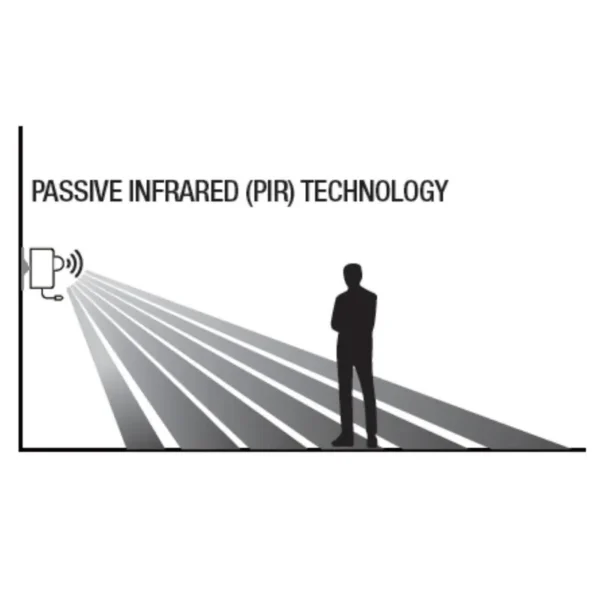

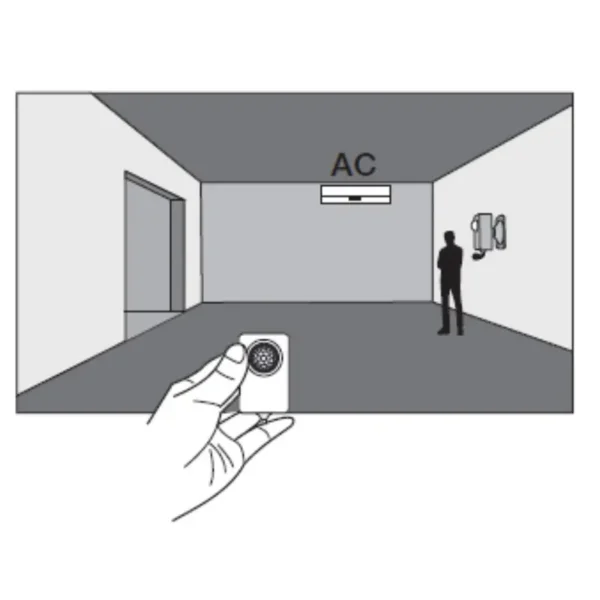

1. The RZ050 utilizes passive infrared (PIR) technology to monitor the room for occupancy. The lens will flash a red light to indicate it has detected a motion signal.
2. When the occupant has left the room and no presence is detected, RZ050 will continue to monitor the room for a preset time delay before sending the OFF signal to shut down the AC. The RZ050 will transmit two OFF commands in 2 seconds to ensure the AC is successfully powered off.
1. Turn on the air conditioner with your AC remote control.

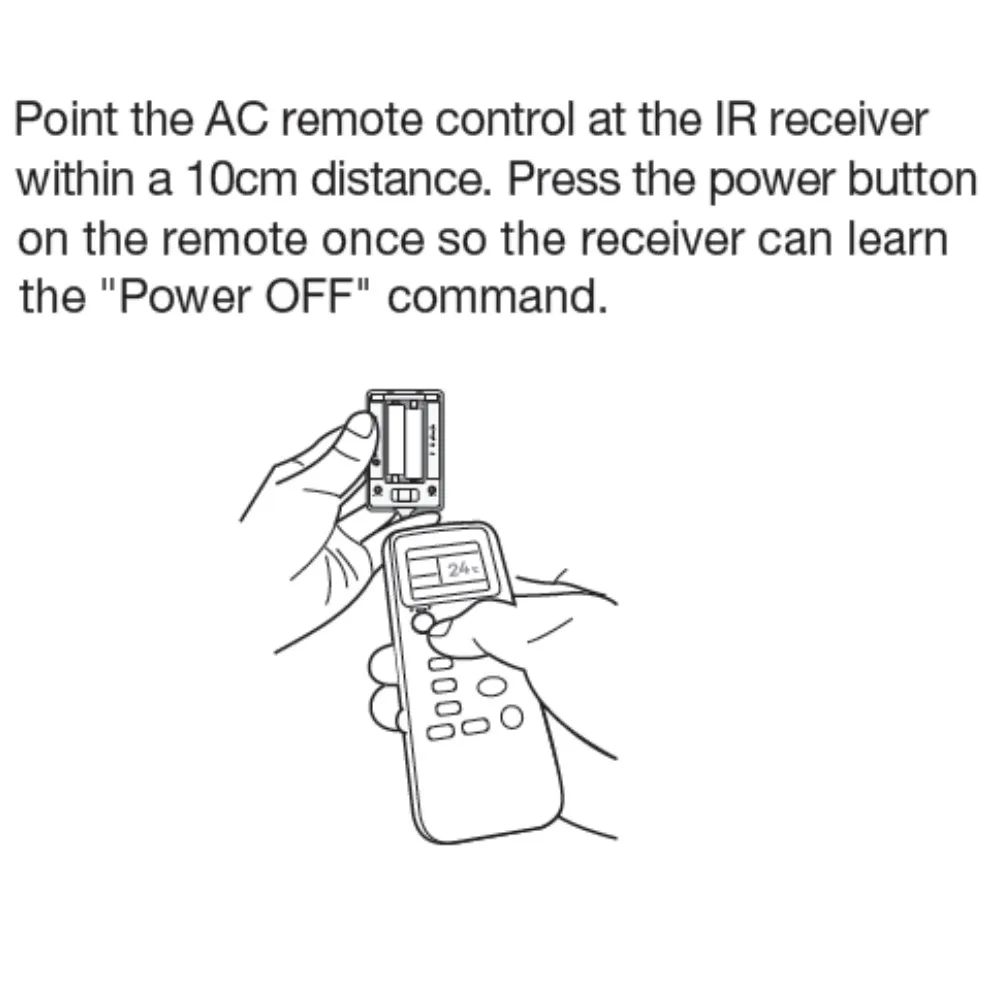

2. Point the AC remote control at the IR receiver within a 10cm distance. Press the power button on the remote once so the receiver can learn the "Power OFF" command.

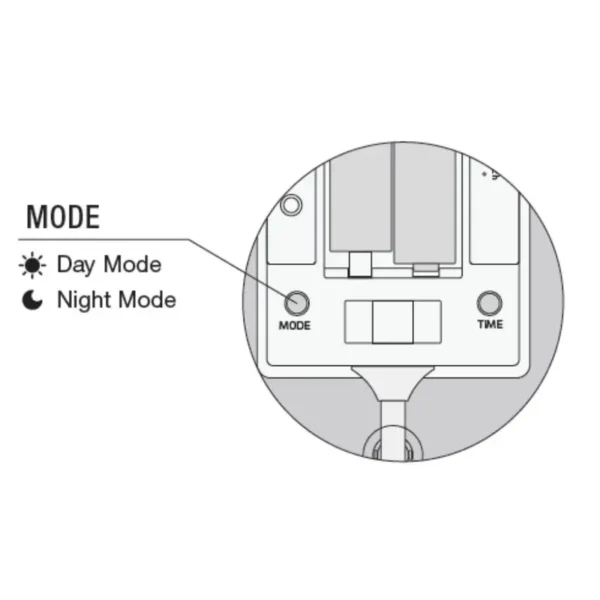

Press the Mode button to select between Day Mode and Night Mode. The corresponding indicator will light up.
*Day mode:
The RZ050 motion sensor controller will work the whole day and turn the AC off automatically if no occupancy is detected after a preset time delay.
*Night mode:
The light sensor activates and detects ambient brightness to distinguish “day” and “night”.
In "Night Mode", the RZ050 motion sensor controller will turn the AC off only during the daytime if no occupancy is detected after a preset time delay.It does not detect motion and will not turn off the AC at nighttime.
* Automatically turns off the air conditioner when the room is left empty, saving energy bills up to 20% ~ 50%.
* Compatible with most split AC units operated by remote controls.
* Wireless design for fast, easy, and flexible DIY installation by simply sticking or fixing on the wall.
* Compatible with most split AC units operated by remote controls.
* Wireless design for fast, easy, and flexible DIY installation by simply sticking or fixing on the wall.
Recommend Products
Company Profile
Shenzhen Bester Technology Ltd
Establish in 2007 in ShenZhen, doing LED components, LED lighting, Motion Sensor Switch, OEM &ODM Product service. Nowadays BESTER is one of TOP 10 professional manufactures of LED components and Motion Sensor Switch in China.
Bester has own factory, and has necessary requirement for the production steps and test steps, we call it well regulated, So we can fast & flexible for customer requirement.
Our brand is Bester and Rayzeek.

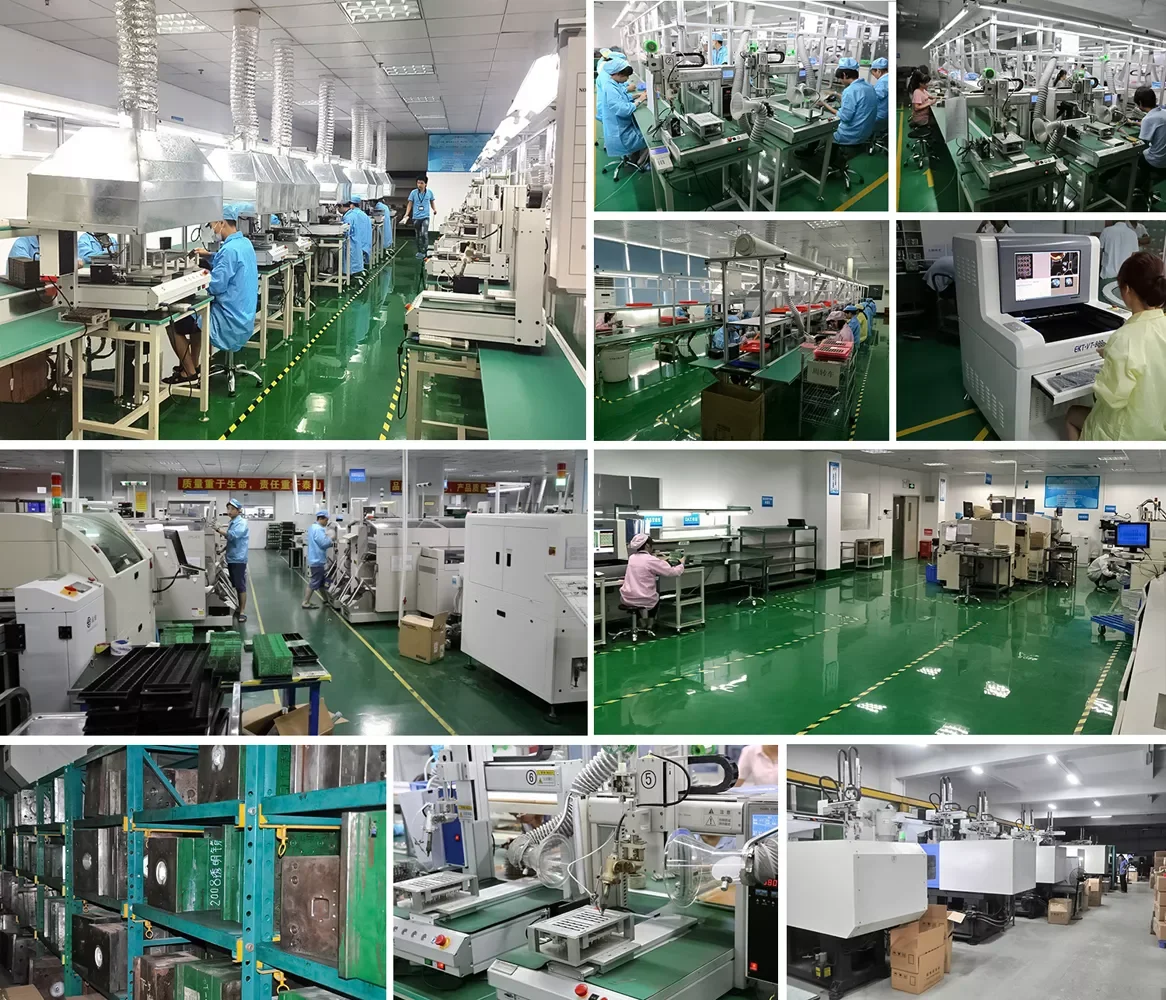

We have modern production lines with more than 200 professional workers, their rich experience of making products ensure efficiency and stability .
