Lighting and fan — 24 V, 100 W. The complete factory specification follows. For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Lighting And Fan
- Model Number: TDL-2032
- Power: 100 W
- Power-Up: 1-minute warm-up (no load control during warm-up)
- Power Source: 100 VAC ~ 265 VAC
- Power Frequency: 50 / 60 Hz
- Rated Voltage: 24 V
Technical Specifications
| Type | Motion Sensor |
|---|---|
| Rated Voltage | 24 V |
| Sensing Range | 8 m ~ 12 m (<27℃) |
| IP Level | IP23 |
| Material | ABS |
| Whether The Smart | Yes |
| Power | 100 W |
| Application | Corridor, Hotel |
| Model Number | TDL-2032 |
| Place Of Origin | Guangdong, China |
| Brand Name | rayzeek |
| Sensor Mode | Occupancy mode; occupancy without light sensor (Lux OFF) |
| Time-Delay | 15 s, 30 s, 1 min (default), 3 min, 5 min, 10 min, 30 min |
| Light Sensor | Off, 15 Lux, 25 Lux (default), 35 Lux |
| Sensor Sensitivity | Low Sensitivity, High Sensitivity |
| Power-Up | 1-minute warm-up (no load control during warm-up) |
| Power Source | 100 VAC ~ 265 VAC |
| Power Frequency | 50 / 60 Hz |
| Installation Height | 2.5 m ~ 3.5 m |
| Working Humidity | < 93% RH |
| Working Temperature | -10 ~ +40℃ |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
- Passive infrared with micr ocontroller for stable, accurate detection

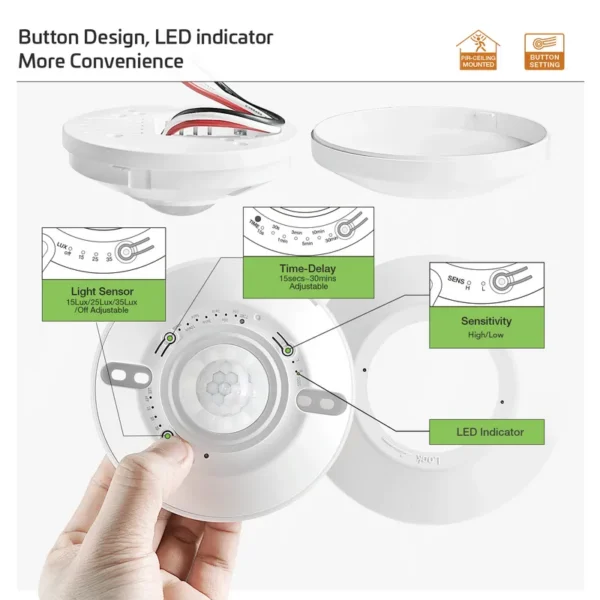

- Adjustable time delay, Lux level, and sensitivity
- 360° celling mounted coverage with 8-12 m detect diameter
- neutral wire require
- 100-265 VAC wide voltage input.
Sensor Mode | Occupancy mode; occupancy without light sensor (Lux OFF) |
Time-Delay | 15 s, 30 s, 1 min (default), 3 min, 5 min, 10 min, 30 min |
Light Sensor | Off, 15 Lux, 25 Lux (default), 35 Lux |
Sensor Sensitivity | Low Sensitivity, High Sensitivity |
Power-Up | 1-minute warm-up (no load control during warm-up) |
Power Source | 100 VAC ~ 265 VAC |
Power Frequency | 50 / 60 Hz |
Detection Range | 360° |
Detection Speed | 0.6 ~ 1.5 m/s |

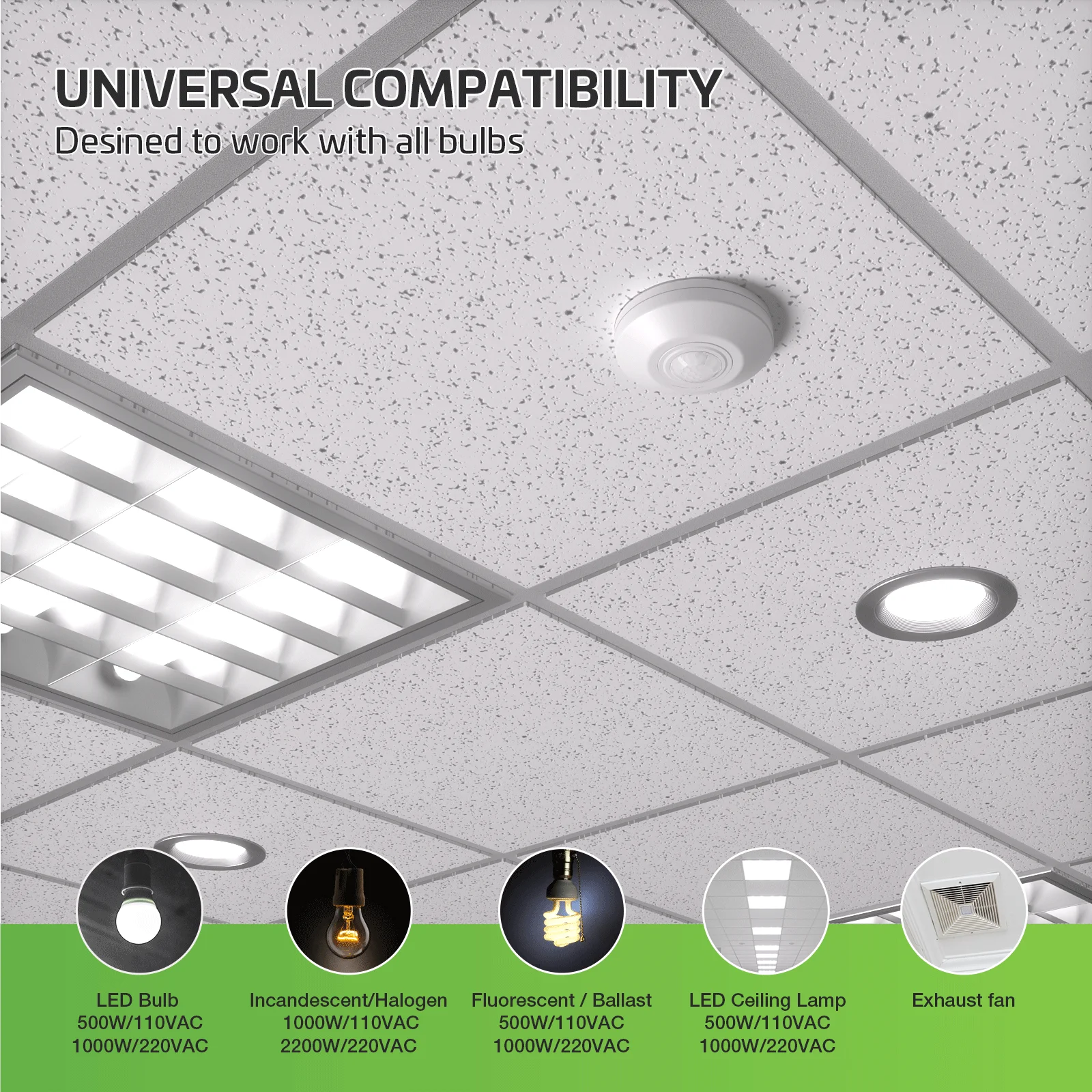

Fluorescent / Ballast / LED | 500 W / 110 VAC; 1000 W / 220 VAC |
Incandescent / Halogen | 1000 W / 110 VAC; 2200 W / 220 VAC |
Installation Height | 2.5 m ~ 3.5 m |
Working Humidity | < 93% RH |
Working Temperature | -10 ~ +40℃ |
Detection Diameter | 8 m ~ 12 m (<27℃) |
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–19 piece: US $15.3 / piece
- 20–99 piece: US $15.1 / piece
- 100+ piece: US $14.6 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this lighting and fan?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Can the lighting and fan be supplied for my local voltage?
The standard configuration is 24 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Bester Tech Ltd, based in China. The company 16 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Bester Tech Ltd range on HVACR Nexus.
