Ningbo Xieli International Trade lists this xinyuan spray tower with its own published specification, unedited. Supplier profile: 3 years on the platform. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Xinyuan Spray Tower
- Warranty: 1 Year
- Warranty Of Core Components: 1 Year
- Place Of Origin: Zhejiang, China
- Application: Industry Gas Filter
- Marketing Type: New Product 2020
- Single Package Size: 190X95X228 cm
Technical Specifications
| Core Components | Pump, Engine, Motor, PLC |
|---|---|
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Warranty | 1 Year |
| Purify Efficiency | >95% |
| Weight (Kg) | 460 |
| Place Of Origin | Zhejiang, China |
| Condition | New |
| Applicable Industries | Manufacturing Plant |
| Showroom Location | None |
| Marketing Type | New Product 2020 |
| Warranty Of Core Components | 1 Year |
| Product Name | Air Wet Scrubber |
| Application | Industry Gas Filter |
| Usage | Waste Gas Equipment |
| Function | Fume Filter |
| Selling Units | Single item |
| Single Package Size | 190X95X228 cm |
| Single Gross Weight | 470.000 kg |
Product Details
Product Overview

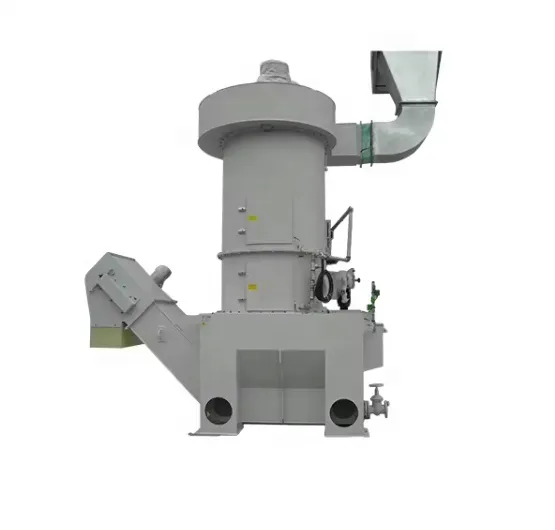

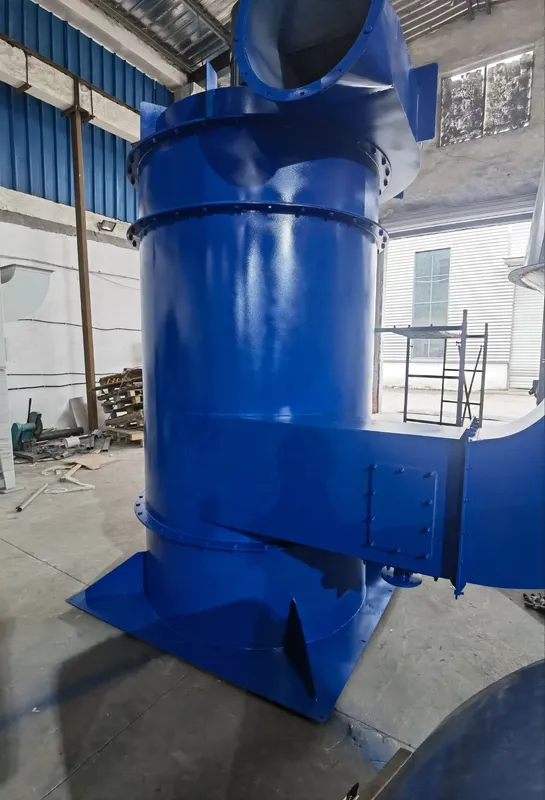

The VPC series efficient Venturi scrubber
This Mini Excavator delivers power and performance in a compact size to help you work in the tightest applications. Its ability to fit through a narrow doorway makes it an excellent machine for indoor demolition work.
The VPC series efficient Venturi scrubber ingeniously utilizes the kinetic energy of gas-liquid two-phase flow and the different proportions of mass flow to form an appropriate gas-liquid mixing degree to complete different tasks.

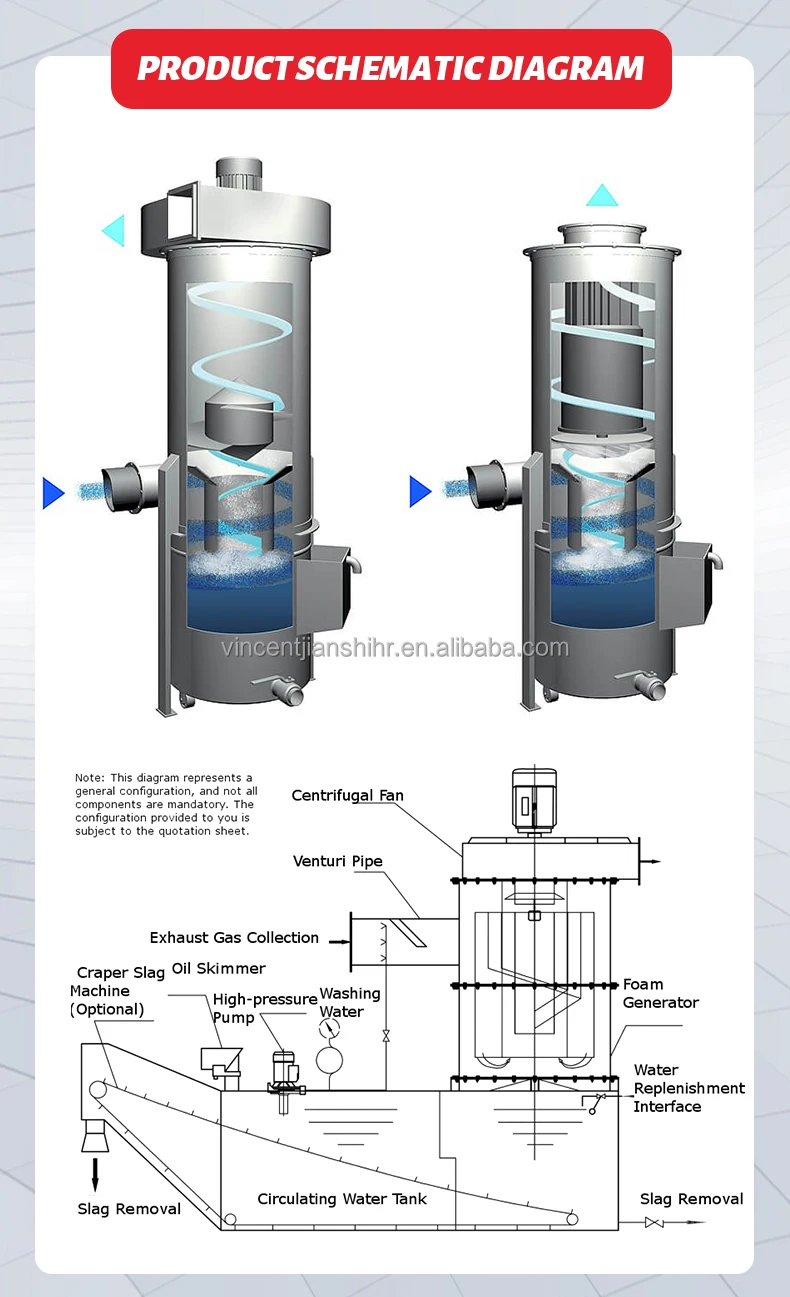

Gas flow: The gas flow carrying harmful substances (dust/smoke) rapidly and fully mixes with fine mist droplets at the venturi throat, forming supersaturated steam. After leaving the venturi throat, the supersaturated steam quickly condenses into large droplets with particles as condensation nuclei. Then, the gas flow rapidly rotates to flush the water surface and form a dense liquid curtain barrier to capture dust for a second time. After that, the gas flow rotates upwards, and the particles carried by the gas are separated from the gas and mixed into the water due to inertia and centrifugal force, while the purified gas is pressurized by a fan and discharged into the atmosphere through the chimney.
Water washing process: The circulating water enters the venturi throat and becomes the dispersed phase, which enters the rear separator with the gas flow and condenses again into continuous phase fluid, carrying impurities such as dust and oil droplets along the inner wall of the device into the circulating water tank. The wastewater goes through graded filtration and precipitation, with light particles floating on the water surface and heavy particles settling at the bottom of the tank. The floating sludge and sediment are periodically scraped to the discharge outlet by a sludge scraper or a float scum scraper(optional), and finally, these pollutants are manually transported to specific disposal sites.
Gas flow: The gas flow carrying harmful substances (dust/smoke) rapidly and fully mixes with fine mist droplets at the venturi throat, forming supersaturated steam. After leaving the venturi throat, the supersaturated steam quickly condenses into large droplets with particles as condensation nuclei. Then, the gas flow rapidly rotates to flush the water surface and form a dense liquid curtain barrier to capture dust for a second time. After that, the gas flow rotates upwards, and the particles carried by the gas are separated from the gas and mixed into the water due to inertia and centrifugal force, while the purified gas is pressurized by a fan and discharged into the atmosphere through the chimney.
Water washing process: The circulating water enters the venturi throat and becomes the dispersed phase, which enters the rear separator with the gas flow and condenses again into continuous phase fluid, carrying impurities such as dust and oil droplets along the inner wall of the device into the circulating water tank. The wastewater goes through graded filtration and precipitation, with light particles floating on the water surface and heavy particles settling at the bottom of the tank. The floating sludge and sediment are periodically scraped to the discharge outlet by a sludge scraper or a float scum scraper(optional), and finally, these pollutants are manually transported to specific disposal sites.
FEATURES AT A GLANCE
High separation efficiency
Suitable for high-temperature flue gas purification
Suitable for wet gas
and viscous dust
Can remove certain water-soluble waste gas Simple, stable, and extremely easy to maintain
Safe handling of
flammable and explosive dust
Integrated dust removal and desulfurization/dedusting
No secondary dust emission
Strong versatility
Suitable for high-temperature flue gas purification
Suitable for wet gas
and viscous dust
Can remove certain water-soluble waste gas Simple, stable, and extremely easy to maintain
Safe handling of
flammable and explosive dust
Integrated dust removal and desulfurization/dedusting
No secondary dust emission
Strong versatility
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Model | VPC-SMA-210V01 |
2 | Power supply | 380/50HZ 220V/50HZ |
3 | Driving power | 4KW |
4 | Gas Flow Rate | 537m3/h |
5 | Purification Efficiency | 97% |
6 | Available Negative Pressure | 800Pa or Further Negotiation |
7 | Temperature Limitation | <304 degree |
8 | weight without water | 460KG |
FAQ
Q1：What is application scenarios of venturi scrubber?
A1: Furnace flue gas – metallurgical furnaces, boiler flue gas, lime kilns, glass furnaces, enamel furnaces, ceramic kilns, etc.
Rock and soil dust – mining, crushing and screening, cement usage, clay, surface treatment of building materials, mixing
stations,etc.
Viscous powder – pharmaceutical processing, animal feed, spray painting, printing, color master batch. Machining dust – turning, milling, planing, sawing, forging, grinding, polishing, sandblasting.
Steam and oil mist – cleaning machines, die-casting, rolling mills, grinding machines, pickling, electroplating, heat treatment, etc.
Flammable and explosive dust – grinding and polishing of magnesium/aluminum products, fireworks production, grain processing, brake testing platforms.
Rubber/plastic/leather dust – shoe manufacturing, tire production, plastic processing, leather polishing, extrusion molding.
Fiber/flock dust – polishing, textile industry, fabric post-processing, insulation material production, insulation material
production.

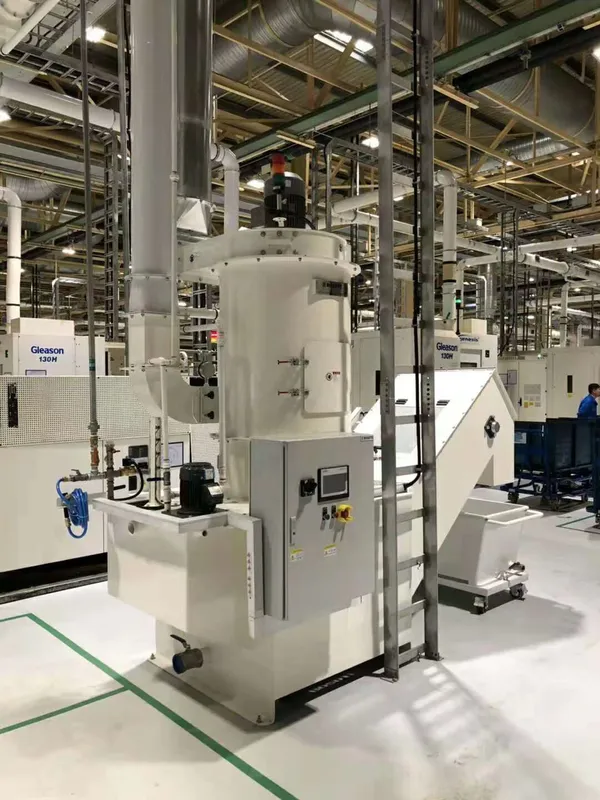

Q2: What is the characteristic of the VPC-SMA unit?

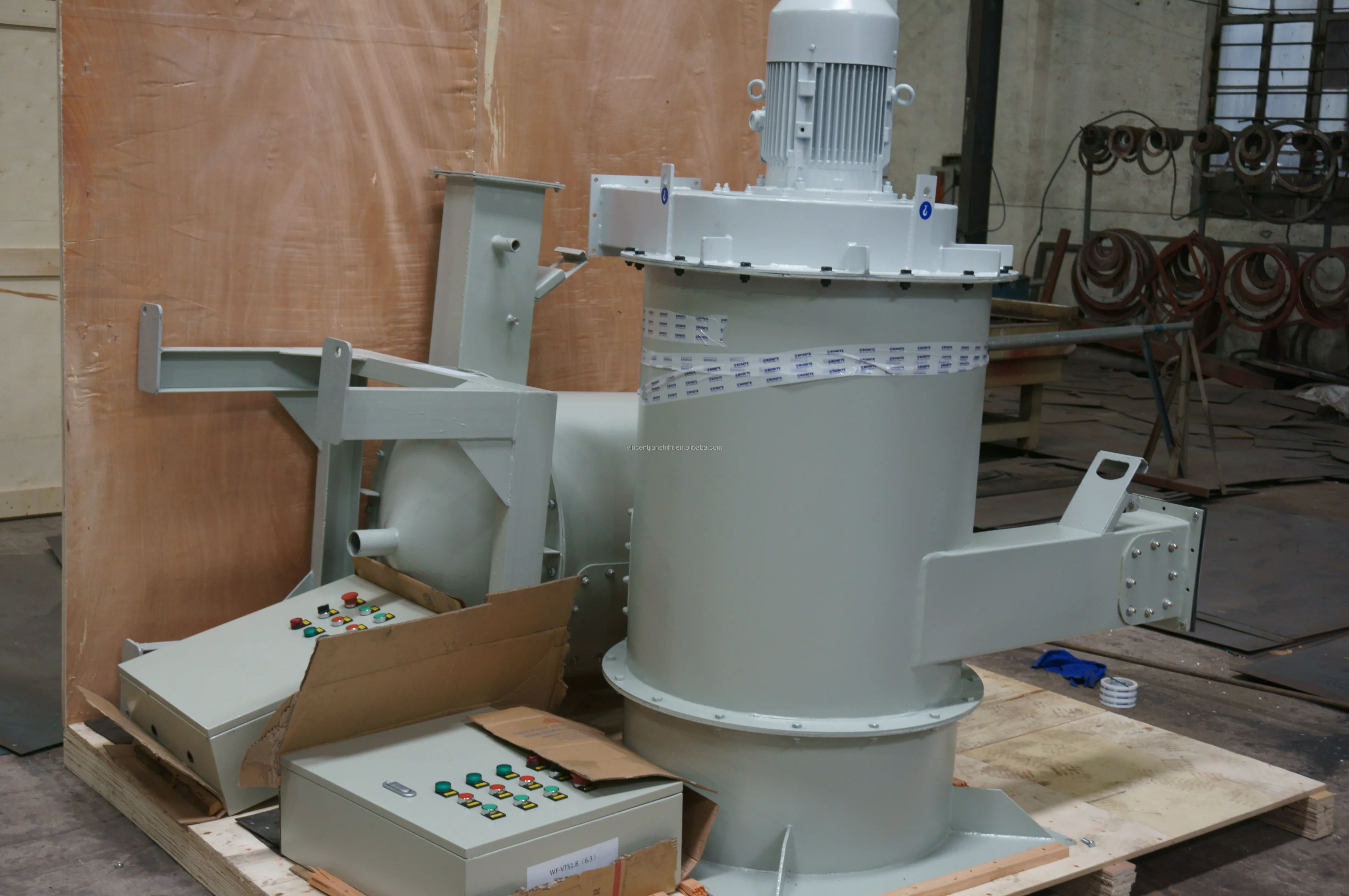

A2: The characteristic of the VPC-SMA unit is that the fan is integrated at the top of the equipment, all components are
pre-assembled and factory-tested, and customers only need to connect the power and water to start using it.

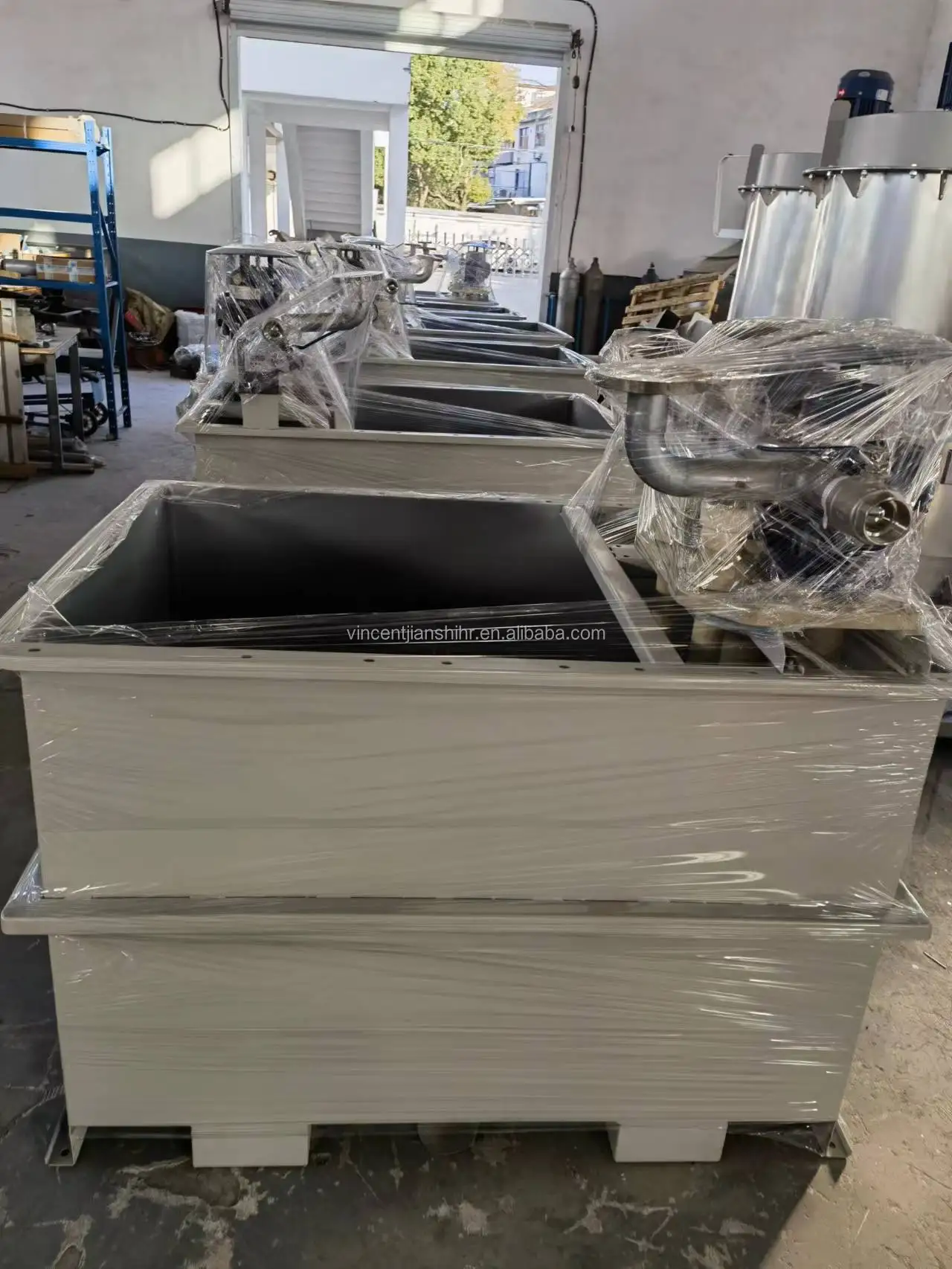

The Venturi nozzles of the i unit are connected to the clean water tank through a water pump, while pollutants are discharged from the bottom of the separator into the sewage tank. The sewage tank can be designed as a movable unit, making it convenient for cleaning sediment and wastewater treatment. The clean water tank is equipped with liquid level monitoring and an automatic replenishment system for fresh water.
Q3: How is the quality of your dust collectors?
A3: Our dust collectors are known for providing excellent filtration efficiency and reliable performance. We use high-quality
materials and advanced technology to manufacture our dust collectors, ensuring their quality. In addition, we have strict quality control procedures to inspect and test each product to meet high standards. Overall, our dust collectors are trustworthy in terms of quality.
Q4: How is the after-sales service for your Industrial dust removal equipment？
A4: We provide one-year warranty period to ensure that customers receive continuous support and satisfactory user experience after purchasing our Industrial dust removal equipment. Our after-sales team will respond promptly to customer inquiries and provide technical services.
Rock and soil dust – mining, crushing and screening, cement usage, clay, surface treatment of building materials, mixing
stations,etc.
Viscous powder – pharmaceutical processing, animal feed, spray painting, printing, color master batch. Machining dust – turning, milling, planing, sawing, forging, grinding, polishing, sandblasting.
Steam and oil mist – cleaning machines, die-casting, rolling mills, grinding machines, pickling, electroplating, heat treatment, etc.
Flammable and explosive dust – grinding and polishing of magnesium/aluminum products, fireworks production, grain processing, brake testing platforms.
Rubber/plastic/leather dust – shoe manufacturing, tire production, plastic processing, leather polishing, extrusion molding.
Fiber/flock dust – polishing, textile industry, fabric post-processing, insulation material production, insulation material
production.
Q2: What is the characteristic of the VPC-SMA unit?
A2: The characteristic of the VPC-SMA unit is that the fan is integrated at the top of the equipment, all components are
pre-assembled and factory-tested, and customers only need to connect the power and water to start using it.
The Venturi nozzles of the i unit are connected to the clean water tank through a water pump, while pollutants are discharged from the bottom of the separator into the sewage tank. The sewage tank can be designed as a movable unit, making it convenient for cleaning sediment and wastewater treatment. The clean water tank is equipped with liquid level monitoring and an automatic replenishment system for fresh water.
Q3: How is the quality of your dust collectors?
A3: Our dust collectors are known for providing excellent filtration efficiency and reliable performance. We use high-quality
materials and advanced technology to manufacture our dust collectors, ensuring their quality. In addition, we have strict quality control procedures to inspect and test each product to meet high standards. Overall, our dust collectors are trustworthy in terms of quality.
Q4: How is the after-sales service for your Industrial dust removal equipment？
A4: We provide one-year warranty period to ensure that customers receive continuous support and satisfactory user experience after purchasing our Industrial dust removal equipment. Our after-sales team will respond promptly to customer inquiries and provide technical services.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1+ unit: US $4150 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this xinyuan spray tower?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ningbo Xieli International Trade Co., Ltd., based in China. The company 3 years as a verified Alibaba.com supplier, Trading Company. Browse the full Ningbo Xieli International Trade Co., Ltd. range on HVACR Nexus.
