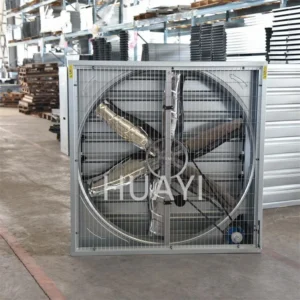

Mounted Workshop Exhaust Fan, 1380mm, Wall

Key specification for this mounted workshop exhaust fan: 380V,220V,230V,415V or as your request, air flow 18000-50000m3/h. Everything below is reproduced from the factory data sheet. Made by Qingzhou Huayi Temperature Control Equipment Co., Ltd. (5 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Mounted Workshop Exhaust Fan

• Model Number: HYT-1380
• Power Source: Electric
• Voltage: 380V,220V,230V,415V or as your request
• Air Flow: 18000-50000m3/h
• Material: Stainless Steel
• Blade Material: Stainless Steel

Technical Specifications

Product Details

Product Description

1380mm Industrial Wall Mounted Workshop Exhaust Fan air Cooling Fan for Poultry Farm Greenhouse Agriculture Chicken Dairy Pig

Model	Blade (mm)	Blade (rpm)	Moter (rpm)	Airflow (M3/h)	Power (W)	Size (mm)
HYL-800	710	660	1400	25000	370	800*800*450
HYL-1000	900	610	1400	33000	550	1000*1000*450
HYL-1100	1000	600	1400	35500	750	1100*1100*450
HYL-1220	1100	460	1400	38000	1100	1220*1220*450
HYL-1380	1270	439	1400	44000	1100	1380*1380*450
HYL-1530	1400	325	1400	56800	1500	1530*1530*450

Details Images

Push-pull alumium wheel

Material: High strength aluminum-magnesium alloy by die-casting. Blast-sanding treatment, eliminate internal stress to improve its own rigidity and stability Advantage: Light weight, Low vibration ,attractive appearance

Fan blade

The material of the blade is Krupp stainless steel, thickness 1.2mm. Large air flow, no deformation, no fracture, no dust, attractive and durable.Note: Blade material also have galvanized sheet, aluminum alloy for option.

Bearing

Imported double-row bearing with special waterproof design.Advantage: High strength, low noise, free maintenance and long service
life.

Centrifugal system

Material: High quality Nylon PA66 Guide Rod: 304 stainless steel with special material outside, high strength, no rust, reduce friction.Advantage:It can keep the shutters open at complete 90 degree to ensure the lowest air resistantce and biggest air
volume.

Motor

100% pure copper wire, high efficiency and energy saving .Motor Protection Grade: IP55 Insulation Class: F grade. Motor voltage and frequency can be customized.Both Chinese famous motor and Siemens motor are available

Case Display

Fan installation drawing

1. Adjust the horizontal and vertical , keeping the fan blade running smoothly

2. After fixing the fan, the remaining gap need to be sealed

3. The Expansion screws and Self tapping screw can be used to fix .

28,36, 40,44,50,56inch 1380 1530mm Industrial exhaust fan for poultry/greenhouse ventilation exhaust fan

Agriculture use

garden greenhouse,fruit vegetable greenhouse,agricultural greenhouse

Poultry use

chicken house, poultry house, bird house, cow house

Industrial use

Industrial workshop, warhouse etc for clear and cooling air

Company Information

HUA YI Temperature Control Equipment Co., Ltd. is a company specializing in the design and development of temperature control equipment. We are committed to the scientific and technological development of ventilation and refrigeration equipment, heating equipment and livestock machinery. We produce six series of "Huayi" brand products with more than 20 specifications, including evaporative cooling pads, poultry and greenhouse exhaust fans, circulating fans,axial flow fans, heaters,water coolers,etc.which are widely used in agriculture, greenhouse, animal husbandry and other industries. Huayi has a professional international trade team, complete testing equipment and strong technical advantages, integrating R&D, production, sales and maintenance services. At the same time, we provide OEM or ODM services for customers.Huayi has laid the foundation for cooperation with customers with excellent products, low prices and considerate services. The series of products have served all walks of life in the world, and have been exported to Asia, Africa, North America, including the United States, India, Vietnam, the Philippines,Thailand and other countries. We will recommend our best products to more countries and develop more distributors in many countries around the world.We are honored to with more international friends develop our glorious business.

Long Standing History

15 years' OEM experience of

industrial exhaust fans, over 200 skilled employees.

Complete Product Line

95% of the fan parts are produced in our own facility, we handle from coil sliding and folding, laser welding, CNC machining and assembly to ensure high precision of each part and higher performance of the exhaust

Fully Customizable

Full customization on voltage, materials, dimensions, design and private labeling to meet your unique request.

Most Complete Fan Sizes

15years' OEM experience of industrial exhaust fans. Exhaust fans sizes range from 400mm to 1530mm, ventilation capacity ranges
from 1000CFM to 40000CFM.

Fast Delivery

The production efficiency is high. Our daily output is 1000 pieces. Most of our customers can deliver within 7 days, and some can
deliver within one day or three days.

Well Equipped

Equipped with over 50 automatic machines and 10 production lines, lower product cost for our customers.

Transportation packaging

FAQ

Q1. Are you a factory or trading company?

A1:We are a professional and acomprehensive poultry farm equpment supplier integrating R&D, production and sales founded on 2015.OEM and ODM are welcomed.

Q2. What payment methods do you accept?

A2:We accept T/T,Paypal, LC,Western Union and we will try our best to meet your needs If you have special requirements.

Q3:What about the delivery time?

A3: Usually for sample order 3-5 days, for mass order 15-20 days,but If you need it urgently, it can be completed within 15 days after receiving your payment.

Q4:Do you provide free sample?

A4:Yes, we can provide free sample . You only need to take the express fee. If you are satisfied with our samples and order
again,we will return the last sample freight.

Q5.May I visit your factory?

A5:Sure, welcome any time. We can also pick you up at airport and station. We welcome partners both at home and abroad contact and visit us.

Ordering and Pricing

• Minimum order quantity: 5 set
• Volume pricing:
  • 5–99 set: US $110 / set
  • 100+ set: US $75 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this mounted workshop exhaust fan?

The standard minimum order quantity is 5 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this mounted workshop exhaust fan carry?

It is supplied with CE/RoHS/ISO9001/CCC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the mounted workshop exhaust fan be supplied for my local voltage?

The standard configuration is 380V,220V,230V,415V or as your request. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Qingzhou Huayi Temperature Control Equipment Co., Ltd., based in China. The company 5 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Qingzhou Huayi Temperature Control Equipment Co., Ltd. range on HVACR Nexus.
