The evaporative air cooler listed here carries 220V 380v 415v or customized, cooling capacity: 120~150m2, 200m2,250m2, documented exactly as the manufacturer publishes it. Made by Qingzhou Gongle Electric Fan Co., Ltd. (18 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Evaporative Air Cooler
- Power:: 1.1/ 1.5/2.2/3/4/5Kw
- Voltage:: 220V 380v 415v or customized
- Cooling Capacity:: 120~150m2, 200m2,250m2
- Airflow:: 18000m3/h, 18000/ 25000/ 30000/40000/50000m3/h
- Material:: PP
- Warranty: 1 Year
Technical Specifications
| Type | EVAPORATIVE AIR COOLER |
|---|---|
| Mounting Type | Wall / Window Mount |
| Compressor Brand | no |
| Fan Motors Type | AC |
| Key Selling Points | Automatic |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, Engine |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 65 |
| Brand Name | Gongle |
| Dimension(L*W*H) | 115*115*95CM(45.28*45.28*37.40in) |
| Type: | EVAPORATIVE AIR COOLER |
| Material: | PP |
| Mounting: | Wall / Window/ roof / free standing with wheel |
| Cooling Pad: | four sides,7090 or 5090 cooling pad |
| Voltage: | 220V 380v 415v or customized |
| Motor: | 100% Copper Core Winding |
| Power: | 1.1/ 1.5/2.2/3/4/5Kw |
| Airflow: | 18000m3/h, 18000/ 25000/ 30000/40000/50000m3/h |
| Working Temperature Range: | 20-37 celsius degree |
| Cooling Capacity: | 120~150m2, 200m2,250m2 |
| Selling Units | Single item |
| Single Package Size | 115X115X95 cm |
| Single Gross Weight | 55.0 kg |
Product Details
Specifications | Model GL-18000 | Model GL-25000 | Model GL-30000 |
Air capacity | 18000m3/h | 25000m3/h | 30000m3/h |
Covering area | 120-150m2 | 150-500m2 | 150-200m2 |
Fan type | Axial fan | Axial fan | Axial fan |
Motor | 1.1/1.5kw | 2.2kw | 3kw |
Voltage | 380/220v,50hz | 380v,50hz | 380v,50hz |
Noise level | <71dB | <75db | <75db |
Evaporative efficiency | 85-90% | 85-90% | 85-90% |
Water consumption | 10-15L/H | 10-15L/H | 40L/H |
Unit weight | 52kg | 80kg | 120kg |
Cooling pad | 5090/7090 | 5090/7090 | 5090/7090 |
Duct size | 670*670mm | 670*670mm | 800*800mm |
Frame dimension | 1100*1100*950mm | 1150*1150*1150mm | 1250*1250*1250mm |
Guarantee | 1 year | 1 year | 1 year |

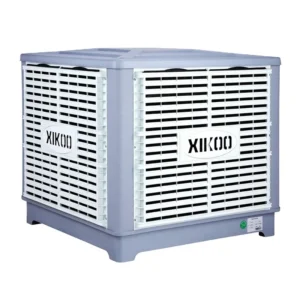

Chinese big volume industrial evaporative air cooler
Spare parts specifications of Chinese big volume industrial evaporative air cooler
1) Shell: high quality engineering plastic PP,corrosion resistance,with long service life,
2)Motor: Professional design for air cooler, high efficiency, low noise, big power, Chassis adopts tensile aluminum, light weight, heat faster.
folding and corrosion.
4)Cooling Pad:7090 or 5090 model or with one side balck coated ,the Swedish technology manufacturing, blisters, not deformation, evaporation temperature effect is obvious, at the same time produce a large number of negative oxygen ions, effective increase the oxygen in the air.
5)Water Pump: Exclusive used water pump for air cooler, long life, large water quantity , super-quiet operation, energy saving efficiency
6)Drain Valve: can be with hand control or automatic drain valve, can exclude the water from the tank automatically, get good cleaning effect.
Details of Chinese big volume industrial evaporative air cooler
The installation of the air cooler for up down and side discharge |
Widely application of Chinese big volume industrial evaporative air cooler
1)Any Industrial (Texitle, Garment, Plastic, Ceramic etc).
2)Commercial (shopping mall, restaurant, parties etc).
3)House, villas, office ect.
4)Coporation countries: South Africa ,Algeria ,Philippines ,Thailand, Australia, Brazil ,Romania, Cyprus, Africa, Middle East ,etc .
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–99 set: US $118 / set
- 100+ set: US $95 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this evaporative air cooler?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the evaporative air cooler be supplied for my local voltage?
The standard configuration is 220V 380v 415v or customized. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Qingzhou Gongle Electric Fan Co., Ltd., based in China. The company 18 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Qingzhou Gongle Electric Fan Co., Ltd. range on HVACR Nexus.
