Poultry heater — voltage 220-240, material Stainless Steel. The complete factory specification follows. Quantity and destination market determine the final price — tell us both for a firm quote.

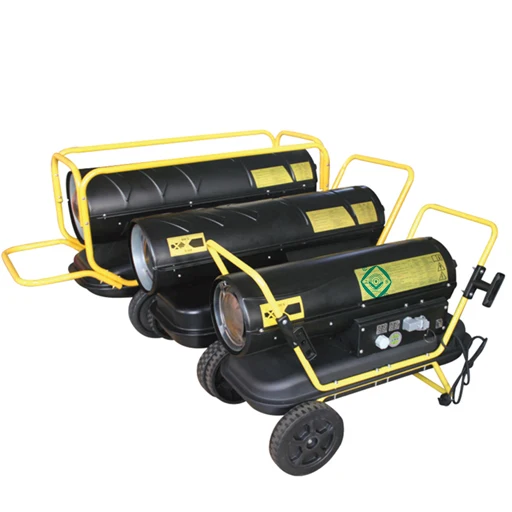

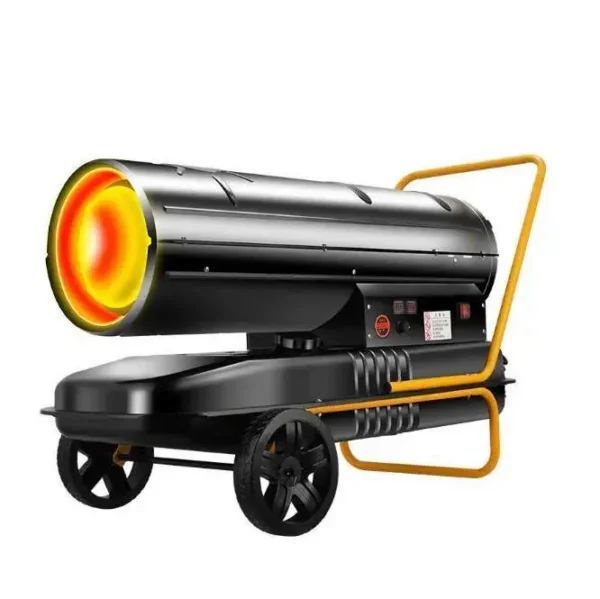

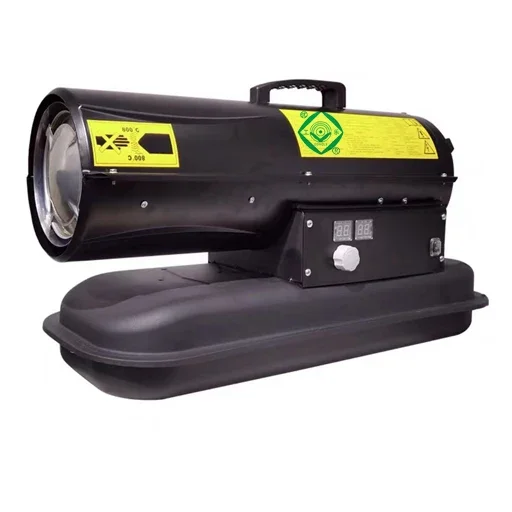

This poultry heater is listed with the manufacturer’s full published specification — voltage 220-240, material Stainless Steel, type diesel / kerosene. It is produced by Qingzhou Gongle Electric Fan Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Poultry Heater
- Model Number: GLH
- Voltage: 220-240
- Material: Stainless Steel
- Warranty: 1 Year
- Place Of Origin: Shandong, China

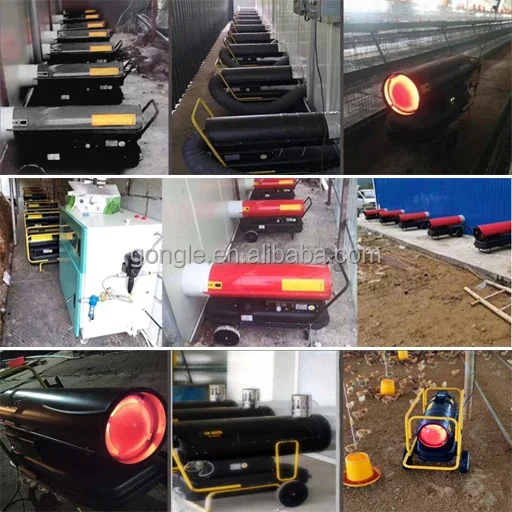

- Application: poultry house, greenhouse
Technical Specifications
| Condition | New |
|---|---|
| Warranty | 1 Year |
| Model Number | GLH |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 30 |
| Brand Name | Gongle |

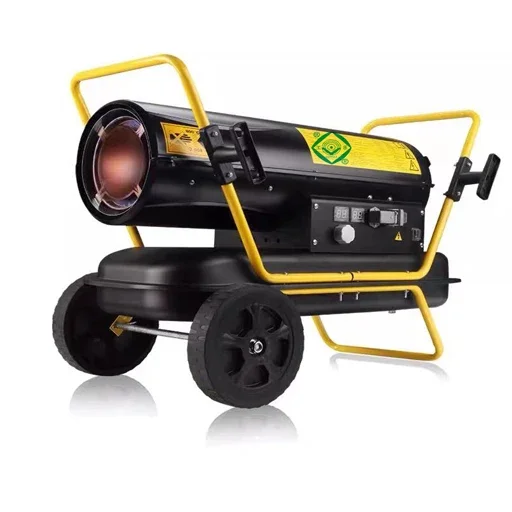

| Product Name | diesel burning hot air heater |
| Application | poultry house, greenhouse |
| Material | Stainless Steel |
| Color | black/ red |
| Type | diesel / kerosene |
| Size | 1050*490*615MM |
| Voltage | 220-240 |
| Working Temperature Range | -5 – 55 ℃ |
| Work | Low pressure atomization,combustion completely |
| Keywords | air heater |
| Selling Units | Single item |
| Single Package Size | 105X49X61.5 cm |
| Single Gross Weight | 28.0 kg |

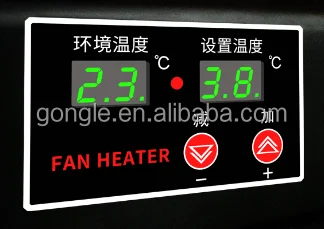

2, adjustable temperature control: liquid expansion temperature control -5C °-50C ° adjustable, using rainbow mechanical thermostat.
3, using high-performance motor, insulation protection grade F.
4. Built-in automatic overheat protection and restart function to effectively protect the hot air blower.
5, using high-quality components and materials to ensure product quality. The interior is made of highly high temperature resistant silicone wire, which can be used directly in indoor high temperature environment to ensure the life of the machine; Import connectors are used to ensure the reliability and safety of the power connection;
6. The structure design is reasonable and beautiful, the bracket is stable and beautiful, and the movement is convenient and safe.

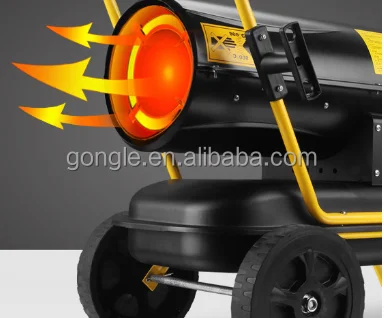

7. The rear anti-finch mesh cover design effectively increases the air intake efficiency, which is more conducive to motor heat dissipation and saves corresponding machine space.

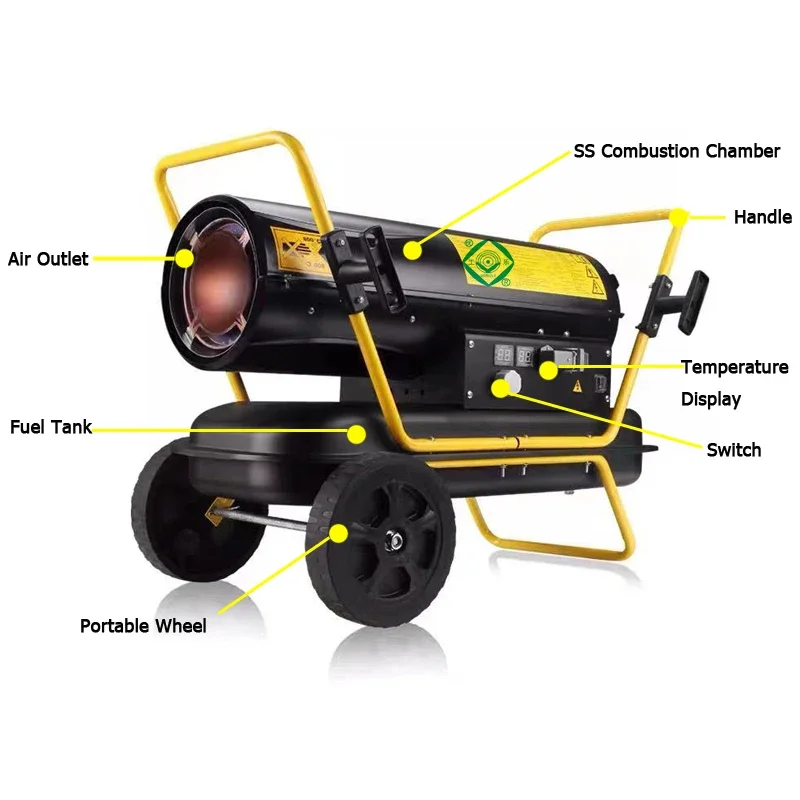

Diesel fuel or kerosene;
Gas atomization burner;
Stainless steel combustion chamber with the automatic cooling device;
Electronic flame monitoring;
Automatic electronic safety control devices;

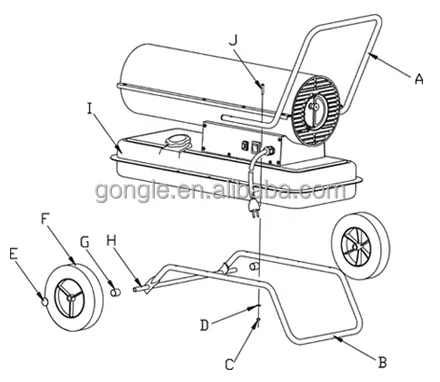

B: Lower steel pipe
C: Cotter pin
D: Nut 8PCS
E: Nut
F: Wheel
G: Flat pad
H: Wheel axle
I: Oil tank
J: Screw
|
Model No.
|
Power
|
Voltage/Hz
|
Air volume
|
Tank capacity
|
Fuel consumption
|
Product size /
Packing size |
N.W/G.W
|
|
GLH-10
|
10KW
|
220V-240V~50HZ
|
450m3/h
|
19L
|
0.8 L/H
|
750*315*415MM/
795*370*440MM |
13.6KG/15.2KG
|
|
GLH-20
|
20KW
|
220V-240V~50HZ
|
550m3/h
|
19L
|
1.6 L/H
|
750*315*415MM/
795*370*440MM |
14KG/15.6KG
|
|
GLH-30
|
30KW
|
220V-240V~50HZ
|
720m3/h
|
38L
|
2.4 L/H
|
880*456*590MM/
905*420*490MM |
21KG/23KG
|
|
GLH-50
|
50KW
|
220V-240V~50HZ
|
1100m3/h
|
56L
|
4 .0L/H
|
1090*490*585MM/
1045*465*570MM |
27KG/31.8KG
|
|
GLH-70
|
70KW
|
220V-240V~50HZ
|
1300m3/h
|
69L
|
5.4 L/H
|
1215*580*705MM/
1110*505*680MM |
40.8KG/45.8KG
|
|
GLH-100
|
100KW
|
220V-240V~50HZ
|
1300m3/h
|
69L
|
7.9 L/H
|
1215*580*705MM/
1110*505*680MM |
40.8KG/45.8KG
|
|
GLH-130
|
130KW
|
220V-240V~50HZ
|
3000m3/h
|
69L
|
11.3L/H
|
1390*560*914MM/1365*505*890MM
|
57KGS/65KGS
|
|
GLH-150
|
150KW
|
220V-240V~50HZ
|
5000m3/h
|
118L
|
14.2L/H
|
1676*647*1093MM/1804*712*1240MM
|
100KGS/130KGS
|
Fuel tank
Imported gear pump

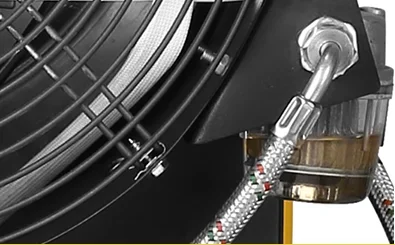

The fuel filter bowl is used together Filter impurities in oil to ensure service life
Imported nozzle
A:Yes,OEM & ODM are available .
Q:Can you develop new models for customers ?
A:Yes , we could develop new and design new heater according to customer’s requirements .
Q:What is your MOQ ?
A:Usually the MOQ is 20’FT or 40’HQ . Different model ,the Qty is different .
Q:What is your delivery time ?
A:Usually 20-30 days .According to the products and quantity .
Frequently Asked Questions
What is the minimum order quantity for this poultry heater?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this poultry heater?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 220-240. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
