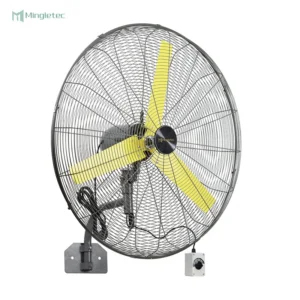

This industrial wall mounted fan is published with the manufacturer’s full specification — power 45~126, material Metal. Made by Guangzhou Mingle Technology Co., Ltd. (8 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Industrial Wall Mounted Fan
- Model Number: MFJ-W75
- Power (W): 45~126
- Power Source: Electric
- Material: Metal
- Noise Level: 40 dB and above
- Wind Speed: Four
Technical Specifications
| Application | Outdoor, Hotel, Garage, Commercial, Household |
|---|---|
| Blade Diameter | 20 26 30 Inch |
| Power (W) | 45~126 |
| Wind Speed | Four |
| Noise Level | 40 dB and above |
| Oscillation | Oscillating |
| Motor | Brushed Motor |
| Power Source | Electric |
| Type | Air Cooling Fan |
| Control Type | Mechanical |
| Material | Metal |
| Number Of Blades | 3 |
| Timer | No |
| Remote Control | No |
| App-Controlled | No |
| Adjustable Height | Yes |
| Operating Language | English |
| Warranty | 2 Years |
| After-Sales Service Provided | Free Spare Parts |
| Packaging Types | Corrugated Box |
| Logo/Graphic Design | Silk Screen Printing, Laser Printing, Hot Stamping |
| Private Mold | Yes |
| Feature | waterproof / dust-proof / overheat protection |
| Place Of Origin | Guangdong, China |
| Brand Name | Mingle |
| Model Number | MFJ-W75 |
| Product Name | DC Motor Outdoor Industrial Wall Mount Fan |
| Size | 20 26 30 Inch |
| Air Volume(M3/H) | 6500~8500m3/h |
| Speed | 1000~1400rpm |
| Motor Type | BL DC Copper motor |
| MOQ | 1 Pcs |
| Blade | 3 Aluminum Blades |
| Packing | SKD |
| Certification | CE CB |
| Selling Units | Single item |
| Single Package Size | 104X25X83 cm |
| Single Gross Weight | 15.0 kg |
Product Details
Model | Voltage (V/Hz) | Power (W) | Speed (r/min) | Air Volume (m3/h) | Product Size(mm) | Weight (kg) | ||||
A | B | C | ||||||||
MFJ-W50 | 220/50 | 31/40/60/80 | 1000/1100/1280/1400 | 1500/2580/3420/4350 | 560 | 360 | 11 | |||
MFJ-W65 | 220/50 | 40/50/75/90 | 1000/1100/1280/1400 | 4500/5150/5930/6950 | 715 | 360 | 13.2 | |||
MFJ-W75 | 220/50 | 45/60/75/95 | 1000/1100/1280/1400 | 6500/6900/7500/8500 | 815 | 360 | 14.3 | |||
Product Features:
2.The energy saving for 40%-80%.
3. Fully sealed motor. No need heat dissipation. Dust proof, smoke proof, oil proof, which can be used in the harsh environment.
4. over-load protection, no burnt motor, and keeps the longer service life.
5. Stamped Aluminum blade for 2mm, perfect balance, big air volume, long air delivery.
6. 4 Speeds adjustable for various air volume.
7. Adjustable height provides large air volume and big area.
8. Widely used in the general environment of the factory, workshops, warehouses, basements etc, for ventilation and improving environment.
Normally, we will send the quote to you within 12 hours. If you are urgent to get the price, please give us a call or send the email to let us know.
Q2 . Can you customize the item for us, and put my own logo on the product ?
Yes. We have a professional team having rich experience in design and manufacturing. Regarding the logo, for any item, if the quantity over 300pcs, we can put your own logo on the products.
Q3. Can I buy 1 or 2 pieces of samples for testing before bulk order ?
Yes, of course. we are pleasure to supply the samples for the quality and performance. test. We are full of confidence that you will be satisfied once you get it. Meanwhile, we will take the sample charge from you, but we will return the sample charge back to you when you place the bulk order.
Q4. What if I haven’t done the import before, how can I buy the product from you ?
You only need to pick up the items you need. We have the cooperated shipping agent to help you to do the shipping and custom clearance, and then the goods could be delivered to your warehouse directly. You don’t need to do anything.
Q5. What about delivery date ?
If we have free stocks of the item you need, it can be sent within 1 week after receiving. deposit or 100% payment into our bank account.
If we don't have free stock, the delivery date can be different for different products. Generally speaking, it will take 30-35 days.
Q6. What is the after-sale service proposal ?
We maintain our products for its life time for the spare parts from overseas service. For the first year, we could supply the free parts. After the one year warranty, you will pay some money on the spare parts.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $64.38 / piece
- 100–999 piece: US $48.52 / piece
- 1000+ piece: US $44.48 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this industrial wall mounted fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this industrial wall mounted fan carry?
It is supplied with CE CB documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Mingle Technology Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Guangzhou Mingle Technology Co., Ltd. range on HVACR Nexus.
