This freezer is published with the manufacturer’s full specification — material PU. Made by BH Building Co.,LTD (2 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Freezer
- Model Number: other
- Material: PU
- Panel Material: Metal
- Core Material: Hard Polyurethane Foam
- Surface Material: Customers Requested
- Warranty: 3 Years
Technical Specifications
| Feature | Fire Resistant , Water Resistant |
|---|---|
| Application | cold room, roof, Exterior Wall, prefab house, Hotel, Office Building, Warehouse, Workshop |
| Length | Customers Requested |
| Material | PU |
| Panel Material | Metal |
| Warranty | 3 Years |
| After-Sale Service | Online Technical Support |
| Project Solution Capability | 3D model design, graphic design, total solution for projects |
| Design Style | Industrial |
| Eco-Friendly | Eco-Friendly |
| Model Number | other |
| Place Of Origin | Heilongjiang, China |
| Brand Name | Dongan |
| Core Material | Hard Polyurethane Foam |
| Thickness | 50/75/100/150mm |
| Width | 1000mm |
| Density | 40-42kg/m3 |
| Steel Thickness | 0.4-0.8mm |
| Color | Customers Requested |
| Surface Material | Customers Requested |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Product Information

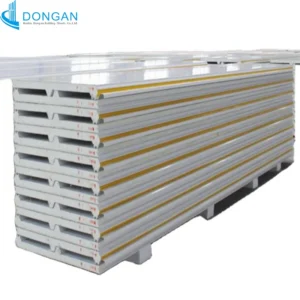

PU/PIR sandwich panel is a high-performance building material that uses polyurethane (PU) or polyisocyanurate (PIR) as the core material, with high-quality color-coated steel plates as the surface material. The foamed polyurethane or polyisocyanurate is mixed instantaneously by a high-pressure or low-pressure foaming machine in accordance with a certain proportion, and then evenly poured between the upper and lower layers, before being formed through laminated foaming. Its density is 40kg/m³, with a thermal conductivity of 0.021W/m·K, a water repellency rate of over 98%, and it comes in various combustion performance ratings of B1, B2, and B3, with prices ranging from high to low.
Specification
Iitem | PU sandwich panel | PIR sandwich panel |
Thermal insulation performance | Thermal conductivity 0.018~0.024W/mK, excellent thermal insulation performance | Thermal conductivity 0.019W/mK, excellent thermal insulation performance |
Fire resistance | B3 | B1，B2，superior to general polyurethane, can achieve a higher fire rating |
Scope of application | Industrial plant, logistics storage, integrated housing, etc | Oil refinery, ethylene and construction insulation |
ROOF PANEL SYSTEM
With screw connection, roof panels are tightly overlapped; the unique capillary groove design effectively avoids rainwater seepage and the cold bridge phenomenon; the thermal insulation effect of buildings is ensured, and customers’ building costs are also significantly reduced. The minimum roof pitch can be 3%.
WALLPANELSYSTEM
PRODUCT CHARACTERISTICS
The groove design in the middle of the board shape allows the 1000 mmwidewall panel to show two 500mm visual effects, and is equipped with elegant small ripples, making the building more layered and textured.
The groove design in the middle of the board shape allows the 1000 mmwidewall panel to show two 500mm visual effects, and is equipped with elegant small ripples, making the building more layered and textured.
A model of purity and elegance, the gloss, chroma,and brightness of the wall produce unique visual changes with different light angles and positions.
PRODUCT ADVANTAGE
Good air tightness
B1 class fireproof material
Lightweight structure
Uniform and stable board
Excellent thermal insulation performance
Excellent waterproof performance
Environmentally friendlyand healthy
No cold bridge phenomenon
COLOR STEEL PLATE OF SANDWICH PANEI
Color steel plate is a cold-rolled steel plate or galvanized steel plate as the substrate.After surface pretreatment, coated with polyester paint, fluorocarbon paint and other organic coatings, and then baked and cooled to make the plate. It has good corrosion resistance and weather resistance, high strength and toughness, and can resist strong wind pressure and vibration to ensure the stability and safety of the building structure.
The base metals of prepainted steel plate for buildings include:hot-dip Zinc, hot-dip Al-Zinc, and hot-dip Zn-Al-Mg coated base metals.
Type of base metal | Application / Zinc content (both sides) | ||
Normal use | Application in highly corrosive environment (both sides) | ||
Hot-dip Zinc | 180g/m2 | — | |
Hot-dip Al-Zinc | 100g/m2 | 150g/m2 | |
Hot-dip Zn-Al-Mg | 100g/m2 | 150g/m2 | |
THE FINISH COATS OF PREPAINTED
STEEL PLATE MAINLY INCLUDE
COATING COLOR CARD
Company Profile
BH Building Co.,LTD, as the direct export business company of Harbin Dongan Building Panel Co., Ltd., has been deeply involved in the export business of refrigeration equipment, cold storage steel structures, cold storage doors, cold storage panels, color steel profiled plates and other products since its establishment. Adhering to the deep heritage and excellent quality of our parent company, Harbin Dongan Building Panel Co., Ltd., we provide full-chain services from design, material selection,construction to post-maintenance, especially in the fields of customized cold storage engineering and steel structure engineering.We have deep experience and advanced technical support.
Certifications
FAQ
Q1: Can we accept the custom service and personalized design?
A: Yes, our professional engineering team can create a design based on customers' requirements.
Q2: How to pay?
A: We accept payment via T/T and irrevocable L/C at sight.
Q3: How to install?
A:Installation is easy and fast. We will provide a detailed installation video and instructions. If necessary, technicians can be sent to assist you on-site. However, buyers are responsible for the visa fee, tickets, accommodation, food, and wages of the technicians.
Q4: What is the delivery time?
A: Delivery time depends on order quantities. In general, the delivery time to nearest seaport in China will be 30 days after receiving deposit.
Q2: How to pay?
A: We accept payment via T/T and irrevocable L/C at sight.
Q3: How to install?
A:Installation is easy and fast. We will provide a detailed installation video and instructions. If necessary, technicians can be sent to assist you on-site. However, buyers are responsible for the visa fee, tickets, accommodation, food, and wages of the technicians.
Q4: What is the delivery time?
A: Delivery time depends on order quantities. In general, the delivery time to nearest seaport in China will be 30 days after receiving deposit.
Ordering and Pricing
- Minimum order quantity: 1000 set
- Volume pricing:
- 1000–4999 set: US $11.8 / set
- 5000–9999 set: US $11.3 / set
- 10000+ set: US $10.8 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this freezer?
The standard minimum order quantity is 1000 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by BH Building Co.,LTD, based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full BH Building Co.,LTD range on HVACR Nexus.
