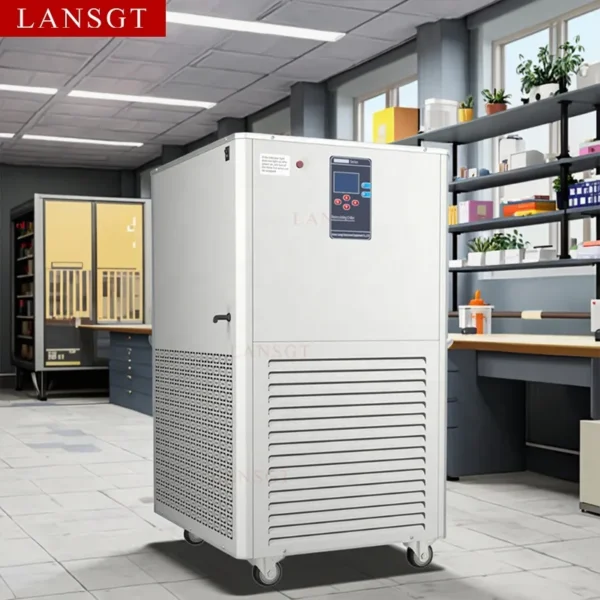

The -120 recirculating chiller listed here carries 220 V, 110 V, power According to Different Models, documented exactly as the manufacturer publishes it. Made by Henan Lansgt Instrument Equipment Co.,ltd (4 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This -120 Recirculating Chiller
- Model Number: DLSB
- Power: According to Different Models
- Compressor Power: 0.73Kw~11.25Kw
- Voltage: 220 V, 110 V
- Material: SUS 304
- Warranty: 1 Year
Technical Specifications
| Voltage | 220 V, 110 V |
|---|---|
| Power | According to Different Models |
| Compressor Brand | According to Different Models |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Competitive Price, High Safety Level |
| Plug Type | Us Plug |
| Core Components | PLC, Motor, Gear, Pump |
| Model Number | DLSB |
| Place Of Origin | Henan, China |
| Weight (Kg) | 59 |
| Brand Name | LANSGT |
| Dimension(L*W*H) | According to Different Models |
| Working Temperature Range | -120℃ to RT |
| Water Tank | 5L – 100L |
| Product Name | Circulating chiller |
| Material | SUS 304 |
| Pump Flow Rate | 35L/min |
| Circulation Pump | Fully Sealed |
| Water Pump Head | 8m~12m |
| CoolingTemperature | -30℃ ~ -120℃ |
| Compressor Power | 0.73Kw~11.25Kw |
| Customization | Customize according to demand |
| Selling Units | Single item |
Product Details
Products Description
Product Introduction
Product Paramenters
Customize and refit according to demand,requirements, | ||||||||
such as volume, material, temperature, etc. you can email us to tell your detailed requirements, we provide you with suitable design solutions. | ||||||||
Product model | Reservoir Capacity | Temperature Range | Pump Flow | water pump head | refrigerating capacity(W) | Dimensions (cm) |
DLSB-5/30 | 5L | -30℃ to RT | 25L/min | 8m | 875-255 | 37x47x68 |
DLSB-5/40 | 5L | -40℃ to RT | 25L/min | 8m | 1900-170 | 37x47x68 |
DLSB-5/80 | 5L | -80℃ to RT | 25L/min | 8m | 2044-170 | 60x48x77 |
DLSB-5/120 | 5L | -120℃ to RT | 25L/min | 8m | 2250-150 | 69x51x101 |
DLSB-10/30 | 10L | -30℃ to RT | 25L/min | 8m | 2010-650 | 45x52x80 |
DLSB-10/40 | 10L | -40℃ to RT | 25L/min | 8m | 2800-550 | 47x49x82 |
DLSB-10/80 | 10L | -80℃ to RT | 25L/min | 8m | 3650-950 | 73x58x89 |
DLSB-10/120 | 10L | -120℃ to RT | 25L/min | 8m | 4380-550 | 97x77x110 |
DLSB-20/30 | 20L | -30℃ to RT | 25L/min | 8m | 2800-600 | 57x49x86 |
DLSB-20/40 | 20L | -40℃ to RT | 25L/min | 8m | 7300-1200 | 64x54x100 |
DLSB-20/80 | 20L | -80℃ to RT | 25L/min | 8m | 8760-950 | 86x66x103 |
DLSB-20/120 | 20L | -120℃ to RT | 25L/min | 8m | 9000-550 | 97x77x115 |
DLSB-30/30 | 30L | -30℃ to RT | 25L/min | 8m | 4600-600 | 64x54x100 |
DLSB-30/40 | 30L | -40℃ to RT | 25L/min | 8m | 7300-900 | 64x54x100 |
DLSB-30/80 | 30L | -80℃ to RT | 25L/min | 8m | 8760-950 | 86x66x115 |
DLSB-30/120 | 30L | -120℃ to RT | 25L/min | 8m | 9000-550 | 97x77x119 |
DLSB-50/20 | 50L | -20℃ to RT | 25L/min | 8m | 6300-900 | 74x64x119 |
DLSB-50/30 | 50L | -30℃ to RT | 25L/min | 8m | 10500-900 | 74x64x119 |
DLSB-50/40 | 50L | -40℃ to RT | 25L/min | 8m | 12775-650 | 74x64x119 |
DLSB-50/80 | 50L | -80℃ to RT | 25L/min | 8m | 15330-550 | 98x77x124 |
DLSB-50/120 | 50L | -120℃ to RT | 25L/min | 8m | 15750-1600 | 130x97x140 |
DLSB-100/30 | 100L | -30℃ to RT | 35L/min | 12m | 15750-1600 | 96x76x133 |
DLSB-100/40 | 100L | -40℃ to RT | 35L/min | 12m | 15750-550 | 96x76x133 |
DLSB-100/80 | 100L | -80℃ to RT | 35L/min | 12m | 15750-450 | 96x76x133 |
DLSB-100/120 | 100L | -120℃ to RT | 35L/min | 12m | 18375-450 | 162x93x158 |
Product model | Reservoir Capacity | Voltage | Current | Power | Cooling tank size (cm) | Opening size (cm) |
DLSB-5/30 | 5L | 220V | 2.8A | 470W | 22×18 | 18 |
DLSB-5/40 | 5L | 220V | 3.7A | 900W | 22×18 | 18 |
DLSB-5/80 | 5L | 220V | 6.5A | 1700W | 22×18 | 18 |
DLSB-5/120 | 5L | 220V | 11A | 2400W | 22×18 | 18 |
DLSB-10/30 | 10L | 220V | 5.2A | 1000W | 25×25 | 18 |
DLSB-10/40 | 10L | 220V | 5.8A | 1300W | 30×22 | 24 |
DLSB-10/80 | 10L | 220V | 10A | 2500W | 30×22 | 24 |
DLSB-10/120 | 10L | 220V | 16A | 3600W | 30×22 | 24 |
DLSB-20/30 | 20L | 220V | 6.3A | 1300W | 30×30 | 24 |
DLSB-20/40 | 20L | 380V | 7A | 3200W | 35×25 | 32 |
DLSB-20/80 | 20L | 380V | 12A | 6000W | 35×25 | 32 |
DLSB-20/120 | 20L | 380V | 18A | 9500W | 35×25 | 32 |
DLSB-30/30 | 30L | 220V | 11A | 2100W | 35×35 | 32 |
DLSB-30/40 | 30L | 380V | 7A | 3200W | 35×35 | 32 |
DLSB-30/80 | 30L | 380V | 12A | 6000W | 35×35 | 32 |
DLSB-30/120 | 30L | 380V | 18A | 9500W | 35×35 | 32 |
DLSB-50/20 | 50L | 220V | 10A | 2500W | 40×40 | 32 |
DLSB-50/30 | 50L | 380V | 8A | 4000W | 40×40 | 32 |
DLSB-50/40 | 50L | 380V | 11A | 5500W | 40×40 | 32 |
DLSB-50/80 | 50L | 380V | 20A | 10800W | 40×40 | 32 |
DLSB-50/120 | 50L | 380V | 32A | 16000W | 40×40 | 32 |
DLSB-100/30 | 100L | 380V | 11A | 5600W | 50×50 | 32 |
DLSB-100/40 | 100L | 380V | 11A | 5600W | 50×50 | 32 |
DLSB-100/80 | 100L | 380V | 20A | 11000W | 50×50 | 32 |
DLSB-100/120 | 100L | 380V | 33A | 16150W | 50×50 | 32 |
Details Images
Our Company
Packing&Shipping
FAQ
1.
Q: How is the quality?
A: Quality is priority. We pay much attention to the quality check. Every product will be fully assembled
and carefully tested before it's packed for shipment.
2.
Q: Do you offer after-sales service?
A: Yes, all Lansgt products have 12 months warranty. In the warranty period, we will give the maintenance or replacement of all quality problems in time under normal conditions of use, and also provide wear parts and
glassware at cost price.
3.
Q: Can I customize products?
A: Yes, a full customization is available. Please let me know your specific customization requirements
and I will get back to you as soon as possible.
4.
Q: Can I customize the logo and packaging?
A: Yes, we can customize products based on your design and packaging requirements.
Please send your detailed requirements to us.
5.
Q: What kind of packaging options do you offer?
A: First of all, both neutral and customized packaging is available.If there is no special requirements, usually the glassware iswrapped carefully in bubble packs and put into a carton suitable for export. Other main parts are packed in strong wooden cases.
6.
Q: Which shipping methods do you use?
A: We offer sea, air, and land freight as well as express delivery.The specific options
depend on the quantity of the order.
7.
Q: How about the delivery time?
A: Delivery within 5 working days for products in stock, and within 10 working days for customized ones.
8.
Q: What are your main products?
A: Our main products include Rotary Evaporator, Double Layer Jacketed Glass Reactor, Double Layer Jacketed Stainless Steel Reactor, Single Layer Glass Reactor, Circulating Water /Oil Bath, Recirculating Cooling Chiller, Heating and Cooling Circulator, Short Path Distillation, Vacuum Pump, Hydrothermal Synthesis Reactor and Other Supporting Apparatus.
Contact Us
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this -120 recirculating chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the -120 recirculating chiller be supplied for my local voltage?
The standard configuration is 220 V, 110 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Henan Lansgt Instrument Equipment Co.,ltd, based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Henan Lansgt Instrument Equipment Co.,ltd range on HVACR Nexus.
