The electric multifunctional rotary evaporator listed here carries 220V/50Hz (Optional 110V), power source Electric, documented exactly as the manufacturer publishes it. Made by Henan Lansgt Instrument Equipment Co.,ltd (4 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Electric Multifunctional Rotary Evaporator
- Power Source: Electric
- Power(W): According to Different Models
- Voltage: 220V/50Hz (Optional 110V)
- Material: Stainless Steel, high borosilicate glass
- Rotating Speed: 20~120 Rpm
- Speed Controller: Frequency Converter
Technical Specifications
| Processing | Rotary |
|---|---|
| Operating Temperature | Room temperature ~200℃ |
| Material | Stainless Steel, high borosilicate glass |
| Power Source | Electric |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear |
| Voltage | 220V/50Hz (Optional 110V) |
| Warranty | More Than 5 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Competitive Price, High Safety Level |
| Power(W) | According to Different Models |
| Place Of Origin | Henan, China |
| Weight (Kg) | 21.9 |
| Brand Name | LANSGT |
| Dimension(L*W*H) | According to Different Models |
| Product Name | Rotary Evaporator |

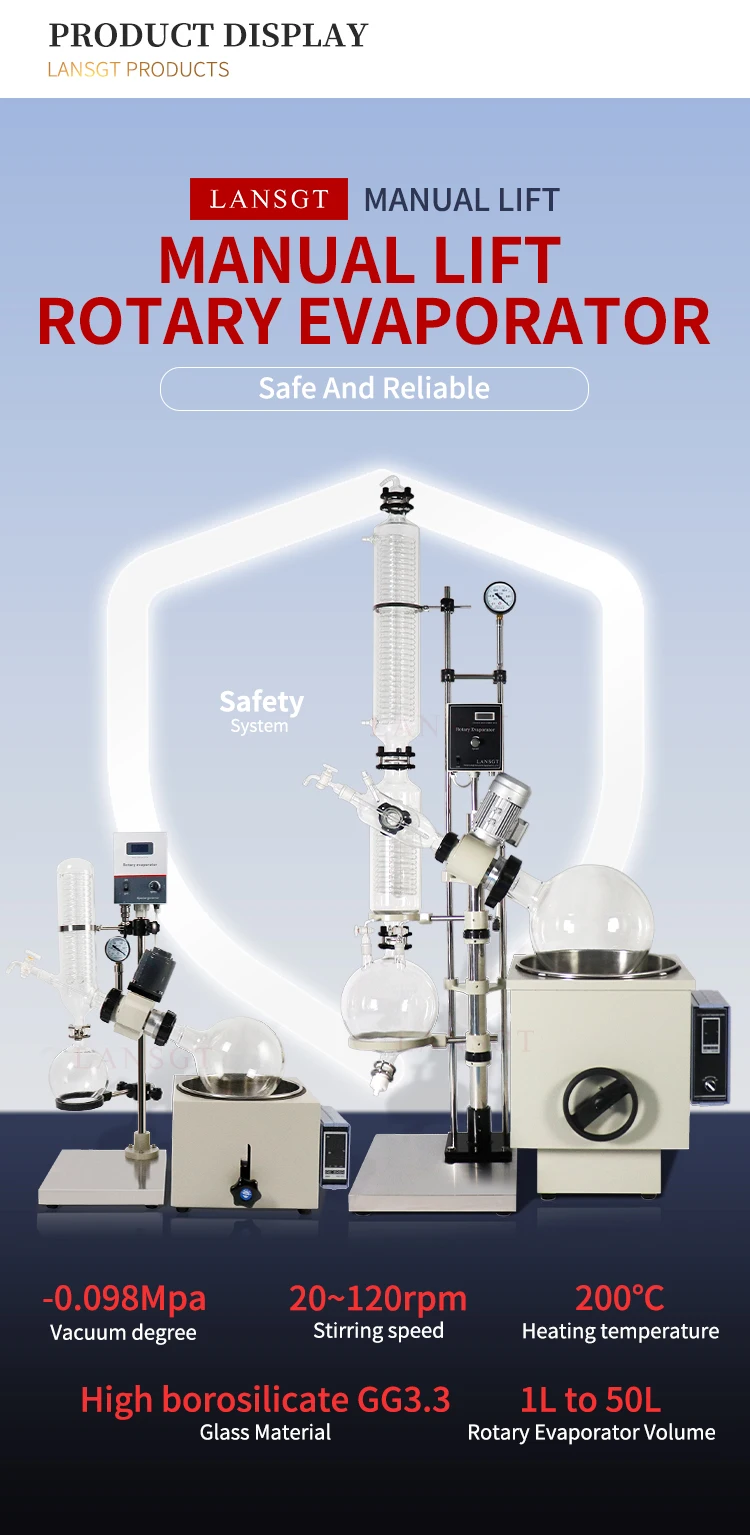

| Lifting Function | Manual Lift |
| Evaporation Flask | 1L~50L |
| Receiving Flask | 1L~20L |
| Rotating Speed | 20~120 Rpm |
| Temperature Range | Room temperature ~200℃ |
| Speed Controller | Frequency Converter |
| Customization | Customize according to demand |
| Heating Type | Module Electric Heating |
| Selling Units | Single item |

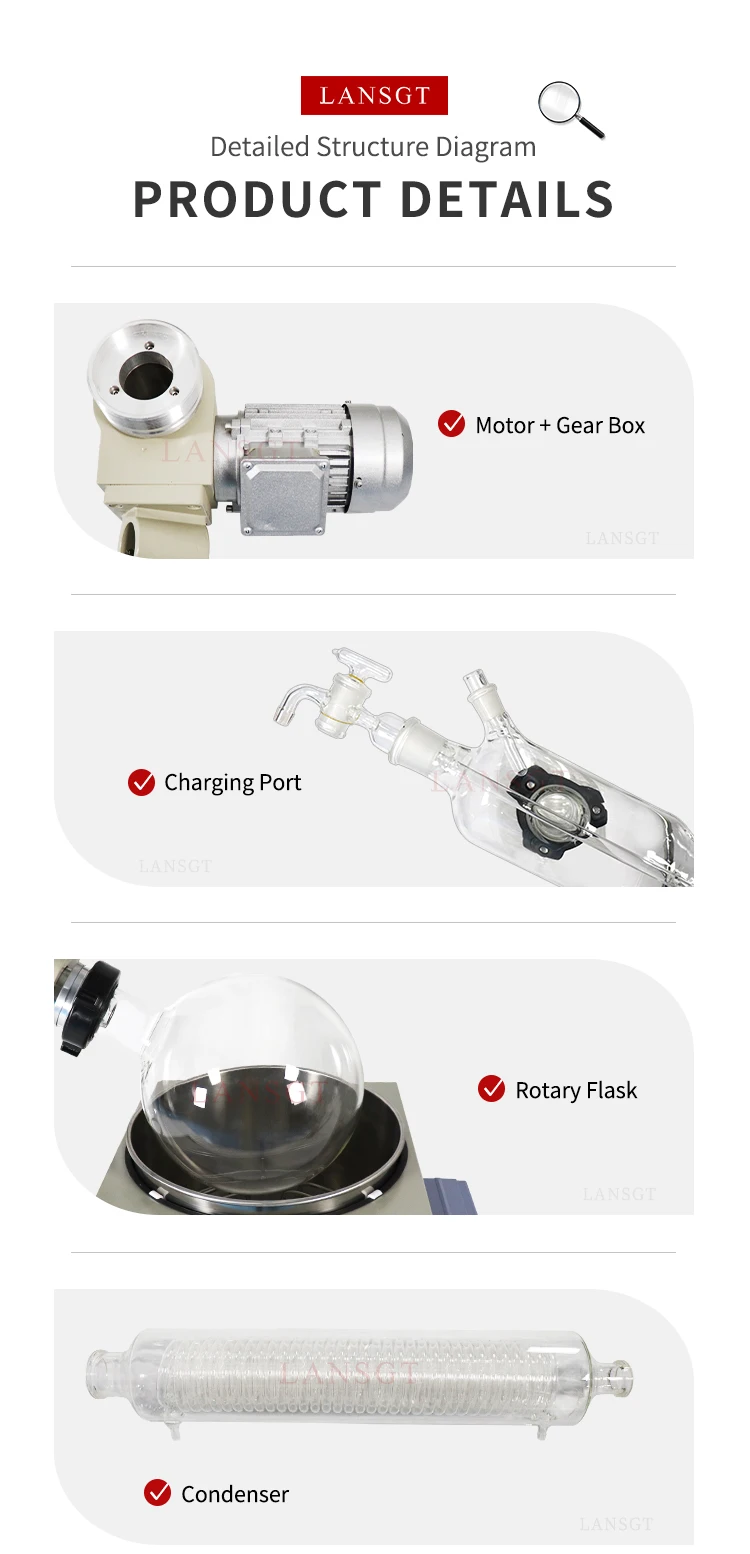

Product Details
We focus on product quality. Professional and technical staff for you to solve problems, make solutions.
If you need more product options, please contact us.

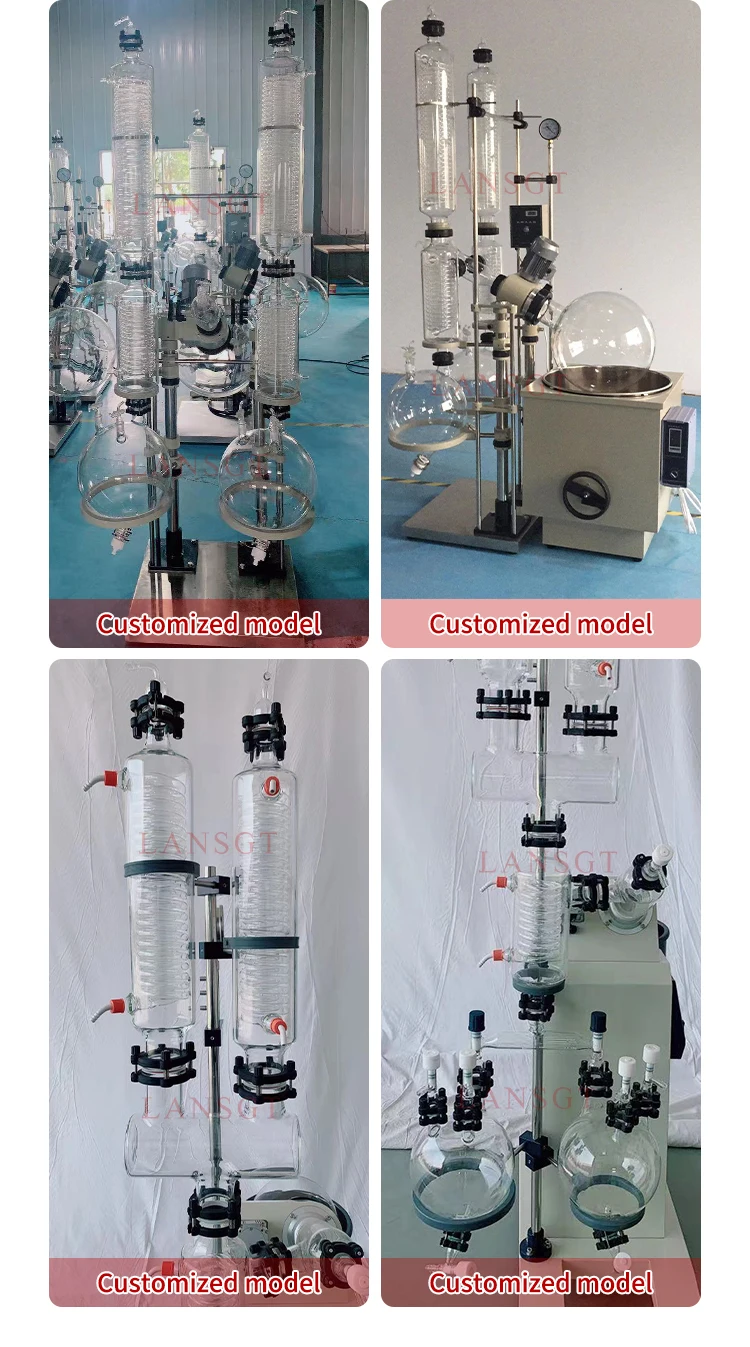

Customize and refit according to demand,requirements, | ||||||||
such as volume, material, temperature, etc. you can email us to tell your detailed requirements, we provide you with suitable design solutions. | ||||||||

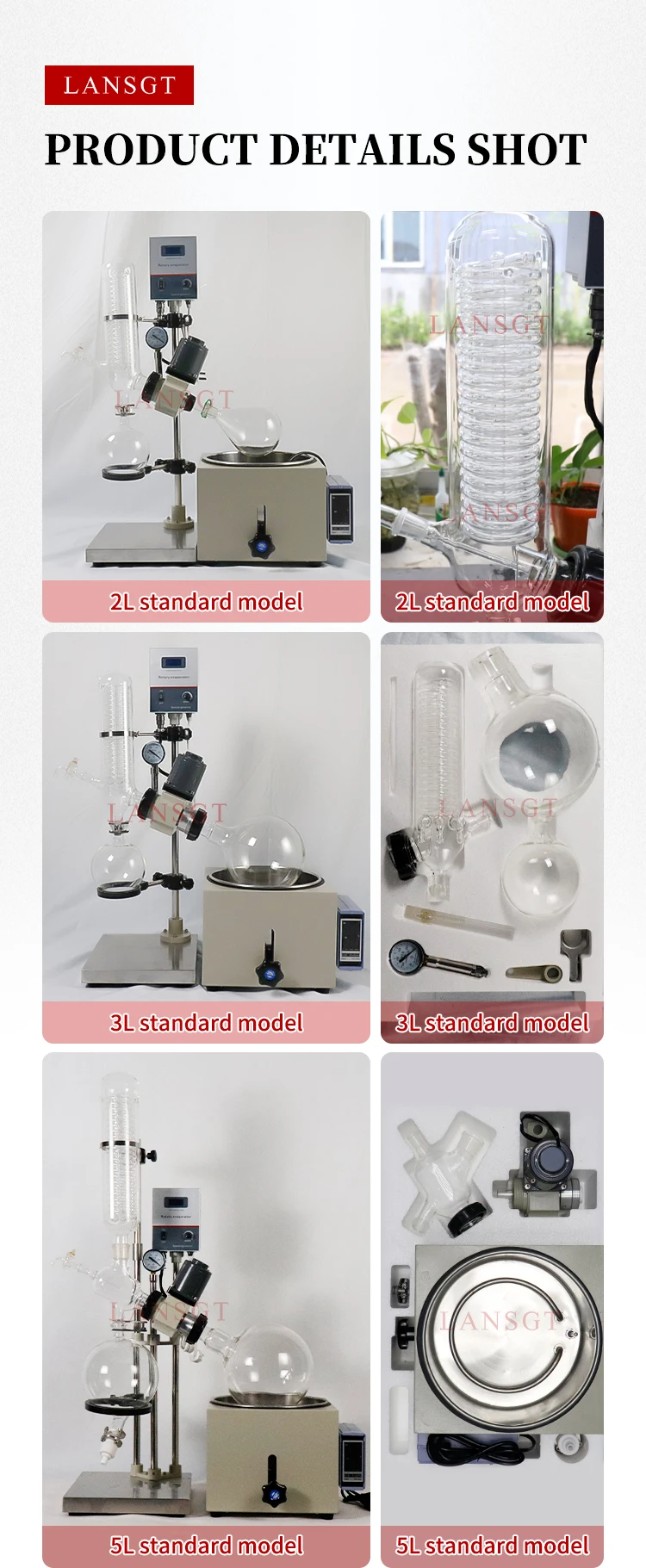

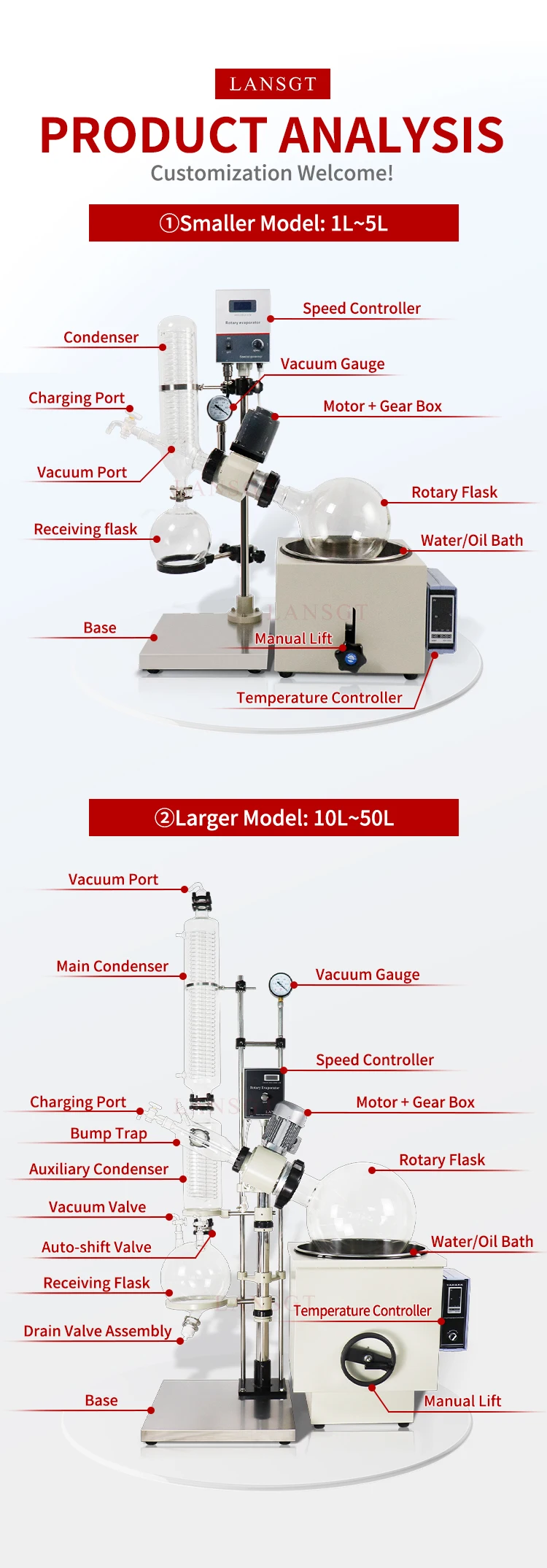

Product model | RE-201D | RE-201 | RE-301 | RE-501 | |||
Evaporation flask | 1L | 2L | 3L | 5L | |||
Receiving flask | 1L | 1L | 1L | 3L | |||
water bath pot power | 1KW | 1KW | 1KW | 1.5KW | |||
Stirring power | 40W | 60W | |||||

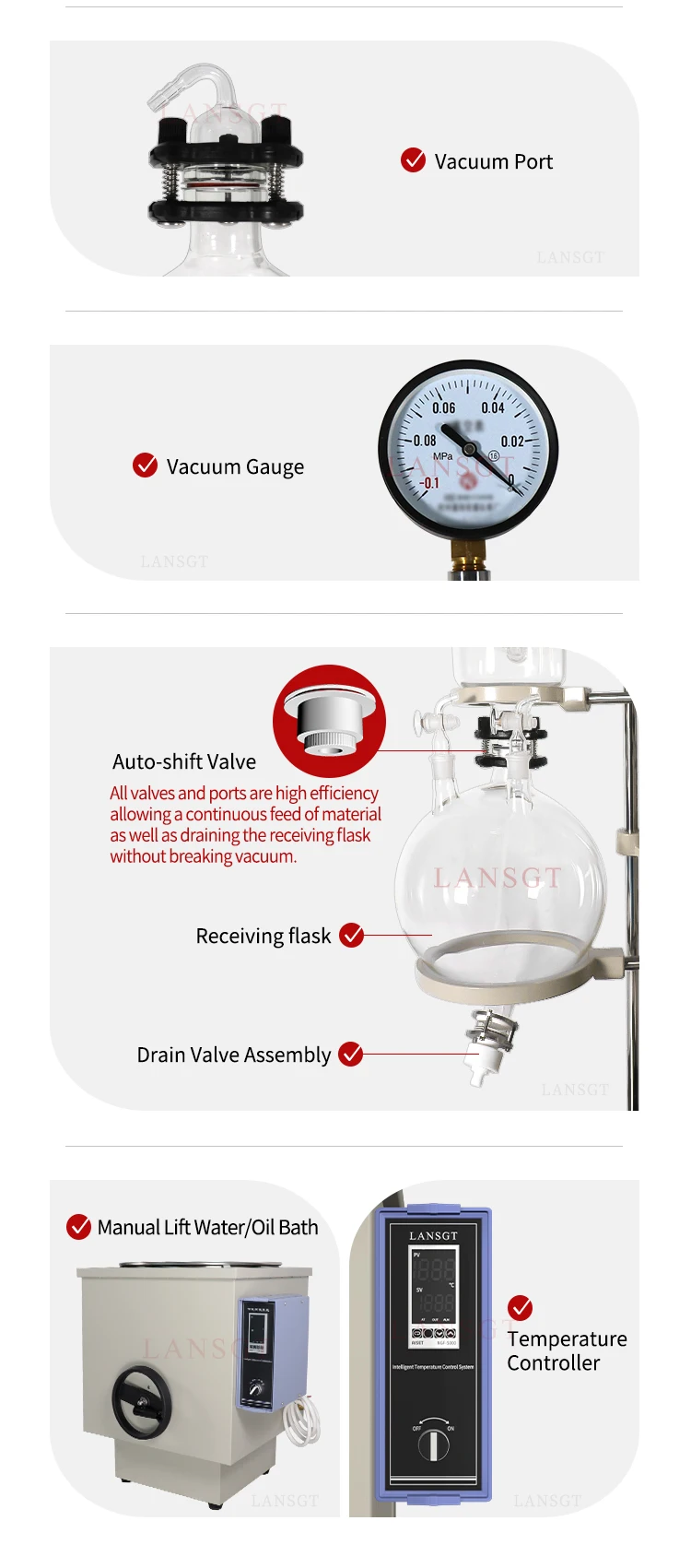

Drain valve assembly | No | PTFE Valve | |||||
Condenser | Vertical condenser | ||||||

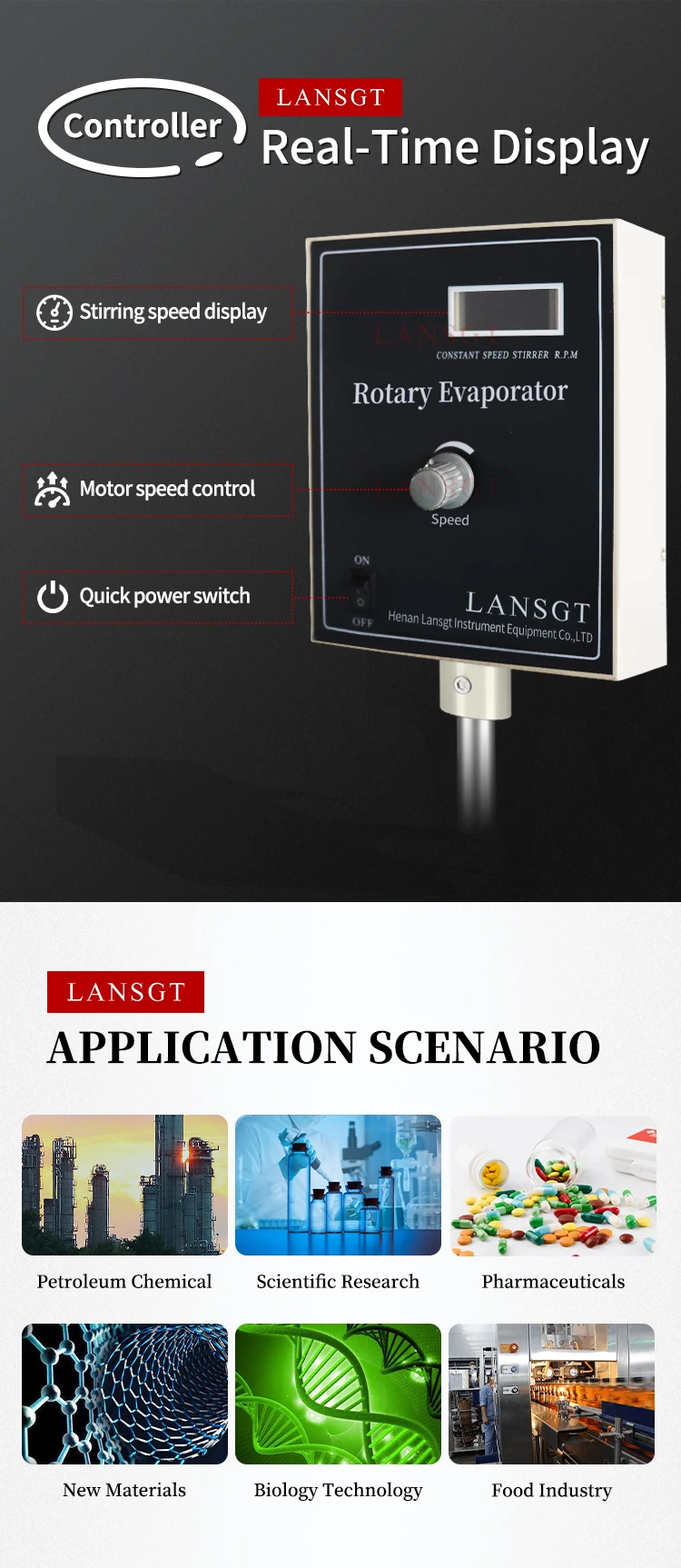

Motor speed regulation | Stepless speed regulation, speed 20-120rpm | ||||||
Maximum vacuum | -0.098Mpa | ||||||
Sealing device | PTFE +fluorine glue double seal | ||||||
Heating mode | Water/Oil Bath | ||||||
Temperature range | Room temperature~200℃ | ||||||

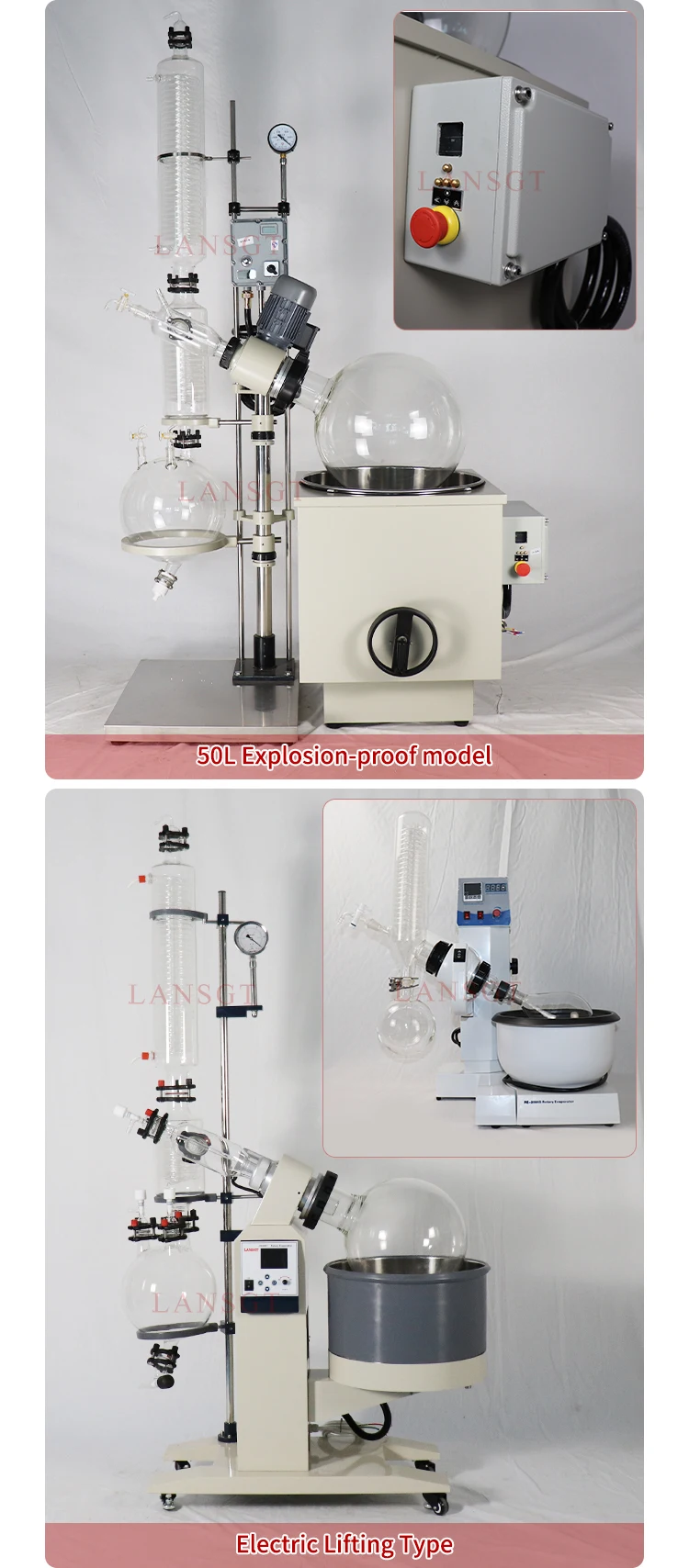

Lifting mechanism | Manual Lift（Optional electric lift） | ||||||
Lifting distance | 0~120mm | ||||||
Supply voltage | 220V/50Hz (Optional 110V) | ||||||

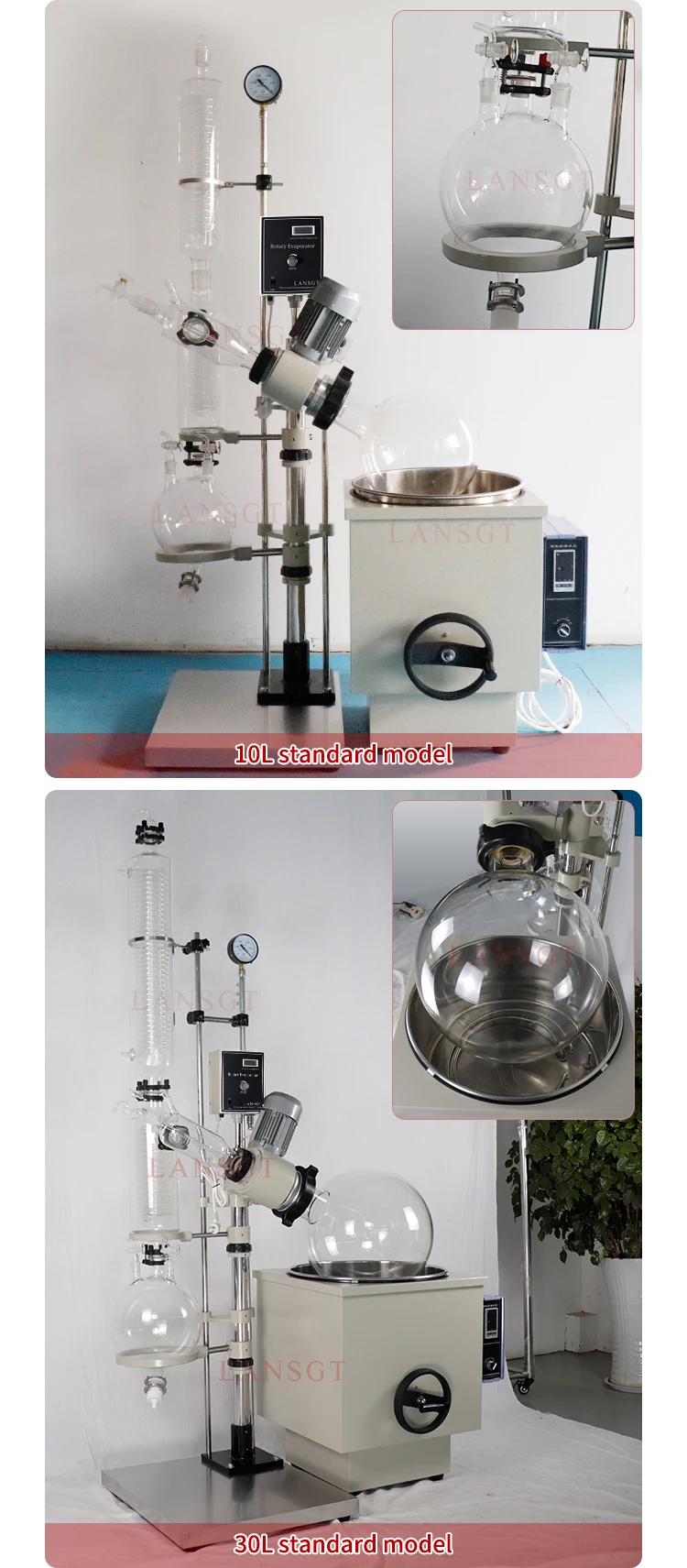

Product model | RE-1002 | RE-2003 | RE-3002 | RE-5003 | |||
Evaporation flask | 10L | 20L | 30L | 50L | |||
Receiving flask | 5L | 10L | 10L | 20L | |||
water bath pot power | 3KW | 5KW | 6KW | 7.5KW | |||
Stirring power | 120W | 180W | |||||
Drain valve assembly | PTFE Valve | ||||||
Condenser | Main condenser + auxiliary condenser | ||||||
Motor speed regulation | Stepless speed regulation, speed 20-120rpm | ||||||
Maximum vacuum | -0.098Mpa | ||||||
Sealing device | PTFE +fluorine glue double seal | ||||||
Heating mode | Water/Oil Bath | ||||||
Temperature range | Room temperature~200℃ | ||||||
Lifting mechanism | Manual Lift（Optional electric lift） | ||||||
Lifting distance | 0~120mm | 0~160mm | |||||
Supply voltage | 220V/50Hz (Optional 110V) | 380V/50Hz | |||||
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this electric multifunctional rotary evaporator?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a More Than 5 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the electric multifunctional rotary evaporator be supplied for my local voltage?
The standard configuration is 220V/50Hz (Optional 110V). Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Henan Lansgt Instrument Equipment Co.,ltd, based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Henan Lansgt Instrument Equipment Co.,ltd range on HVACR Nexus.
