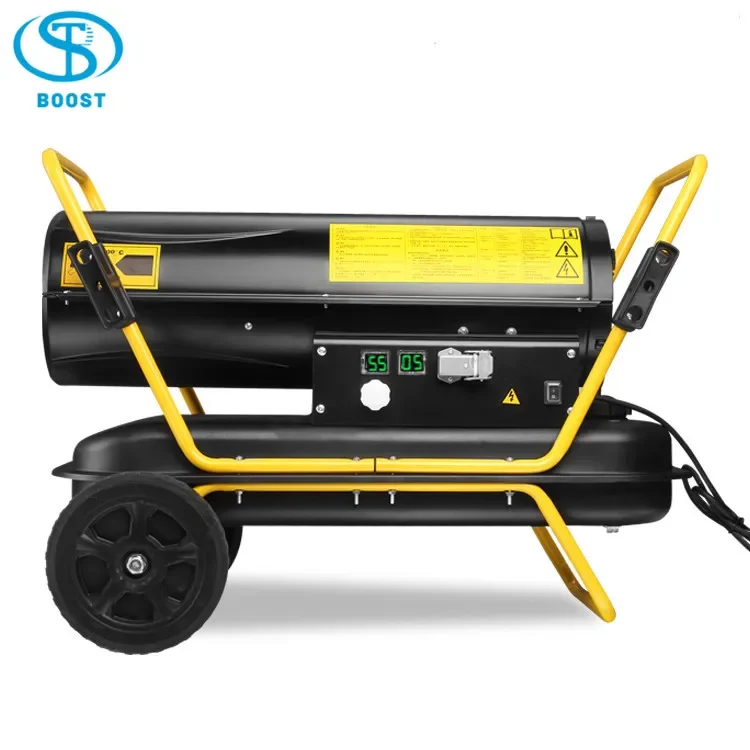

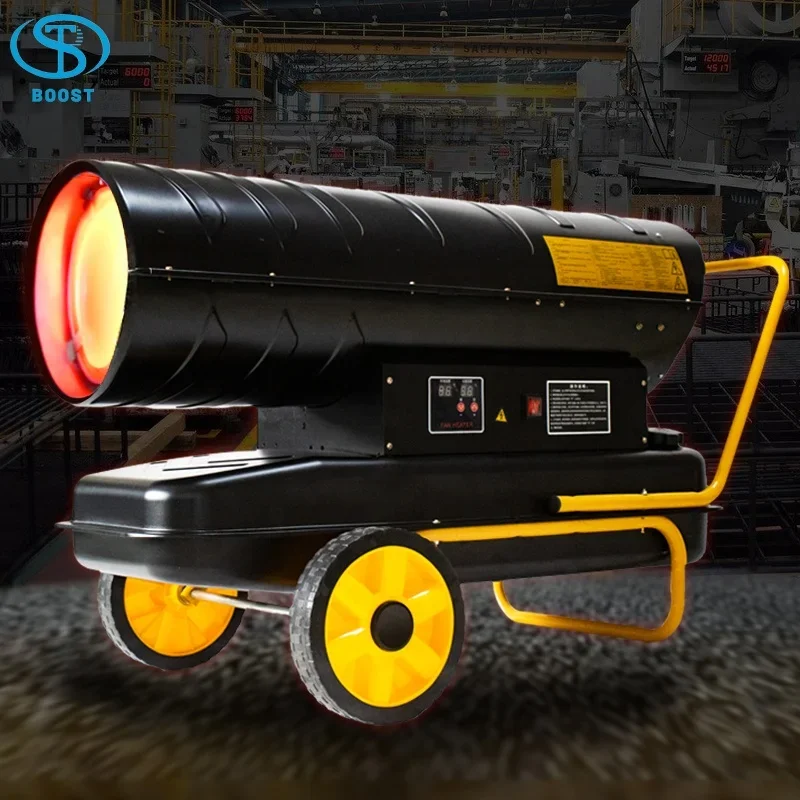

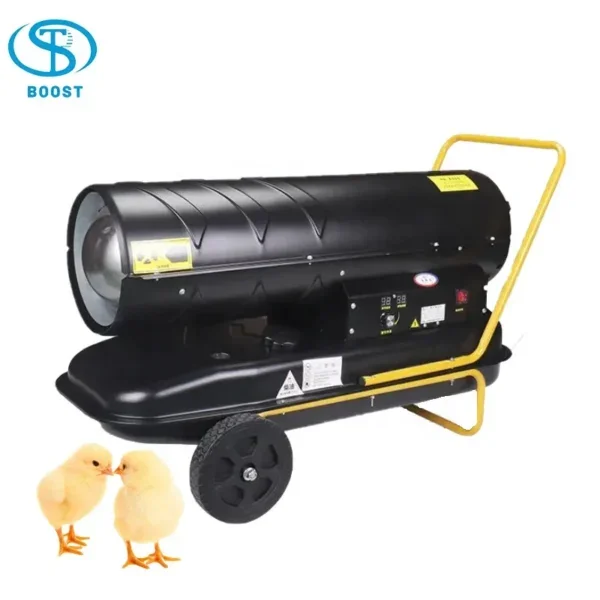

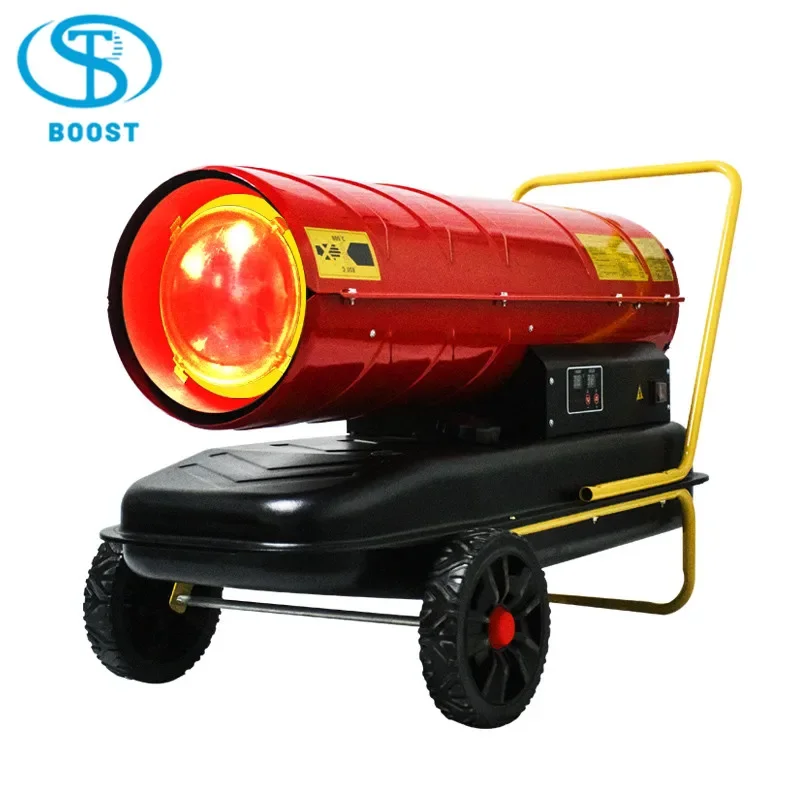

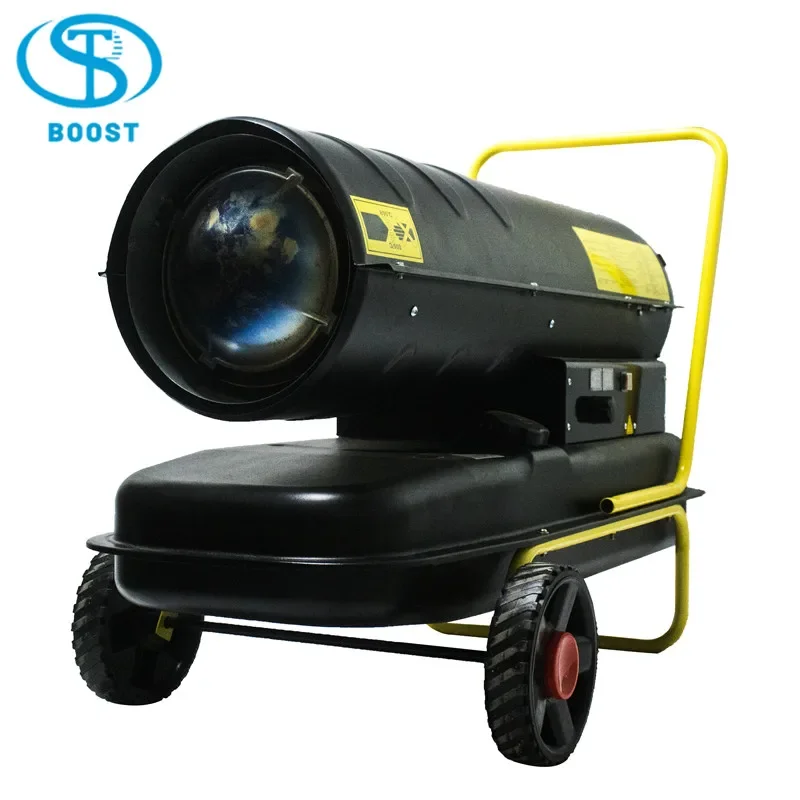

Diesel Kerosene Oil Heater, 20Kw/30Kw/50Kw/80Kw, 220 V, 1300m3

Key specification for this diesel kerosene oil heater: 220 V, power source Diesel. Everything below is reproduced from the factory data sheet. Quantity and destination market determine the final price — tell us both for a firm quote.

This diesel kerosene oil heater is listed with the manufacturer’s full published specification — voltage 220 V, power source Diesel, material Stainless Steel. It is produced by Qingzhou Boost Temperature Control Equipment Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.

Key Features of This Diesel Kerosene Oil Heater

• Power Source: Diesel
• Power: 50kw
• Voltage: 220 V
• Material: Stainless Steel
• Warranty: 1 Year
• Certification: CE

Technical Specifications

Products Description

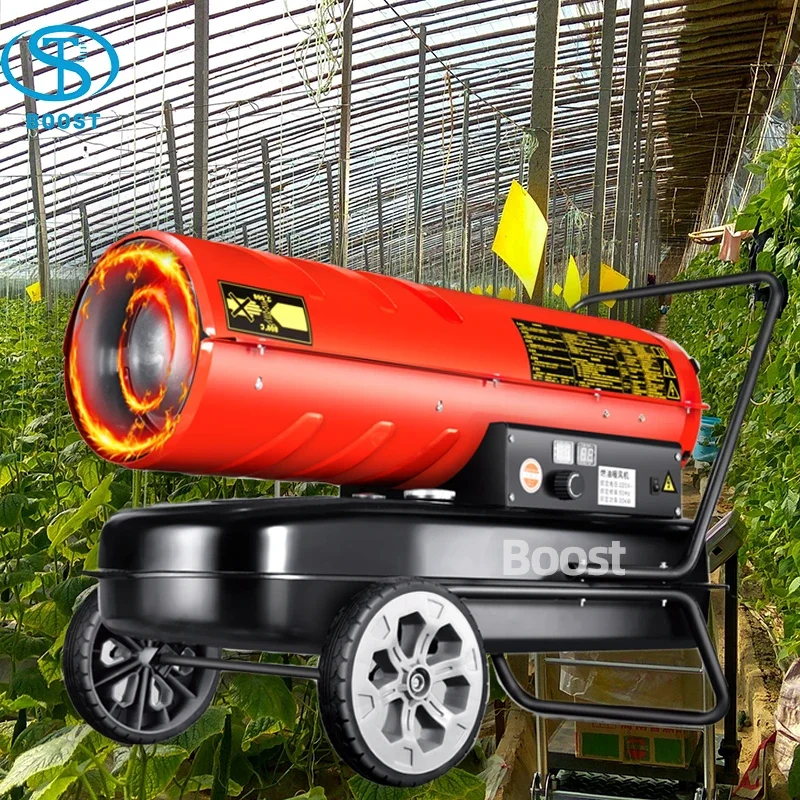

20Kw/30Kw/50Kw/80Kw Eco-Friendly Industrial Indirect Agriculture Diesel Kerosene Oil Heater with Remote External Thermostat

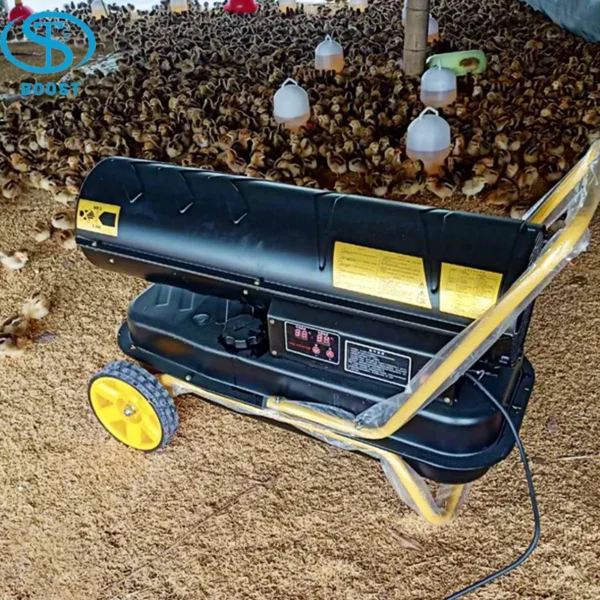

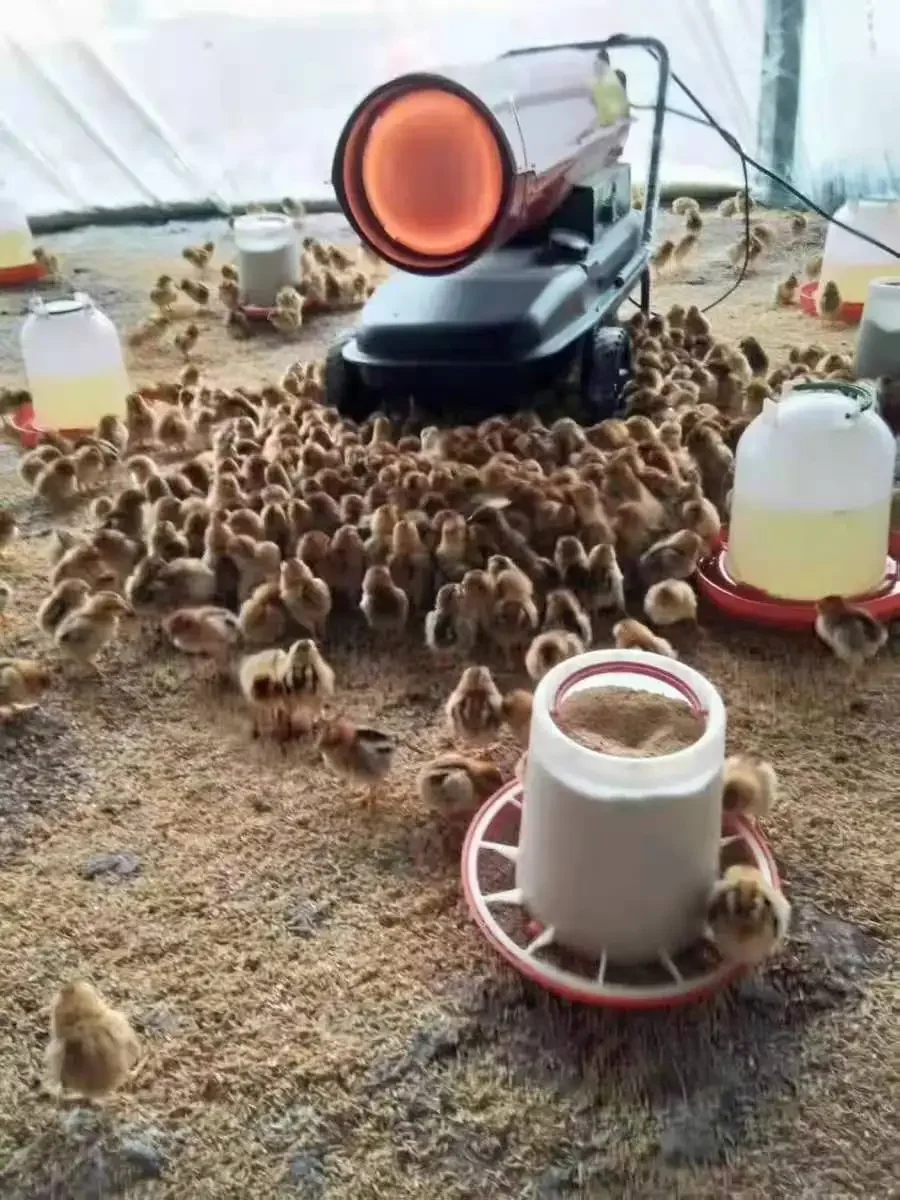

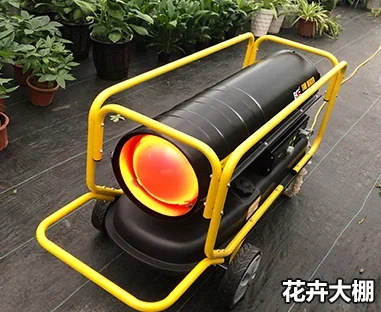

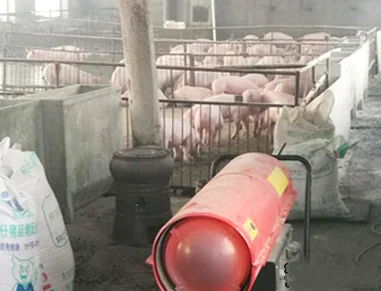

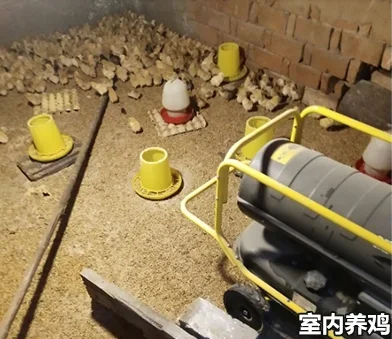

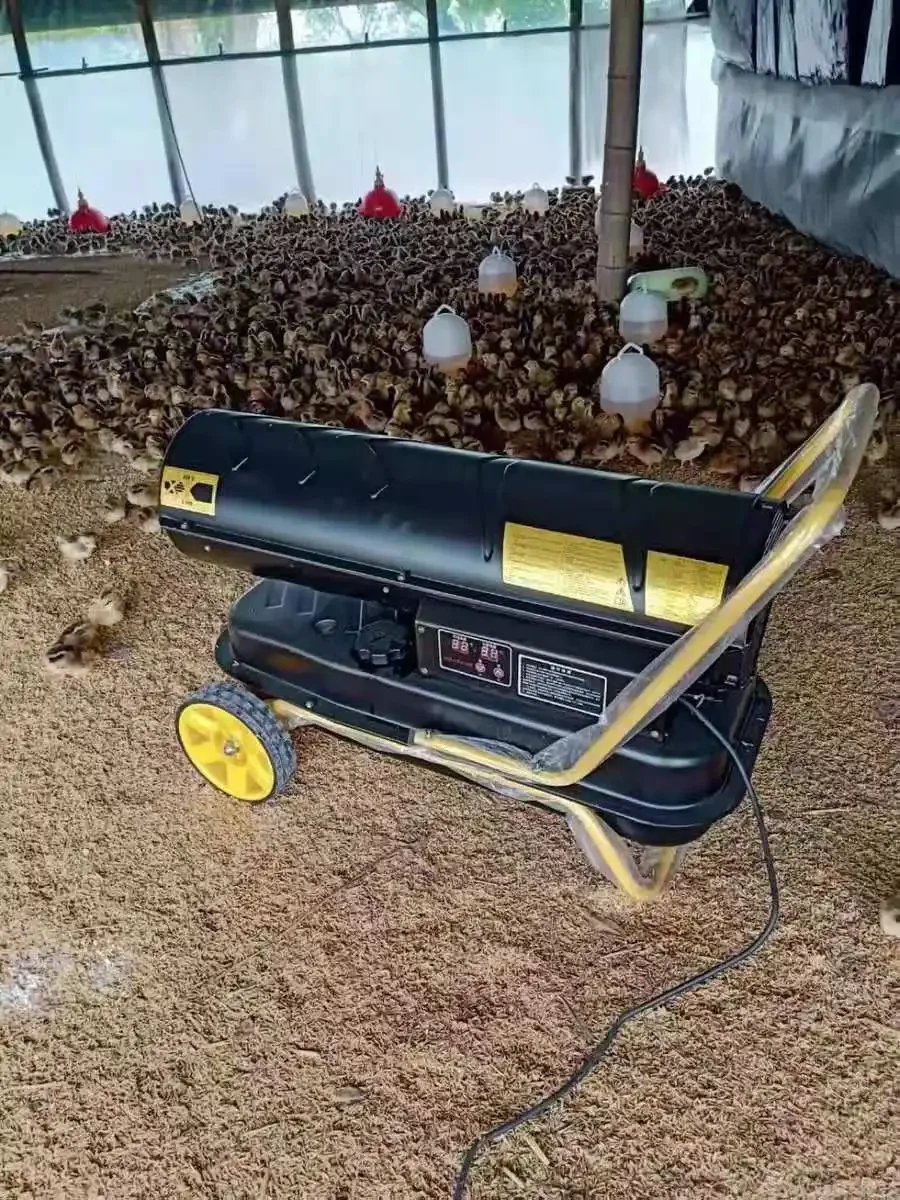

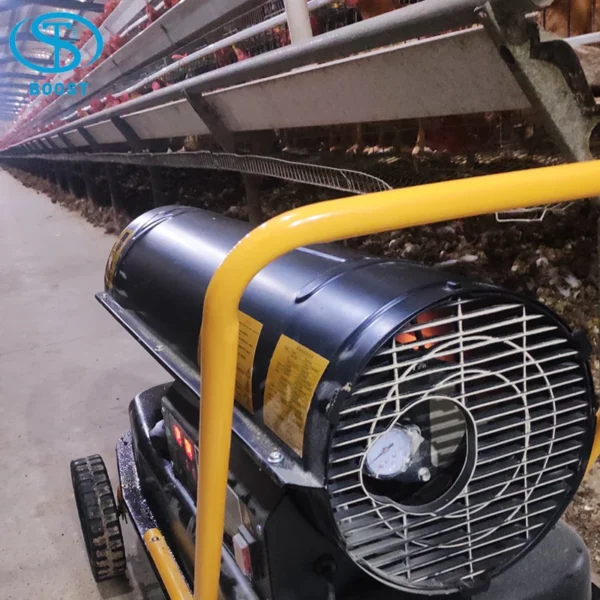

BOOST Air heater is widely used in Animal husbandry, Greenhouse, Factory workshop, Pipeline heating, Log drying, Decoration quick drying,and can customized the model for swine fever disinfection.

We have several models, please let me know your requirement, then we will suggest you suitable model

Model	BSTAH-20	BSTAH-30	BSTAH-50	BSTAH-70	BSTAH-100
Power	20kw	30kw	50kw	70kw	100kw
Air volume	550m3/h	720m3/h	1100m3/h	1300m3/h	1700m3/h
Oil consumption	1.0 L/H-1.7 L/H	1.5 L/H- 2.4 L/H	2.8 L/H- 4 L/H	3.5 L/H- 5.4 L/H	4.0L/H-8.0 L/H
Tank capacity	19L	38L	56L	65L	65L
N.W/G.W	19kg/20kg	20kg/21kg	27kg/28kg	41kg/42kg	41kg/42kg
Packing size	750*315*415mm	920*460*630mm	1050*490*615mm	1130*480*655mm	1130*480*655mm
Voltage/Hz	220V/50HZ	220V/50HZ	220V/50HZ	220V/50HZ	220V/50HZ

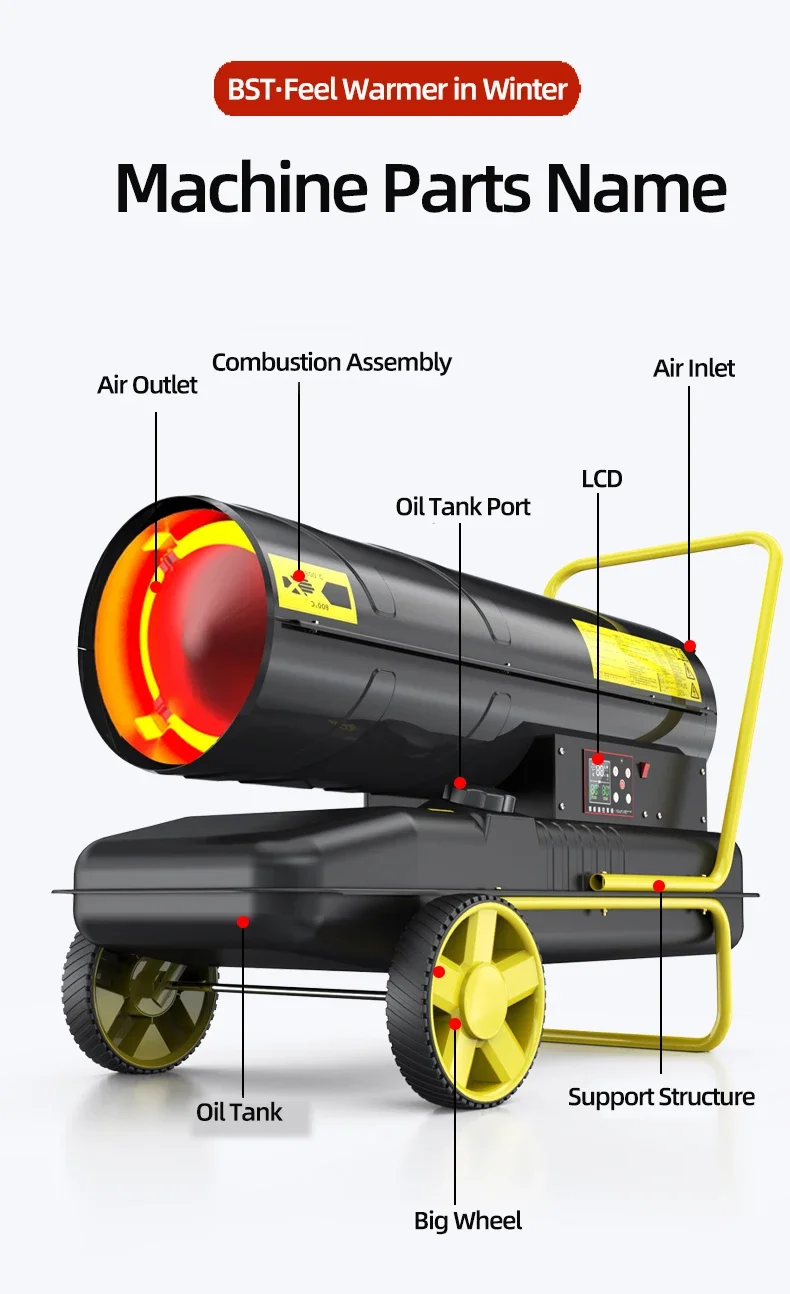

Detail Images

Motor

1.Pure copper motor

2.Primary safety of insulation

3.Fully enclosed waterproof and dustproof :IPX4

4.Leakage protection, high current grounding wire 5.Pure aluminum shell anti-rust, fast heat dissipation

Large Air Duct,Large Heat

BOOST Diesel heater with enlarged air duct, rapid heating and uniform temperature

1.Special baking paint coating, anti corrosion and corrosion resistance

2.High strength galvanized sheet, high hardness, impact

resistance

3.Convection insulation, not hot 4.Stainless steel combustion cylinder, high temperature resistant

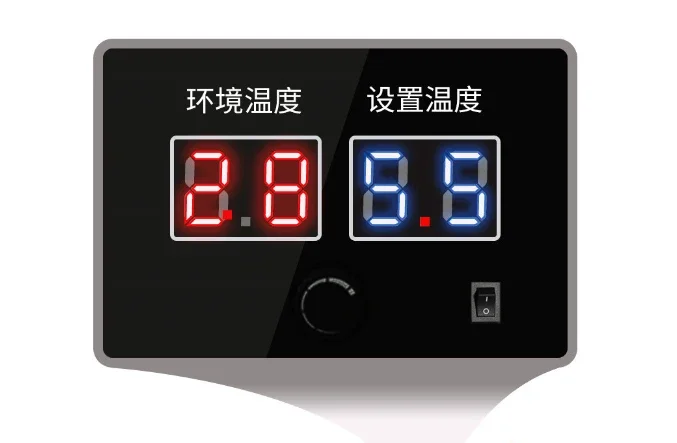

One key intelligent constant temperature control

1.Dual display computer version

2.The key numerical control panel ,More accurate control, More sufficient combustion

3.External temperature control probe

4.Precise temperature control

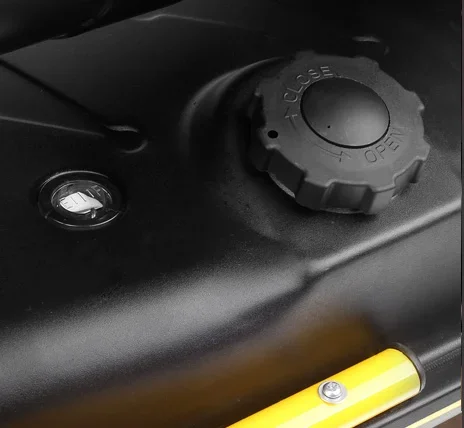

Oil tank

Thickened 8mm steel oil tank Visual oil scale

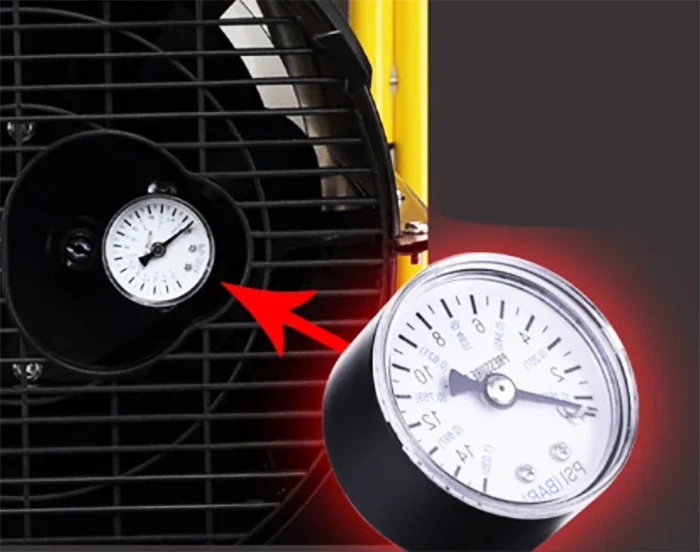

Working pressure gauge

The internal air pressure is regulated according to the environment.

The machine already to be with optimum pressure,if need to be adjustment,please contact the technician for help.

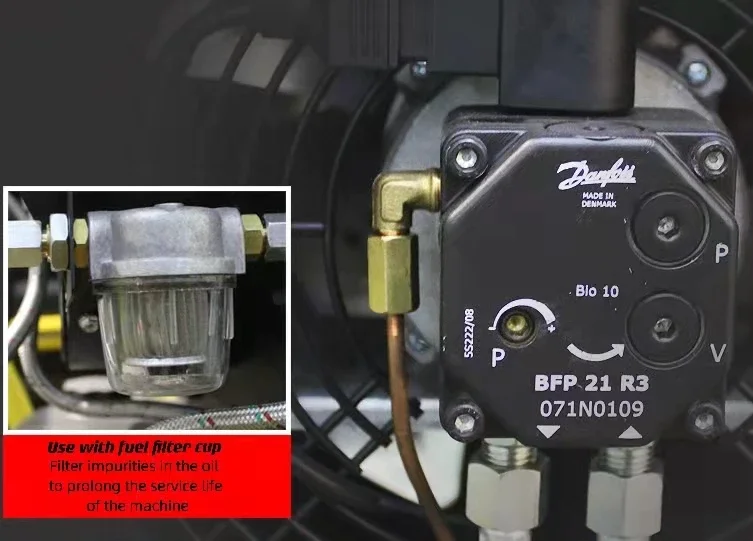

Imported gear pump

Imported gear pump,Intelligent Temperature control ,More powerful and reassuring.

The fuel filter bowl is used together Filter impurities in oil to ensure service life

Imported nozzle

Imported nozzle,

stable quality

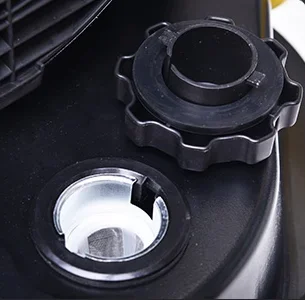

Filter screen

The oil tank port is equipped with filter screen

Impurity filtration

Technical tips

1.Maintenance Tips

1.Every 500 hours is a maintenance interval. If the working environment is bad (breeding farm, dusty occasion.etc), the

maintenance period need to be shortened to 250 hours

2.Inspection items

2.1.Clean or replace the filter sponge inside the air pump(Inlet/Outlet)

2.2.Clean or replace the oil suction filter

2.3.Clean the ignition pin(Brush off the accumulated carbon on the needle due to ignition)

2.4.Clean the oil tank, open the drain nut at the bottom of the oil tank, discharge the internal residue, and clean the inside of the oil tank with clean diesel or kerosene

Remarks:

Filter sponge, oil suction filter and oil nozzle are vulnerable parts, not within one year free warranty period

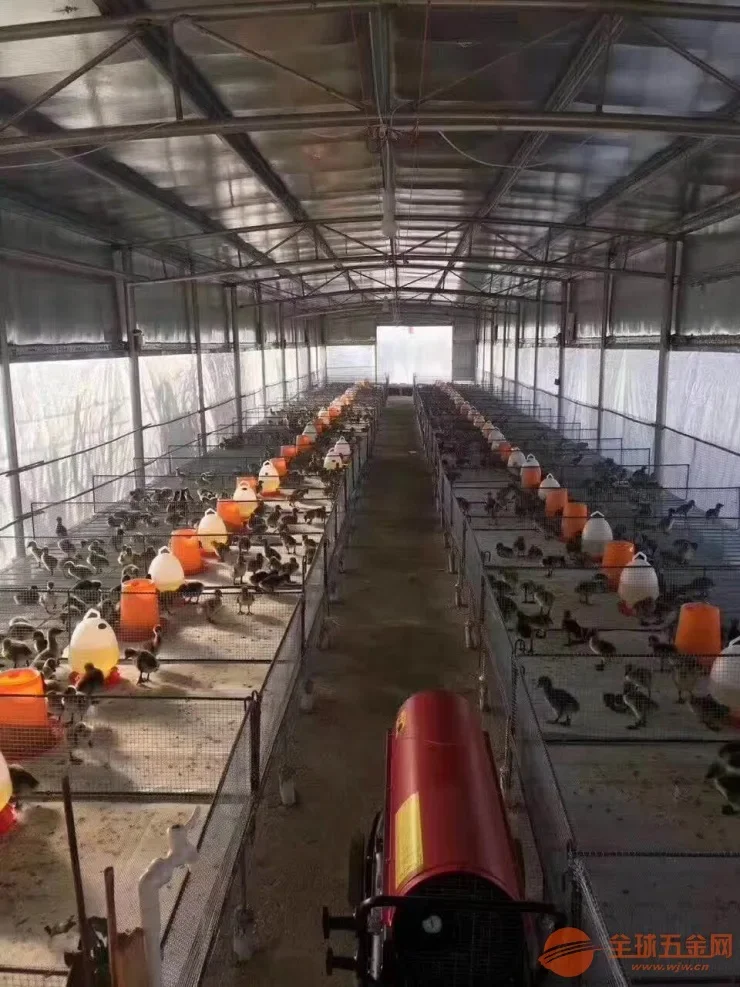

Application

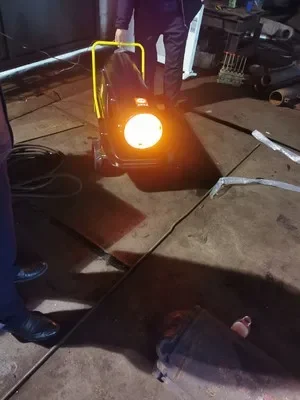

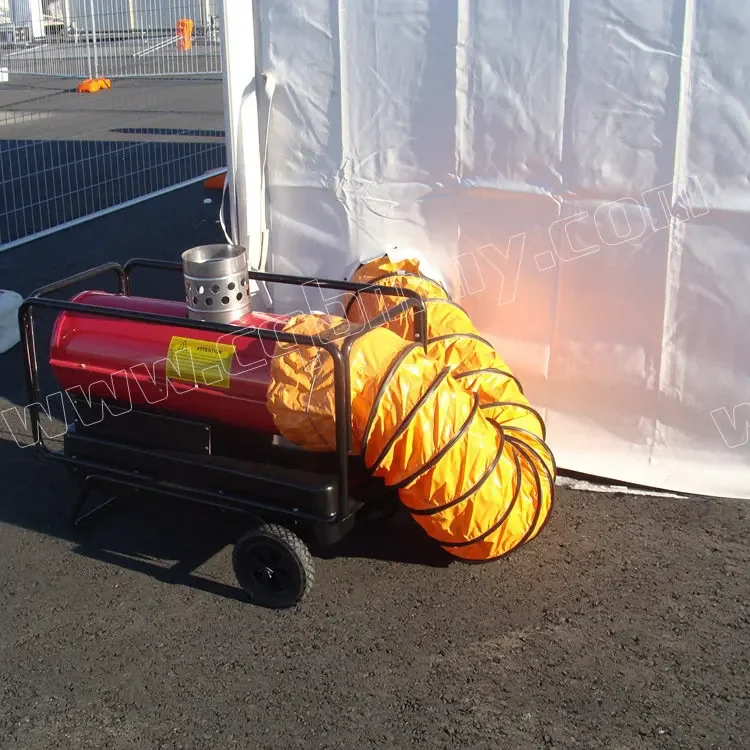

Factory&Workshop

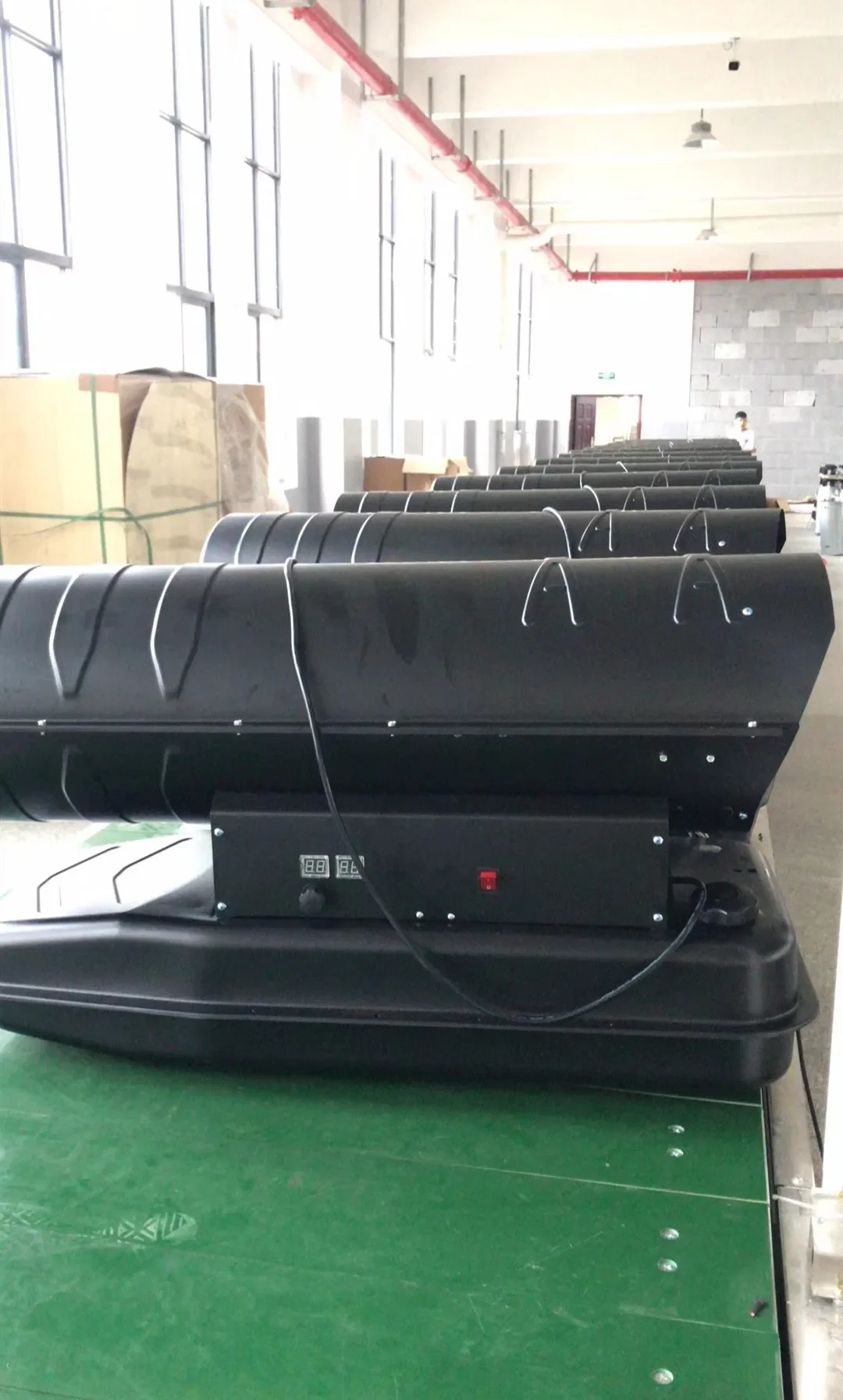

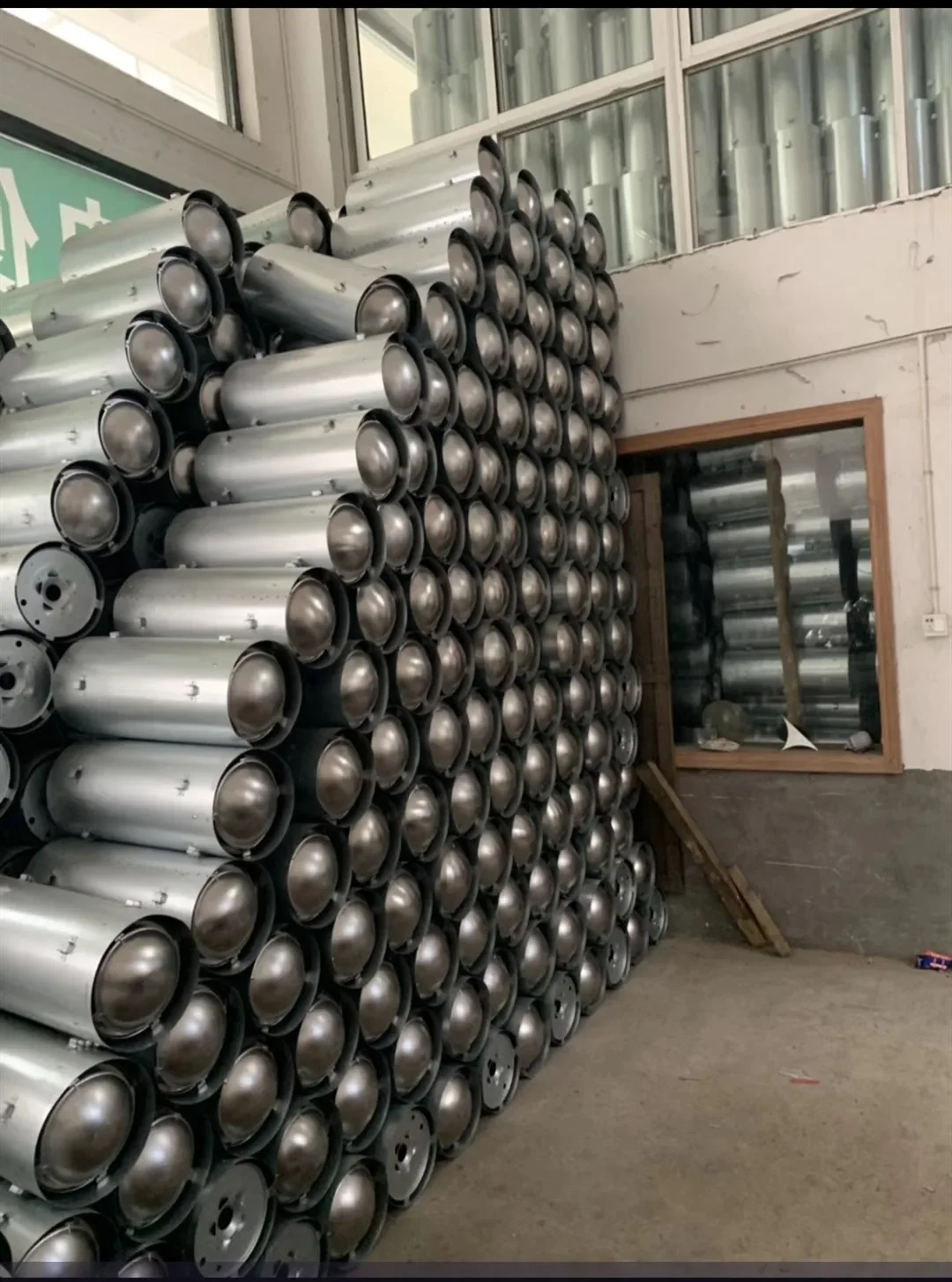

Company profile

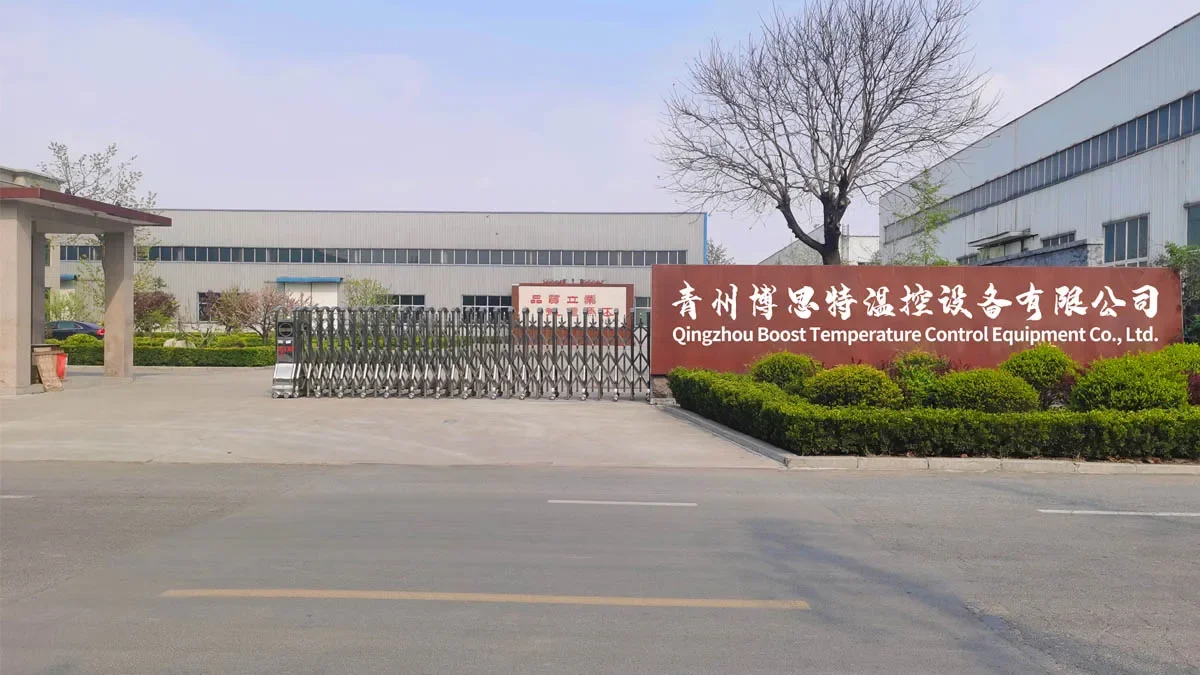

Qingzhou Boost Temperature Control Equipment Co., Ltd. is the pioneer and leader of new type of plant ventilation and cooling equipment, standardized livestock and poultry houses, horticultural greenhouse ventilation and cooling, and heating equipment.

It has produced more than 30 “Boost” brand products in six series. The main products are cooling pad, livestock fans,negative pressure fans, garden fans, circulation fans, automatic roof ventilators, axial fans, hot blast stoves, etc

WHY CHOOSE BOOST?

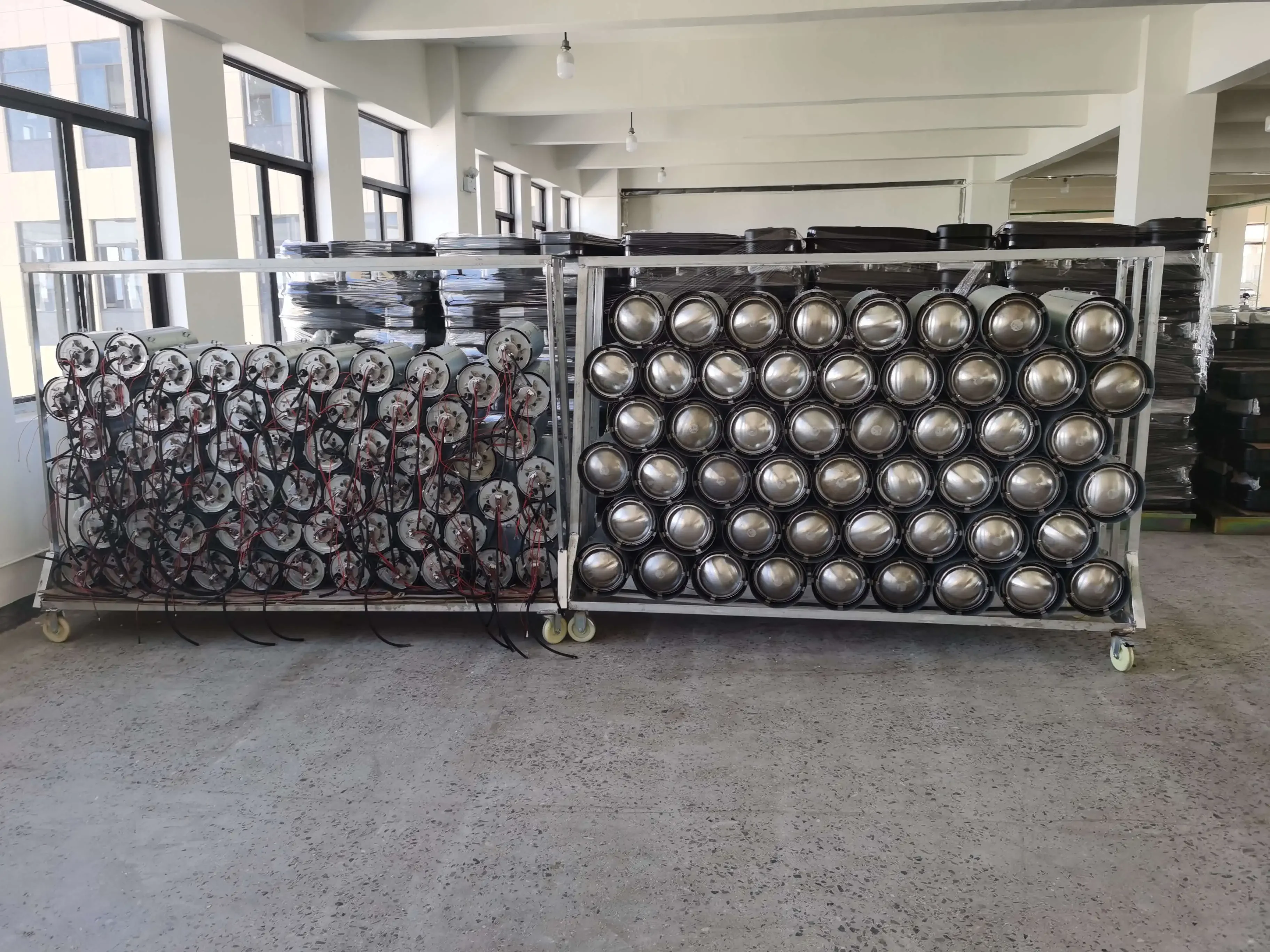

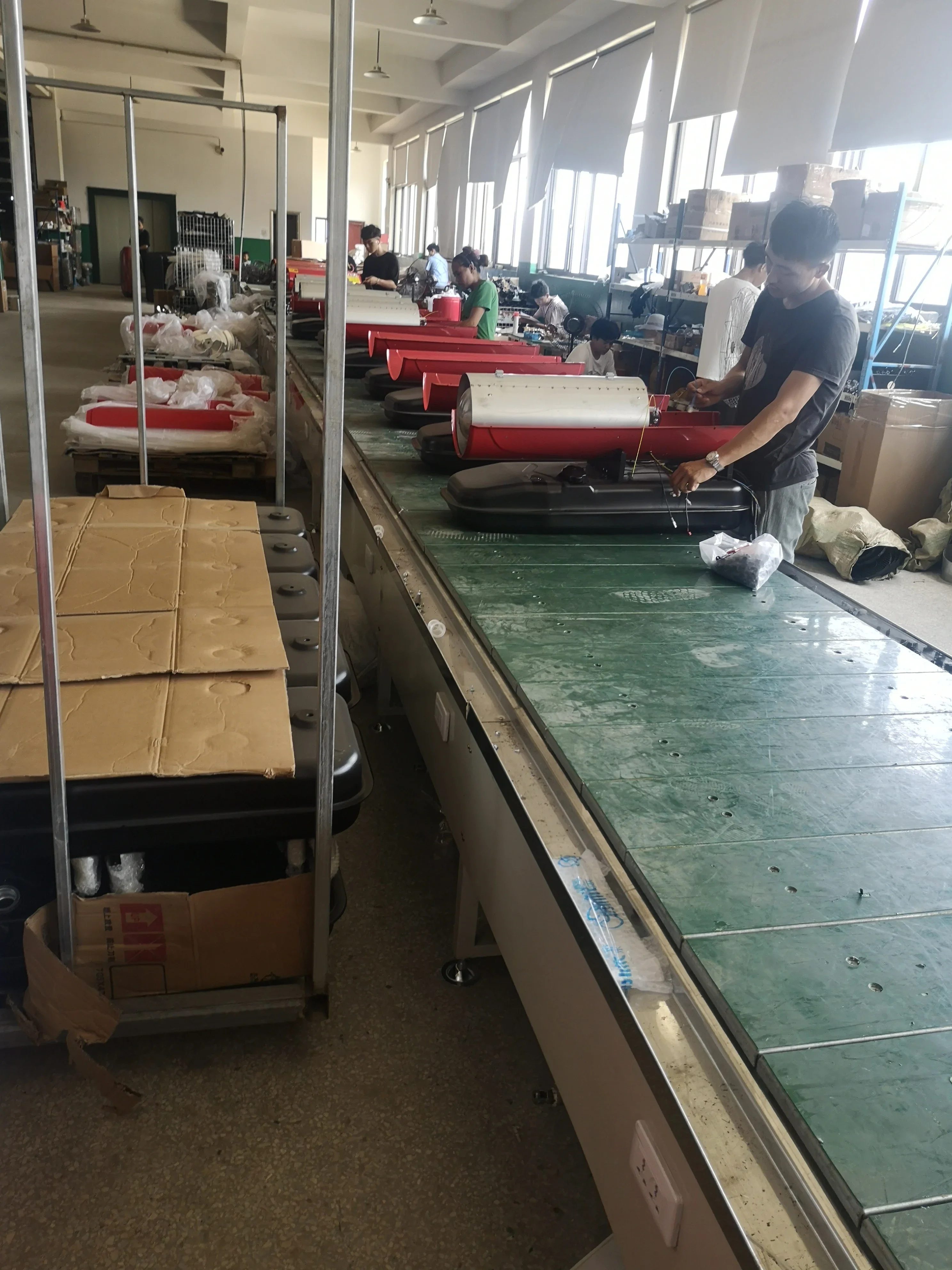

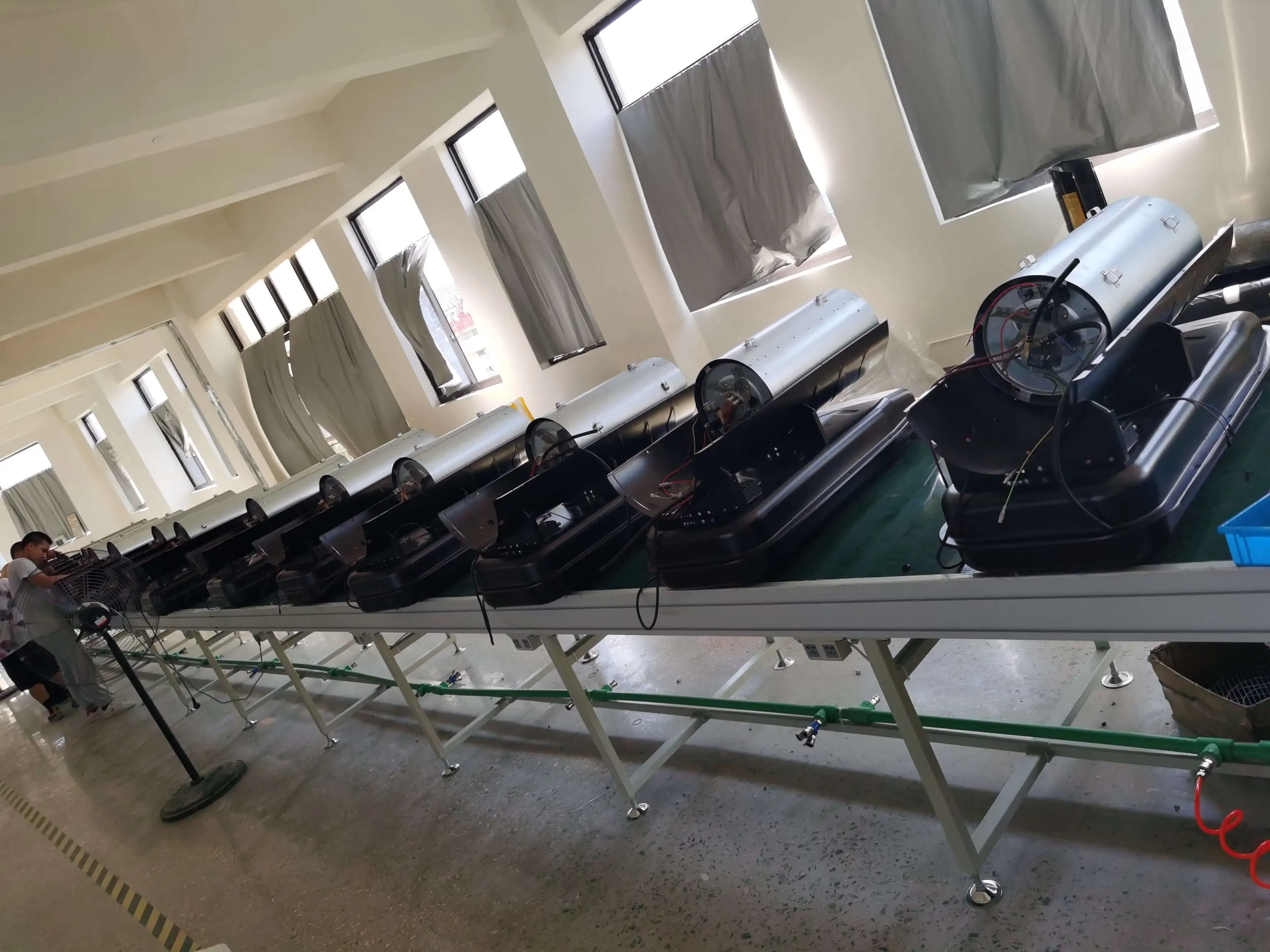

BOOST factory is equipped with the most advanced CNC production lines and laser cutting machines, top quality level in the industry, in order to reduce the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally.

We have strong design and research capabilities and experienced production workers. Our products are exported to many countries around the world.

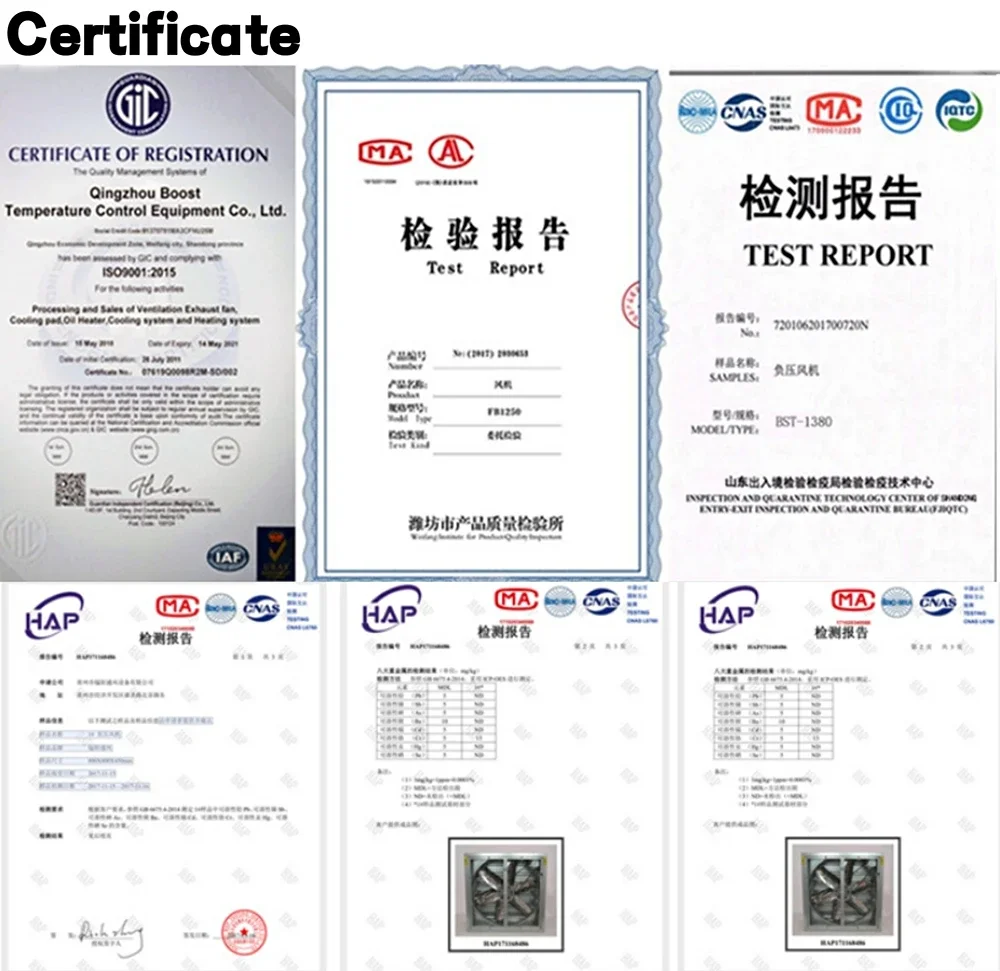

Certification

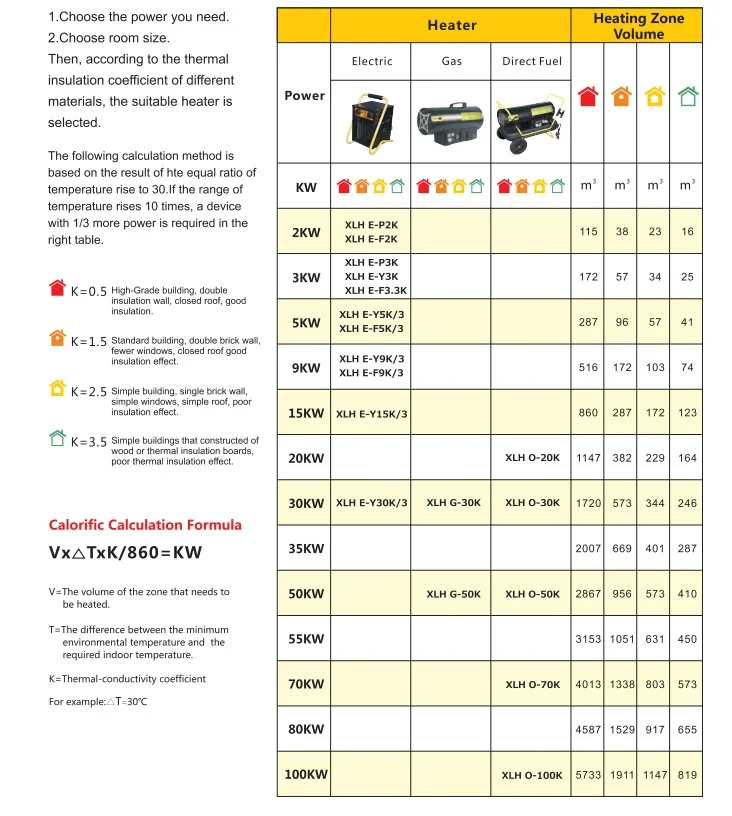

How To Choose a Model?

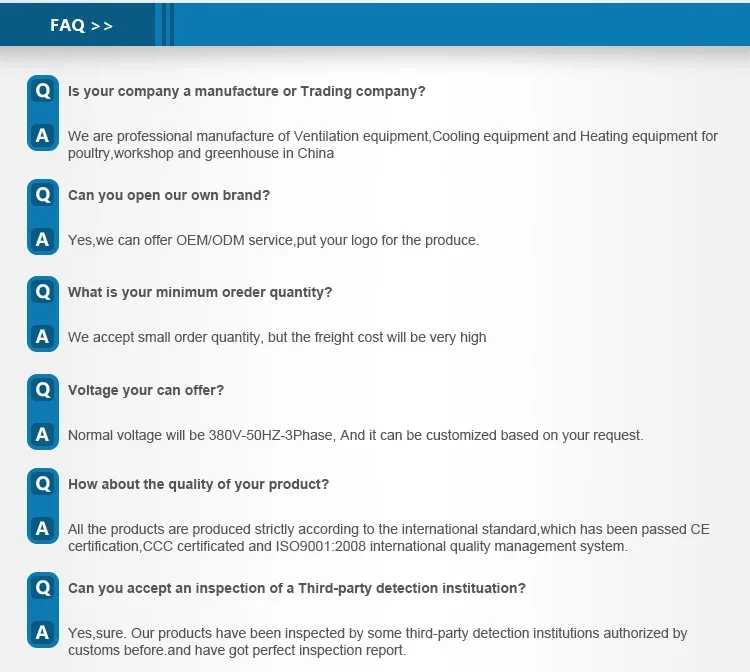

FAQ

After-sales service

Recommended by seller

Poultry Breeding Equipment Broiler Feeder Drinker Line Automatic Feeding Plastic Chicken House Feeding Lines Drinking Line

$2,000-3,000 / set

60 sets

Series Shutter Cone Type FRP Axial Flow Cooling Exhaust Fans for Poultry Animal Husbandry Livestock Equipment

$100-120 / set

1 set

Plastic Material Evaporative Cooling Pad

$80-100 / set

1 set

Farm Used Storage Corn Rice Grain Steel Silo for Sale Maize Seed Wheat Storage Silo System Price Cost

$700-900 / set

1 set

1100 Cooling Pad Production Line

$30,000-50,000 / set

1 set

Pre-sales service

* Inquiry and consulting support.

* Sample testing support.

* Visit our Factory.

After-sales service

* Training how to install the machine,training how to use the

machine.

* Engineers are available to service machinery overseas

Frequently Asked Questions

What is the minimum order quantity for this diesel kerosene oil heater?

Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.

What warranty covers this diesel kerosene oil heater?

A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.

Which certifications are available?

CE documentation is supplied with the product. Additional test reports can be issued on request for specific import markets.

Can it be built for my local voltage?

The standard specification is 220 V. Alternative voltage and frequency builds are available when confirmed at order stage.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.

How long is production and delivery?

Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
