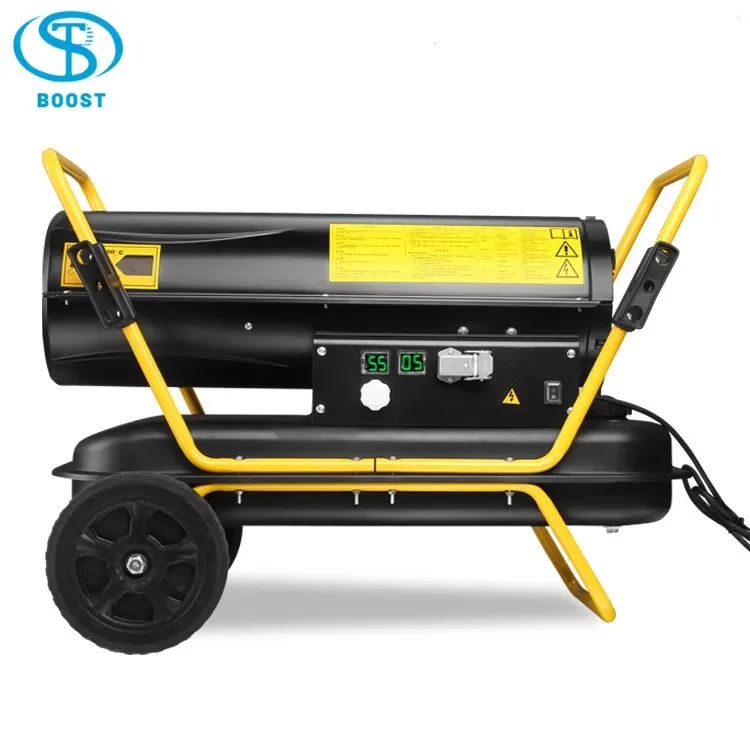

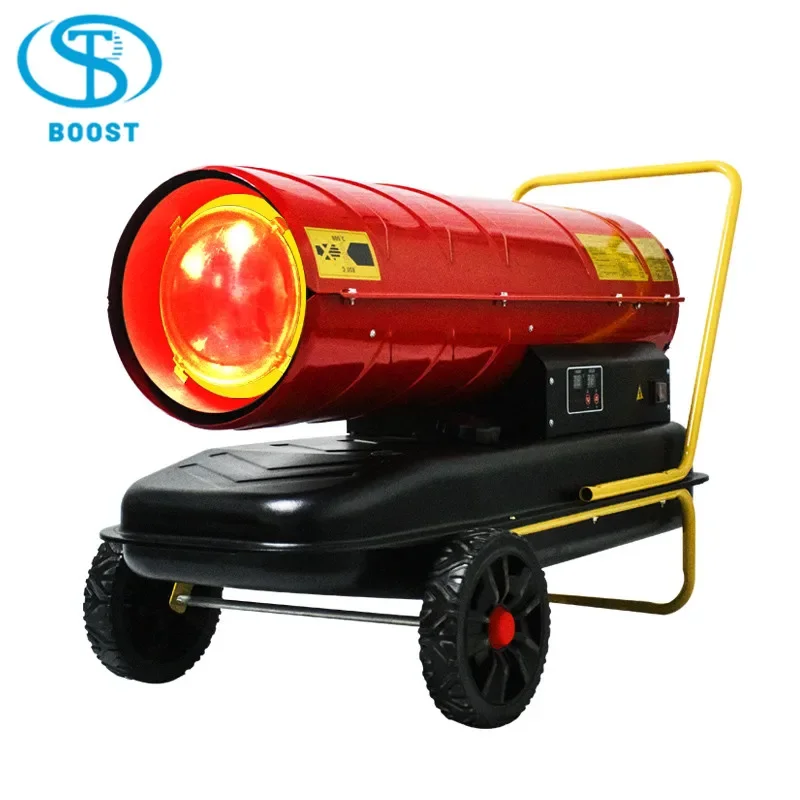

Diesel Kerosene Oil Heater, 20Kw/30Kw/50Kw/80Kw, 220 V

Diesel kerosene oil heater — 220 V, power source Diesel. The complete factory specification follows. Made by Qingzhou Boost Temperature Control Equipment Co., Ltd. (7 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Diesel Kerosene Oil Heater

• Power Source: Diesel
• Power: 50kw
• Voltage: 220 V
• Material: Stainless Steel
• Warranty: 1 Year
• Certification: CE

Technical Specifications

Product Details

Products Description

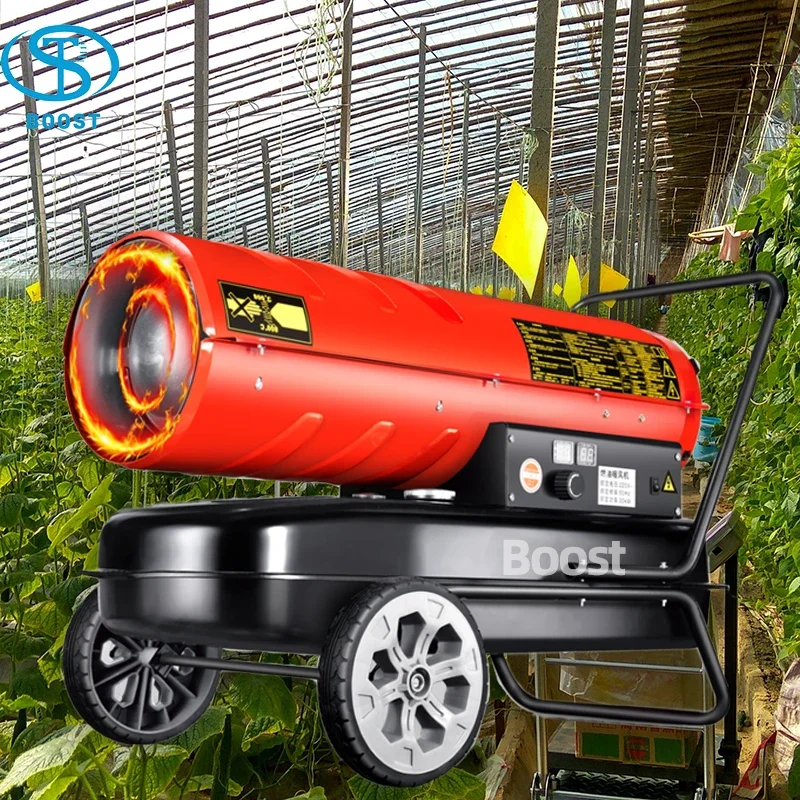

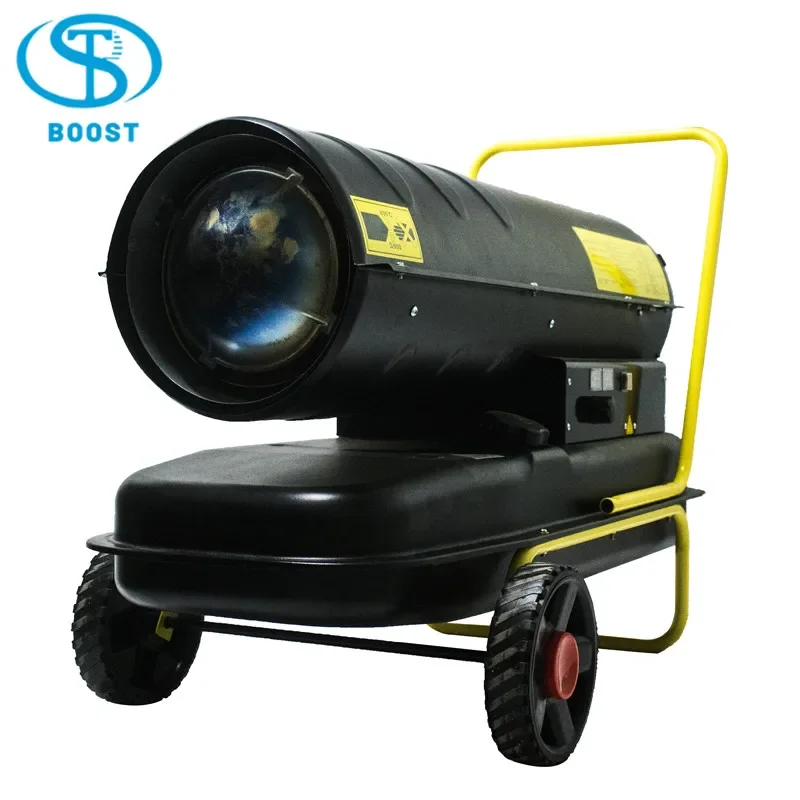

20Kw/30Kw/50Kw/80Kw Eco-Friendly Industrial Indirect Agriculture Diesel Kerosene Oil Heater with Remote External Thermostat

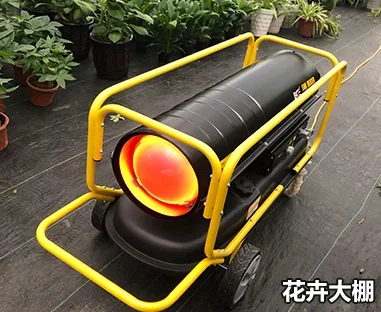

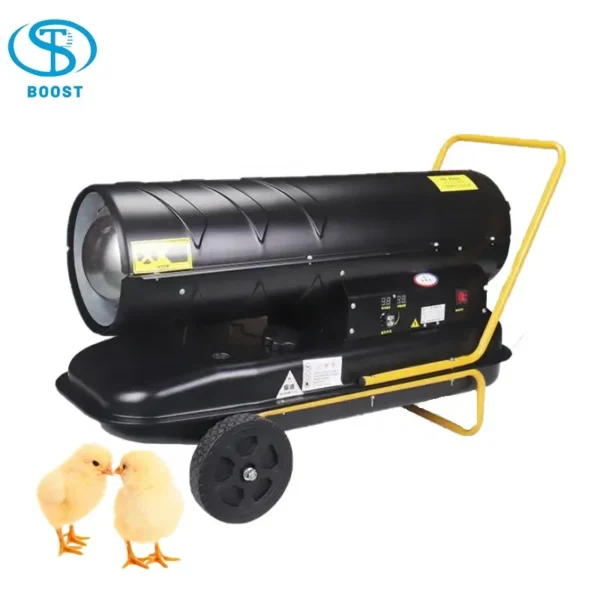

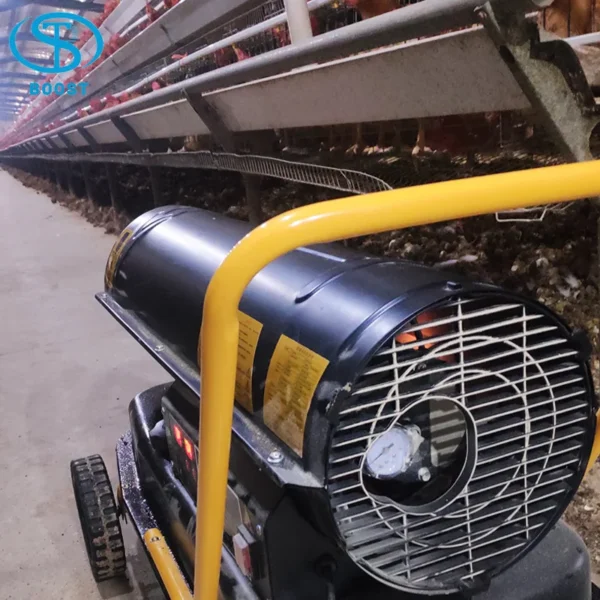

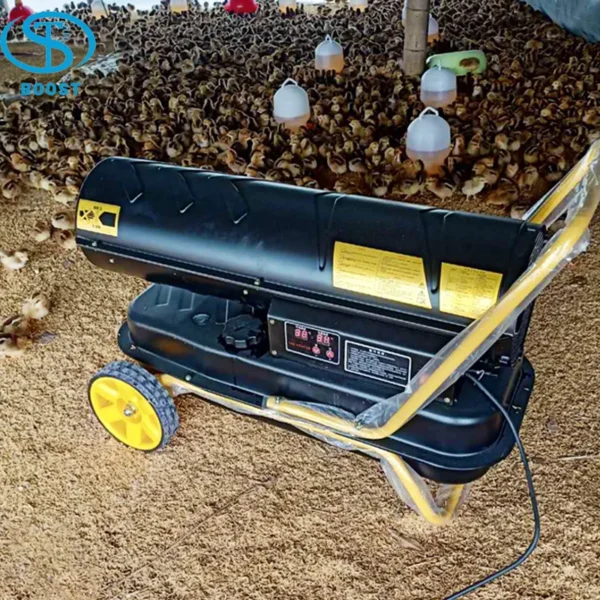

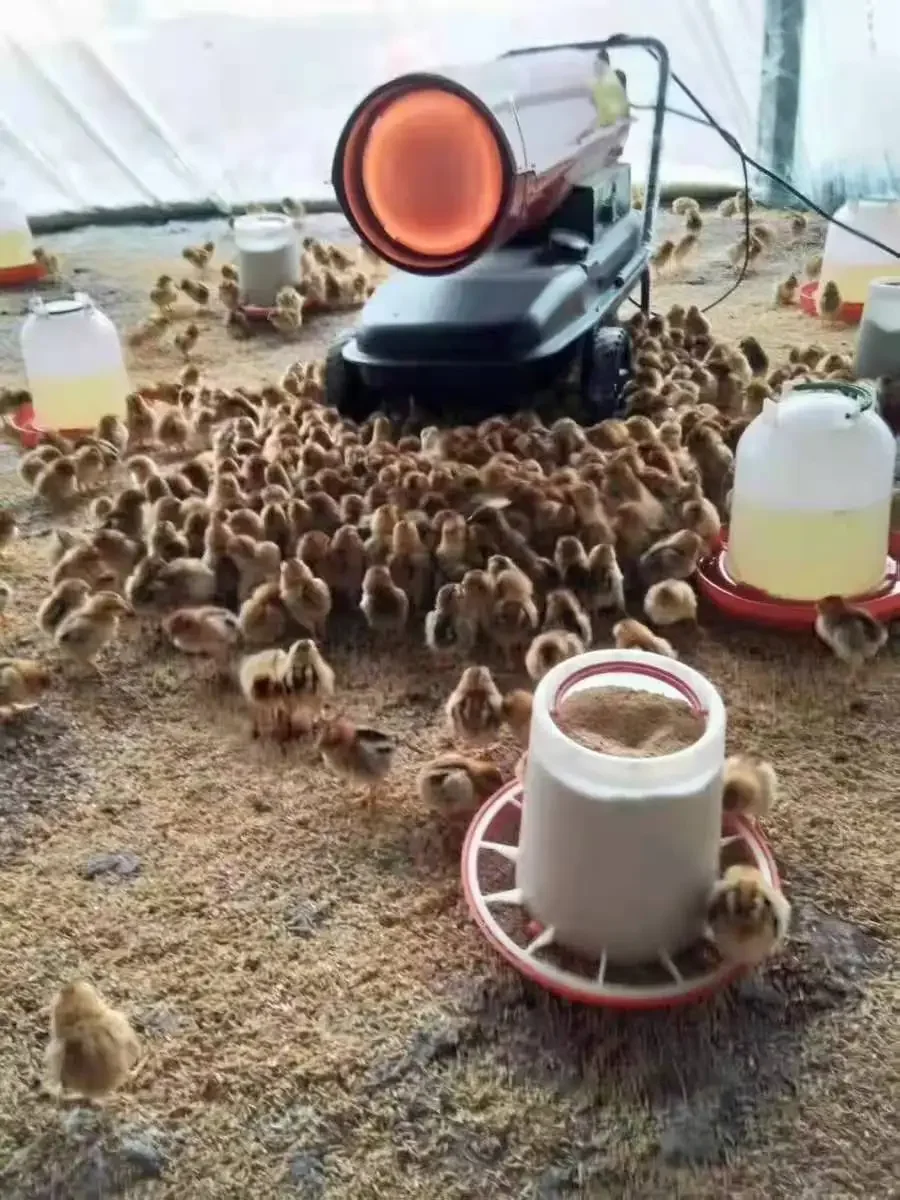

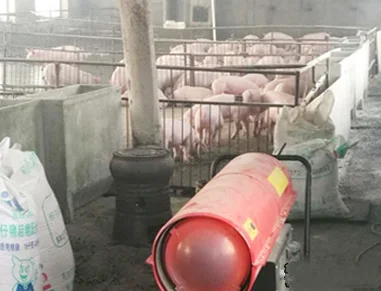

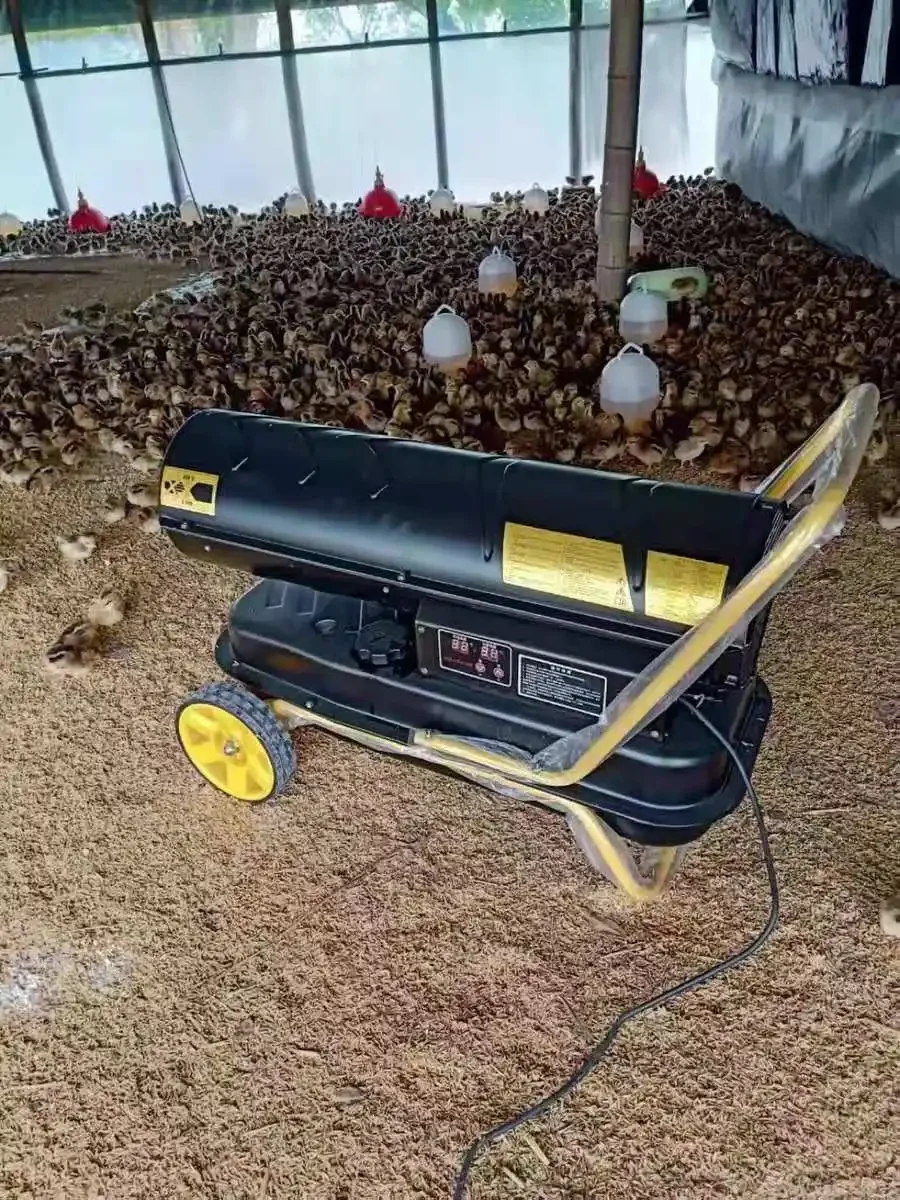

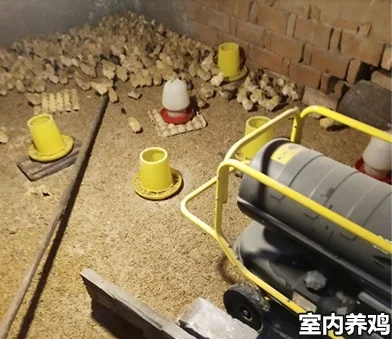

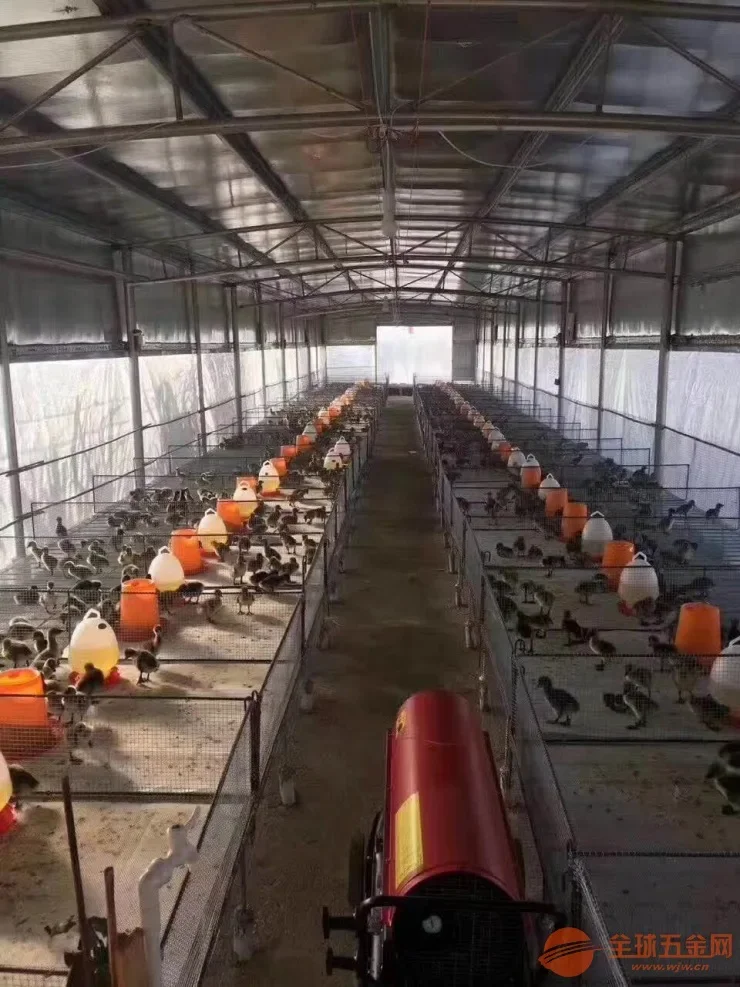

BOOST Air heater is widely used in Animal husbandry, Greenhouse, Factory workshop, Pipeline heating, Log drying, Decoration quick drying,and can customized the model for swine fever disinfection.

We have several models, please let me know your requirement, then we will suggest you suitable model

Model	BSTAH-20	BSTAH-30	BSTAH-50	BSTAH-70	BSTAH-100
Power	20kw	30kw	50kw	70kw	100kw
Air volume	550m3/h	720m3/h	1100m3/h	1300m3/h	1700m3/h
Oil consumption	1.0 L/H-1.7 L/H	1.5 L/H- 2.4 L/H	2.8 L/H- 4 L/H	3.5 L/H- 5.4 L/H	4.0L/H-8.0 L/H
Tank capacity	19L	38L	56L	65L	65L
N.W/G.W	19kg/20kg	20kg/21kg	27kg/28kg	41kg/42kg	41kg/42kg
Packing size	750*315*415mm	920*460*630mm	1050*490*615mm	1130*480*655mm	1130*480*655mm
Voltage/Hz	220V/50HZ	220V/50HZ	220V/50HZ	220V/50HZ	220V/50HZ

Detail Images

Motor

1.Pure copper motor

2.Primary safety of insulation

3.Fully enclosed waterproof and dustproof :IPX4

4.Leakage protection, high current grounding wire 5.Pure aluminum shell anti-rust, fast heat dissipation

Large Air Duct,Large Heat

BOOST Diesel heater with enlarged air duct, rapid heating and uniform temperature
1.Special baking paint coating, anti corrosion and corrosion resistance

2.High strength galvanized sheet, high hardness, impact
resistance

3.Convection insulation, not hot 4.Stainless steel combustion cylinder, high temperature resistant

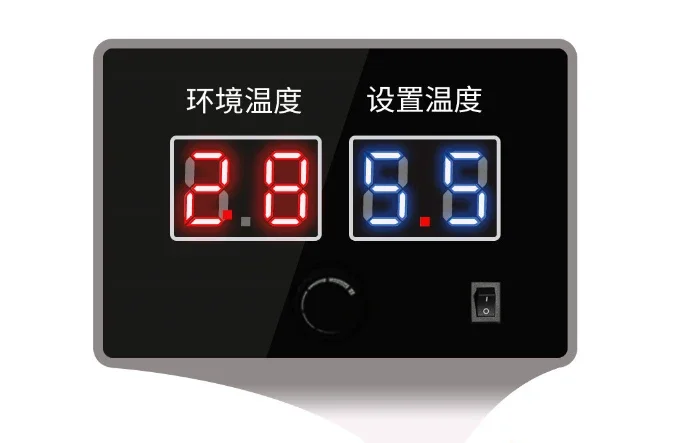

One key intelligent constant temperature control

1.Dual display computer version

2.The key numerical control panel ,More accurate control, More sufficient combustion

3.External temperature control probe

4.Precise temperature control

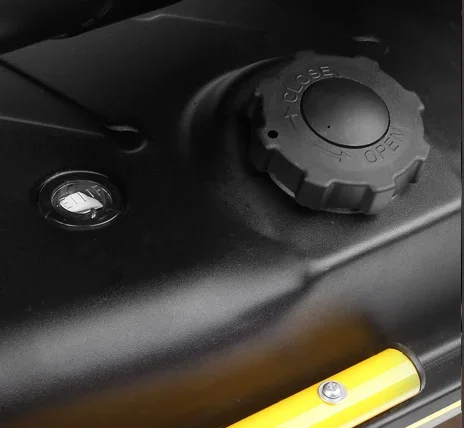

Oil tank

Thickened 8mm steel oil tank Visual oil scale

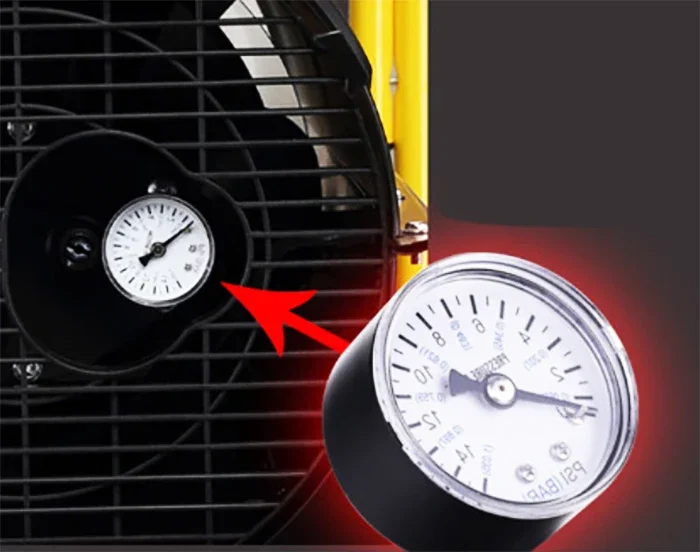

Working pressure gauge

The internal air pressure is regulated according to the environment.

The machine already to be with optimum pressure,if need to be adjustment,please contact the technician for help.

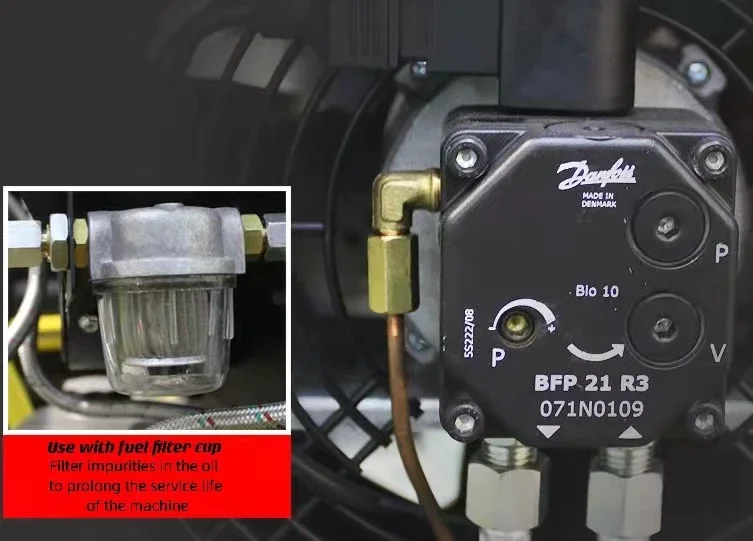

Imported gear pump

Imported gear pump,Intelligent Temperature control ,More powerful and reassuring.
The fuel filter bowl is used together Filter impurities in oil to ensure service life

Imported nozzle

Imported nozzle,

stable quality

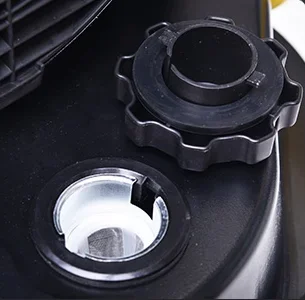

Filter screen

The oil tank port is equipped with filter screen

Impurity filtration

Technical tips

1.Maintenance Tips

1.Every 500 hours is a maintenance interval. If the working environment is bad (breeding farm, dusty occasion.etc), the
maintenance period need to be shortened to 250 hours

2.Inspection items
2.1.Clean or replace the filter sponge inside the air pump(Inlet/Outlet)
2.2.Clean or replace the oil suction filter
2.3.Clean the ignition pin(Brush off the accumulated carbon on the needle due to ignition)
2.4.Clean the oil tank, open the drain nut at the bottom of the oil tank, discharge the internal residue, and clean the inside of the oil tank with clean diesel or kerosene
Remarks:
Filter sponge, oil suction filter and oil nozzle are vulnerable parts, not within one year free warranty period

Application

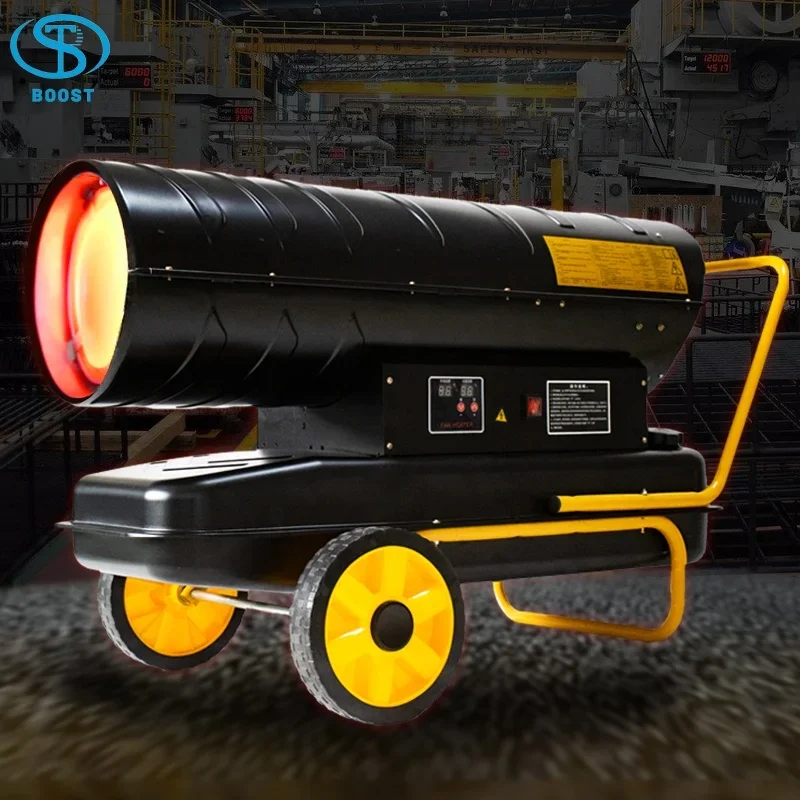

Factory&Workshop

Company profile

Qingzhou Boost Temperature Control Equipment Co., Ltd. is the pioneer and leader of new type of plant ventilation and cooling equipment, standardized livestock and poultry houses, horticultural greenhouse ventilation and cooling, and heating equipment.

It has produced more than 30 "Boost" brand products in six series. The main products are cooling pad, livestock fans,negative pressure fans, garden fans, circulation fans, automatic roof ventilators, axial fans, hot blast stoves, etc

WHY CHOOSE BOOST?

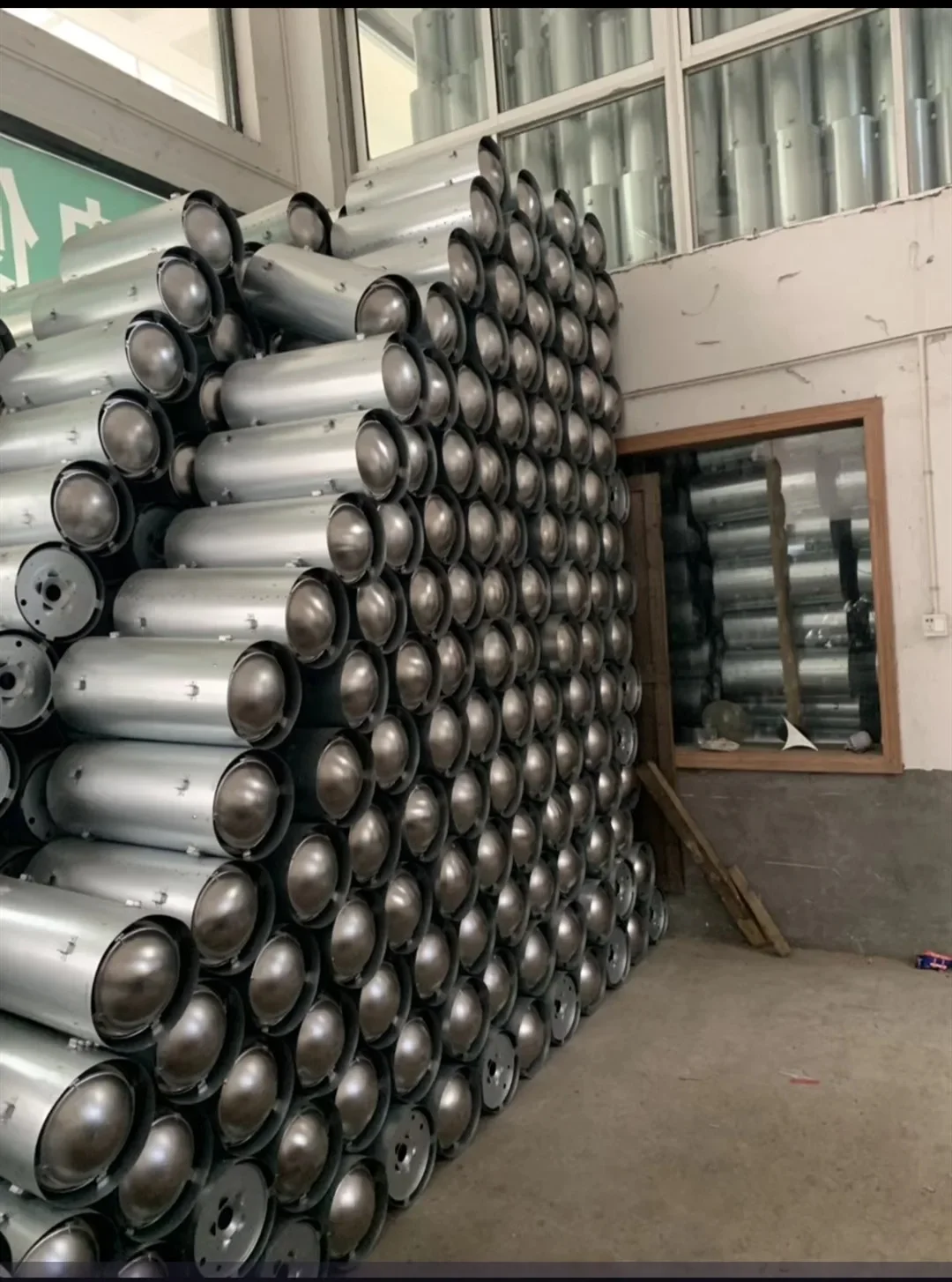

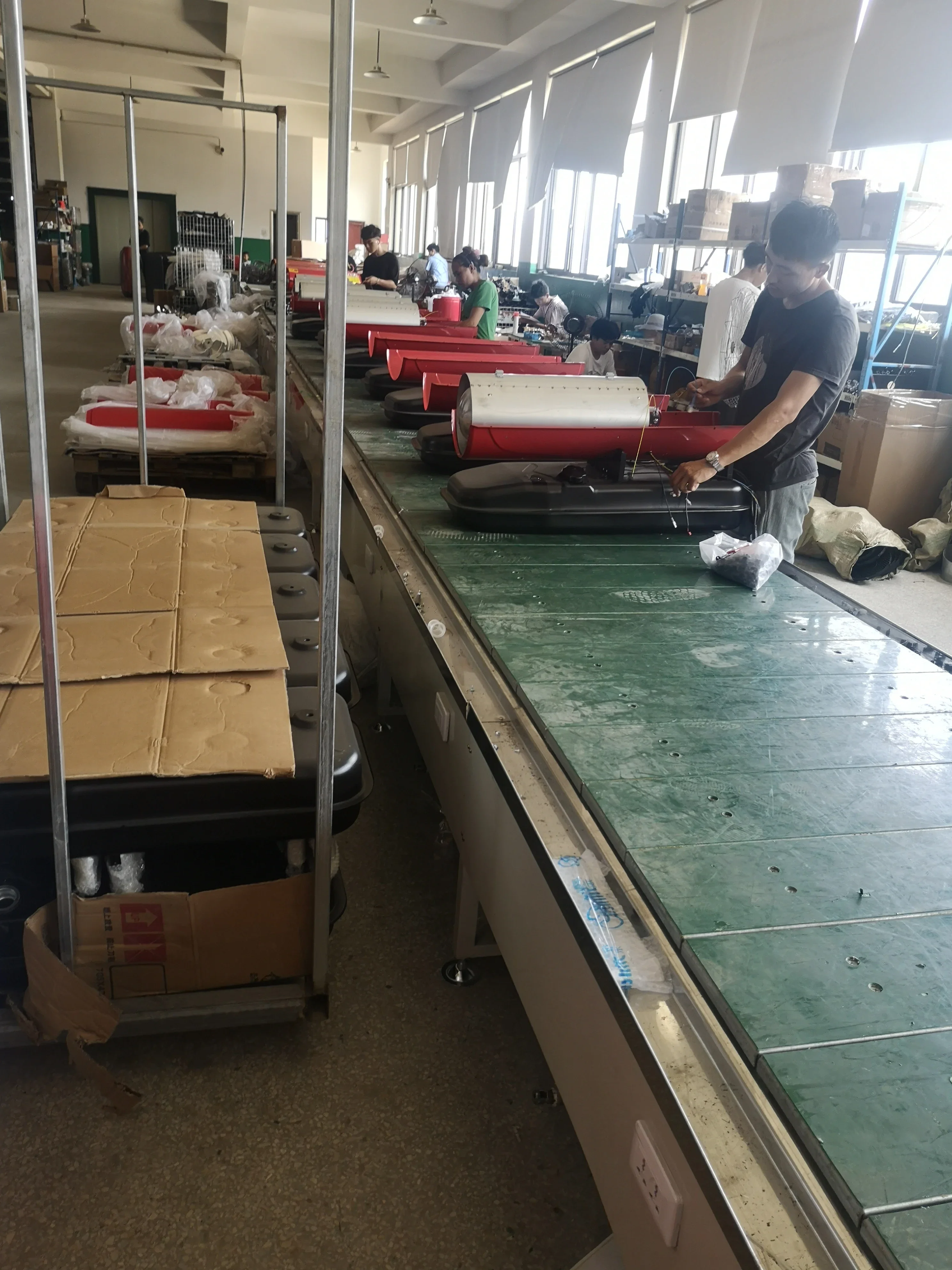

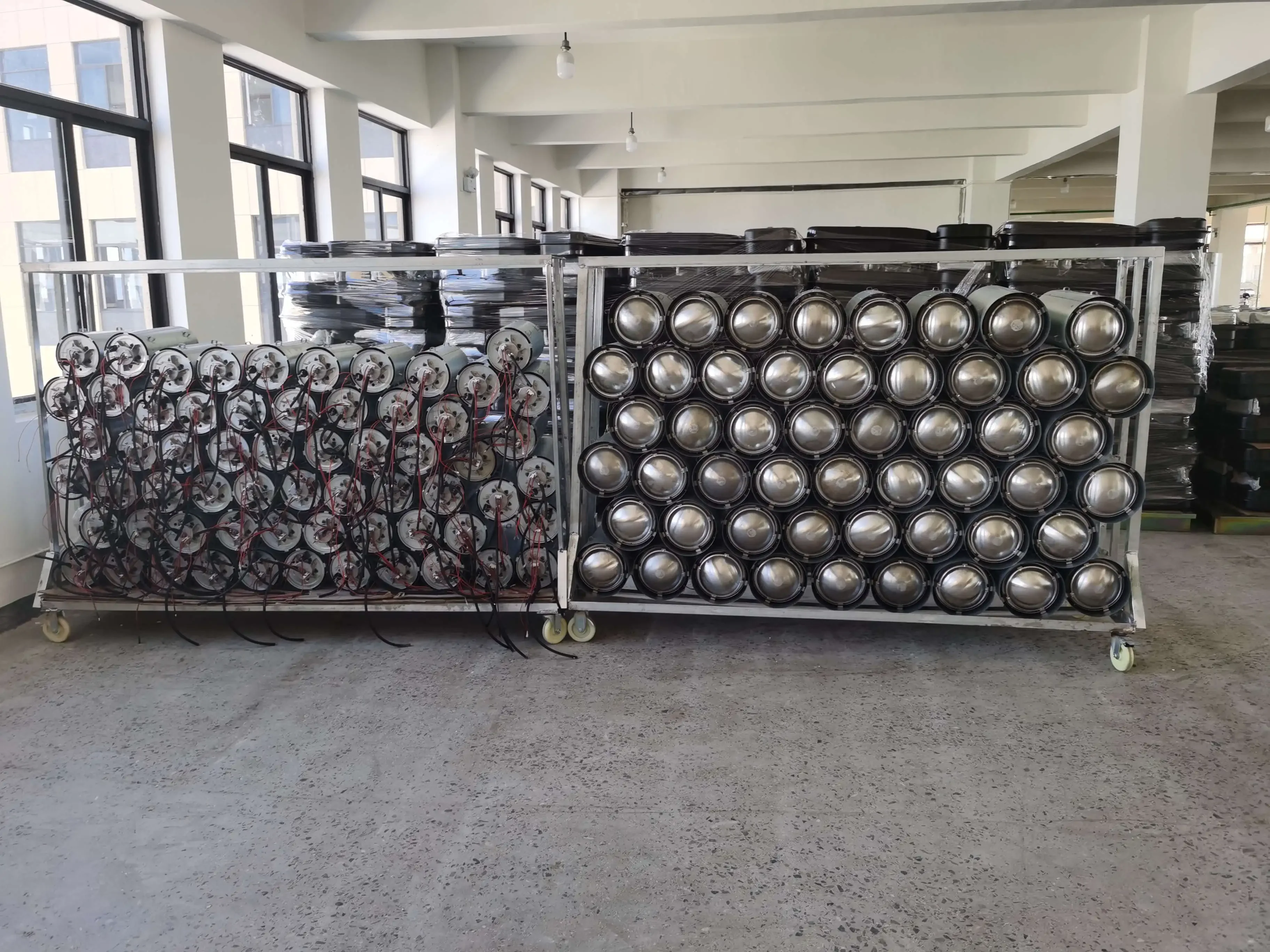

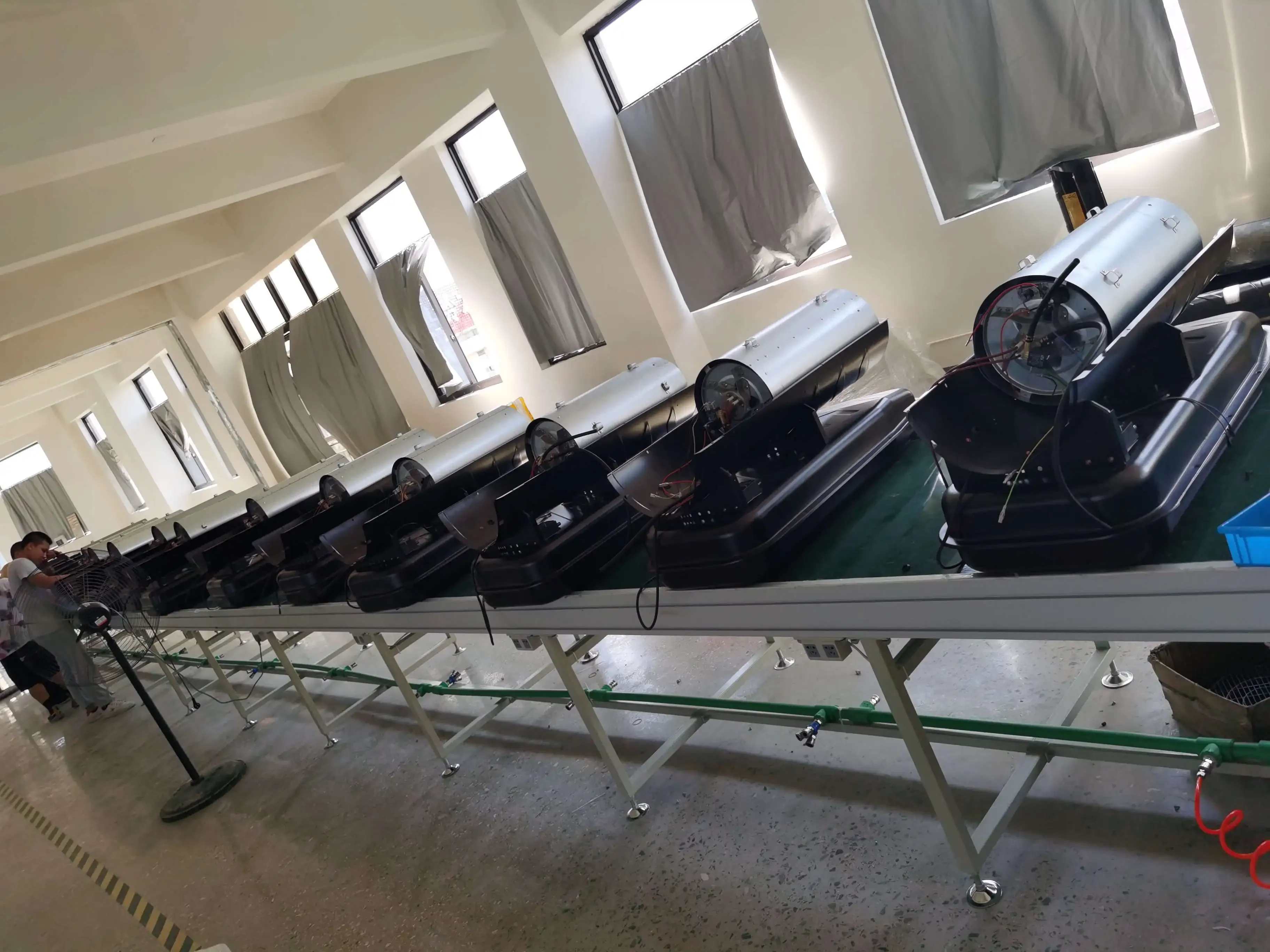

BOOST factory is equipped with the most advanced CNC production lines and laser cutting machines, top quality level in the industry, in order to reduce the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally.
We have strong design and research capabilities and experienced production workers. Our products are exported to many countries around the world.

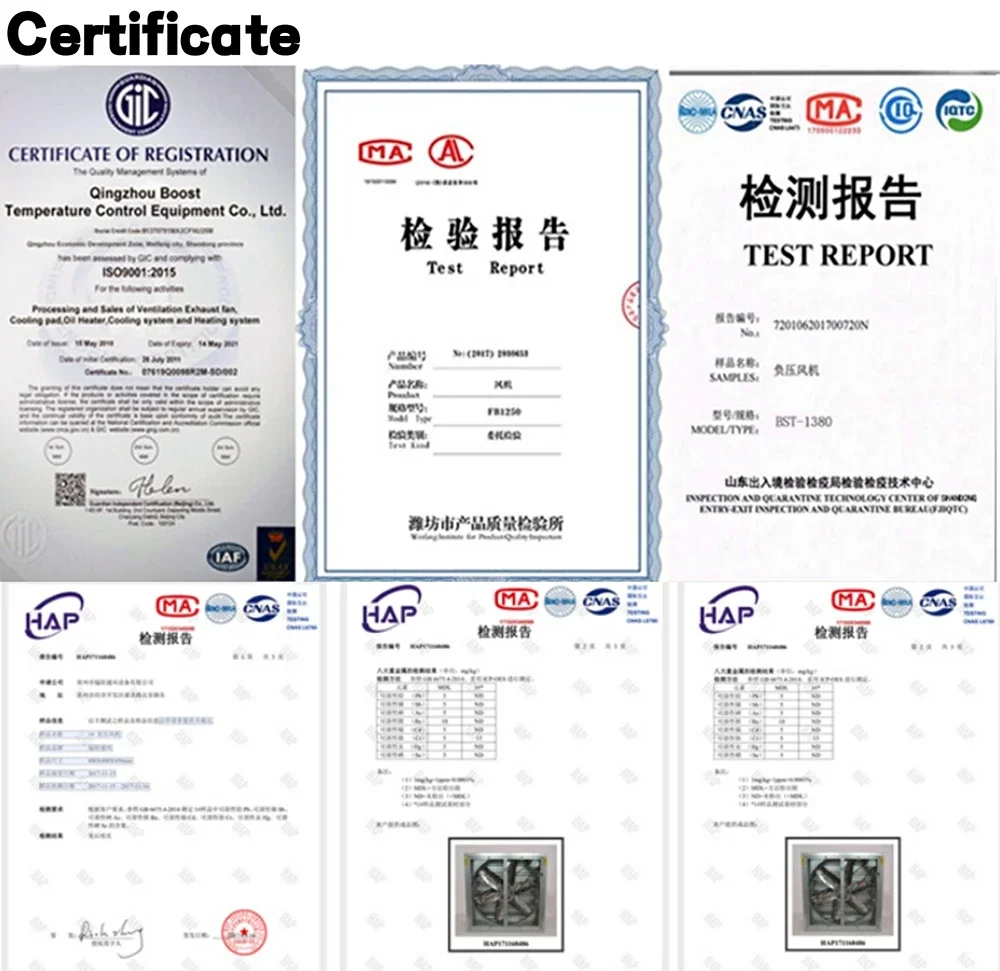

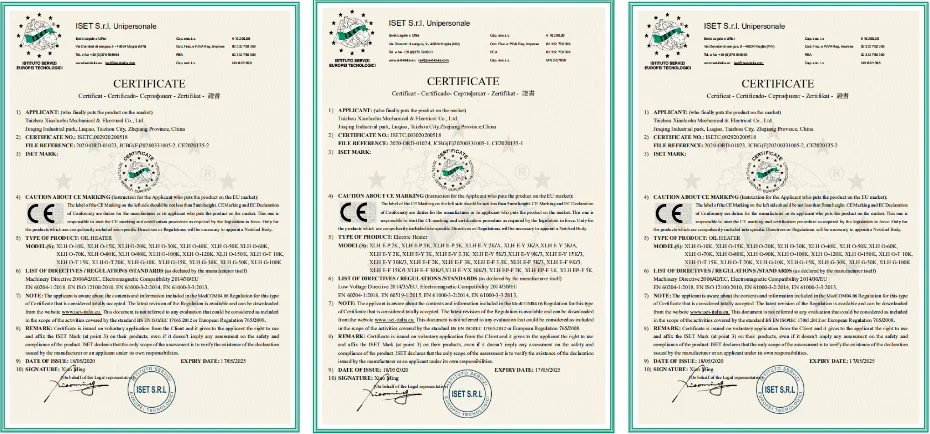

Certification

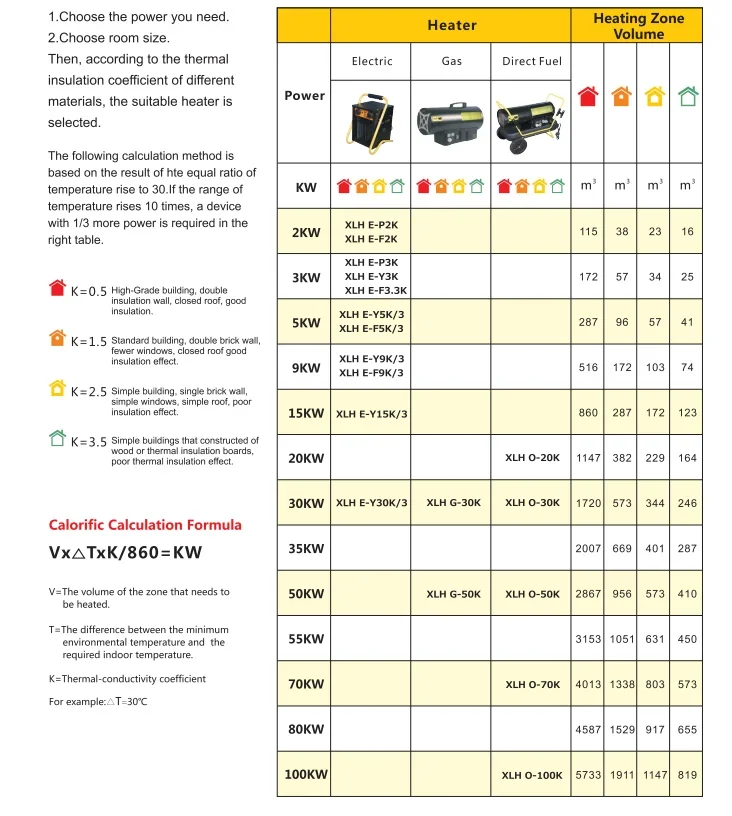

How To Choose a Model?

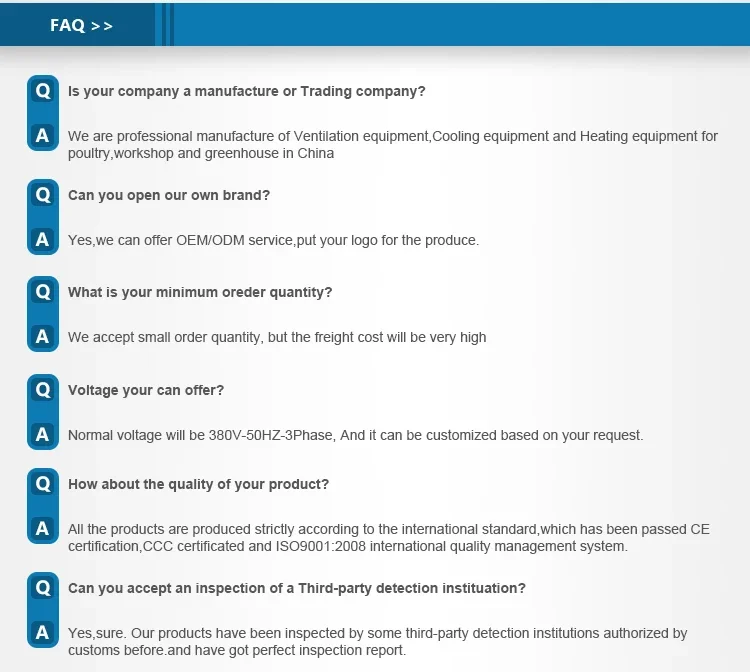

FAQ

After-sales service

Pre-sales service

* Inquiry and consulting support.

* Sample testing support.
* Visit our Factory.

After-sales service

* Training how to install the machine,training how to use the

machine.

* Engineers are available to service machinery overseas

Ordering and Pricing

• Minimum order quantity: 10 set
• Volume pricing:
  • 10–49 set: US $140 / set
  • 50+ set: US $110 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this diesel kerosene oil heater?

The standard minimum order quantity is 10 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this diesel kerosene oil heater carry?

It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the diesel kerosene oil heater be supplied for my local voltage?

The standard configuration is 220 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Qingzhou Boost Temperature Control Equipment Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Qingzhou Boost Temperature Control Equipment Co., Ltd. range on HVACR Nexus.
