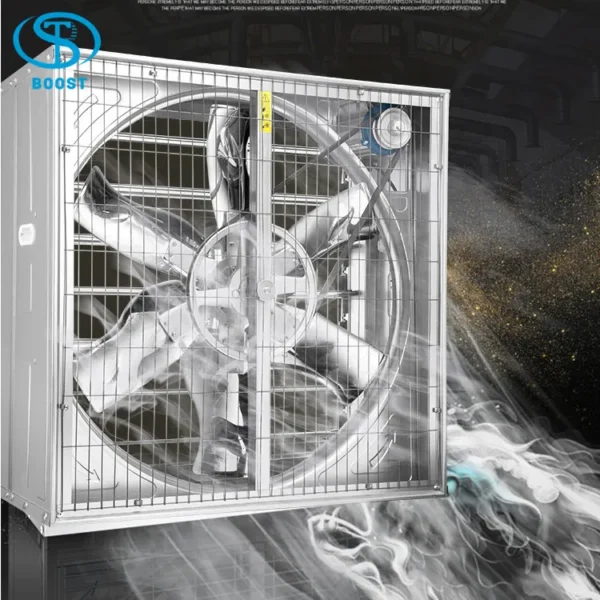

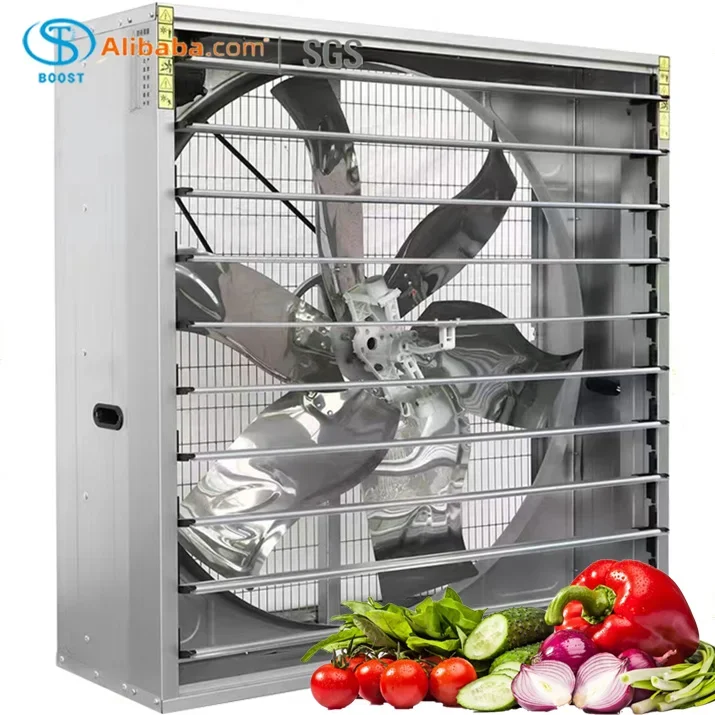

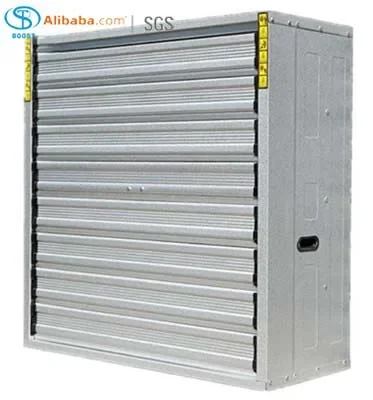

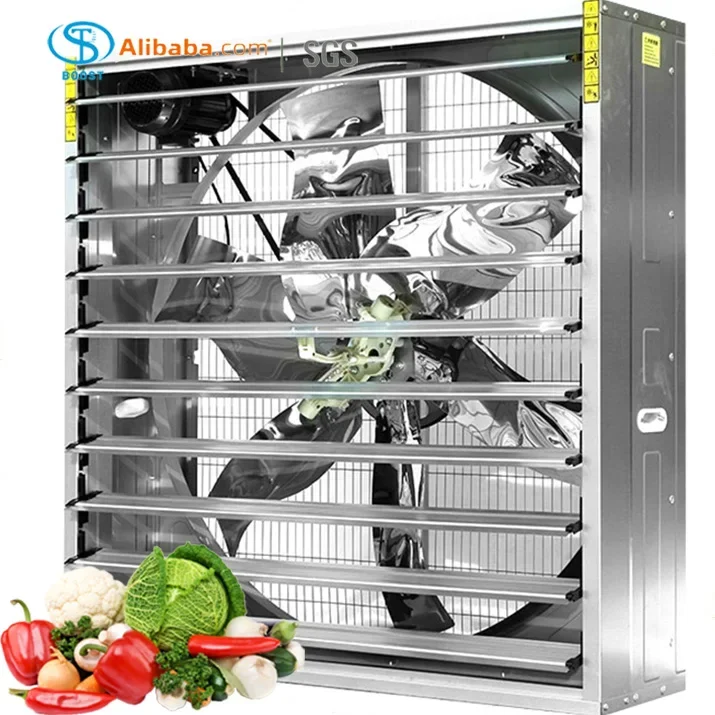

Greenhouse push pull fan — power source Electric, material Stainless Steel. The complete factory specification follows. Made by Qingzhou Boost Temperature Control Equipment Co., Ltd. (7 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Greenhouse Push Pull Fan
- Model Number: BST1000
- Power Source: Electric
- Power: 750w
- Voltage: 120 V, 380V/220V/Customized, 415V, 230V, 240V
- Material: Stainless Steel
- Blade Material: Stainless Steel
Technical Specifications
| Blade Diameter | 900mm(35.43in) |
|---|---|
| Voltage | 120 V, 380V/220V/Customized, 415V, 230V, 240V |
| Speed | 13m/s(42.65ft/s) |
| Type | Wall-Mounted Axial Fan |
| Material | Stainless Steel |
| Blade Material | Stainless Steel |
| Mounting Type | Wall Fan |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Shandong, China |
| Brand Name | BOOST |
| Model Number | BST1000 |
| Product Name | 20 inch 24 inch greenhouse Push pull fan |
| Size | 1000*1000*450mm |
| Belt | Japanese Mitsuboshi |
| Frame Material | Galvanized Sheet/Stainless Steel |
| Motor Brand | China motor/Siemens motor/WEG motor/ABB motor |
| Balde Rpm | 610rpm |
| Application | Poultry Farms,Animal Husbandry,Greenhouse, Factory workshop |
| Power | 750w |
| Opening Device | Centrifugal Push-Pull |
| Selling Units | Single item |
| Single Package Size | 30X20X25 cm |
| Single Gross Weight | 28.0 kg |
Product Details
Products Description of Poultry Greenhouse Fan
Poultry fan rates Negative pressure fan exhaust for animal husbandry greenhouse ventilation systems
BOOST Exhaust fan are widely used in Agriculture and industry ventilation and cooling. It is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile etc.
VR

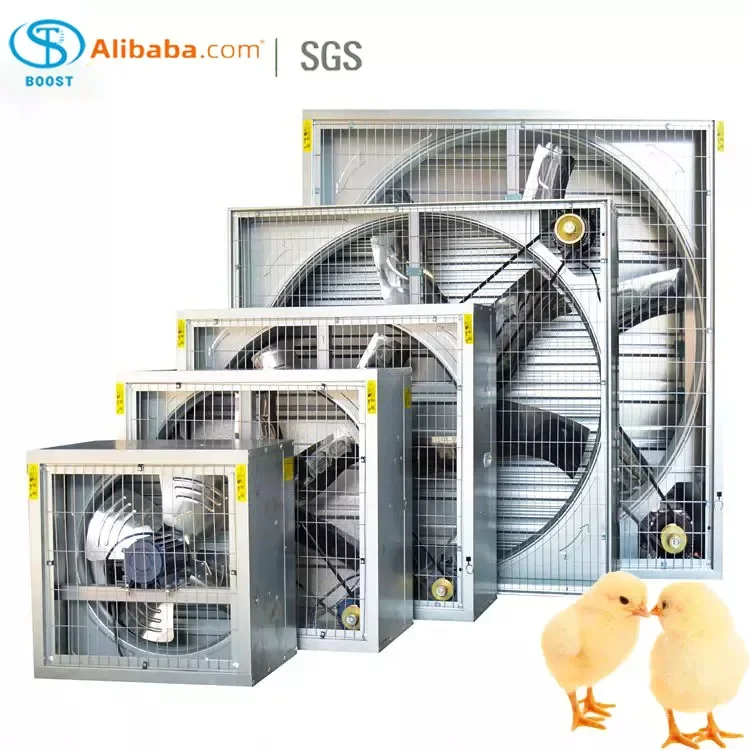

Model | Drive | Blades Diameter(mm) | Dimension (mm) | Blades Rotational Speed(rpm) | Motor Rotational Speed (rpm) | Air flow (m³/hr) | Input power (KW) | Noise (db) |
BST480 | Diect | 380 | 480*480 | 1400 | 1400 | 3000 | 0.18 | ＜70 |
BST600 | Direct | 500 (20inch) | 600*600 | 1400 | 1400 | 5700 | 0.37 | ＜70 |
BST800 | Belt | 710 (28inch) | 800*800 | 660 | 1400 | 18000 | 0.37 | ＜65 |
BST900 | Belt | 750 (30inch) | 900*900 | 630 | 1400 | 22000 | 0.55 | ＜65 |
BST1000 | Belt | 900 (36inch) | 1000*1000 | 610 | 1400 | 25000 | 0.75 | ＜65 |
BST1100 | Belt | 1000 (40inch) | 1100*1100 | 600 | 1400 | 32500 | 0.75 | ＜65 |
BST1220 | Belt | 1100 (44inch) | 1220*1220 | 460 | 1400 | 38000 | 0.75 | ＜64 |
BST1380 | Belt | 1270 (50inch) | 1380*1380 | 458 | 1400 | 44000 | 1.1 | ＜64 |
BST1530 | Belt | 1400 (56inch) | 1530*1530 | 325 | 1400 | 55800 | 1.5 | ＜64 |

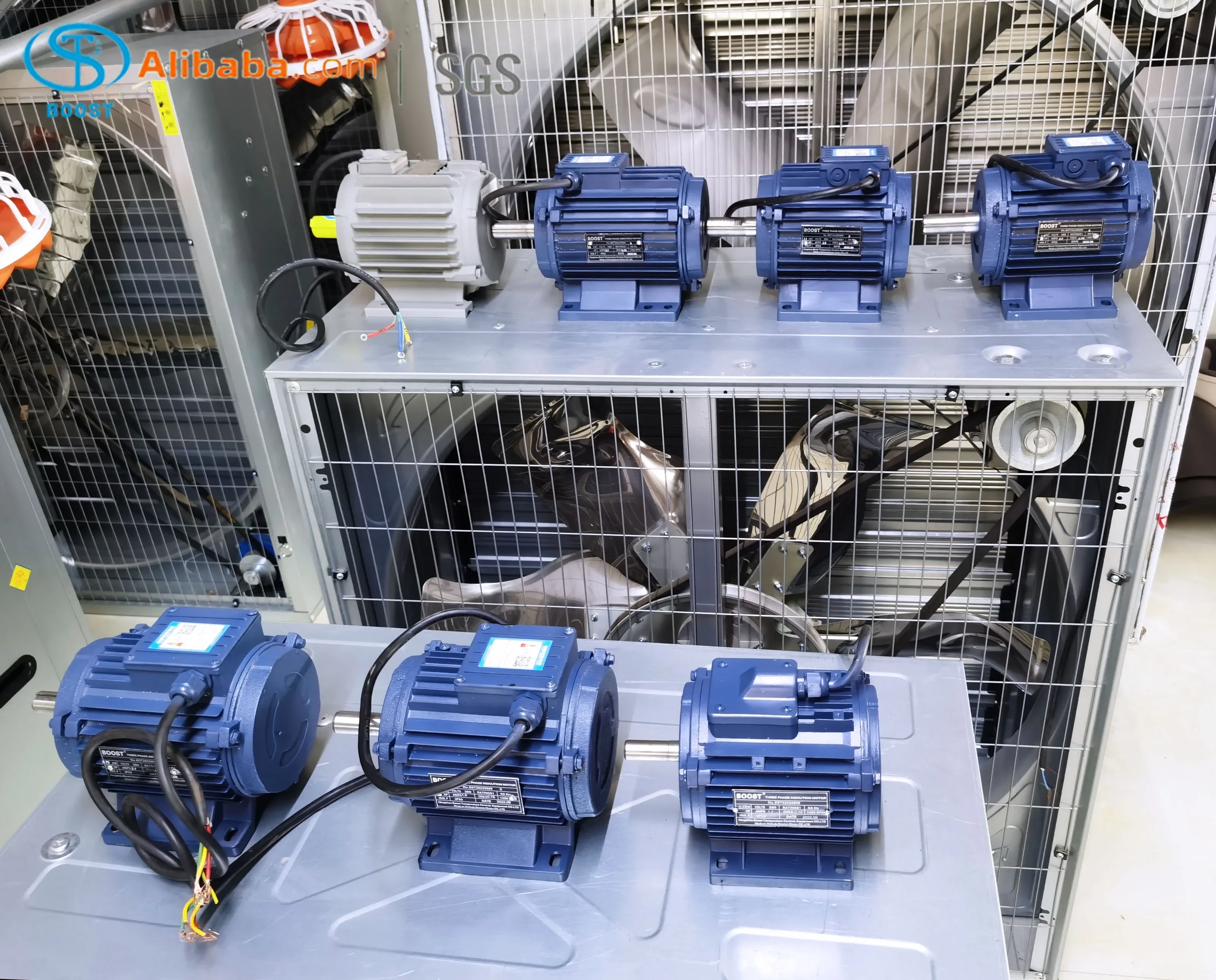

Motor
Brand: Chinese motor and Siemens motor Certificate: CCC Protection class: IP55 grade
Insulation class: F grade
Volt and frequency:Customized Production:With phase failure protective device to ensure motor working well
Advantage:
Pure copper wire,High-efficiency,Energy-saving.
Poultry fan rates Negative pressure fan exhaust for animal husbandry greenhouse ventilation systems
Insulation class: F grade
Volt and frequency:Customized Production:With phase failure protective device to ensure motor working well
Advantage:
Pure copper wire,High-efficiency,Energy-saving.
Poultry fan rates Negative pressure fan exhaust for animal husbandry greenhouse ventilation systems

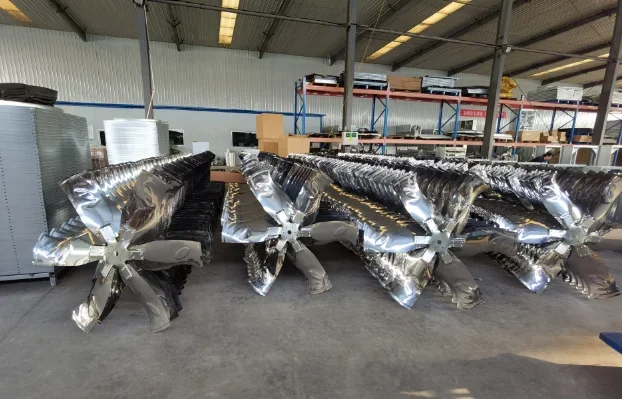

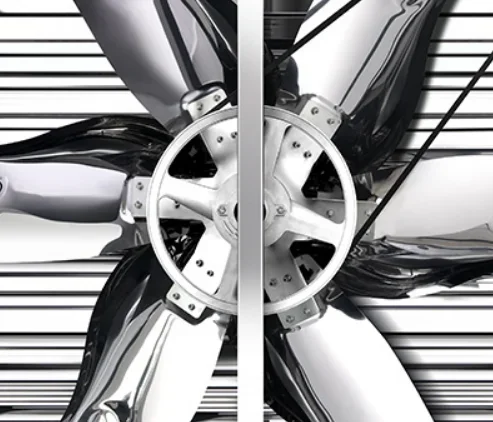

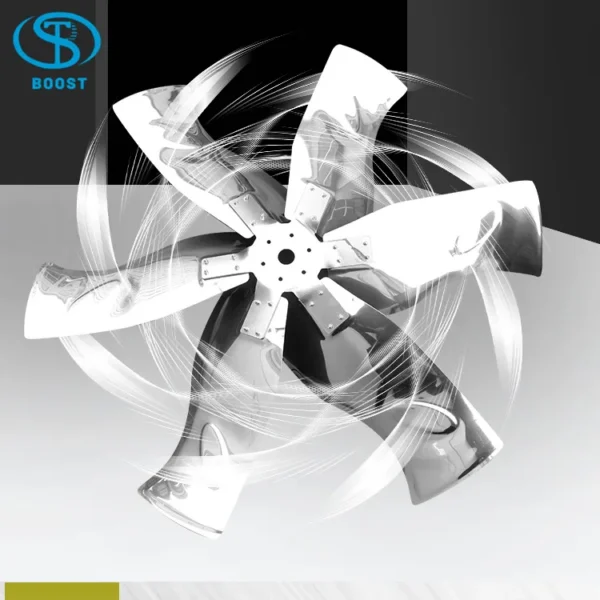

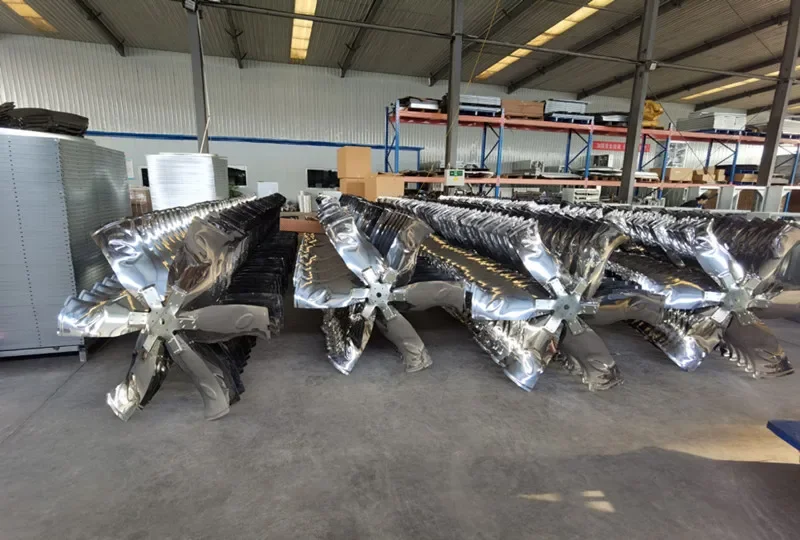

Fan blade which punching formed
1. Material : Krupp 430 stainless steel, thickness 1.2mm
2. Diameter: 1270mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:
Blade material also have galvanized sheet, aluminum alloy for option
2. Diameter: 1270mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:
Blade material also have galvanized sheet, aluminum alloy for option
Poultry fan rates Negative pressure fan exhaust for animal husbandry greenhouse ventilation systems

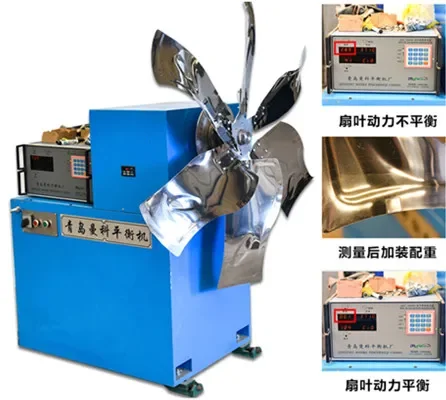

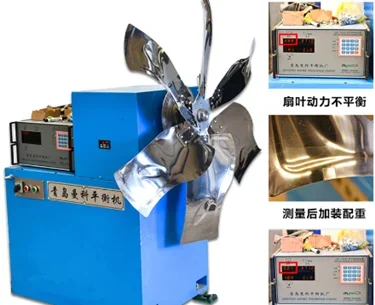

Italligent Dynamic-Fan balance Test
Fan blades are adjusted by Intalligent dynamic-balance tester, the weight tolerance of each blade is controlled within 1g.
Advantage:
Ensure the fan smooth running,lower vibration,less noise,increase stability.
Wall mounted industrial Agricultural Poultry axial exhaust fan greenhouse ventilation fans for Poultry House ,Pig house
Advantage:
Ensure the fan smooth running,lower vibration,less noise,increase stability.
Wall mounted industrial Agricultural Poultry axial exhaust fan greenhouse ventilation fans for Poultry House ,Pig house
Poultry fan rates Negative pressure fan exhaust for animal husbandry greenhouse ventilation systems
Frame 275g Thicken galvanized sheet
We has advanced production technology with automatic equipment. professional production line, NC-based professionalequipment.Auto
punching and bending. Highly-accurated. Materials is made by 275g coating weight galvanized sheet.
punching and bending. Highly-accurated. Materials is made by 275g coating weight galvanized sheet.

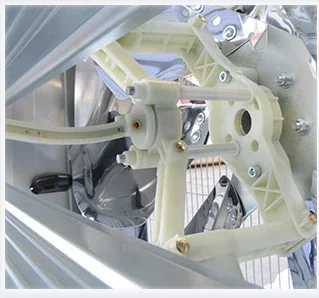

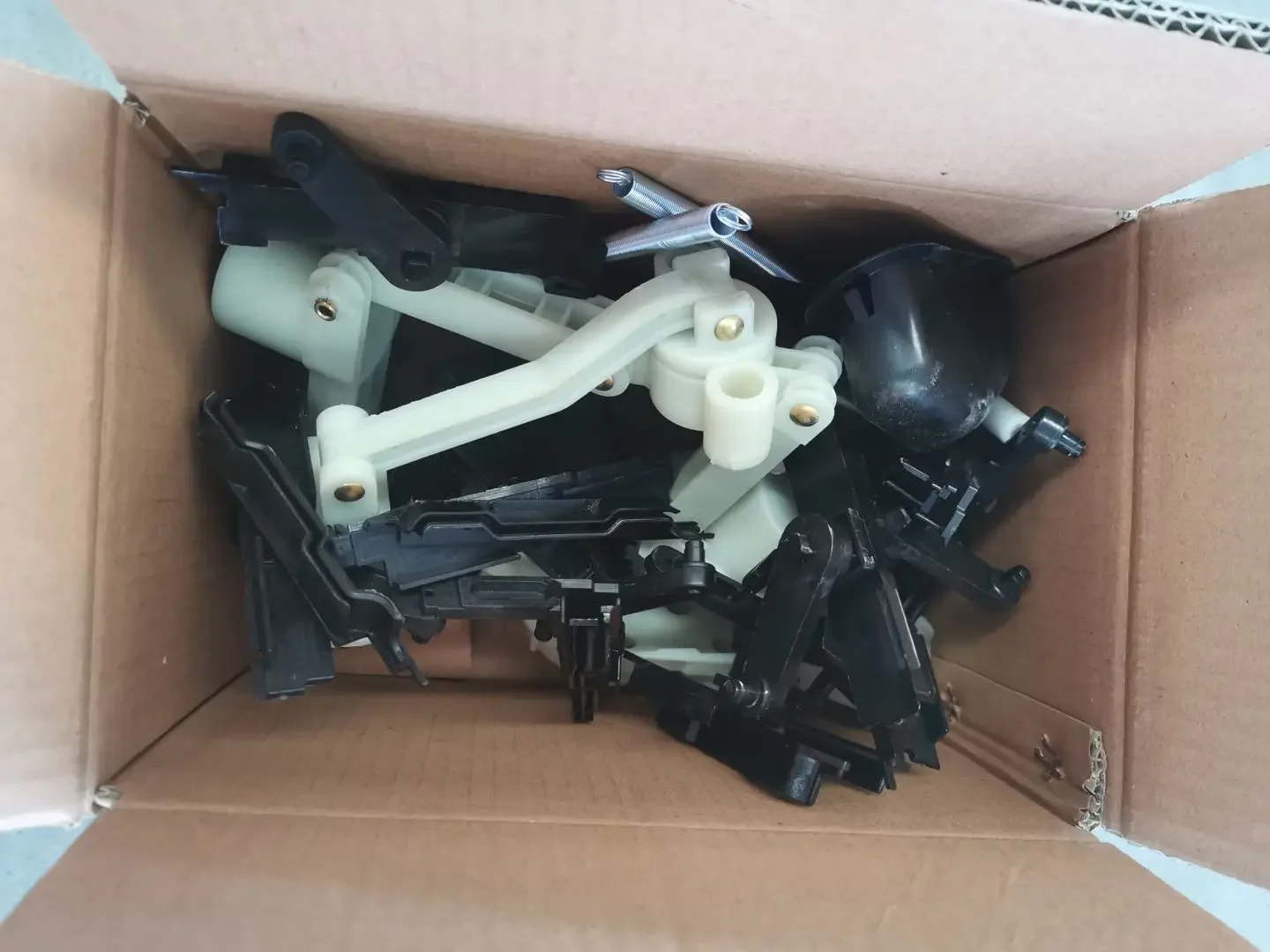

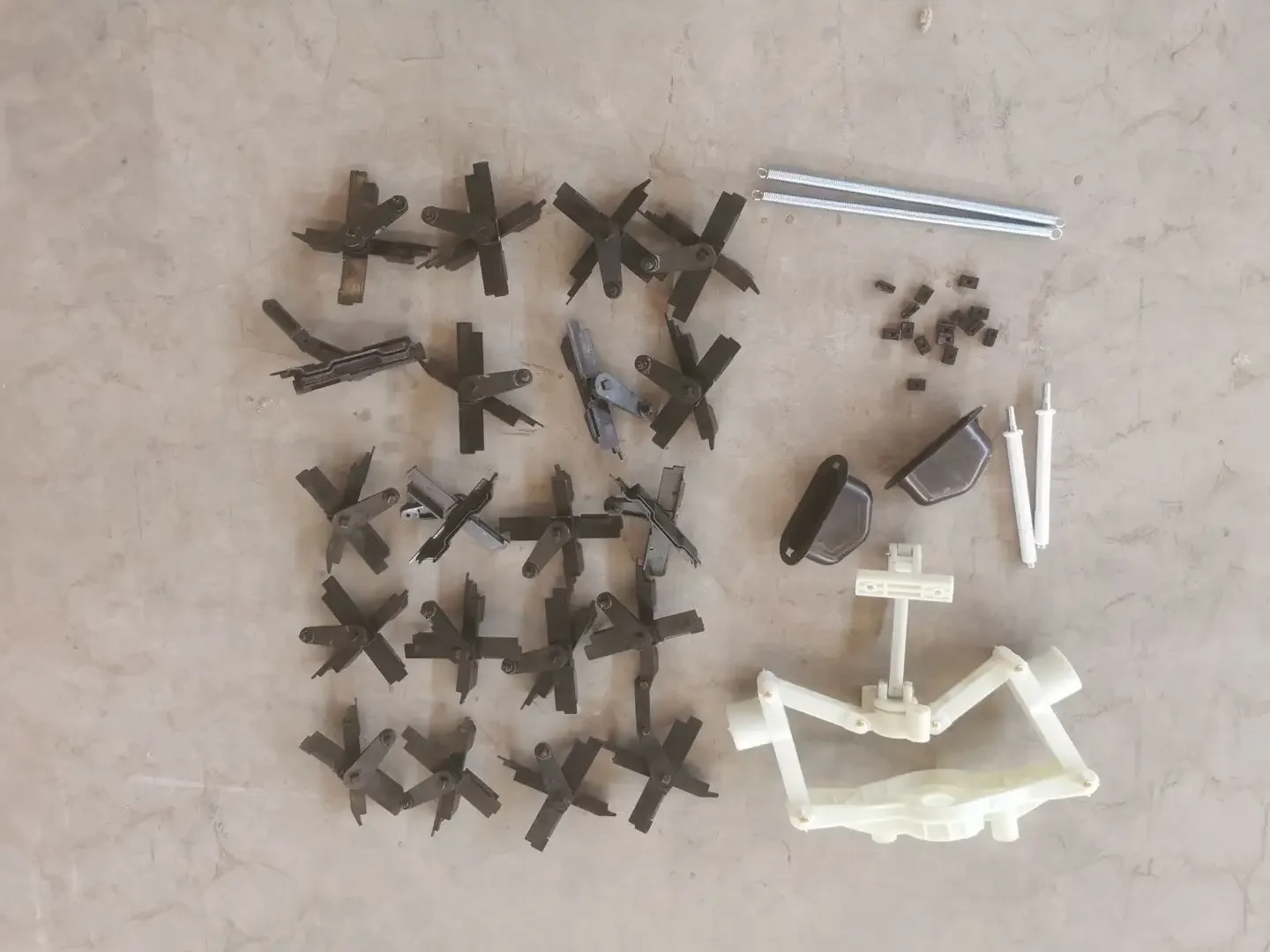

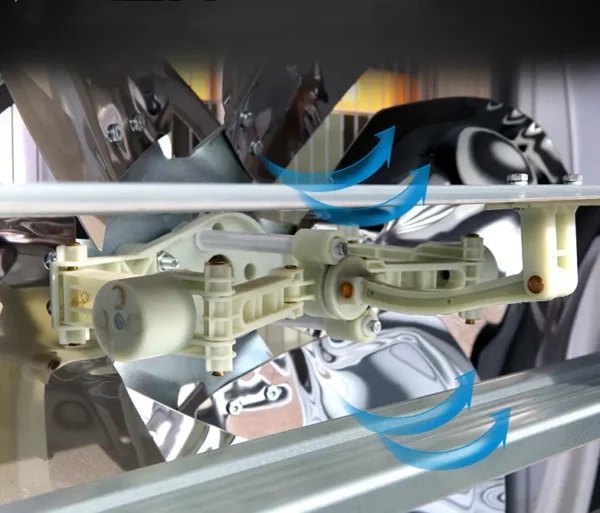

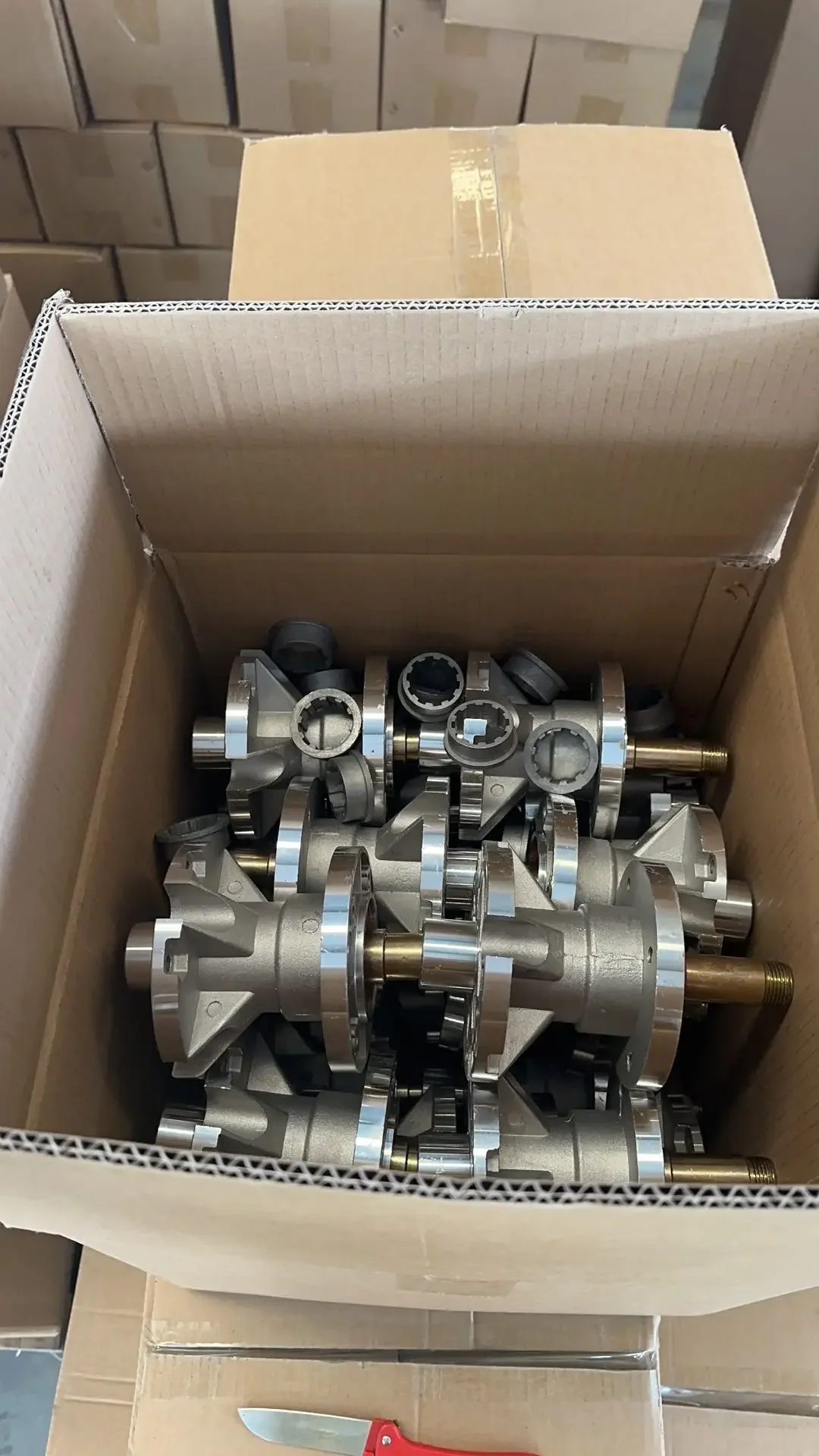

Opening system-Centrifugal System
Made of aluminum-magnesium alloy by pressure casting.Good outlook with lightweight. Especially to reinforcing rib to increased
strength. No broken . Long service life.The angle of blade hub is designed after double tested which can be fix with blade exactly.

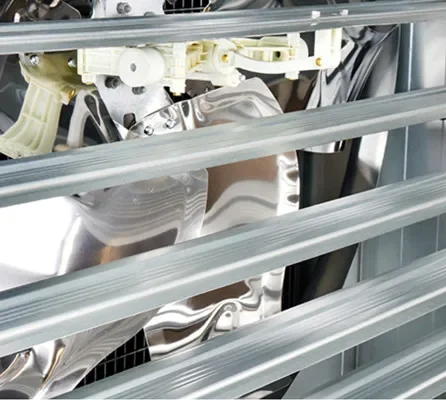

Shutters open/close automatically
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

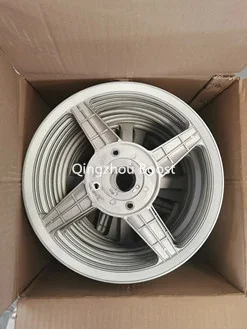

Belt pulley
Fan belt pulley and flange are made of aluminum-magnesium alloy by pressure casting.Good outlook with lightweight. Especially to
reinforcing rib to increased strength. No broken . Long service life.
reinforcing rib to increased strength. No broken . Long service life.
Poultry fan rates Negative pressure fan exhaust for animal husbandry greenhouse ventilation systems

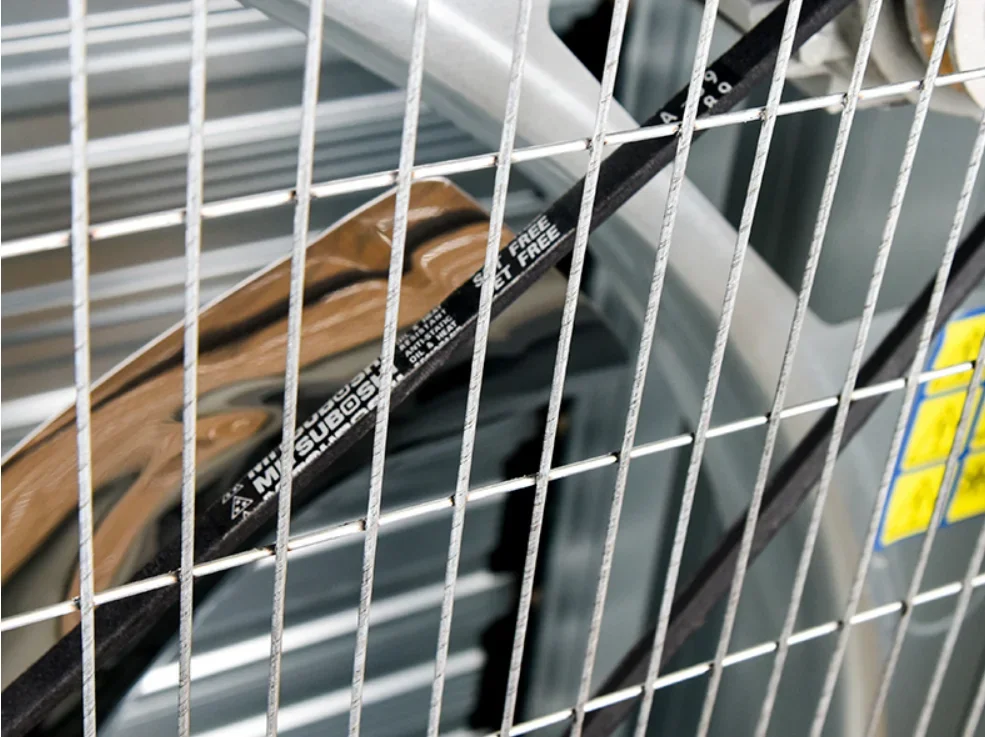

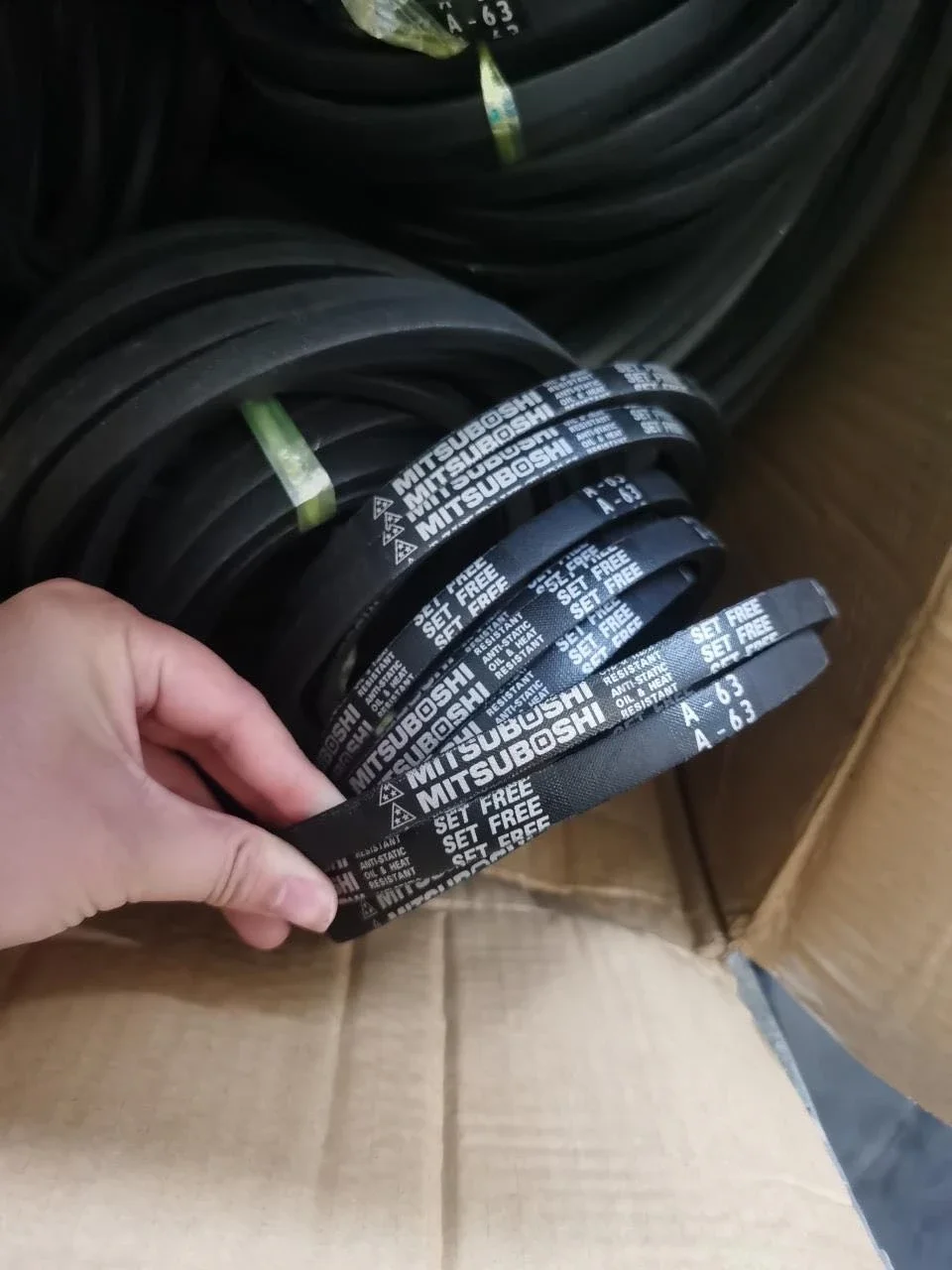

Belt
We have Sanlux belt and Japanese Mitsuboshi brand belt for customer choice. Long service life and no repair
Modified B type belt,so that service life increase 3times than Type A
Modified B type belt,so that service life increase 3times than Type A
Poultry fan rates Negative pressure fan exhaust for animal husbandry greenhouse ventilation systems
Fan safe net
Fan protection mesh guard is made by hot-dip galvanized wire with electrostafic plastic spraying.It's no easy to get
rusty.Attractive and durable.
rusty.Attractive and durable.
Poultry fan rates Negative pressure fan exhaust for animal husbandry greenhouse ventilation systems

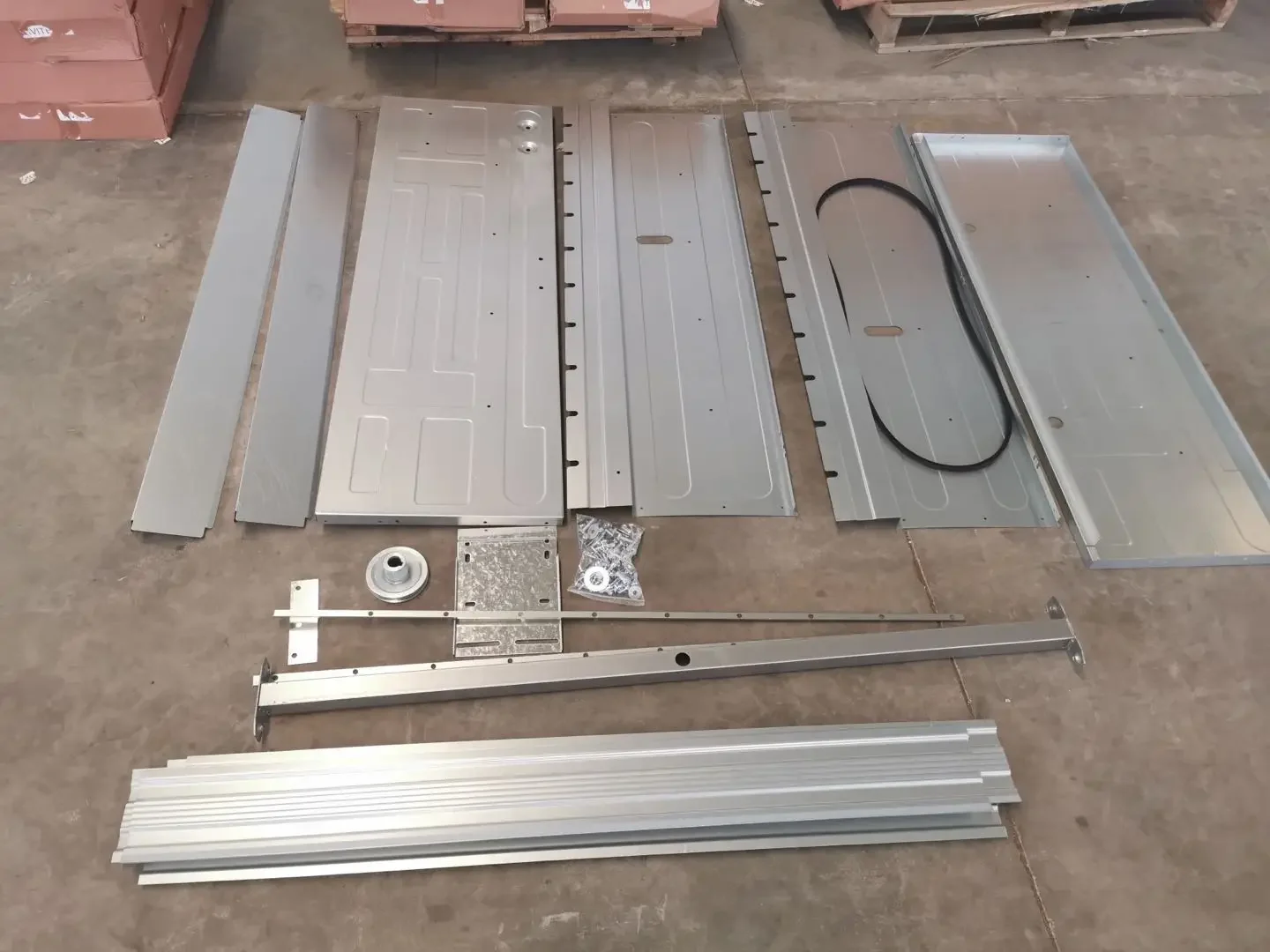

Details of Poultry Greenhouse fan
How to produce Poultry Greenhouse Exhaust fan

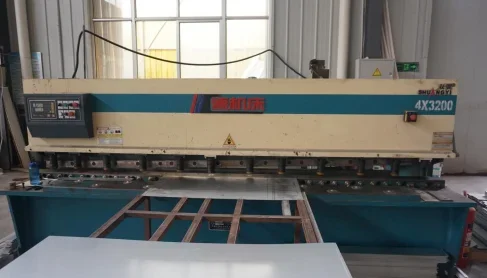

Shearing machine

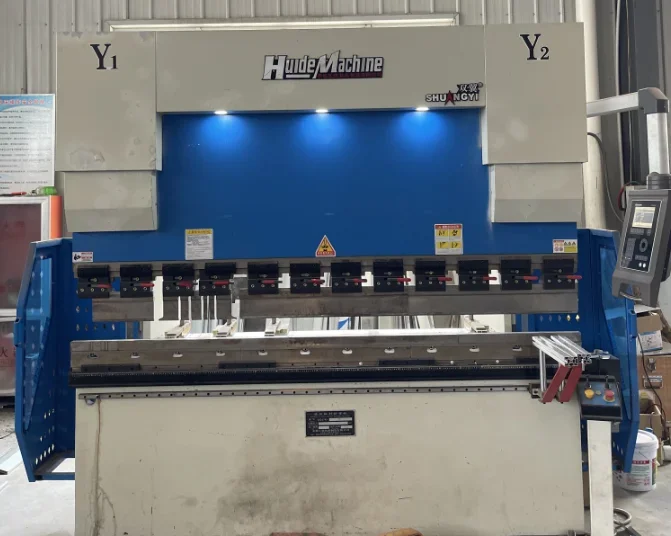

Bending Machine

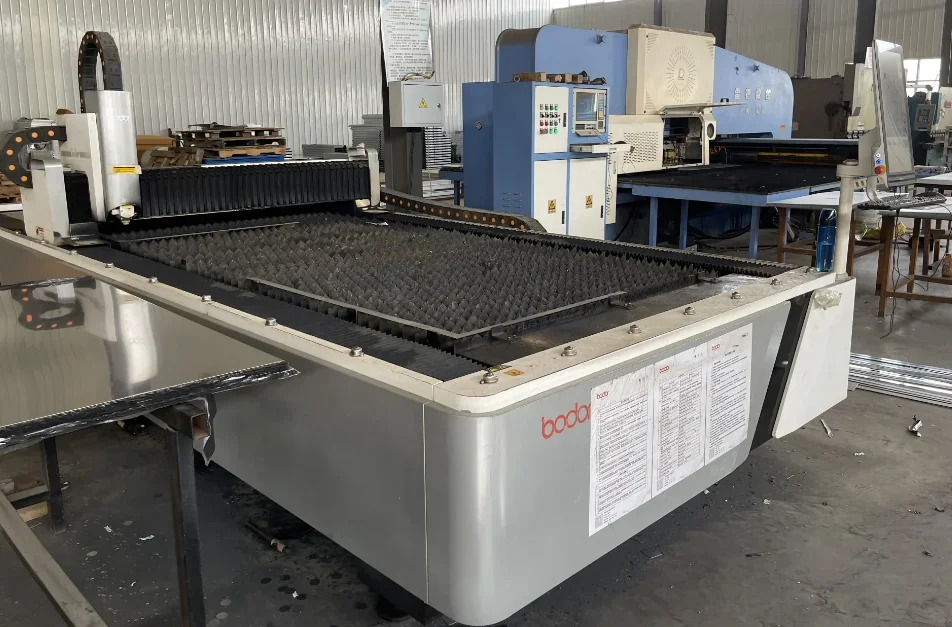

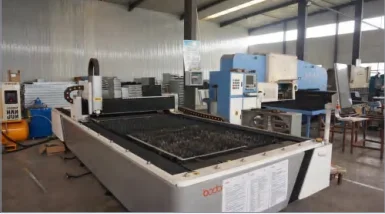

CNC Laser Cutting Machine

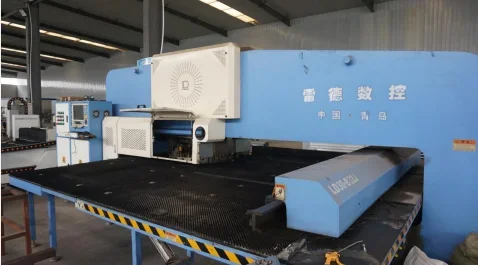

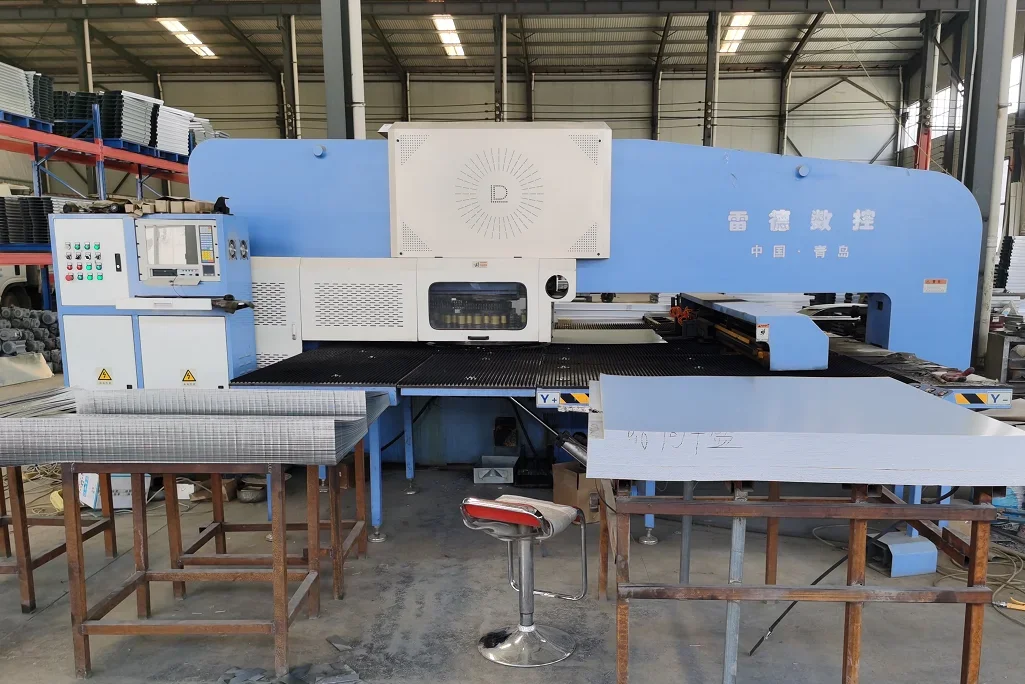

CNC Punching Machine

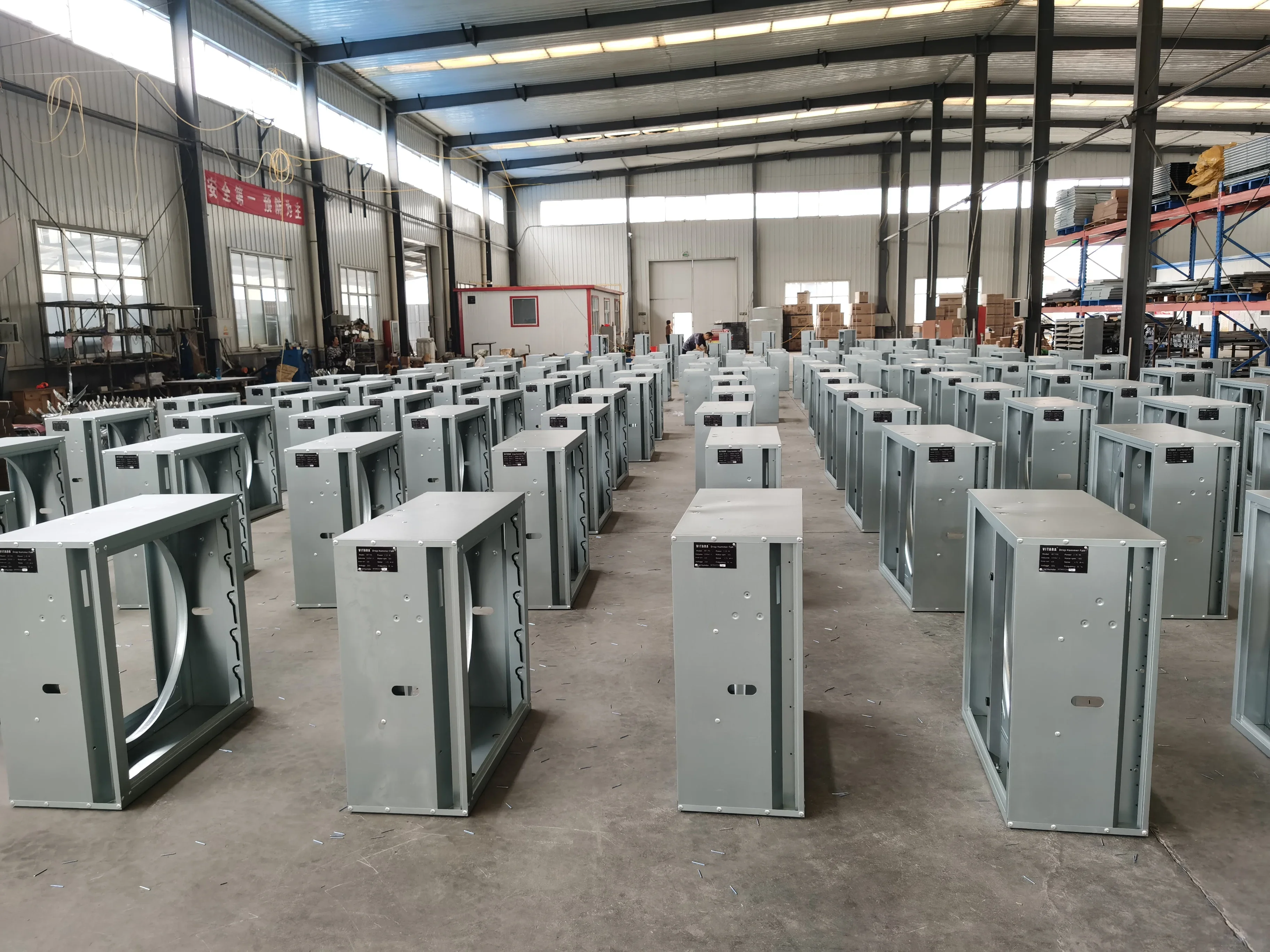

Assembling

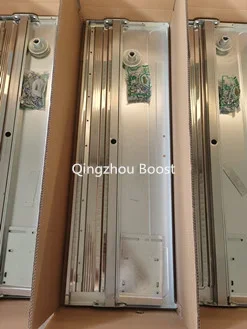

Package

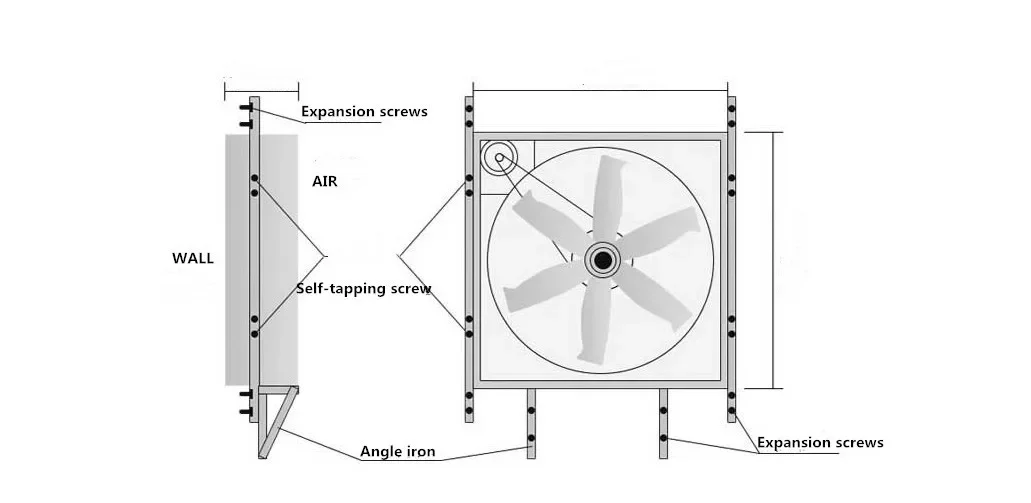

How to install Exhaust Fan
Remarks
1. Adjust the horizontal and vertical , keeping the fan blade running smoothly
2. After fixing the fan, the remaining gap need to be sealed
3. The Expansion screws and Self tapping screw can be used to fix .
3. The Expansion screws and Self tapping screw can be used to fix .
Poultry fan rates Negative pressure fan exhaust for animal husbandry greenhouse ventilation systems

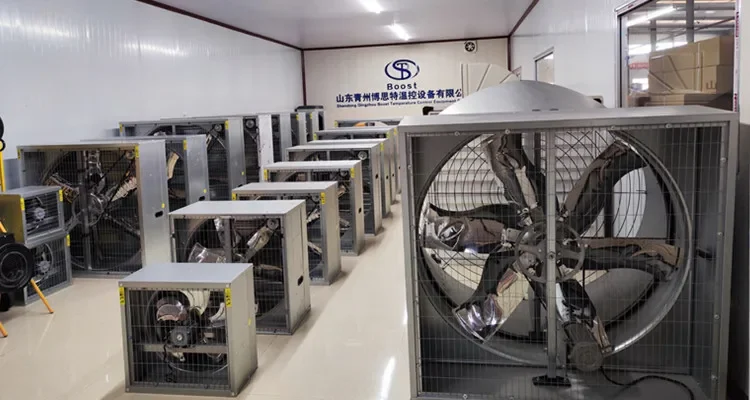

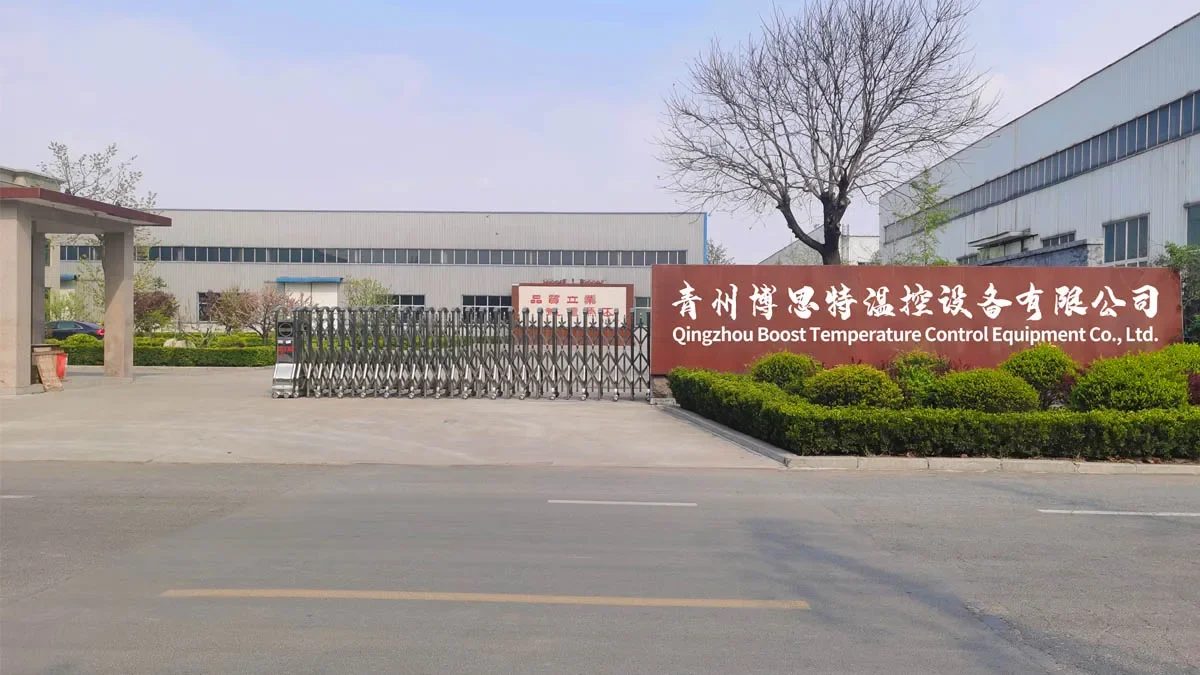

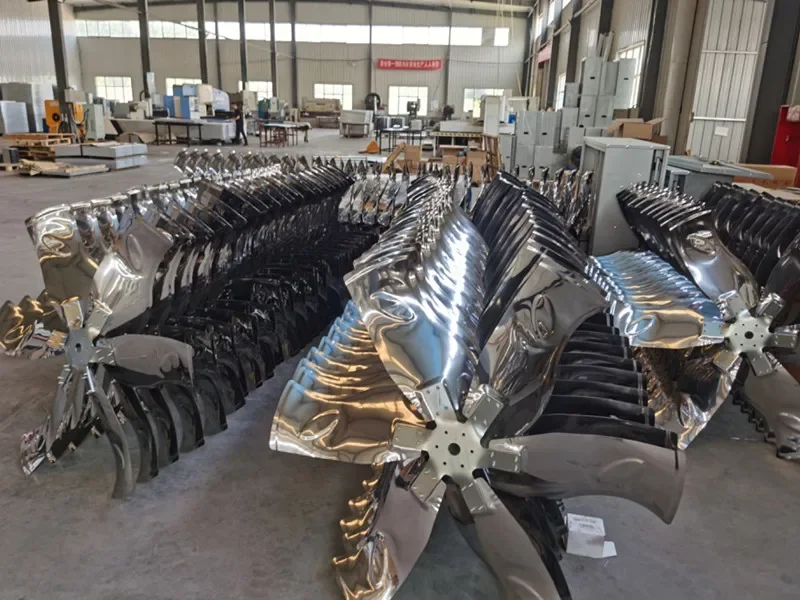

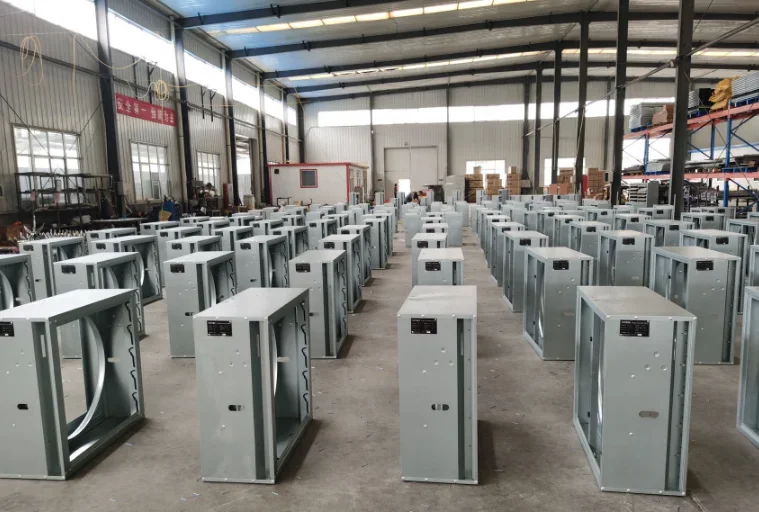

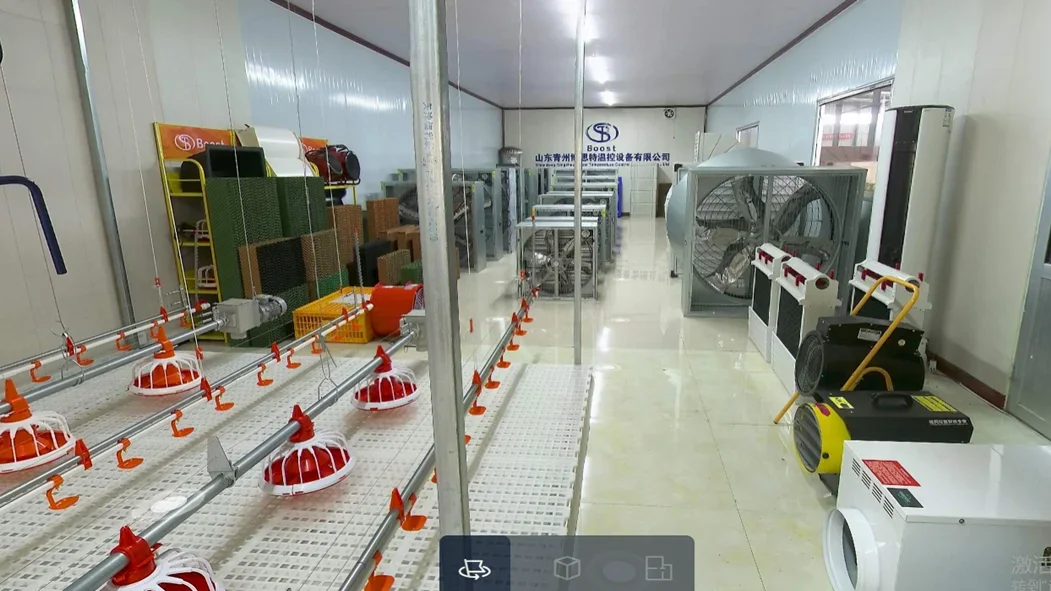

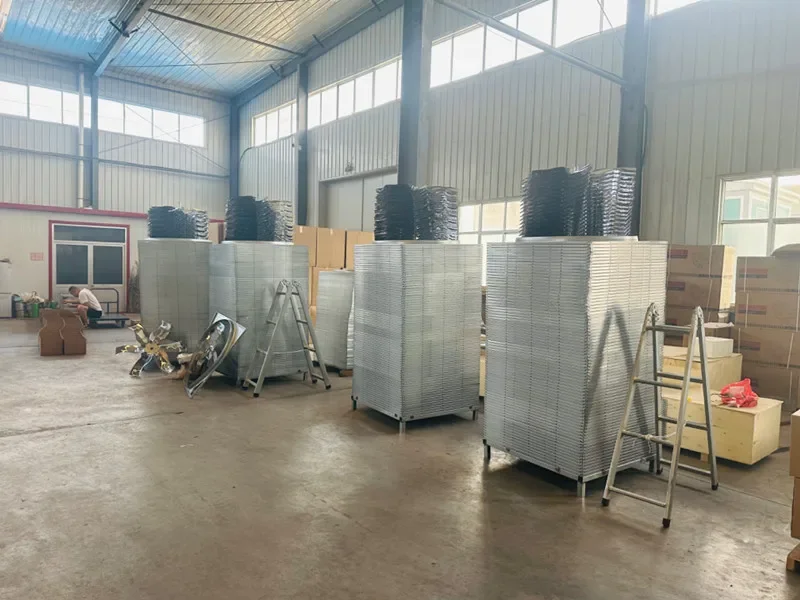

Factory&Workshop
WHY choose BOOST?
BOOST factory is equipped with the most advanced CNC production lines and laser cutting machines, top quality level in the industry, in order to reduce the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally.
We have strong design and research capabilities and experienced production workers. Our products are exported to many countries around the world.
We have strong design and research capabilities and experienced production workers. Our products are exported to many countries around the world.
Poultry fan rates Negative pressure fan exhaust for animal husbandry greenhouse ventilation systems

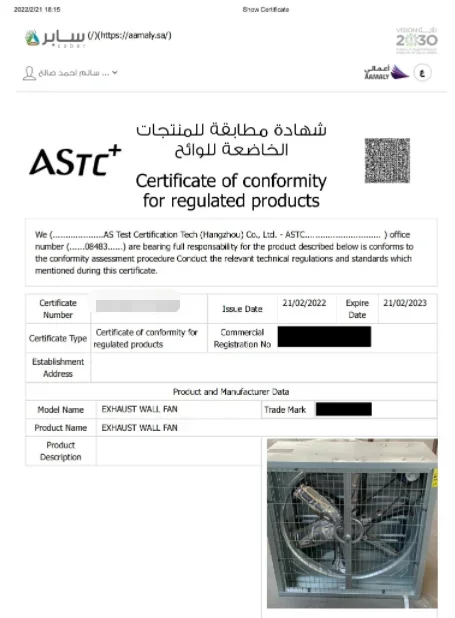

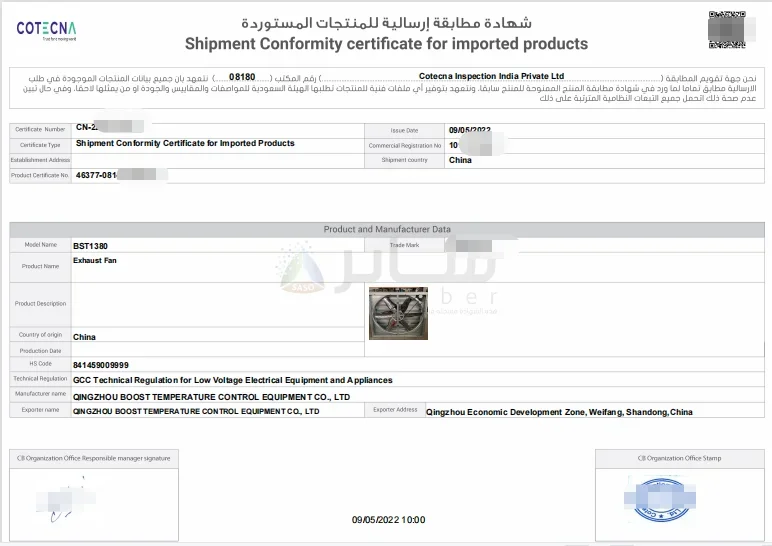

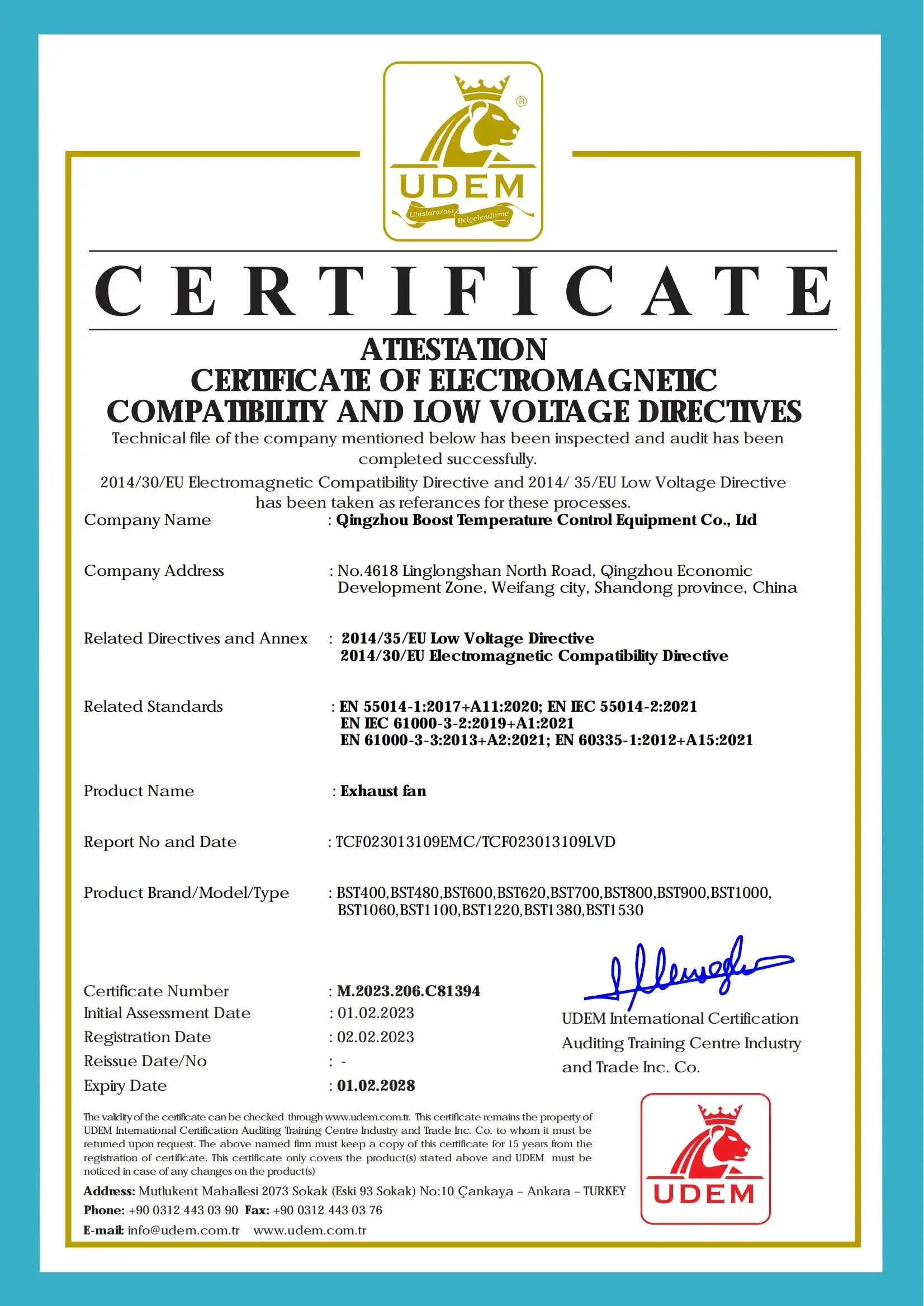

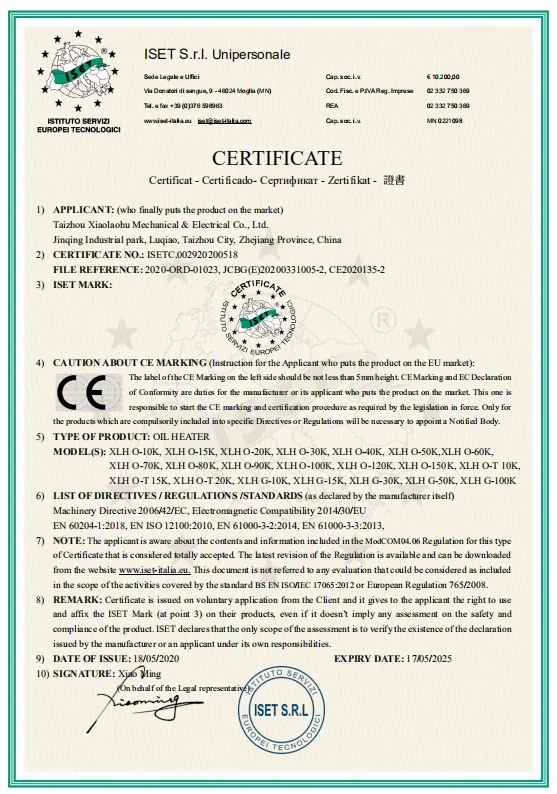

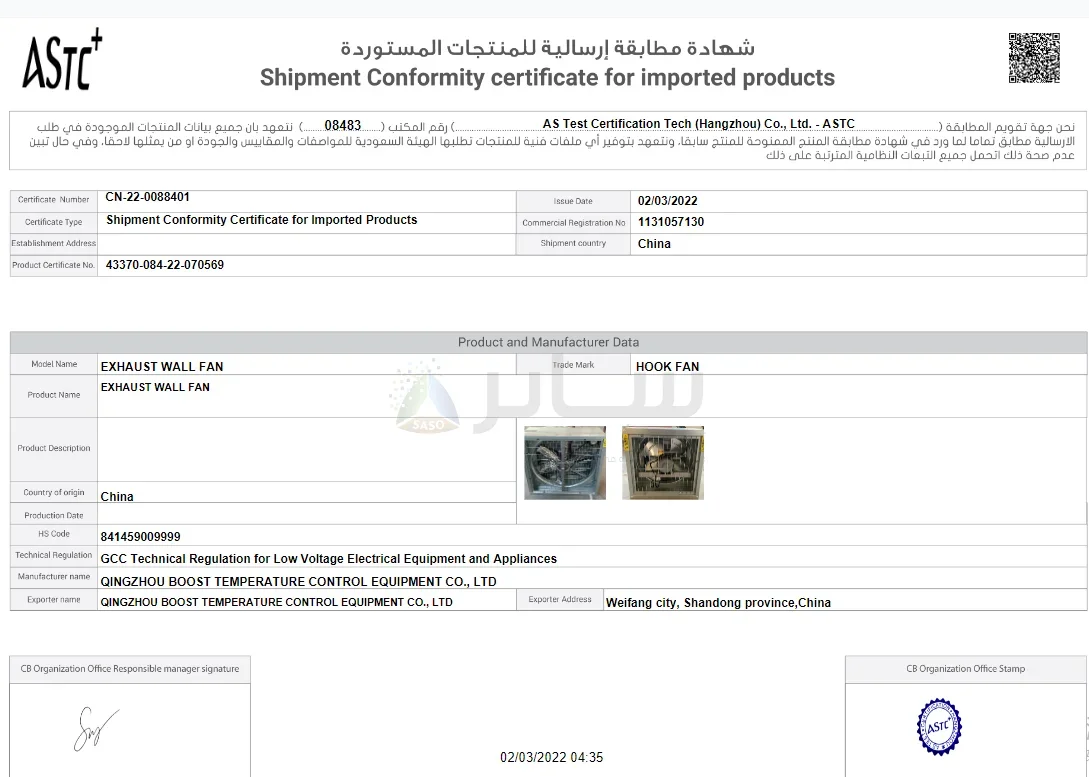

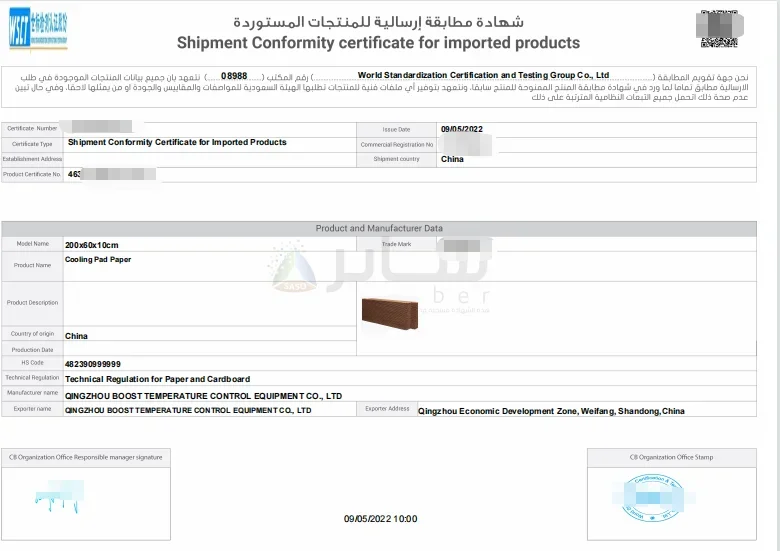

Certifications

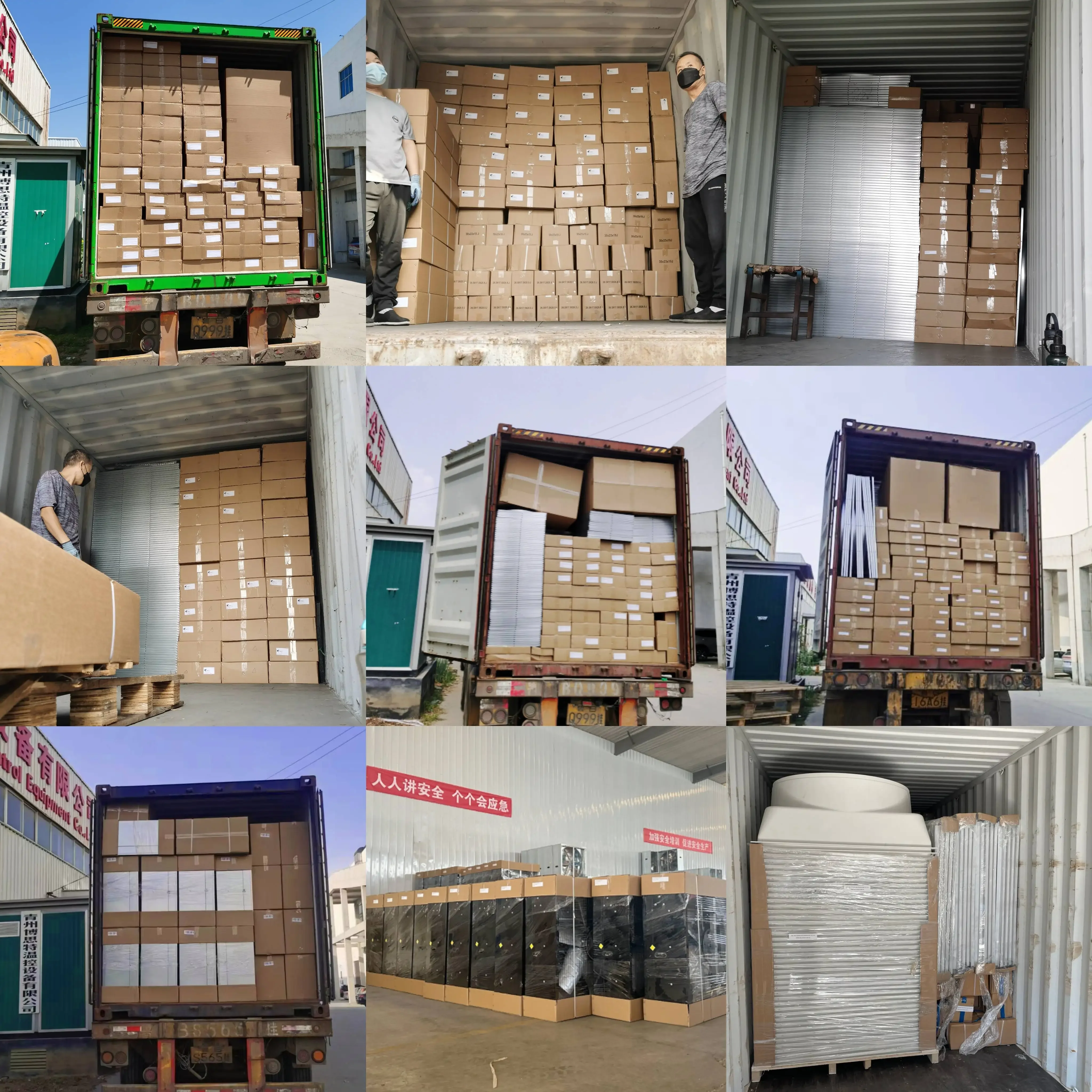

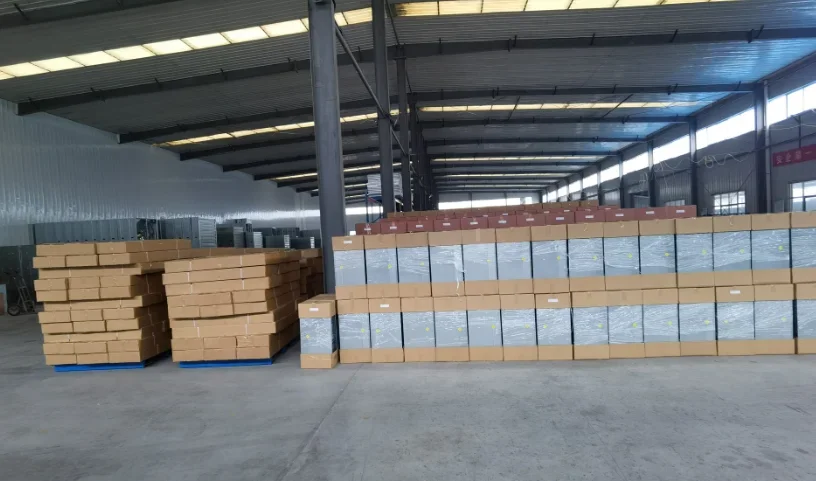

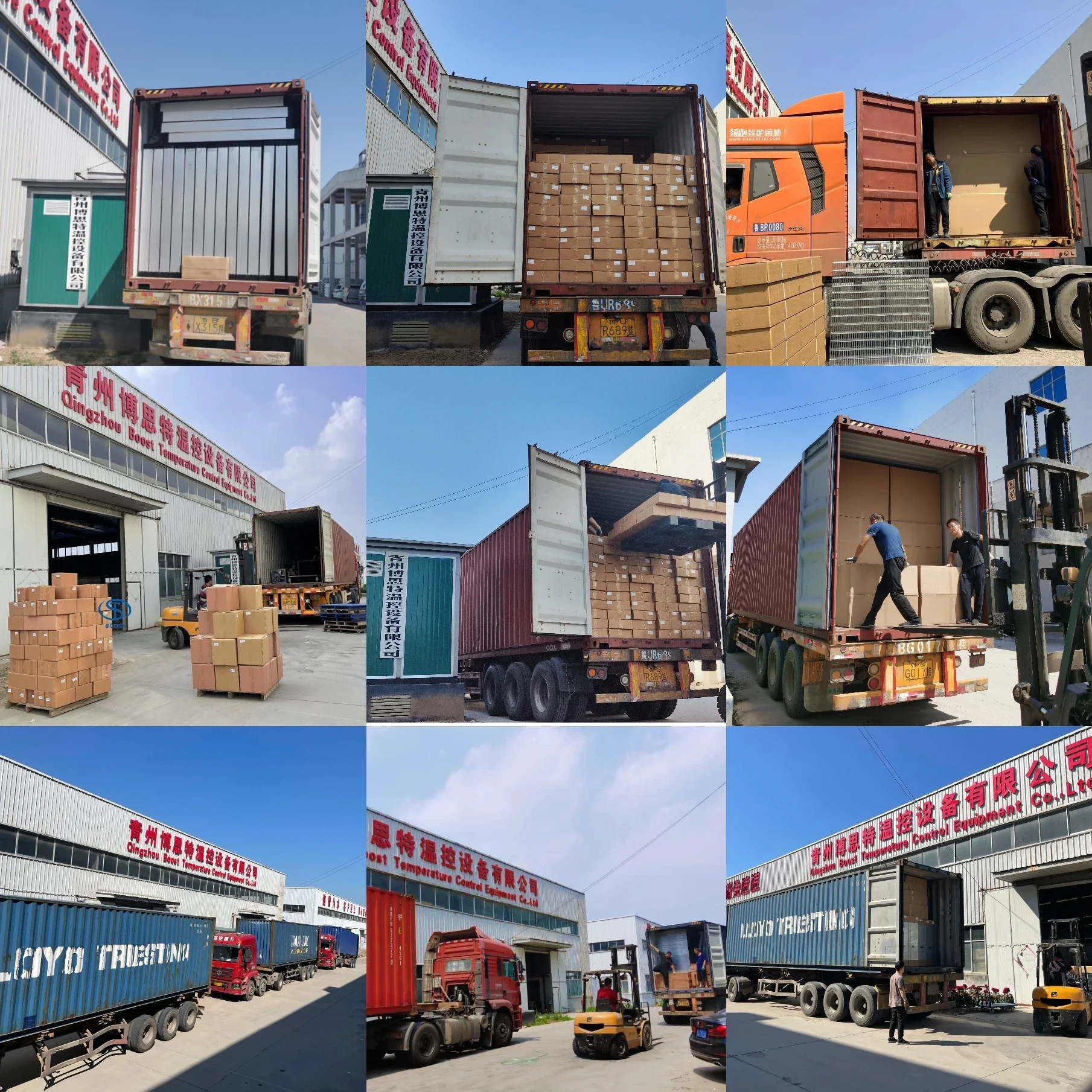

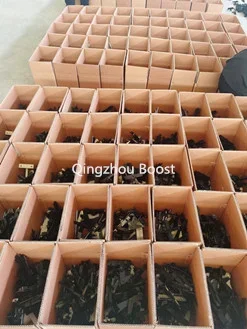

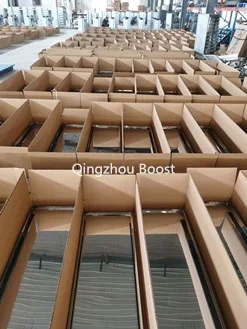

Packing&Shipping
After Sales Service
Pre-sales service
* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.
* Sample testing support.
* Visit our Factory.
After-sales service
* Training how to install the machine, training how to use the machine.
* Engineers are available to service machinery overseas.
* Engineers are available to service machinery overseas.
Q:Is your company a manufacture or Trading company?
A:We are professional manufacture of Ventilation equipment,Cooling equipment and Heating equipment for poultry,workshop and greenhouse in China
Q:Can you open our own brand?
A:Yes,we can offer OEM/ODM service,put your logo for the produce.
Q:What is your minimum oreder quantity?
A:We accept small order quantity, but the freight cost will be very high
Q:Voltage your can offer?
A:Normal voltage will be 380V-50HZ-3Phase, And it can be customized based on your request.
Q:How about the quality of your product?
A:All the products are produced strictly according to the international standard,which has been passed CE certification,CCC certificated and ISO9001:2008 international quality management system.
Q:Can you accept an inspection of a Third-party detection instituation?
A:Yes,sure. Our products have been inspected by some third-party detection institutions authorized by customs before.and have got perfect inspection report.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–19 set: US $75 / set
- 20+ set: US $71 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this greenhouse push pull fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the greenhouse push pull fan be supplied for my local voltage?
The standard configuration is 120 V, 380V/220V/Customized, 415V, 230V, 240V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Qingzhou Boost Temperature Control Equipment Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Qingzhou Boost Temperature Control Equipment Co., Ltd. range on HVACR Nexus.
