Abs Electronic Air Conditioner, 24V, HVAC

Abs electronic air conditioner — power Battery or 24V, material ABS Plastic. The complete factory specification follows. Made by Dongguan Ocean Controls Limited (12 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Abs Electronic Air Conditioner

• Model Number: STN715
• Power: Battery or 24V
• Material: ABS Plastic
• Warranty: 1 Year
• Place Of Origin: Guangdong, China
• Application: Hotel

Technical Specifications

Product Details

PRODUCT HIGHLIGHTS

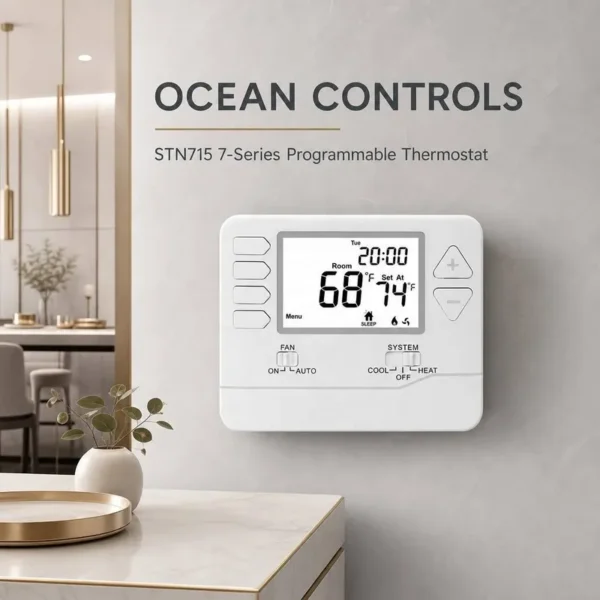

• Model:STN715
• A thermostat is far more than a simple temperature-adjusting switch-it is the intelligent core that orchestrates the balance between comfort, energy efficiency, and convenience in residential and commercial spaces. For Ocean Controls Limited, a leader in HVAC (heating, ventilation, and air conditioning) control solutions, thermostats represent the intersection of cutting-edge technology and user-centric design, redefining how people interact with indoor climate systems.

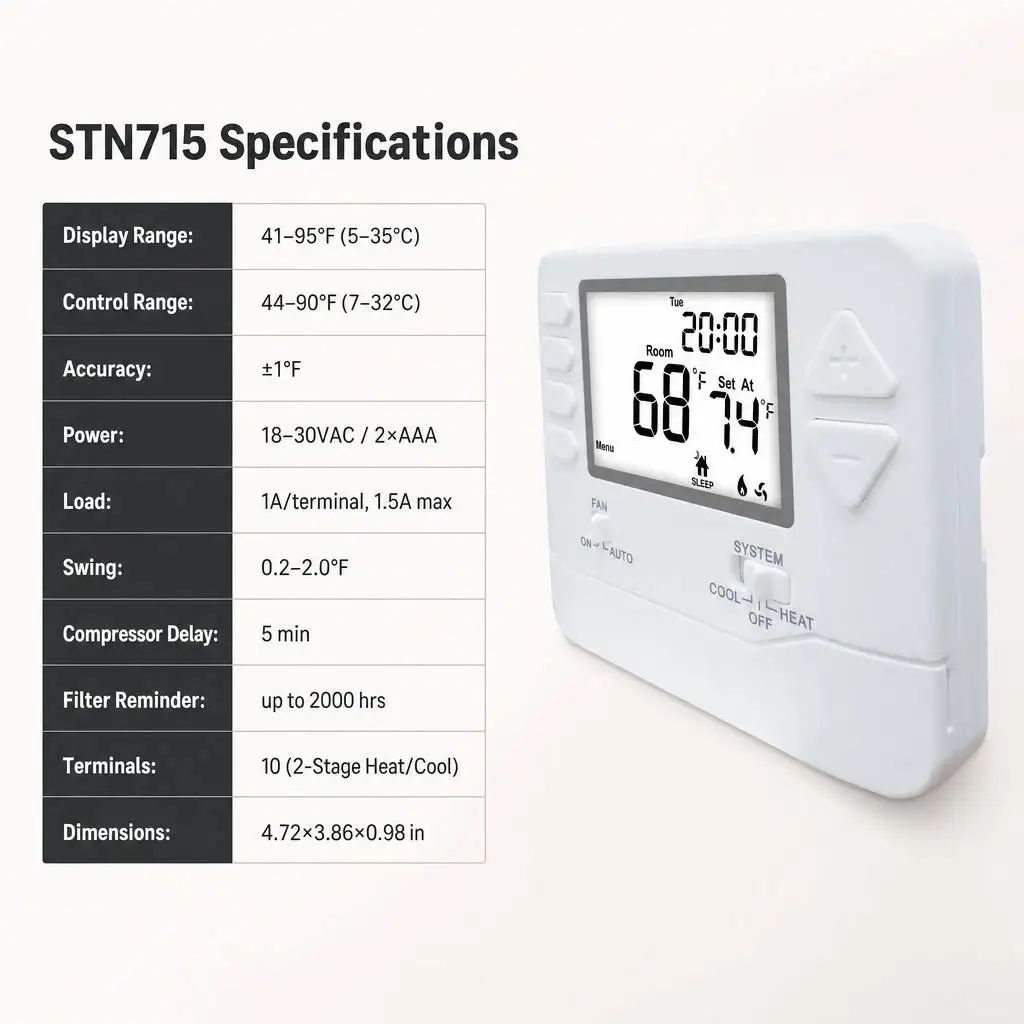

• Specifications:
• Model STN715 Application Type: Conventional

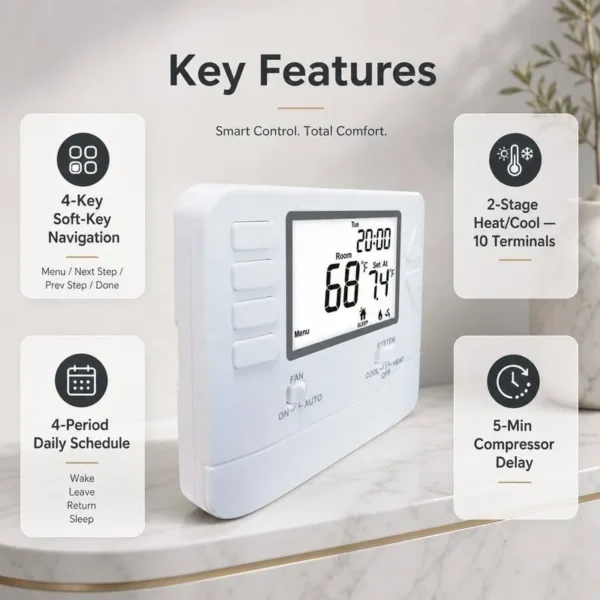

• Stages H/C : Conventional 2H/2C
• Stages H/C -Heat Pump: 2H/2C heat pump w/o auxiliary or emergency heat System
• Operation Mode: HEAT,OFF,COOL
• Fan Operation Mode: AUTO,ON
• Programming: 7 day, 5/1/1 day, or Non-programmable

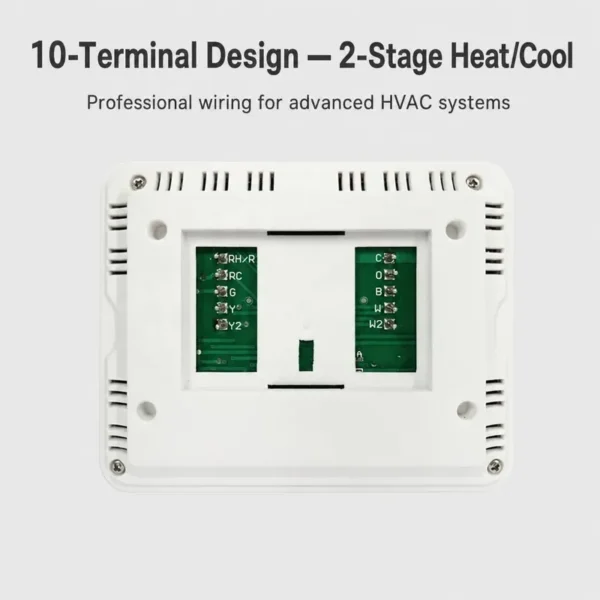

• Terminal Designations: RH,RC,C,O,B,G,W,Y,W2,Y2

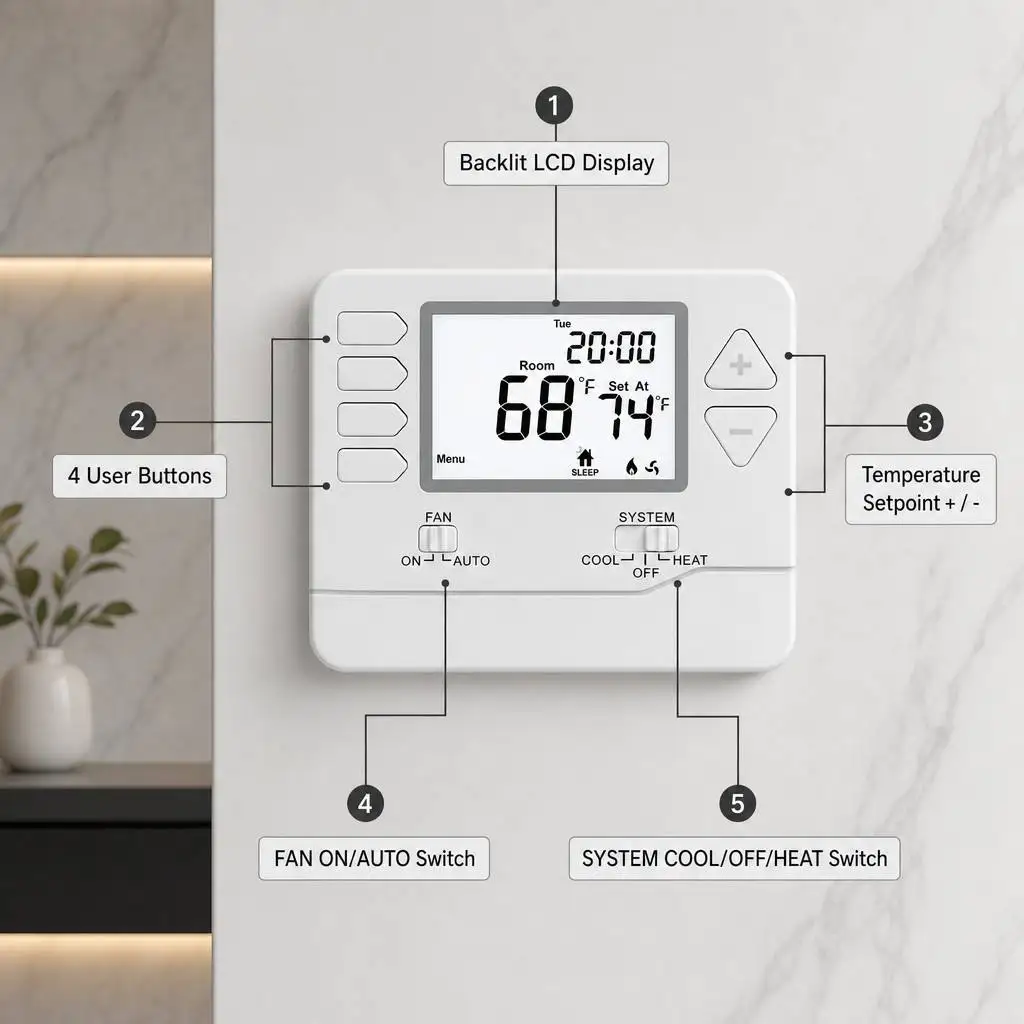

• Backlight Color White/Blue/Green
• Heating And Cooling Set Point Limits: NO
• Compressor Delay Protection: 5 minutes
• Temperature Ranges: 32°F ~ 99°F (0°C ~ 40°C)
• Temperature Control Ranges: 44°F ~ 90°F (7°C ~ 32°C)
• Shipping Temperature: 14°F ~ 150°F (-10°C ~ 65°C)
• Operation Ambient Temperature: 32°F ~ 122°F (0°C ~ 50°C)
• Operating Humidity: 90% non-condensing maximum

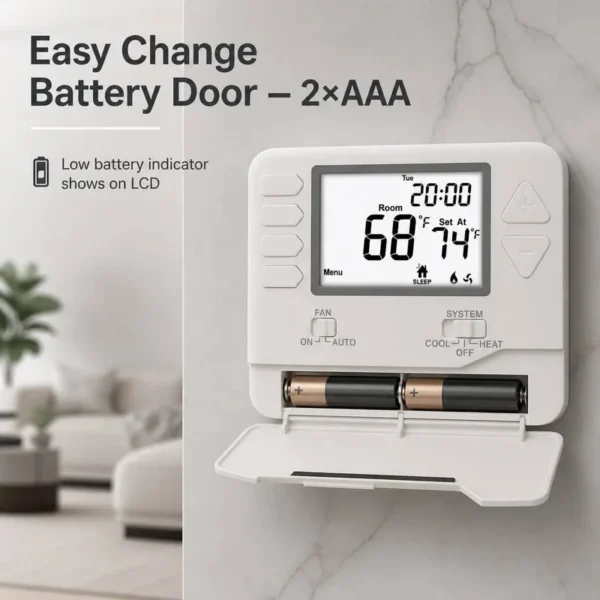

• Power supply: 2*AAA alkaline batteries or 18~30 VAC NEC Class II ,50/60Hz
• Load rating: 1 amp per terminal, 1.5 amp maximum all terminals combined(0~30V)
• Display Size: 3.84 sq.in. (2480mm²)

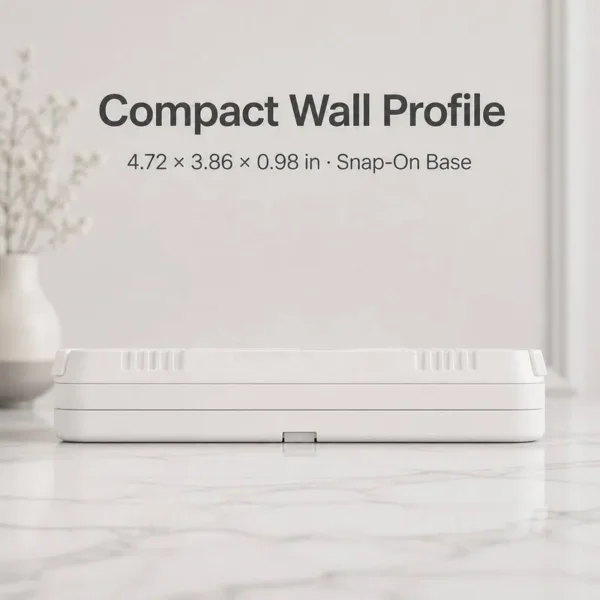

• Physical Dimensions: 4.72" W x 3.85" H * 1.06" D (120mm W*98mm H*27mm D)

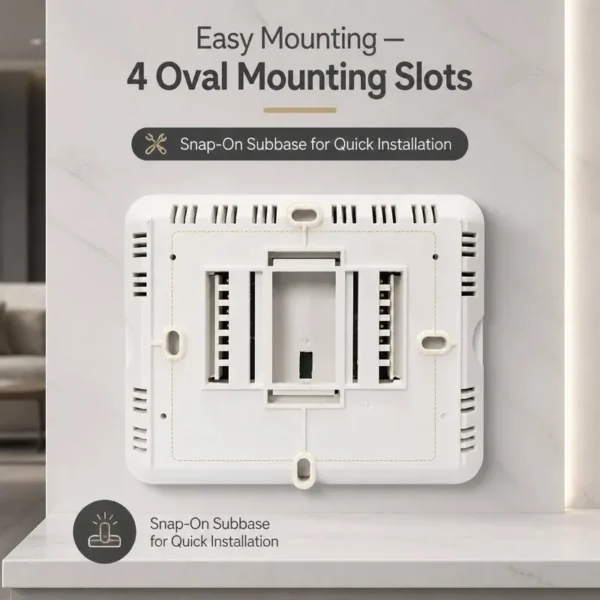

• Mounting Means: Mounts on wall or junction box

SCENE IMAGE

ABOUT THE SUPPLIEROcean Controls Limited was founded with decade years experience in the design and manufacturer of electronic room thermostats. We provide O E M/O D M services to worldwide customers, including manufacturing, designing, engineering and tooling. With many years of experience, our products feature unrivaled quality, reliability and durability. Our thermostats are equipped with high accuracy of 0.1. And they are adaptive with various heating and cooling equipment. The products meet C E, RoHS and F C C approved quality standards. We export our products all over the world, especially to European and American markets. We have a strong R&D team with more than decade years experience in the thermostat field. They are seasoned in the design, development and testing of electronic thermostats. Our factory located in Dongguan, covers an area of 5,000 square meters and has passed I S O quality management system. And we have 5 sets of fully automatic S M T lines, 7 sets of injection molding machine and advanced mold equipment. Monthly capacity is more than 200,000 pcs, and this can be expanded according to customer requirement. In addition, we have broad experience in RF remote control products like remote wireless and WiFi thermostats. Based on the above, we can design/ develop new models for you upon your technical specifications or samples. As a company, we strive to excel in the quality of products we sell, the service we provide and the support we give. We are committed to continuous improvement and on building win-win relationships with our partners.

COMPANY OVERVIEW

COMPETITIVE ADVANTAGES

CUSTOMIZATION CAPABILITIES

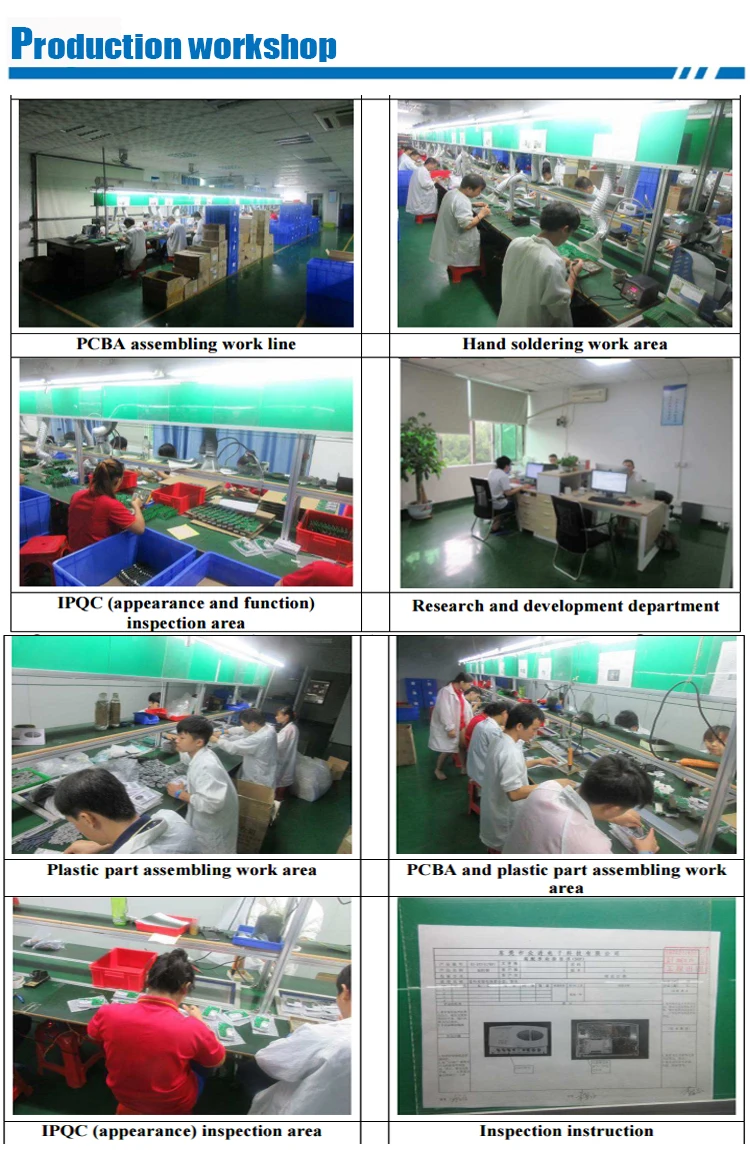

PRODUCTION WORKFLOW

TRADE SHOW PARTICIPATION

PACKAGING & SHIPPING SPECIFICATIONS

FAQs

Can I get any discount?

Yes.The price is negotiable, we can offer you discount according to your order quantity. If you are buying in bulk for an occasion, We offer you wholesale price. We also have promotions several times a year.

How much are the shipping costs?

Shipping cost is charged by the package's weight and related to the shipping methods you choose and your destination.

Do you offer samples?

Yes.You can buy 1pcs in first order to check the quality. then we send some other designs small cutting as samples with your order.

How many styles for my select?

Many types for your choose or as per customized.

I am a designer, Can you help me to produce the sample which we designed?

Yes.We have a professional team to cooperate with you.

Can you make OEM or ODM service?

Yes. We can accept OEM service. Also we have our own designer team. So it's also welcome to choose our ODM products.

Tell me your company's strength, because I want to place order to you.

Our company has a long-time experience in thermostats, also we have R&D team in thermostats,we have many famous clients around the world.

Do you have some special policies for Brand company?

Yes, we have some special support for the company who has own brand but also in our VIP customers list. Please send us your selling data of last year, so that we could support you the products in your market.

Ordering and Pricing

• Minimum order quantity: 50 piece
• Volume pricing:
  • 50–99 piece: US $20 / piece
  • 100–499 piece: US $17 / piece
  • 500+ piece: US $14 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this abs electronic air conditioner?

The standard minimum order quantity is 50 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this abs electronic air conditioner carry?

It is supplied with RoHS CE FCC ISO documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Do you accept OEM or custom branding?

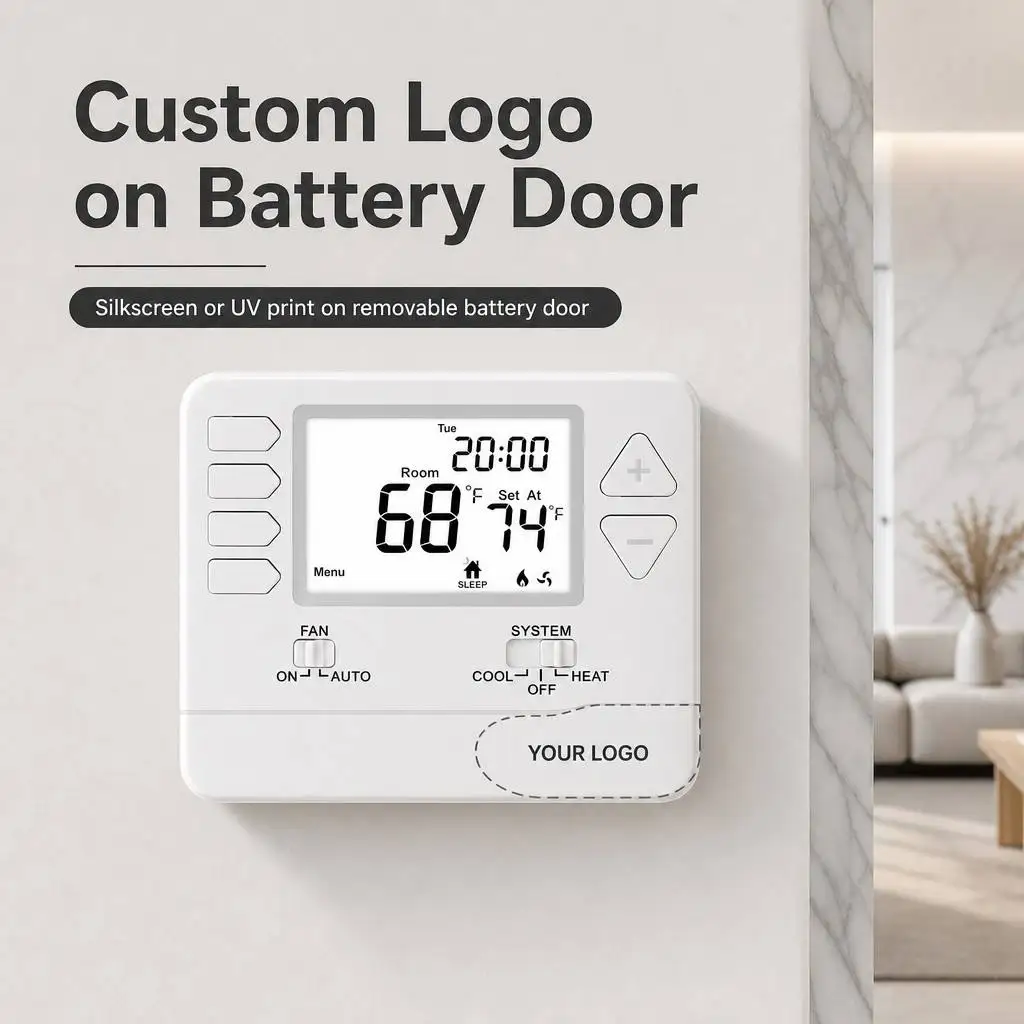

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Dongguan Ocean Controls Limited, based in China. The company 12 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Dongguan Ocean Controls Limited range on HVACR Nexus.
