Key specification for this programmable digital air conditioner: material ABS Plastic, type HVAC Systems. Everything below is reproduced from the factory data sheet. Made by Dongguan Ocean Controls Limited (12 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Programmable Digital Air Conditioner
- Model Number: STN715
- Material: ABS Plastic
- Warranty: 1 Year
- Certification: FCC ISO
- Place Of Origin: Guangdong, China
- Application: Hotel
Technical Specifications
| Application | Hotel |
|---|---|
| Material | ABS Plastic |
| Feature | Energy Saving, Easy Install, Flexible |
| Design Style | Contemporary |
| Warranty | 1 Year |
| After-Sale Service | Online Technical Support |
| Project Solution Capability | 3D model design, total solution for projects |
| Model Number | STN715 |
| Place Of Origin | Guangdong, China |
| Brand Name | OCSTAT |
| Backlight | Blue or Orange backlight |
| Stage | 2 heat, 2cool |
| Configurable | Electric or gas |
| Program | 5/1/1 programmable |
| Color | white |
| Type | HVAC Systems |
| Certification | FCC ISO |
| Product Name | Digital Heating Room Thermostat With HVAC System |
| Selling Units | Single item |
| Single Package Size | 20X20X20 cm |
| Single Gross Weight | 1.0 kg |
Product Details

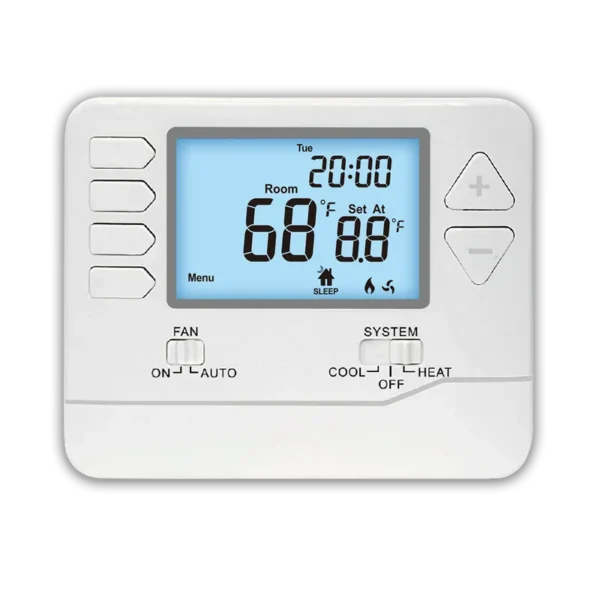

Suuwer 24V Multi Stage Programmable Digital Heating Room Air Conditioner Thermostat with HVAC System
Model:STN715
Specifications:
Model No.: STN715
Programmability: 5/1/1 Programmable
Temperature Range (°F): 32°F-99°F(1°C-40°C)
Control Temp.Range (°F): 44°F-90°F (7°C-32°C)
Temp.Meas.Accuracy: ±1°C (at 20°C)
Power Source: DC 2 x AAA 1.5V Alkaline batteries
24VAC (18~30VAC), 50/60 Hz for hardwire (common wire)
Dimensions: 120 x98 x28 mm
Feature:
1>Multi stage
2>2 heat, 2cool
3>5/1/1 programmable
4>easy menu driven programming
5>intuitive wake,leave,return,sleep programming icons
6>4 sq. inch display
7>blue back light
8>easy access battery compartment
9>electric of gas configurable
10>separate B&O terminals
11>separate heating and cooling swing(cycle rate) adjustment including 2nd stage adjustments
12>filter change indicator(selectable on or off)
13>room temperature calibration adjustment
14>5 minute compressor delay protection(selectable on or off)
15>battery or 24V power

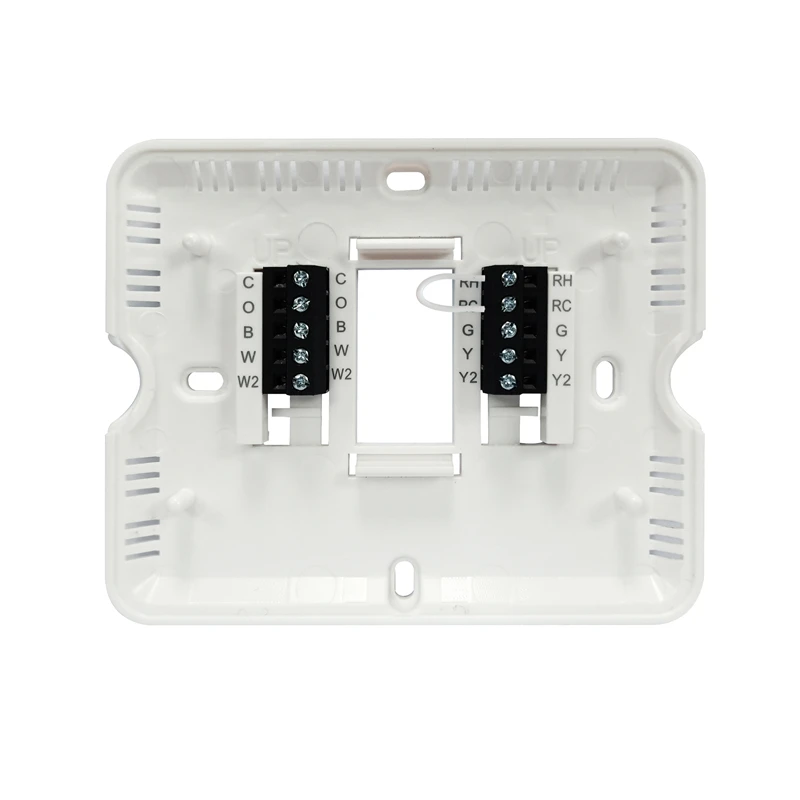

Terminal Designations:
RH—-24VAC(syste power supply) HEAT= RH TO W
RC—-COOL=RC TO Y FAN=RC TO G
C——-Common 24VAC(system power supply)
W——-HEAT
Y———COOL
G———FAN
B———- REV VALVE HEAT
O———- REV VEALVE COOL
Ocean Controls Limited, is based on a former with 15 years experience in designing/manufacturing top-end electronic room thermostat. We provides OEM/ODM service to worldwide customers, including manufacturing, design,engineering and tooling.Our factory has three sets of CNC, 10sets of injection molding machine and advanced moulding equipments, the mothly capacity is more than 100,000 pcs, and this can be expanded according to the order status.
1. Competitive price and stable quality.
2. Deliver promptly.
3. 1:1 replacement for defective in materials or workmanship.
4. Release new products regularly.
Packaging Details:
1.Inner package:Chinese/English/neutral package,special requirements based on clients.
2.Outer package:standard exporting package,special requirements based on clients.
3.One pcs per box.
Delivery Details:
1.7-50 days,according to the quantity and our stock.
2.usually by express,such as TNT,DHL,UPS,EMS,PEDEX,etc.Will take about a week from sending to get to your address.
3.Warranty:We are responsible for any defects in quality or workmanship within one year and repair them free of charge within one year.
| Q1 | Why customer choose Ocean Controls Limited? |
| A1 | Ocean Controls Limited, is based on a former with 15 years experience in designing/manufacturing top-end electronic room thermostat. The products is over 8 series more than 50 products range, and we have own factory plant and design RD team.All our products are sell to oversea.The products qualities level are all up to CE,ROHS,FCC approved. |
| Q2 | Are you Manufacture? |
| A2 | Yes, we are manufacturer and have own production plant in Dongguan city,Guangdong province.The factory has three sets of CNC, 10 sets of injection molding machine and advance moulding equipments. |
| Q3 | Can we visit your factory? |
| A3 | Yes, of course, we do welcome you to visit our factory at any time, just tell us the time and how many persons for this visiting. |
| Q4 | What kind of products do you have? |
| A4 | 1>Programmable/Non-programmable thermostat 2>Wireless RF/Wired thermostat |
| Q5 | Do you have E-catalog? |
| A5 | Yes, we have, please tell us your email address, we will send our E catalog to you immediately. |
| Q6 | How can I get price list? |
| A6 | You can send your inquiry to our email address, and just advise us the products what you are interested in, we will send our price list within 24 hours. |
| Q7 | Can you put customer logo on the products? OEM Order? |
| A7 | Yes, we can do it for you, which we provide OEM and ODM service for many international companies, we can put your logo and brand on the thermostats, valves, thermal actuators and manifolds, also we can print your logo instructions, labels and colorful packing box, before the mass production, we can provide the design of products with your logo for your confirmation, after your approved, we will start the mass production for you. |
| Q8 | What is the delivery time? |
| A8 | 7-50 days,according to the quantity and our stock. |
| Q9 | Can you check the freights for us? |
| A9 | Yes, of course, just tell us your address or port nearby, we will check the best freights quote for you according to your ship way choose. |
Ordering and Pricing
- Minimum order quantity: 50 piece
- Volume pricing:
- 50–99 piece: US $17.5 / piece
- 100–499 piece: US $17 / piece
- 500+ piece: US $15 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this programmable digital air conditioner?
The standard minimum order quantity is 50 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this programmable digital air conditioner carry?
It is supplied with FCC ISO documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Dongguan Ocean Controls Limited, based in China. The company 12 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Dongguan Ocean Controls Limited range on HVACR Nexus.
