Key specification for this air blower: 220V,380V, heating capacity high efficiency. Everything below is reproduced from the factory data sheet. Made by Jiangsu Bright Electric Heating Technology Co., Ltd. (4 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Air Blower
- Power Source: Electric
- Voltage: 220V,380V
- Heating Capacity: high efficiency
- Material: other
- Material Heating Element: high temperature alloy
- Warranty: 1 Year
Technical Specifications
| Type | Pipeline Heater |
|---|---|
| Power Source | Electric |
| Voltage | 220V,380V |
| Material | other |
| Core Components | Heating Element |
| Key Selling Points | Competitive Price |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Heating Capacity | high efficiency |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 30 |
| Brand Name | BRIGHT |
| Dimension(L*W*H) | customized |
| Working Temperature Range | 20 – 500 ℃(36-900℉) |
| Product Name | Process air duct heater with flanged inlet/outlet for high pressure |
| Usage Time | 7000h |
| Material Heating Element | high temperature alloy |
| Temperature Raise Rate | 10 degree Celsius per second during working |
| Thermal Efficiency | More than 95% |
| Pressure | MAX 0.6 Mpa |
| Max Temperature | 500℃ |
| Experience In Making | 18 Years |
| Optional | air fan , temperature controller |
| Selling Units | Single item |
| Single Package Size | 100X50X50 cm |
| Single Gross Weight | 50.0 kg |
Product Details
Products Description
Descriptrion

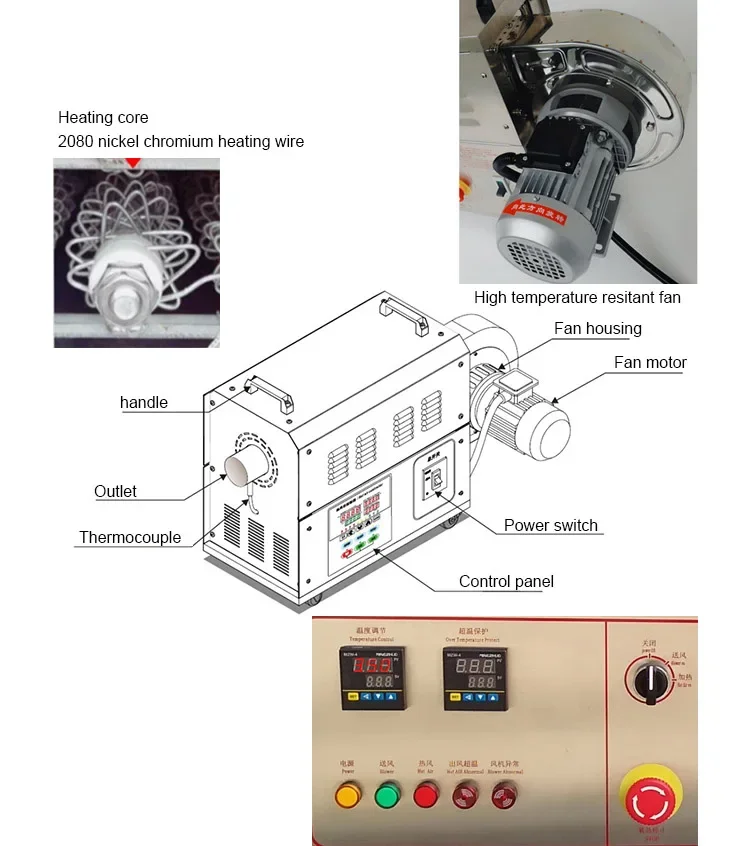

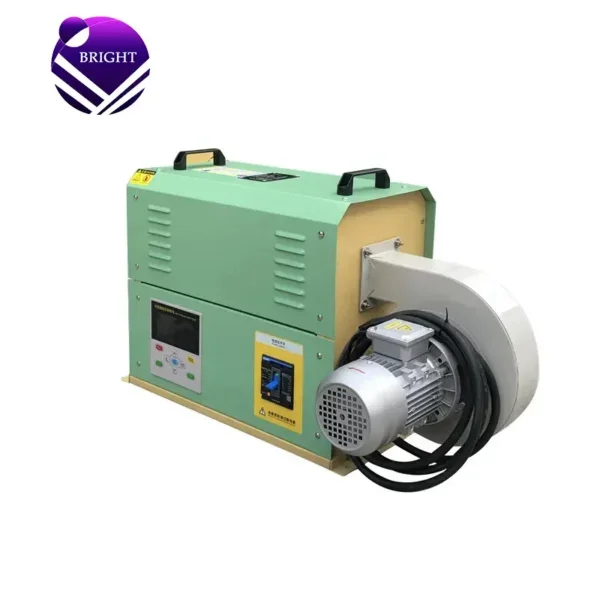

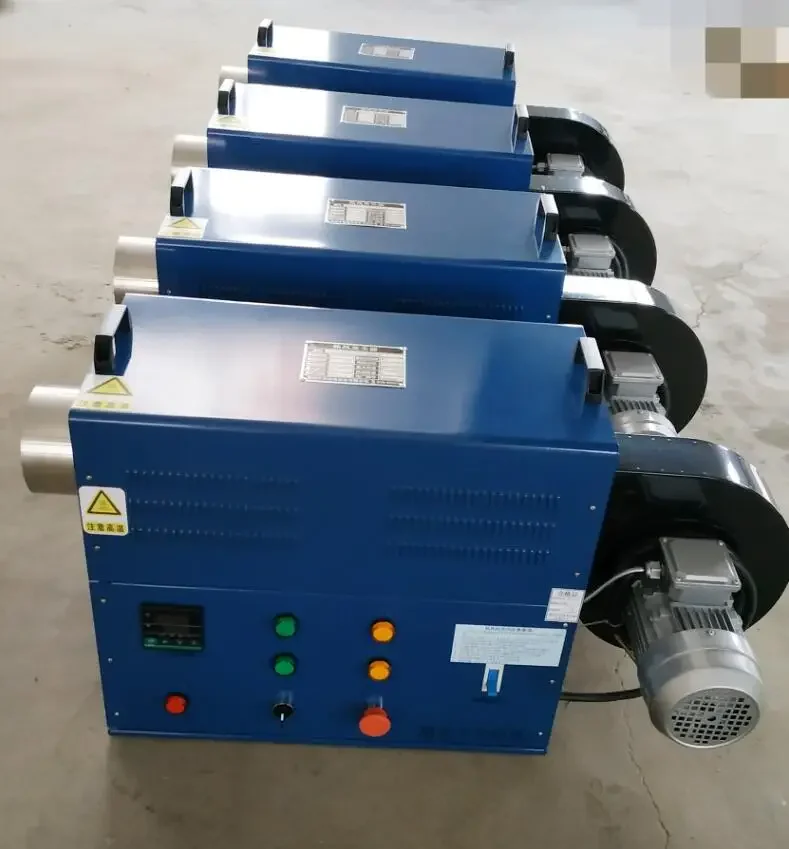

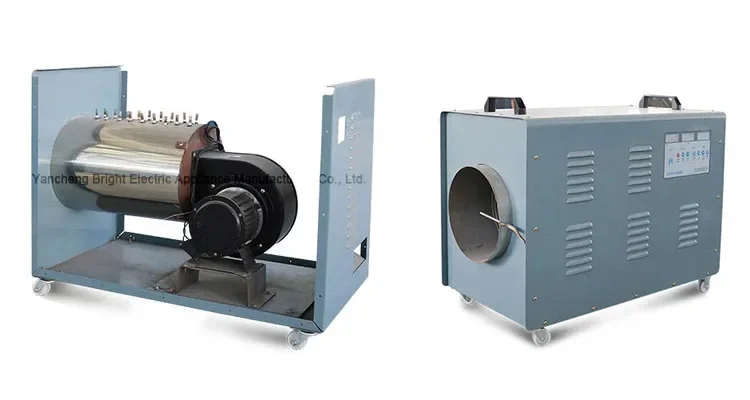

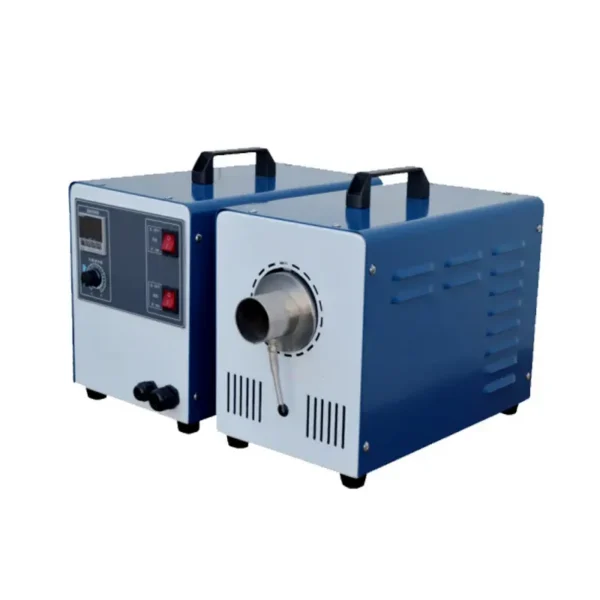

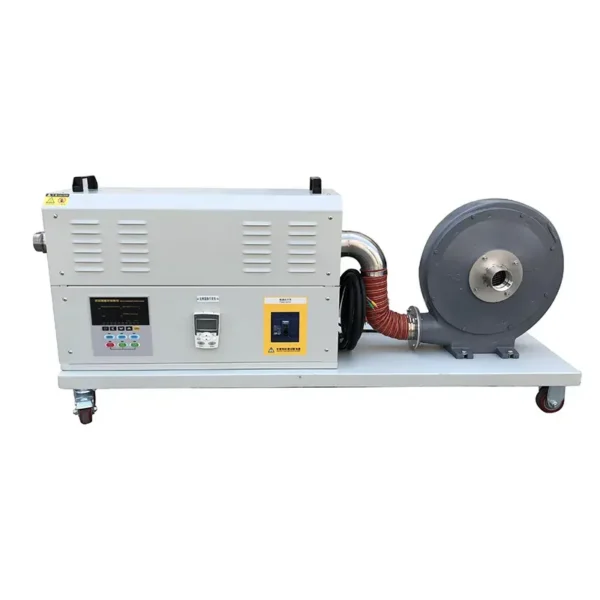

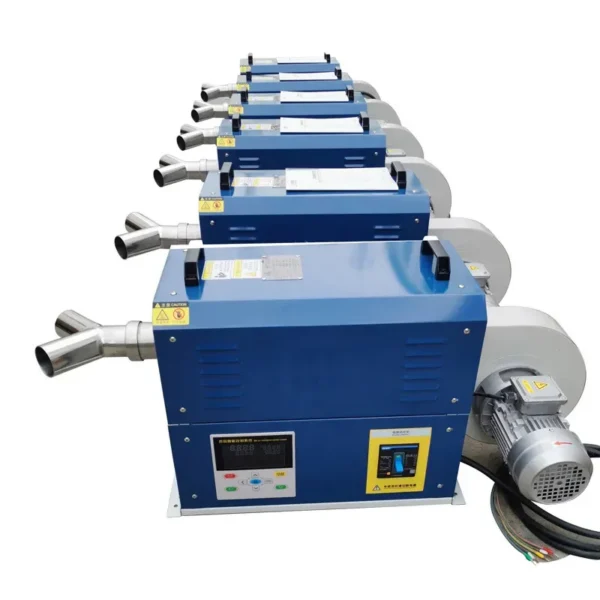

The portable industrial hot air blower is generally composed of heater, fan, temperature control system and box. The heater part is made of pure 2080 nickel chromium high-efficiency heating wire, high-quality high-temperature resistant stainless steel sleeve, light crystal heat-insulating fiber blanket, 95 porcelain wiring board and other components with integrated packaging technology. It has the characteristics of fast temperature rise, small thermal inertia, accurate temperature control and long service life.
The fan part has unique design, low noise, high efficiency and energy saving. Different air pressure fans can be configured according to the actual use needs of users, flexible and practical. The air volume of fans can be adjusted according to the production needs.
Temperature control system: PID / SSR control accuracy is high, including a variety of safety protection circuit, stable and reliable. It can be connected with industrial computer to realize automatic programmed control. The temperature measurement of air outlet adopts imported K-type thermocouple to accurately detect the real-time air outlet temperature.
The hot air blower is suitable for the heating and drying of the workshop, the heat source equipment of the drying room and the heating in the area with small air flow. All kinds of industrial workshops, workshops, steel-making, coal mine heating and heating, preheating and drying of various construction sites, drying of pipeline anti-corrosion inner wall, speeding up drying of paint, etc., emergency heating of construction sites in winter, preheating and heating of machines. Chemical, plastic and other products drying, food drying after cleaning, heat shrinkable packaging, etc. have examples of use.
Features
It uses non-magnetic Ni Cr wire to electrify and heat the air as the hot air source, which is clean, sanitary and environmental friendly. With the ingenious wind tunnel design, the air passes through the inside / outside of the spiral heating wire evenly, the heat exchange is nearly 100%, the wind pressure loss is less, and the flow rate is less. PID / SSR control, high precision, fast feedback, durable. Equipped with multiple overheat and overload protection devices to fully ensure the safety of the equipment, which can operate continuously for 365 days a year. K-type thermocouple is set at the air outlet for direct detection and control, and the air outlet temperature is constant. Multi fiber heat insulation cotton, solid shell, safe and reliable use, can keep high temperature for a long time. Continuous use temperature can reach 350 ℃ / 450 ℃ / 500 ℃, widely used.

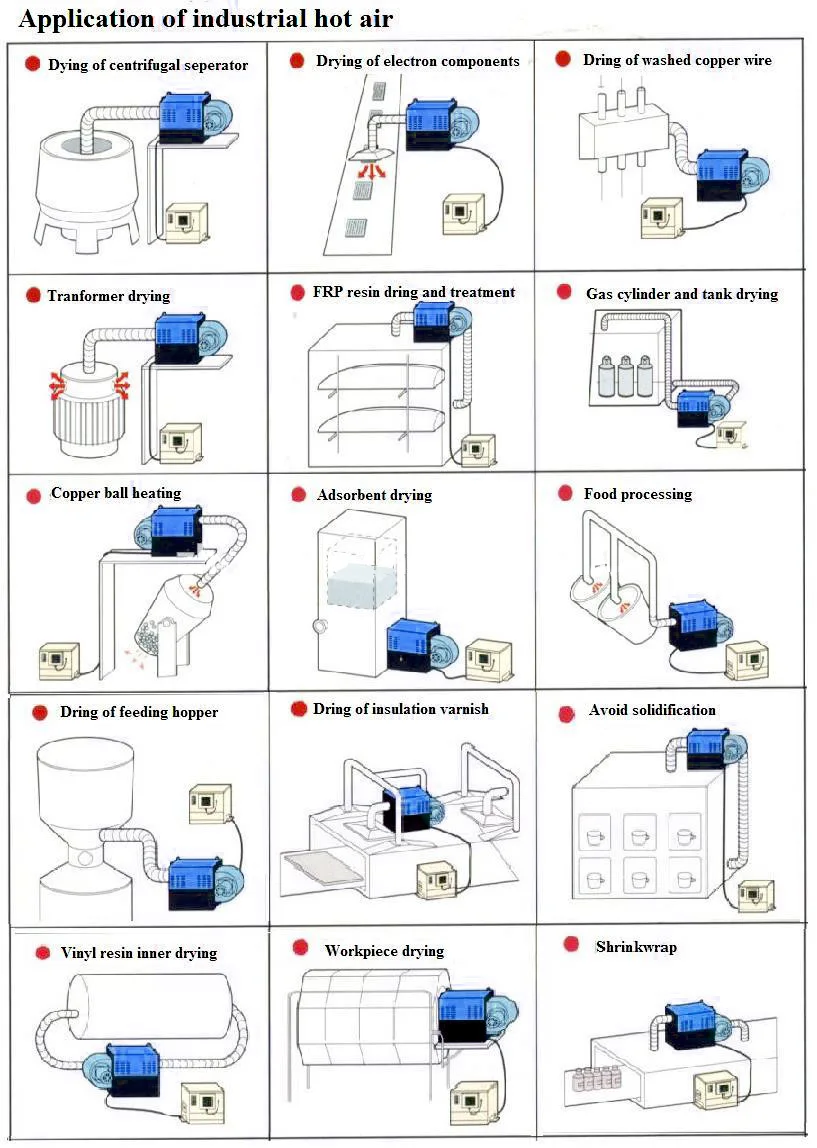

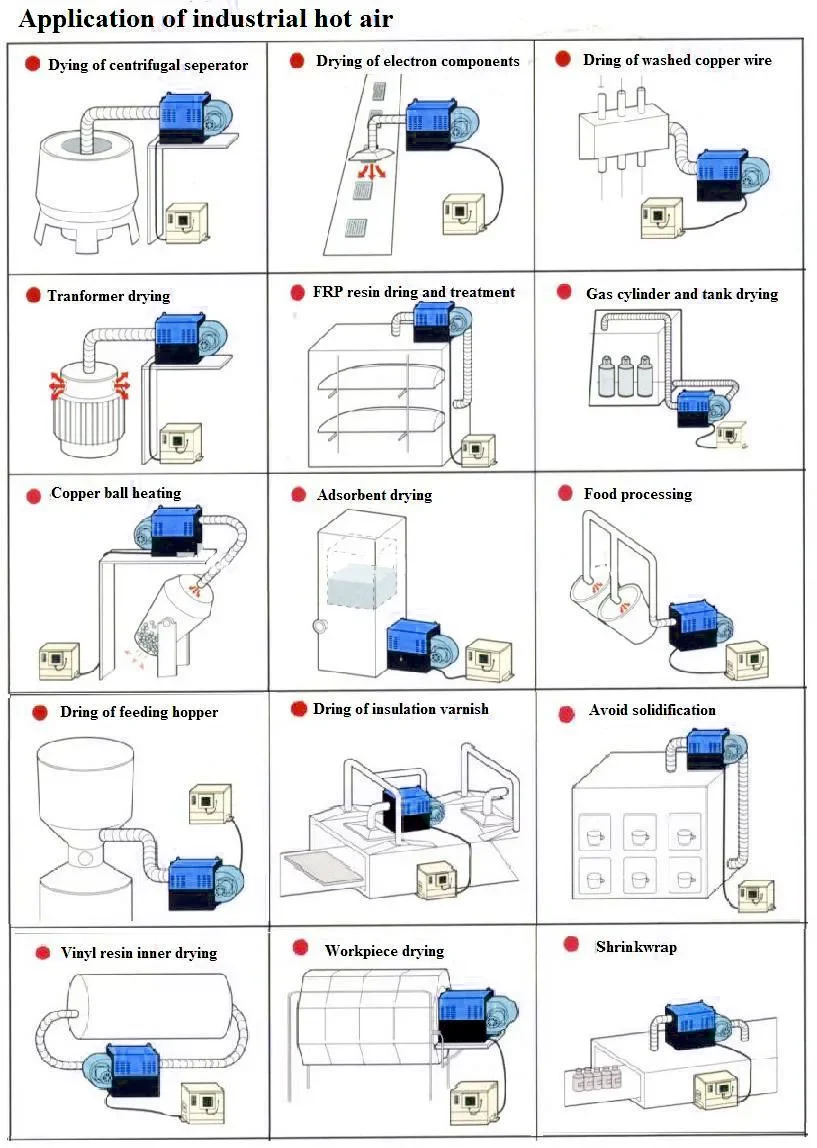

Applications

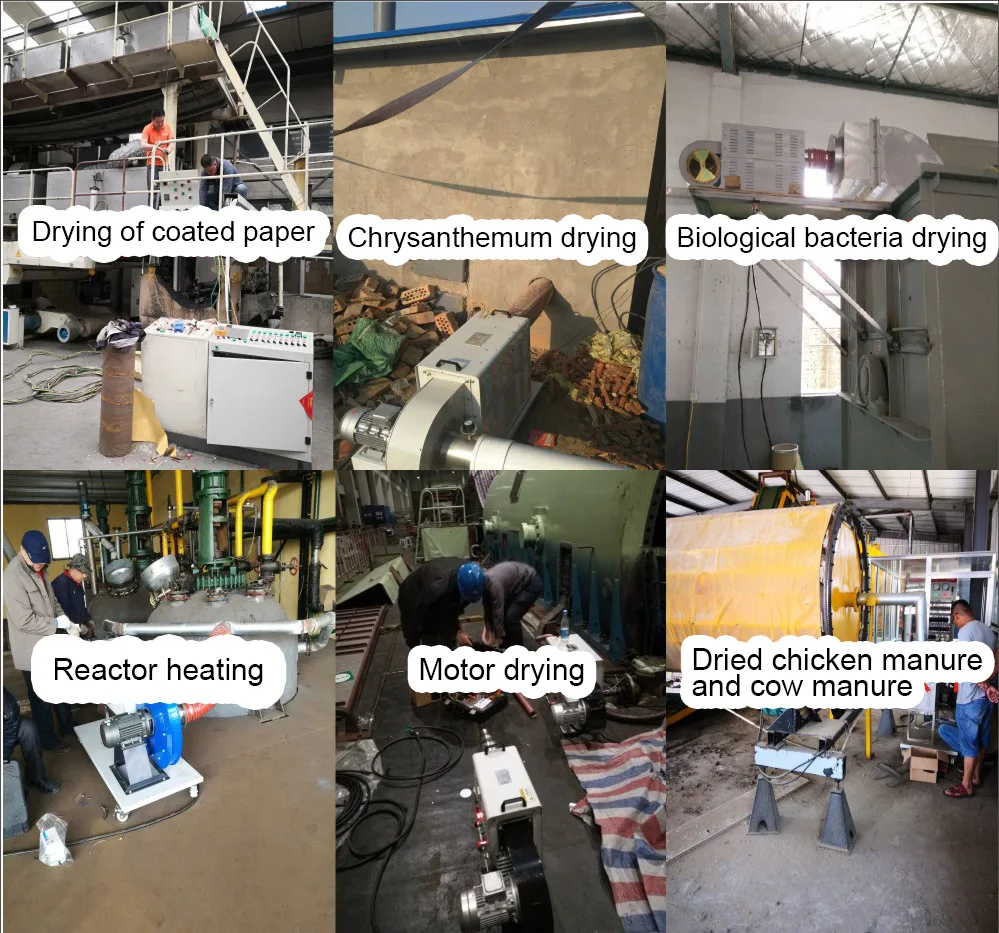

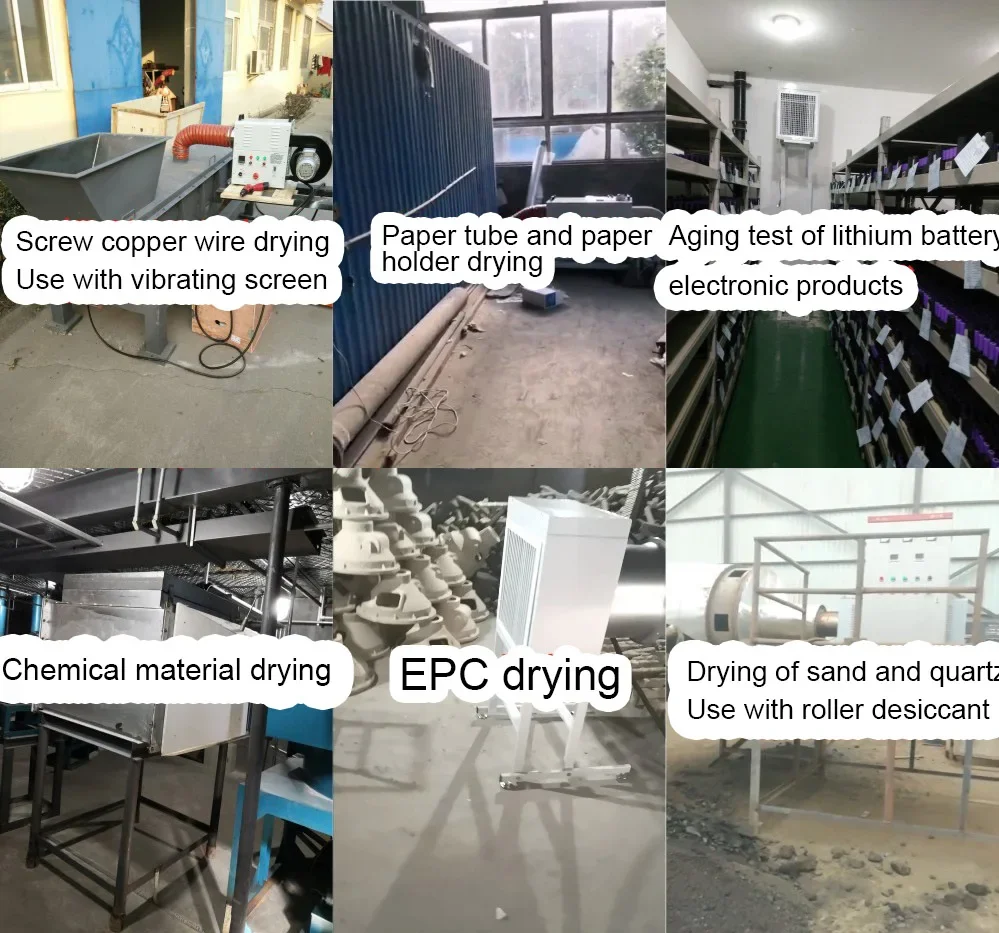

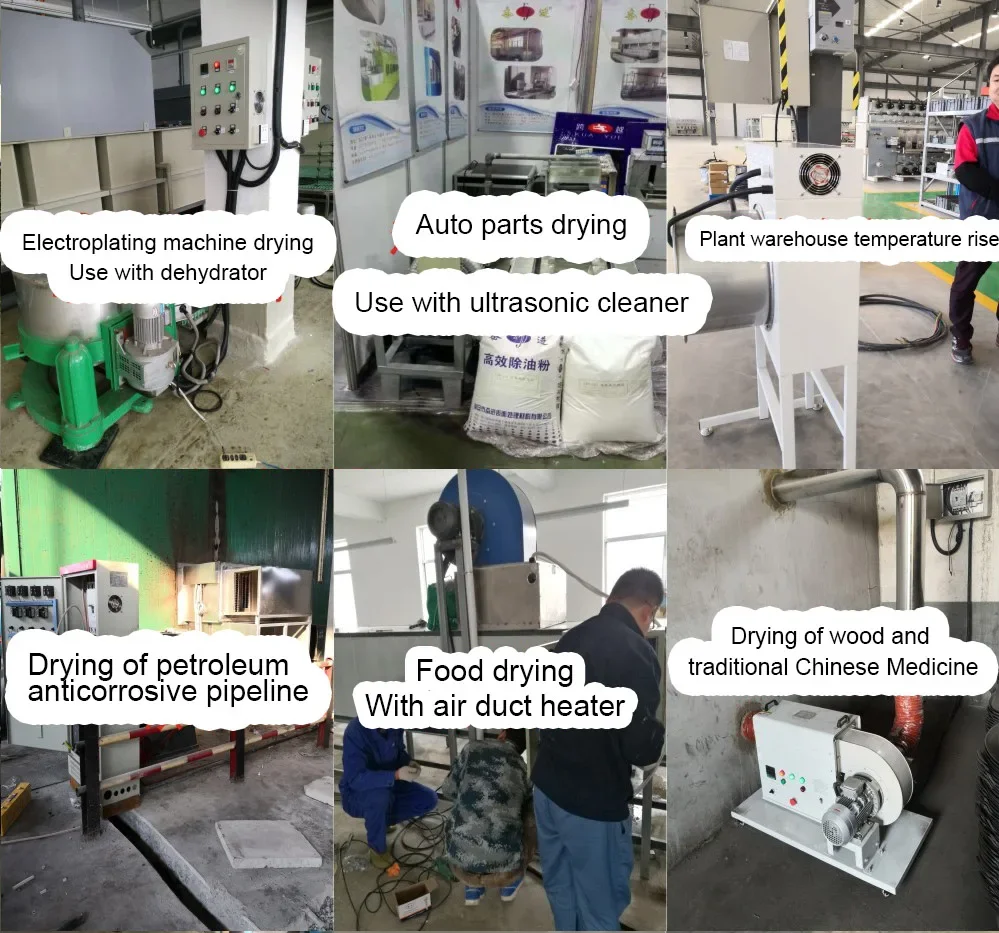

Widely used in: drying of agricultural products (such as sesame, tea withering, straw drying, etc.), food drying (noodles, sausages, peanuts, fruits and vegetables, etc.), drying of microbial raw materials, chemical fertilizer drying, special for thermal power plant, special for vibrating screen, down drying, supporting for drying room, paint drying, heating of metal pipe surface, sign heat shrinking, sleeve label shrinking, pipe Road deicing, water drying after galvanizing of steel plate, water drying after electroplating cleaning, glass film drying, paint drying on pencil, electroplated parts drying, stator winding drying, sand drying, granite drying, stone drying, screw rod drying, wood drying, sand mold, sand core drying, polyurethane curing, motor dehumidification, heat shrink tube, pipe drying, distribution room dehumidification, hot melt adhesive Heating, etc.
Product Paramenters
Small-scale | ||||||
Voltage | 220V 1ph (or 380V 3ph) | Max outlet temperature | 350℃ (reducing air volume) | |||
Heater power | 5KW/7.5KW/10KW | Max inlet temperature | 200℃ | |||
Fan power | 0.37KW | Max Airflow | 18m3/min | |||
Heater material | 2080 Nickel chromium wire | Maximum pressure | 754Pa | |||

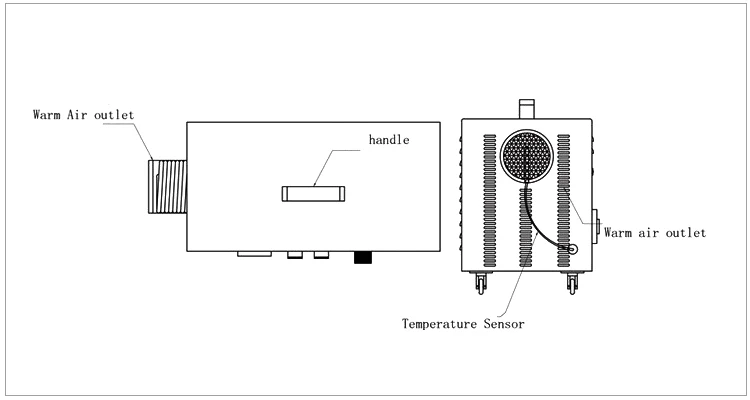

Environment temperature | 0~40 ℃ | Dimension | below attached picture | |||
Environment humidity | 60% R.H. | Net Weight | 35KG | |||
Note | If you want to change outlet diameter,please contact us,conventional 89mm | |||||
Medium-sized | ||||||
Voltage | 380V three phase | Max outlet temperature | 350℃ (reducing air volume) | |||
Heater power | 10KW/15KW | Max inlet temperature | 200℃ | |||
Fan power | 0.75KW | Max Airflow | 36m3/min | |||
Heater material | 2080 Nickel chromium wire | Maximum pressure | 937Pa | |||
Environment temperature | 0~40 ℃ | Dimension | below attached picture | |||
Environment humidity | 60% R.H. | Net Weight | 50KG | |||
Note | If you want to change outlet diameter,please contact us,conventional 89mm | |||||
Large-sized | ||||||
Voltage | 380V three phase | Max outlet temperature | 350℃ (reducing air volume) | |||
Heater power | 20KW/25KW/30KW/ | Max inlet temperature | 200℃ | |||
Fan power | 0.75KW | Max Airflow | 36m3/min | |||
Heater material | 2080 Nickel chromium wire | Maximum pressure | 937Pa | |||
Environment temperature | 0~40 ℃ | Dimension | below attached picture | |||
Environment humidity | 60% R.H. | Net Weight | 50KG | |||
Note | If you want to change outlet diameter,please contact us,conventional 89mm | |||||
Packaging and Delivery
Packaging
Brown box with shock-proof sponge. Custom package is available, but the price need to be negotiated.
Delivery
FCA shipping method. Generally most countries needs about 7-15 days, detailed shipping time will be according to the address and other force majeure factors.
Delivery
FCA shipping method. Generally most countries needs about 7-15 days, detailed shipping time will be according to the address and other force majeure factors.
About Bright
Company Profile

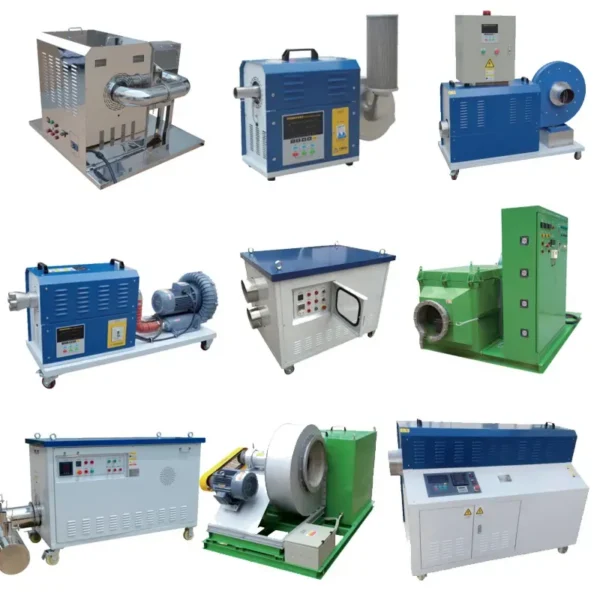

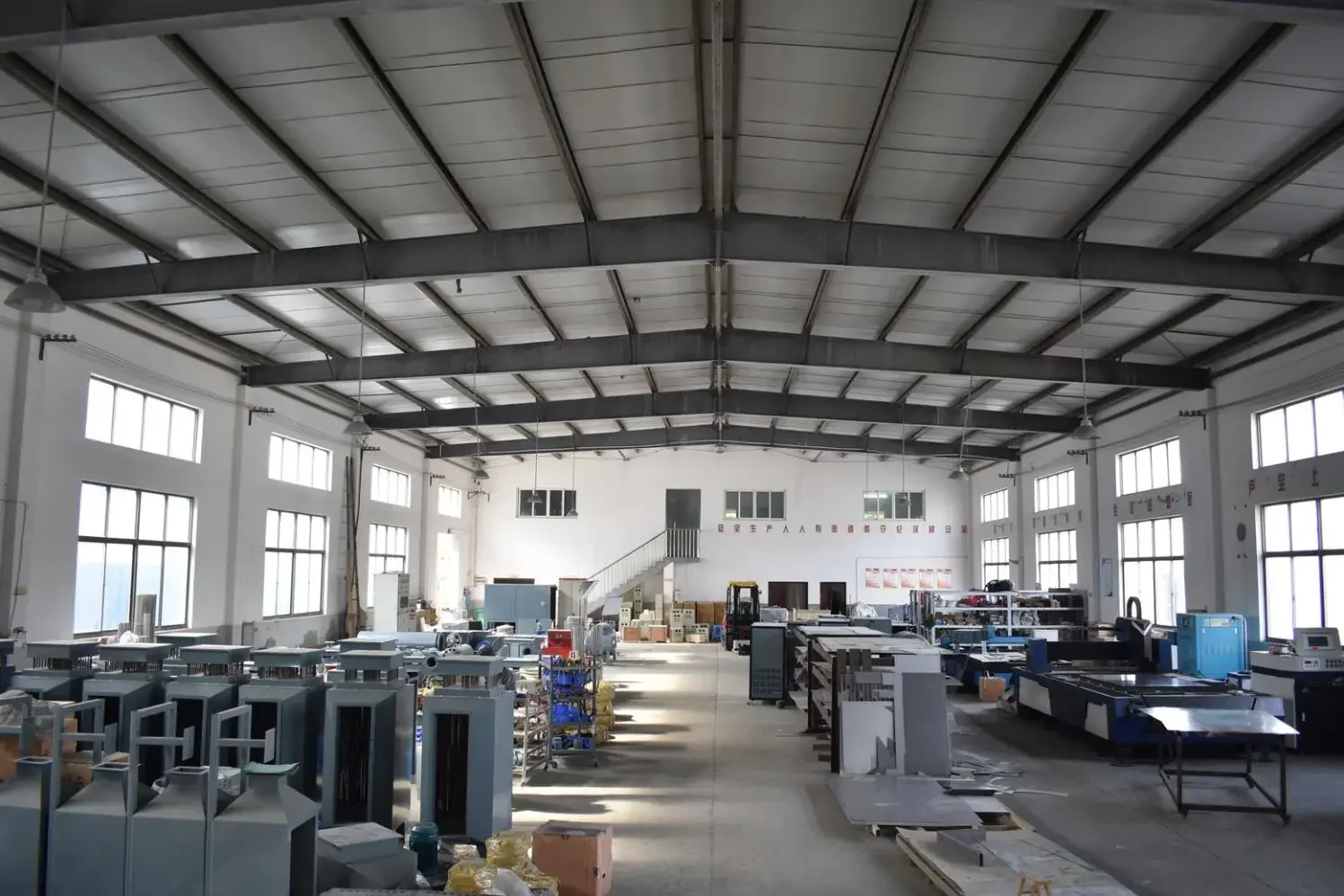

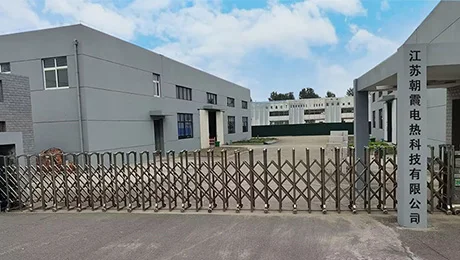

Jiangsu Bright Electric Heating Technology Co., Ltd.was founded in 1985, Which is a research, design, manufacture,installation and consulting services for the integration of the industrial manufacturing company.we have 28,000 ㎡ non-dust work shop,35 years manufacture and export experience.Near Shanghai port. Main products are environmentally friendly air duct heater,pipeline heater, and energy-saving heat-conducting oil heating equipment, water circulation constant temperature machines, hot air furnaces, vacuum calcination furnaces and other electric heating devices.
FAQ
Q: How long is your shipping time?
A: Generally it is 7-15 days if the goods are in stock. or it is 15-40 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Negotiation.
Q:Do you provide OEM/ODM services?
A:Yes, we provide, but need detailed specifications, and the price will be changed.
If you have other questions, please feel free to contact us.
A: Generally it is 7-15 days if the goods are in stock. or it is 15-40 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Negotiation.
Q:Do you provide OEM/ODM services?
A:Yes, we provide, but need detailed specifications, and the price will be changed.
If you have other questions, please feel free to contact us.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–4 piece: US $800 / piece
- 5+ piece: US $700 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air blower?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the air blower be supplied for my local voltage?
The standard configuration is 220V,380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Jiangsu Bright Electric Heating Technology Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Jiangsu Bright Electric Heating Technology Co., Ltd. range on HVACR Nexus.
