Key specification for this air blower: 220V/380V, power source Electric. Everything below is reproduced from the factory data sheet. Made by ZHEJIANG LARISSA MECHANICAL ELECTRIC TECHNOLOGY CO., LTD. (9 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Air Blower
- Power Source: Electric
- Voltage: 220V/380V
- Blade Material: Cast Iron
- Speed: 2800RPM
- Warranty: 1 Year
- Place Of Origin: Zhejiang, China
Technical Specifications
| Voltage | 220V/380V |
|---|---|
| Speed | 2800RPM |
| Type | Blower |
| Blade Material | Cast Iron |
| Mounting Type | Inflatable Blower |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Place Of Origin | Zhejiang, China |
| Brand Name | LAARISSA MOTOR |
| Product Name | Air Blower Centrifugal Fan For CO2 Laser Engraving Cutting Machine |
| Frequency | 50HZ |
| Pressure | 1700Pa |
| Color | grey or Customized |
| Usage | Inflatable exhaust gas |
| Noise | 85dB |

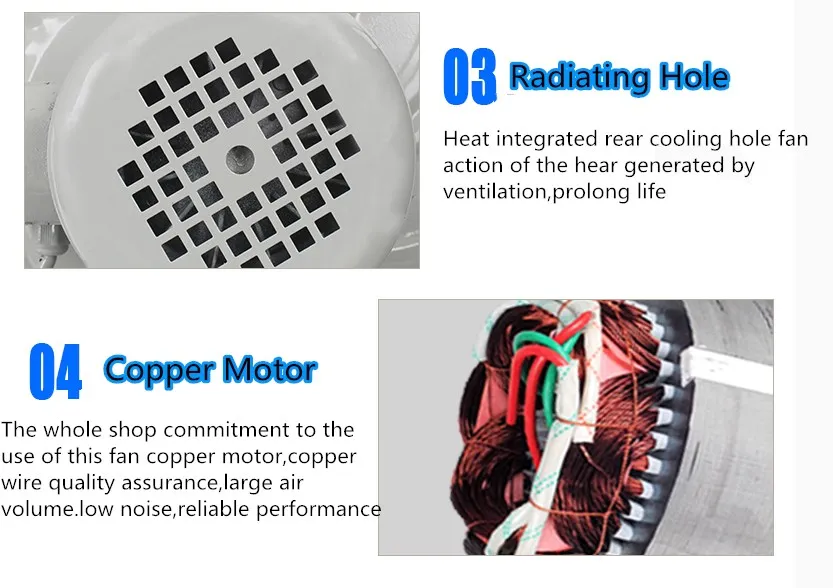

| Motor | 100% Copper Wire |
| Application | Exhaust Ventilation |
| Function | Exhaust Air |
| Selling Units | Single item |
| Single Package Size | 41X30X47 cm |
| Single Gross Weight | 9.8 kg |
Product Details

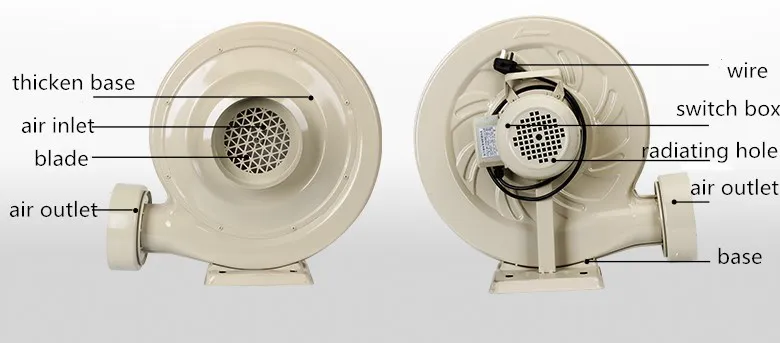

Medium Pressure Inflatable Air Blower
Technical Parameters
| Item No. | Power(KW) | Voltage(V) | Speed(r/min) | Air Flow(m³/h) | Pressure(Pa) | Noise(dB) |
| CZR-65 | 0.18 | 220/380 | 2800 | 360 | 1100 | 66 |
| CZR-70 | 0.25 | 220/380 | 2800 | 420 | 1300 | 68 |
| CZR-75 | 0.37 | 220/380 | 2800 | 660 | 1500 | 80 |
| CZR-80 | 0.55 | 220/380 | 2800 | 1080 | 1700 | 85 |
| CZR-100 | 0.75 | 220/380 | 2800 | 1140 | 1800 | 87 |
| CZR-100 | 1.1 | 220/380 | 2800 | 1200 | 1900 | 88
|
CZR Series Inflatable fan blower is a Intermediate pressure blast blower with the single-phase Capacitr-start motor,CZT Series is a Intermediate pressure blast blower with three-phase AC enclosed asynchronous motor.The low noise strong force intermediate pressure blast blower is characterized with the merits of low noise,rich wind,high wind pressure,small body,light weight and easy for installation and operation.
Application
It is widely used in various places for conduit wind conveying,conveying of low density service media.It is the first selection matching product for plastic machinery,printing machinery,textile machinery,cooking machinery,diesel machinery,diesel gasification oven and Inflatable air mold.
· Customizing the fans according to customers' requirements.
· Delivery time for sample order: 1-5 days, for pallets order 7-20 days after receiving clear payment
· Warranty: 1 year for repairing or replacment of fans, customs duty & freight not included
Ordering and Pricing
- Minimum order quantity: 2 set
- Volume pricing:
- 2–49 set: US $35 / set
- 50–199 set: US $33.25 / set
- 200+ set: US $30.8 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air blower?
The standard minimum order quantity is 2 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the air blower be supplied for my local voltage?
The standard configuration is 220V/380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
