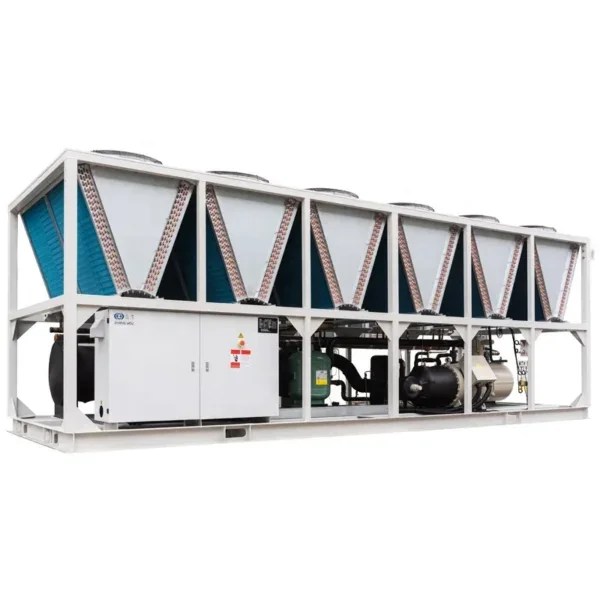

This air chiller is published with the manufacturer’s full specification — voltage 380~480V/3N/50~60Hz, 360 Kw / 102 Tons. Made by Shanghai Feizhong Refrigeration Equipment Co., Ltd. (4 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Air Chiller
- Model Number: LSBF360
- Power: 96.5 KW
- Voltage: 380~480V/3N/50~60Hz
- Cooling Capacity: 360 Kw / 102 Tons
- Capacity Control: 0-25%-50%-75%-100%
- Refrigerant: R-404A, R134a, R407C
Technical Specifications
| Voltage | 380~480V/3N/50~60Hz |
|---|---|
| Power | 96.5 KW |
| Refrigerant | R-404A, R134a, R407C |
| Compressor Brand | Hanbell |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Eco-Friendly, Automatic, High-Accuracy, Easy To Operate, Competitive Price |

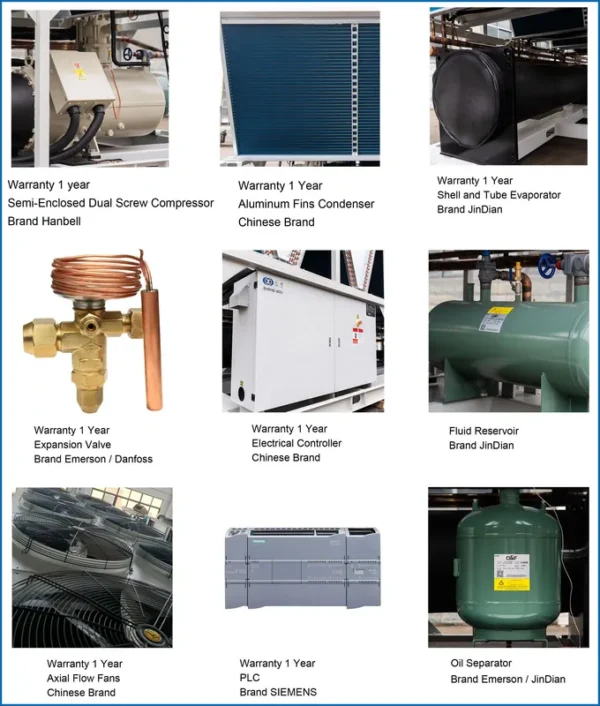

| Core Components | PLC, Compressor, Condenser, Evaporator |
| Model Number | LSBF360 |
| Place Of Origin | Shanghai, China |
| Weight (Kg) | 3100 |
| Brand Name | ZHONGYOU |
| Dimension(L*W*H) | 3200*2000*2300mm |
| Working Temperature Range | 3~35℃ |
| After Sales Service & Warranty | Remote Guidance Free Cost & 1 Year Core Components |
| Cooling Capacity | 360 Kw / 102 Tons |
| Compressor Type | Semi Hermetic Screw Type |
| Brand Of Expansion Valve | Emerson & Danfoss |
| Brand Of Solenoid Valve | Emerson |
| Evaporator Type | Shell and Tube |
| Condenser Type | Copper Pipe Inserting Aluminum Fins |
| Remote Control(RS485) | Yes |
| Capacity Control | 0-25%-50%-75%-100% |
| Selling Units | Single item |
| Single Package Size | 100X90X100 cm |
| Single Gross Weight | 68.0 kg |
Product Details
● We offer free cost of core components for your replacement if the machines broken within 1 year.
Data Sheet | ||||||
Item No. | – | LSBF360 | ||||
Cooling Capacity | Ton | 102 | ||||
Kw | 360 | |||||
Kcal | 310000 | |||||
Control | – | PLC | ||||
Power Supply | – | ～380V/3N-/50Hz | ||||
Power | Kw | 120.0 | ||||
Curent | A | 192.2 | ||||

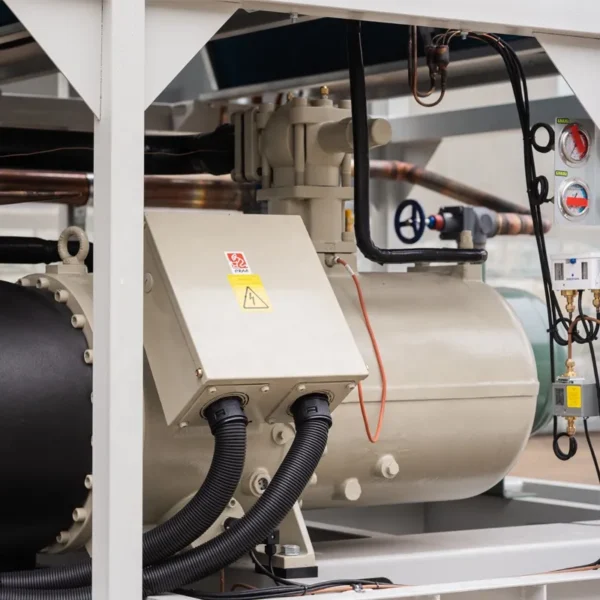

Compressor | Type | – | Semi Hermetic Dual Screw Compressor | |||
Energy Regulation | – | 0-25%-50%-75%-100% | ||||
Quantity | – | 1 | ||||
Start Type | – | Y-△ Start | ||||
Power | Kw | 96.5 | ||||
Current | A | 162.2 | ||||
Evaporator | Water Flow | m³/h | 62.0 | |||
Dia. of Water Pipe Port | DN | DN125 | ||||
Water Drop Pressure | Kpa | 70 | ||||

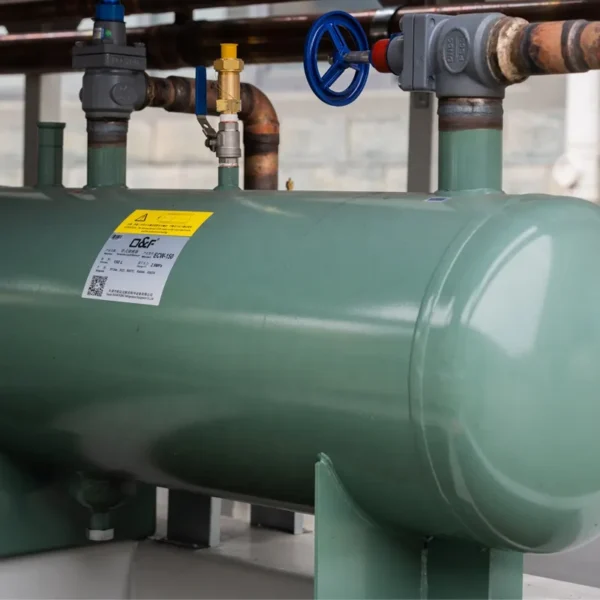

Type | – | Horizontal Shell and Tube Dry Evaporator | ||||
Condenser | Type | – | Copper Pipe Inserts Aluminum Fins Type | |||
Air Flow | m³/h | 180000 | ||||
Axial Fan | Quantity | Units | 8 | |||
Power | Kw | 1.5 | ||||
Refrigerant | Type | – | R22/R407c/R404a/R134a | |||
Throttling | – | Thermal Expansion Valve | ||||
Dimension | mm | 4210*2000*2480 | ||||
Net Weight | Kg | 3950 | ||||
Step 1: Both parties finalize products specifications in the sales contract Step 2: Buyers make deposit 50%
Step 3: Sellers start the production since the 50% deposit received
Step 4: Buyers pay the remaining 50% when the products are ready to ship
Step 5: Sellers make the shipment after the remaining 50% received
Step 6: Sellers provide documents for buyer's custom clearance
2. Are you a factory or trading company?
We are factory supplier focusing on humidity control for 10+ years.
3. Do you accept small orders?
Yes we do. A small order is accepted to get more orders in the future.
4. What factors should I provide so you can recommend me suitable items?
Please tell us the supplying area size (length*width*height), and the RH you need. We will study and suggest you the right model.
5. Do you accept OEM or ODM?
Yes, both accepted.
6. What about payment?
Payment Method: T/T, L/C, PayPal, Western etc.
50% deposit, the remaining 50% before shipment made.
7. How to guarantee the quality of your products?
Good quality control and test strictly before shipment.
8. Why buy from us instead of other suppliers?
We have not only 15+ years experiences in the manufacturing and development of dehumidifiers and air conditioners, but also experienced professional technicians and senior engineers who focuses on research and development.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1+ piece: US $23818 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air chiller?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the air chiller be supplied for my local voltage?
The standard configuration is 380~480V/3N/50~60Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shanghai Feizhong Refrigeration Equipment Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shanghai Feizhong Refrigeration Equipment Co., Ltd. range on HVACR Nexus.
