This cooled screw water chiller is published with the manufacturer’s full specification — voltage 3phase-380v-50hz, 80kw. Made by Jinan Mgreenbelt Machinery Co., Ltd. (9 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Cooled Screw Water Chiller
- Power: 80kw
- Voltage: 3phase-380v-50hz
- Water Tank Capacity: 3000L
- Refrigerant: R134a/R407c/R410a
- Warranty: 1 Year
- After Warranty Service: Online Technical Support
Technical Specifications
| Voltage | 3phase-380v-50hz |
|---|---|
| Power | 80kw |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Competitive Price |
| Core Components | PLC, Motor, Gear, Pump |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 500 |
| Brand Name | Mgreenbelt |
| Dimension(L*W*H) | 4050*1950*2000mm |
| Working Temperature Range | 7-20℃ |
| Compressor | Scroll Compressor |
| Heat Exchanger | Shell-and-tube Heat-exchanger |
| Application | Industrial Cooling Solutions |
| Refrigerant | R134a/R407c/R410a |
| Condenser | High Efficient Finned Copper Tube |
| Evaporator | Shell Tube Type(failing Film) |
| Water Tank Capacity | 3000L |
| Input Voltgae | 3phase-380v-50hz |
| After Warranty Service | Online Technical Support |
| Water Temperature | 3-42 Degree Adjustable |
| Selling Units | Single item |
| Single Package Size | 3X4X5 cm |
| Single Gross Weight | 30.0 kg |
Product Details
PRODUCT OVERVIEW

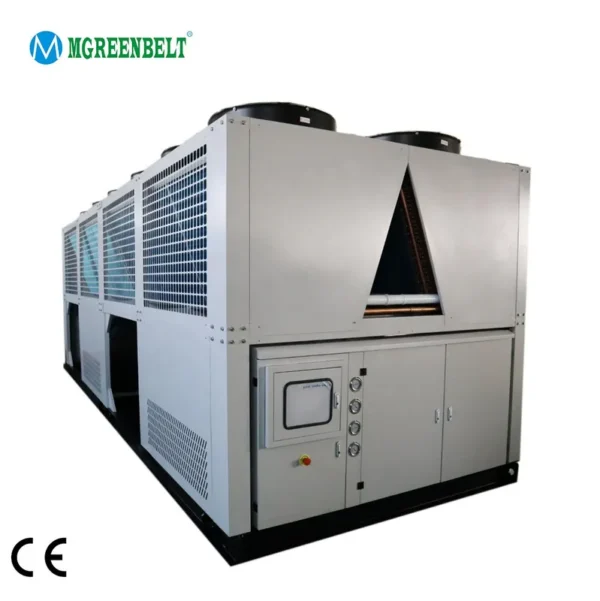

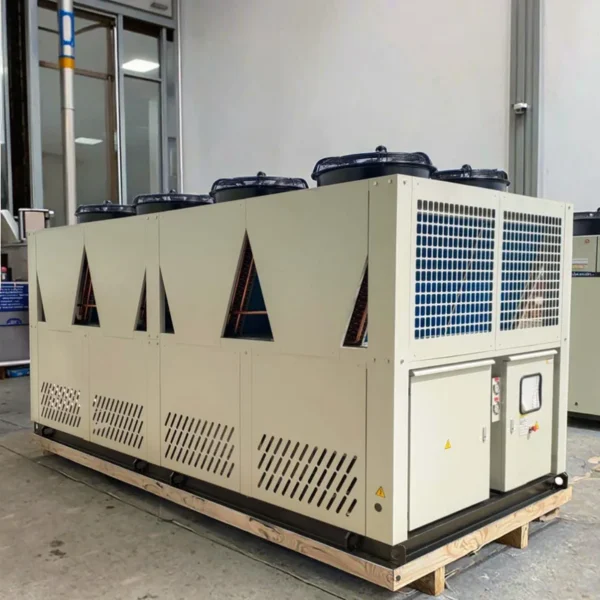

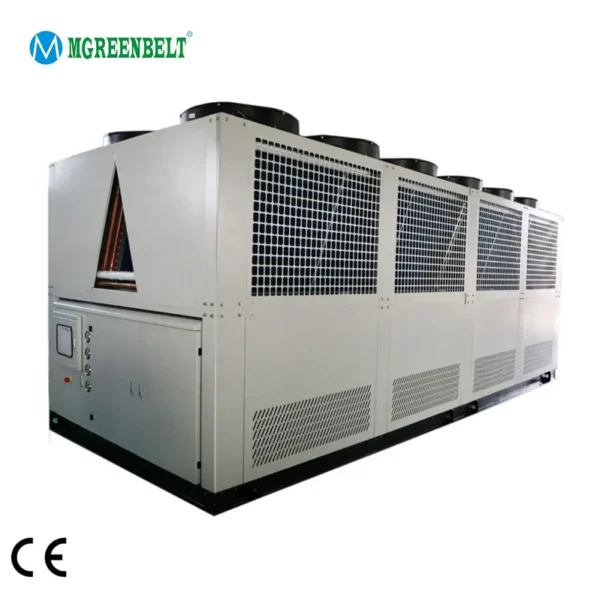

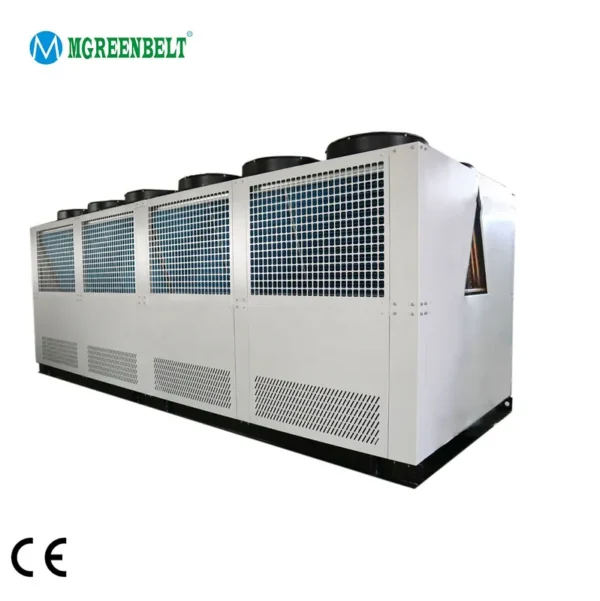

MGREENBELT Air Cooled Chiller Description:

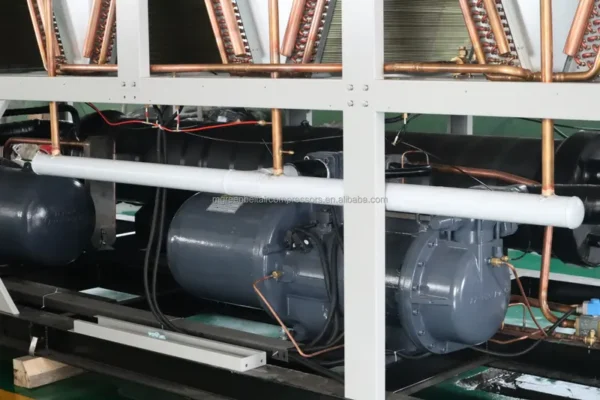

1).Brand and durable Screw type compressor: Hanbell, Bitzer
2).Shell and tube evaporator support different working circuit.
3). High efficient V type condenser: Screw copper tube covered aluminum fins

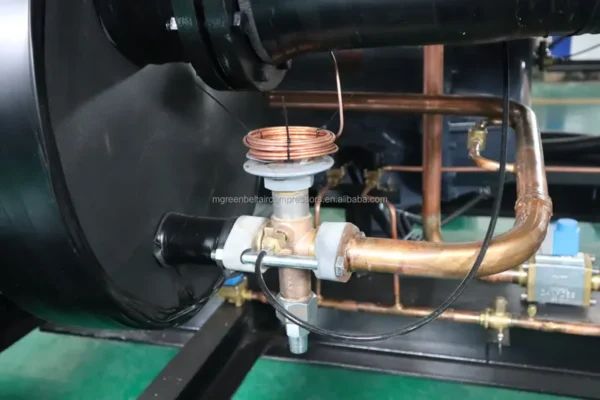

4). Expansion valve: Emerson, Danfoss
5) .Iron and stainless steel pump for different option
6). Buffer tank installed inside chiller optional
7). Inbuilt iron or stainless steel circulation water pump
8). Muti-protection devices: Compressor inner protection, Over current protection, High/low pressure protection, Over temperature protection, Flow switch,Phase sequence/phase missing protection, Low coolant level protection, Anti freezing protection, Exhaust overheat protection
2).Shell and tube evaporator support different working circuit.
3). High efficient V type condenser: Screw copper tube covered aluminum fins
4). Expansion valve: Emerson, Danfoss
5) .Iron and stainless steel pump for different option
6). Buffer tank installed inside chiller optional
7). Inbuilt iron or stainless steel circulation water pump
8). Muti-protection devices: Compressor inner protection, Over current protection, High/low pressure protection, Over temperature protection, Flow switch,Phase sequence/phase missing protection, Low coolant level protection, Anti freezing protection, Exhaust overheat protection
Specification
Model | MG-80C | MG-110C | MG-155C | MG-200C | MG-260C | MG-300C | MG-420CF | ||||||||
Cooling capacity | Kcal/h | 67940 | 93740 | 206131580 | 177160 | 220160 | 264020 | 364640 | |||||||
kw | 79 | 109 | 153 | 15355.3 | 256 | 307 | 424 | ||||||||
Power input | 3PH-380V-50HZ | ||||||||||||||
Refrigerant | Type | R22/R407C | |||||||||||||
Control | Thermostatic expansion valve | ||||||||||||||
Compressor | Type | Semi-Closed screw chiller | |||||||||||||
Power（kw） | 28 | 37 | 51 | 66 | 79 | 94 | 127 | ||||||||
Evaporator | Type | High efficiency copper tube shell and tube type | |||||||||||||
Water flow m³/h | 14 | 19 | 26 | 35 | 44 | 53 | 73 | ||||||||
Inlet/Outlet | DN65 | DN65 | DN80 | DN80 | DN80 | DN80 | DN100 | ||||||||
Condenser | Type | High efficiency hydrophilic aluminum foll finned type | |||||||||||||
Flow（m3/h) | 30000 | 40000 | 60000 | 80000 | 100000 | 120000 | 160000 | ||||||||
Protection System | Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | ||||||||||||||
Dimension | L mm | 2720 | 2450 | 3250 | 4050 | 4050 | 4950 | 4680 | |||||||
W mm | 1120 | 1400 | 1950 | 1950 | 1950 | 1950 | 2250 | ||||||||
H mm | 1800 | 2100 | 2000 | 2000 | 2100 | 2100 | 2460 | ||||||||
Wight | kg | 1800 | 1900 | 2480 | 3000 | 3100 | 3600 | 5000 | |||||||
Details
Company Profile
Established in 2003, MGREENBELT Specialized in manufacture chiller and chiller system including:
air chiller, water chiller, industrial chiller, oil chiller, glycol chiller, process chiller, screw chiller, mold temperature
controller, cold room project for over 20 years experience.
MGREENBELT promise offers the best chiller&chiller system solution with competitive price to clients worldwide.
11605 Square meters factory area;
Within over 1000 chiller units produce every year, we thrive on providing high-quality water chiller;
20 Years Refrigeration experience, and 13 years industrial chiller manufacture experience.
MGREENBELT is one of the top brand with a goods reputation in China market since 2003.
We have a strong and united engineering team with rich work experience in industrial chiller filed;
Chillers manufactured from MGREENBELT are installed over 100 countries worldwide.
air chiller, water chiller, industrial chiller, oil chiller, glycol chiller, process chiller, screw chiller, mold temperature
controller, cold room project for over 20 years experience.
MGREENBELT promise offers the best chiller&chiller system solution with competitive price to clients worldwide.
11605 Square meters factory area;
Within over 1000 chiller units produce every year, we thrive on providing high-quality water chiller;
20 Years Refrigeration experience, and 13 years industrial chiller manufacture experience.
MGREENBELT is one of the top brand with a goods reputation in China market since 2003.
We have a strong and united engineering team with rich work experience in industrial chiller filed;
Chillers manufactured from MGREENBELT are installed over 100 countries worldwide.
Packing & Delivery
PACKAGE:
LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
FCL: If the equipment enough package with 20"or 40" container ,will use plastic foam package and wooden pallet.
SHIPPING TERMS:
1. We can arrange the shipping by sea, by air ,by truck and train based on your requirements, but kindly remind the refrigerant
gas can't allowed by air ,so you must filling them when machine arrive if you choose the air ship.
2. FOB,CFR,CIF,DDU can be accepted.
3. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
FCL: If the equipment enough package with 20"or 40" container ,will use plastic foam package and wooden pallet.
SHIPPING TERMS:
1. We can arrange the shipping by sea, by air ,by truck and train based on your requirements, but kindly remind the refrigerant
gas can't allowed by air ,so you must filling them when machine arrive if you choose the air ship.
2. FOB,CFR,CIF,DDU can be accepted.
3. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
Our service
Technical service
1, We calculate the capacity and recommend the best models.
2, We design and develop the new products according to your requirement besides our standard products
3, We supply you the professional refrigeration technical support and electronic technical support for your installation,
debugging and operation.
4, We supply the spare parts and technical support in & after the warranty time.
5, We supply the training course to your workers at our factory if you need.
After sale service
1. One-Year guarantee for whole unit and all parts free
2. Life time maintenance
3. Machines have to be strictly adjusted before delivery and deliver with firm & reliable packing and transportation.
4. Supply the professional refrigeration technical support and electronic technical support for your installation, debugging,
operation and maintenance.
5. Supply free training course to your workers at our factory if you need.
6. Supply the spare parts and technical support in & after the warranty time.
7. Spare parts and technical support at most economic prices after the warranty.
8. 24 hours on line service each day by telephone.
1, We calculate the capacity and recommend the best models.
2, We design and develop the new products according to your requirement besides our standard products
3, We supply you the professional refrigeration technical support and electronic technical support for your installation,
debugging and operation.
4, We supply the spare parts and technical support in & after the warranty time.
5, We supply the training course to your workers at our factory if you need.
After sale service
1. One-Year guarantee for whole unit and all parts free
2. Life time maintenance
3. Machines have to be strictly adjusted before delivery and deliver with firm & reliable packing and transportation.
4. Supply the professional refrigeration technical support and electronic technical support for your installation, debugging,
operation and maintenance.
5. Supply free training course to your workers at our factory if you need.
6. Supply the spare parts and technical support in & after the warranty time.
7. Spare parts and technical support at most economic prices after the warranty.
8. 24 hours on line service each day by telephone.
Why Choose Us
Recommend Products
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–2 set: US $3699 / set
- 3+ set: US $2899 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooled screw water chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cooled screw water chiller be supplied for my local voltage?
The standard configuration is 3phase-380v-50hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
